ABS Plastic Multipurpose Enclosures w/ Card Guides · 1591 Series

Key Features

• ■Ideally suited for vertical mounting of printed circuit boards.

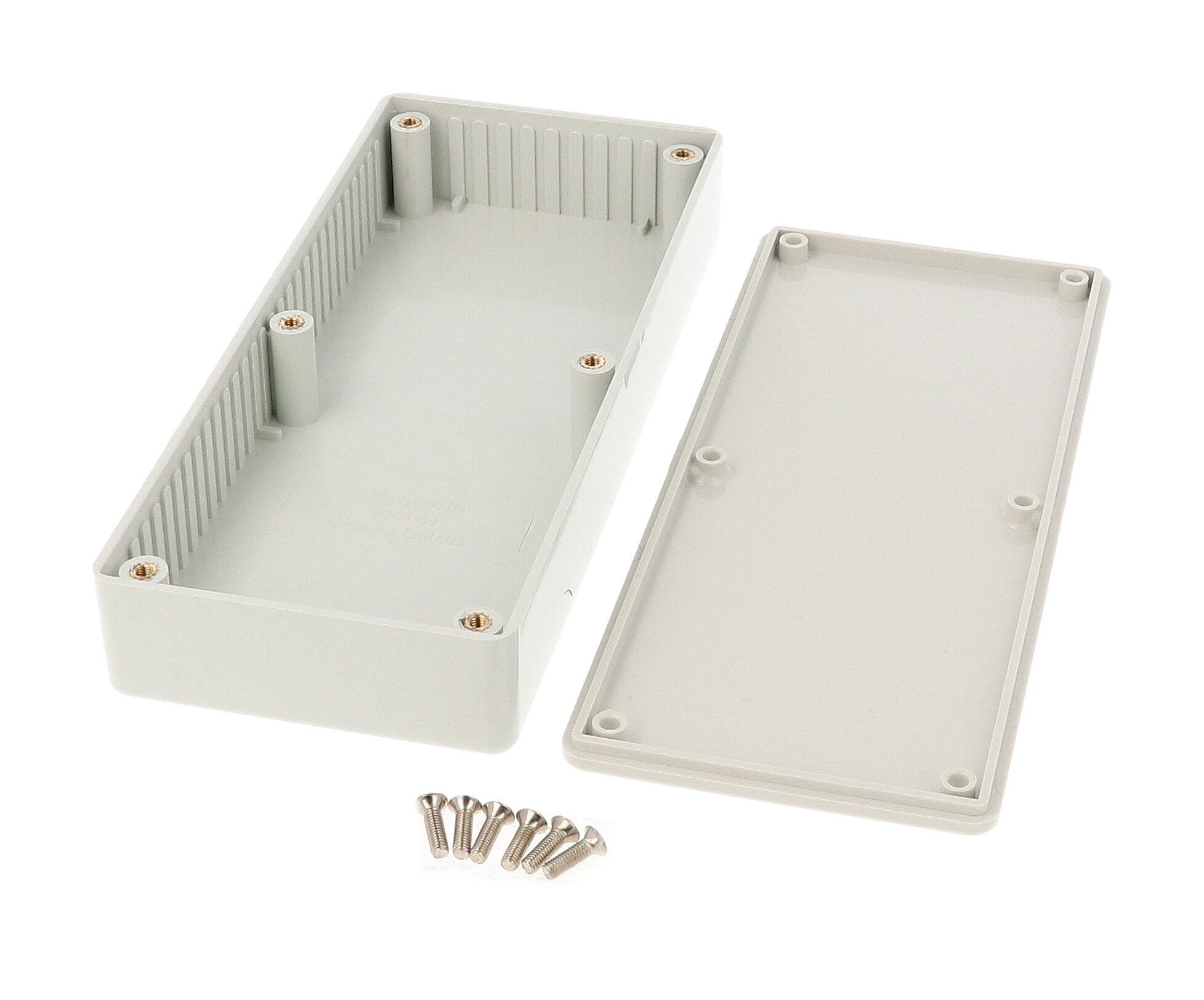

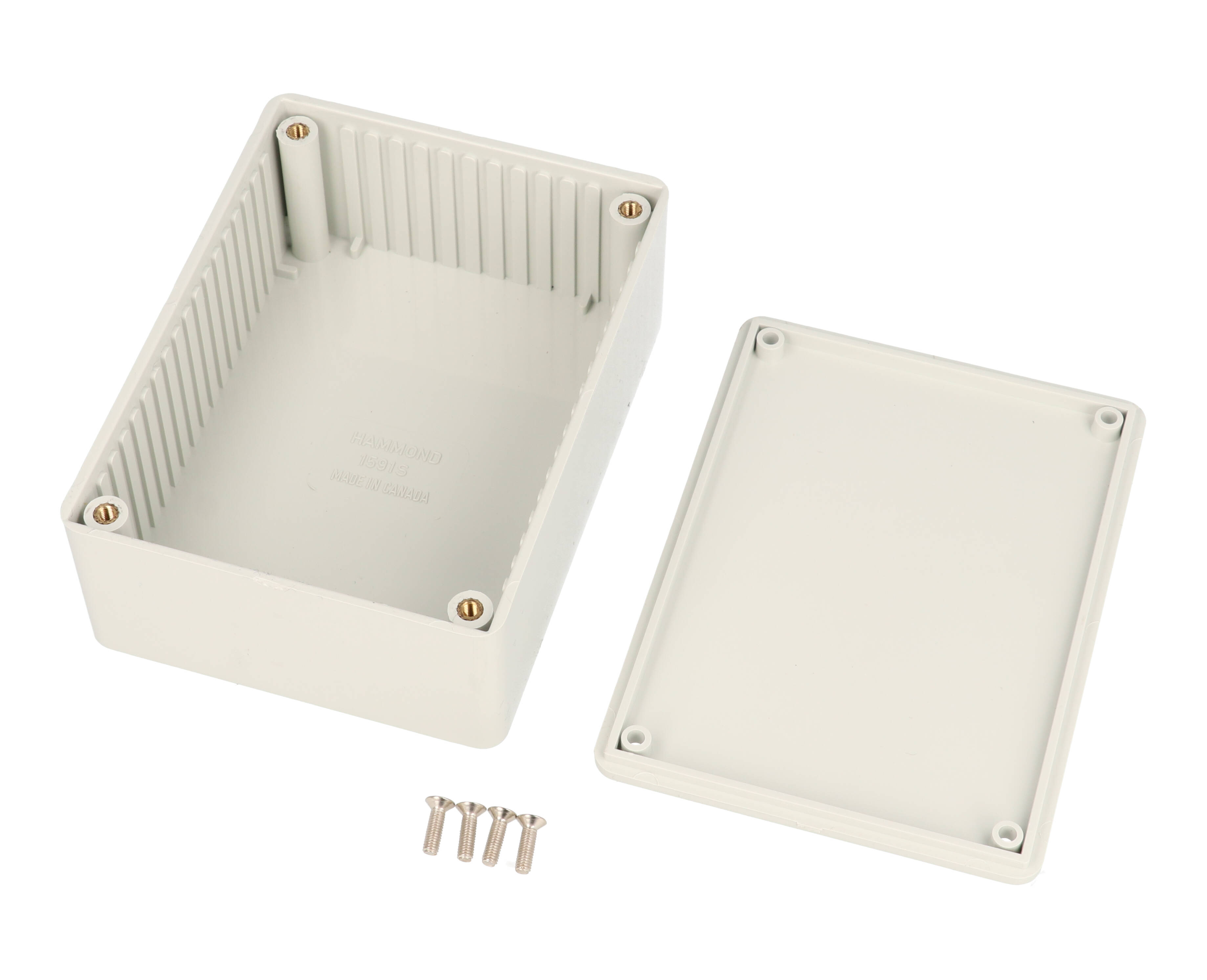

• ■Card guides are molded into all side walls and accept 1.5 mm (0.062”) thick boards.
• ■Lap joint construction provides protection against access of dust and splashing water.
• ■Designed to meet IP54.
• ■Standard versions are molded from easy-to-machine flame retardant ABS plastic which carries a UL flammability rating of UL94 V-0.
• ■Economy versions are molded from general purpose plastic and are not flame retardant.
• ■On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
• ■Economy versions are assembled with self-tapping screws into fully plastic posts.
• ■Black enclosures include black screws, while light gray enclosures include standard nickel finish screws.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
• ■If EMI/ RFI Shielding is required, try series 1591R.
• ■If card guides are not required or horizontal mounting of printed circuit boards is preferred, try series 1591XX.
• ■For transparent polycarbonate versions, try series 1591T .

Photo Features

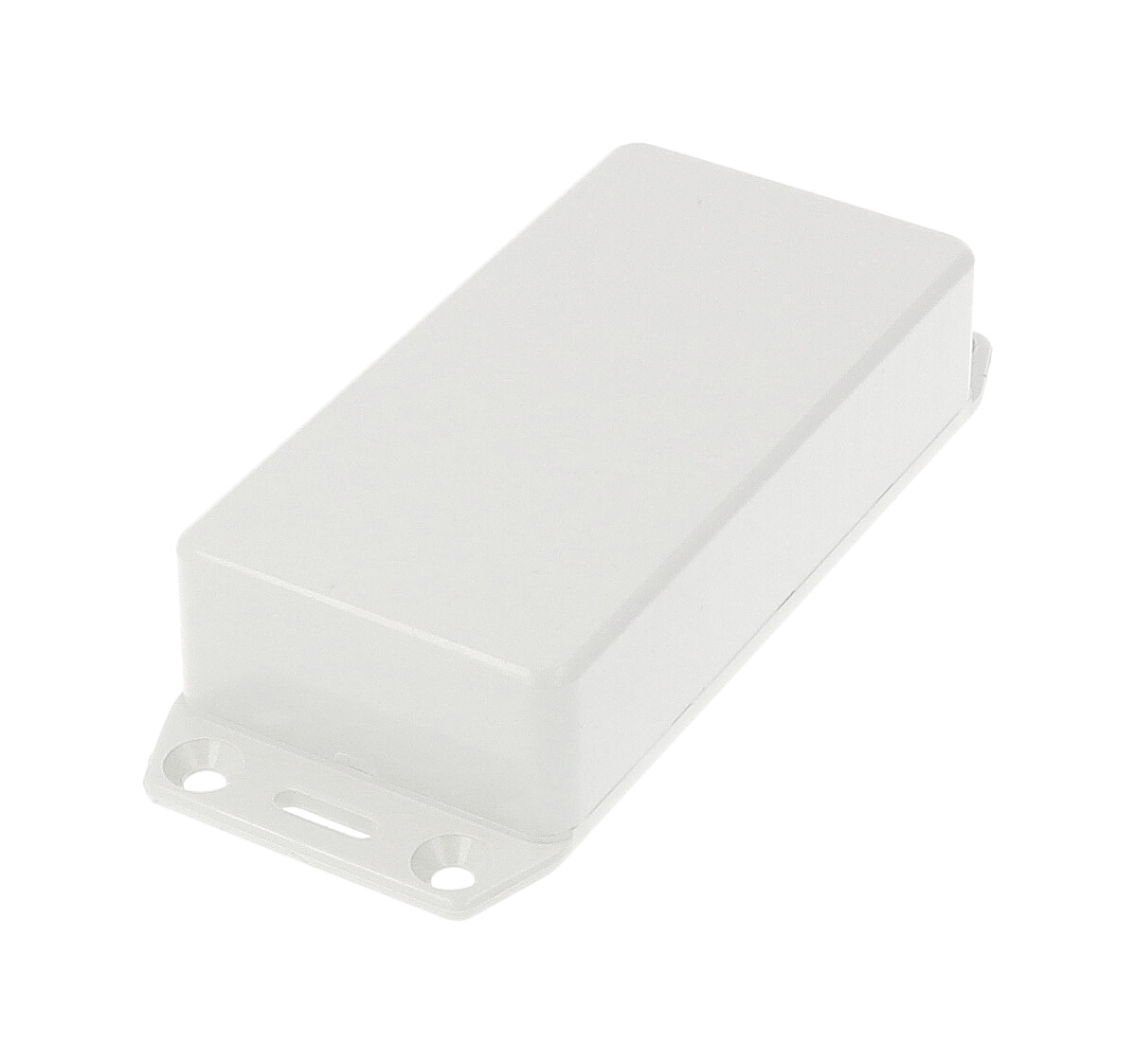

1591 Series enclosures are available in two colors.

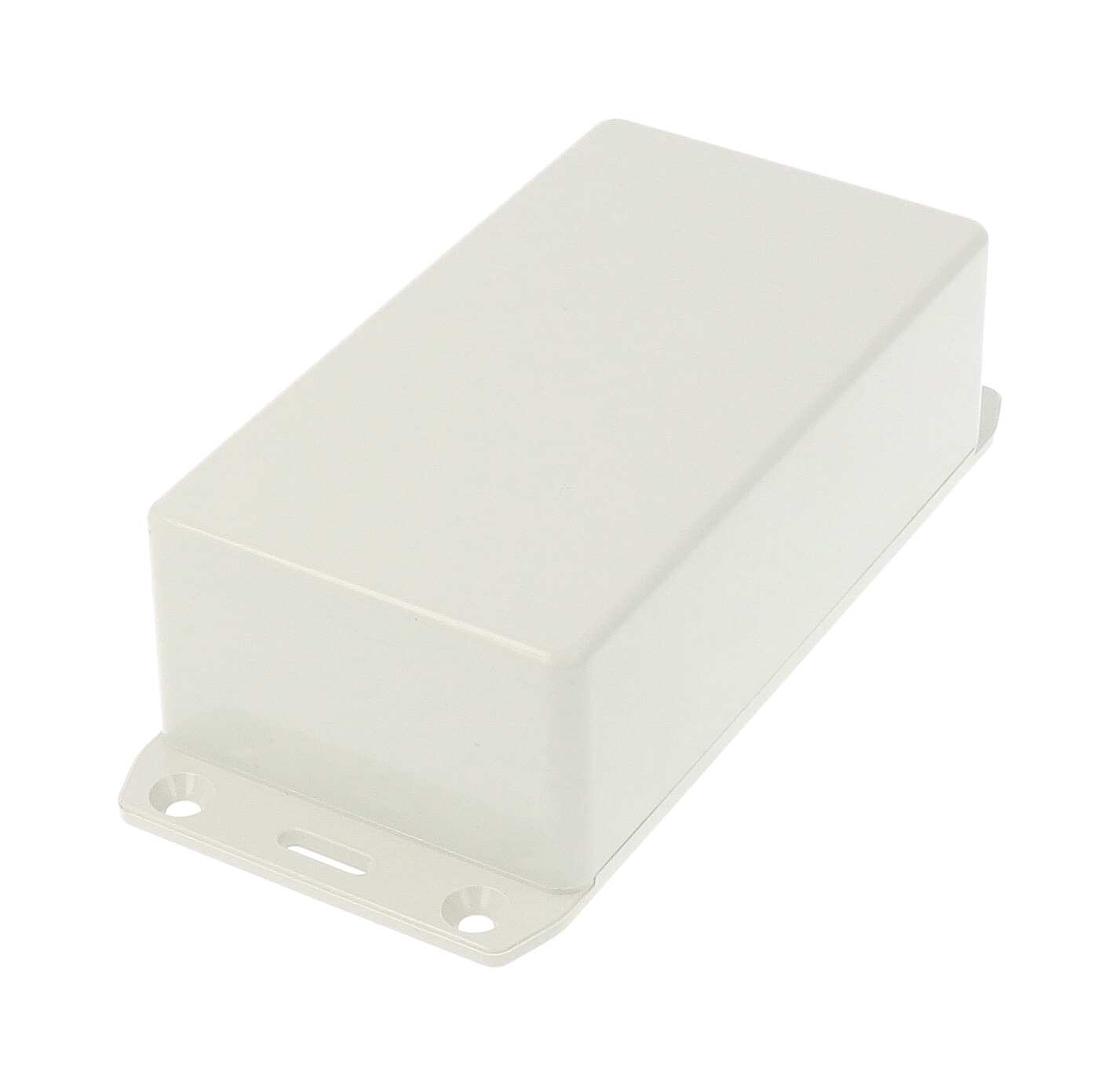

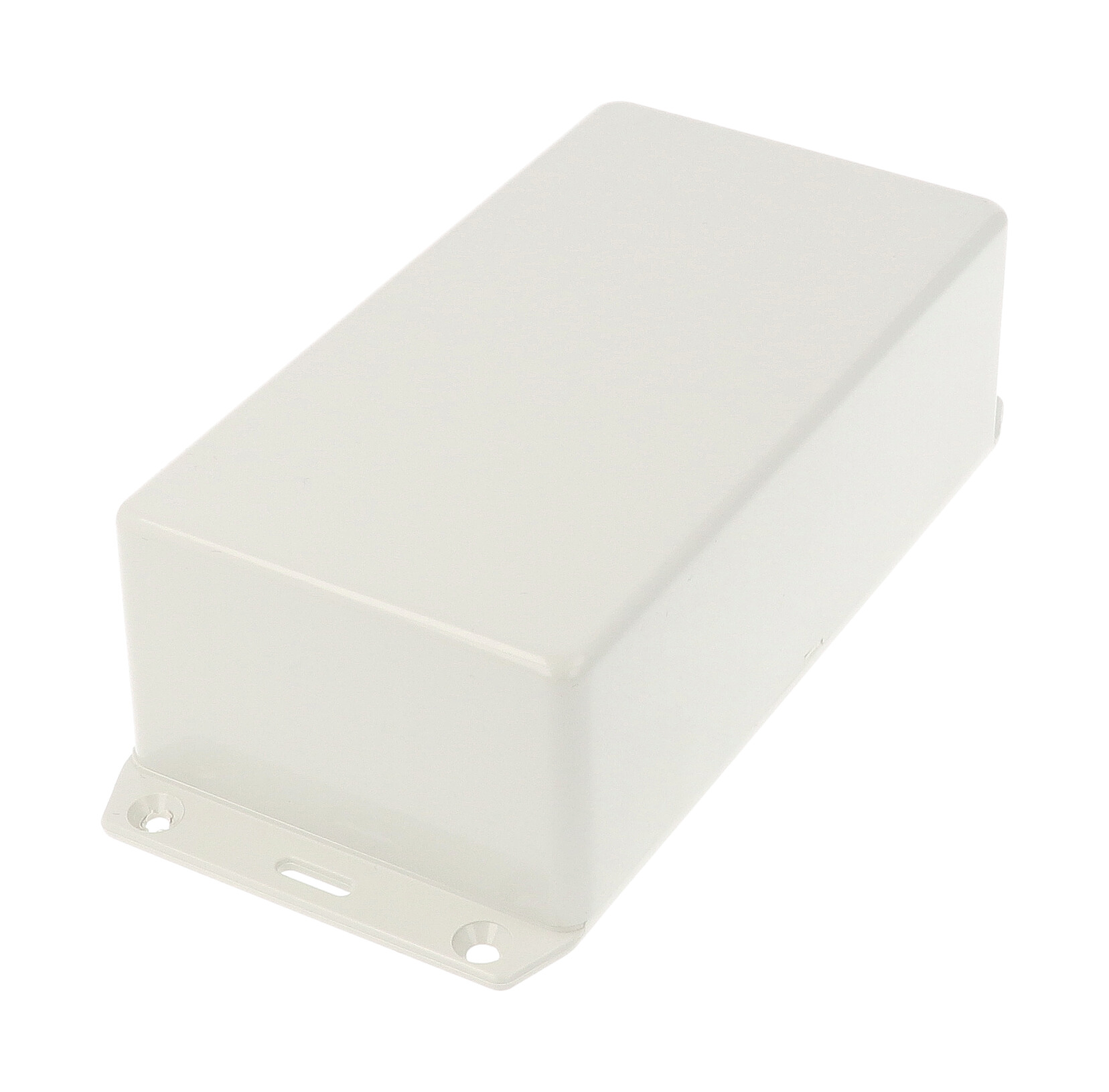

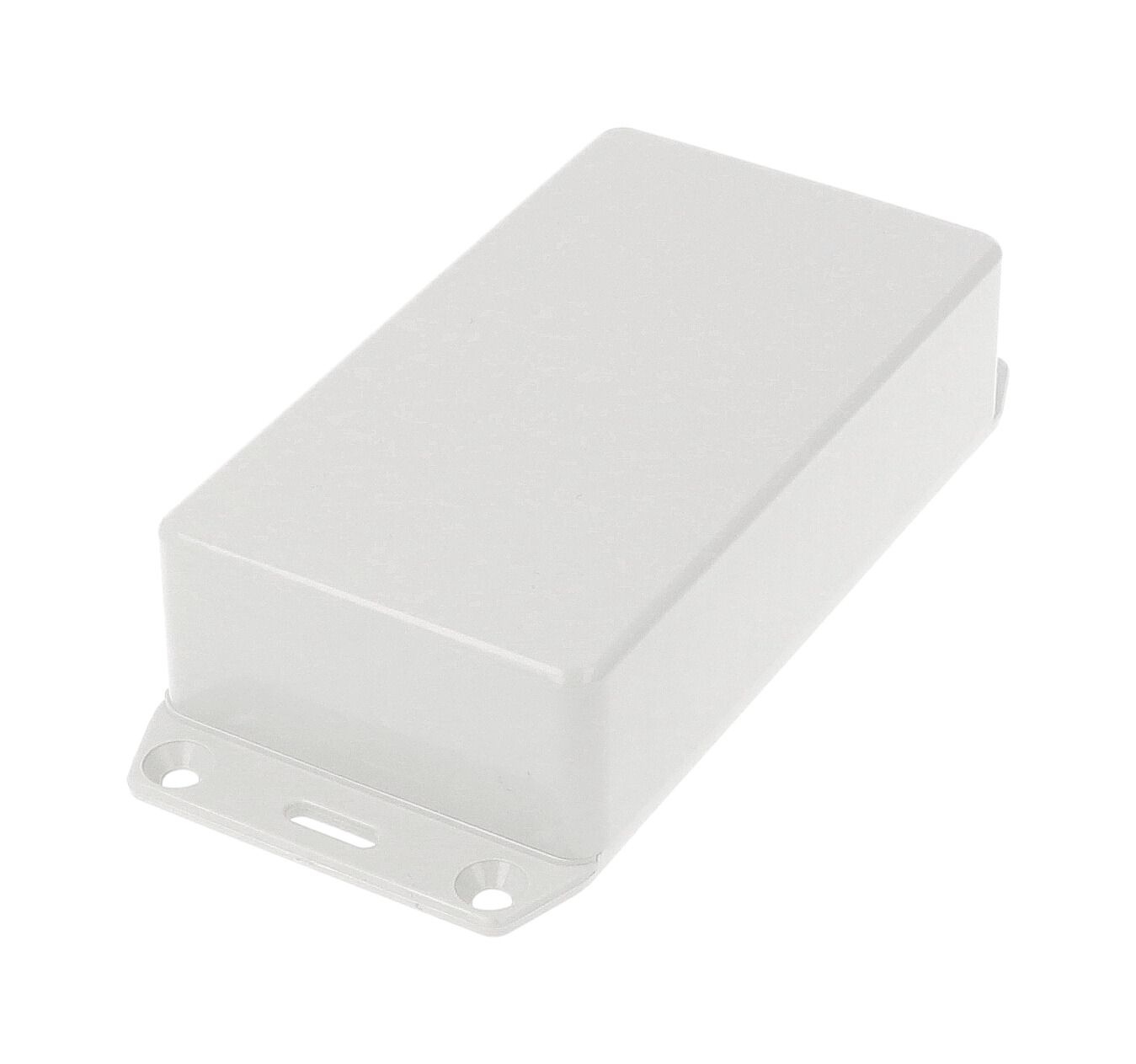

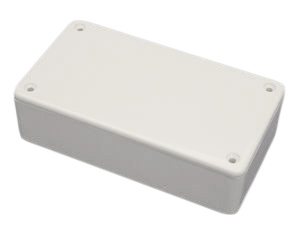

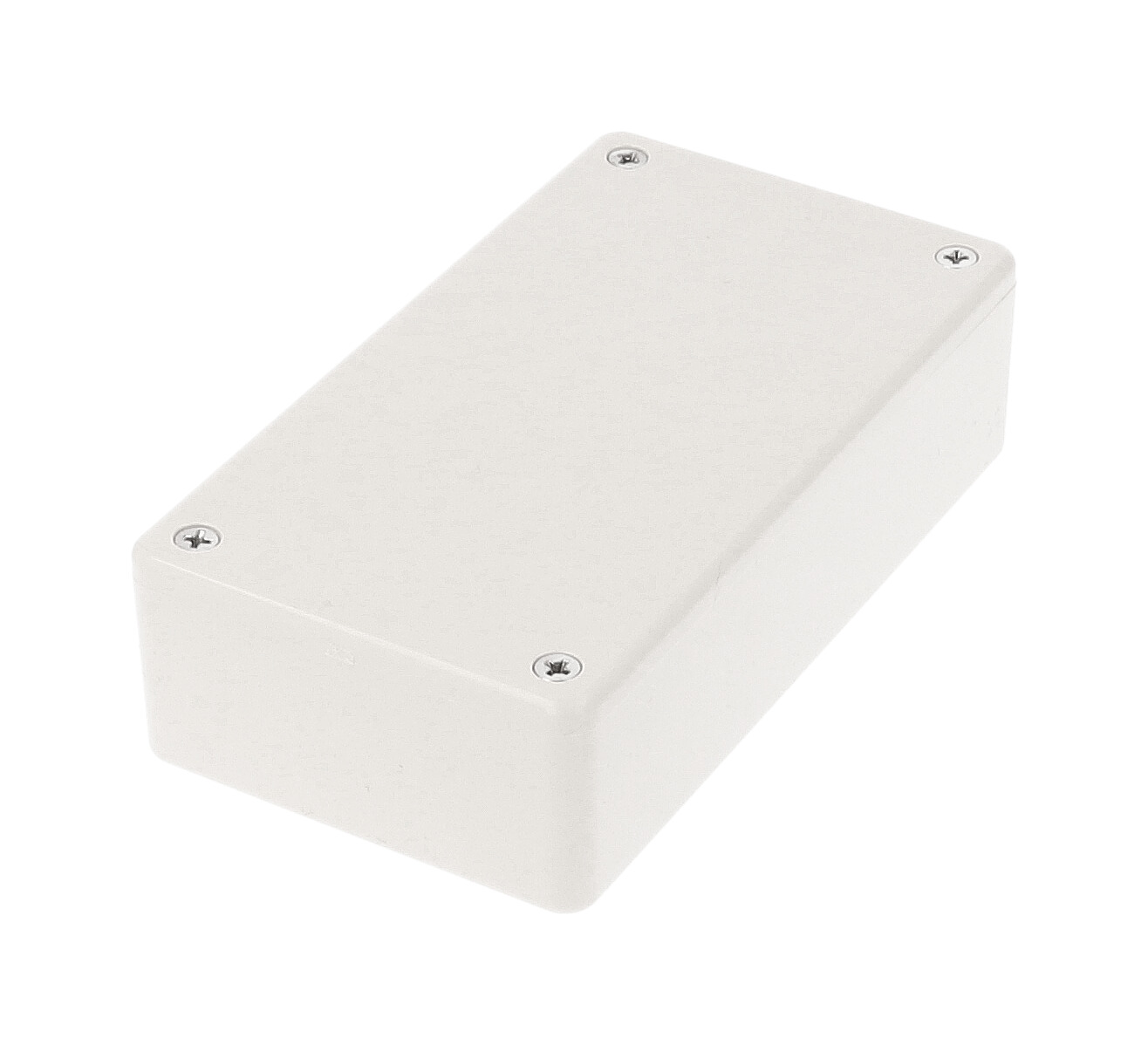

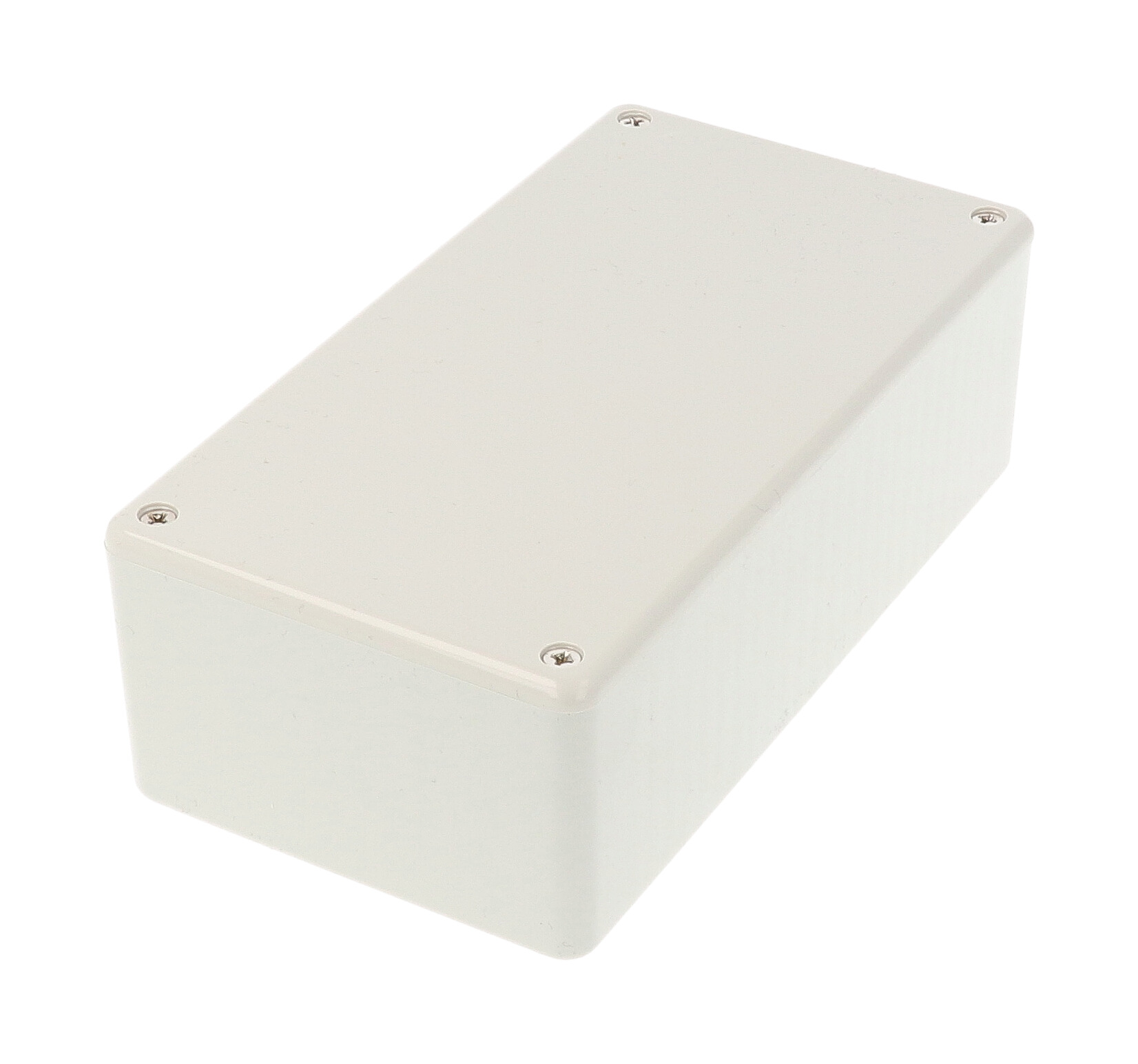

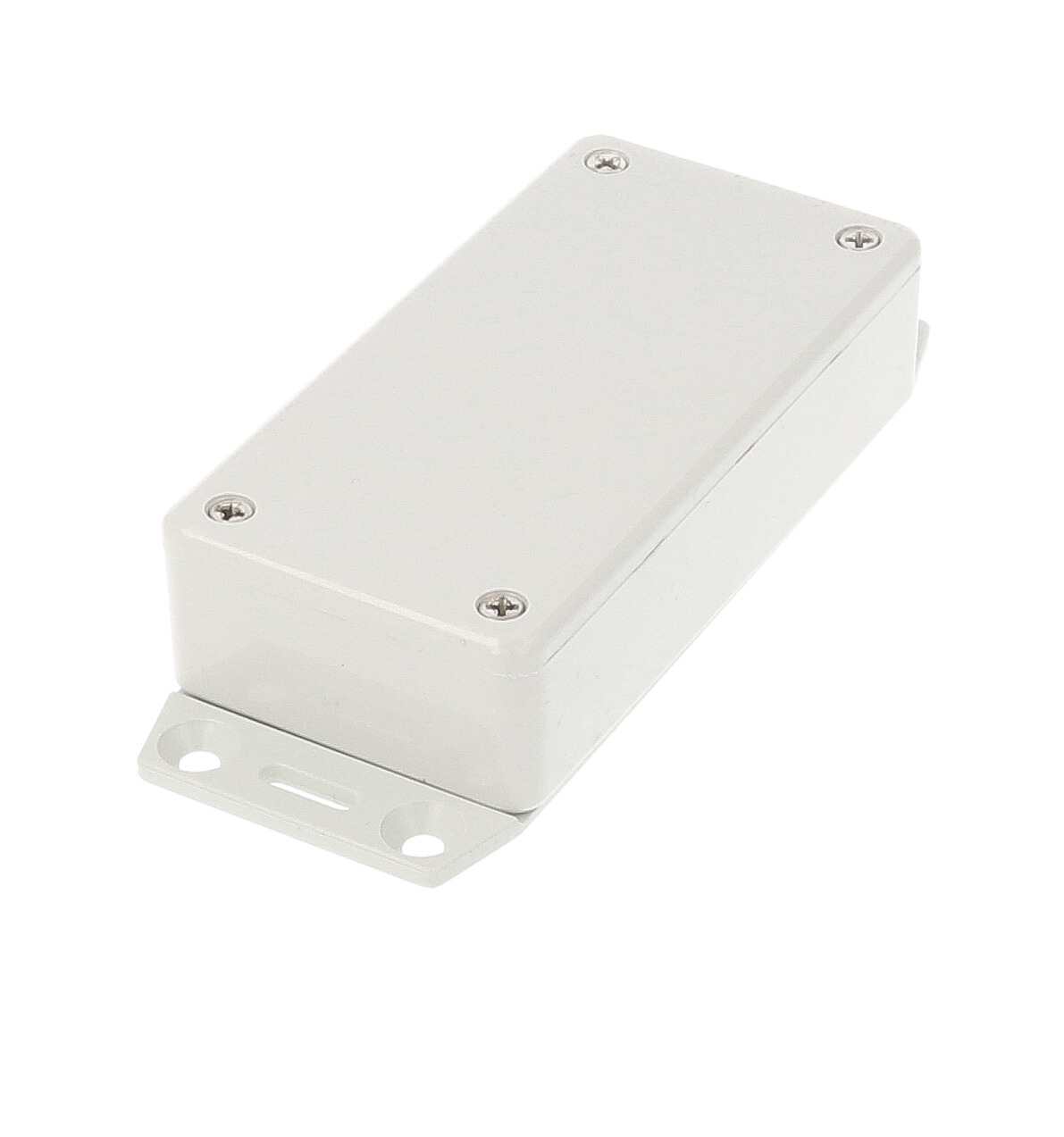

• ■Light Gray ("GY")

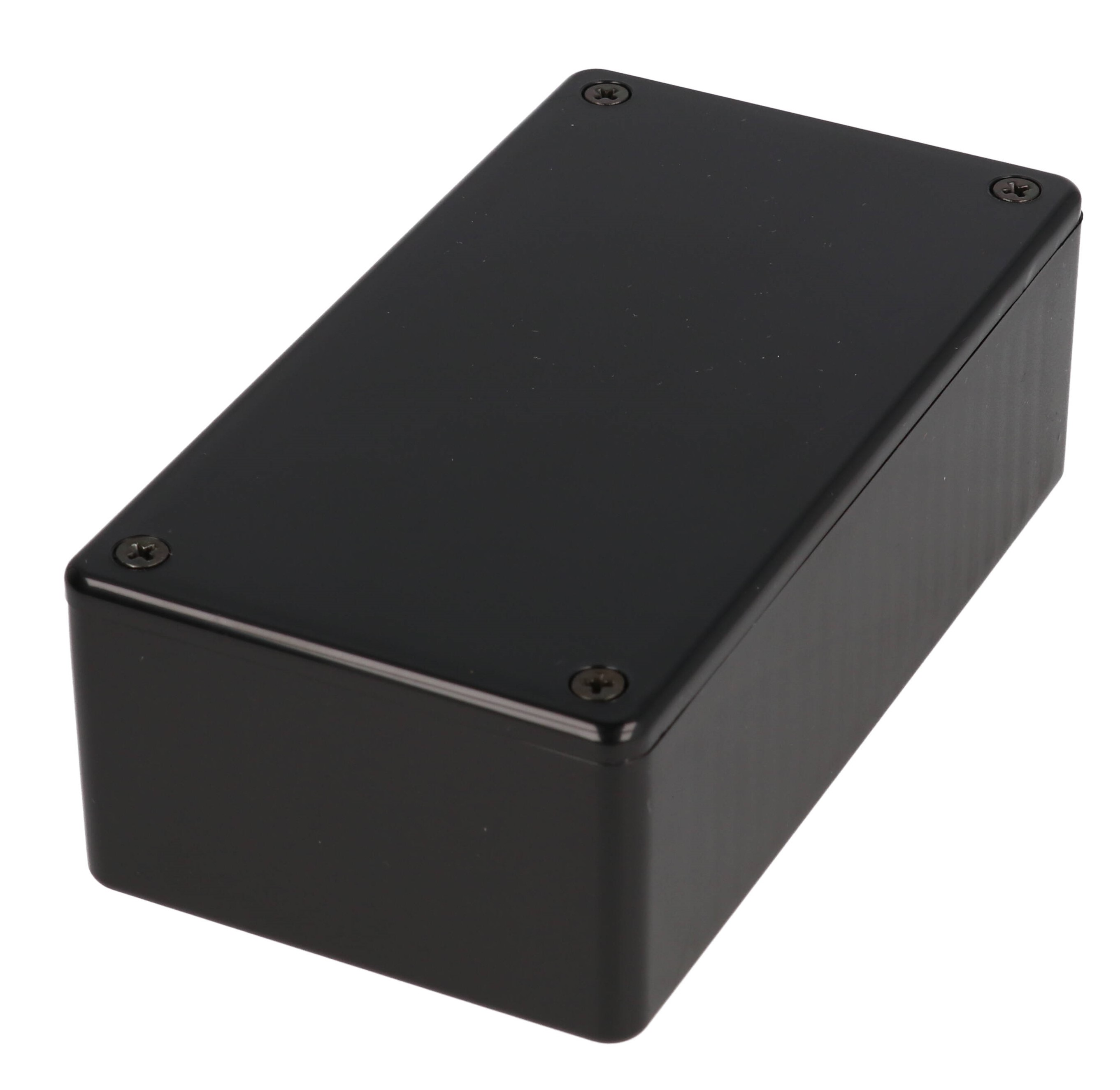

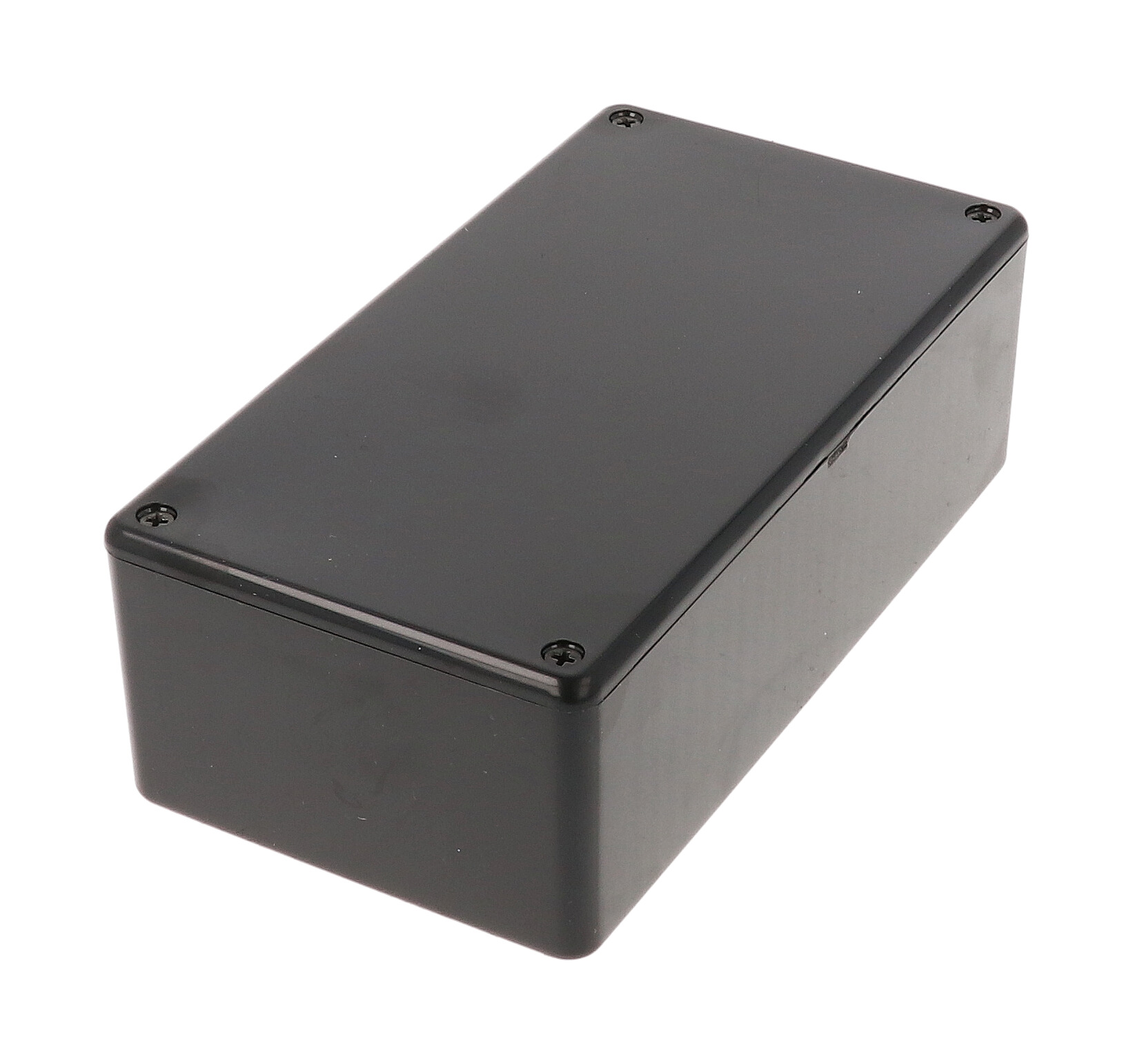

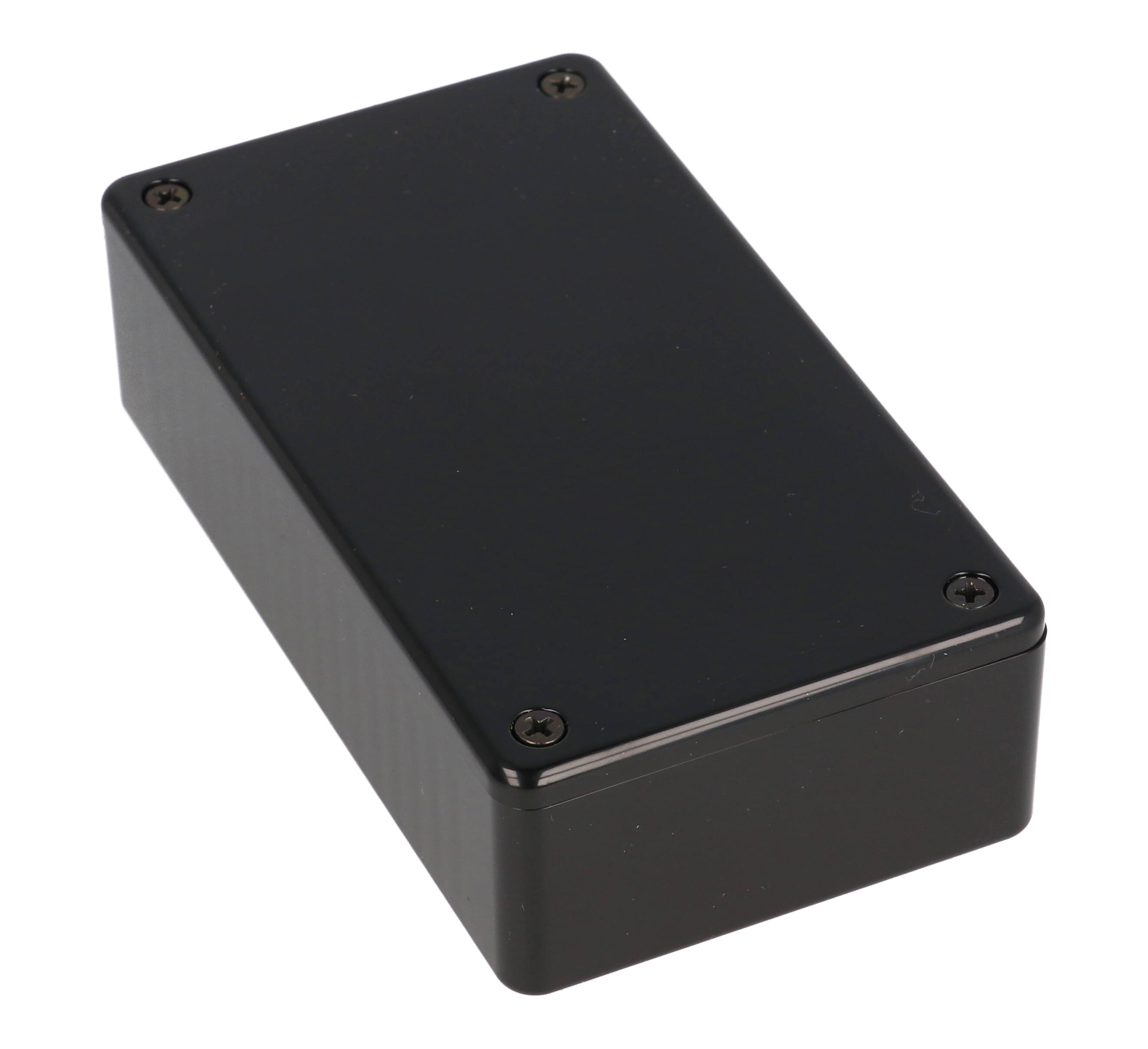

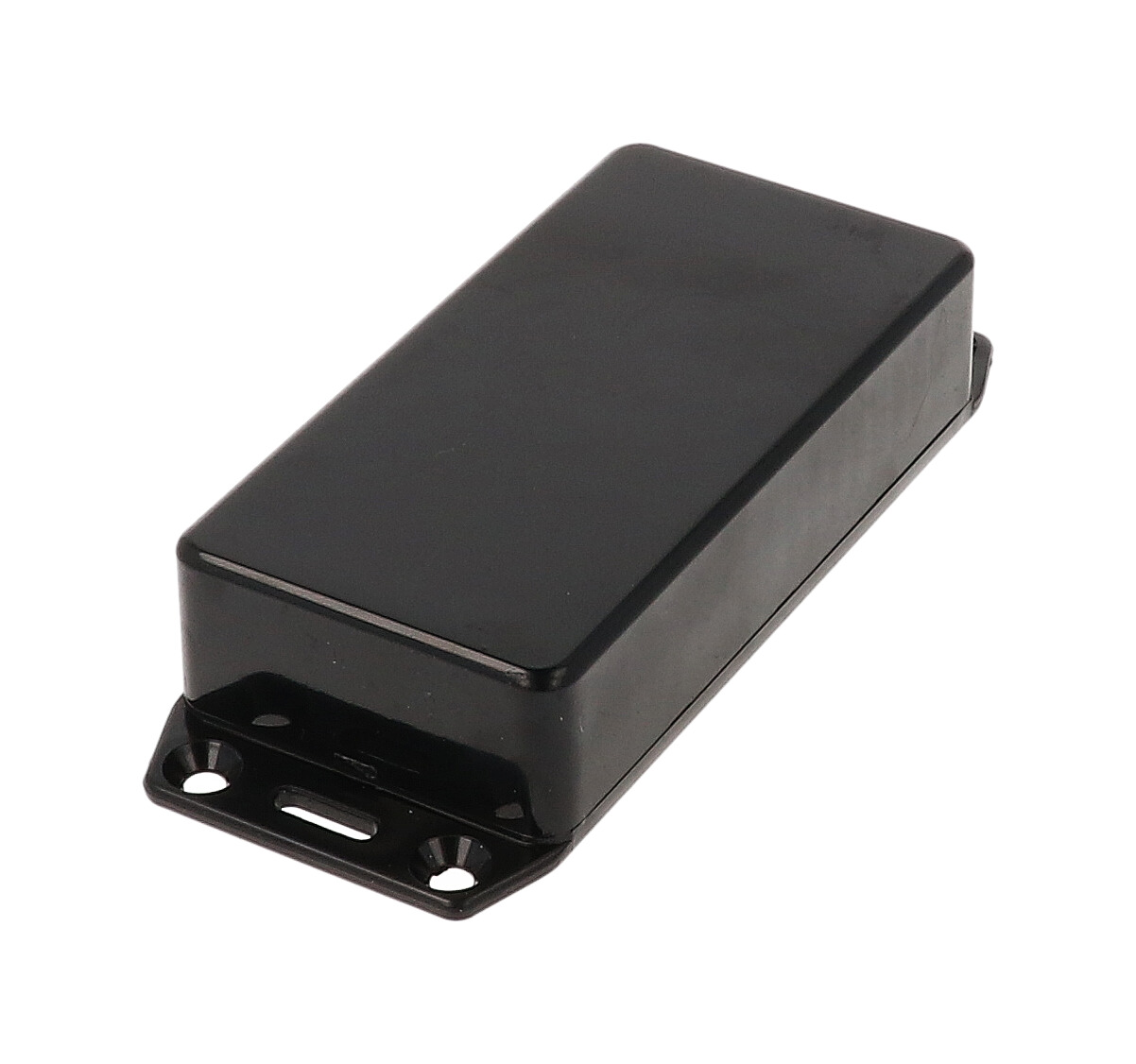

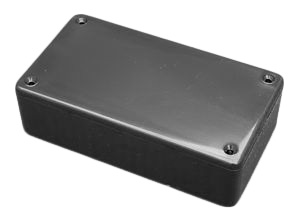

• ■Black ("BK")

PC Board Card Adaptors:

Part Number 1591Z6 - Package of 6

Part Number 1591Z50 - Package of 50

Part Number 1591Z100 - Package of 100

• ■Allows mounting of PC boards horizontally within the enclosure.
• ■Molded from Flame retardant ABS plastic

Hardware:

• ■Replacement machine lid screws for standard flame-retardant versions are available in packs of 100: 1591MS100 (nickel plated) or 1591MS100BK (black).
• ■Replacement self-tapping lid screws for economy versions are available in packs of 100: 1591TS100 (nickel plated) or 1591TS100BK (black).
