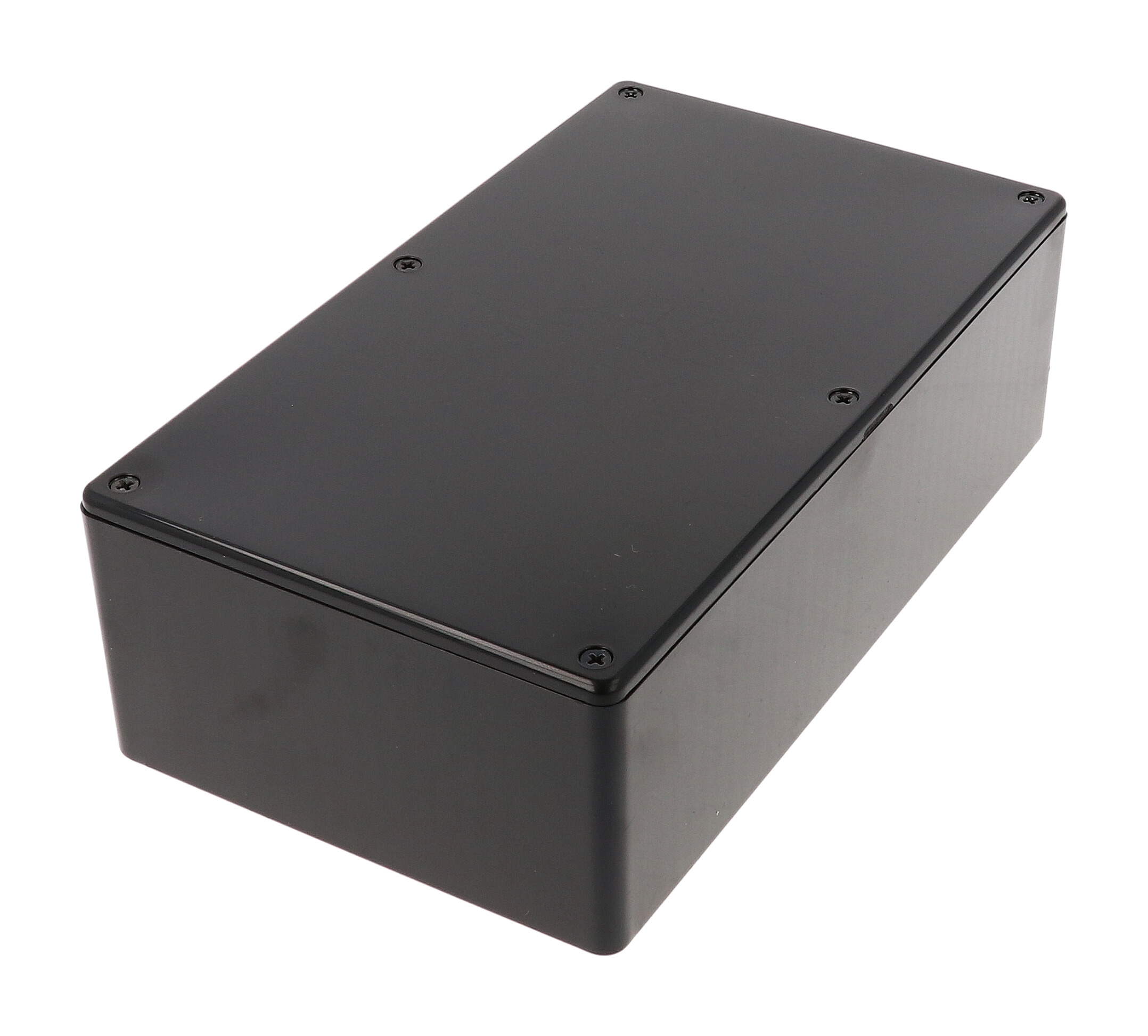

Hammond 1591EBK 190x111x61 mm Black Flame-Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black flame retardant ABS, UL94 V-0, black screws
- 190 x 111 x 61 mm (7.48 x 4.37 x 2.40 in) nominal size
- 183.52 x 103.53 x 56.60 mm inside
- Six M3 machine screws into pre-installed brass inserts
- Card guides accept 1.5 mm (0.062") PCBs
- Designed to meet IP54
- Optional 1591EC clear polycarbonate lid
The 1591EBK is the black flame retardant ABS enclosure in the 1591E size, listed in the series table at 190 x 111 x 61 mm (7.48 x 4.37 x 2.40 in) and on the part page at 191 x 110 x 61 mm (7.5 x 4.35 x 2.39 in). It suits engineers housing bigger vertical PCBs, controllers or multi-board assemblies.
The case is molded from easy-to-machine FRABS rated UL94 V-0. Six M3-0.5 x 10 mm Phillips machine screws thread into pre-installed brass inserts; black enclosures include black screws. Recommended torque is 35.5-42.5 ozf.in (25-30 cN.m). Lap joint construction provides protection against dust and splashing water, and the design meets IP54.
Inside, the drawing gives 183.52 x 103.53 x 56.60 mm (7.225 x 4.076 x 2.228 in). Card guides molded into all side walls accept 1.5 mm (0.062") boards at a guide height of 51.60 mm. The 1591EC clear polycarbonate lid fits this size, and 1591Z card adaptors enable horizontal board mounting.
The 1591EBK has no mounting flanges; flanged versions are 1591EFLBK (lid) and 1591EF2BK (bottom). It weighs 0.54 lbs (0.24 kg), ships shrink wrapped, and is RoHS and REACH compliant. Note that the part page colour attribute reads Blue, while the series table and drawing list 1591EBK as black.
Ideal For
- Larger vertical PCB housings
- Controller and instrument enclosures
- Flame retardant electronics cases
- Dust- and splash-protected indoor equipment
Overview
| Type | project box, general purpose |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Description | enclosure - plastic |
| Part Number | 1591EBK |
| Mounting Style | No mounting flanges |
| Short Description | ABS PLSTC CASE & LID |
| Enclosure Size Code | 1591E |
| Series Ordering Table | Enclosures Without Mounting Flanges |
Dimensions
| Inside Width | 103.53 mm [4.076 in] |
| Inside Height | 56.60 mm [2.228 in] |
| Inside Length | 183.52 mm [7.225 in] |
| Width (Drawing) | 110.60 mm [4.354 in] |
| Length (Drawing) | 190.40 mm [7.496 in] |
| Size (L X W X H) | 7.5 in x 4.35 in x 2.39 in (191 mm x 110 mm x 61 mm) |
| Height (Drawing, Section A-A) | 60.80 mm [2.394 in] |
| Nominal Size – Depth (Series Table) | 2.40 in (61 mm) |
| Nominal Size – Width (Series Table) | 4.37 in (111 mm) |
| Nominal Size – Length (Series Table) | 7.48 in (190 mm) |
Accessories
| Clear Lid Accessory | 1591EC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
Identifiers
| UPC | 623980548104 |
| UNSPSC | 39121301 |
| Drawing | 1591E, REV: 06.16.2023 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 2.99 mm [.118 in] |
| Card Guide Height | 51.60 mm [2.032 in] |
| Card Guide Slot Width | 2.06 mm [.081 in] |
| PC Board Card Adaptors (Horizontal PCB Mounting) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping

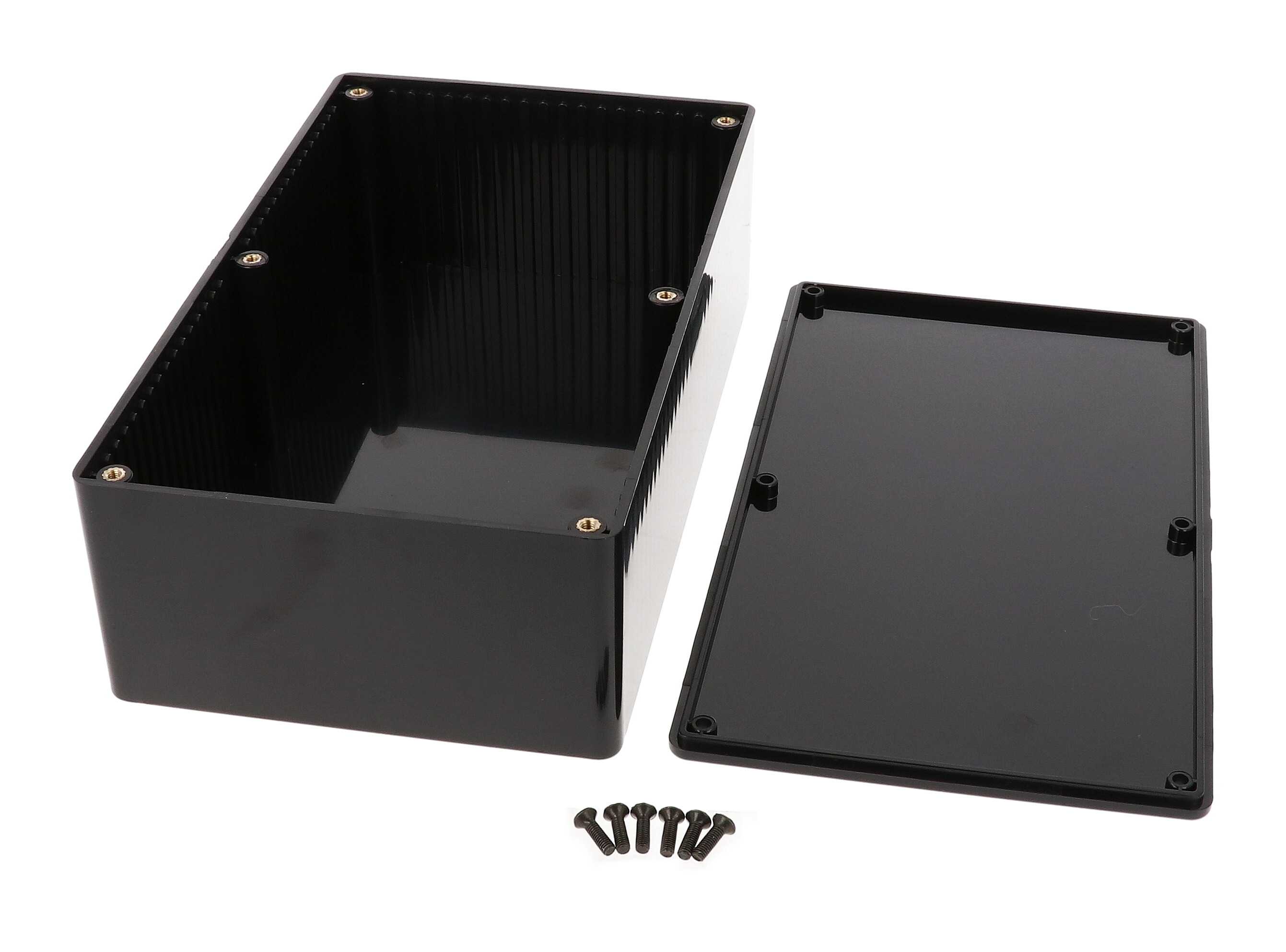

| Included | Box, lid, 6 cover screws and pre-installed brass inserts |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.54 lbs (0.24 kg) |
Construction & Finish
| Color | Black (series ordering table and drawing; part page attribute lists Blue) |
| Material | Flame retardant ABS (FRABS) |
| Construction | Lap joint construction |
| Screw Finish | Black screws (black enclosures) |
| Solid Models | Available in .stp or .x_t |
| Lid Fastening | 6 x M3-0.5 x 10 mm Phillips machine screws into pre-installed integral brass inserts |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Material (Part Page) | ABS Plastic |
| Replacement Lid Screws | M3-0.5 x 10 mm, 100 pack: 1591MS100 (silver/nickel plated), 1591MS100BK (black) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1591EBK?▾
The series table lists 190 x 111 x 61 mm (7.48 x 4.37 x 2.40 in); the part page lists 7.5 x 4.35 x 2.39 in (191 x 110 x 61 mm).
What is included?▾
Box, lid, 6 cover screws and pre-installed brass inserts.
Does it have mounting flanges?▾
No. For flanges, see 1591EFLBK (flanged lid) or 1591EF2BK (bottom flange).
What is the flame rating?▾
UL94 V-0, molded from flame retardant ABS.
Is there an economy version?▾
Yes, the general purpose ABS black version in this size is 1591ESBK.
