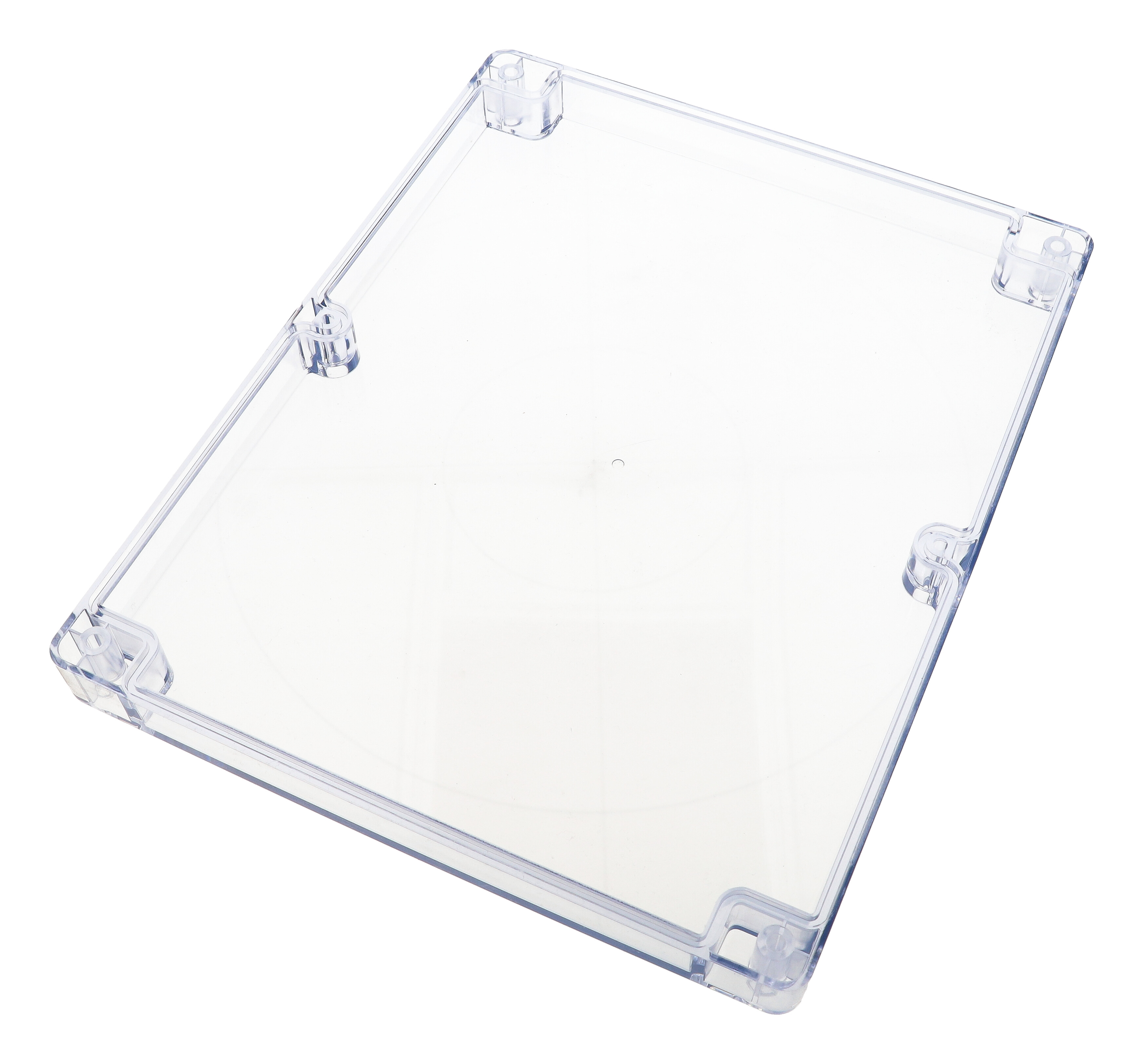

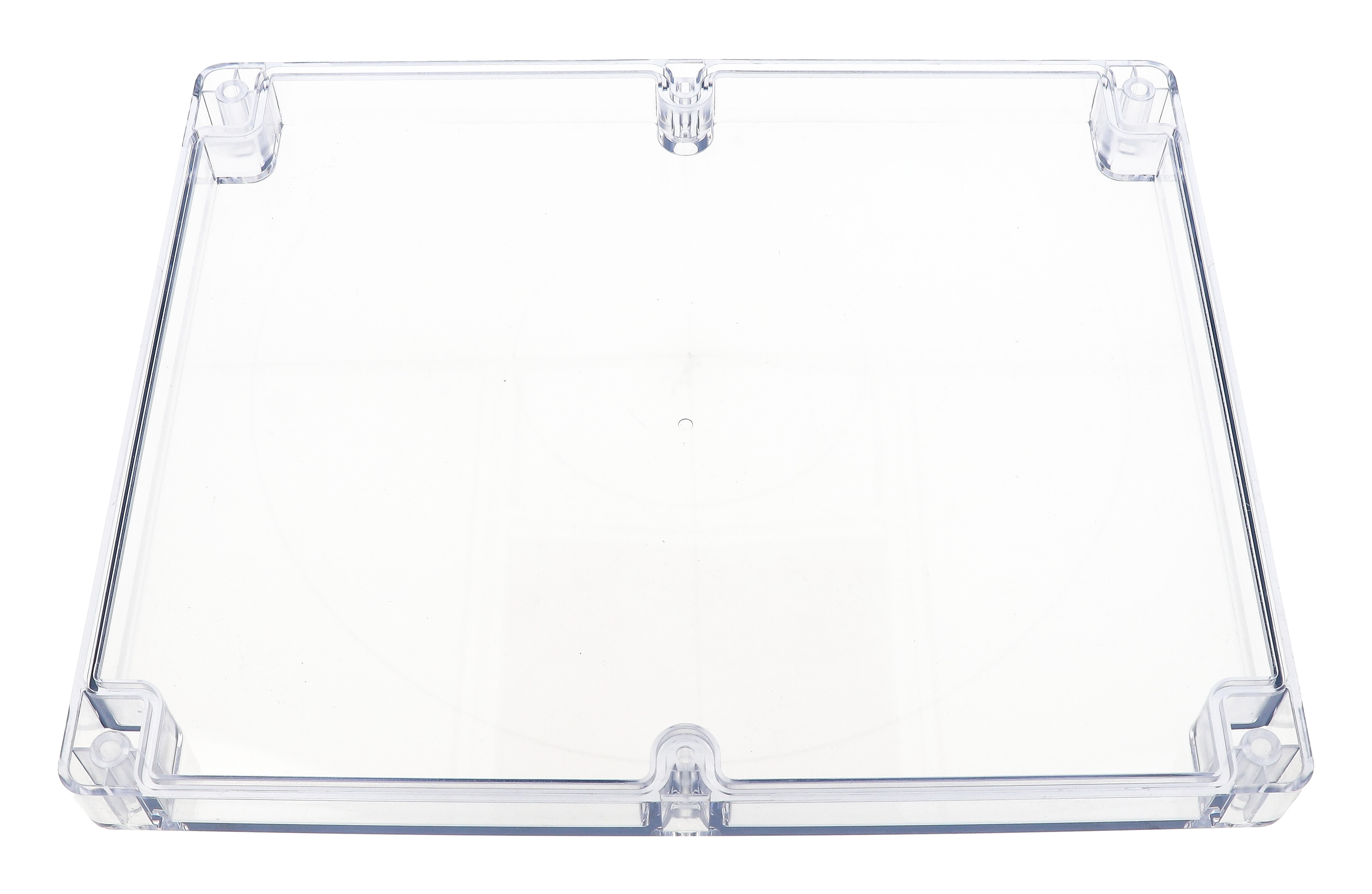

Clear Polycarbonate Lids For 1554/1555 Series · 1554-1555LID Series

Brand: Hammond Manufacturing · 19 part numbers

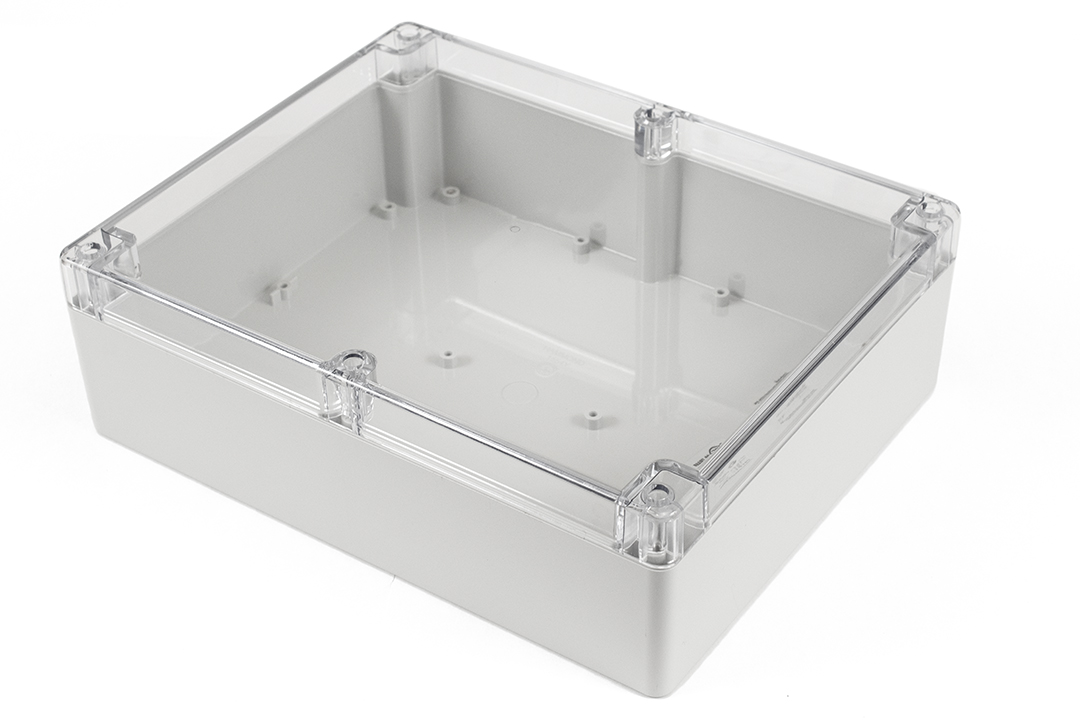

■Replacement lids for 1554 and 1555 series enclosures. NOTE: Replacement clear lids are not styled like standard 1555 lids, but are compatible with 1555 bases.
■NOTE: Replacement clear lids are not styled like standard 1555 lids, but are compatible with 1555 bases.
■When installed properly in conjunction with screws and gasket, lids are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68. (Except 1554/55 V size which is 4, 4X only.)
■Polycarbonate material is UV stabilized for outdoor use. Clear lids carry a UL94V-0 rating.
■Recommended operating temperature: -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for any specific application.
■Customers should conduct their own testing to determine suitability for any specific application.

from $2.33

19 of 19 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1554-1555LID Series part number

Filter 19 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

19 of 19 part numbers · 19 priced online

1554ACL

Clear Lid Only 1554A

Compatible 1554, 1 A

$2.33In stock

Buy now

1554BCL

Clear Lid Only 1554B

Compatible 1554, 1 B

$2.92In stock

Buy now

1554CCL

Clear Lid Only 1554C/D

Compatible 1554, 1 C, D

$4.05In stock

Buy now

1554ECL

Clear Lid Only 1554E/EE

Compatible 1554, 1 E, EE

$5.01In stock

Buy now

1554FCL

Clear Lid Only 1554F/FL/G

Compatible 1554, 1 F, FL, G

$5.07In stock

Buy now

1554HCL

Clear Lid Only 1554H/HL/T

Compatible 1554, 1 H, HL, T

$7.07In stock

Buy now

1554JCL

Clear Lid Only 1554J/JL/K

Compatible 1554, 1 J, JL, K

$6.03In stock

Buy now

1554LCL

Clear Lid Only 1554L/LA

Compatible 1554, 1 L, LA

$5.17In stock

Buy now

1554NCL

Clear Lid Only 1554N/NL/P

Compatible 1554, 1 N, NL, P

$6.45In stock

Buy now

1554QCL

Clear Lid Only 1554Q/QA

Compatible 1554, 1 Q, QA

$6.84In stock

Buy now

1554RCL

Clear Lid Only 1554R/RL/S

Compatible 1554, 1 R, RL, S

$8.99In stock

Buy now

1554UCL

Clear Lid Only 1554U/UL/UA

Compatible 1554, 1 U, UL, UA

$9.15In stock

Buy now

1554VACL

Clear Lid Only 1554VA/VAL/VB

Compatible 1554, 1 VA, VAL, VB

$11.52In stock

Buy now

1554VCL

Clear Lid Only 1554V

Compatible 1554, 1 V

$11.52In stock

Buy now

1554WCL

Clear Lid Only 1554W/WA

Compatible 1554, 1 W, WA

$8.40In stock

Buy now

1554XACL

Clear Lid Only 1554XA

Compatible 1554, 1 XA

$16.59In stock

Buy now

1554XCL

Clear Lid Only 1554X

Compatible 1554, 1 X

$14.41In stock

Buy now

1554YACL

Clear Lid Only 1554YA

Compatible 1554, 1 YA

$18.27In stock

Buy now

1554YCL

Clear Lid Only 1554Y

Compatible 1554, 1 Y

$17.22In stock

Buy now

Dimension tables (inches / mm)

Lid Compatibility

Units shown: mm . Switch units to: inch

Clear Lid (Part No.)	Compatible 1554, 1555 Sizes	Lid Length	Lid Width	Lid Height	Price	Order
1554ACL	A	2.05	1.97	0.59	$2.33In stock	Buy now
1554BCL	B	2.56	2.56	0.59	$2.92In stock	Buy now
1554CCL	C, D	4.72	2.56	0.59	$4.05In stock	Buy now
1554ECL	E, EE	3.54	3.54	0.59	$5.01In stock	Buy now
1554FCL	F, FL, G	4.72	3.54	0.59	$5.07In stock	Buy now
1554HCL	H, HL, T	7.09	4.72	0.59	$7.07In stock	Buy now
1554JCL	J, JL, K	6.30	3.54	0.59	$6.03In stock	Buy now
1554LCL	L, LA	4.13	4.13	0.59	$5.17In stock	Buy now
1554NCL	N, NL, P	4.72	4.72	0.59	$6.45In stock	Buy now
1554QCL	Q, QA	5.51	5.51	0.59	$6.84In stock	Buy now
1554RCL	R, RL, S	6.30	6.30	0.59	$8.99In stock	Buy now
1554UCL	U, UL, UA	7.87	4.72	0.59	$9.15In stock	Buy now
1554VCL	V	9.45	6.30	0.79	$11.52In stock	Buy now
1554VACL	VA, VAL, VB	9.45	6.30	0.79	$11.52In stock	Buy now
1554WCL	W, WA	7.09	7.09	0.59	$8.40In stock	Buy now
1554XCL	X	11.77	8.66	0.79	$14.41In stock	Buy now
1554XACL	XA	11.77	8.66	1.97	$16.59In stock	Buy now
1554YCL	Y	11.77	9.45	0.98	$17.22In stock	Buy now
1554YACL	YA	11.77	9.45	1.97	$18.27In stock	Buy now

Key Features:

■Replacement lids for 1554 and 1555 series enclosures. NOTE: Replacement clear lids are not styled like standard 1555 lids, but are compatible with 1555 bases.
■NOTE: Replacement clear lids are not styled like standard 1555 lids, but are compatible with 1555 bases.
■When installed properly in conjunction with screws and gasket, lids are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68. (Except 1554/55 V size which is 4, 4X only.)
■Polycarbonate material is UV stabilized for outdoor use. Clear lids carry a UL94V-0 rating.
■Recommended operating temperature: -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for any specific application.
■Customers should conduct their own testing to determine suitability for any specific application.
■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
■Replacement lids do not include screws or gaskets . Please see 1554 Series or 1555 Series pages for compatible accessories.
