1 Hole 22.5MM P-Button Encl.
$13.00In stock
Buy now

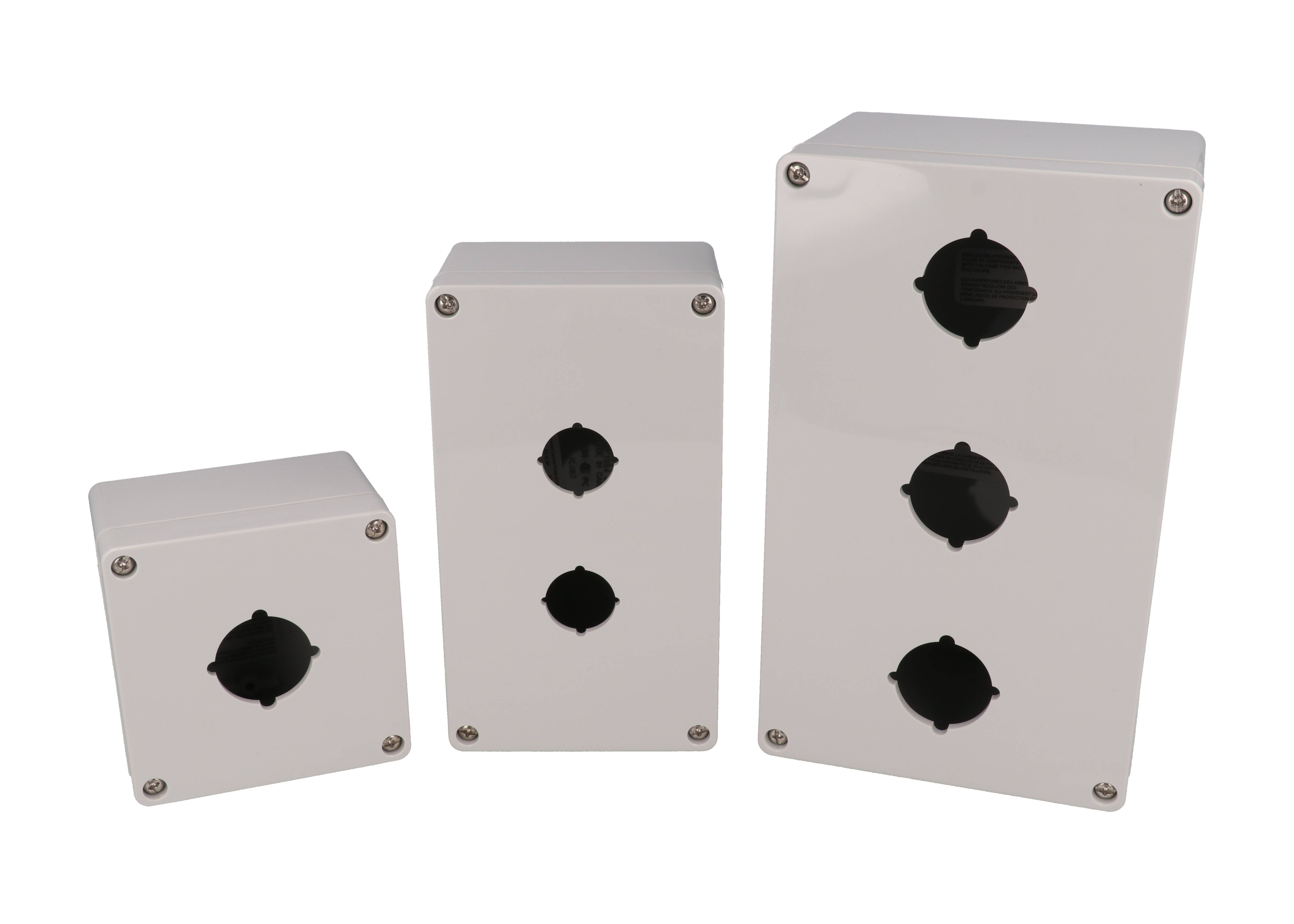

Type 4, 4X Polycarbonate Pushbutton Enclosure · 1554 PB Series
Brand: Hammond Manufacturing · 33 part numbers
- ■IP66
- ■NEMA 4, 4X, 6, 6P, 12 & 13 6 pushbutton enclosures do not meet Type 6/6P
- ■6 pushbutton enclosures do not meet Type 6/6P
- ■UL94 5VA
- ■Electronic instrument enclosures designed for mounting printed circuit boards or DIN rail mounted components.
- ■Polycarbonate material carries a UL flammability rating of UL94 5VA and is suitable for outdoor use.
from $4.80
33 of 33 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1554 PB Series part number
Filter 26 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
26 of 26 part numbers · 26 priced online
15 Hole 22.5MM P-Button 1554X
$51.84In stock
Buy now
15 Hole 22.5MM P-Button 1554XA
$55.07In stock
Buy now
1 Hole 22.5MM P-Button 1554EE
$14.73In stock
Buy now
2 Hole 22.5MM P-Button Enclosure
$17.94In stock
Buy now
20 Hole 22.5MM P-Button 1554Y
$62.49In stock
Buy now
20 Hole 22.5MM P-Button 1554YA
$64.48In stock
Buy now
2 Hole 22.5MM P-Button Enclosure
$19.04In stock
Buy now
3 Hole 22.5MM P-Button Encl.
$24.51In stock
Buy now
4 Hole 22.5MM P-Button Encl.
$25.33In stock
Buy now
6 Hole 22.5MM P-Button Encl.
$35.66In stock
Buy now
6 Hole 22.5MM P-Button 1554VA
$36.27In stock
Buy now
6 Hole 22.5MM P-Button 1554VB
$38.71In stock
Buy now
1 Hole 30.5MM P-Button Enclosure
$13.00In stock
Buy now
12 Hole 30.5MM P-Button 1554Y
$52.11In stock
Buy now
12 Hole 30.5MM P-Button 1554YA
$56.12In stock
Buy now
1 Hole 30.5MM P-Button 1554EE
$14.73In stock
Buy now
2 Hole 30.5MM P-Button Encl.
$17.94In stock
Buy now
2 Hole 30.5MM P-Button Enclosure
$19.04In stock
Buy now
3 Hole 30.5MM P-Button Encl.
$24.51In stock
Buy now
4 Hole 30.5MM P-Button Encl.
$25.33In stock
Buy now
6 Hole 30.5MM P-Button Encl.
$35.66In stock
Buy now
6 Hole 30.5MM P-Button 1554VA
$36.27In stock
Buy now
6 Hole 30.5MM P-Button 1554VB
$38.71In stock
Buy now
8 Hole 30.5MM P-Button 1554X
$44.24In stock
Buy now
8 Hole 30.5MM P-Button 1554XA
$48.65In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 22 mm Hole · Part No. | 30.5 mm Hole · Part No. | # of · Holes | Enclosure · H | Enclosure · W | Enclosure · D (w/lid) | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 1554MPB1 | 1554PB1 | 1 | 3.54 | 3.54 | 2.36 | 1554EPL | 3.10 | 3.10 | $13.00In stock1554MPB1 | Buy now |

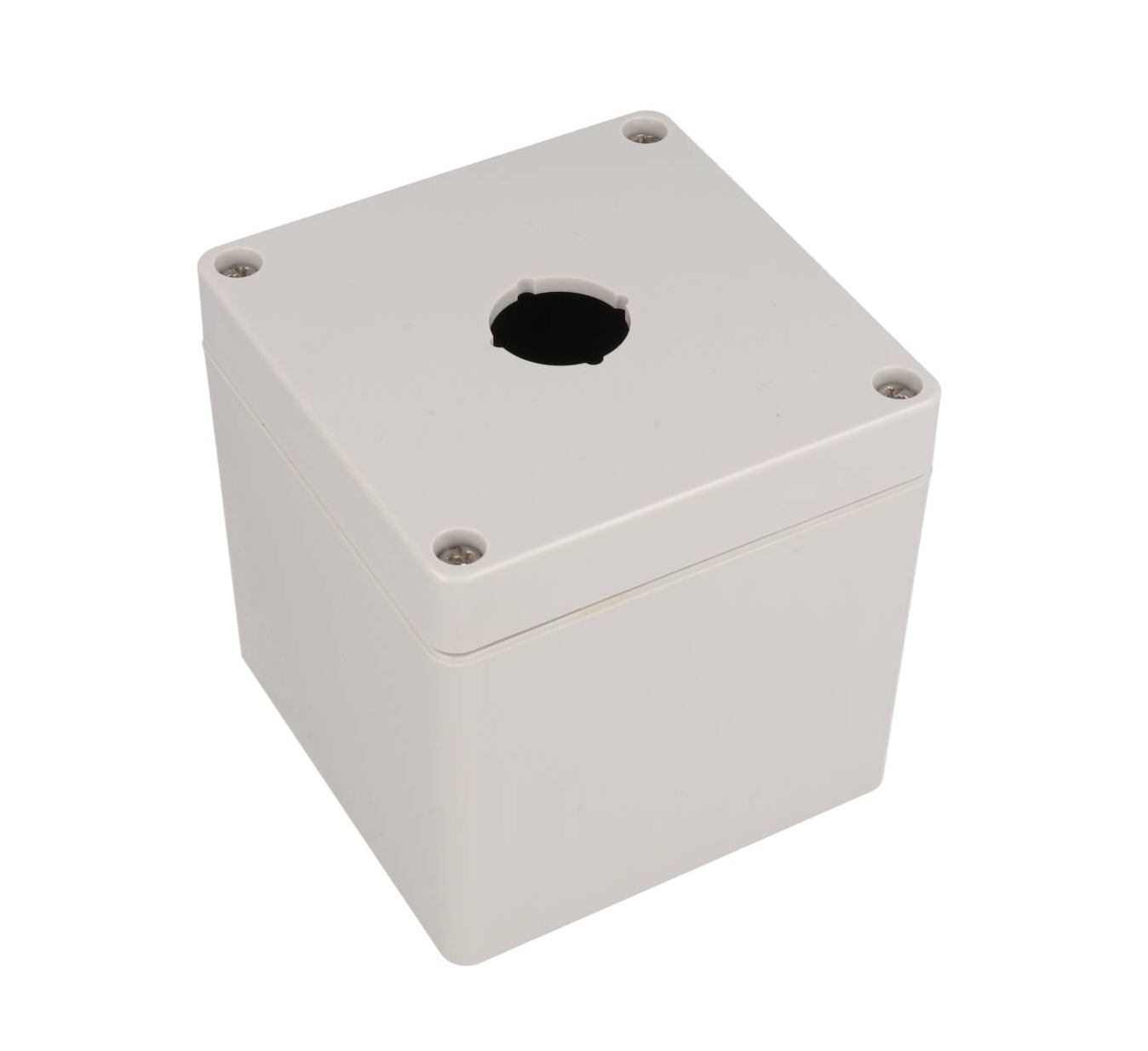

| 1554MPB1A | 1554PB1A | 1 | 3.54 | 3.54 | 3.54 | 1554EPL | 3.10 | 3.10 | $14.73In stock1554MPB1A | Buy now |

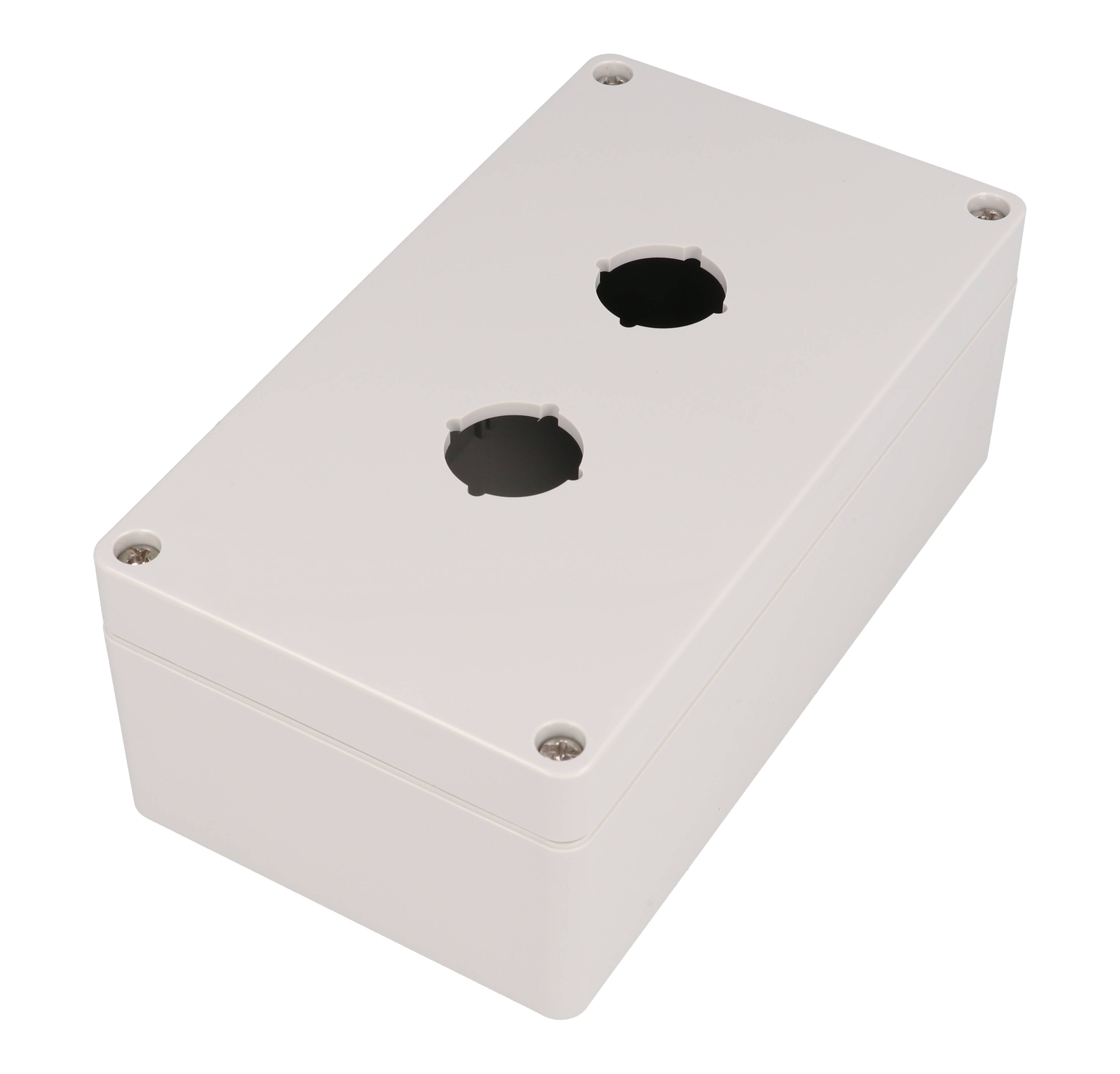

| 1554MPB2 | 1554PB2 | 2 | 6.30 | 3.54 | 2.38 | 1554JPL | 5.80 | 3.00 | $17.94In stock1554MPB2 | Buy now |
| 1554MPB2D | 1554PB2D | 2 | 6.30 | 3.54 | 3.56 | 1554JPL | 5.80 | 3.00 | $19.04In stock1554MPB2D | Buy now |

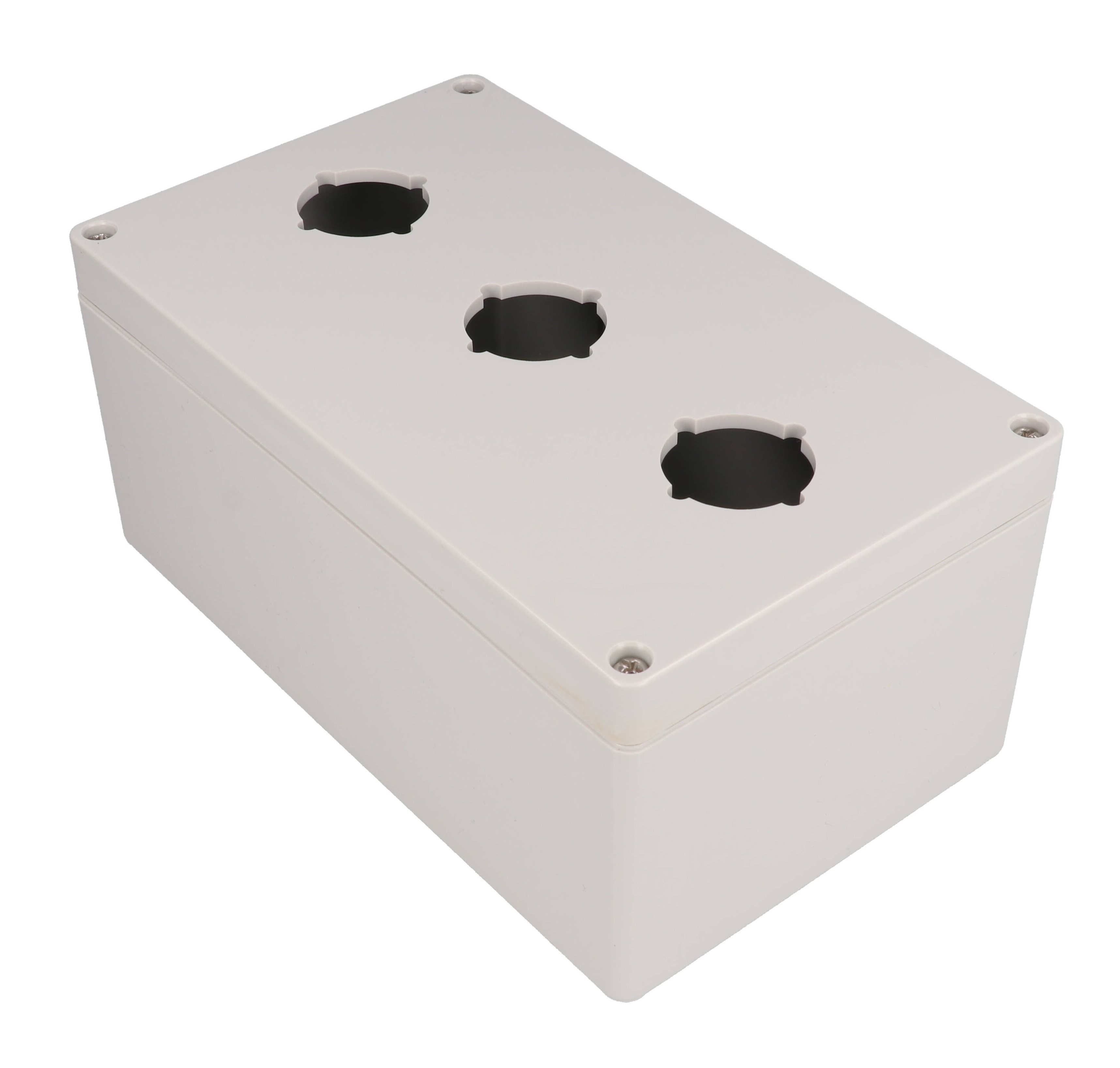

| 1554MPB3 | 1554PB3 | 3 | 7.87 | 4.72 | 3.56 | 1554UPL | 7.60 | 4.20 | $24.51In stock1554MPB3 | Buy now |

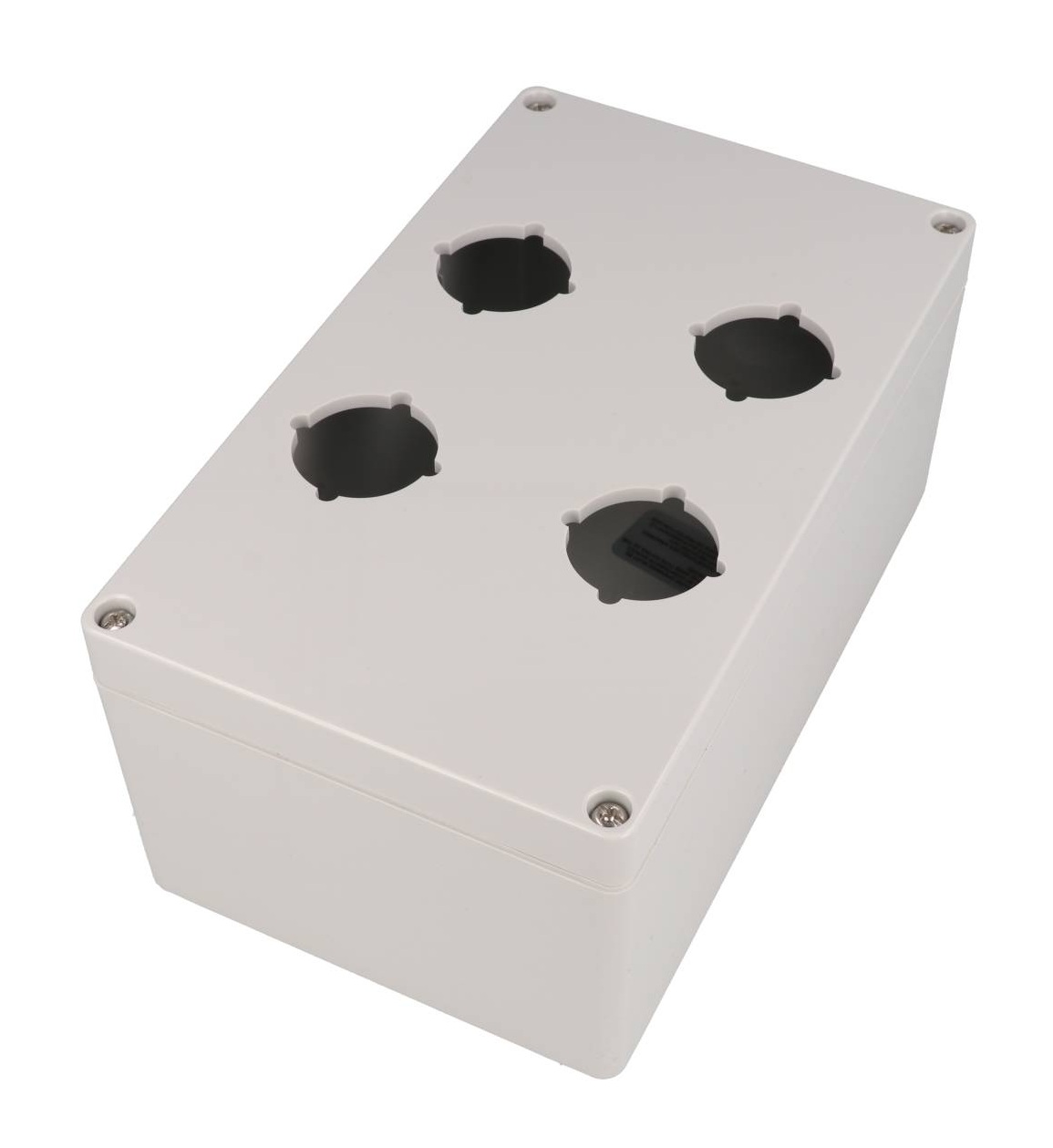

| 1554MPB4 | 1554PB4 | 4 | 7.87 | 4.72 | 3.56 | 1554UPL | 7.60 | 4.20 | $25.33In stock1554MPB4 | Buy now |
| 1554MPB6 | 1554PB6 | 6 | 9.45 | 6.30 | 3.54 | 1554VPL | 9.10 | 5.70 | $35.66In stock1554MPB6 | Buy now |

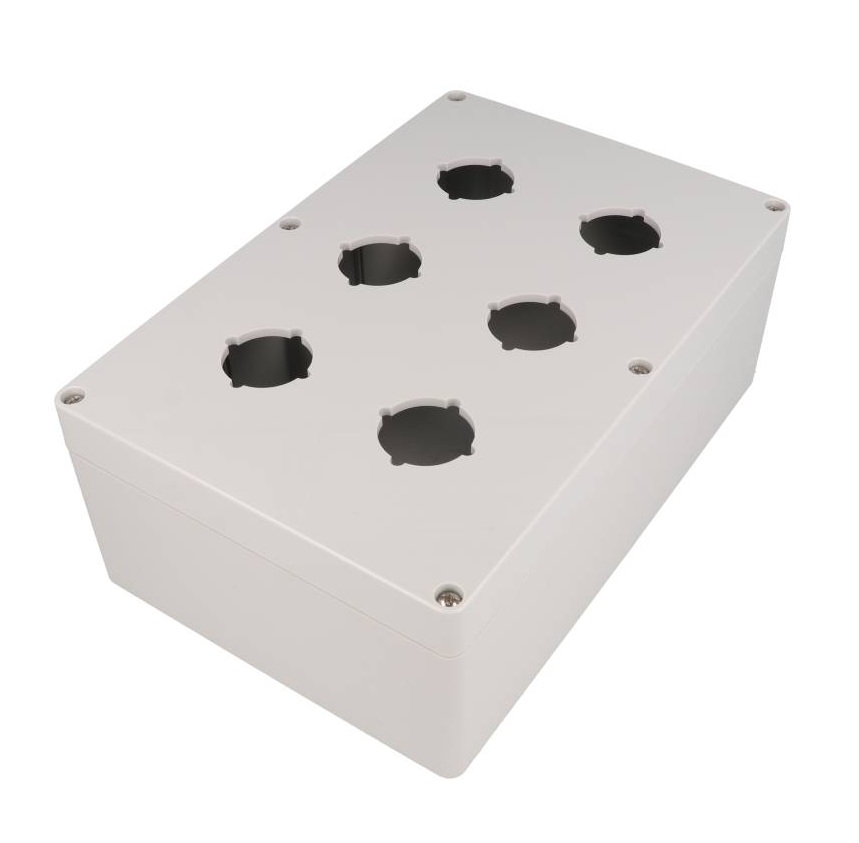

| 1554MPB6A | 1554PB6A | 6 | 9.45 | 6.30 | 3.54 | 1554VAPL | 8.93 | 5.73 | $36.27In stock1554MPB6A | Buy now |
| 1554MPB6B | 1554PB6B | 6 | 9.45 | 6.30 | 4.72 | 1554VAPL | 8.93 | 5.73 | $38.71In stock1554MPB6B | Buy now |
| 1554PB8 | 8 | 11.81 | 7.87 | 3.54 | 1554XPL | 11.22 | 7.28 | $44.24In stock1554PB8 | Buy now | |
| 1554PB8A | 8 | 11.81 | 7.87 | 4.72 | 1554XPL | 11.22 | 7.28 | $48.65In stock1554PB8A | Buy now | |
| 1554PB12 | 12 | 11.81 | 9.45 | 3.74 | 1554YPL | 11.22 | 8.86 | $52.11In stock1554PB12 | Buy now | |
| 1554PB12A | 12 | 11.81 | 9.45 | 4.72 | 1554YPL | 11.22 | 8.86 | $56.12In stock1554PB12A | Buy now | |
| 1554MPB15 | 15 | 11.81 | 7.87 | 3.54 | 1554XPL | 11.22 | 7.28 | $51.84In stock1554MPB15 | Buy now | |
| 1554MPB15A | 15 | 11.81 | 7.87 | 4.72 | 1554XPL | 11.22 | 7.28 | $55.07In stock1554MPB15A | Buy now | |
| 1554MPB20 | 20 | 11.81 | 9.45 | 3.74 | 1554YPL | 11.22 | 8.86 | $62.49In stock1554MPB20 | Buy now | |
| 1554MPB20A | 20 | 11.81 | 9.45 | 4.72 | 1554YPL | 11.22 | 8.86 | $64.48In stock1554MPB20A | Buy now |
Standards
- ■IP66
- ■NEMA 4, 4X, 6, 6P, 12 & 13 6 pushbutton enclosures do not meet Type 6/6P
- ■6 pushbutton enclosures do not meet Type 6/6P
- ■UL94 5VA
Construction
- ■Electronic instrument enclosures designed for mounting printed circuit boards or DIN rail mounted components.
- ■Polycarbonate material carries a UL flammability rating of UL94 5VA and is suitable for outdoor use.
- ■Lid and mounting holes are located outside of the gasket seal.
- ■Lid is secured with self-captivating M4 stainless steel machine screws (included) threaded into integral stainless steel bushings.
- ■Heavy duty 16 gauge galvanized steel panels available (see chart).
- ■Gasket is a preformed, high temperature U.L. listed silicone rubber. Gasket is replaceable.
- ■Base includes internal DIN rail mounting tabs.
- ■Threaded (M3) integral brass inserts and standoffs designed for M3.5 or #6 self tapping screws for PC board or inner panel mounting in all but the smallest size.
- ■Vertical PC card guides (for 1.5 mm thick PC boards) are molded in all but the smallest size.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
Finish
- ■Color is light gray (RAL 7035)
Documents
Additional information
Part Details
| 22 mm Hole · Part No. | 30.5 mm Hole · Part No. | # of · Holes | Enclosure · H | Enclosure · W | Enclosure · D (w/lid) | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|---|---|
| 1554MPB1 | 1554PB1 | 1 | 3.54 | 3.54 | 2.36 | 1554EPL | 3.10 | 3.10 |
| 1554MPB1A | 1554PB1A | 1 | 3.54 | 3.54 | 3.54 | 1554EPL | 3.10 | 3.10 |
| 1554MPB2 | 1554PB2 | 2 | 6.30 | 3.54 | 2.38 | 1554JPL | 5.80 | 3.00 |
| 1554MPB2D | 1554PB2D | 2 | 6.30 | 3.54 | 3.56 | 1554JPL | 5.80 | 3.00 |
| 1554MPB3 | 1554PB3 | 3 | 7.87 | 4.72 | 3.56 | 1554UPL | 7.60 | 4.20 |
| 1554MPB4 | 1554PB4 | 4 | 7.87 | 4.72 | 3.56 | 1554UPL | 7.60 | 4.20 |
| 1554MPB6 | 1554PB6 | 6 | 9.45 | 6.30 | 3.54 | 1554VPL | 9.10 | 5.70 |
| 1554MPB6A | 1554PB6A | 6 | 9.45 | 6.30 | 3.54 | 1554VAPL | 8.93 | 5.73 |
| 1554MPB6B | 1554PB6B | 6 | 9.45 | 6.30 | 4.72 | 1554VAPL | 8.93 | 5.73 |
| 1554PB8 | 8 | 11.81 | 7.87 | 3.54 | 1554XPL | 11.22 | 7.28 | |
| 1554PB8A | 8 | 11.81 | 7.87 | 4.72 | 1554XPL | 11.22 | 7.28 | |
| 1554PB12 | 12 | 11.81 | 9.45 | 3.74 | 1554YPL | 11.22 | 8.86 | |
| 1554PB12A | 12 | 11.81 | 9.45 | 4.72 | 1554YPL | 11.22 | 8.86 | |
| 1554MPB15 | 15 | 11.81 | 7.87 | 3.54 | 1554XPL | 11.22 | 7.28 | |
| 1554MPB15A | 15 | 11.81 | 7.87 | 4.72 | 1554XPL | 11.22 | 7.28 | |
| 1554MPB20 | 20 | 11.81 | 9.45 | 3.74 | 1554YPL | 11.22 | 8.86 | |
| 1554MPB20A | 20 | 11.81 | 9.45 | 4.72 | 1554YPL | 11.22 | 8.86 |
