Hammond 1554PB2D Deep 2-Hole 30.5mm Polycarbonate Pushbutton Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two 30.5 mm pushbutton holes on the deep 1554K body
- 6.30 x 3.54 in (160 x 90 mm) with 3.56 in (90 mm) depth including lid
- IP66 and NEMA 4, 4X, 6, 6P, 12 & 13 rated
- UL94 5VA outdoor-suitable polycarbonate in light gray RAL 7035
- DIN rail tabs, M3 brass inserts and 1.5 mm PC card guides inside
- Replaceable silicone gasket with four captive M4 stainless steel screws
- cULus listed File E65324; RoHS and REACH compliant

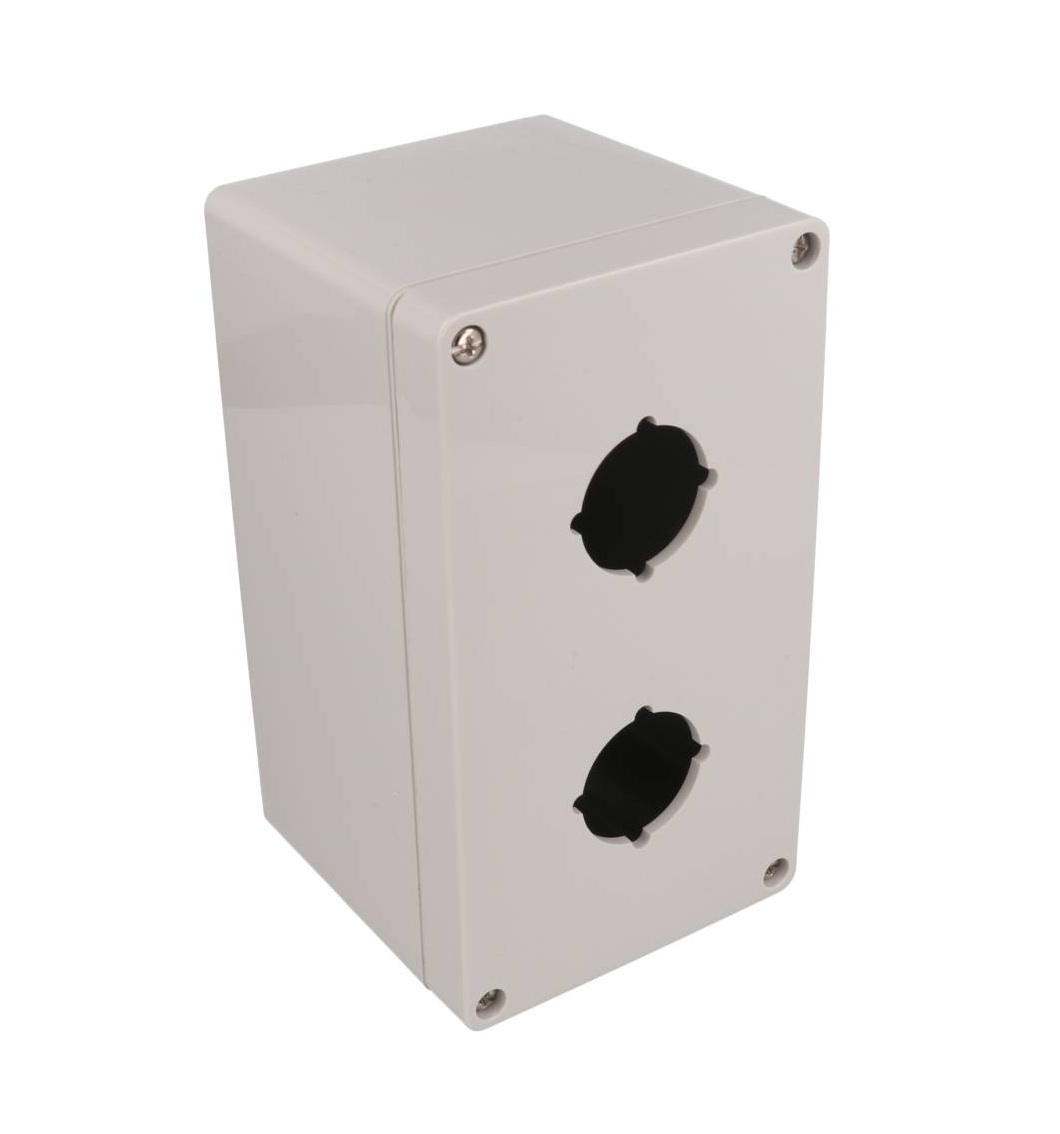

The 1554PB2D is the deeper two-hole member of the 1554 PB Series, taking two 30.5 mm pushbuttons in a lid mounted on the 1554K enclosure. With 3.56 in (90 mm) of depth including the lid, it gives more space for contact blocks, terminals or a small circuit board than the 2.38 in deep 1554PB2, while keeping the same 6.30 x 3.54 in footprint.
The enclosure is molded from polycarbonate rated UL94 5VA at 3 mm, suitable for outdoor use and finished light gray RAL 7035. Four self-captivating M4 stainless steel screws thread into integral stainless steel bushings to hold the lid against a replaceable, preformed, high temperature U.L. listed silicone rubber gasket. Lid screws and mounting holes are located outside the gasket seal, and the recommended cover screw torque is 43-57 ozf-in (30-40 cN-m).

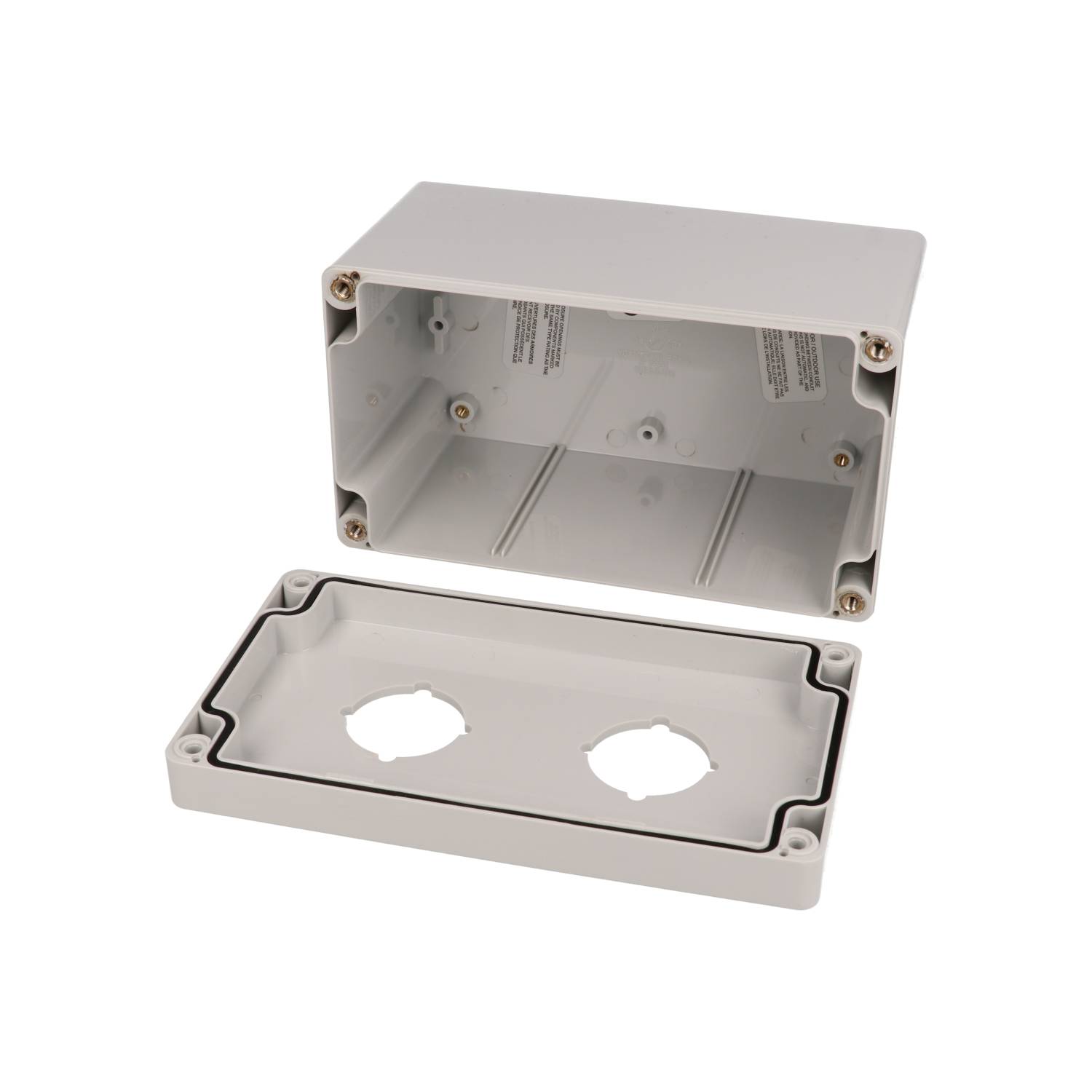

Inside, the base provides DIN rail mounting tabs, threaded M3 brass inserts and standoffs for M3.5 or #6 self tapping screws, and molded card guides for 1.5 mm PC boards. Four Ø4.00 mm holes mount the box. The optional 1554JPL galvanized steel inner panel measures 5.80 x 3.00 in, and 1554FT mounting feet are available. Shipping weight is 0.53 lbs (0.24 kg).
Ratings are IP66 and NEMA 4, 4X, 6, 6P, 12 and 13. The 1554PB2D is cULus listed under File E65324, the polycarbonate version is UL 508A approved, and it is RoHS and REACH compliant. The 22 mm hole version is 1554MPB2D.
Ideal For
- Two-button control station needing extra wiring depth
- Start/stop station with contact blocks and terminals
- Outdoor or wet-area operator station
- Pushbutton station with DIN rail component inside
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Overview
| Series | 1554 PB Series |
| Product Type | Type 4, 4X polycarbonate pushbutton enclosure |
| Short Description | 2 HOLE 30.5MM P-BUTTON ENCL |
| Pushbutton Hole Size | 30.5 mm (lid accepts 30.5mm push buttons) |
| Number Of Pushbutton Holes | 2 |
| 22 Mm Hole Version Part No. | 1554MPB2D |
| Base Enclosure (See For More Detail) | 1554K |
Dimensions
| Enclosure Width | 3.54 in (90 mm) |
| Enclosure Height | 6.30 in (160 mm) |
| Enclosure Mounting Holes | 4X Ø4.00 mm [.16 in] |
| Enclosure Depth (With Lid) | 3.56 in (90 mm) |
Accessories
| Optional Mounting Feet | 1554FT |
| Inner Panel Construction | Heavy duty galvanized 16 ga. steel; includes mounting hardware |
| Replacement Cover Screws | SC576-50 - M4-0.7 x 20mm stainless steel (Pkg 50) |
| Optional Inner Panel Width | 3.00 in (76 mm) |
| Optional Steel Inner Panel | 1554JPL |
| Optional Inner Panel Height | 5.80 in (147 mm) |
Identifiers
| UPC | 623980400860 |
| UNSPSC | 39121326 |
| Part Number | 1554PB2D |
Packaging & Shipping
| Shipping Weight | 0.53 lbs (0.24 kg) |
Construction & Finish
| Color | Light gray (RAL 7035) |
| Gasket | Preformed, high temperature U.L. listed silicone rubber; replaceable |
| Material | Polycarbonate |
| Lid Fastening | Self-captivating M4 stainless steel machine screws (included) threaded into integral stainless steel bushings |
| PC Card Guides | Vertical, molded, for 1.5 mm thick PC boards |

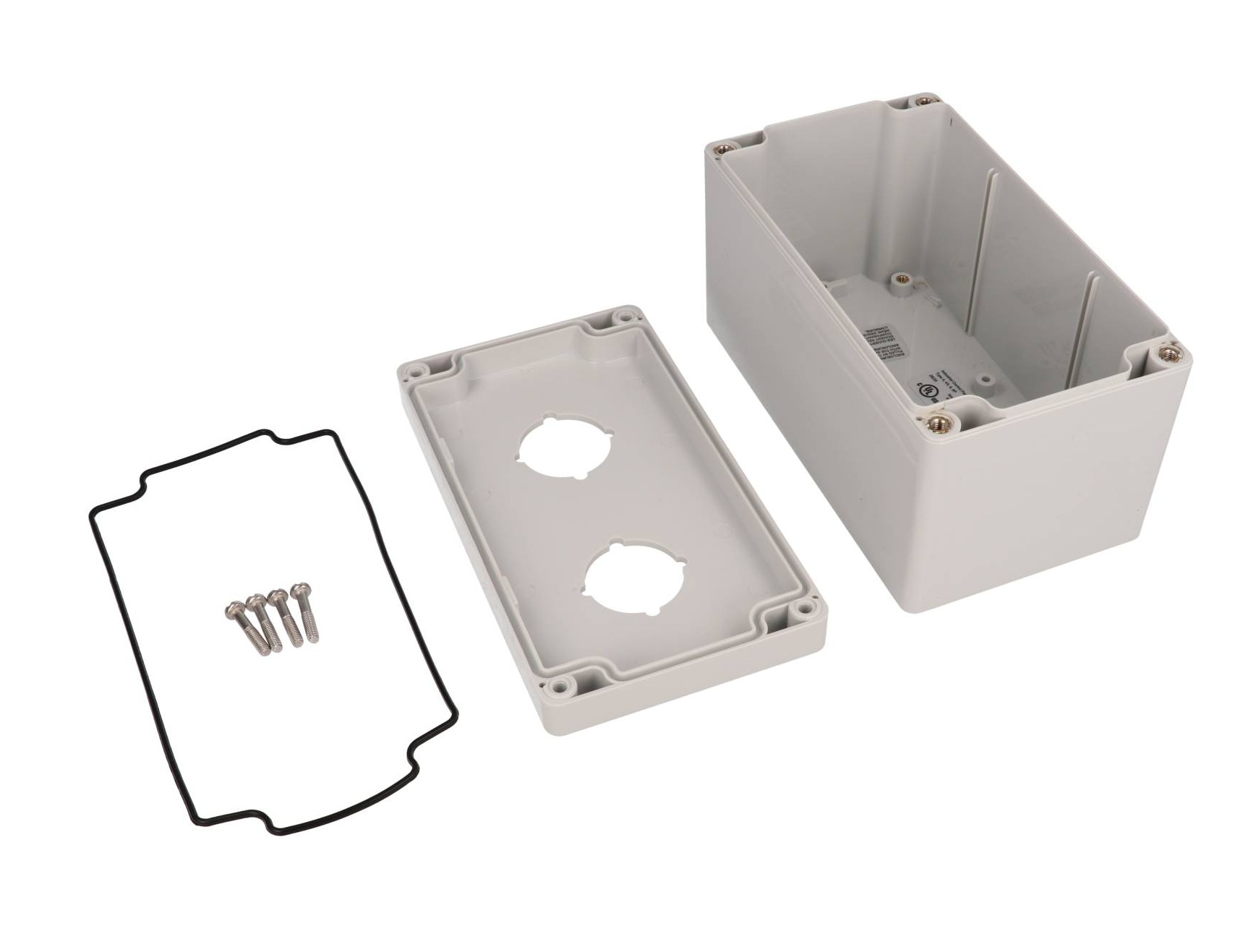

| Assembly Includes | Box, lid, 4 cover screws and preformed silicone gasket |
| DIN Rail Mounting | Internal DIN rail mounting tabs in base |
| Cover Screws Included | 4 |
| Chemical Resistance Note | Some chemicals (e.g. acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents) can damage or weaken the plastic |
| PCB / Inner Panel Mounting | Threaded (M3) integral brass inserts and standoffs designed for M3.5 or #6 self tapping screws |
| Lid & Mounting Hole Location | Outside of the gasket seal |
| Material Flammability Rating | UL94 5VA @ 3mm |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| Outdoor Use | Polycarbonate material suitable for outdoor use |
| NEMA Type Ratings | NEMA 4, 4X, 6, 6P, 12 & 13 |
| Ingress Protection | IP66 |
Compliance & Certifications
| UL 508A | Polycarbonate version is UL 508A approved |
| UL Listing | cULus Listed, File #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Drawing Type Marking | Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What inner panel fits the 1554PB2D?▾
The 1554JPL steel inner panel, 5.80 in (147 mm) by 3.00 in (76 mm).
What is included?▾
Box, lid, 4 cover screws and preformed silicone gasket.
Is it suitable for wet or outdoor locations?▾
It is rated IP66 and NEMA 4, 4X, 6, 6P, 12 and 13, and the polycarbonate is suitable for outdoor use.
Is there a 22 mm version?▾
Yes, 1554MPB2D is the 22 mm hole equivalent.
