Hammond 1554PB6 6-Hole 30.5mm Polycarbonate Pushbutton Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Six 30.5 mm pushbutton holes for a complete local control station
- 9.45 x 6.30 in (240 x 160 mm), 3.54 in (90 mm) deep with lid
- IP66 and NEMA 4, 4X, 12 & 13 rated (6-hole models do not meet Type 6/6P)
- UL94 5VA polycarbonate suitable for outdoor use, light gray RAL 7035
- DIN rail tabs, M3 brass inserts and PC card guides molded in
- Replaceable silicone gasket; four captive M4 stainless steel screws
- cULus listed File E65324; polycarbonate version UL 508A approved
- Optional 1554VPL steel inner panel, 9.10 x 5.70 in

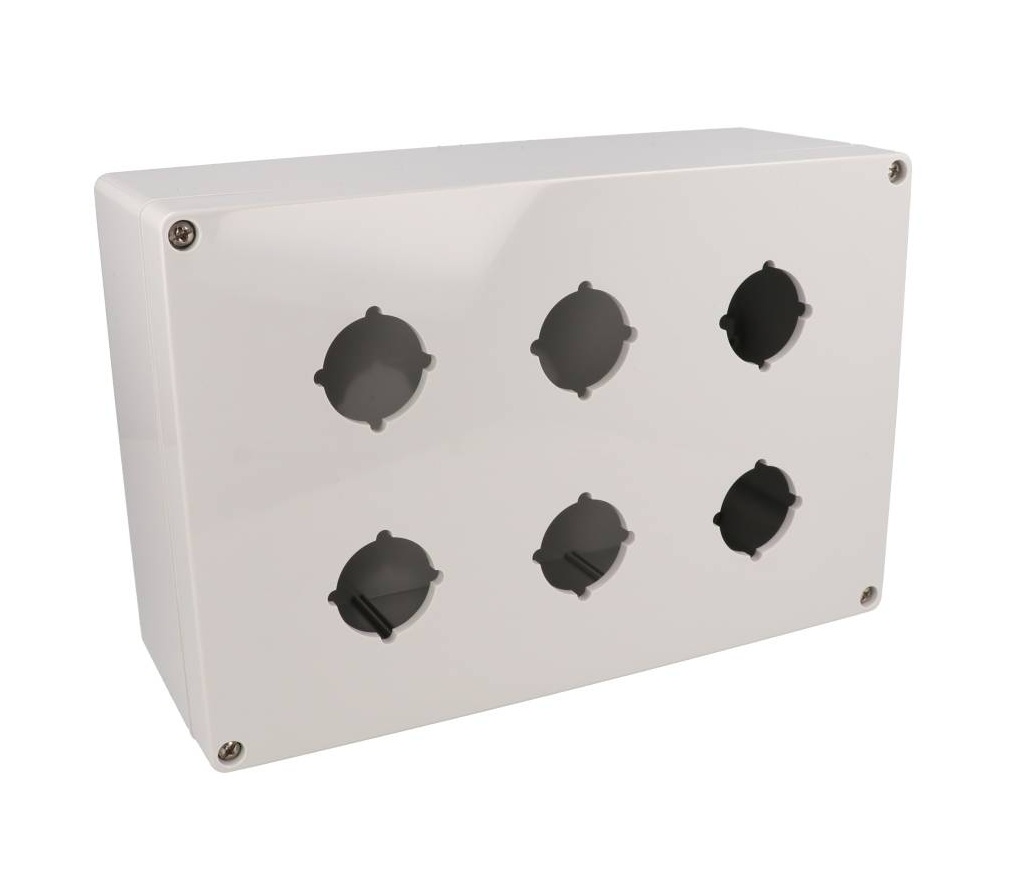

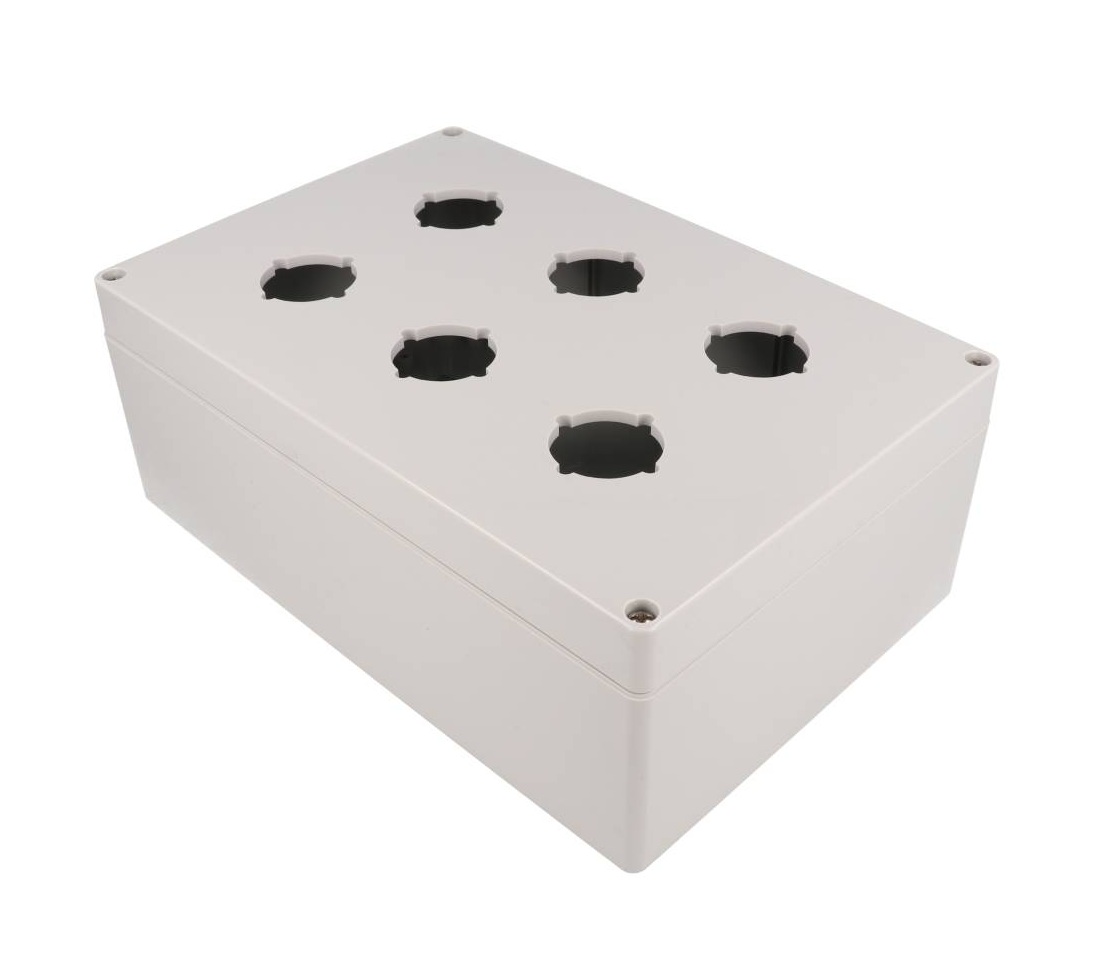

The 1554PB6 is a six-hole pushbutton enclosure for 30.5 mm operators, sized for a full local control station with several pushbuttons, selector switches and indicators in one lid. It uses the 1554V body from the Type 4, 4X polycarbonate 1554 PB Series and is intended for integrators, electricians and OEMs building sealed operator stations.

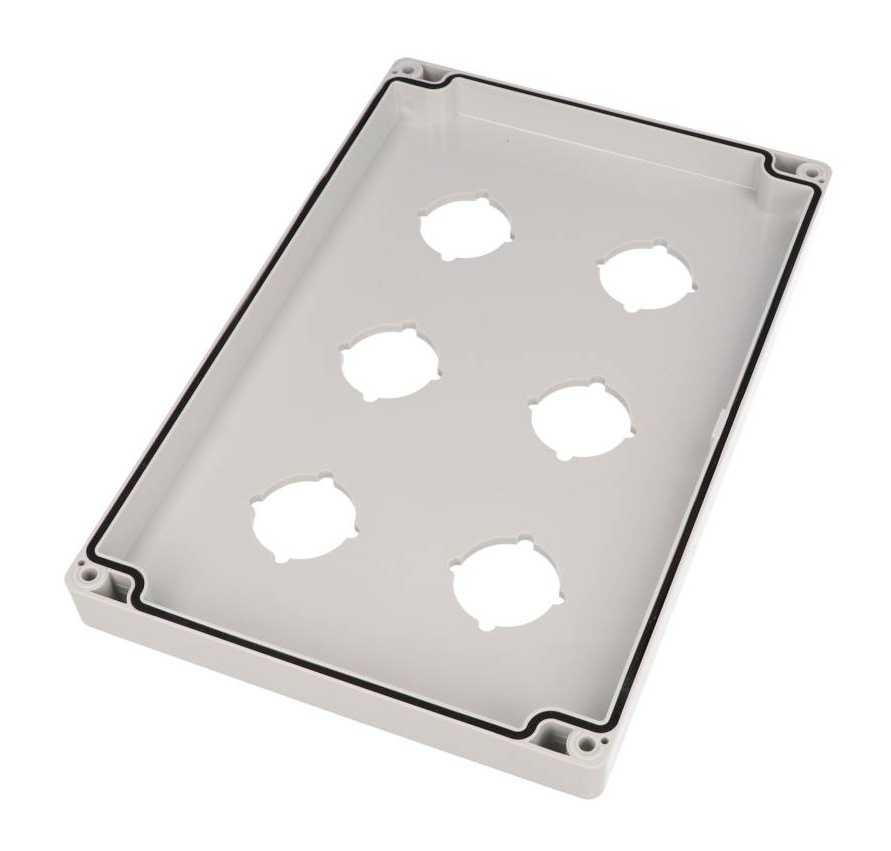

The enclosure is molded from UL94 5VA polycarbonate (at 3 mm) that is suitable for outdoor use, in light gray RAL 7035. Four self-captivating M4 stainless steel machine screws thread into integral stainless steel bushings to close the lid on a replaceable, preformed, high temperature U.L. listed silicone rubber gasket; the recommended cover screw torque is 71-85 ozf-in (50-60 cN-m). Lid screws and mounting holes are outside the gasket seal.
It measures 9.45 in (240 mm) high, 6.30 in (160 mm) wide and 3.54 in (90 mm) deep with the lid, and weighs 1.3 lbs (0.59 kg) for shipping. The base carries DIN rail mounting tabs, threaded M3 brass inserts and standoffs for M3.5 or #6 self tapping screws, and card guides for 1.5 mm PC boards. Four Ø4.00 mm holes mount the box; the optional 1554VPL galvanized steel inner panel (9.10 x 5.70 in) and 1554FT feet are sold separately.
The 1554PB6 is rated IP66 and NEMA 4, 4X, 12 and 13. Note that six-pushbutton enclosures in this series do not meet Type 6/6P. It is cULus listed under File E65324, the polycarbonate version is UL 508A approved, and it is RoHS and REACH compliant. The 22 mm version is 1554MPB6.
Ideal For
- Multi-function local control station
- Machine operator panel with pushbuttons, selectors and pilot lights
- Outdoor or wet-area control station
- Operator station with DIN rail components inside
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Overview
| Series | 1554 PB Series |
| Product Type | Type 4, 4X polycarbonate pushbutton enclosure |
| Long Description | N4X PB encl - 6 PB x 30.5mm - Polycarb |
| Short Description | 6 HOLE 30.5MM P-BUTTON ENCL. |
| Pushbutton Hole Size | 30.5 mm (lid accepts 30.5mm push buttons) |
| Number Of Pushbutton Holes | 6 |
| 22 Mm Hole Version Part No. | 1554MPB6 |
| Base Enclosure (See For More Detail) | 1554V |
Dimensions
| Enclosure Width | 6.30 in (160 mm) |
| Enclosure Height | 9.45 in (240 mm) |
| Enclosure Mounting Holes | 4X Ø4.00 mm [.16 in] |
| Nominal Size (H X W X D) | 9.5 in x 6.3 in x 3.5 in (241 mm x 160 mm x 89 mm) |
| Enclosure Depth (With Lid) | 3.54 in (90 mm) |
Accessories
| Optional Mounting Feet | 1554FT |
| Inner Panel Construction | Heavy duty galvanized 16 ga. steel; includes mounting hardware |
| Replacement Cover Screws | SC583-50 - M4-0.7 x 25mm stainless steel (Pkg 50) |
| Optional Inner Panel Width | 5.70 in (145 mm) |
| Optional Steel Inner Panel | 1554VPL |
| Optional Inner Panel Height | 9.10 in (231 mm) |
| Steel Panel / P.C. Board Screws | 1591MM100 - M3-0.5 x 8mm plated (Pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screws | 1598ATS100 - #6 x 1/4" (6.4mm) plated (Pkg 100) |
Identifiers
| UPC | 623980843407 |
| UNSPSC | 39121326 |
| Part Number | 1554PB6 |
Packaging & Shipping
| Shipping Weight | 1.3 lbs (0.59 kg) |
Construction & Finish
| Color | Light gray (RAL 7035) |
| Gasket | Preformed, high temperature U.L. listed silicone rubber; replaceable |
| Material | Polycarbonate |
| Lid Fastening | Self-captivating M4 stainless steel machine screws (included) threaded into integral stainless steel bushings |
| PC Card Guides | Vertical, molded, for 1.5 mm thick PC boards |

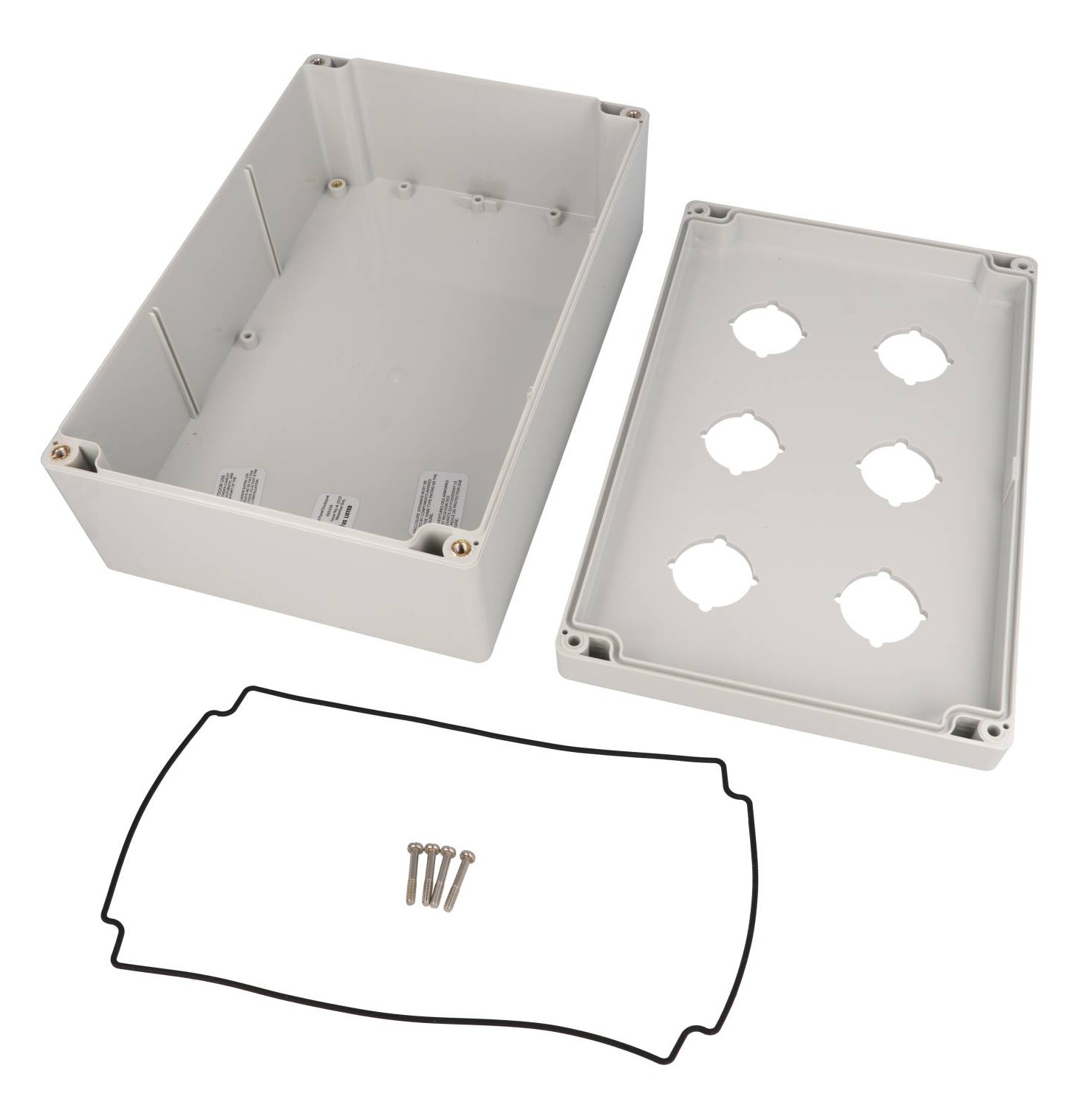

| Assembly Includes | Box, lid, 4 cover screws and preformed silicone gasket |
| DIN Rail Mounting | Internal DIN rail mounting tabs in base |
| Cover Screws Included | 4 |
| Chemical Resistance Note | Some chemicals (e.g. acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents) can damage or weaken the plastic |
| PCB / Inner Panel Mounting | Threaded (M3) integral brass inserts and standoffs designed for M3.5 or #6 self tapping screws |
| Lid & Mounting Hole Location | Outside of the gasket seal |
| Material Flammability Rating | UL94 5VA @ 3mm |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| Outdoor Use | Polycarbonate material suitable for outdoor use |
| Type 6 / 6P | Not met (6 pushbutton enclosures do not meet Type 6/6P) |
| NEMA Type Ratings | NEMA 4, 4X, 12 & 13 |
| Ingress Protection | IP66 |
Compliance & Certifications
| UL 508A | Polycarbonate version is UL 508A approved |
| UL Listing | cULus Listed, File #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Drawing Type Marking | Type 4, 4X |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1554PB6 rated Type 6 or 6P?▾
No. The series notes that 6 pushbutton enclosures do not meet Type 6/6P. The 1554PB6 is rated IP66 and NEMA 4, 4X, 12 and 13.
What are the dimensions of the 1554PB6?▾
9.45 in (240 mm) high, 6.30 in (160 mm) wide and 3.54 in (90 mm) deep with lid. The part page lists a nominal 9.5 x 6.3 x 3.5 in (241 x 160 x 89 mm).
Which inner panel fits?▾
The optional 1554VPL steel inner panel, 9.10 in (231 mm) by 5.70 in (145 mm).
What is included with the 1554PB6?▾
Box, lid, 4 cover screws and preformed silicone gasket.
Is a 22 mm hole version available?▾
Yes, 1554MPB6.
