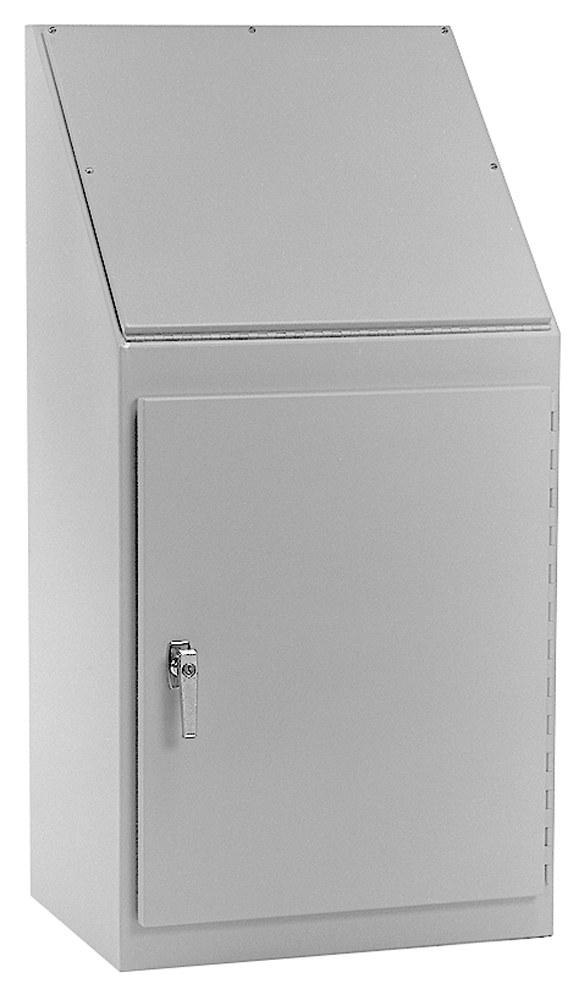

Type 12 Console Cabinet · 1471 Series

Brand: Hammond Manufacturing · 2 part numbers

Sloped Front, Continuous Hinged Cover

■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
■Heavy-duty construction provides protection from dirt, dust, oil and water.
■Sloping front control panel provides an ideal surface for mounting operator controls or instrumentation.
■Interior mounting provision on removable inner panels located on the rear and sides of the enclosure.
■UL 508A Type 12
■CSA Type 12

from $2,694.78

2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 1471 Series part number

Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

2 of 2 part numbers · 2 priced online

1471C24

N12 Console Cbnt 48X24X18

$2,694.78In stock

Buy now

1471C36

N12 Console Cbnt 48X36X18

$3,342.10Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Enclosure · H1	Enclosure · H2	Enclosure · W	Enclosure · D	Panel · H	Panel · W	Price	Order
1471C24	32.00	48.00	24.00	18.00	27.00	17.00	$2,694.78In stock	Buy now
1471C36	32.00	48.00	36.00	18.00	27.00	29.00	$3,342.10Backorder	Buy now

Application

■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
■Heavy-duty construction provides protection from dirt, dust, oil and water.
■Sloping front control panel provides an ideal surface for mounting operator controls or instrumentation.
■Interior mounting provision on removable inner panels located on the rear and sides of the enclosure.

Standards

■UL 508A Type 12
■CSA Type 12
■Complies with NEMA Type 12 IEC 60529, IP54
■NEMA Type 12
■IEC 60529, IP54

Construction

■Formed 14 gauge steel.
■Smooth, continuously welded seams, without knockouts, cutouts or holes.
■Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells.
■Continuously hinged door and front instrument panel may be removed by pulling the hinge pin.
■Doors are secured with a three point latch and operated with a key locking automotive type handle.
■Oil resistant gaskets are permanently secured.
■Includes three removable inner panels formed from 12 gauge steel, mounted to the back and sides of the enclosure interior.
■Collar studs are provided for mounting inner panels.
■A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
■A literature pocket is provided for the inside of the door.

Finish

■Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating on the outside and on the inside.
■Removable inner panels are finished in white powder coating.
