Console BASE-26X24X18-LT Grey
$1,126.81Backorder
Buy now
Type 4, 4X Mild Steel and Stainless Steel Base Units · Series 2000
Brand: Hammond Manufacturing · 16 part numbers
Modular Console System
- ■Flexible design provides panel mount or rack mount capabilities for a variety of applications.
- ■Generally used in combination with other modular console components (ie. another base, terminal, desk and/or turret).
- ■Available in either single or dual access format.
- ■Smooth lines and clean edges provide an attractive, contemporary appearance.
- ■UL 508A Type 3R, 4,12 (Stainless Steel, add 4X)
- ■CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X)
from $1,126.81
16 of 16 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Series 2000 part number
Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
16 of 16 part numbers · 16 priced online
Console BASE-26X36X18-LT Grey
$1,298.30Backorder
Buy nowConsole BASE-26X48X18-LT Grey
$1,641.67In stock
Buy nowConsole BASE-26X60X18-LT Grey
$1,719.58Backorder
Buy nowConsole DUAL-26X24X18-LT Grey
$1,933.84In stock
Buy now
Console DUAL-26X36X18-LT Grey
$1,965.60Backorder
Buy nowCONSOLE-DUAL-26X48X18 -Lt Grey
$2,539.33Backorder
Buy nowCONSOLE-DUAL-26X60X18-LT Grey
$2,670.50Backorder
Buy nowS2MCS-S-24" Base Unit
$1,820.73Backorder
Buy nowS2MCS-S-36" Base Unit
$2,098.07Backorder
Buy nowS2MCS-S-48" Base Unit
$2,652.79Backorder
Buy nowS2MCS-S-60" Base Unit
$2,778.73Backorder
Buy nowS2MCS-S-24" Base Unit D.A.
$3,125.00Backorder
Buy now
S2MCS-S-36" Base Unit D.A.
$3,176.17In stock
Buy nowS2MCS-S-48" Base Unit D.A.
$4,103.47Backorder
Buy nowS2MCS-S-60" Base Unit D.A.
$4,315.44In stock
Buy nowDimension tables (inches / mm)
Single Access
Units shown: inch . Switch units to: mm
| RAL 7035 Light Gray · Part No. | Stainless Steel · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|
| 2CLB262418 | 2CSB262418 | 26.00 | 24.00 | 17.30 | $1,126.81Backorder2CLB262418 | Buy now |
| 2CLB263618 | 2CSB263618 | 26.00 | 36.00 | 17.30 | $1,298.30Backorder2CLB263618 | Buy now |
| 2CLB264818 | 2CSB264818 | 26.00 | 48.00 | 17.30 | $1,641.67In stock2CLB264818 | Buy now |
| 2CLB266018 | 2CSB266018 | 26.00 | 60.00 | 17.30 | $1,719.58Backorder2CLB266018 | Buy now |
Dual Access
Units shown: inch . Switch units to: mm
| RAL 7035 Light Gray · Part No. | Stainless Steel · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|
| 2CLBX262418 | 2CSBX262418 | 26.00 | 24.00 | 16.50 | $1,933.84In stock2CLBX262418 | Buy now |

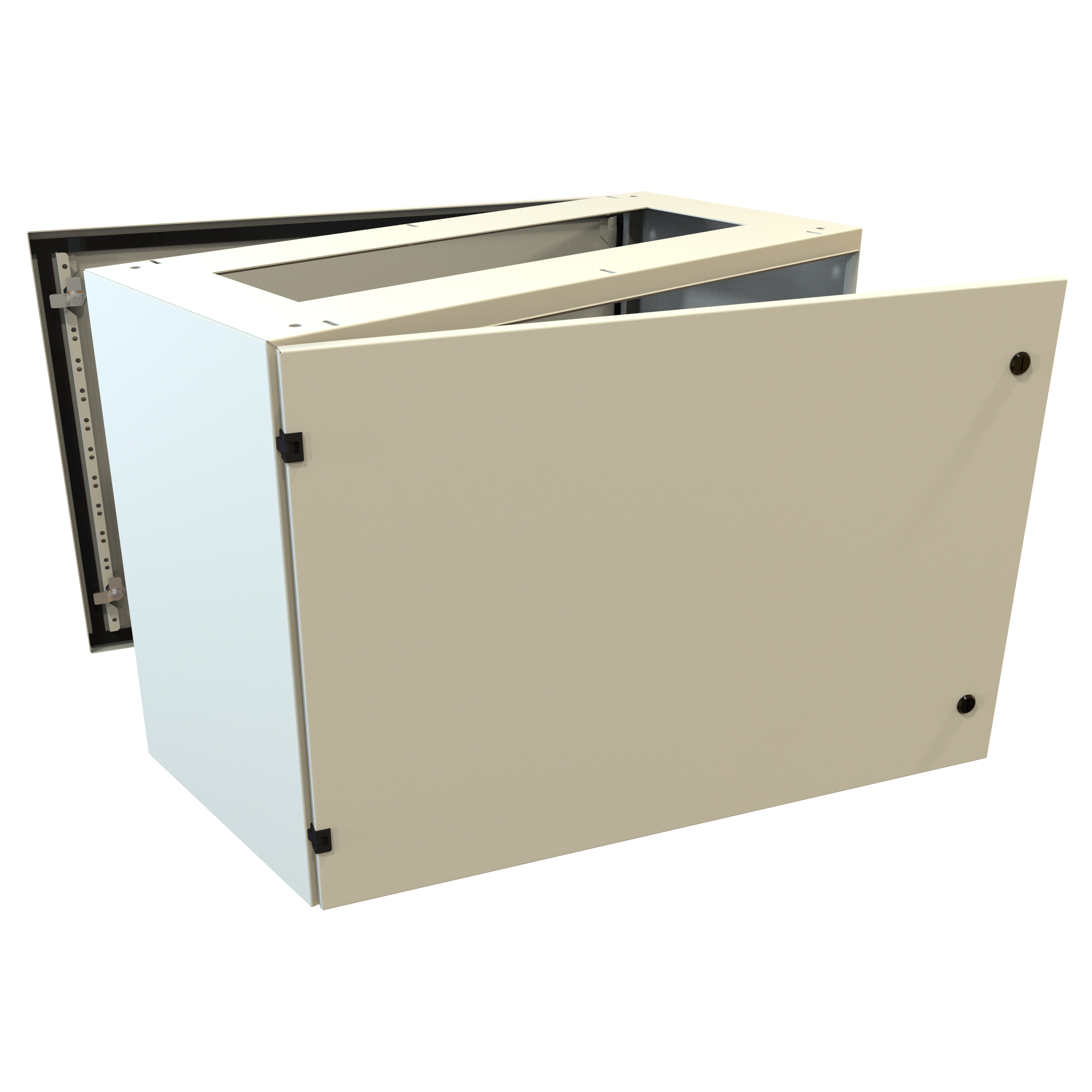

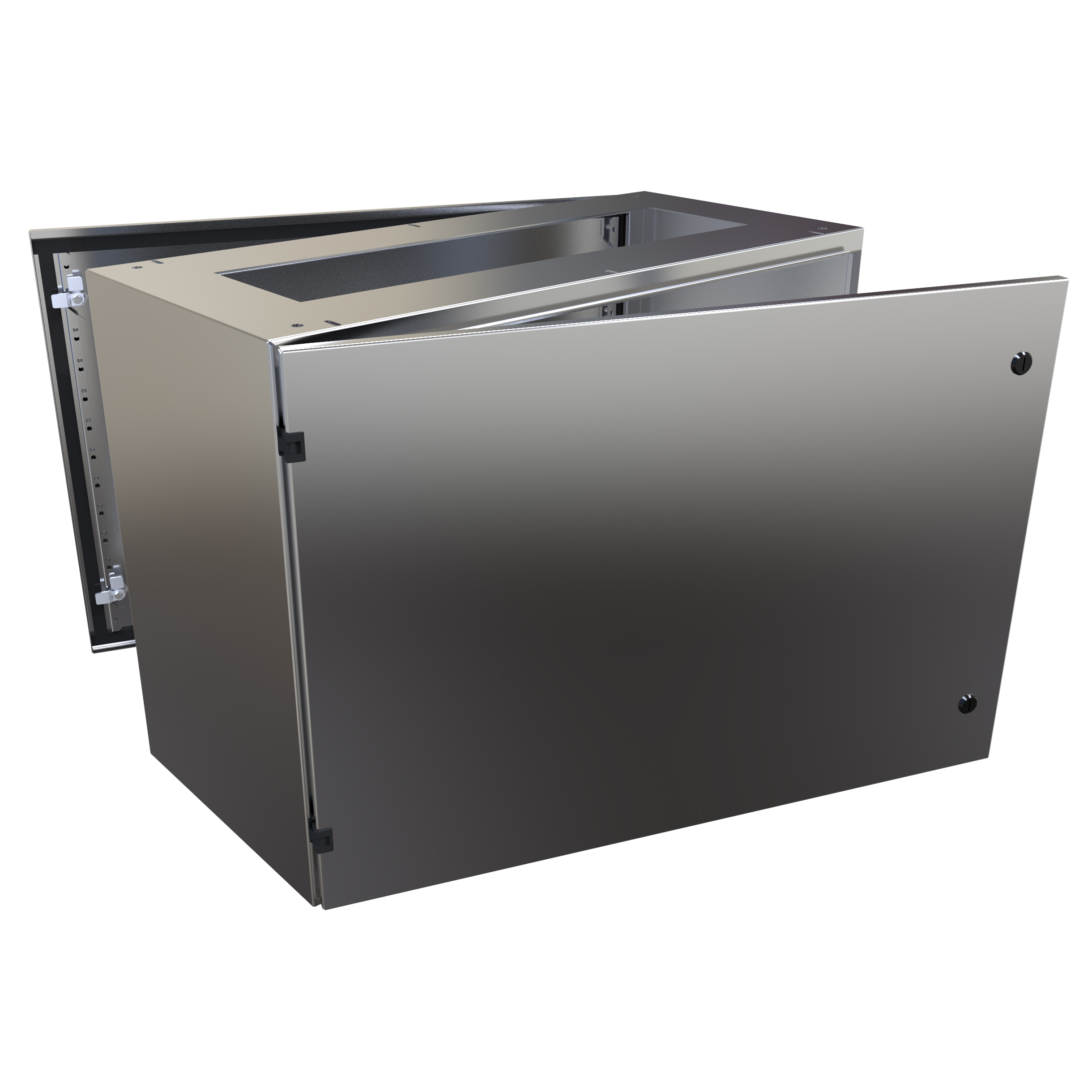

| 2CLBX263618 | 2CSBX263618 | 26.00 | 36.00 | 16.50 | $1,965.60Backorder2CLBX263618 | Buy now |
| 2CLBX264818 | 2CSBX264818 | 26.00 | 48.00 | 16.50 | $2,539.33Backorder2CLBX264818 | Buy now |
| 2CLBX266018 | 2CSBX266018 | 26.00 | 60.00 | 16.50 | $2,670.50Backorder2CLBX266018 | Buy now |
Application
- ■Flexible design provides panel mount or rack mount capabilities for a variety of applications.
- ■Generally used in combination with other modular console components (ie. another base, terminal, desk and/or turret).
- ■Available in either single or dual access format.
- ■Smooth lines and clean edges provide an attractive, contemporary appearance.
Standards
- ■UL 508A Type 3R, 4,12 (Stainless Steel, add 4X)
- ■CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X)
- ■EIA RS-310-E
- ■Complies with NEMA Type 3R, 4, 12 (Stainless Steel, add 4X) IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 (Stainless Steel, add 4X)
- ■IEC 60529, IP66
Construction
- ■Formed 14 gauge steel bodies with 14 gauge steel door.
- ■Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel door.
- ■Smooth, continuously welded seams.
- ■Body stiffeners are provided where required for increased strength and rigidity.
- ■Offered in 4 widths 24", 36", 48" and 60".
- ■Single access version has solid sides and back, solid door on front, open top, and closed bottom with removable access panel.
- ■Dual access version is same as above except has solid door on both front and back.
- ■24" and 36" widths have single door on the front (and back for dual access) whereas 48" and 60" widths have two outside hinged doors on the front (and back for dual access).
- ■Doors can be hinged from either side on 24" and 36" units.
- ■Door profiles provide increased strength and are pre-punched to provide mounting options.
- ■Formed lip on enclosure excludes flowing liquids and contaminants.
- ■Slotted quarter turn oil-tight latches secure the door, with optional tamper resistant and locking latches available.
- ■Stainless steel models utilize stainless steel hardware.
- ■Oil resistant gaskets are permanently secured.
- ■Features several internal stud locations for mounting of various accessories.
- ■A bonding screw is provided on the door and a grounding stud is provided in the enclosure.
Finish
- ■Available in RAL 7035 light gray textured powder coating and natural stainless steel with a smooth, brushed finish.
- ■Base Covers are available in the same finishes.
