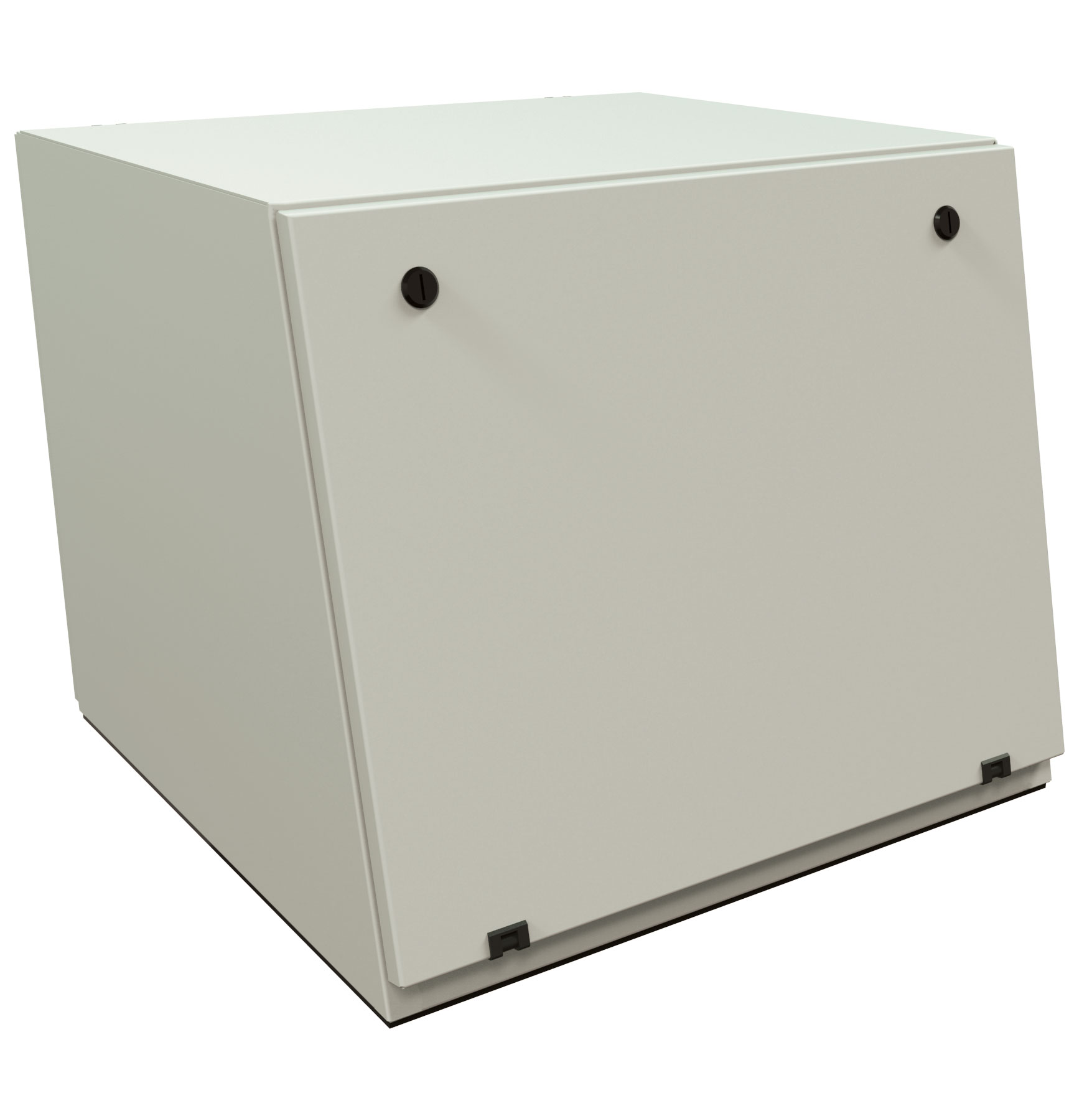

Type 4, 4X Mild Steel and Stainless Steel Turret Units · Series 2000

Brand: Hammond Manufacturing · 16 part numbers

Modular Console System

■Ideal as a housing for video screens.
■Flexible design provides panel mount or rack mount capabilities for a variety of applications.
■Generally used in combination with other modular console components (ie. base, pedestal, and/or desk).
■Available in either Standard (supported by Base, Pedestal, or Standard Desk) or Deep (supported by Deep Desk only) format.
■Smooth lines and clean edges provide an attractive, contemporary appearance.
■UL 508A Type 3R, 4,12 (Stainless Steel, add 4X)

from $1,410.43

16 of 16 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your Series 2000 part number

Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

16 of 16 part numbers · 16 priced online

2CLT202436

TURRET-20X24X16-LT Grey

$1,410.43In stock

Buy now

2CLT202443

TURRET-20X24X23-LT Grey

$1,551.53Backorder

Buy now

2CLT203636

TURRET-20X36X16.625 -Lt Grey

$1,585.76Backorder

Buy now

2CLT203643

TURRET-20X36X23-LT Grey

$1,744.29Backorder

Buy now

2CLT204836

TURRET-20X48X16-LT Grey

$1,920.34Backorder

Buy now

2CLT204843

TURRET-20X48X23-LT Grey

$2,112.45In stock

Buy now

2CLT206036

TURRET-20X60X16-LT Grey

$2,013.84In stock

Buy now

2CLT206043

TURRET-20X60X23-LT Grey

$2,215.15Backorder

Buy now

2CST202436

S2MCS-S-24" Turret

$2,279.41Backorder

Buy now

2CST202443

S2MCS-S-24" Deep Turret

$2,507.30In stock

Buy now

2CST203636

S2MCS-S-36" Turret

$2,562.43Backorder

Buy now

2CST203643

S2MCS-S-36" Turret Deep

$2,818.64Backorder

Buy now

2CST204836

S2MCS-S-48" Turret

$3,103.17Backorder

Buy now

2CST204843

S2MCS-S-48" Turret Deep

$3,413.54Backorder

Buy now

2CST206036

S2MCS-S-60" Turret

$3,254.17In stock

Buy now

2CST206043

S2MCS-S-60" Turret Deep

$3,579.59Backorder

Buy now

Dimension tables (inches / mm)

Standard Depth Turret

Units shown: inch . Switch units to: mm

RAL 7035 Light Gray · Part No.	Stainless Steel · Part No.	Enclosure · H	Enclosure · W	Enclosure · D1	Enclosure · D2	Price	Order
2CLT202436	2CST202436	20.00	24.00	12.38	16.62	$1,410.43In stock2CLT202436	Buy now
2CLT203636	2CST203636	20.00	36.00	12.38	16.62	$1,585.76Backorder2CLT203636	Buy now
2CLT204836	2CST204836	20.00	48.00	12.38	16.62	$1,920.34Backorder2CLT204836	Buy now
2CLT206036	2CST206036	20.00	60.00	12.38	16.62	$2,013.84In stock2CLT206036	Buy now

Extra Deep Turret

Units shown: inch . Switch units to: mm

RAL 7035 Light Gray · Part No.	Stainless Steel · Part No.	Enclosure · H	Enclosure · W	Enclosure · D1	Enclosure · D2	Price	Order
2CLT202443	2CST202443	20.00	24.00	16.62	23.31	$1,551.53Backorder2CLT202443	Buy now
2CLT203643	2CST203643	20.00	36.00	16.62	23.31	$1,744.29Backorder2CLT203643	Buy now
2CLT204843	2CST204843	20.00	48.00	16.62	23.31	$2,112.45In stock2CLT204843	Buy now
2CLT206043	2CST206043	20.00	60.00	16.62	23.31	$2,215.15Backorder2CLT206043	Buy now

Application

■Ideal as a housing for video screens.
■Flexible design provides panel mount or rack mount capabilities for a variety of applications.
■Generally used in combination with other modular console components (ie. base, pedestal, and/or desk).
■Available in either Standard (supported by Base, Pedestal, or Standard Desk) or Deep (supported by Deep Desk only) format.
■Smooth lines and clean edges provide an attractive, contemporary appearance.

Standards

■UL 508A Type 3R, 4,12 (Stainless Steel, add 4X)
■CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X)
■EIA RS-310-E
■Complies with NEMA Type 3R, 4, 12 (Stainless Steel, add 4X) IEC 60529, IP66
■NEMA Type 3R, 4, 12 (Stainless Steel, add 4X)
■IEC 60529, IP66

Construction

■Formed 14 gauge steel bodies with 14 gauge steel doors. Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel doors.
■Smooth, continuously welded seams without knockouts or holes.
■Body stiffeners are provided where required for increased strength and rigidity.
■Offered in 4 widths 24", 36", 48" and 60".
■Features solid sides and top, solid door on front (opens down) and back (opens up), and open bottom.
■Front door features sliding rod mechanism, which allows a 102º opening when in the lowered position.
■Rear door features manual, 3 position adjustable door stop which provides convenient support while door in open position.
■Formed lip on enclosure excludes flowing liquids and contaminants.
■Slotted quarter turn oil-tight latches secure the door, with optional tamper resistant and locking latches available.
■Stainless steel models utilize stainless steel hardware.
■Oil resistant gaskets are permanently secured.
■Features several internal stud locations for mounting of various accessories.
■A bonding screw is provided on the door and a grounding stud is provided in the enclosure.

Finish

■Available in RAL 7035 light gray textured powder coating and natural stainless steel with a smooth, brushed finish.
■24" Front Window Door available in same finishes.

Documents

Specification Sheet

Additional information

Standard Depth Turret

RAL 7035 Light Gray · Part No.	Stainless Steel · Part No.	Enclosure · H	Enclosure · W	Enclosure · D1	Enclosure · D2
2CLT202436	2CST202436	20.00	24.00	12.38	16.62
2CLT203636	2CST203636	20.00	36.00	12.38	16.62
2CLT204836	2CST204836	20.00	48.00	12.38	16.62
2CLT206036	2CST206036	20.00	60.00	12.38	16.62

Extra Deep Turret

RAL 7035 Light Gray · Part No.	Stainless Steel · Part No.	Enclosure · H	Enclosure · W	Enclosure · D1	Enclosure · D2
2CLT202443	2CST202443	20.00	24.00	16.62	23.31
2CLT203643	2CST203643	20.00	36.00	16.62	23.31
2CLT204843	2CST204843	20.00	48.00	16.62	23.31
2CLT206043	2CST206043	20.00	60.00	16.62	23.31
