N12 Console Cbnt
$2,791.56Backorder
Buy now

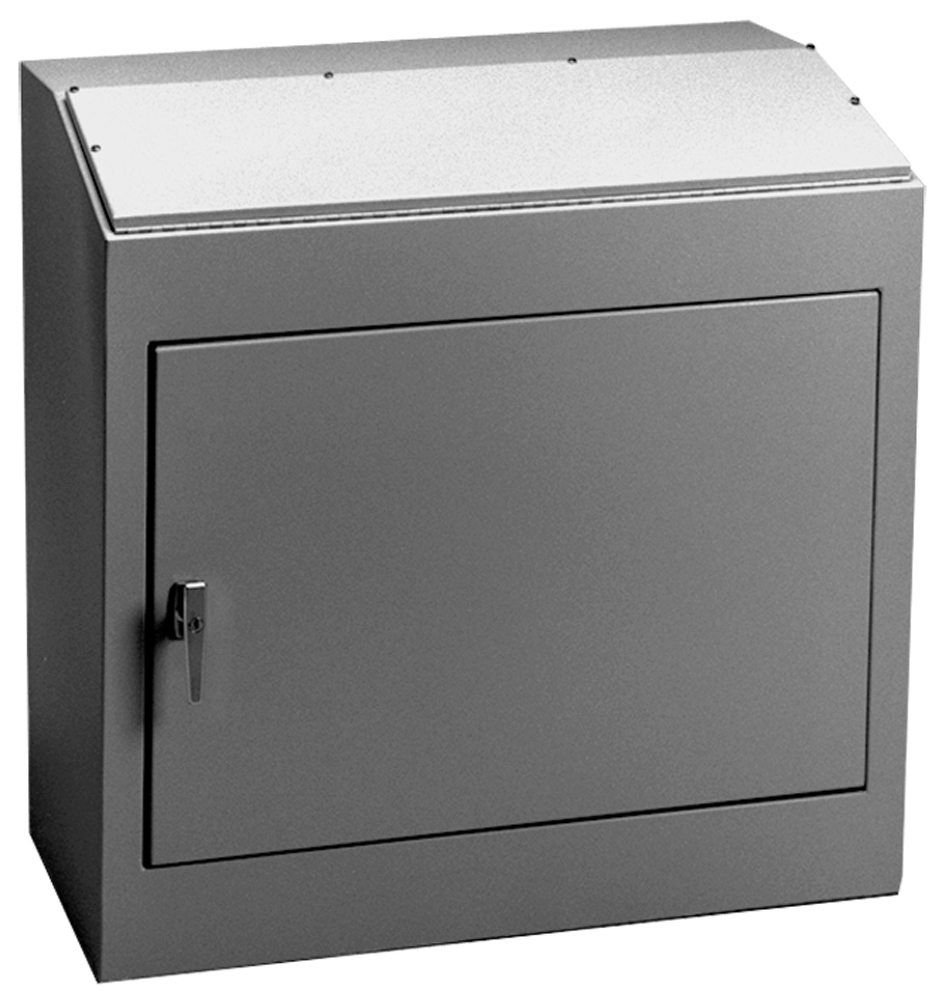

Type 12 Modular Console Cabinet · 1472 Series
Brand: Hammond Manufacturing · 9 part numbers
Sloped Front
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Heavy-duty construction provides protection from dirt, dust, oil and water.
- ■Sloping front control and instrument panels provide an ideal surface for mounting operator controls or instrumentation.
- ■Interior mounting is provided for with a removable inner panel located on the rear of the basic console.
- ■UL 508A Type 12
- ■CSA Type 12
from $260.19
9 of 9 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1472 Series part number
Filter 9 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
9 of 9 part numbers · 9 priced online
N12 Console Cbnt 34LBS
$878.16In stock
Buy nowN12 Console Cbnt 9LBS
$260.19In stock
Buy nowN12 Console Cbnt
$3,229.46In stock
Buy nowN12 Console Cbnt 68LBS
$1,022.54Backorder
Buy nowN12 Console Cbnt
$333.97Backorder
Buy nowN12 Console Cbnt
$3,964.03Backorder
Buy nowN12 Console Cbnt 80LBS
$1,208.17Backorder
Buy nowN12 Console Cbnt 20LBS
$408.54In stock
Buy nowDimension tables (inches / mm)
Base Console
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D1 | Enclosure · D2 | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| 1472-24 | 36.00 | 40.00 | 24.00 | 17.00 | 20.00 | 18.75 | 27.25 | $2,791.56Backorder | Buy now |
| 1472-36 | 32.00 | 36.00 | 36.00 | 20.00 | 24.00 | 30.00 | 32.00 | $3,229.46In stock | Buy now |
| 1472-48 | 32.00 | 36.00 | 48.00 | 20.00 | 24.00 | 42.00 | 32.00 | $3,964.03Backorder | Buy now |
Turret
Application
- ■Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- ■Heavy-duty construction provides protection from dirt, dust, oil and water.
- ■Sloping front control and instrument panels provide an ideal surface for mounting operator controls or instrumentation.
- ■Interior mounting is provided for with a removable inner panel located on the rear of the basic console.
Standards
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP65
- ■NEMA Type 12
- ■IEC 60529, IP65
Base Console Construction
- ■Formed 14 gauge steel.
- ■Smooth, continuously welded seams, without knockouts, cutouts or holes.
- ■Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells.
- ■Front instrument panel may be removed by pulling the hinge pin.
- ■Flush doors are secured with a three point latch and operated with a key locking automotive type handle.
- ■Two door model has overlapping front doors, with three point latch on right door.
- ■Oil resistant gaskets are permanently secured.
- ■Includes a removable inner panel formed from 12 gauge steel, mounted to the back of the enclosure interior.
- ■Collar studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
- ■A literature pocket is provided.
Turret Construction
- ■Formed and welded from 14 gauge steel.
- ■Sloping instrument panel and vertical rear access are completely removable.
- ■Captive panel screws fasten into sealed wells.
Writing Surface Construction
- ■Formed and welded from 14 gauge steel.
- ■Fastens to the front of the console with screws
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating on the outside and on the inside.
- ■Removable inner panels are finished in white powder coating.
Documents
Additional information
Base Console
| Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D1 | Enclosure · D2 | Panel · H | Panel · W |
|---|---|---|---|---|---|---|---|
| 1472-24 ¹ | 36.00 | 40.00 | 24.00 | 17.00 | 20.00 | 18.75 | 27.25 |
| 1472-36 ¹ | 32.00 | 36.00 | 36.00 | 20.00 | 24.00 | 30.00 | 32.00 |
| 1472-48 ¹,² | 32.00 | 36.00 | 48.00 | 20.00 | 24.00 | 42.00 | 32.00 |
Turret
| Part No. | H | W | D1 | D2 |
|---|---|---|---|---|
| 1472-24T | 16.00 | 24.00 | 5.00 | 3.00 |
| 1472-36T | 20.00 | 36.00 | 10.00 | 6.00 |
| 1472-48T | 20.00 | 48.00 | 10.00 | 6.00 |
Writing Surface
| Part No. | H | W | D |
|---|---|---|---|
| 1472-24W | 4.00 | 24.00 | 10.00 |
| 1472-36W | 4.00 | 36.00 | 10.00 |
| 1472-48W | 4.00 | 48.00 | 10.00 |
