N12 Slp Frnt CNSL8X8X7.15
$145.78In stock
Buy now
Type 12 Consolets · 1488 Series
Brand: Hammond Manufacturing · 16 part numbers
Hinged Cover
- ■Designed for use as electric, hydraulic or pneumatic control and instrument enclosures.
- ■Ideal for flat or surface mounting/pedestal to provide the necessary 30° or 60° control slope.
- ■Provides protection from dirt, dust, oil and water.
- ■UL 508A Type 12, 13
- ■CSA Type 12, 13
- ■Complies with NEMA Type 12, 13 IEC 60529, IP54
from $145.78
16 of 16 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1488 Series part number
Filter 16 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
16 of 16 part numbers · 16 priced online
N12 Slp Frnt CNSL12X8X7.15
$161.16Backorder
Buy now
N12 Slp Frnt CNSL16X8X7.15
$177.21Backorder
Buy now
N12 Slp Frnt CNSL20X8X7.15
$195.93In stock
Buy now
N12 Slp Frnt CNSL12X12X9.15
$187.91Backorder
Buy now
N12 Slp Frnt CNSL16X12X9.15
$207.98In stock
Buy now
N12 Slp Frnt CNSL20X12X9.15
$236.06In stock
Buy now
N12 Slp Frnt CNSL24X12X9.15
$256.78In stock
Buy now
N12 Slp Frnt CNSL16X16X11.15
$240.74Backorder
Buy now
N12 Slp Frnt CNSL20X16X11.15
$268.15In stock
Buy now
N12 Slp Frnt CNSL24X16X11.15
$294.91In stock
Buy now
N12 Slp Frnt CNSL30X16X11.15
$345.06In stock
Buy now
N12 Slp Frnt CNSL36X16X11.15
$387.86In stock
Buy now
N12 Slp Frnt CNSL20X20X13.15
$316.98Backorder
Buy now
N12 Slp Frnt CNSL24X20X13.15
$352.42Backorder
Buy now
N12 Slp Frnt CNSL30X20X13.15
$391.19Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · Cover H | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|---|

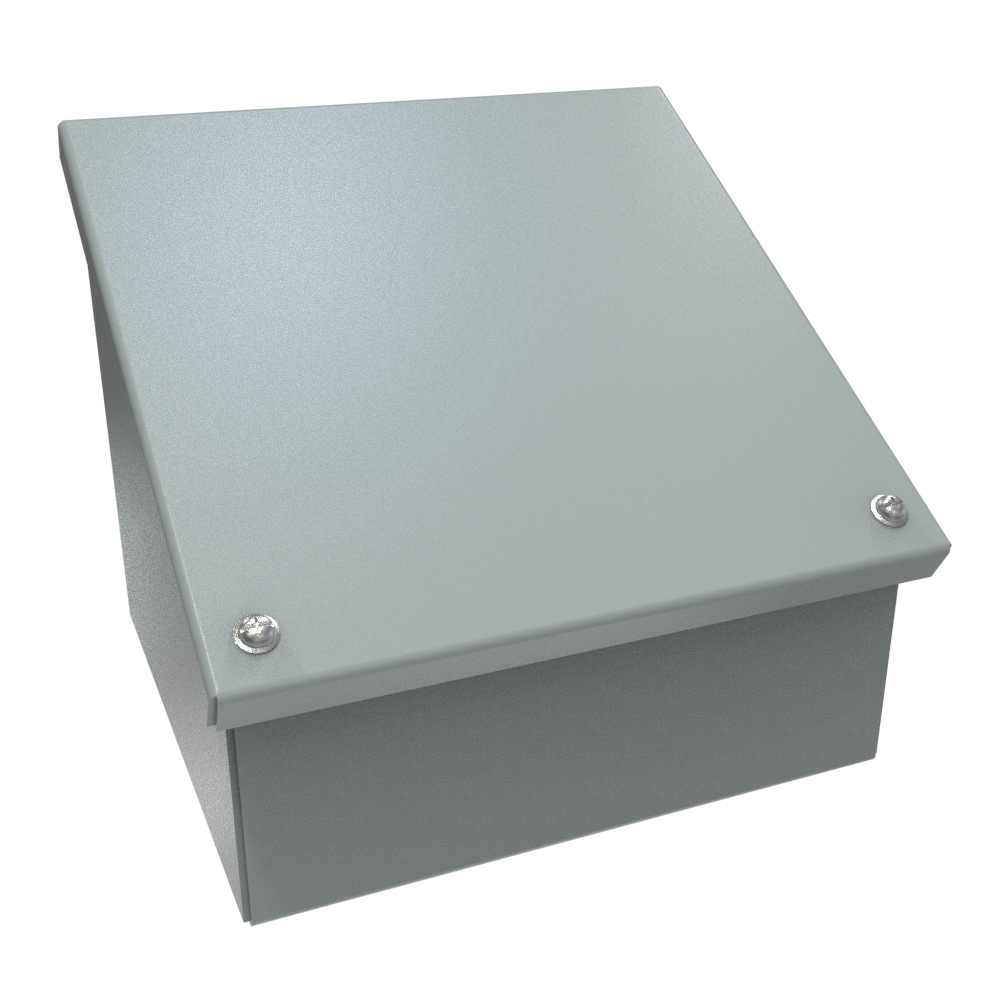

| 1488EE7 | 8.00 | 2.50 | 7.16 | 8.00 | 7.44 | $145.78In stock | Buy now |

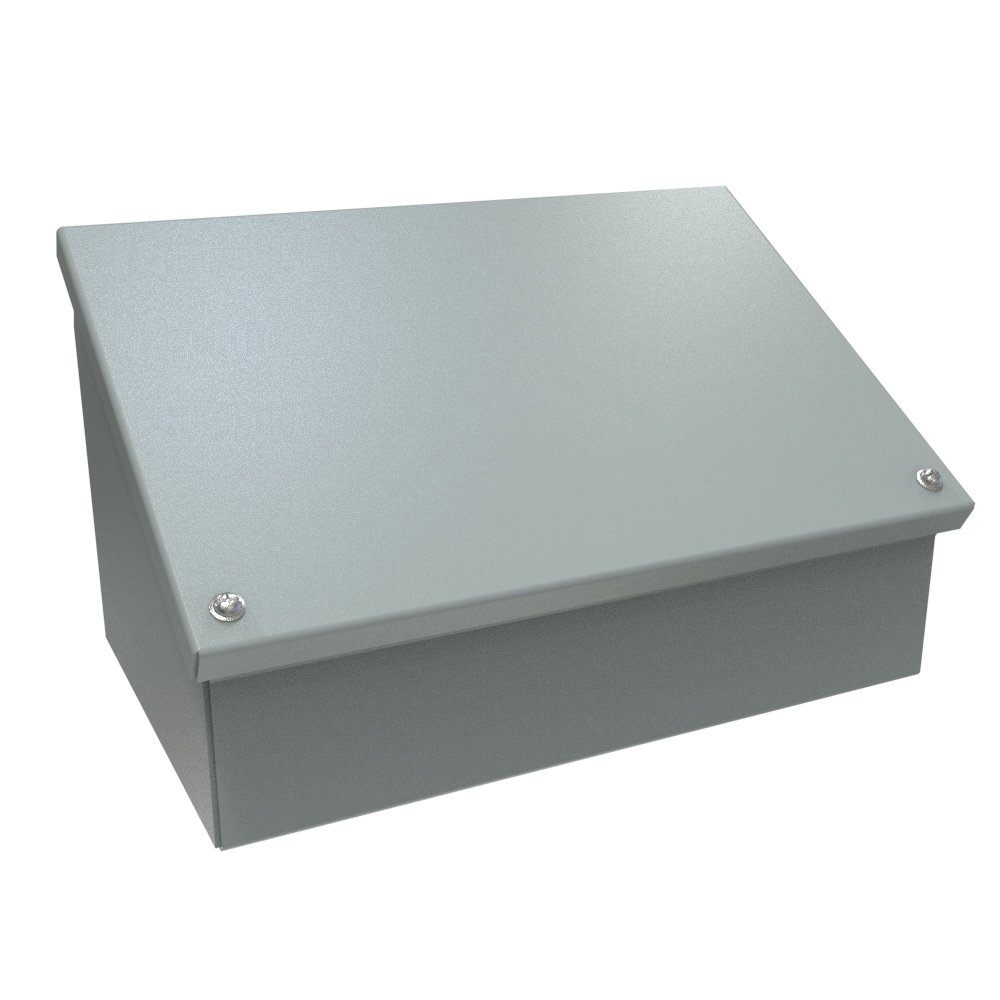

| 1488EH7 | 8.00 | 2.50 | 7.16 | 12.00 | 7.44 | $161.16Backorder | Buy now |

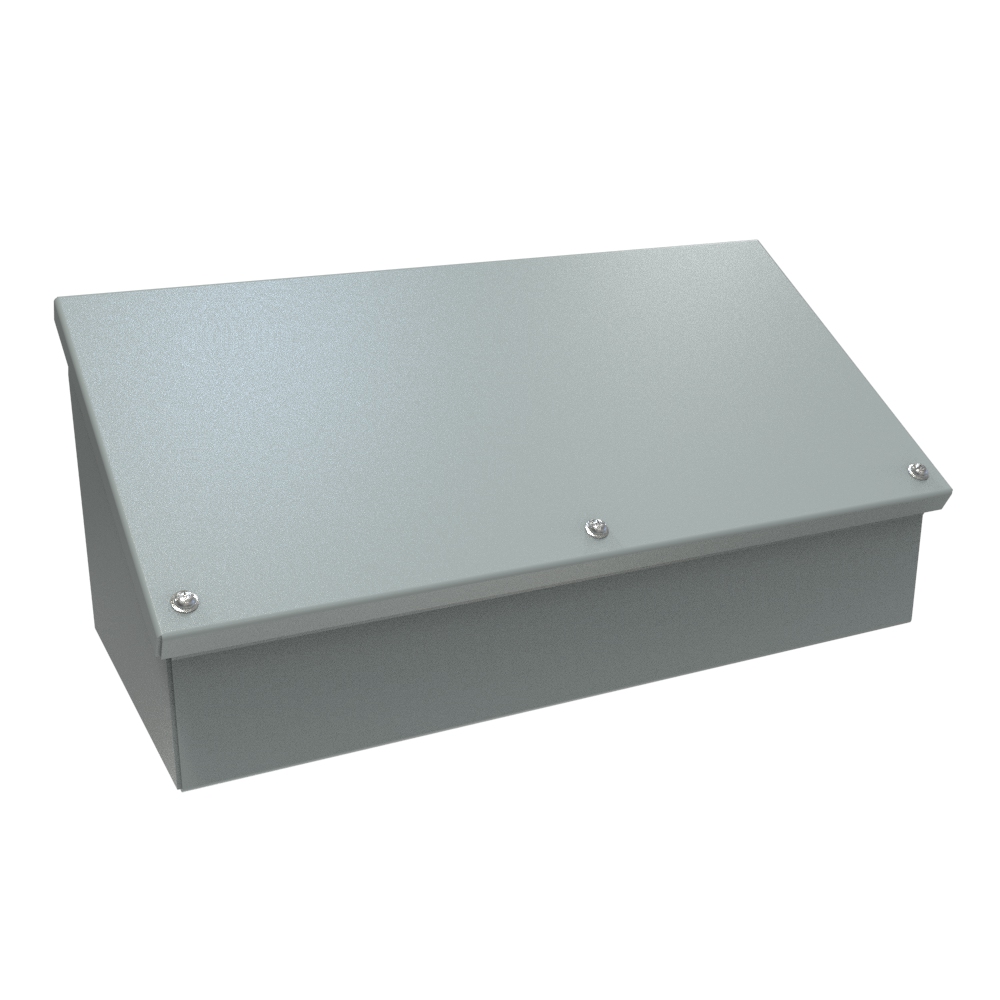

| 1488EJ7 | 8.00 | 2.50 | 7.16 | 16.00 | 7.44 | $177.21Backorder | Buy now |

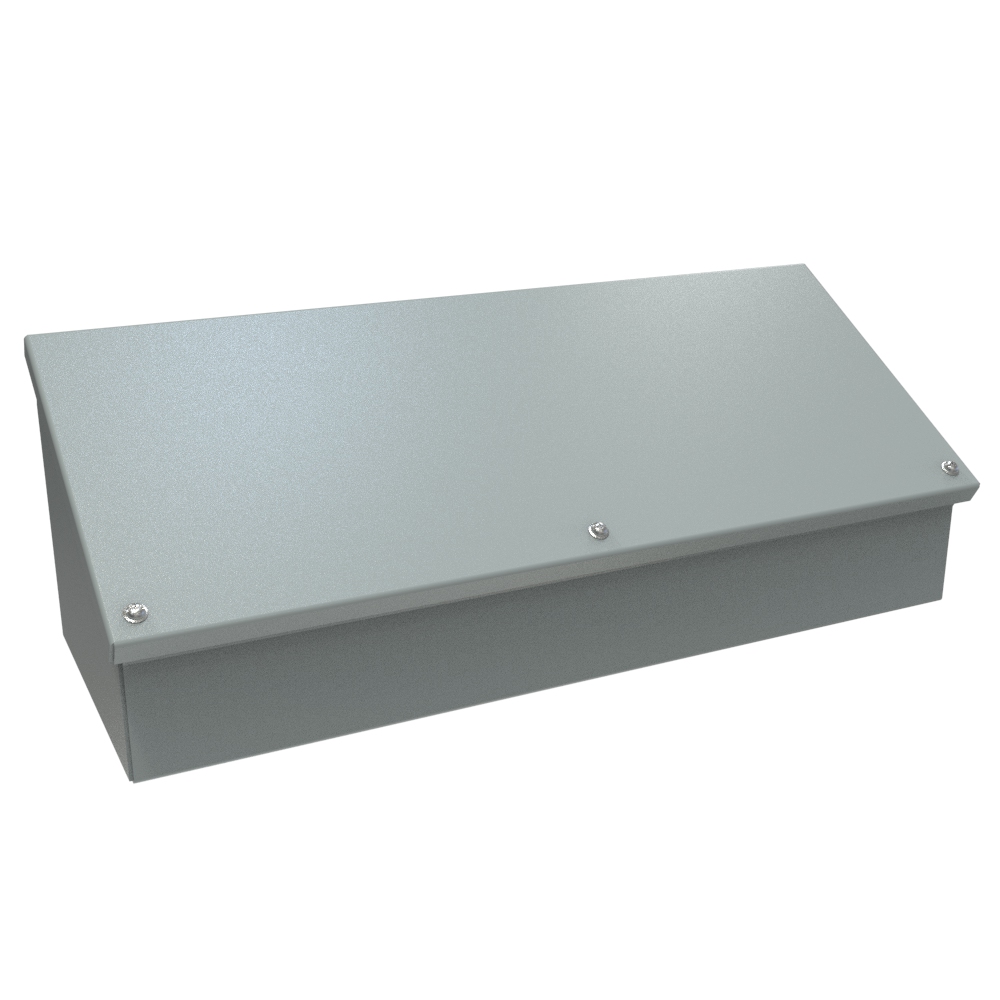

| 1488EL7 | 8.00 | 2.50 | 7.16 | 20.00 | 7.44 | $195.93In stock | Buy now |

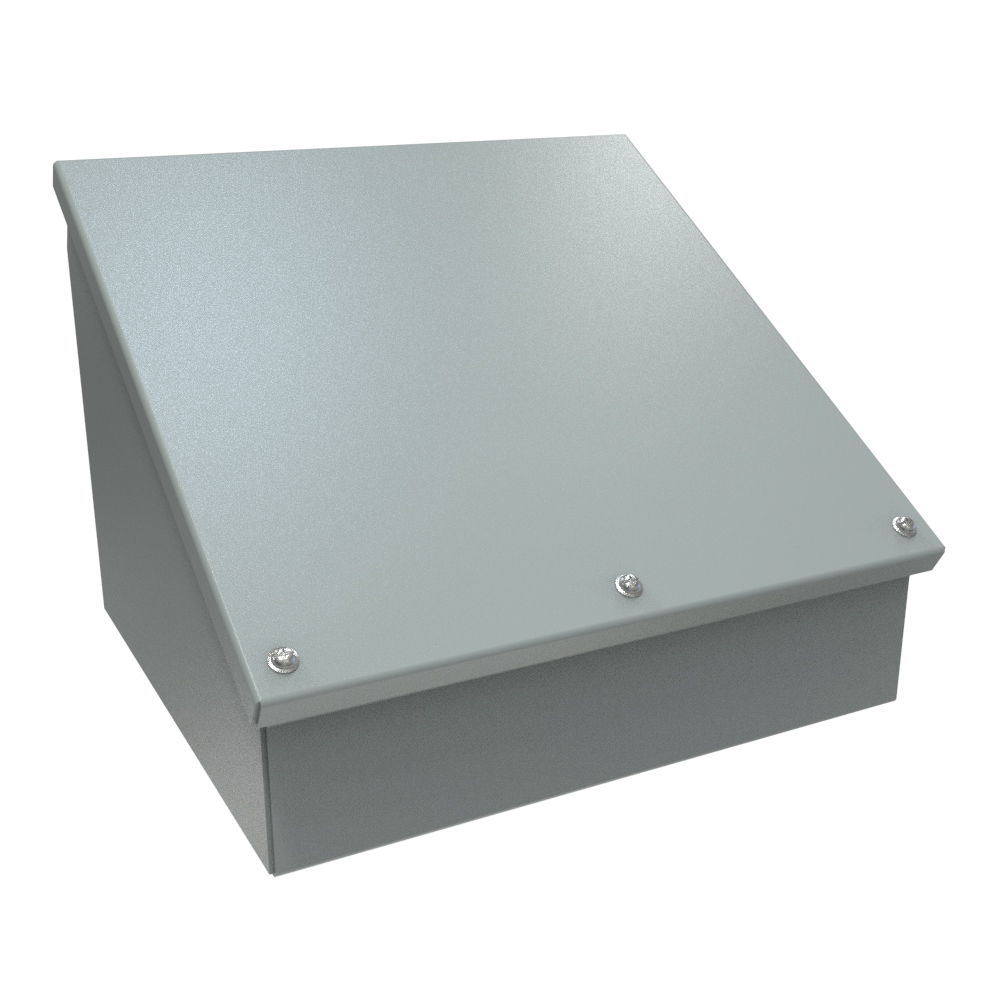

| 1488HH9 | 12.00 | 2.50 | 9.16 | 12.00 | 10.90 | $187.91Backorder | Buy now |

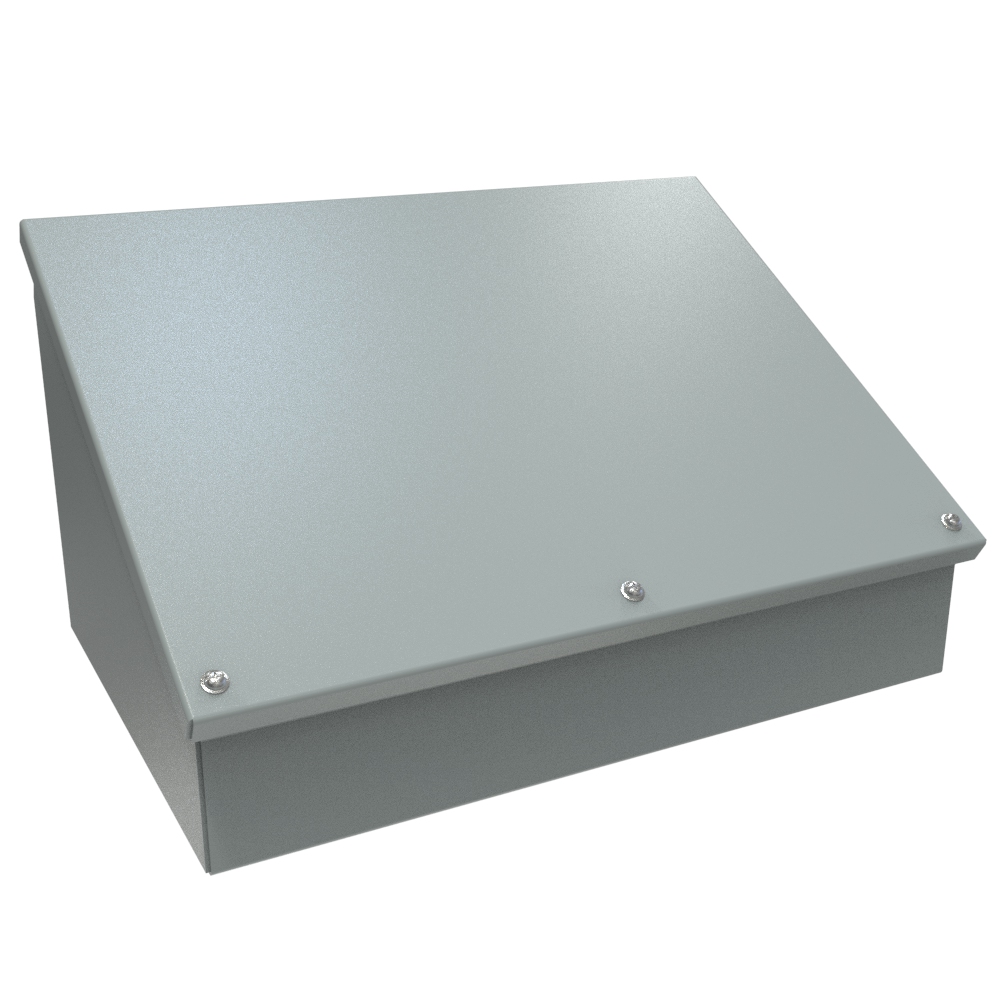

| 1488HJ9 | 12.00 | 2.50 | 9.16 | 16.00 | 10.90 | $207.98In stock | Buy now |

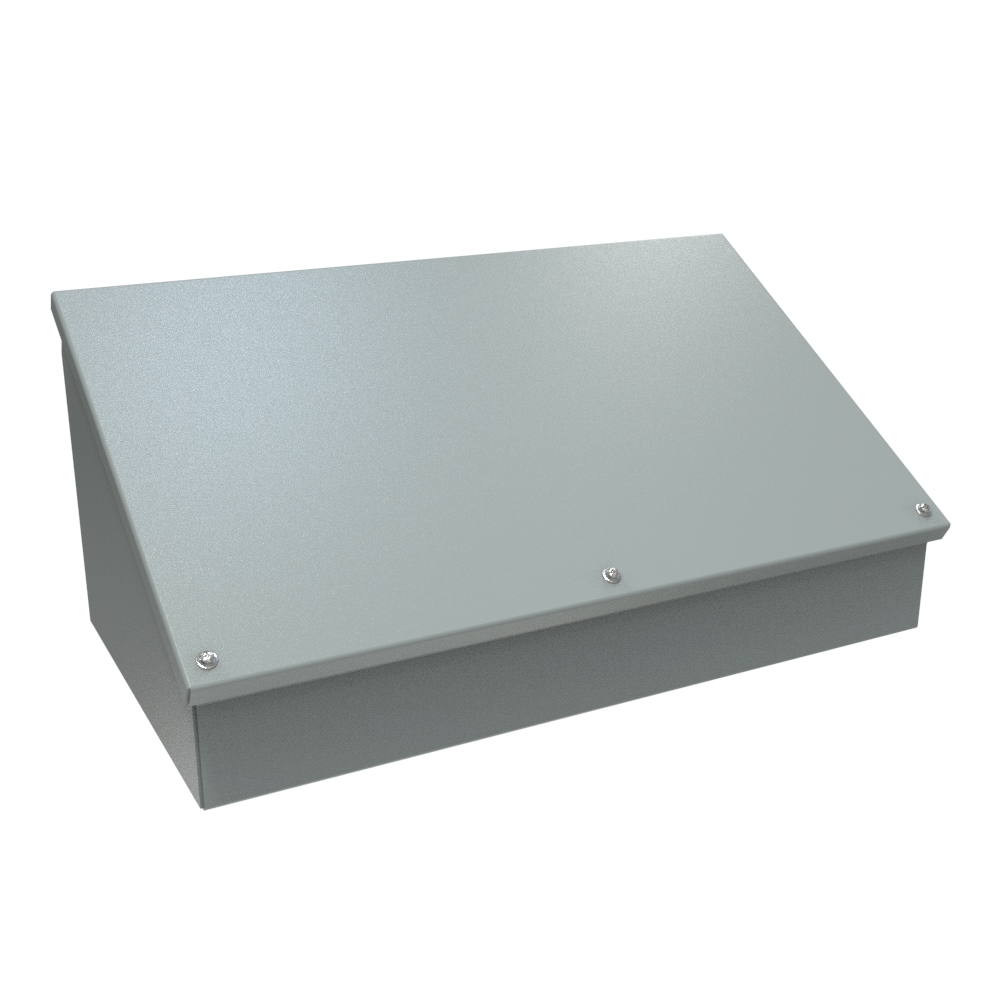

| 1488HL9 | 12.00 | 2.50 | 9.16 | 20.00 | 10.90 | $236.06In stock | Buy now |

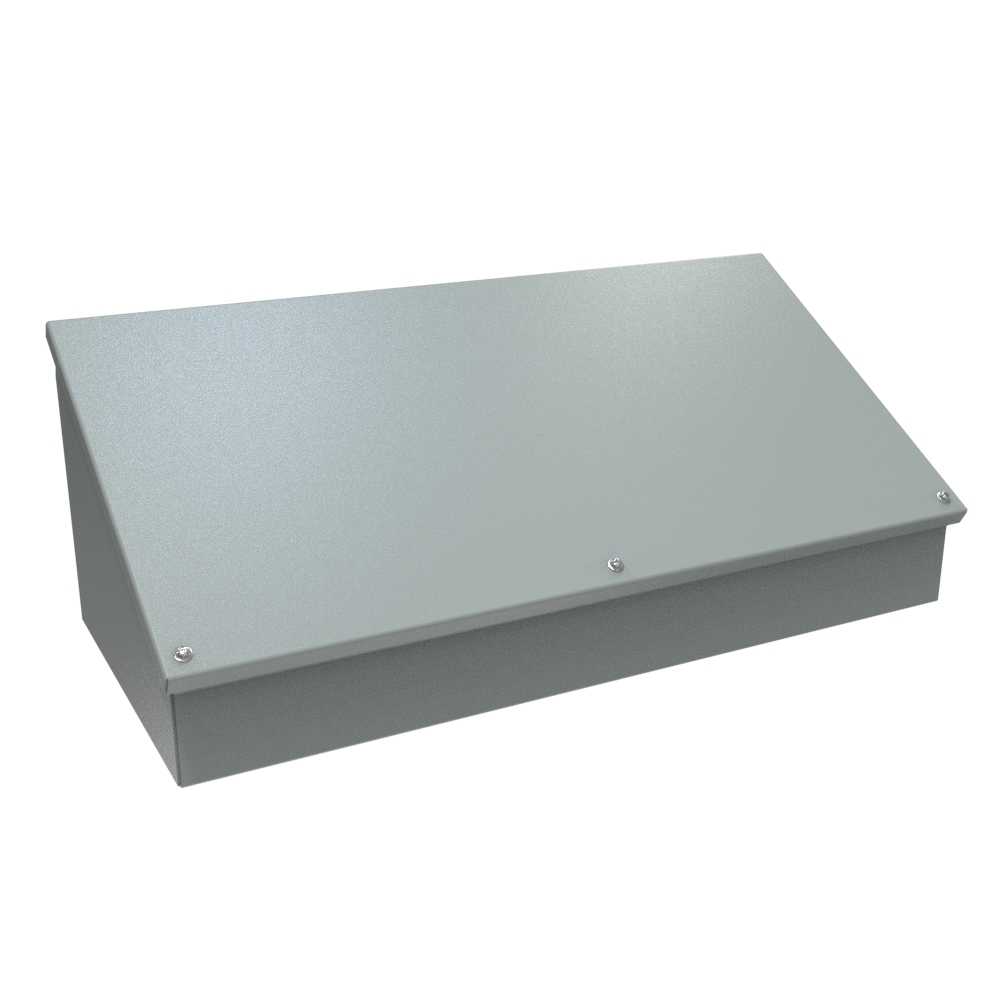

| 1488HN9 | 12.00 | 2.50 | 9.16 | 24.00 | 10.90 | $256.78In stock | Buy now |

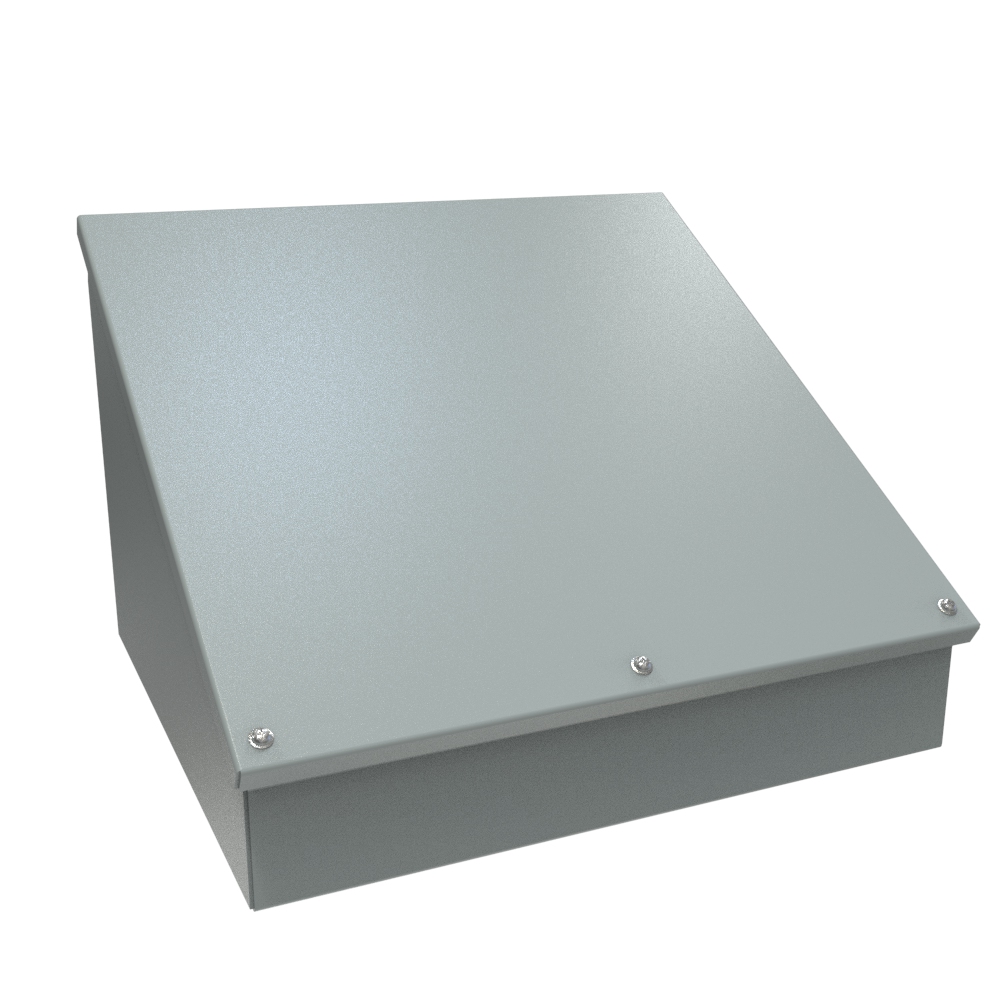

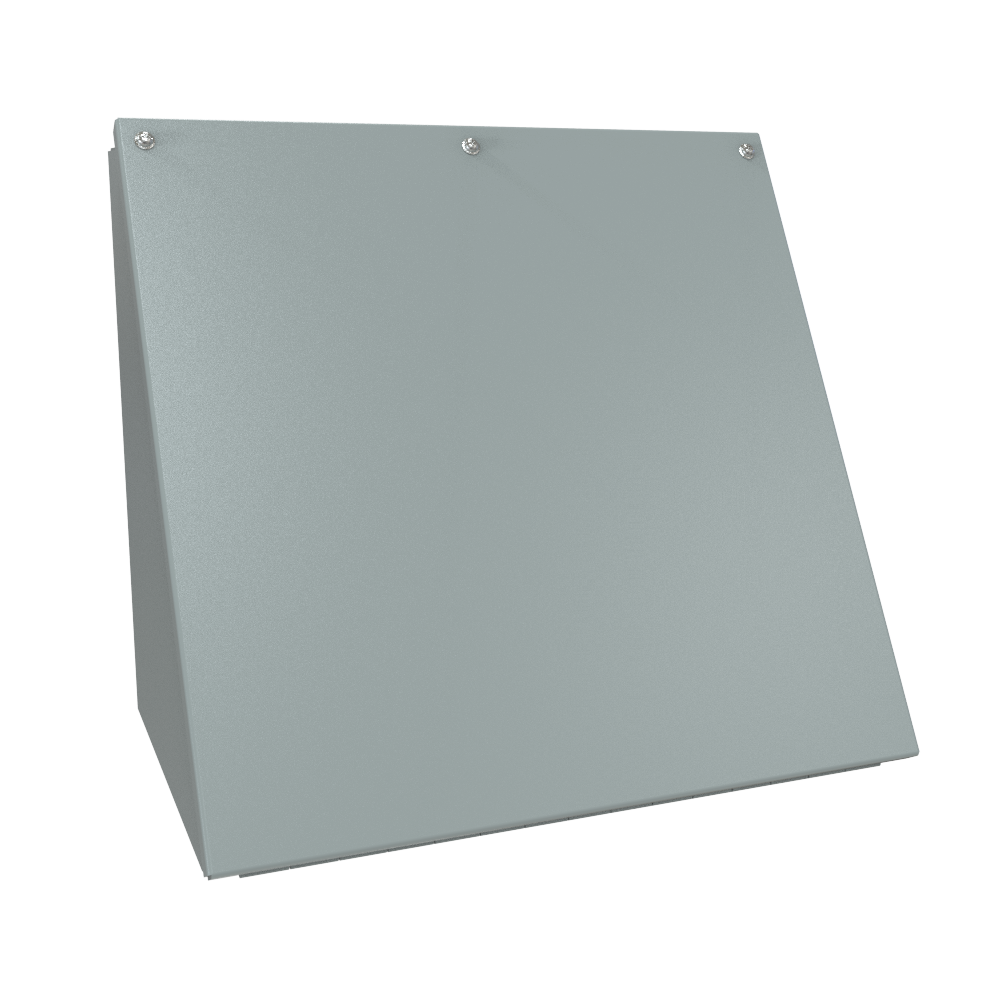

| 1488JJ11 | 16.00 | 2.50 | 11.16 | 16.00 | 14.37 | $240.74Backorder | Buy now |

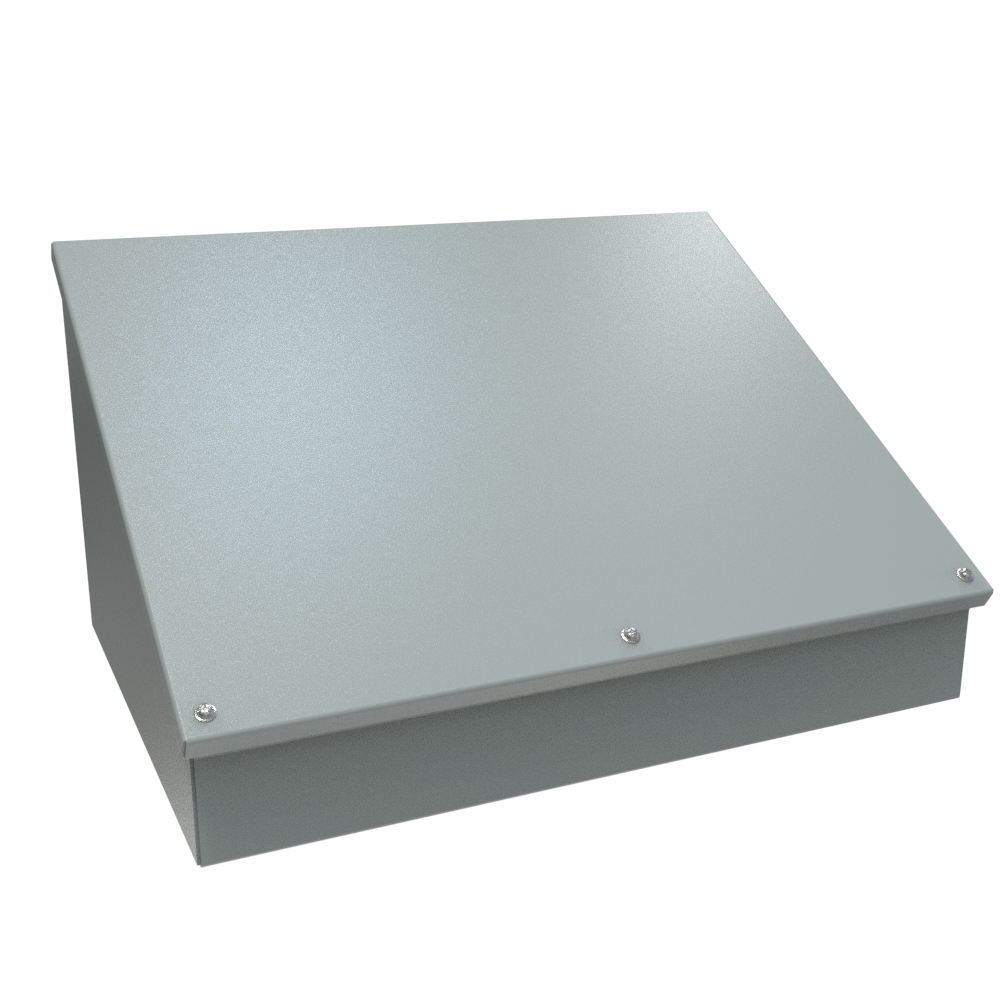

| 1488JL11 | 16.00 | 2.50 | 11.16 | 20.00 | 14.37 | $268.15In stock | Buy now |

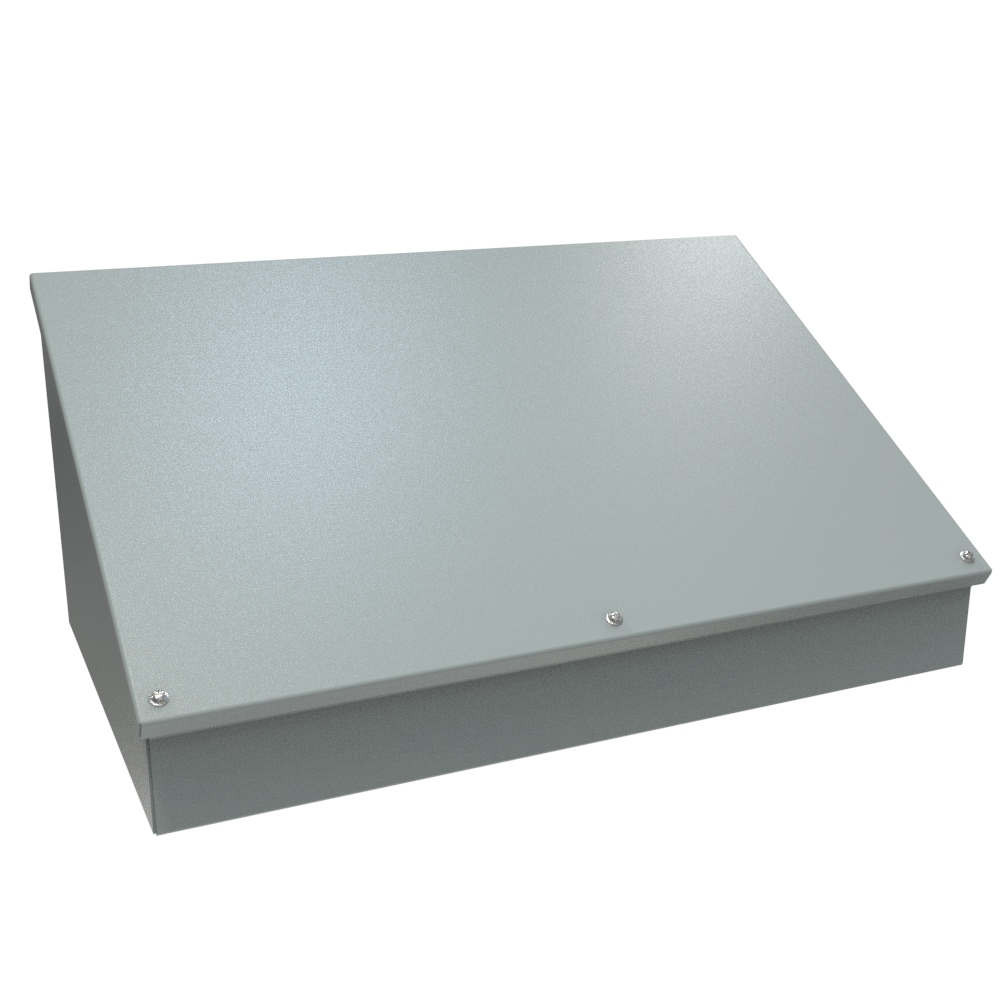

| 1488JN11 | 16.00 | 2.50 | 11.16 | 24.00 | 14.37 | $294.91In stock | Buy now |

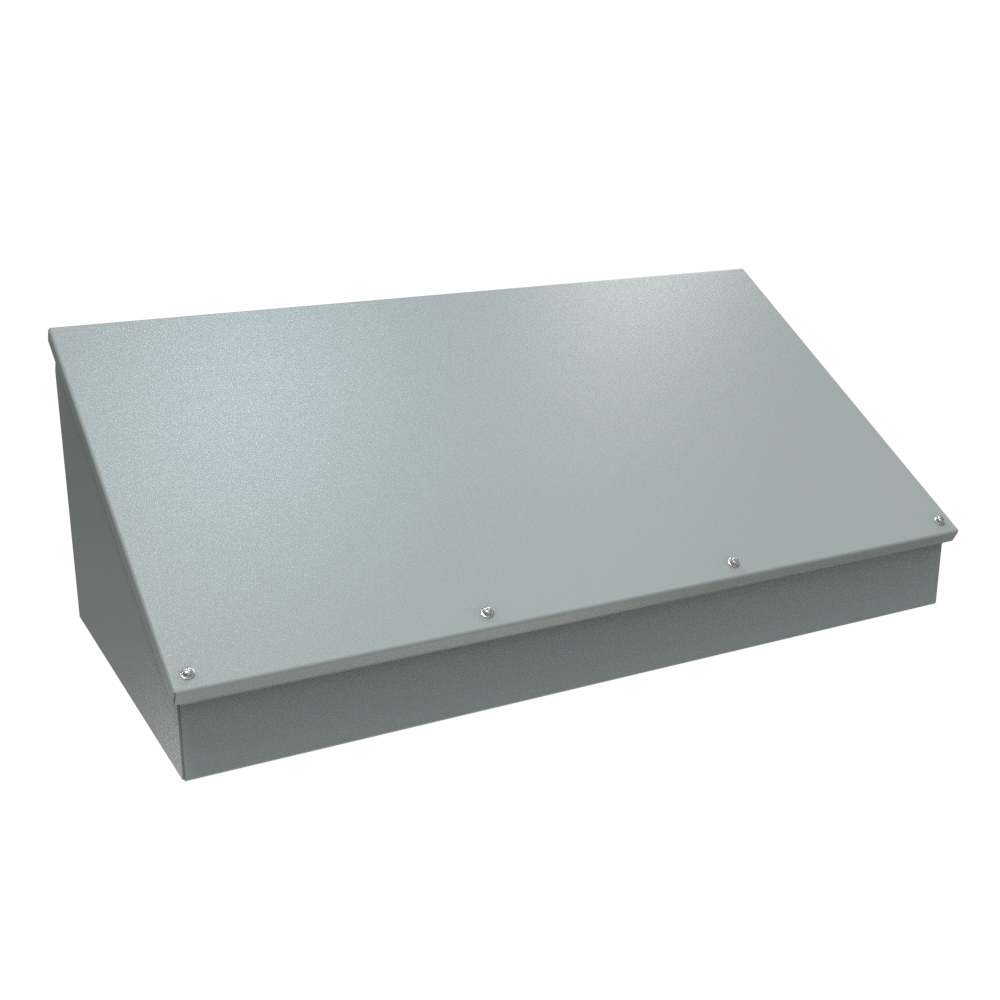

| 1488JQ11 | 16.00 | 2.50 | 11.16 | 30.00 | 14.37 | $345.06In stock | Buy now |

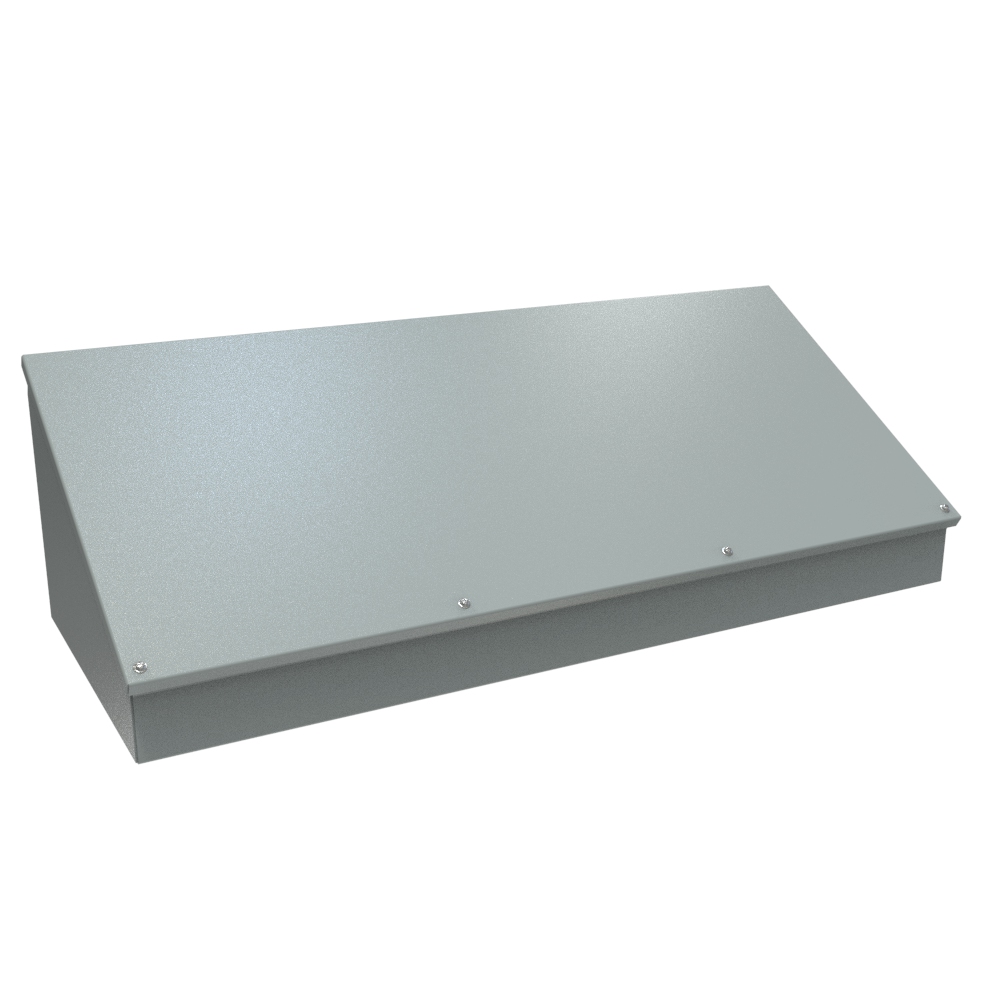

| 1488JS11 | 16.00 | 2.50 | 11.16 | 36.00 | 14.37 | $387.86In stock | Buy now |

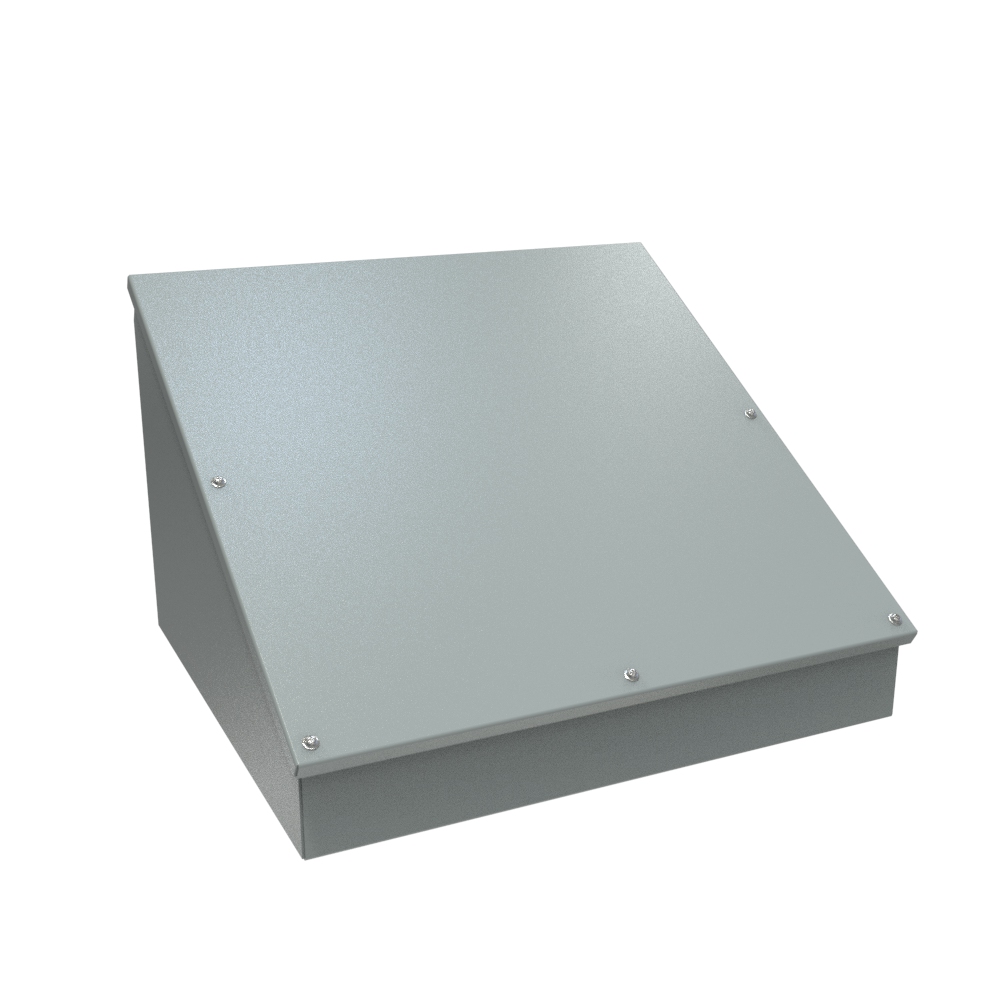

| 1488LL13 | 20.00 | 2.50 | 13.16 | 20.00 | 17.83 | $316.98Backorder | Buy now |

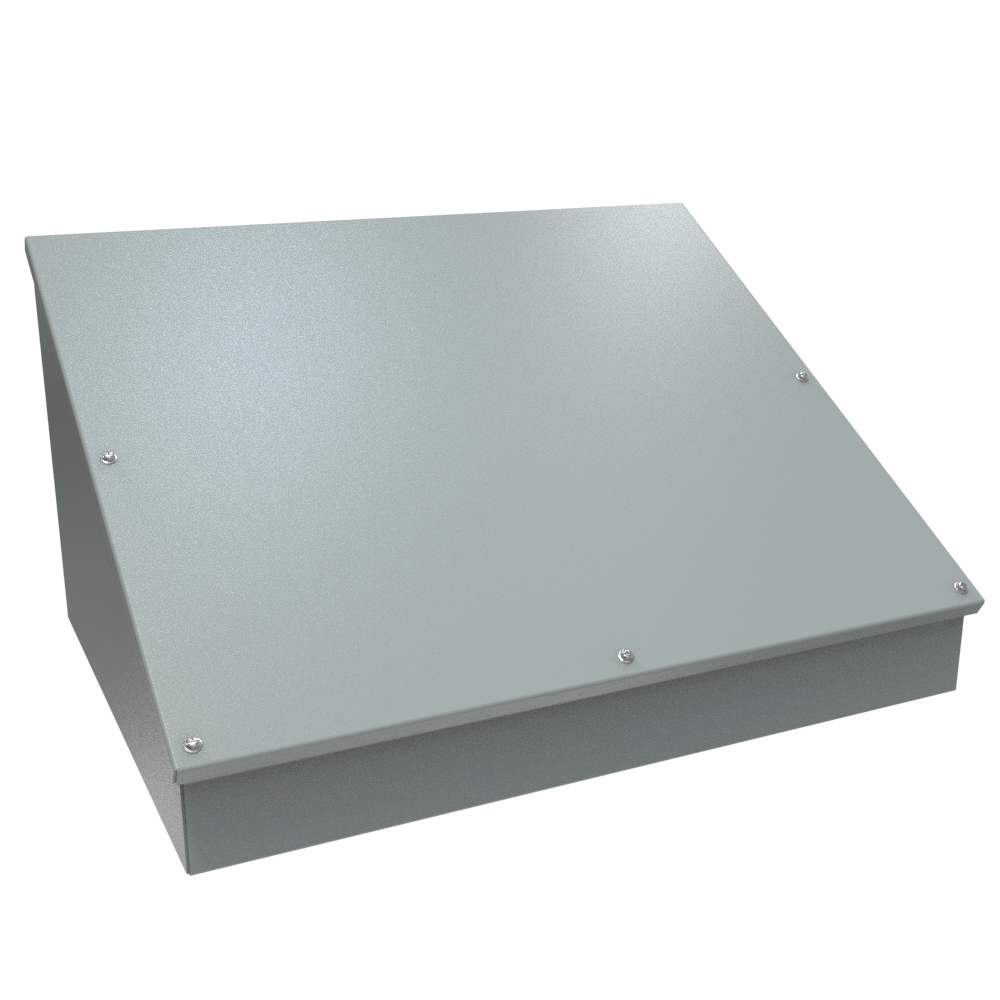

| 1488LN13 | 20.00 | 2.50 | 13.16 | 24.00 | 17.83 | $352.42Backorder | Buy now |

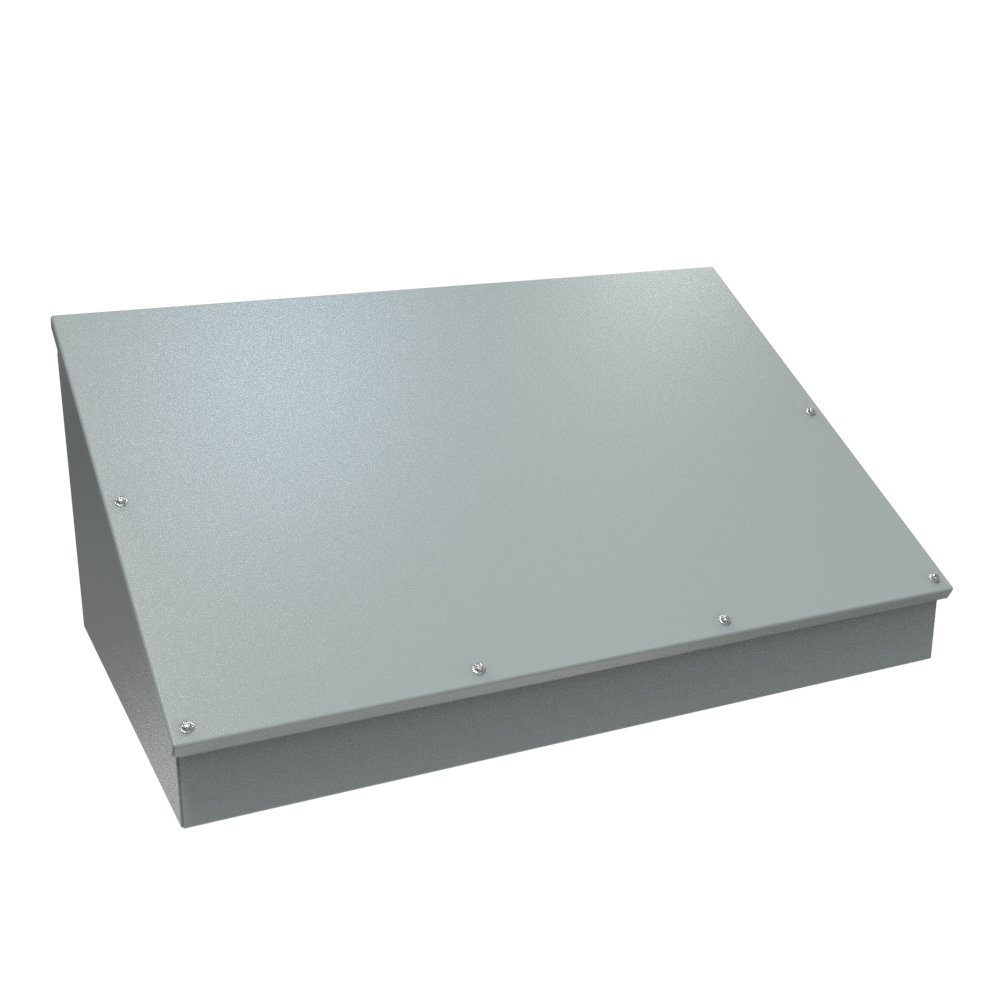

| 1488LQ13 | 20.00 | 2.50 | 13.16 | 30.00 | 17.83 | $391.19Backorder | Buy now |
Application
- ■Designed for use as electric, hydraulic or pneumatic control and instrument enclosures.

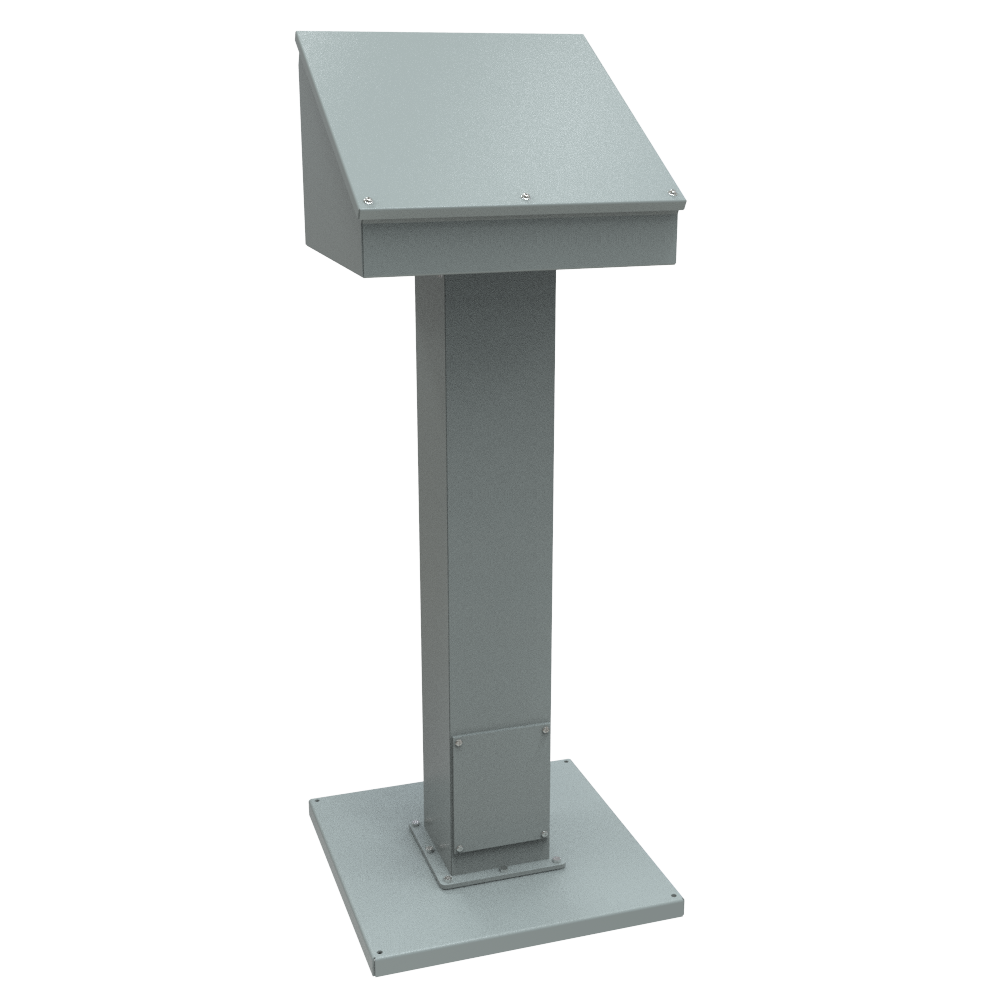

- ■Ideal for flat or surface mounting/pedestal to provide the necessary 30° or 60° control slope.
- ■Provides protection from dirt, dust, oil and water.
Standards
- ■UL 508A Type 12, 13
- ■CSA Type 12, 13
- ■Complies with NEMA Type 12, 13 IEC 60529, IP54
- ■NEMA Type 12, 13
- ■IEC 60529, IP54
Construction
- ■Formed 14 gauge steel.
- ■Smooth, continuously welded seams.
- ■Construction provides either 30° or 60° slope on front cover depending on mounting position.
- ■Continuously hinged cover may be removed by pulling the hinge pin.
- ■Captive cover screws thread into sealed wells.
- ■Oil resistant gasket and adhesive.
- ■A bonding stud is provided on the door and a ground stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · Cover H | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D |
|---|---|---|---|---|---|
| 1488EE7 | 8.00 | 2.50 | 7.16 | 8.00 | 7.44 |
| 1488EH7 | 8.00 | 2.50 | 7.16 | 12.00 | 7.44 |
| 1488EJ7 | 8.00 | 2.50 | 7.16 | 16.00 | 7.44 |
| 1488EL7 | 8.00 | 2.50 | 7.16 | 20.00 | 7.44 |
| 1488HH9 | 12.00 | 2.50 | 9.16 | 12.00 | 10.90 |
| 1488HJ9 | 12.00 | 2.50 | 9.16 | 16.00 | 10.90 |
| 1488HL9 | 12.00 | 2.50 | 9.16 | 20.00 | 10.90 |
| 1488HN9 | 12.00 | 2.50 | 9.16 | 24.00 | 10.90 |
| 1488JJ11 | 16.00 | 2.50 | 11.16 | 16.00 | 14.37 |
| 1488JL11 | 16.00 | 2.50 | 11.16 | 20.00 | 14.37 |
| 1488JN11 | 16.00 | 2.50 | 11.16 | 24.00 | 14.37 |
| 1488JQ11 | 16.00 | 2.50 | 11.16 | 30.00 | 14.37 |
| 1488JS11 | 16.00 | 2.50 | 11.16 | 36.00 | 14.37 |
| 1488LL13 | 20.00 | 2.50 | 13.16 | 20.00 | 17.83 |
| 1488LN13 | 20.00 | 2.50 | 13.16 | 24.00 | 17.83 |
| 1488LQ13 | 20.00 | 2.50 | 13.16 | 30.00 | 17.83 |
