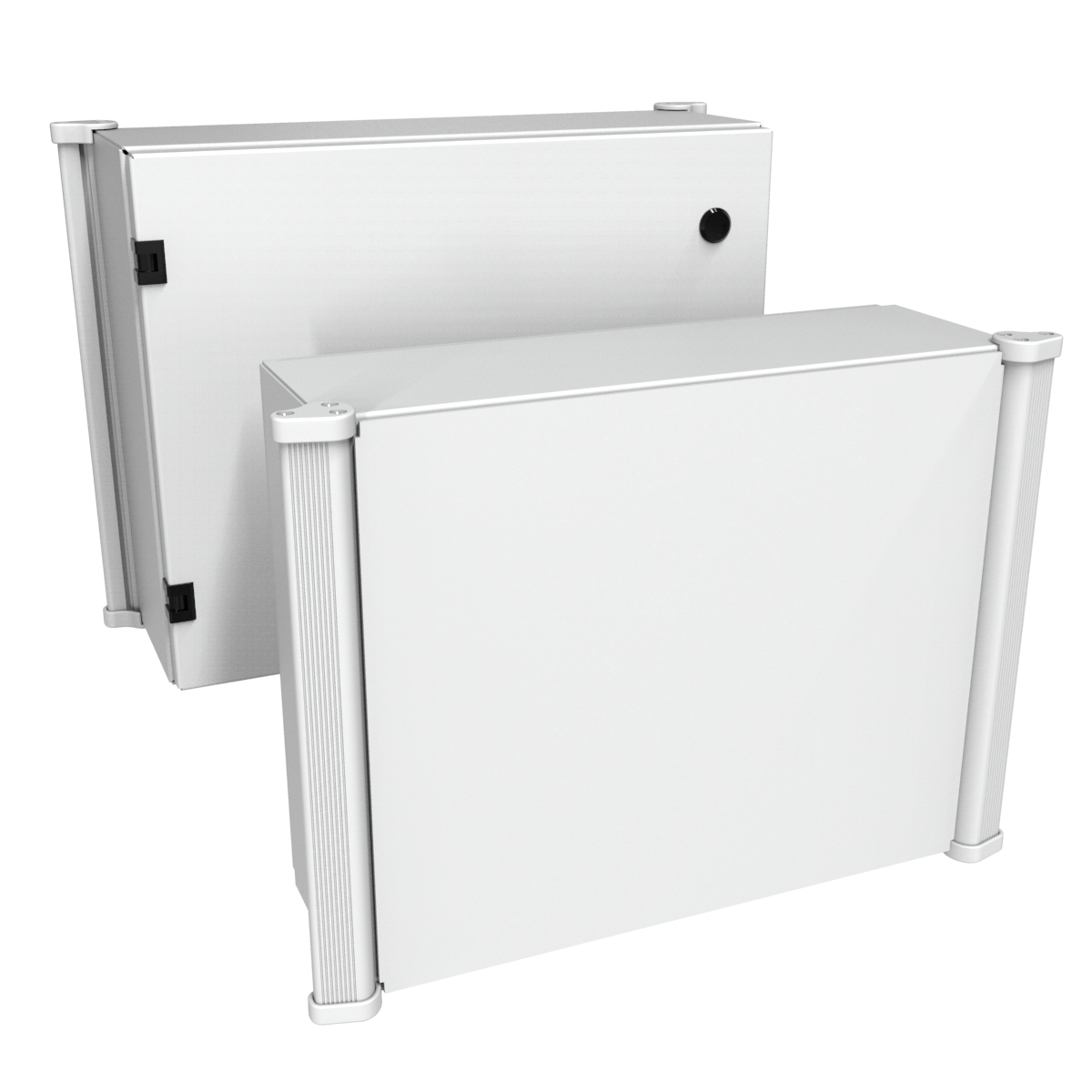

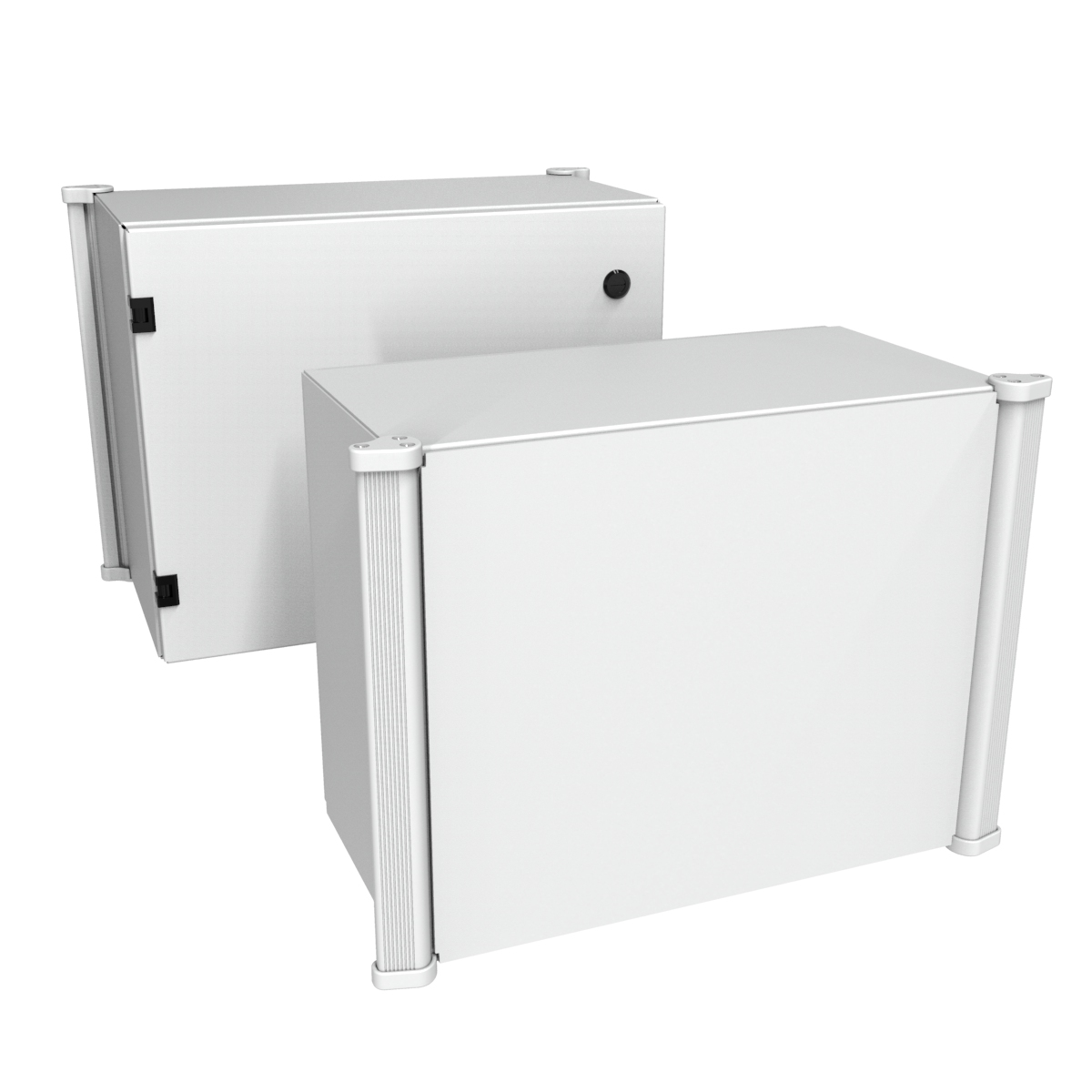

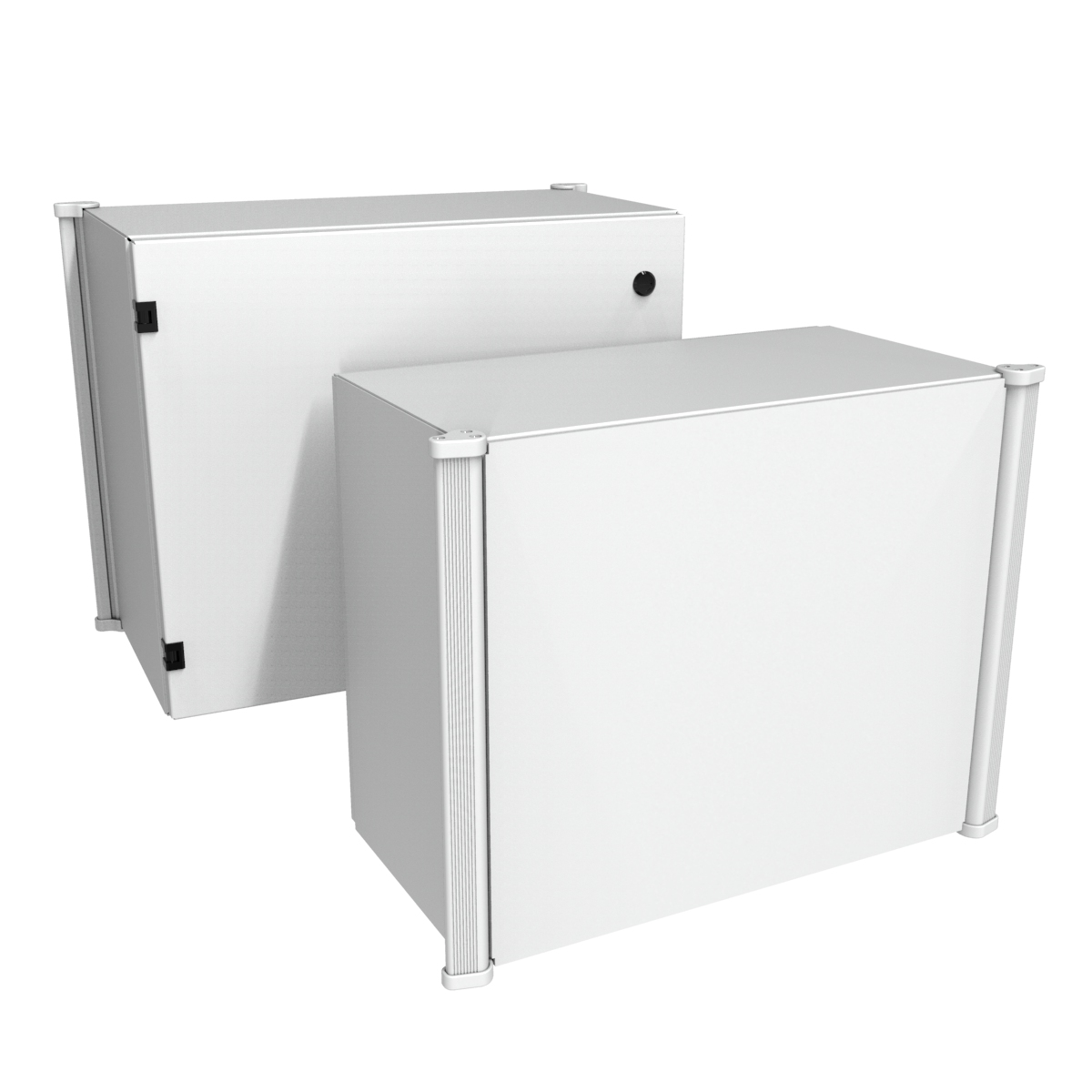

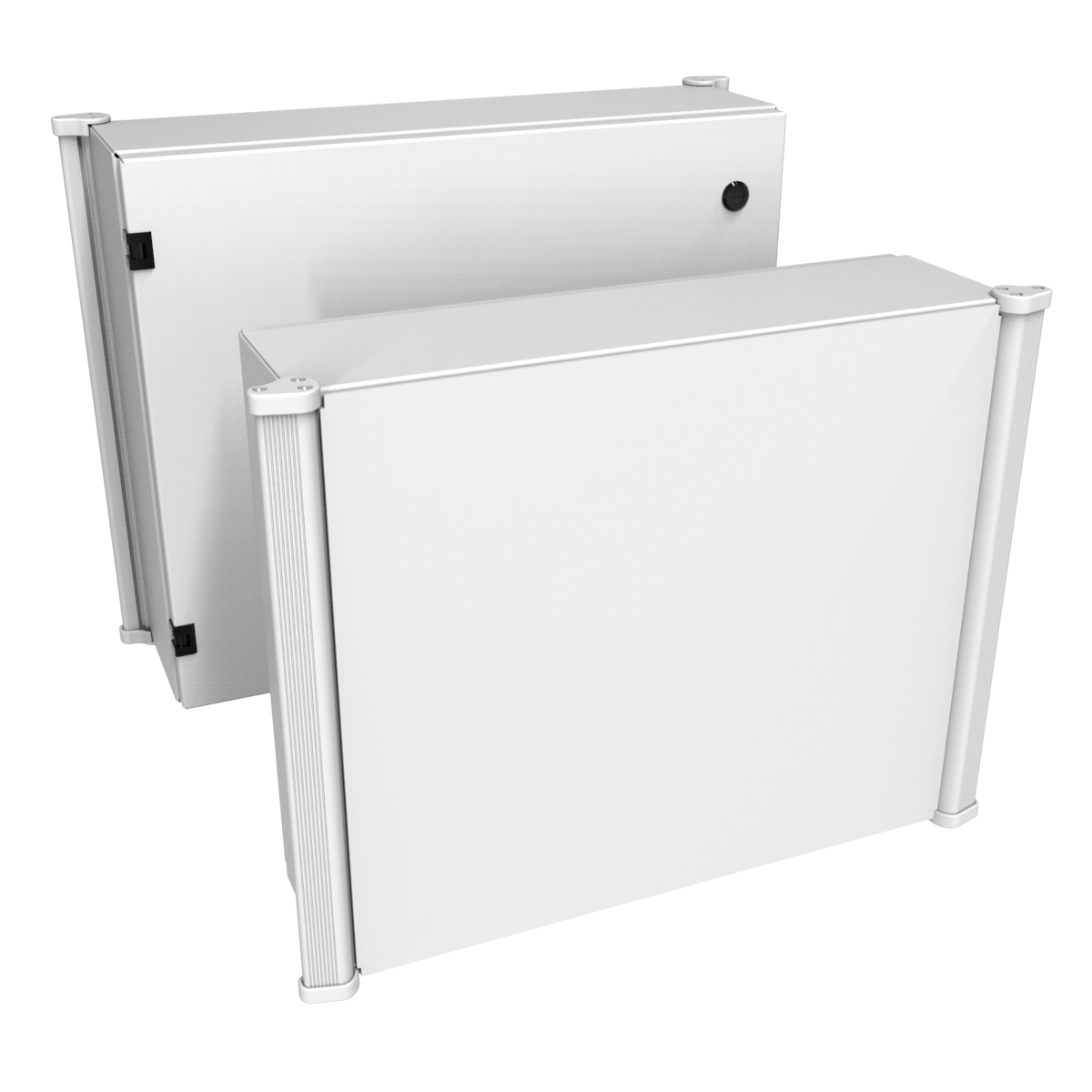

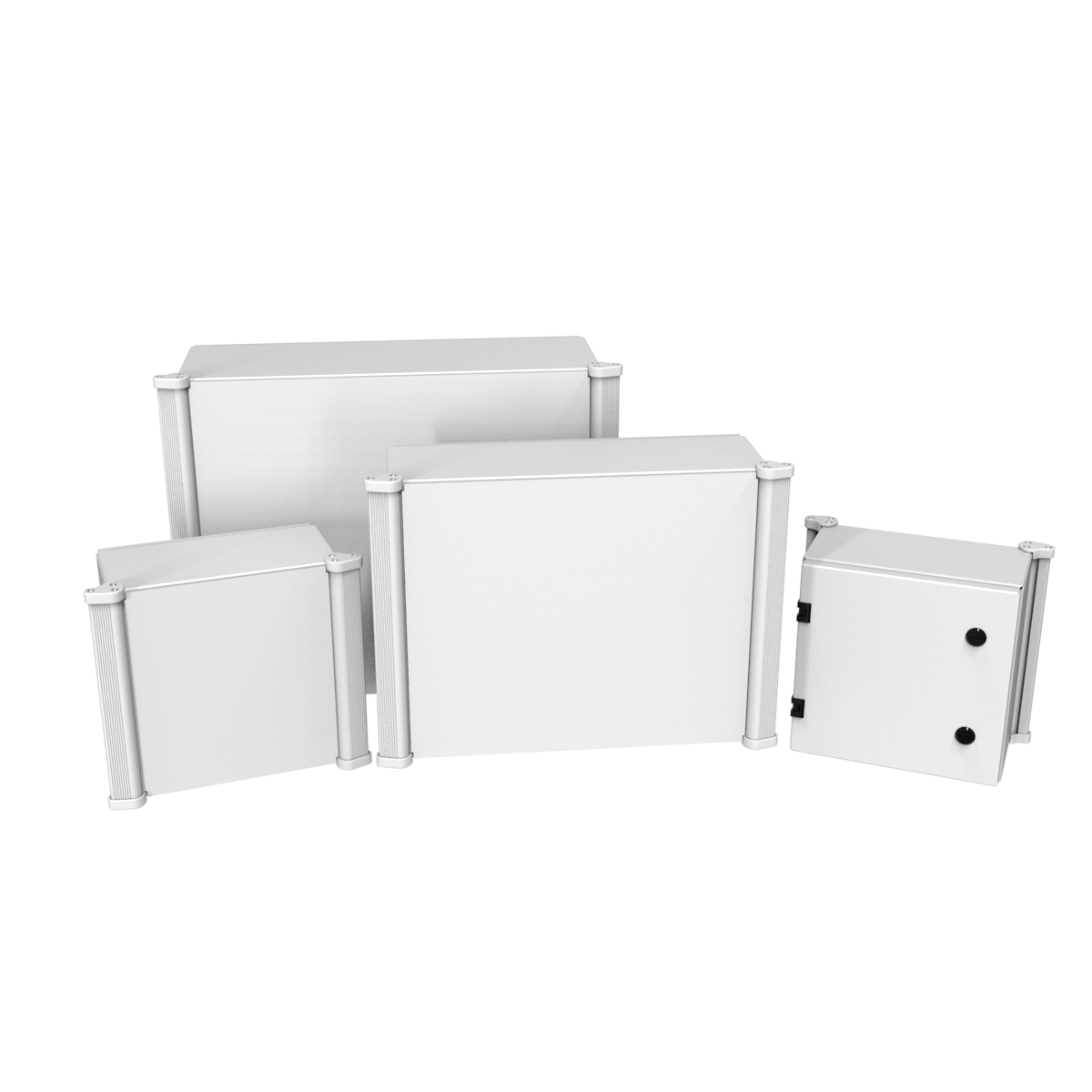

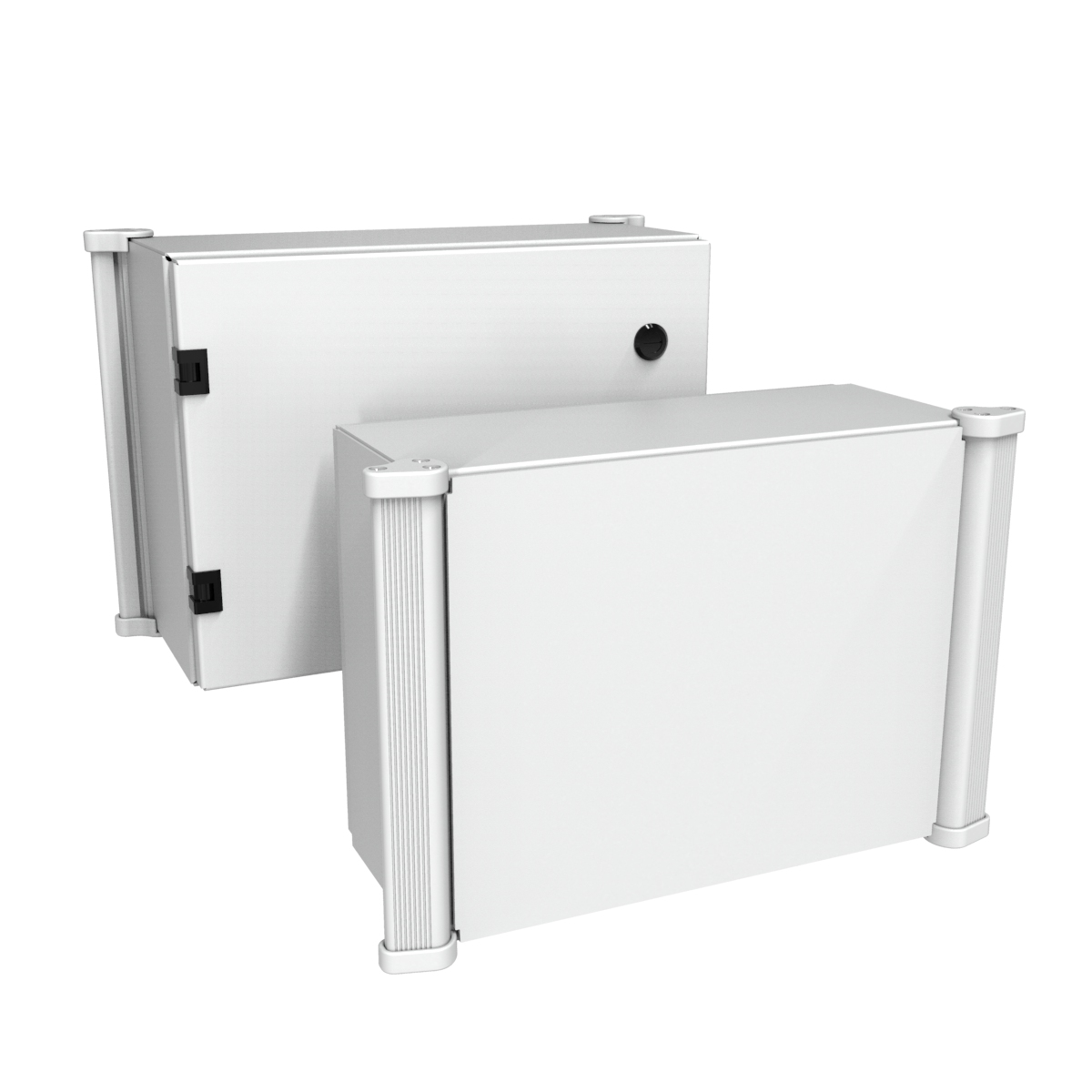

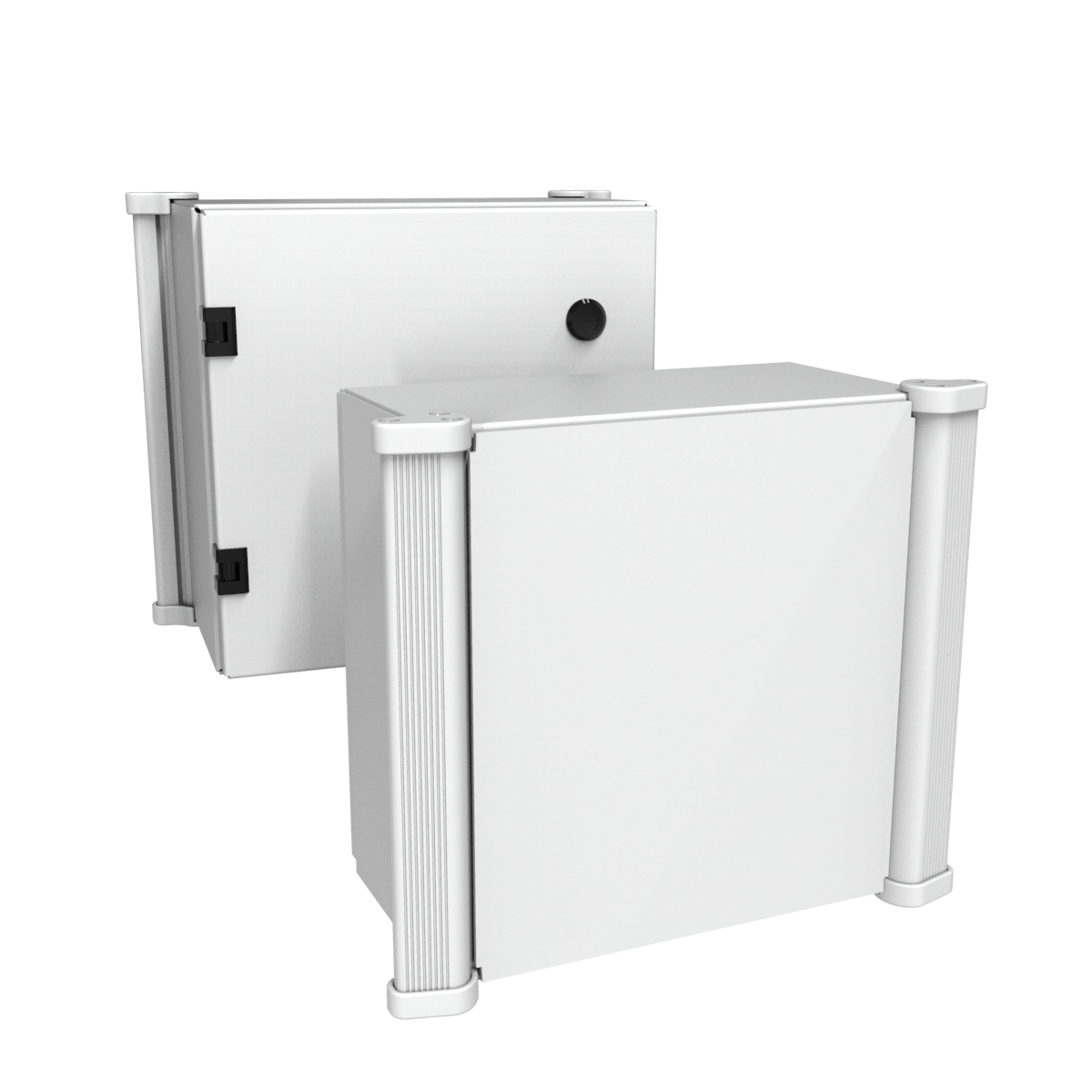

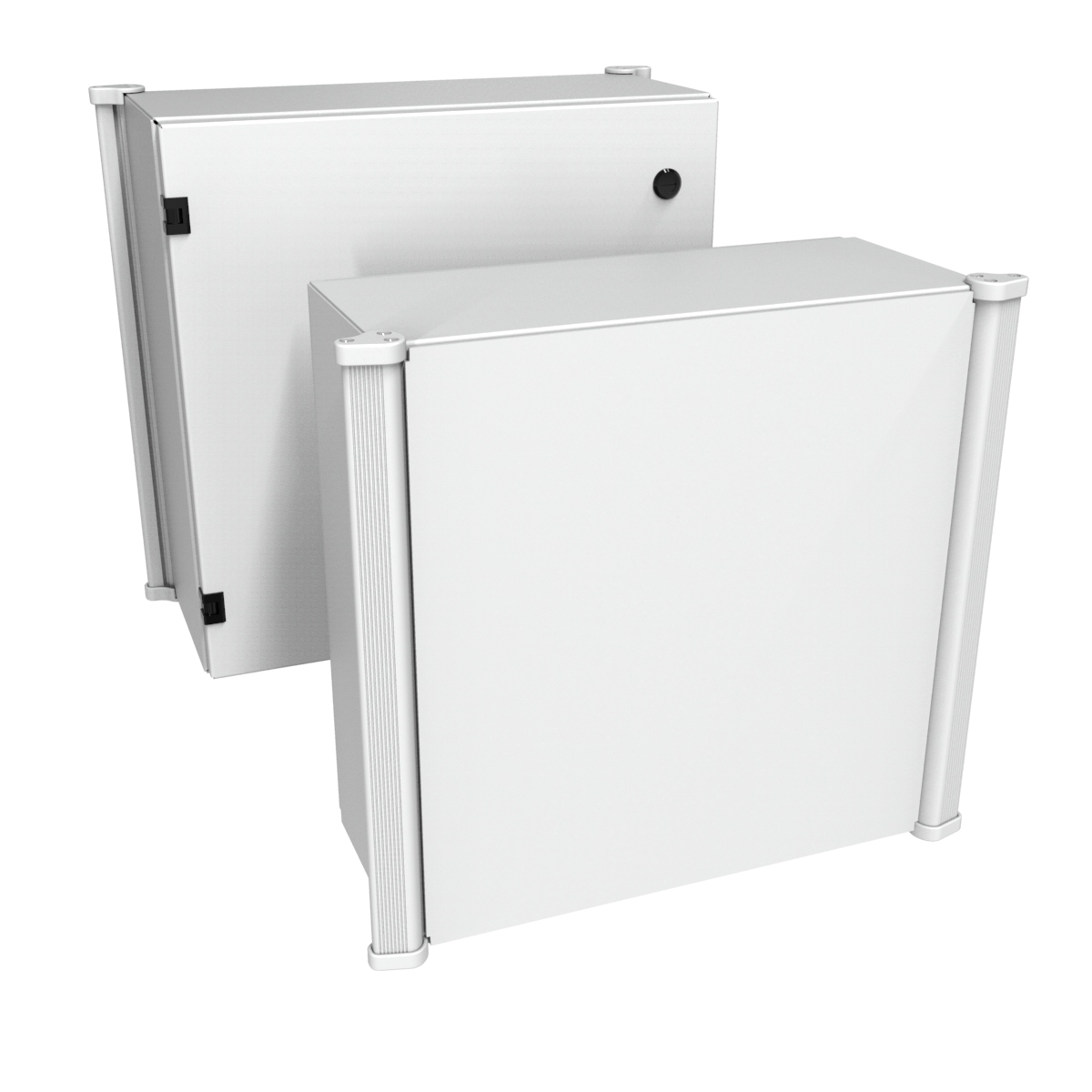

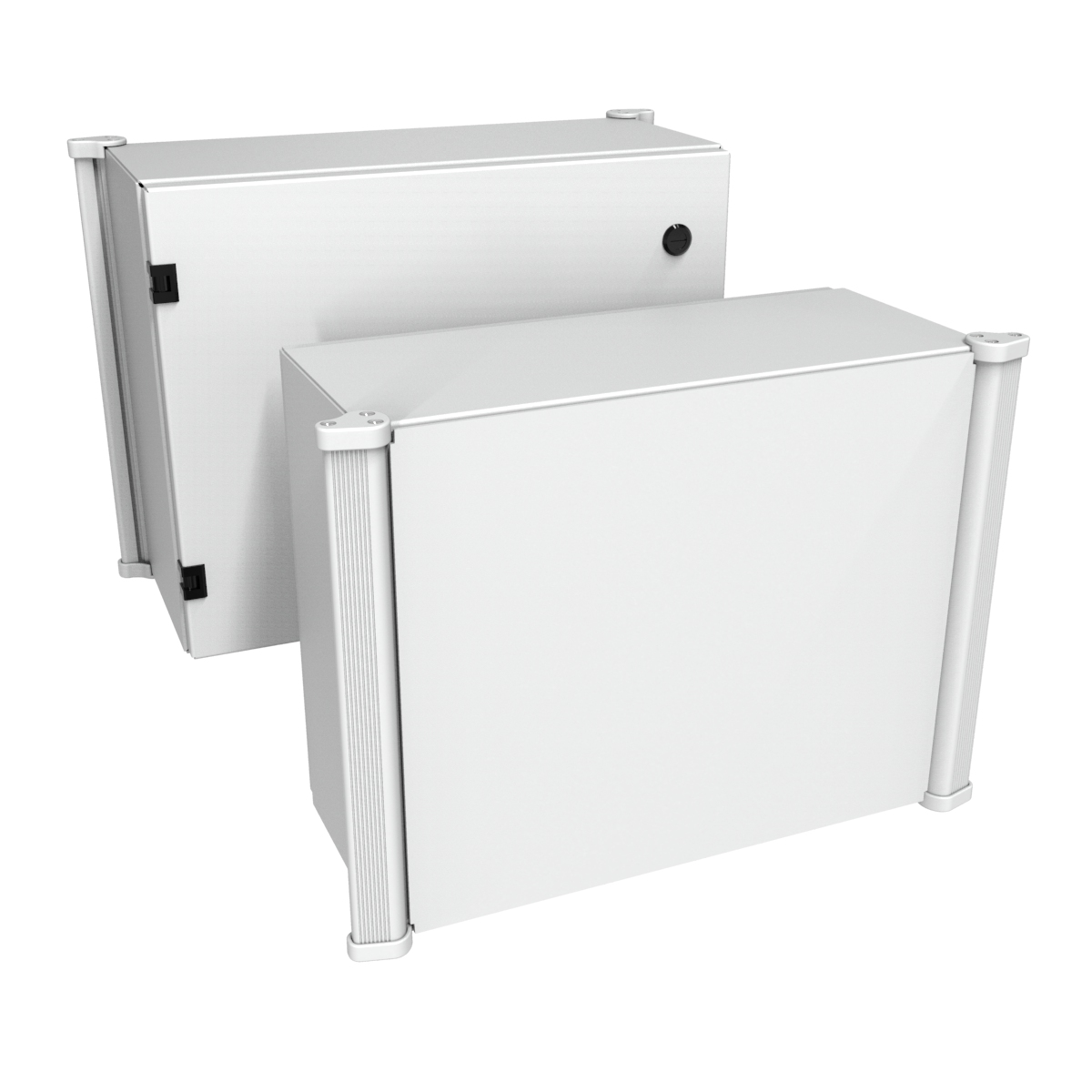

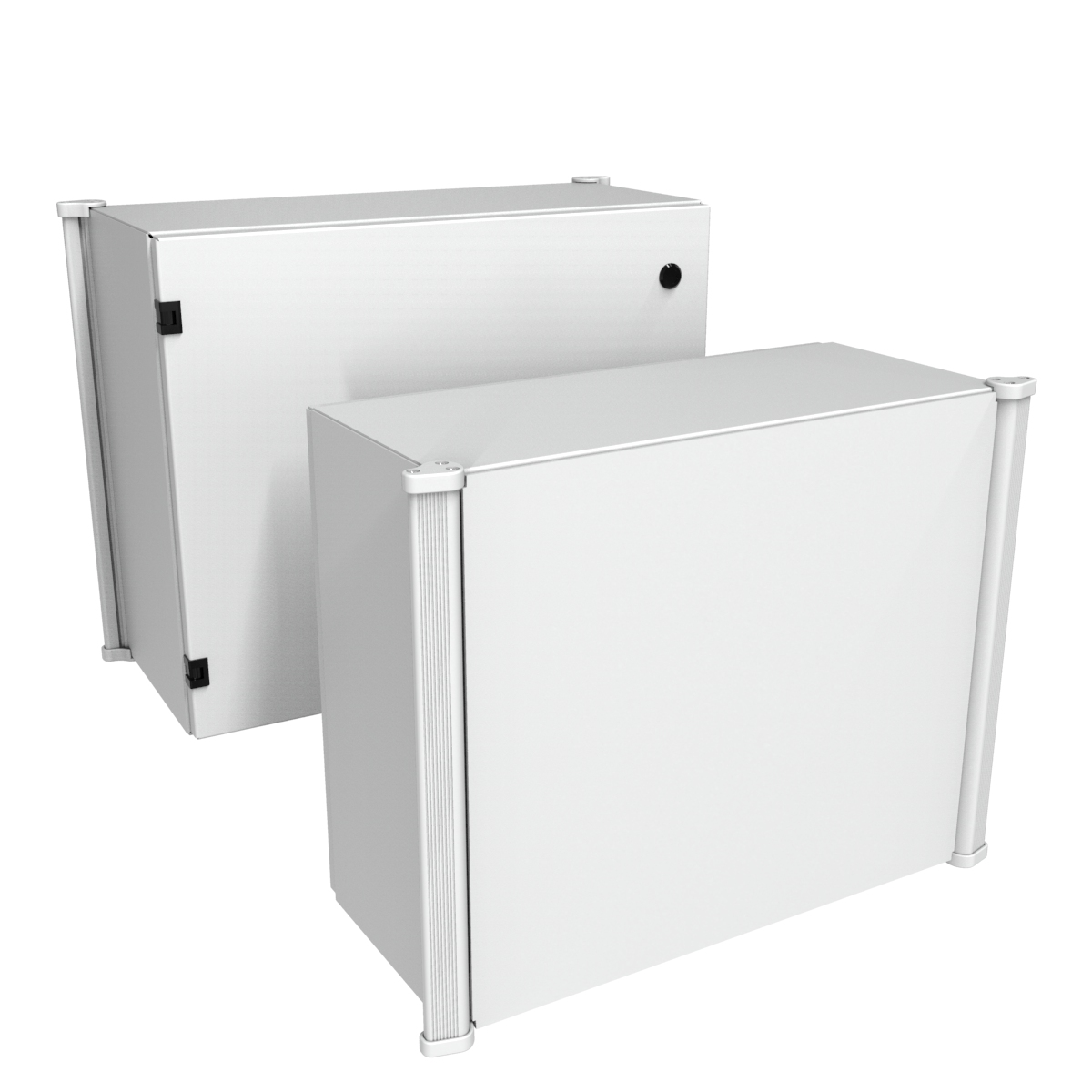

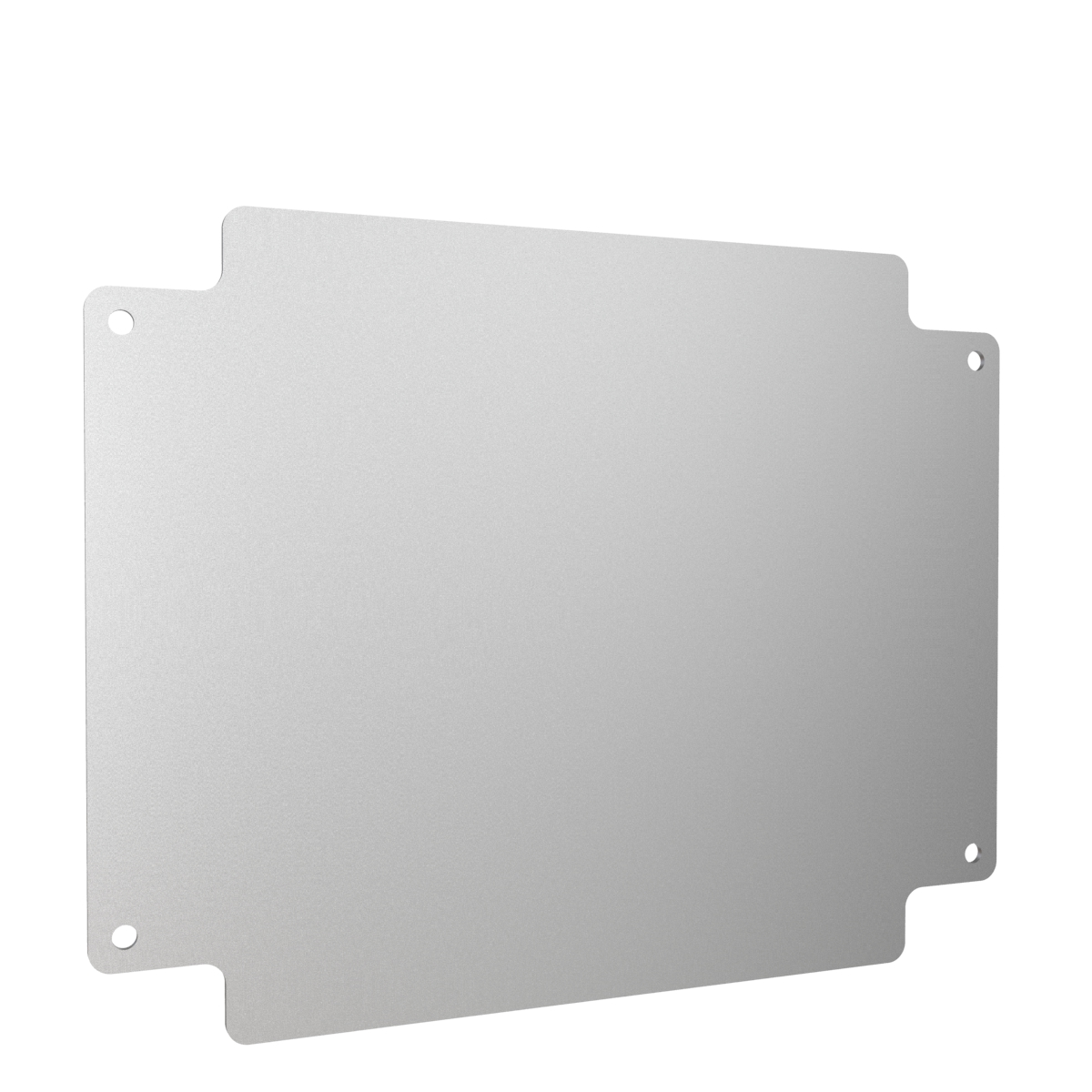

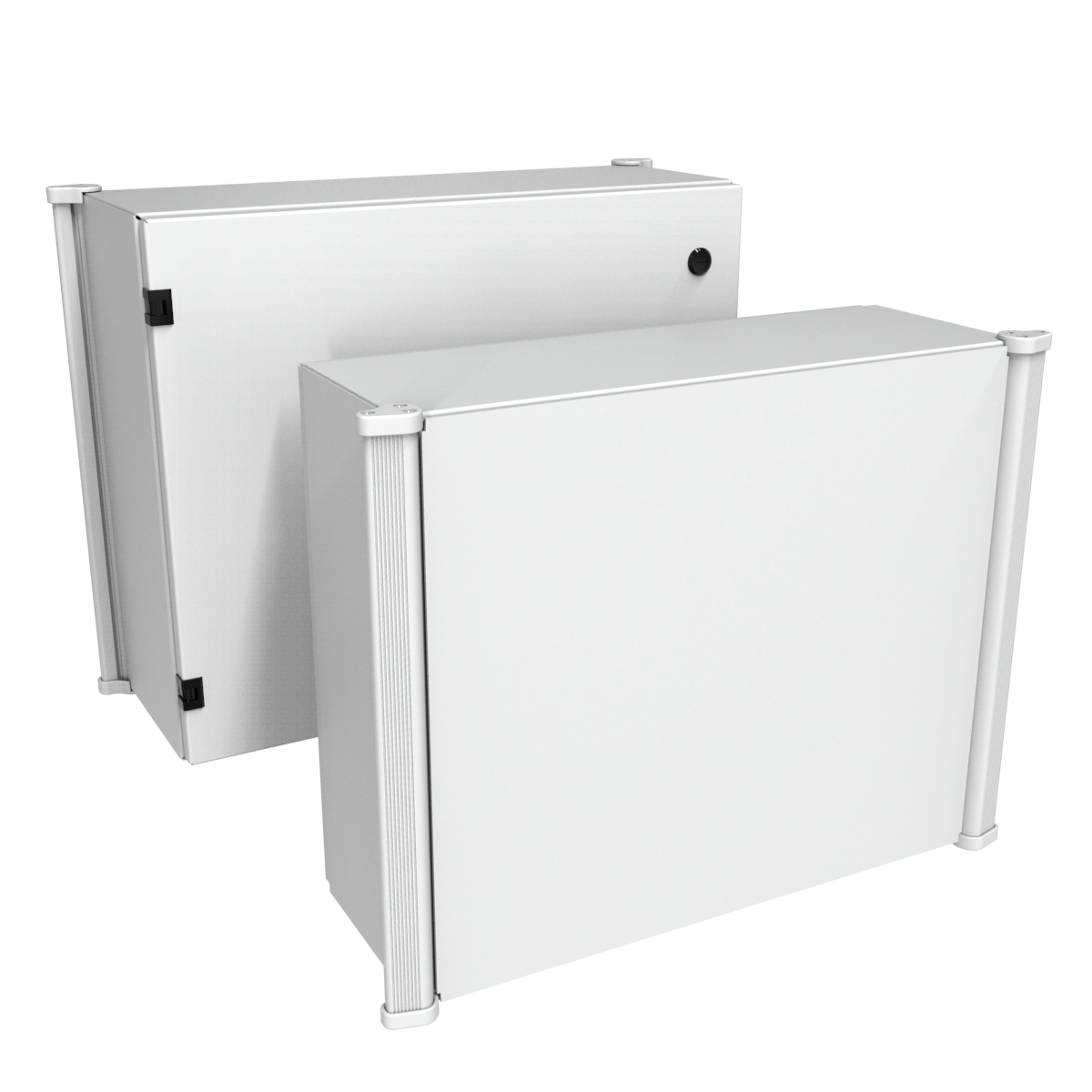

Aluminum Command Enclosure · ACE Series

Application

• ■Designed to enclose electronic controls, instruments and components in indoor environments where dirt, dust, oil and water may be present.
• ■Ideal for use with suspension systems.
• ■Full front mounting space provide for ideal operator interface.
• ■Smooth flush surfaces and attractive finishes compliment high tech equipment.

Standards

• ■UL 508A Type 12
• ■cUL Type 12
• ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
• ■NEMA Type 12 and 13
• ■IEC 60529, IP54

Construction

• ■Enclosure body and door formed from 0.081" Type 5052 H-32 aluminum
• ■Smooth, continuously welded seams ground smooth.
• ■Formed lip on enclosure to exclude flowing liquids and contaminants.
• ■Reversible rear door is secured with slotted quarter turn fasteners.
• ■Enclosure features vertical aluminum profiles on each side for easier rotation/manipulation.

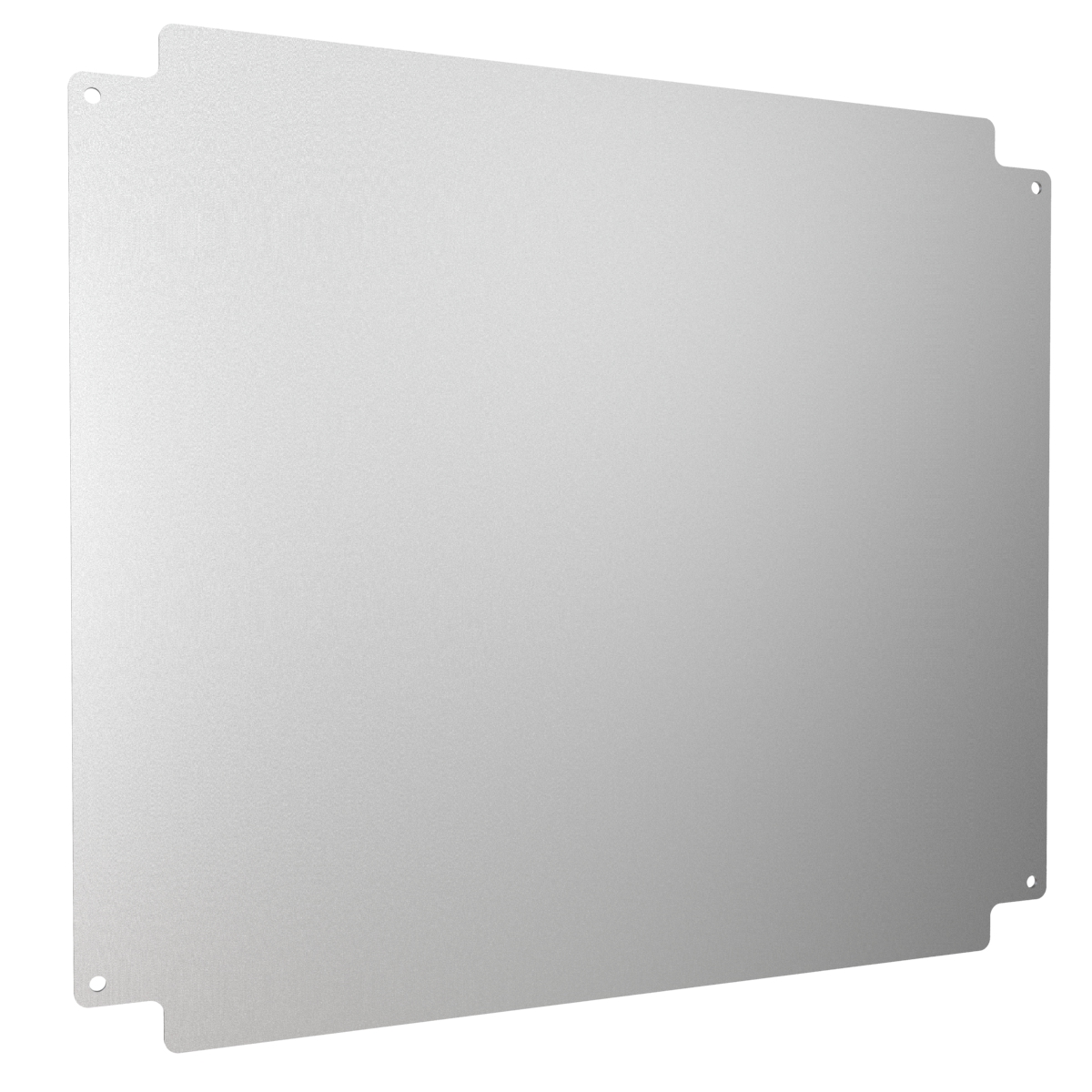

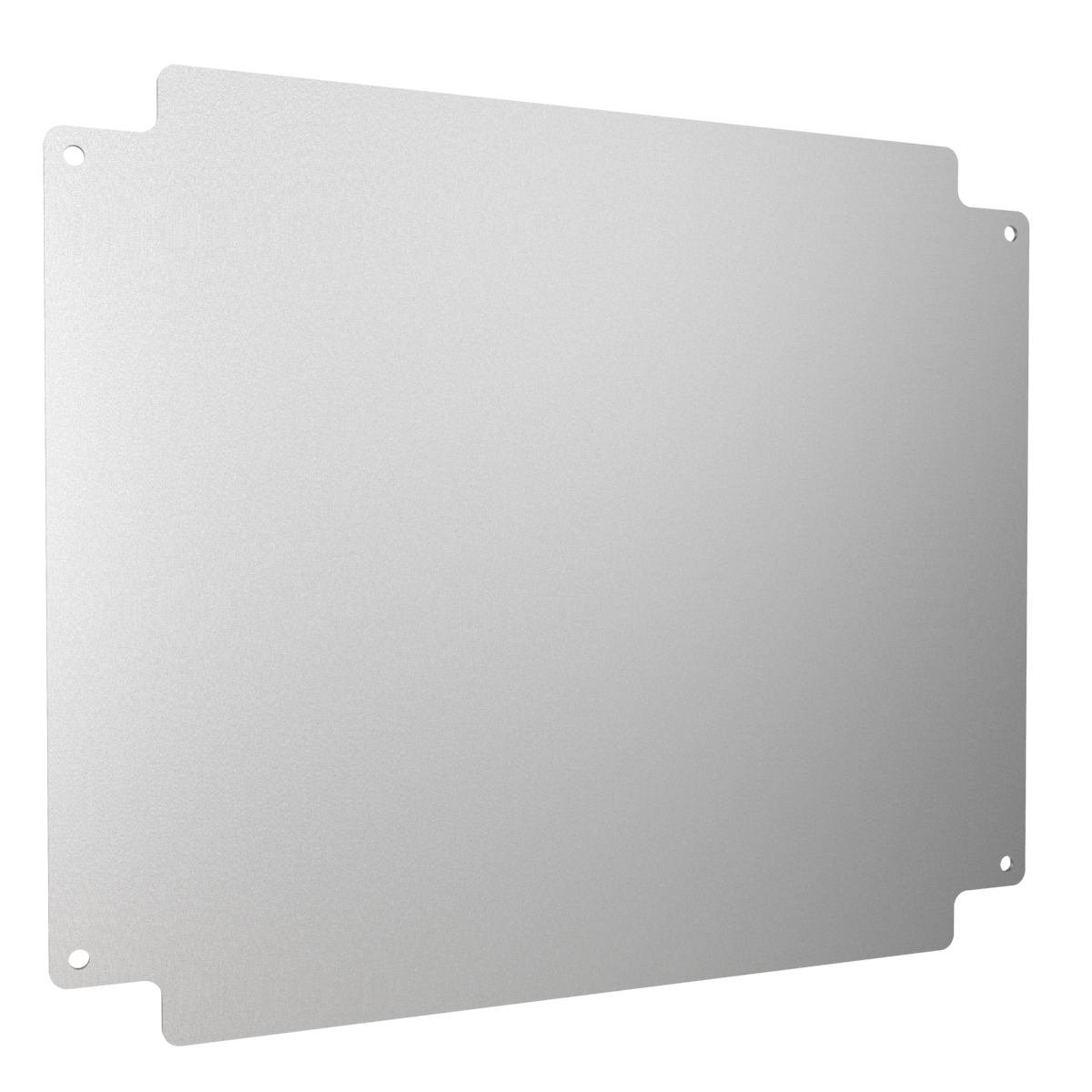

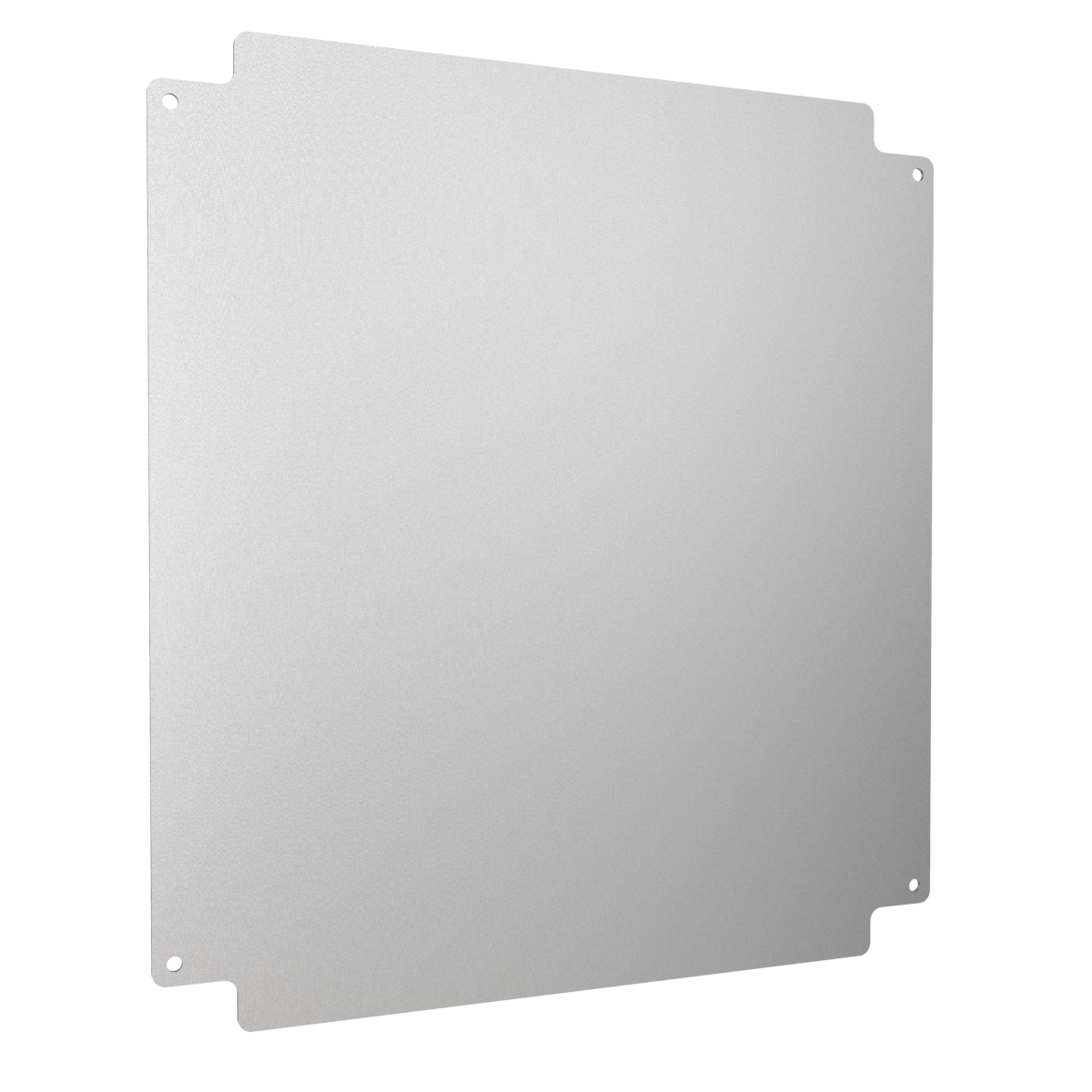

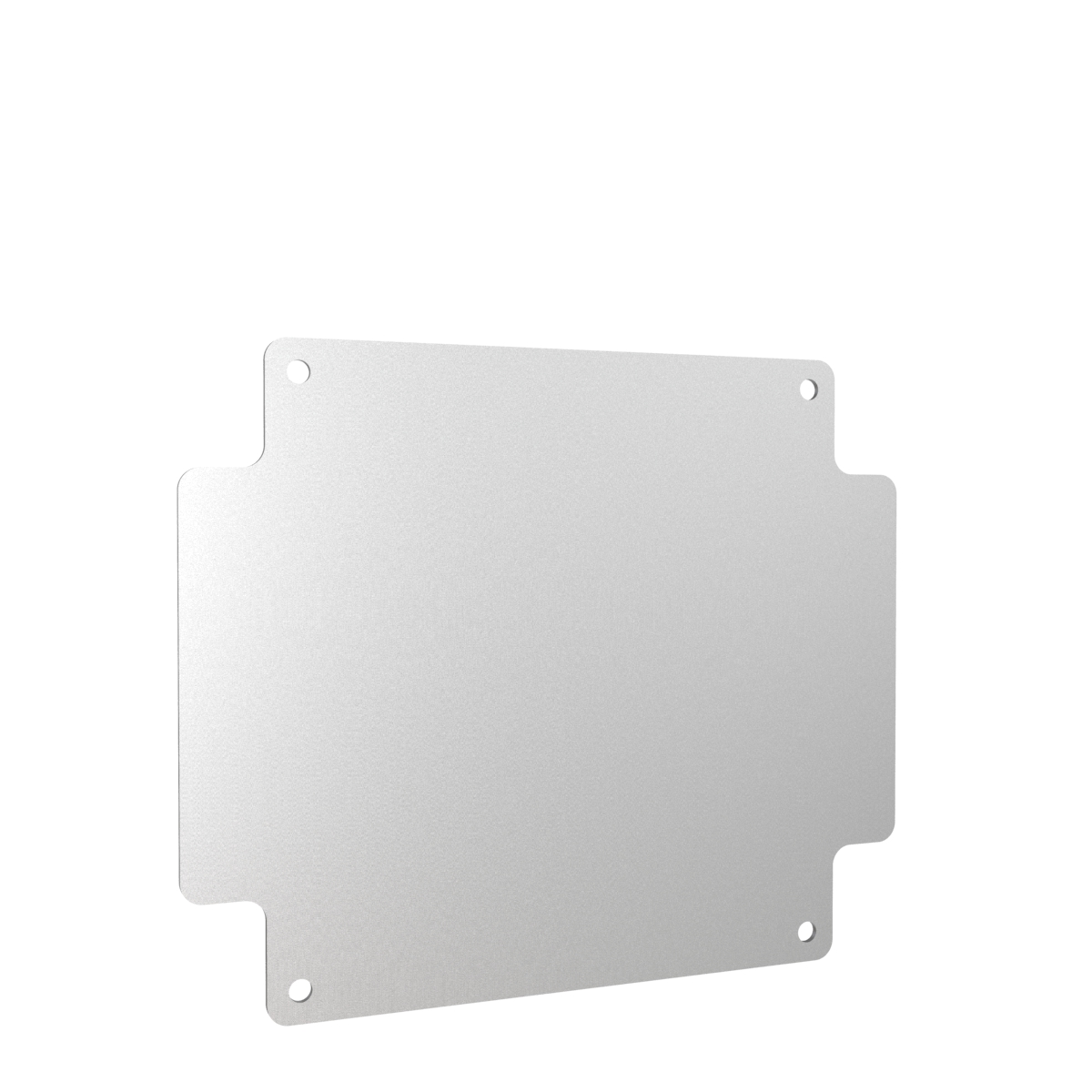

• ■Door front panels are 3mm aluminum.
• ■Oil resistant gaskets are permanently secured.
• ■Bonding stud provided on door and grounding stud installed in enclosure.
• ■Quarter turn latches zinc diecast with black epoxy finish.
• ■Zinc diecast hinges with black epoxy finish.
• ■Fastening is recommended with optional Tara Plus or 50/80 suspension systems.
• ■Heavy duty re-inforcing plate included.

Finish

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

• ■Enclosure, side extrusions, and front panel all finished in RAL 7035 gray powder coating.
