CONSOLET-38.75X24X18.1-LT Grey
$1,464.82In stock
Buy now
Type 4, 4X Mild Steel and Stainless Steel Consolet · Series 2000
Brand: Hammond Manufacturing · 8 part numbers
Modular Console System
- ■Serves as an economical housing for operator interface applications.
- ■Provides an ideal sloped surface for mounting keyboards, switches, indicator lights, and/or dials.
- ■Provides panel mounting capabilities for a variety of applications. Generally used as a stand alone enclosure. Possible to put side by side with base on a single plinth (ie. 36" wide consolet with 24" base with terminal all together on a 60" plinth.
- ■Optional casters (require plinth) allow for a completely mobile, NEMA rated work station.
- ■Smooth lines and clean edges provide an attractive, contemporary appearance.
- ■UL 508A Type 3R, 4,12 (Stainless Steel, add 4X)
from $1,464.82
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Series 2000 part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
CONSOLET-38.75X36X18.1-LT Grey
$1,704.38In stock
Buy now
CONSOLET-38.75X48X18.1-LT Grey
$2,351.76Backorder
Buy now
CONSOLET-38.75X60X18.1-LT Grey
$2,753.37Backorder
Buy now
S2MCS-S-24" Consolet
$2,397.70Backorder
Buy now
S2MCS-S-36" Consolet
$2,794.30Backorder
Buy now
S2MCS-S-48" Consolet
$3,854.79Backorder
Buy now
S2MCS-S-60" Consolet
$4,510.80Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| RAL 7035 Light Gray · Part No. | Stainless Steel · Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|---|

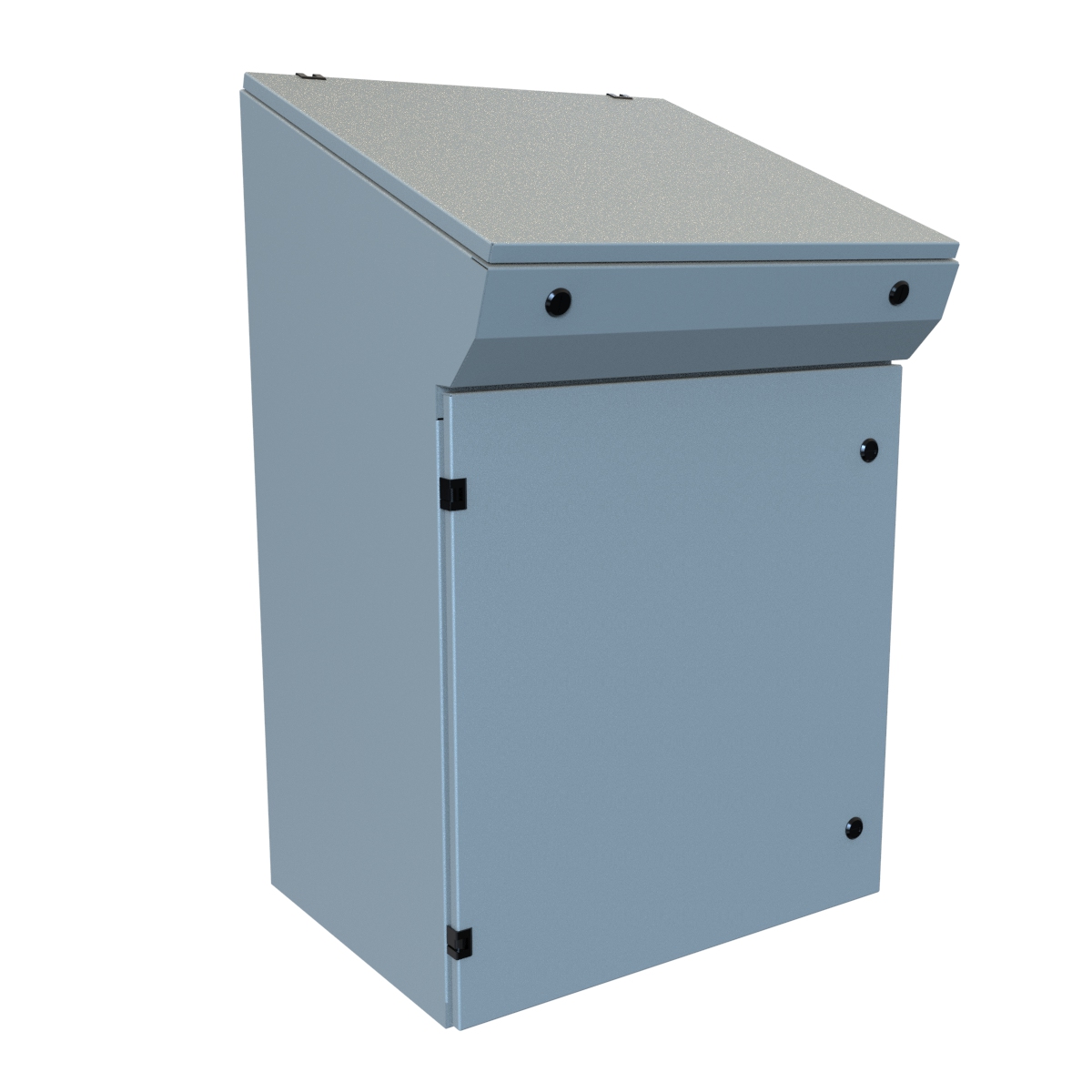

| 2CLC2024 | 2CSC2024 | 30.36 | 38.03 | 24.00 | 17.30 | $1,464.82In stock2CLC2024 | Buy now |

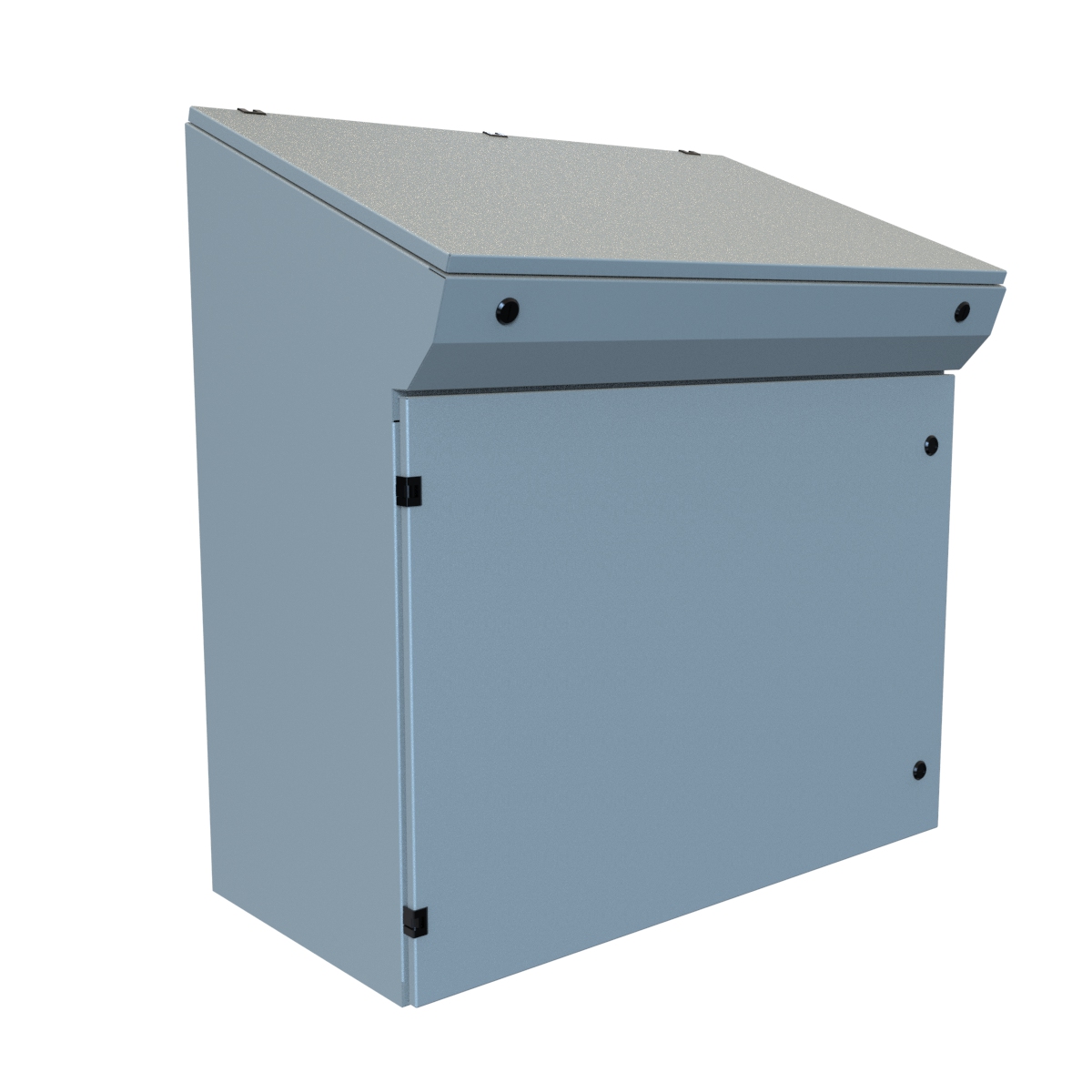

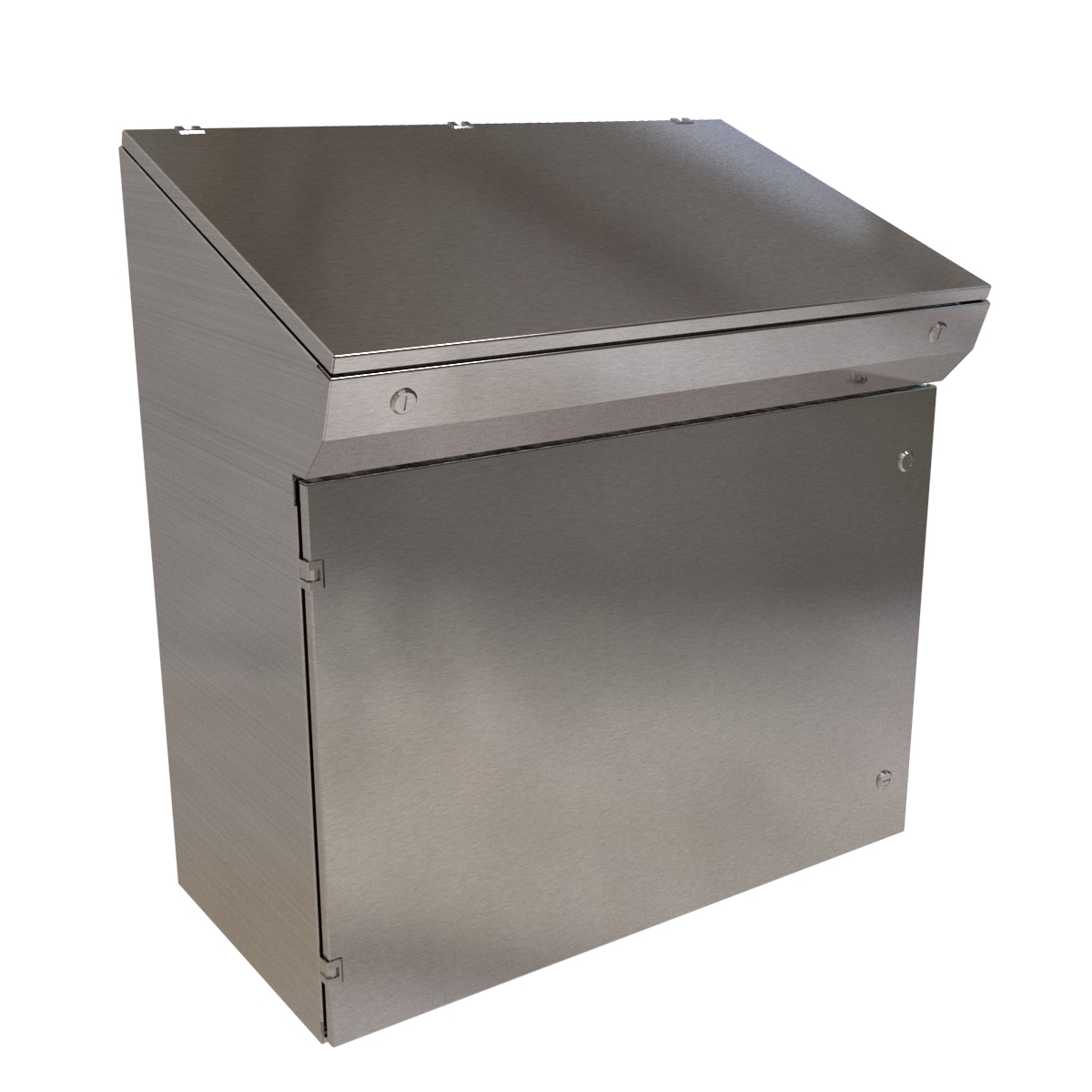

| 2CLC2036 | 2CSC2036 | 30.36 | 38.03 | 36.00 | 17.30 | $1,704.38In stock2CLC2036 | Buy now |

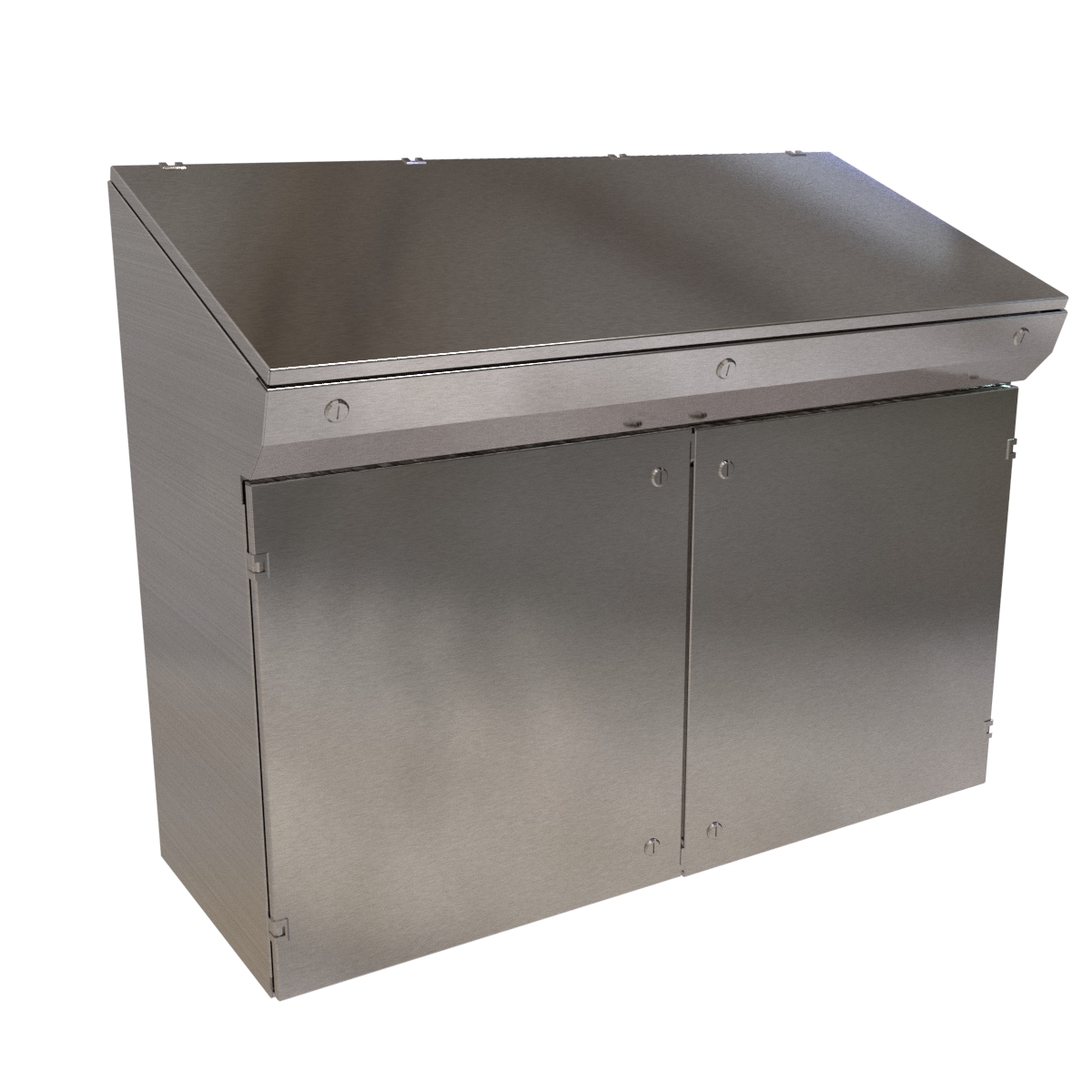

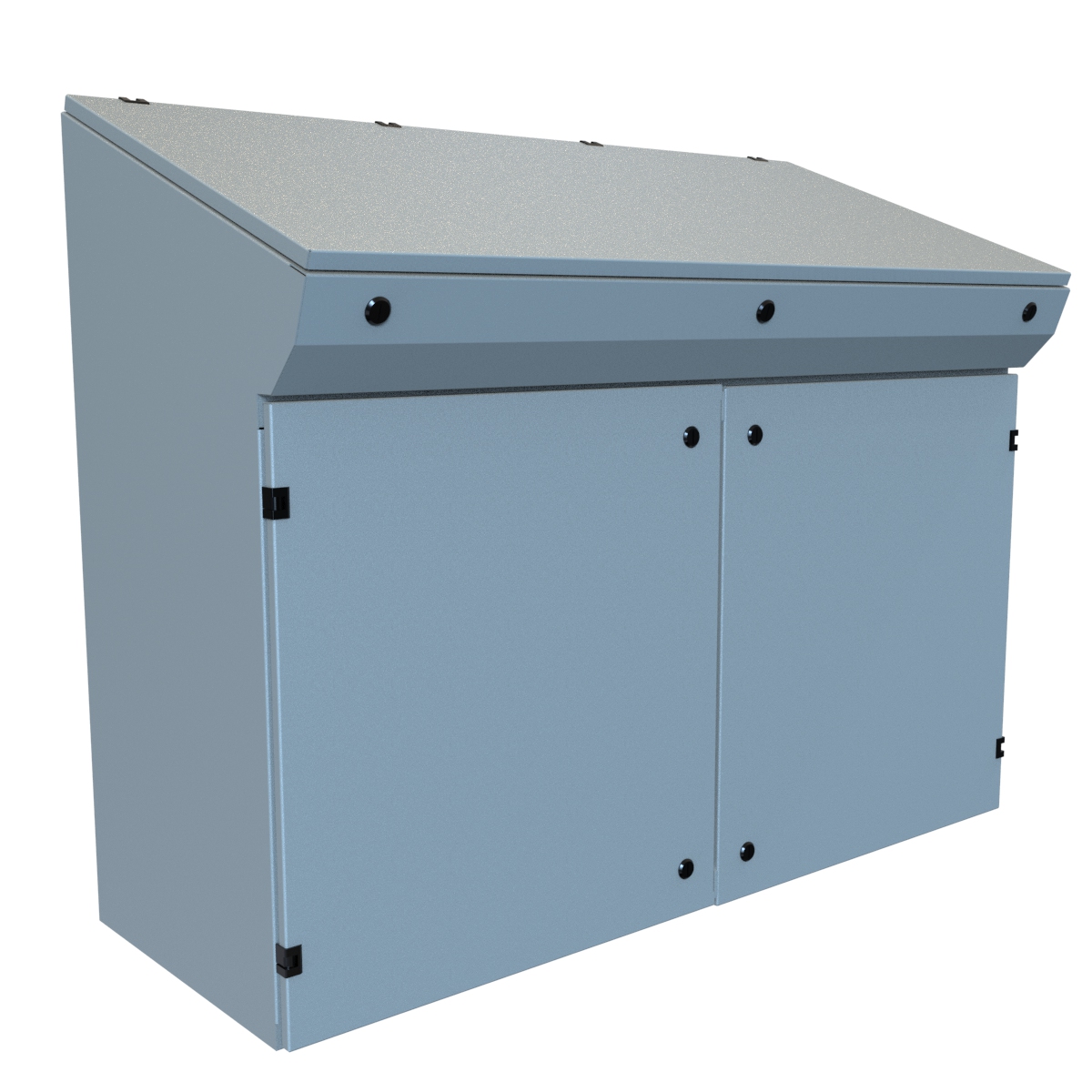

| 2CLC2048 | 2CSC2048 | 30.36 | 38.03 | 48.00 | 17.30 | $2,351.76Backorder2CLC2048 | Buy now |

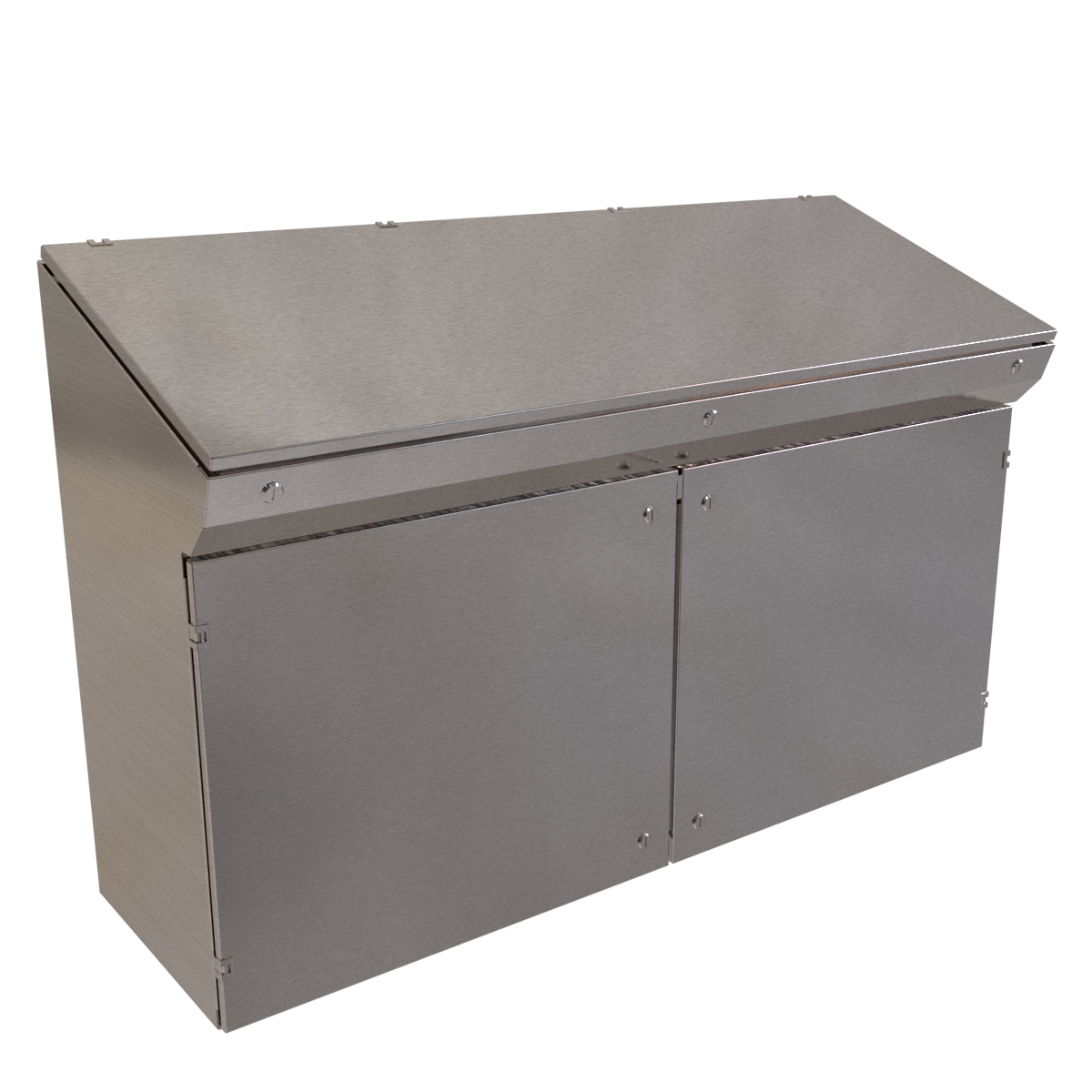

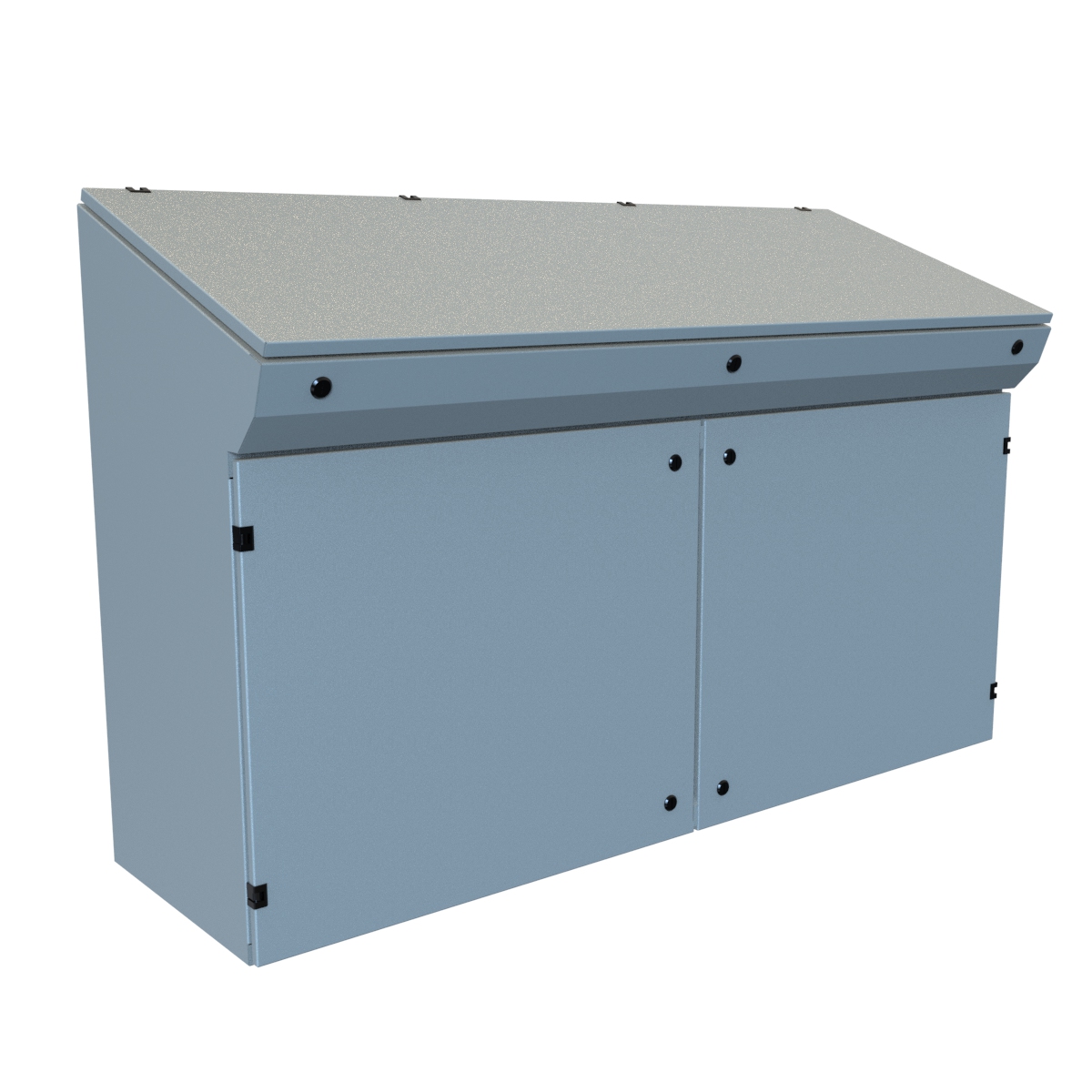

| 2CLC2060 | 2CSC2060 | 30.36 | 38.03 | 60.00 | 17.30 | $2,753.37Backorder2CLC2060 | Buy now |
Application
- ■Serves as an economical housing for operator interface applications.
- ■Provides an ideal sloped surface for mounting keyboards, switches, indicator lights, and/or dials.
- ■Provides panel mounting capabilities for a variety of applications. Generally used as a stand alone enclosure. Possible to put side by side with base on a single plinth (ie. 36" wide consolet with 24" base with terminal all together on a 60" plinth.
- ■Optional casters (require plinth) allow for a completely mobile, NEMA rated work station.
- ■Smooth lines and clean edges provide an attractive, contemporary appearance.
Standards
- ■UL 508A Type 3R, 4,12 (Stainless Steel, add 4X)
- ■CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X)
- ■EIA RS-310-E
- ■Complies with NEMA Type 3R, 4, 12 (Stainless Steel, add 4X) IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 (Stainless Steel, add 4X)
- ■IEC 60529, IP66
Construction
- ■Formed 14 gauge steel bodies with 14 gauge steel door and lid.
- ■Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel door and lid.
- ■Smooth, continuously welded seams without knockouts or holes.
- ■Body stiffeners are provided where required for increased strength and rigidity.
- ■Offered in 4 widths 24", 36", 48" and 60".
- ■Has solid sides and back, solid door on front, 3 point adjustable lid on sloped (20°) top, and closed bottom with removable access panel.
- ■24" and 36" widths have single door on the front whereas 48" and 60" widths have two outside hinged doors on the front.
- ■Doors can be hinged from either side on 24" and 36" units.
- ■Door profiles provide increased strength and are pre-punched to provide mounting options.
- ■Formed lip on enclosure excludes flowing liquids and contaminants.
- ■Slotted quarter turn oil-tight latches secure the door and lid, with optional tamper resistant and locking latches available.
- ■Stainless steel models utilize stainless steel hardware.
- ■Oil resistant gaskets are permanently secured.
- ■Features internal stud locations for mounting optional inner panel.
- ■A bonding screw is provided on the door and a grounding stud is provided in the enclosure.
Finish
- ■Available in RAL 7035 light gray textured powder coating and natural stainless steel with a smooth, brushed finish.
Documents
Additional information
Part Details
| RAL 7035 Light Gray · Part No. | Stainless Steel · Part No. | Enclosure · H1 | Enclosure · H2 | Enclosure · W | Enclosure · D |
|---|---|---|---|---|---|
| 2CLC2024 | 2CSC2024 | 30.36 | 38.03 | 24.00 | 17.30 |
| 2CLC2036 | 2CSC2036 | 30.36 | 38.03 | 36.00 | 17.30 |
| 2CLC2048 | 2CSC2048 | 30.36 | 38.03 | 48.00 | 17.30 |
| 2CLC2060 | 2CSC2060 | 30.36 | 38.03 | 60.00 | 17.30 |
