New Sizes

Door Stop Kit

Brand: Hammond Manufacturing · 2 part numbers

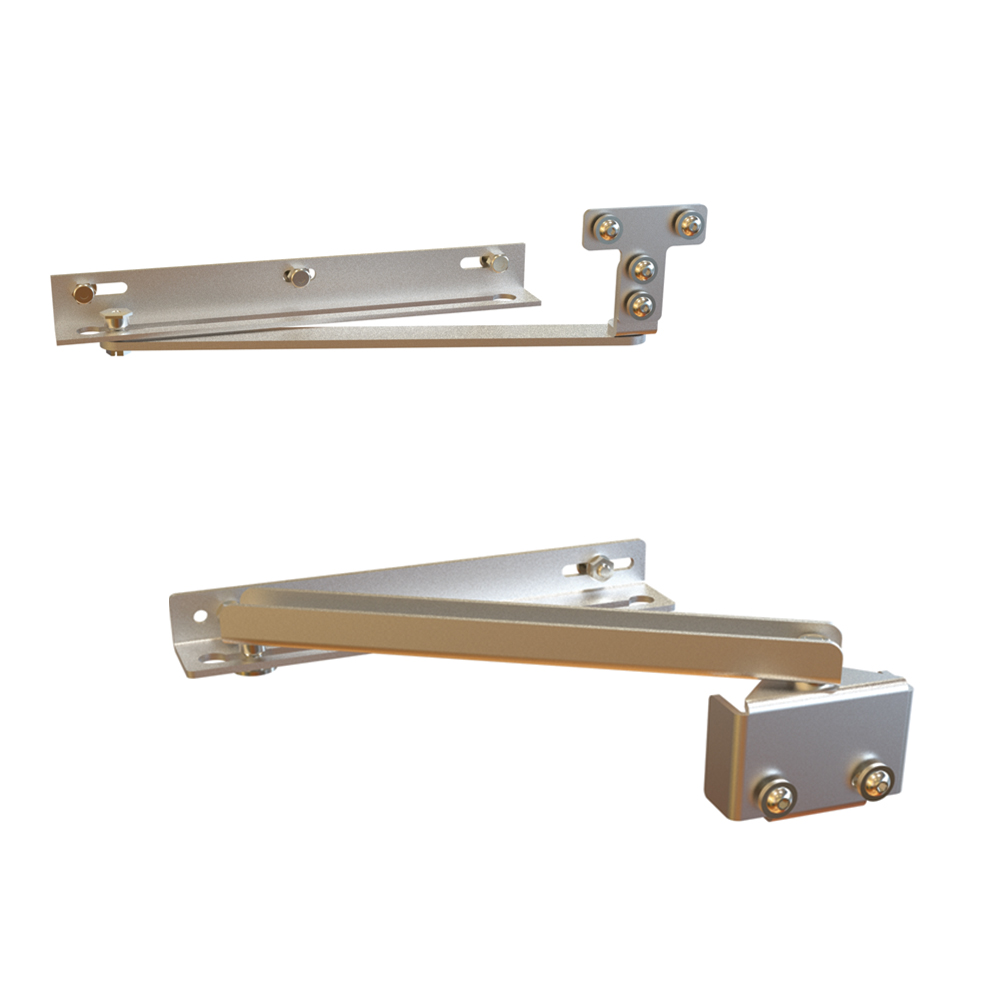

■Offered in 2 versions – standard and heavy duty
■Provides for door opening in fixed position as required.
■Prevents door swing that can occur in field maintenance situations.
■Minimum enclosure width of 20" for single door and 48" for two-door is required
■Door stop kit maintains NEMA 4x, 4, 3R and 12 ratings when installed correctly using the hardware and directions provided.

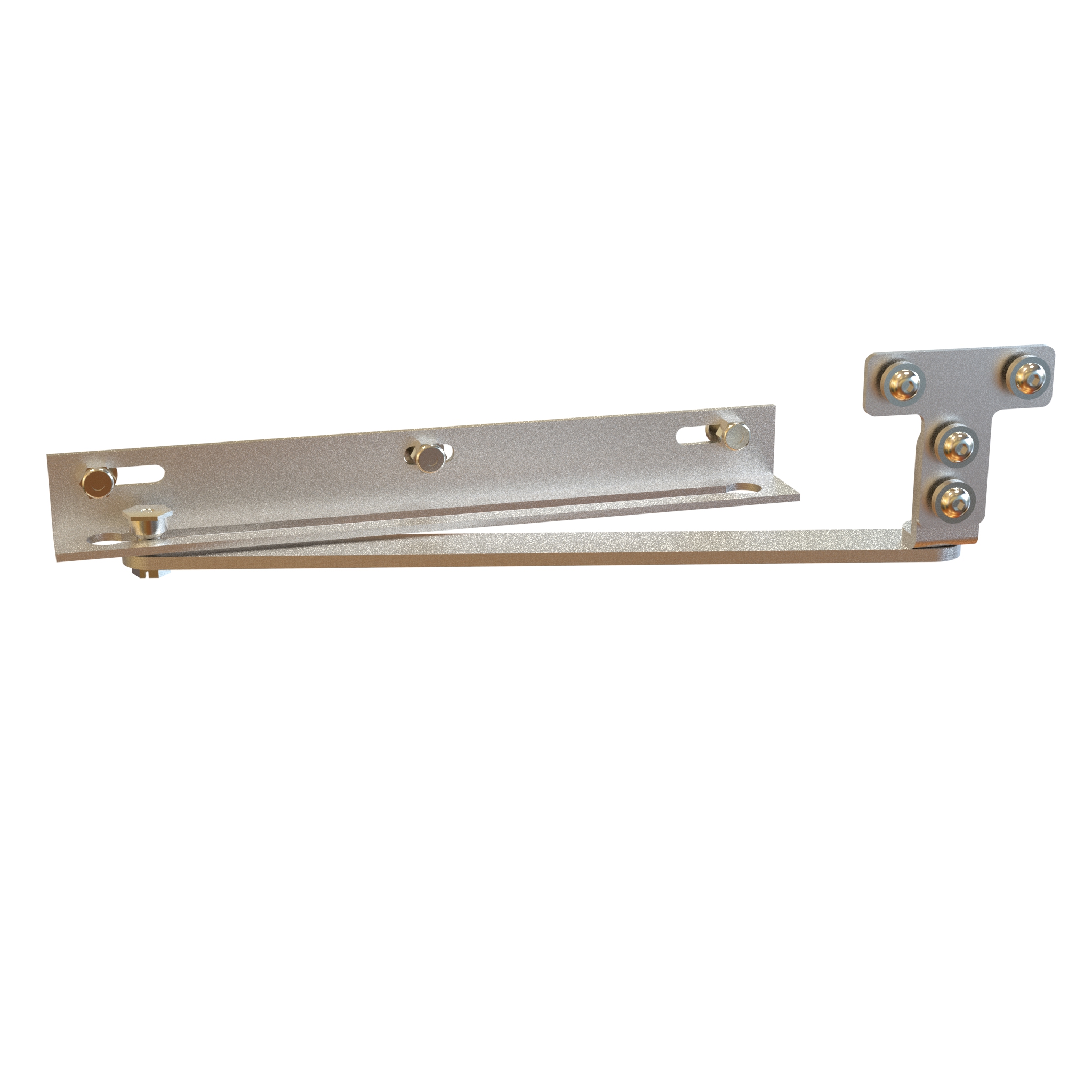

■Standard kit: Ideal for most wallmount enclosure applications. Manufactured in 12 gauge zinc plated steel. Suitable for top and/or bottom installation.

from $107.66

2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Note: Kits not compatible on Eclipse enclosures with swing panel or swing frame accessories installed.

Part details Features Documents Additional information

Configure & price

Find your DSTOPK part number

Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

2 of 2 part numbers · 2 priced online

DSTOPK

Door Stop Kit

Description Door stop kit

$107.66Backorder

Buy now

DSTOPKHD

HD Door Stop Kit

Description Heavy duty door stop kit

$148.15In stock

Buy now

Dimension tables (inches / mm)

Part No.	Description	Price	Order
DSTOPK	Door stop kit	$107.66Backorder	Buy now
DSTOPKHD	Heavy duty door stop kit	$148.15In stock	Buy now

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

■Offered in 2 versions – standard and heavy duty
■Provides for door opening in fixed position as required.
■Prevents door swing that can occur in field maintenance situations.
■Minimum enclosure width of 20" for single door and 48" for two-door is required
■Door stop kit maintains NEMA 4x, 4, 3R and 12 ratings when installed correctly using the hardware and directions provided.
■Standard kit: Ideal for most wallmount enclosure applications. Manufactured in 12 gauge zinc plated steel. Suitable for top and/or bottom installation.
■Ideal for most wallmount enclosure applications.
■Manufactured in 12 gauge zinc plated steel.
■Suitable for top and/or bottom installation.

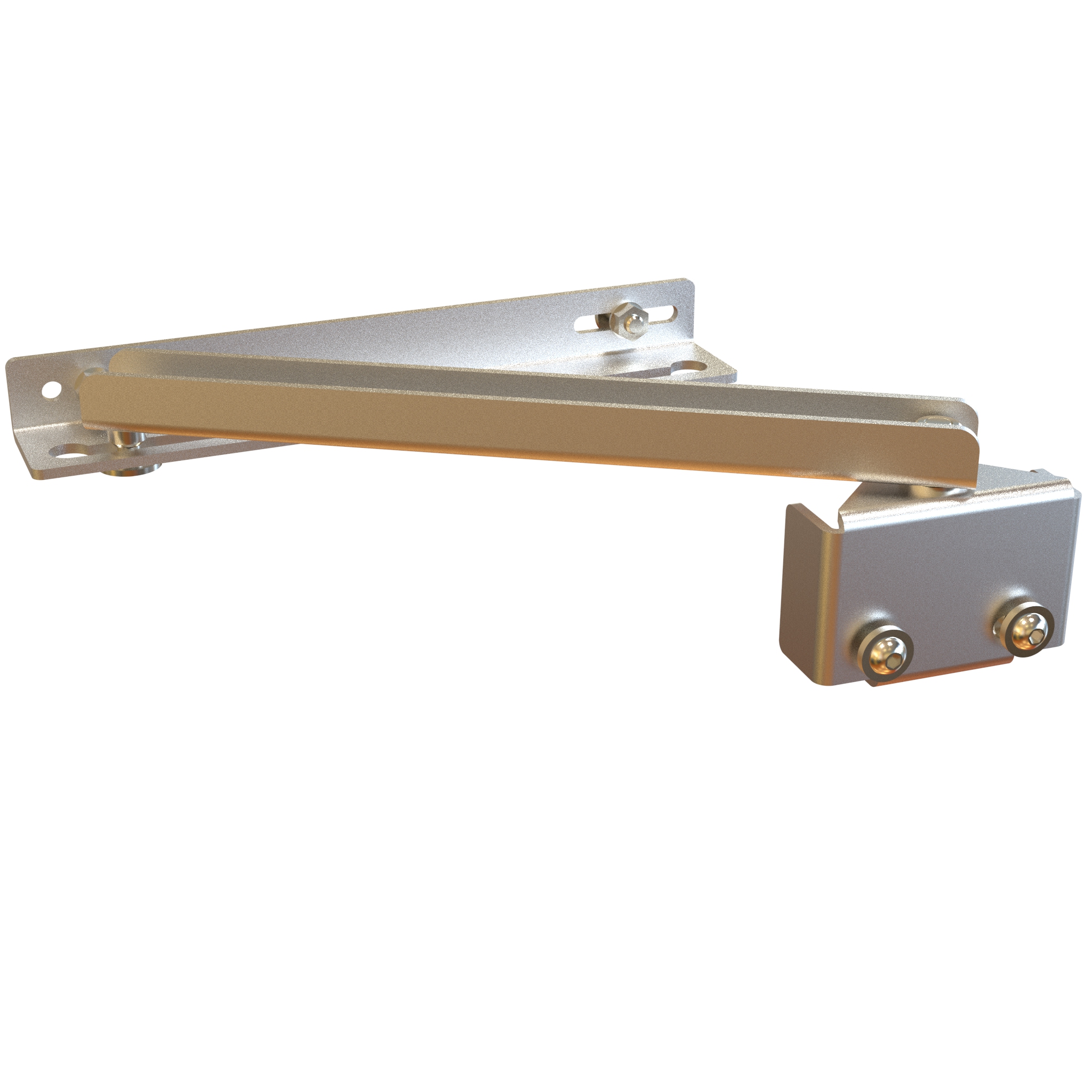

■Heavy duty kit: Designed for use with freestanding and floormount enclosures. Can be used on certain heavy duty wallmount series - 1418, 1422, HN4WM or HWHK - providing the specific size does NOT have door stiffeners to interfere. Manufactured in 10 gauge 316 stainless steel. Designed for bottom of door installation only Not compatible with enclosures with quarter turns located at bottom of doors.
■Designed for use with freestanding and floormount enclosures.
■Can be used on certain heavy duty wallmount series - 1418, 1422, HN4WM or HWHK - providing the specific size does NOT have door stiffeners to interfere.
■Manufactured in 10 gauge 316 stainless steel.
■Designed for bottom of door installation only
■Not compatible with enclosures with quarter turns located at bottom of doors.
