Hammond 1554PB1 1-Hole 30.5mm Polycarbonate Pushbutton Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- One 30.5 mm pushbutton hole in the lid for a single operator device
- Compact 3.54 x 3.54 in (90 x 90 mm) footprint, 2.36 in (60 mm) deep with lid
- IP66 and NEMA 4, 4X, 6, 6P, 12 & 13 protection
- UL94 5VA polycarbonate suitable for outdoor use, light gray RAL 7035
- Replaceable preformed silicone gasket; lid and mounting holes outside the seal
- Four captive M4 stainless steel cover screws in stainless steel bushings
- cULus listed (File E65324); polycarbonate version UL 508A approved
- Internal DIN rail mounting tabs; optional 1554EPL steel inner panel

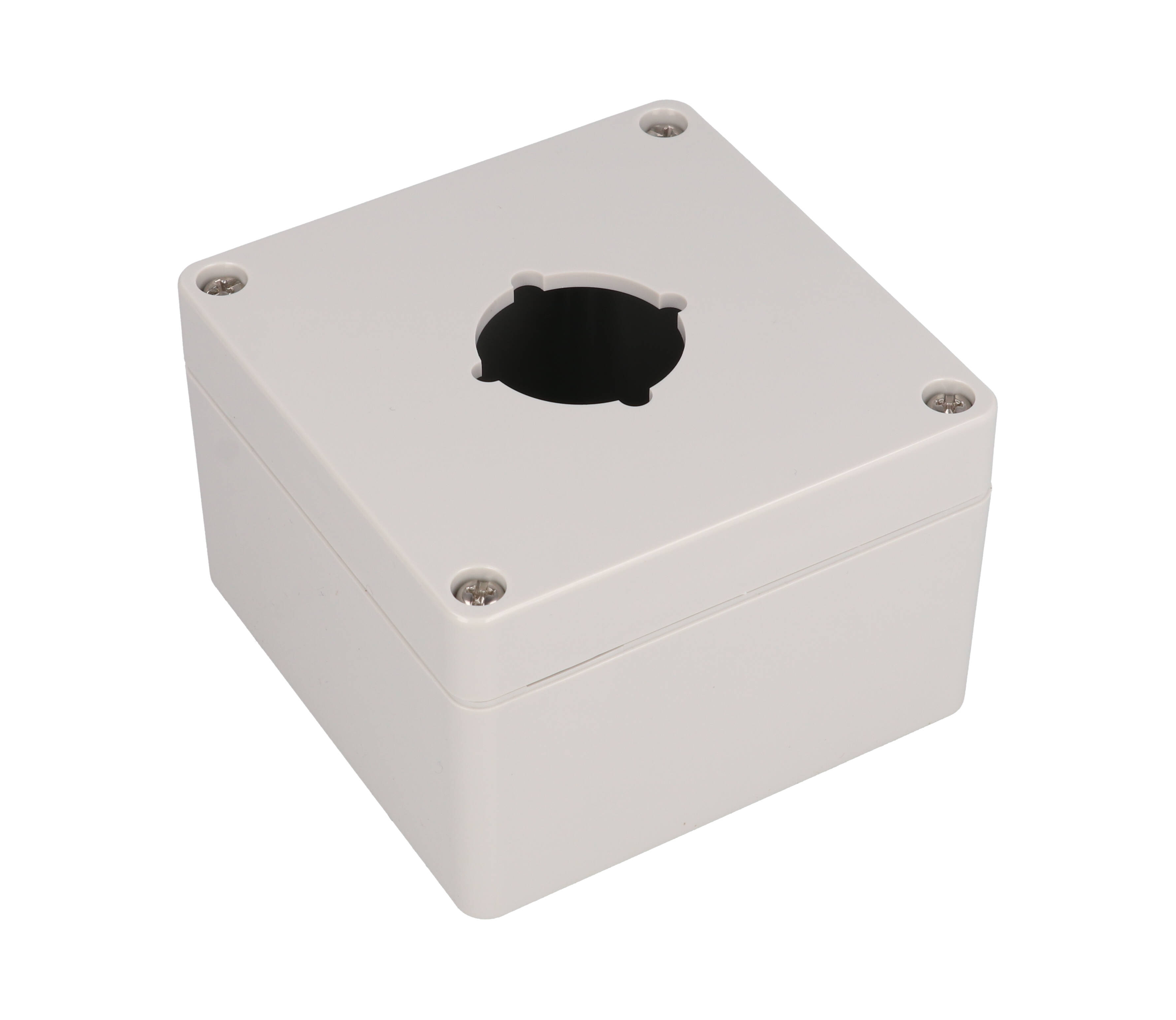

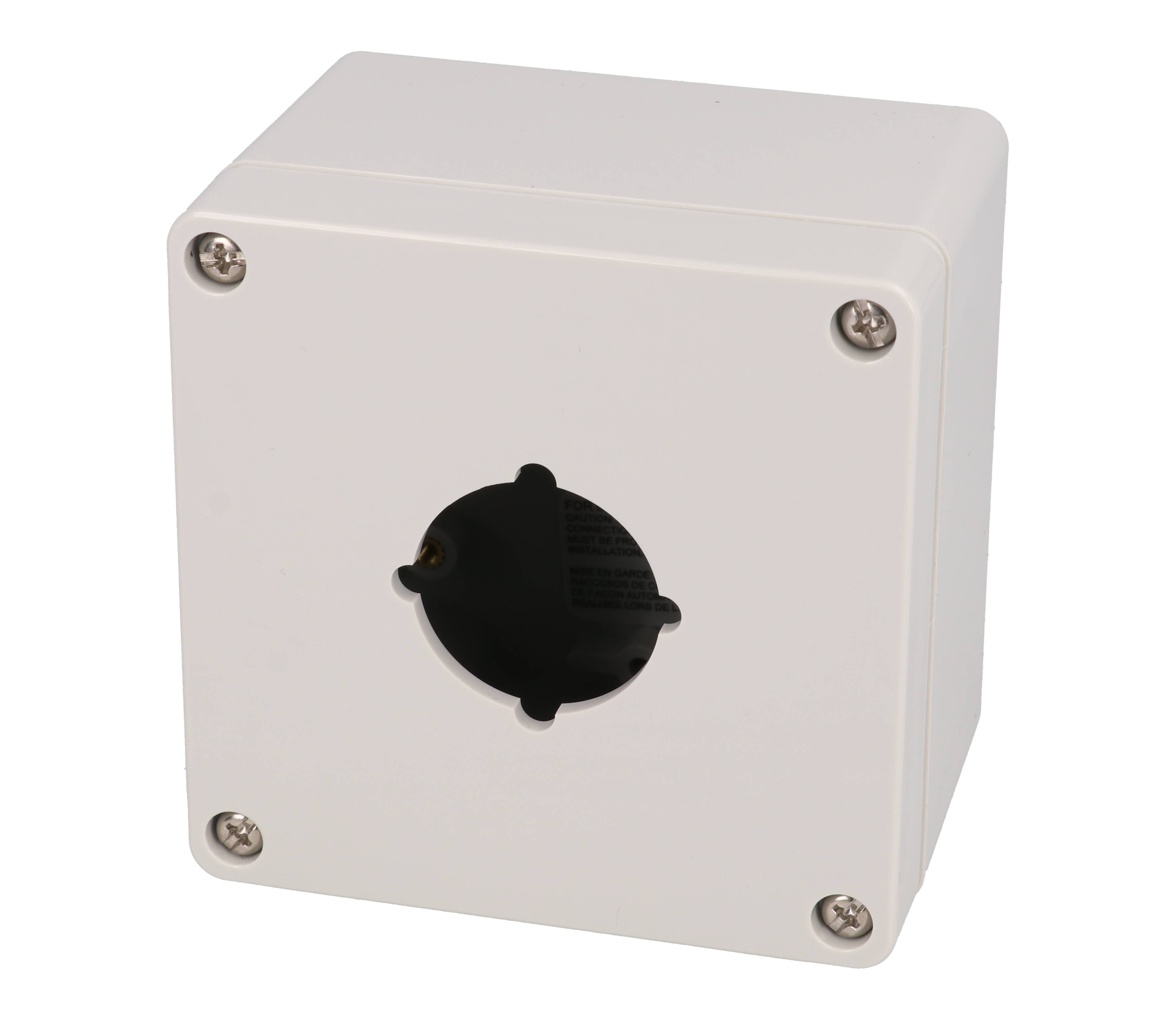

The 1554PB1 is a compact, single-hole pushbutton enclosure built for one 30.5 mm operator. It suits panel builders, electricians and OEM engineers who need a sealed station for a single start, stop or emergency control mounted away from the main panel. It is part of the Type 4, 4X polycarbonate 1554 PB Series and is based on the 1554E enclosure.
The body and lid are molded polycarbonate carrying a UL94 5VA flammability rating (at 3 mm) and suitable for outdoor use, finished in light gray RAL 7035. A preformed, high temperature U.L. listed silicone rubber gasket seals the lid and can be replaced. The lid is held by four self-captivating M4 stainless steel machine screws threaded into integral stainless steel bushings, and both the lid screws and the mounting holes sit outside the gasket seal.
The enclosure measures 3.54 in (90 mm) high by 3.54 in (90 mm) wide with a depth of 2.36 in (60 mm) including the lid, and ships at 0.35 lbs (0.16 kg). Four Ø4.00 mm mounting holes are provided in the box, and the base includes internal DIN rail mounting tabs. An optional 1554EPL steel inner panel (3.10 x 3.10 in) and 1554FT mounting feet are available.
Protection is rated IP66 and NEMA 4, 4X, 6, 6P, 12 and 13. The assembly is cULus listed under File E65324, the polycarbonate version is UL 508A approved, and 1554PB1 is RoHS and REACH compliant. A 22 mm hole version is offered as 1554MPB1.
Ideal For
- Single start/stop or emergency stop station
- Remote operator control near machinery
- Wet-area or outdoor pushbutton station
- Single indicator or selector switch housing
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Overview
| Series | 1554 PB Series |
| Product Type | Type 4, 4X polycarbonate pushbutton enclosure |
| Long Description | N4X PB encl - 1 PB x 30.5mm - Polycarb |
| Short Description | 1 HOLE 30.5MM P-BUTTON ENCL |
| Pushbutton Hole Size | 30.5 mm (lid accepts 30.5mm push buttons) |
| Number Of Pushbutton Holes | 1 |
| 22 Mm Hole Version Part No. | 1554MPB1 |
| Base Enclosure (See For More Detail) | 1554E |
Dimensions
| Enclosure Width | 3.54 in (90 mm) |
| Enclosure Height | 3.54 in (90 mm) |
| Enclosure Mounting Holes | 4X Ø4.00 mm [.16 in] |
| Nominal Size (H X W X D) | 3.5 in x 3.5 in x 2.4 in (89 mm x 89 mm x 61 mm) |
| Enclosure Depth (With Lid) | 2.36 in (60 mm) |
Accessories
| Optional Mounting Feet | 1554FT |
| Inner Panel Construction | Heavy duty galvanized 16 ga. steel; includes mounting hardware |
| Replacement Cover Screws | SC576-50 - M4-0.7 x 20mm stainless steel (Pkg 50) |
| Optional Inner Panel Width | 3.10 in (79 mm) |
| Optional Steel Inner Panel | 1554EPL |
| Optional Inner Panel Height | 3.10 in (79 mm) |
| Steel Panel / P.C. Board Screws | 1591MM100 - M3-0.5 x 8mm plated (Pkg 100) |
| Steel Panel / P.C. Board Self Tapping Screws | 1598ATS100 - #6 x 1/4" (6.4mm) plated (Pkg 100) |
Identifiers
| UPC | 623980843339 |
| UNSPSC | 39121326 |
| Part Number | 1554PB1 |
Packaging & Shipping
| Shipping Weight | 0.35 lbs (0.16 kg) |
Construction & Finish
| Color | Light gray (RAL 7035) |
| Gasket | Preformed, high temperature U.L. listed silicone rubber; replaceable |
| Material | Polycarbonate |
| Lid Fastening | Self-captivating M4 stainless steel machine screws (included) threaded into integral stainless steel bushings |

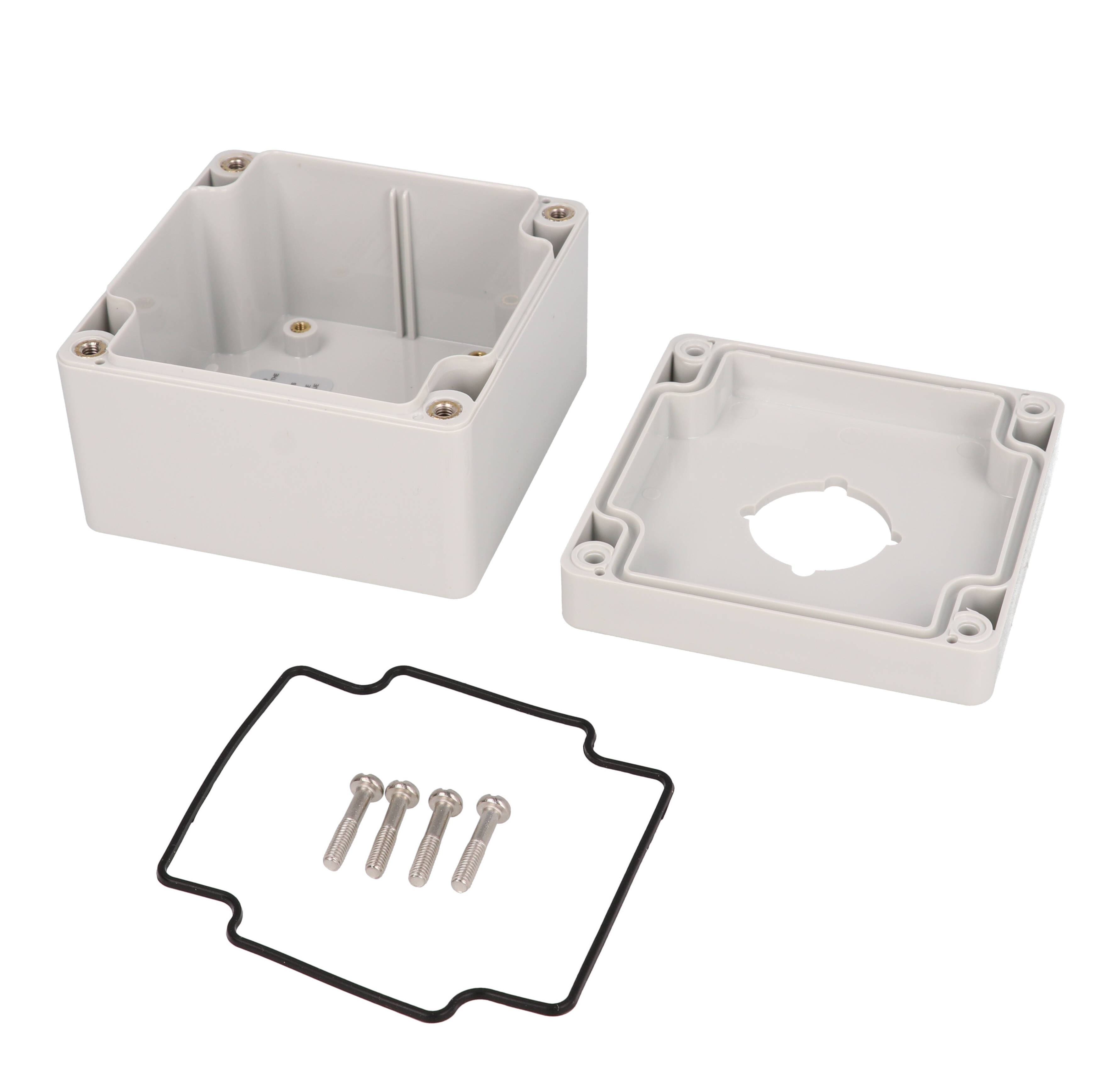

| Assembly Includes | Box, lid, 4 cover screws and preformed silicone gasket |
| DIN Rail Mounting | Internal DIN rail mounting tabs in base |
| Cover Screws Included | 4 |
| Chemical Resistance Note | Some chemicals (e.g. acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents) can damage or weaken the plastic |
| Lid & Mounting Hole Location | Outside of the gasket seal |
| Material Flammability Rating | UL94 5VA @ 3mm |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| Outdoor Use | Polycarbonate material suitable for outdoor use |
| NEMA Type Ratings | NEMA 4, 4X, 6, 6P, 12 & 13 |
| Ingress Protection | IP66 |
Compliance & Certifications
| UL 508A | Polycarbonate version is UL 508A approved |
| UL Listing | cULus Listed, File #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Drawing Type Marking | Type 4, 4X, 6, 6P |
