Hammond 1554MPB6A 6-Hole 22.5mm Pushbutton Enclosure, 1554VA Body
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Six 22.5 mm push button holes on the 1554VA body
- Six-screw lid with M4 stainless steel captive screws
- 9.45 x 6.30 x 3.54 in (240 x 160 x 90 mm) with lid
- IP66; NEMA 4, 4X, 12, 13 (6-hole units do not meet Type 6/6P)
- UL94 5VA polycarbonate, outdoor suitable, RAL 7035 light gray
- Optional 1554VAPL 8.93 x 5.73 in steel inner panel
- DIN rail tabs, M3 brass inserts and PC card guides

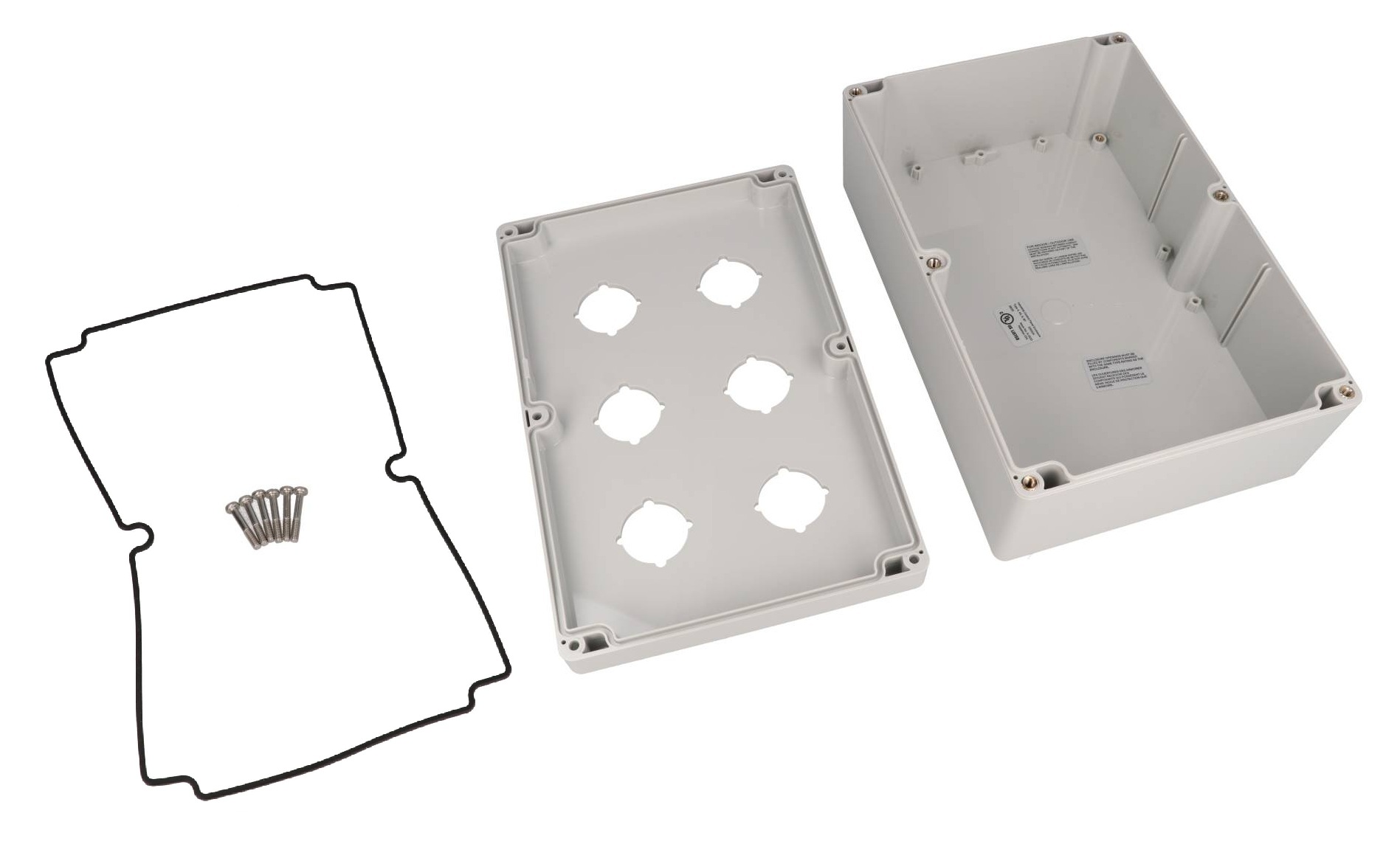

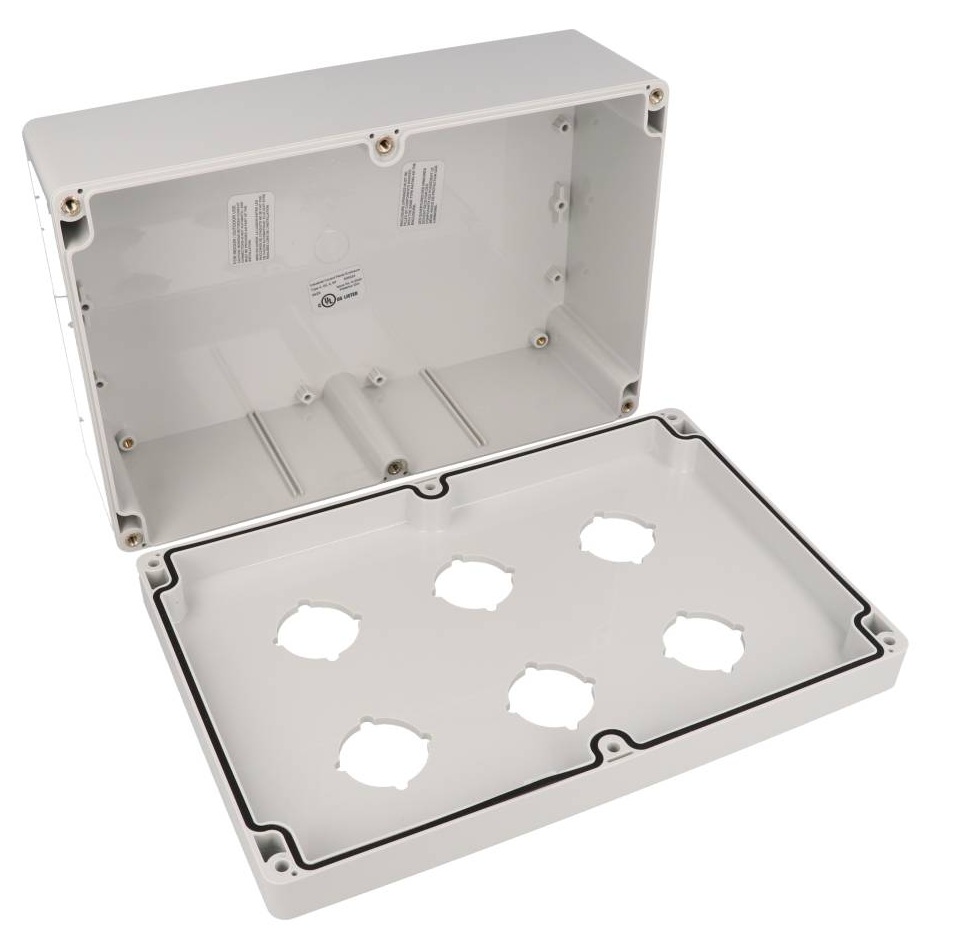

The 1554MPB6A offers six 22.5 mm pushbutton holes on the 1554VA enclosure body. Compared with the 1554MPB6, the lid is secured with six cover screws rather than four, and it takes the 1554VAPL inner panel. It suits control engineers who want a six-device station with a six-screw lid in a sealed polycarbonate housing. The 30.5 mm version is the 1554PB6A.
The enclosure is 9.45 in H x 6.30 in W x 3.54 in D with lid (240 x 160 x 90 mm), nominally 9.5 x 6.3 x 3.5 in, with four Ø4.00 mm mounting holes outside the gasket seal. Shipping weight is 1.3 lbs (0.59 kg). The optional 1554VAPL galvanized 16 ga. steel inner panel measures 8.93 x 5.73 in (227 x 146 mm).
Construction is light gray RAL 7035 polycarbonate, UL94 5VA and suitable for outdoor use. Self-captivating M4 stainless steel machine screws thread into integral stainless steel bushings; recommended torque is 71-85 ozf-in (50-60 cN-m). The preformed, high temperature U.L. listed silicone gasket is replaceable, and the base has internal DIN rail mounting tabs plus M3 brass inserts, standoffs and 1.5 mm PC card guides.
The series is rated IP66 and NEMA 4, 4X, 6, 6P, 12 and 13, though the series notes that 6 pushbutton enclosures do not meet Type 6/6P. The drawing shows the cUL US Listed mark (E65324) and UL 508A approval for the polycarbonate version. The 1554MPB6A ships with box, lid, 6 cover screws and gasket and is RoHS and REACH compliant.
Ideal For
- Six-device operator station
- Outdoor or wash-down pushbutton panel
- Machine start/stop/jog controls with indicators
- Local process control point
Overview
| Description | 6 HOLE 22.5MM P-BUTTON 1554VA |
| Enclosure Type | Type 4, 4X polycarbonate pushbutton enclosure |
| Pushbutton Size | Lid accepts 22.5 mm push buttons (22 mm hole version) |
| Pushbutton Holes | 6 |
| 30.5 Mm Hole Equivalent | 1554PB6A |
| Base Enclosure (See For More Detail) | 1554VA |
Dimensions
| Mounting Holes | 4X Ø4.00 mm [.16 in] mounting holes |
| Enclosure Width | 6.30 in (160 mm) |
| Enclosure Height | 9.45 in (240 mm) |
| Nominal Size (H X W X D) | 9.5 in x 6.3 in x 3.5 in (241 mm x 160 mm x 89 mm) |
| Pushbutton Hole Diameter | 22.5 mm [0.89 in] |
| Drawing Overall Dimensions | 240.00 x 160.00 x 90.00 mm [9.45 x 6.30 x 3.54 in] |
| Enclosure Depth (With Lid) | 3.54 in (90 mm) |
Accessories
| Optional Inner Panel | 1554VAPL steel inner panel, 8.93 in (227 mm) H x 5.73 in (146 mm) W (ordered separately) |
| Cover Screws (Pkg 50) | SC583-50 [M4-0.7 X 25mm Stainless Steel] |
| Optional Mounting Feet | 1554FT |
| Inner Panel Construction | Heavy duty galvanized 16 ga. steel; includes mounting hardware |
Identifiers
| UPC | 623980401799 |
| UNSPSC | 39121326 |
| Part Number | 1554MPB6A |
Packaging & Shipping
| Included | Box, lid, 6 cover screws and preformed silicone gasket |
| Shipping Weight | 1.3 lbs (0.59 kg) |
Construction & Finish
| Colour | Light gray (RAL 7035) |
| Gasket | Preformed, high temperature U.L. listed silicone rubber; replaceable |
| DIN Rail | Base includes internal DIN rail mounting tabs |
| Material | Polycarbonate (UL94 5VA @ 3 mm) |
| Outdoor Use | Polycarbonate material is suitable for outdoor use |
| Modification | Enclosures can be factory modified (milling, drilling, printing etc.); solid models available in STEP or IGES |
| Lid Fastening | Self-captivating M4 stainless steel machine screws (included) threaded into integral stainless steel bushings |
| PC Card Guides | Vertical PC card guides for 1.5 mm thick PC boards molded in (all but the smallest size) |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Lid & Mounting Holes | Located outside of the gasket seal |
| PCB / Panel Mounting | Threaded (M3) integral brass inserts and standoffs designed for M3.5 or #6 self tapping screws (all but the smallest size) |
| Cover Screws Included | 6 |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Type 6/6P Note | 6 pushbutton enclosures do not meet Type 6/6P |
| NEMA Types (Series) | NEMA 4, 4X, 6, 6P, 12 & 13 |
Compliance & Certifications
| UL 508A | Polycarbonate version is UL 508A approved |
| Flammability | UL94 5VA |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL Listing (Drawing) | cUL US Listed, File #E65324, Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1554MPB6A different from the 1554MPB6?▾
Both have six 22.5 mm holes and a 240 x 160 x 90 mm size. The 1554MPB6A uses the 1554VA body with 6 cover screws and the 1554VAPL inner panel; the 1554MPB6 uses the 1554V body with 4 cover screws and the 1554VPL panel.
Does it meet Type 6/6P?▾
The series specification states that 6 pushbutton enclosures do not meet Type 6/6P.
What is included?▾
Box, lid, 6 cover screws and a preformed silicone gasket.
What torque should the lid screws have?▾
71-85 ozf-in (50-60 cN-m).
Which self tapping screws suit the inner panel?▾
The drawing lists 1598ATS100, #8 x 5/16" (8mm) plated, pack of 100.
