Hammond 1554PB2 2-Hole 30.5mm Polycarbonate Pushbutton Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two 30.5 mm pushbutton holes for start/stop style control
- 6.30 x 3.54 in (160 x 90 mm), 2.38 in (60 mm) deep with lid
- IP66 and NEMA 4, 4X, 6, 6P, 12 & 13 protection
- UL94 5VA polycarbonate suitable for outdoor use, RAL 7035 light gray
- M3 brass inserts, PC card guides and internal DIN rail tabs
- Replaceable silicone gasket; four captive M4 stainless steel cover screws
- cULus listed File E65324; polycarbonate version UL 508A approved
- Optional 1554JPL steel inner panel, 5.80 x 3.00 in

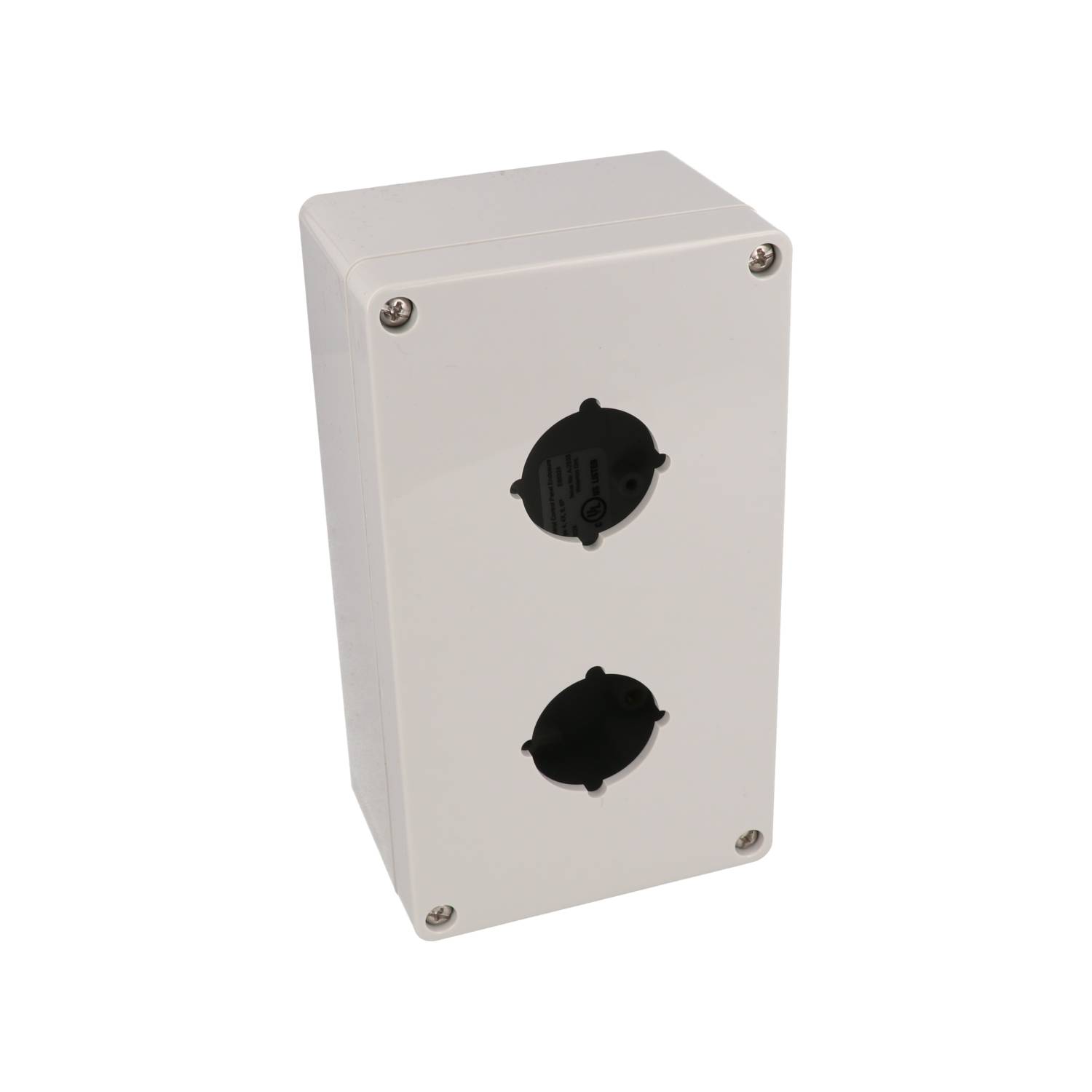

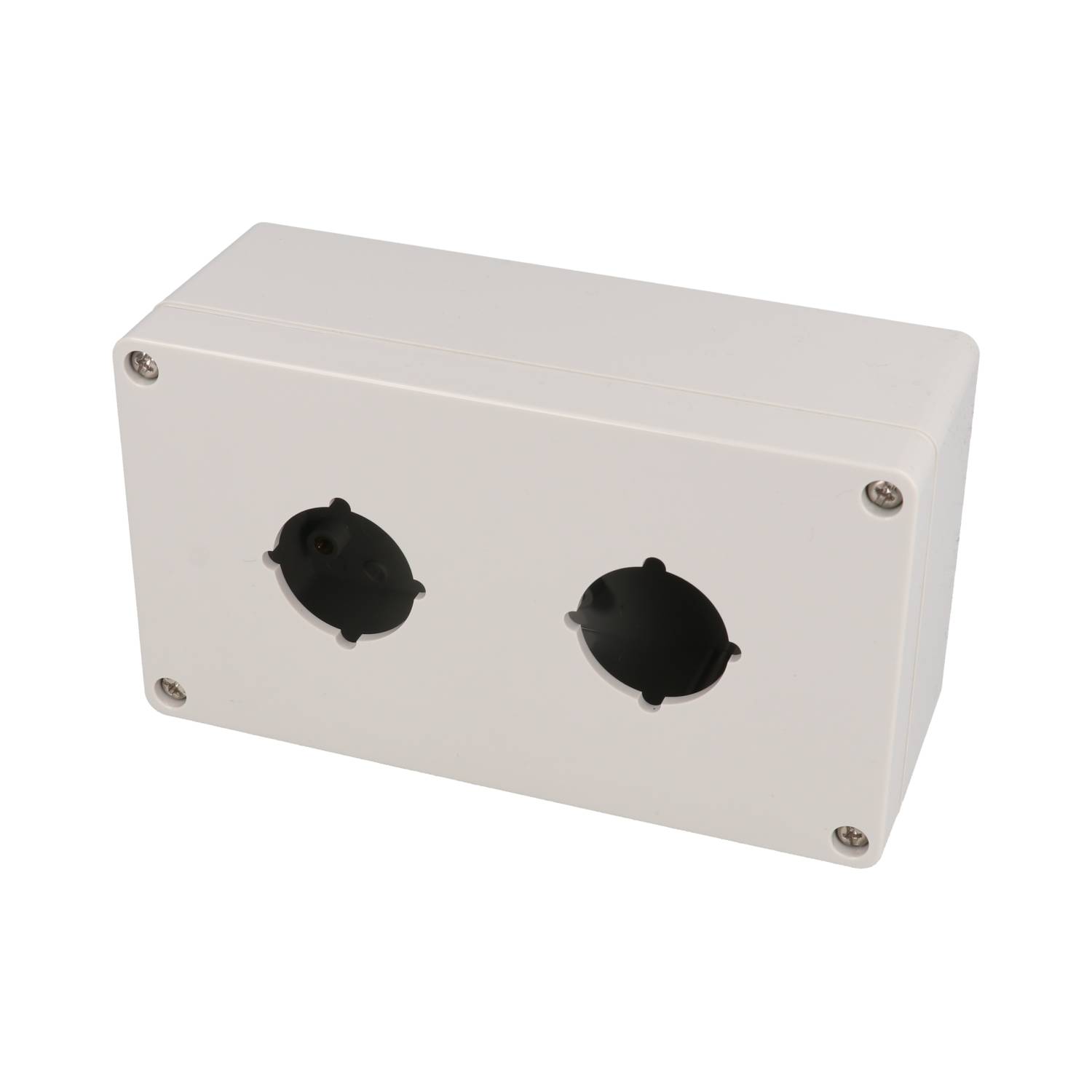

The 1554PB2 is a two-hole pushbutton enclosure for a pair of 30.5 mm operators, the typical start/stop arrangement for motors, pumps and conveyors. It is built on the 1554J body from the Type 4, 4X polycarbonate 1554 PB Series and is intended for electricians, controls integrators and OEMs who need a sealed remote control station.

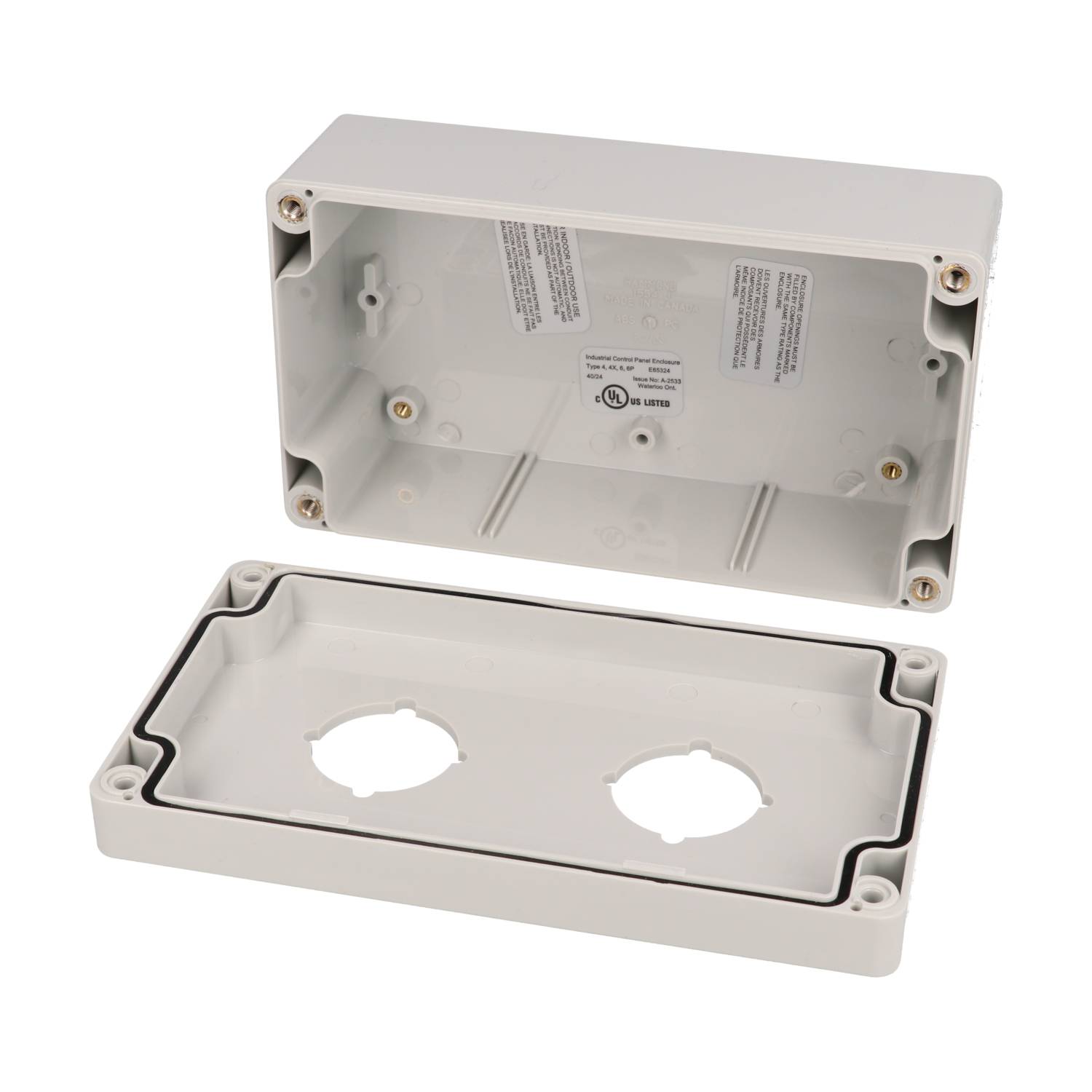

Construction is polycarbonate rated UL94 5VA (at 3 mm), suitable for outdoor use, in light gray RAL 7035. A replaceable preformed, high temperature U.L. listed silicone rubber gasket seals the lid, which is secured by four self-captivating M4 stainless steel screws into integral stainless steel bushings; lid screws and mounting holes are outside the gasket seal. Inside, threaded M3 brass inserts and standoffs accept M3.5 or #6 self tapping screws for PC boards or an inner panel, vertical card guides take 1.5 mm PC boards, and DIN rail mounting tabs are molded into the base.
- Height: 6.30 in (160 mm)
- Width: 3.54 in (90 mm)
- Depth with lid: 2.38 in (60 mm)
- Shipping weight: 0.53 lbs (0.24 kg)
The box has four Ø4.00 mm mounting holes, and the optional 1554JPL steel inner panel (5.80 x 3.00 in) and 1554FT mounting feet are available. Recommended cover screw torque is 43-57 ozf-in (30-40 cN-m).
1554PB2 is rated IP66 and NEMA 4, 4X, 6, 6P, 12 and 13, cULus listed under File E65324, UL 508A approved in polycarbonate, and RoHS and REACH compliant. For 22 mm operators choose 1554MPB2.
Ideal For
- Motor start/stop control station
- Pump or conveyor remote operator station
- Outdoor or wet-area two-button control
- Pushbutton station with small PCB or DIN rail component
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Overview
| Series | 1554 PB Series |
| Product Type | Type 4, 4X polycarbonate pushbutton enclosure |
| Long Description | N4X PB encl - 2 PB x 30.5mm - Polycarb |
| Short Description | 2 HOLE 30.5MM P-BUTTON ENCL. |
| Pushbutton Hole Size | 30.5 mm (lid accepts 30.5mm push buttons) |
| Number Of Pushbutton Holes | 2 |
| 22 Mm Hole Version Part No. | 1554MPB2 |
| Base Enclosure (See For More Detail) | 1554J |
Dimensions
| Enclosure Width | 3.54 in (90 mm) |
| Enclosure Height | 6.30 in (160 mm) |
| Enclosure Mounting Holes | 4X Ø4.00 mm [.16 in] |
| Nominal Size (H X W X D) | 6.3 in x 3.5 in x 2.4 in (160 mm x 89 mm x 61 mm) |
| Enclosure Depth (With Lid) | 2.38 in (60 mm) |
Accessories
| Optional Mounting Feet | 1554FT |
| Inner Panel Construction | Heavy duty galvanized 16 ga. steel; includes mounting hardware |
| Replacement Cover Screws | SC576-50 - M4-0.7 x 20mm stainless steel (Pkg 50) |
| Optional Inner Panel Width | 3.00 in (76 mm) |
| Optional Steel Inner Panel | 1554JPL |
| Optional Inner Panel Height | 5.80 in (147 mm) |
Identifiers
| UPC | 623980843353 |
| UNSPSC | 39121326 |
| Part Number | 1554PB2 |
Packaging & Shipping
| Shipping Weight | 0.53 lbs (0.24 kg) |
Construction & Finish
| Color | Light gray (RAL 7035) |
| Gasket | Preformed, high temperature U.L. listed silicone rubber; replaceable |
| Material | Polycarbonate |
| Lid Fastening | Self-captivating M4 stainless steel machine screws (included) threaded into integral stainless steel bushings |
| PC Card Guides | Vertical, molded, for 1.5 mm thick PC boards |

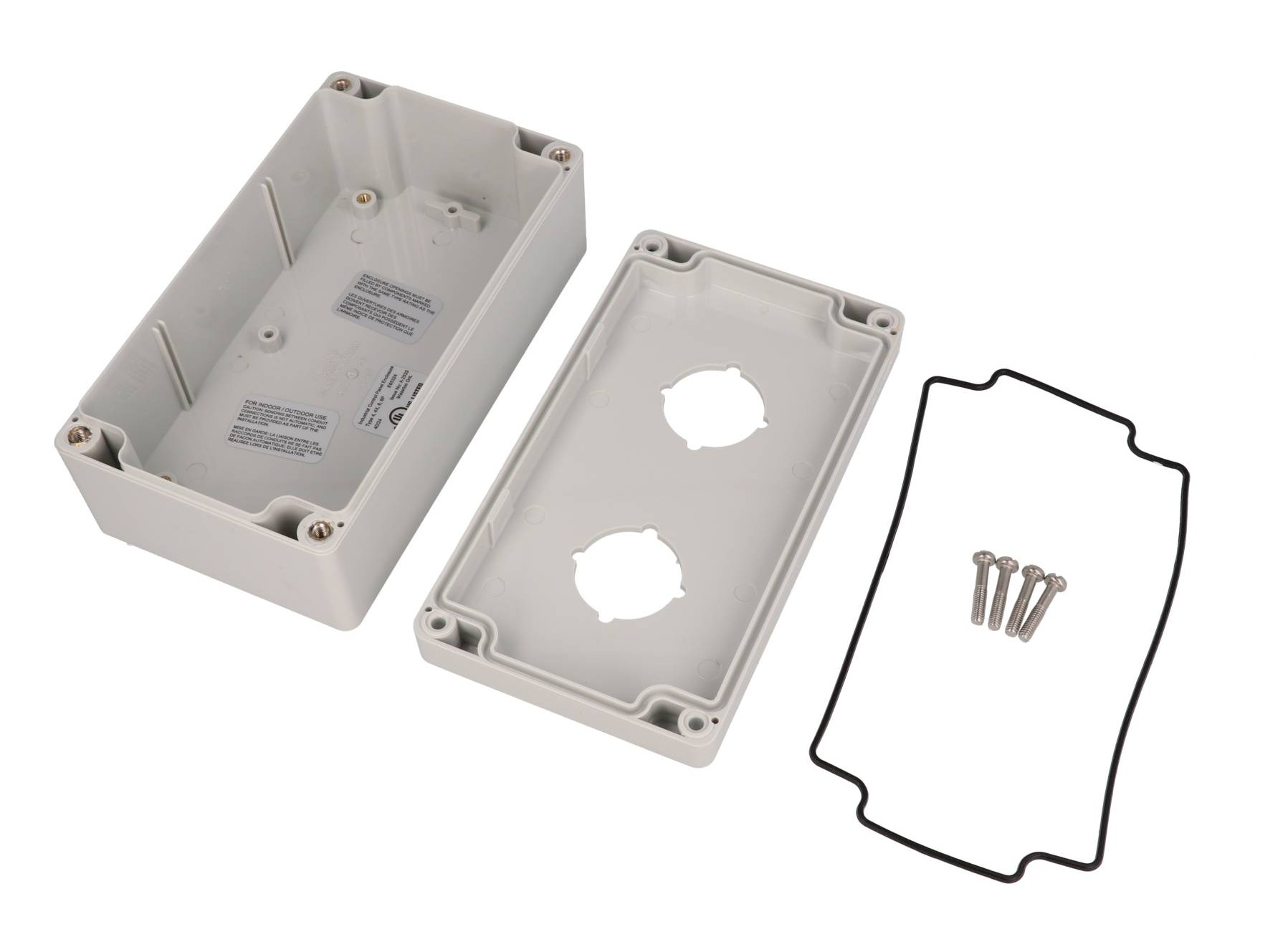

| Assembly Includes | Box, lid, 4 cover screws and preformed silicone gasket |
| DIN Rail Mounting | Internal DIN rail mounting tabs in base |
| Cover Screws Included | 4 |
| Chemical Resistance Note | Some chemicals (e.g. acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents) can damage or weaken the plastic |
| PCB / Inner Panel Mounting | Threaded (M3) integral brass inserts and standoffs designed for M3.5 or #6 self tapping screws |
| Lid & Mounting Hole Location | Outside of the gasket seal |
| Material Flammability Rating | UL94 5VA @ 3mm |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| Outdoor Use | Polycarbonate material suitable for outdoor use |
| NEMA Type Ratings | NEMA 4, 4X, 6, 6P, 12 & 13 |
| Ingress Protection | IP66 |
Compliance & Certifications
| UL 508A | Polycarbonate version is UL 508A approved |
| UL Listing | cULus Listed, File #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Drawing Type Marking | Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many pushbuttons fit in the 1554PB2?▾
The lid has two 30.5 mm pushbutton holes.
What are the 1554PB2 dimensions?▾
6.30 in (160 mm) high, 3.54 in (90 mm) wide and 2.38 in (60 mm) deep with the lid. The part page lists a nominal size of 6.3 x 3.5 x 2.4 in.
Can I mount a PC board or DIN rail inside?▾
Yes. The base includes internal DIN rail mounting tabs, threaded M3 brass inserts and standoffs for M3.5 or #6 self tapping screws, and vertical card guides for 1.5 mm thick PC boards.
Which inner panel fits?▾
The optional steel inner panel is 1554JPL, 5.80 in (147 mm) by 3.00 in (76 mm).
Is a 22 mm version available?▾
Yes, the 22 mm hole equivalent is 1554MPB2.
