Hammond 1554PB8 8-Hole 30.5mm Polycarbonate Pushbutton Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Eight 30.5 mm pushbutton holes for large control stations
- 11.81 x 7.87 in (300 x 200 mm), 3.54 in (90 mm) deep with lid
- IP66 and NEMA 4, 4X, 6, 6P, 12 & 13 protection
- Six captive M4 stainless steel cover screws; replaceable silicone gasket
- UL94 5VA polycarbonate suitable for outdoor use, light gray RAL 7035
- DIN rail tabs, M3 brass inserts and 1.5 mm PC card guides
- cULus listed File E65324; polycarbonate version UL 508A approved
- Optional 1554XPL steel inner panel, 11.22 x 7.28 in

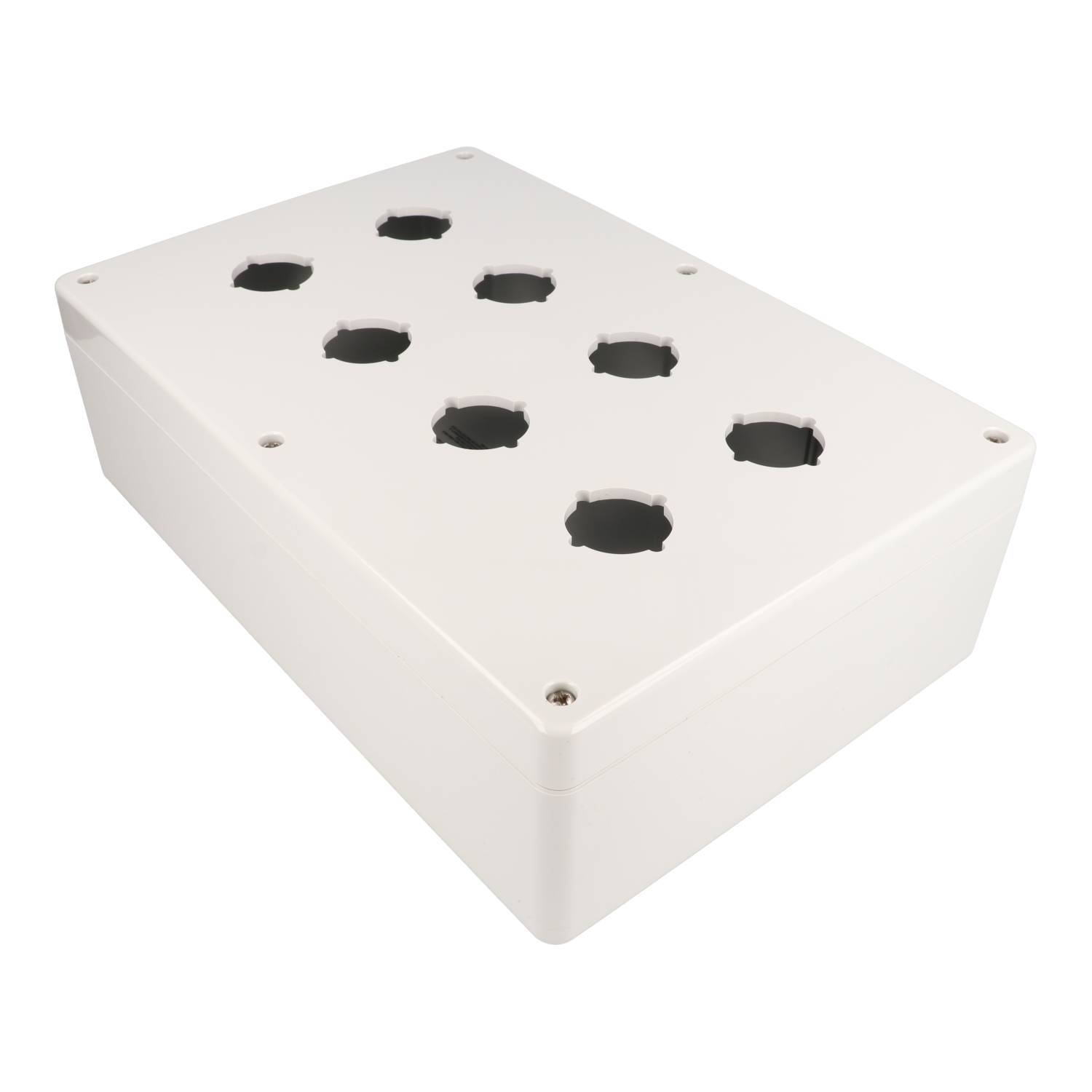

The 1554PB8 is an eight-hole pushbutton enclosure for 30.5 mm operators, sized for larger control stations that combine many pushbuttons, selector switches and pilot lights in one sealed housing. It is built on the 1554X body in the Type 4, 4X polycarbonate 1554 PB Series and serves panel builders, integrators and OEM engineers.
It is molded from polycarbonate with a UL94 5VA rating at 3 mm, suitable for outdoor use and finished in light gray RAL 7035. The lid is sealed by a replaceable, preformed, high temperature U.L. listed silicone rubber gasket and fastened with six self-captivating M4 stainless steel machine screws in integral stainless steel bushings. The drawing gives a recommended cover screw torque of 8-9 lbf-in (90-100 cN-m). Lid screws and mounting holes are outside the gasket seal.
The 1554PB8 measures 11.81 in (300 mm) high, 7.87 in (200 mm) wide and 3.54 in (90 mm) deep with the lid, with a shipping weight of 1.43 lbs (0.65 kg). The base includes DIN rail mounting tabs, threaded M3 brass inserts and standoffs for M3.5 or #6 self tapping screws, and card guides for 1.5 mm PC boards. The optional 1554XPL galvanized steel inner panel measures 11.22 x 7.28 in; 1554FT mounting feet and SC544-100 #8 self tapping panel screws are listed as accessories.
It is rated IP66 and NEMA 4, 4X, 6, 6P, 12 and 13, cULus listed under File E65324, UL 508A approved in polycarbonate, and RoHS and REACH compliant. This eight-hole size is offered with 30.5 mm holes only.
Ideal For
- Large machine operator control station
- Multi-motor start/stop station
- Outdoor or wet-area control station
- Operator station with DIN rail relays or PCB
Overview
| Series | 1554 PB Series |
| Product Type | Type 4, 4X polycarbonate pushbutton enclosure |
| Short Description | 8 HOLE 30.5MM P-BUTTON 1554X |
| Pushbutton Hole Size | 30.5 mm (lid accepts 30.5mm push buttons) |
| Number Of Pushbutton Holes | 8 |
| Base Enclosure (See For More Detail) | 1554X |
Dimensions
| Enclosure Width | 7.87 in (200 mm) |
| Enclosure Height | 11.81 in (300 mm) |
| Nominal Size (H X W X D) | 11.81 in x 7.87 in x 3.54 in (300 mm x 200 mm x 90 mm) |
| Enclosure Depth (With Lid) | 3.54 in (90 mm) |
Accessories
| Optional Mounting Feet | 1554FT |
| Inner Panel Construction | Heavy duty galvanized 16 ga. steel; includes mounting hardware |
| Replacement Cover Screws | SC583-50 - M4-0.7 x 25mm stainless steel (Pkg 50) |
| Optional Inner Panel Width | 7.28 in (185 mm) |
| Optional Steel Inner Panel | 1554XPL |
| Optional Inner Panel Height | 11.22 in (285 mm) |
Identifiers
| UPC | 623980406497 |
| UNSPSC | 39121326 |
| Part Number | 1554PB8 |
Packaging & Shipping
| Shipping Weight | 1.43 lbs (0.65 kg) |
Construction & Finish

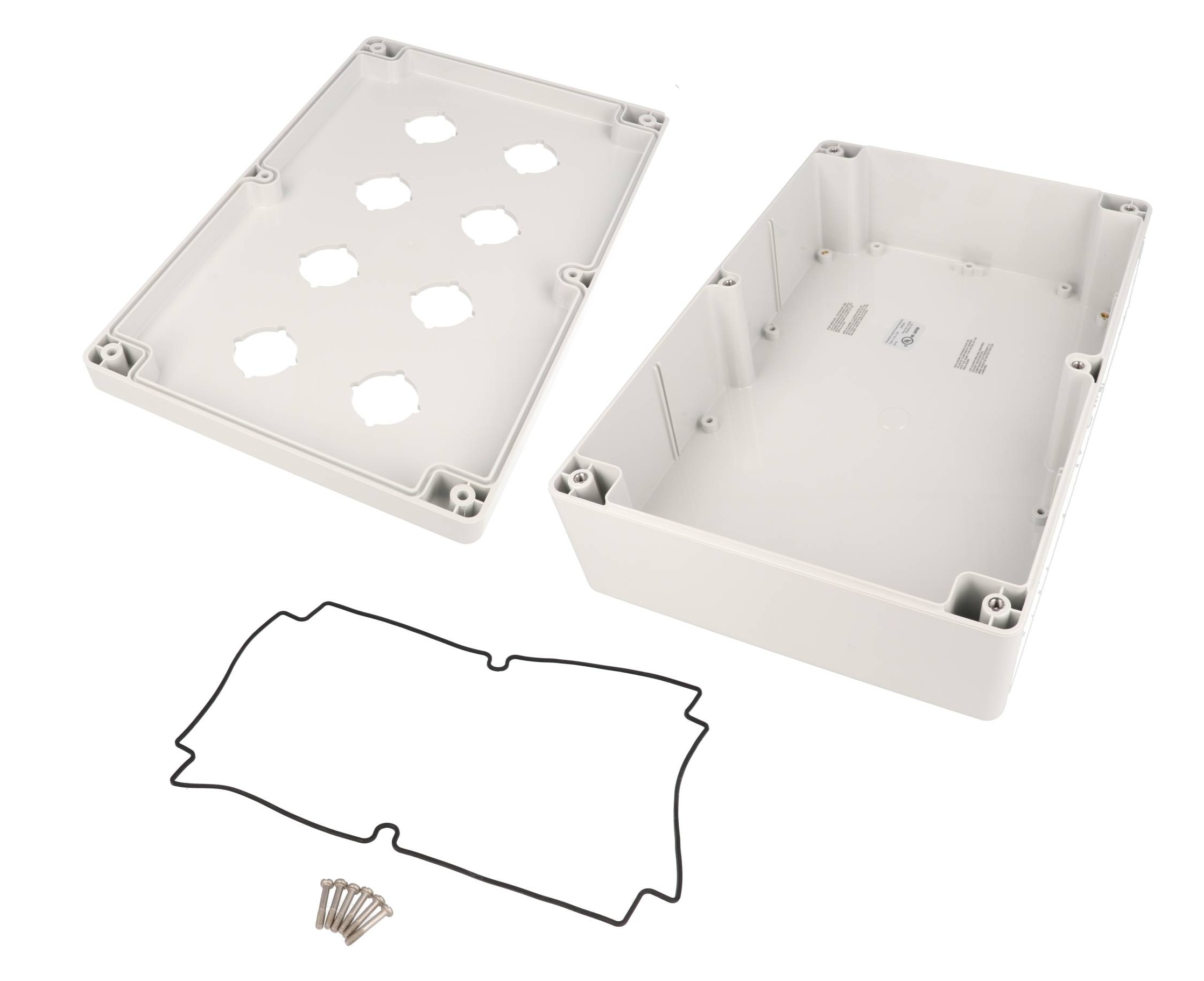

| Color | Light gray (RAL 7035) |
| Gasket | Preformed, high temperature U.L. listed silicone rubber; replaceable |
| Material | Polycarbonate |
| Lid Fastening | Self-captivating M4 stainless steel machine screws (included) threaded into integral stainless steel bushings |
| PC Card Guides | Vertical, molded, for 1.5 mm thick PC boards |
| Assembly Includes | Box, lid, 6 cover screws and preformed silicone gasket |
| DIN Rail Mounting | Internal DIN rail mounting tabs in base |
| Cover Screws Included | 6 |
| Chemical Resistance Note | Some chemicals (e.g. acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents) can damage or weaken the plastic |
| PCB / Inner Panel Mounting | Threaded (M3) integral brass inserts and standoffs designed for M3.5 or #6 self tapping screws |
| Lid & Mounting Hole Location | Outside of the gasket seal |
| Material Flammability Rating | UL94 5VA @ 3mm |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| Outdoor Use | Polycarbonate material suitable for outdoor use |
| NEMA Type Ratings | NEMA 4, 4X, 6, 6P, 12 & 13 |
| Ingress Protection | IP66 |
Compliance & Certifications
| UL 508A | Polycarbonate version is UL 508A approved |
| UL Listing | cULus Listed, File #E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Drawing Type Marking | Type 4, 4X, 6, 6P |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many pushbuttons does the 1554PB8 hold?▾
Eight, in 30.5 mm holes.
Is there a 22 mm hole version of the 1554PB8?▾
The ordering table lists no 22 mm equivalent for the 1554PB8; it is offered with 30.5 mm holes.
What are its dimensions?▾
11.81 in (300 mm) high, 7.87 in (200 mm) wide and 3.54 in (90 mm) deep with the lid.
What inner panel fits?▾
The optional 1554XPL steel inner panel, 11.22 in (285 mm) by 7.28 in (185 mm).
What is the recommended cover screw torque?▾
8-9 lbf-in (90-100 cN-m) per the part drawing.
