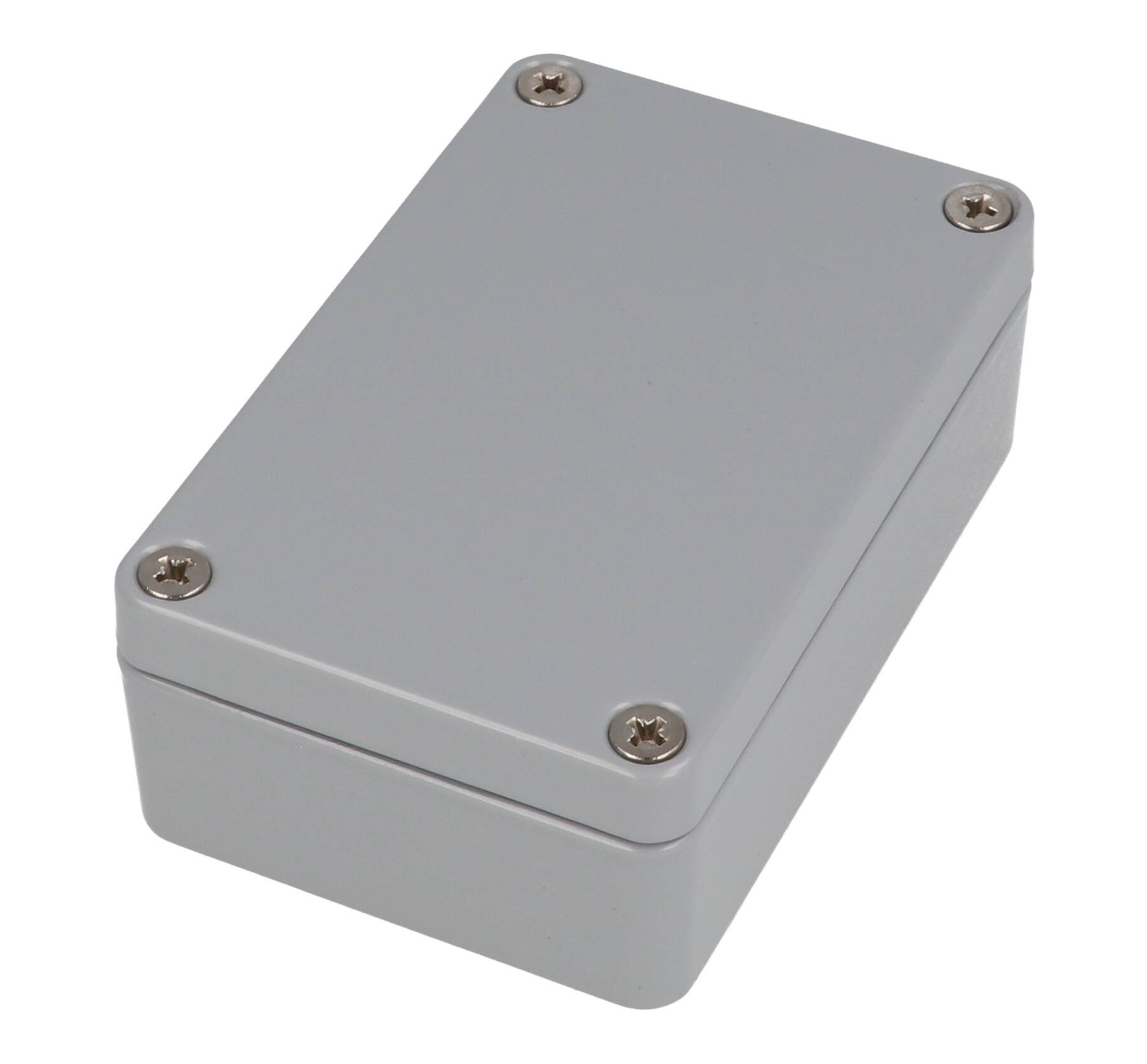

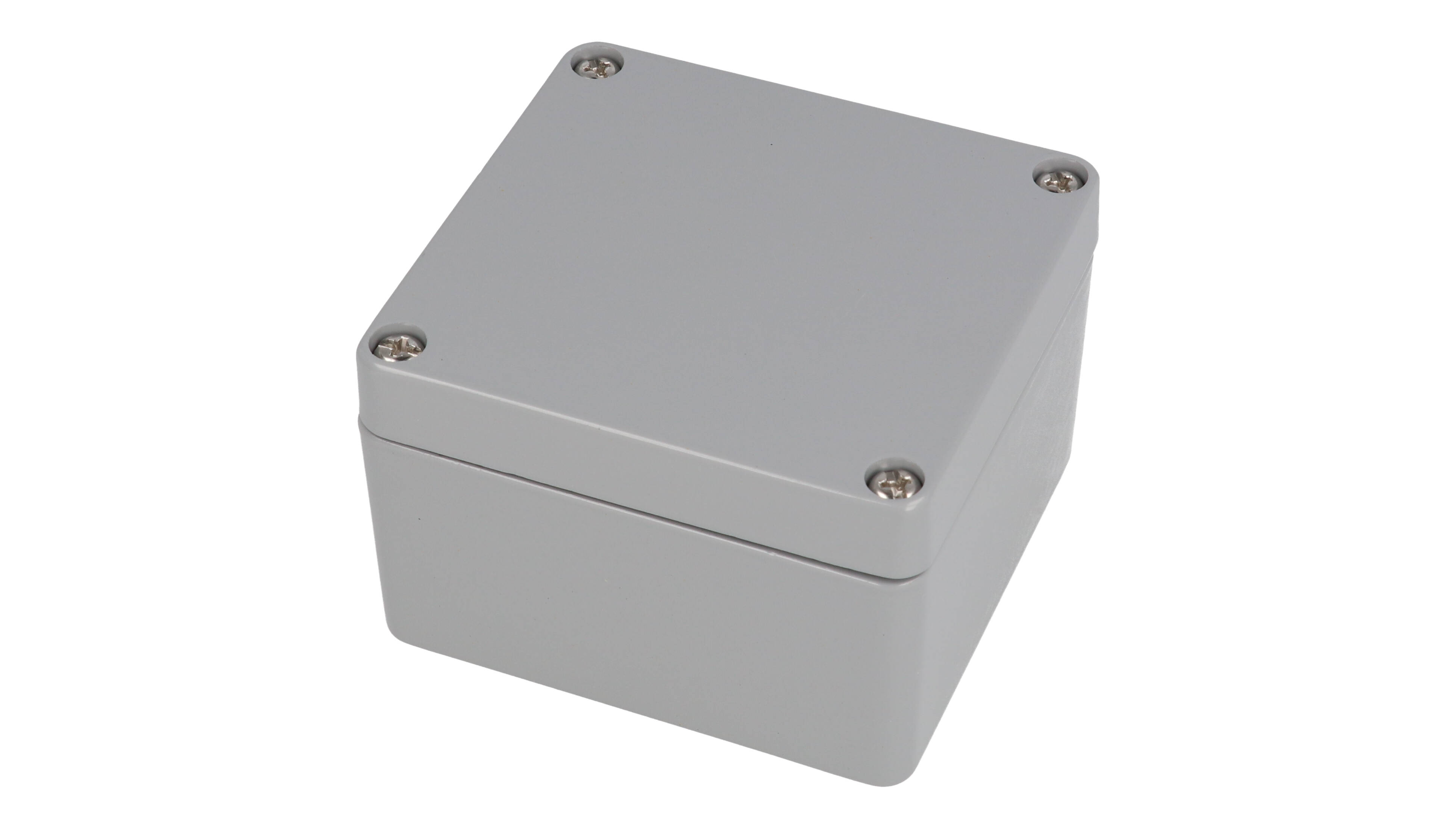

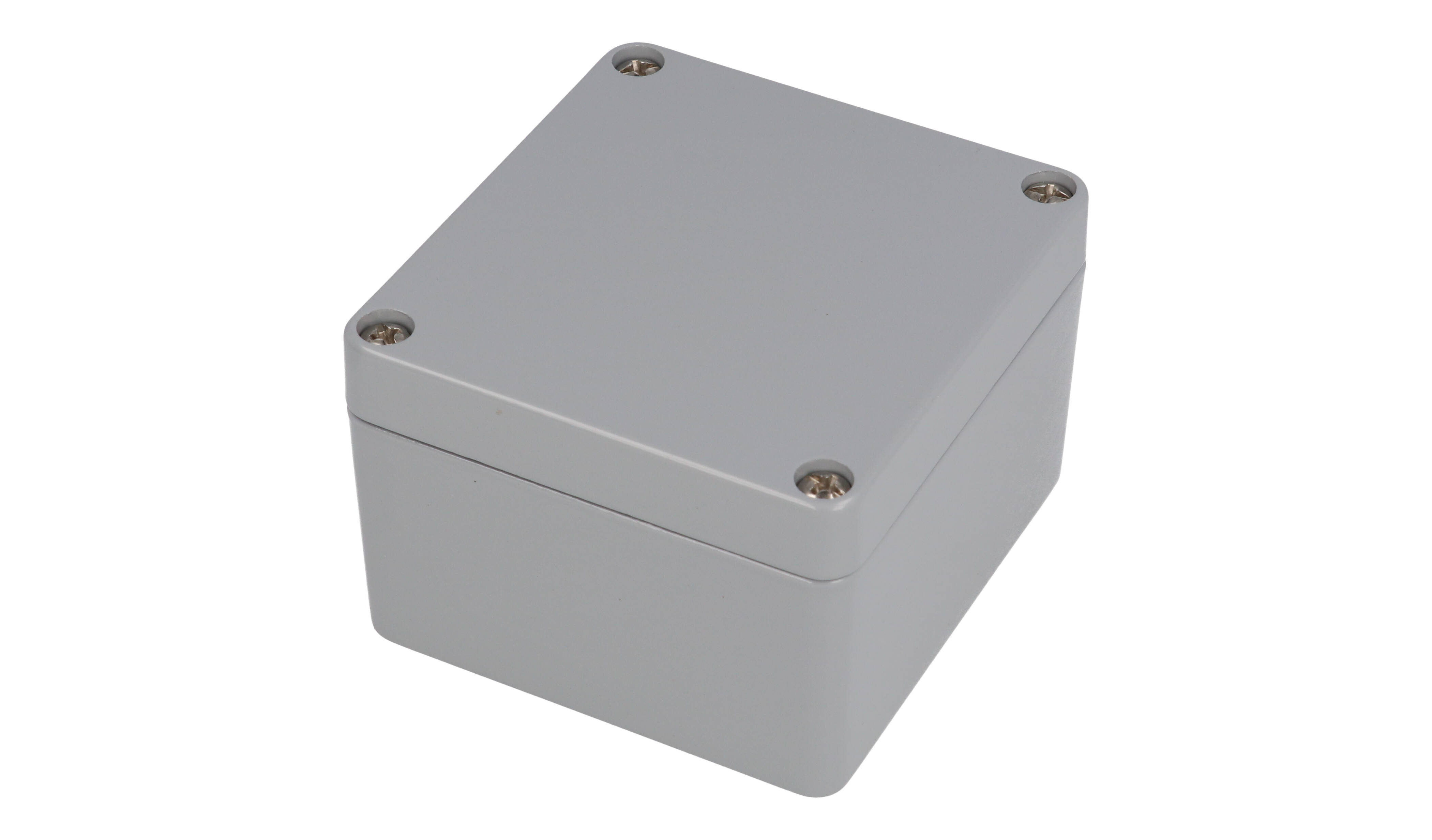

Type 4X/ 6P Diecast Aluminum Enclosures · 1590Z Series

Key Features:

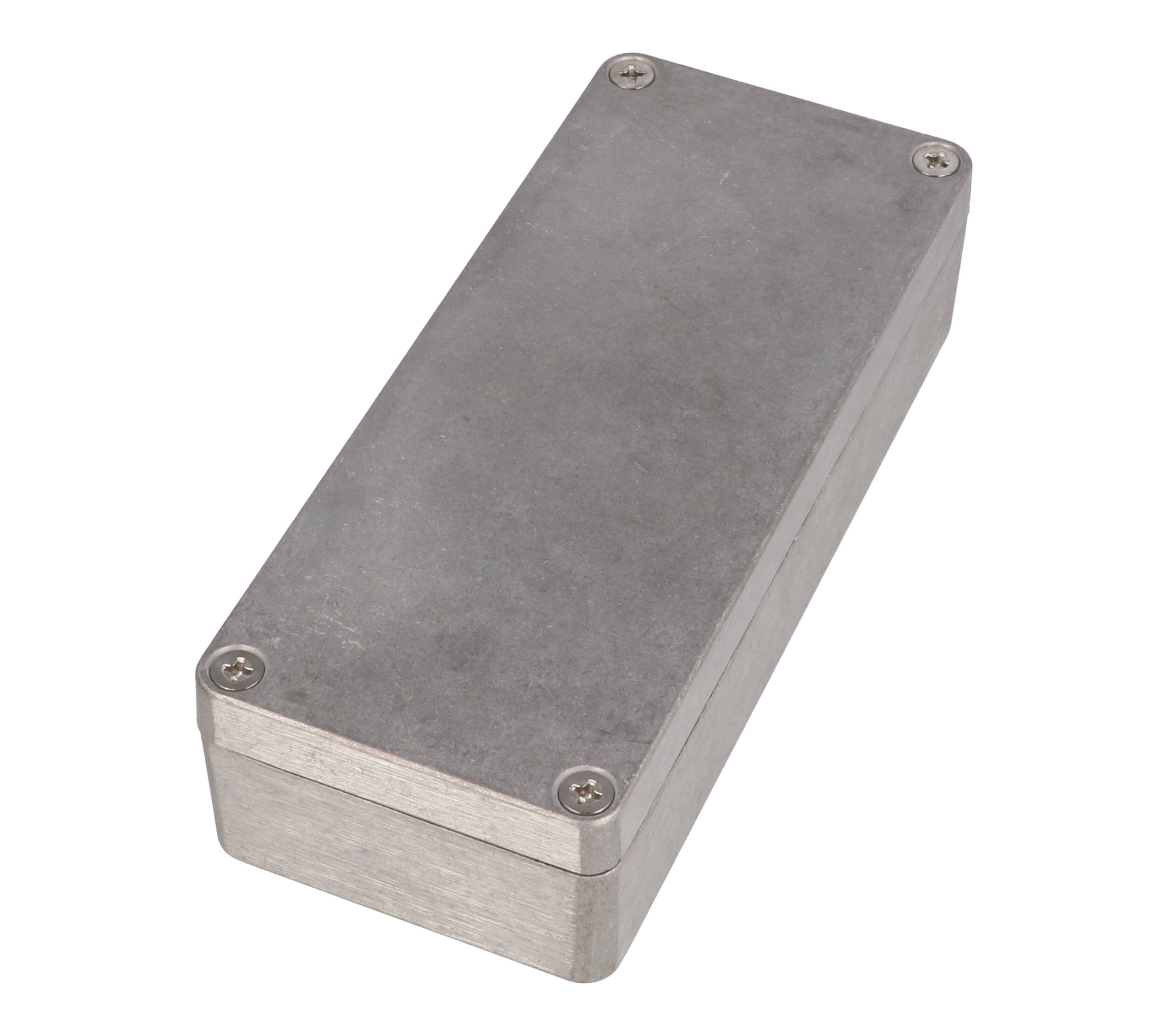

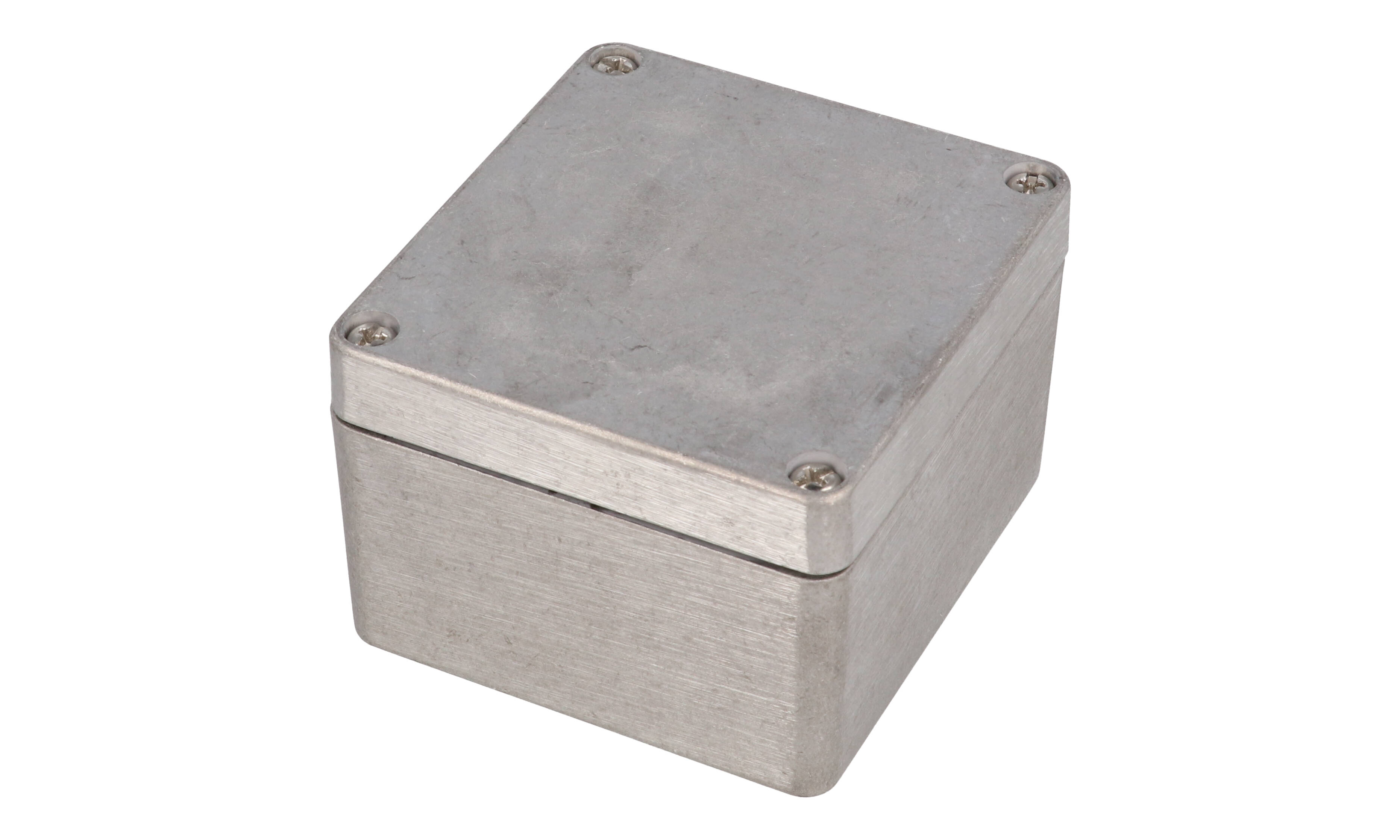

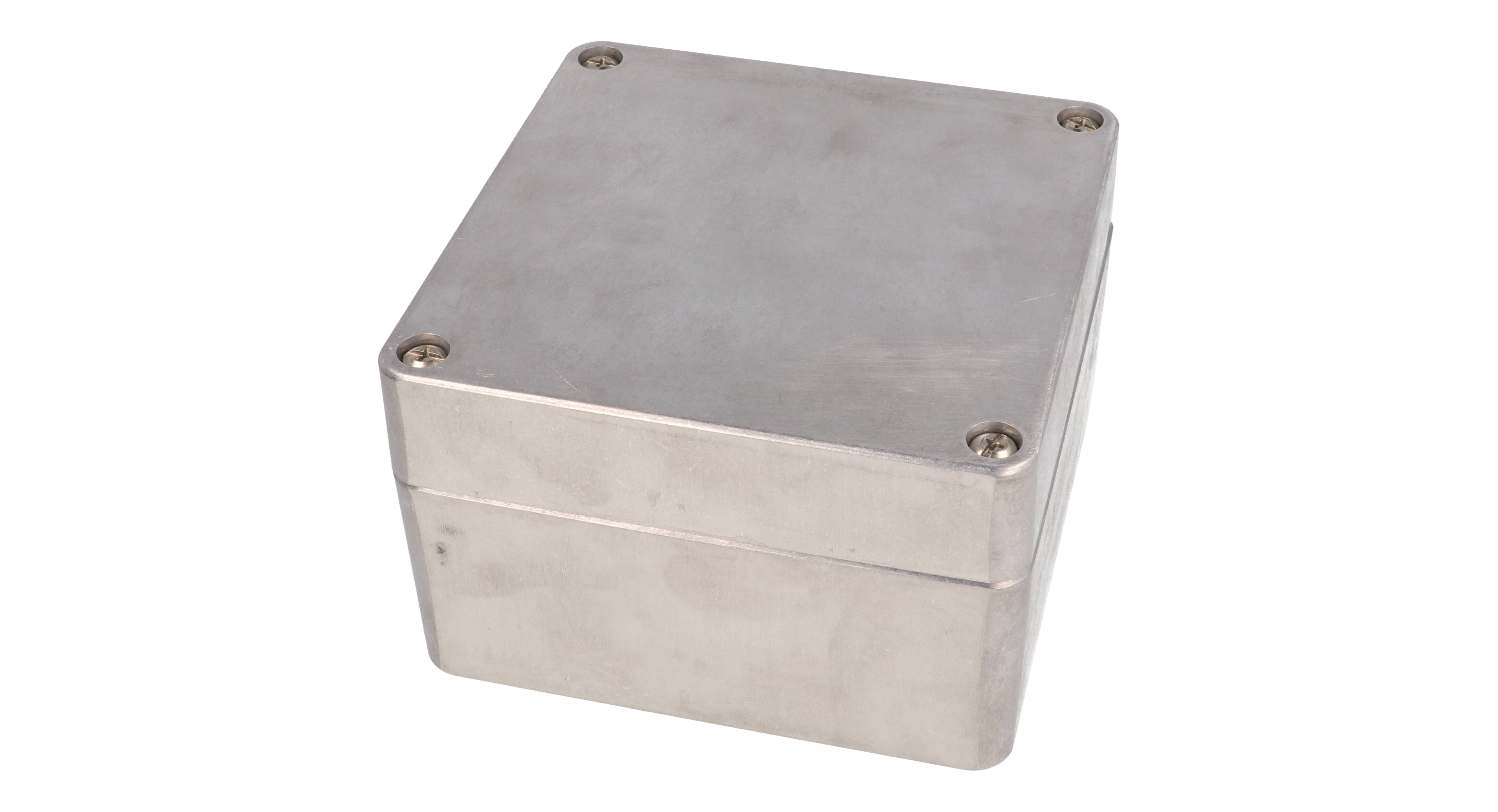

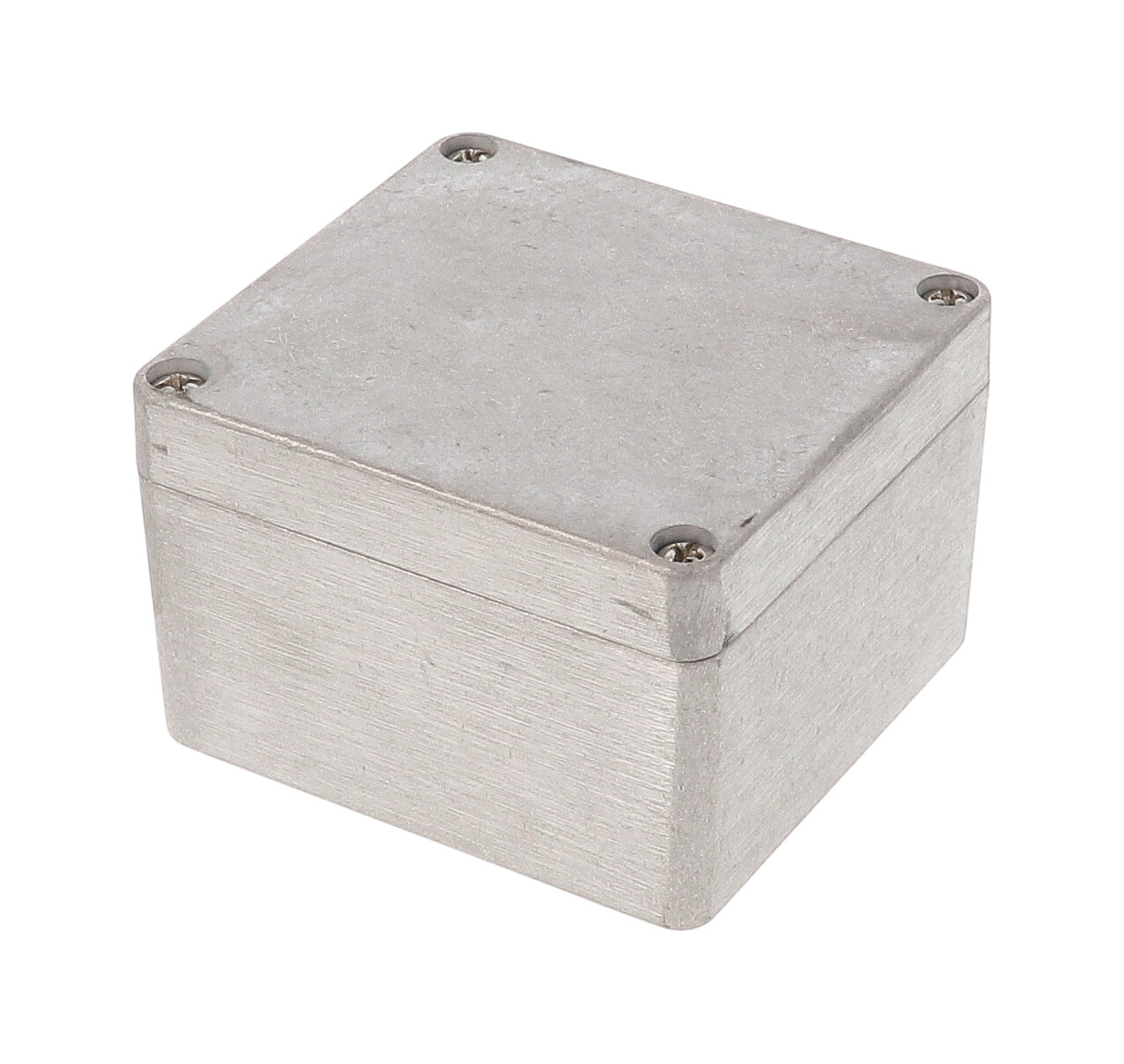

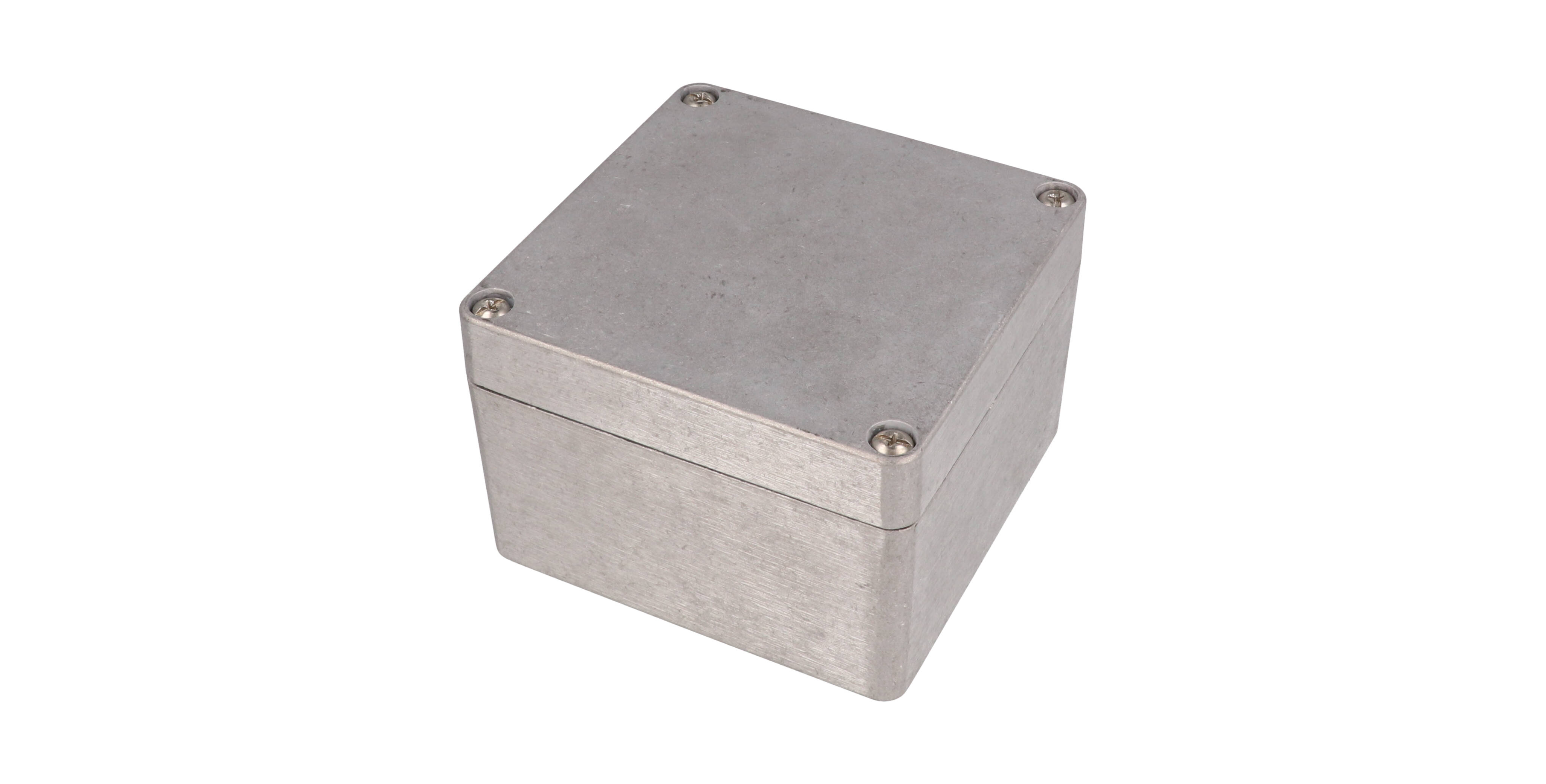

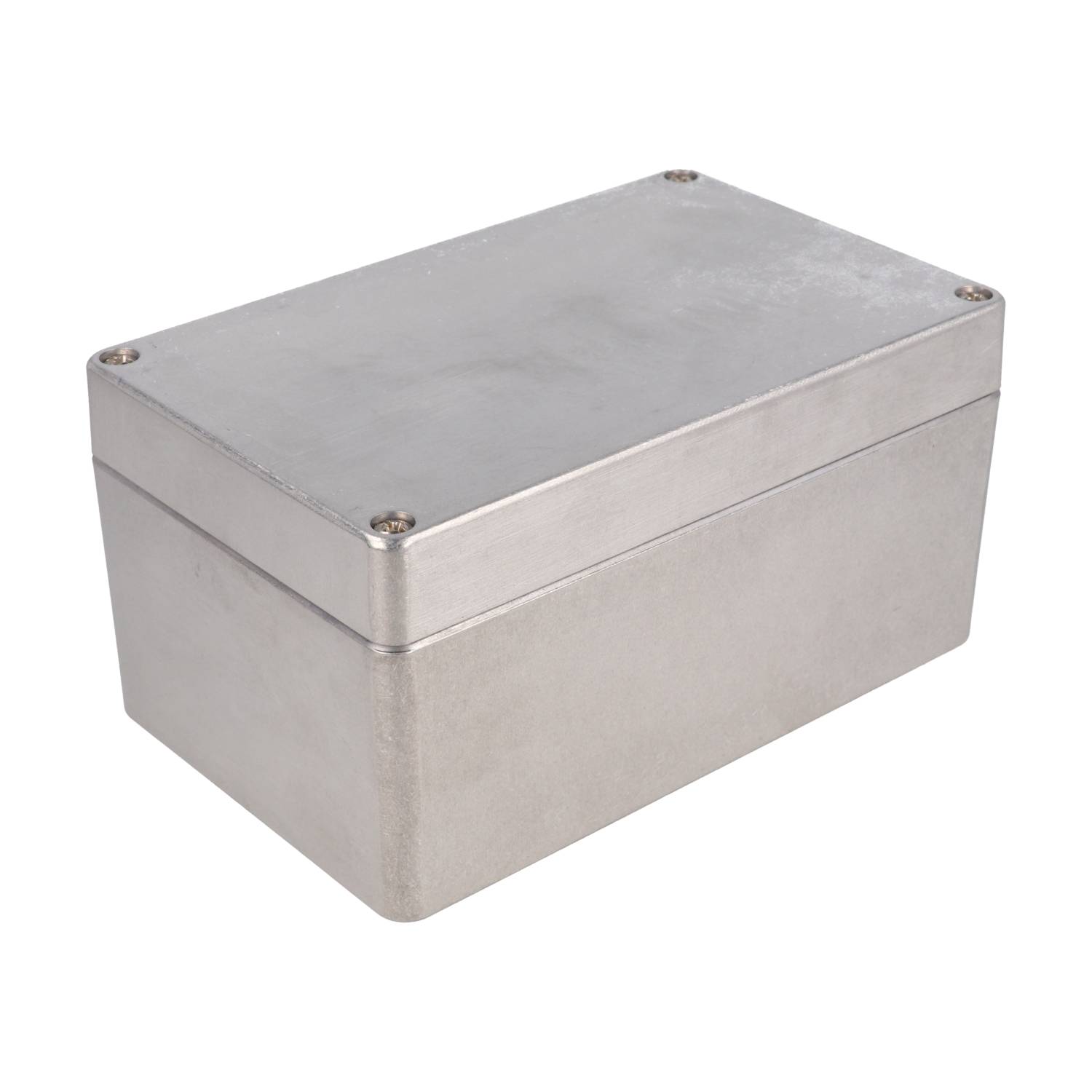

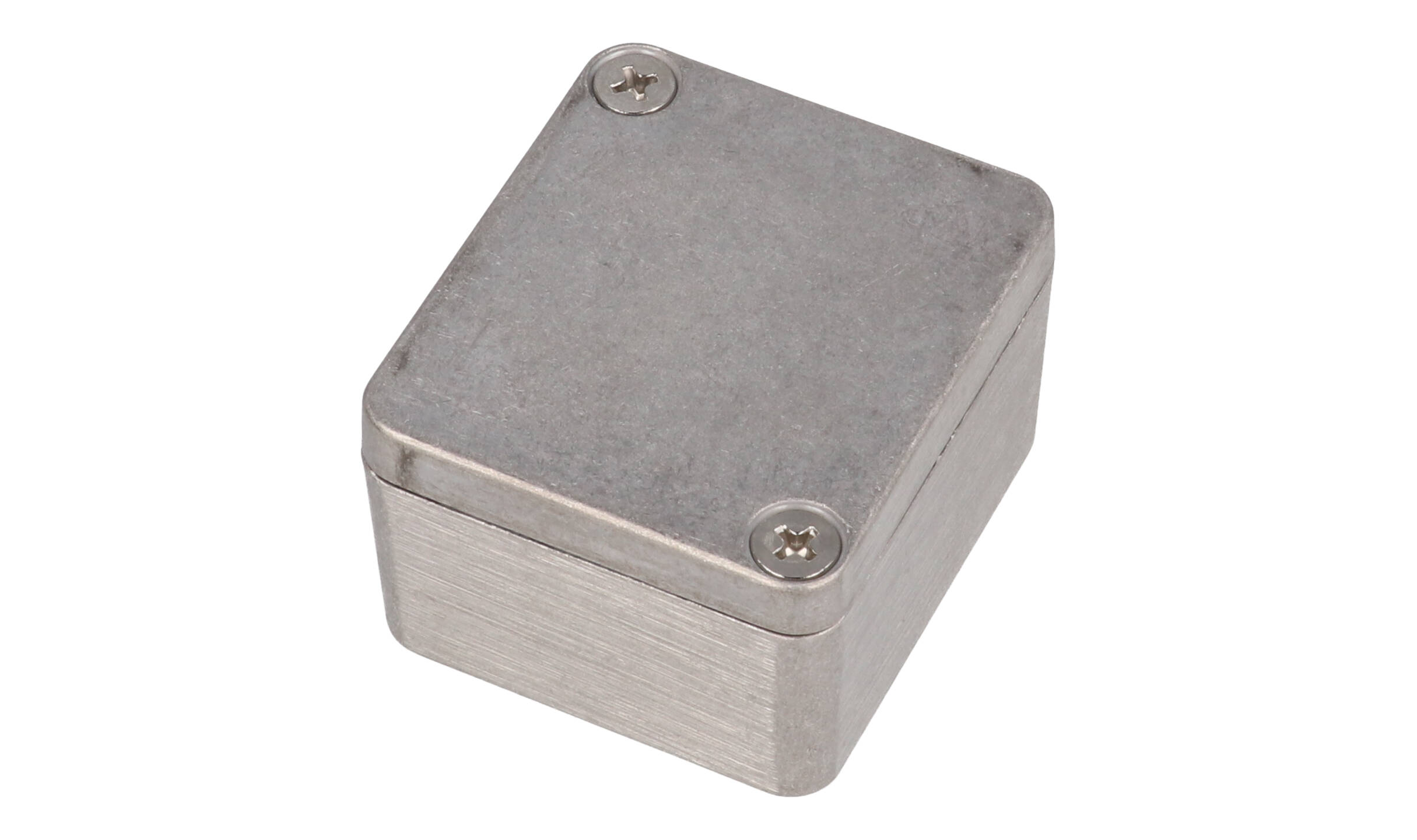

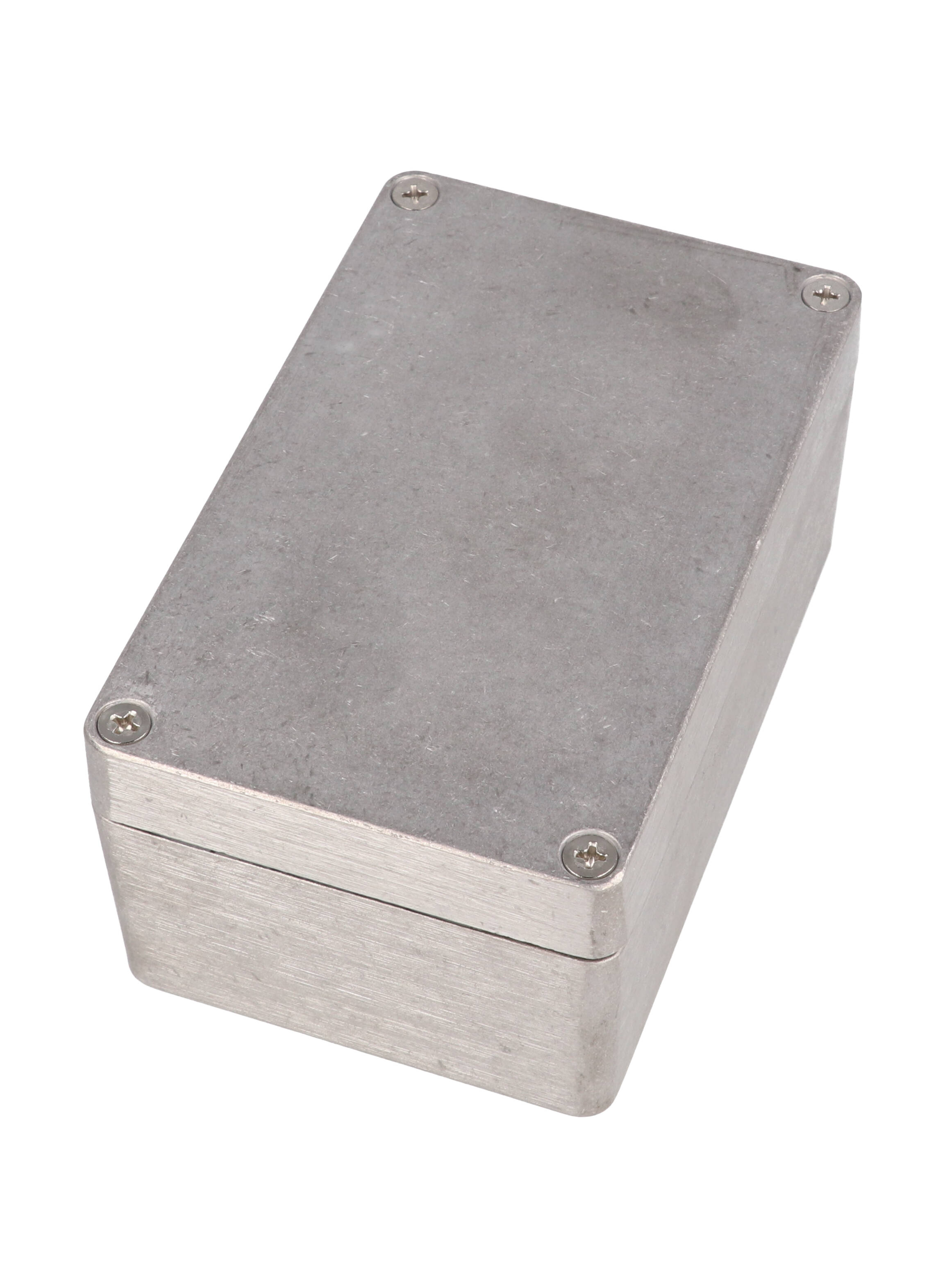

• ■Rugged, diecast aluminum alloy electronic instrument enclosure.

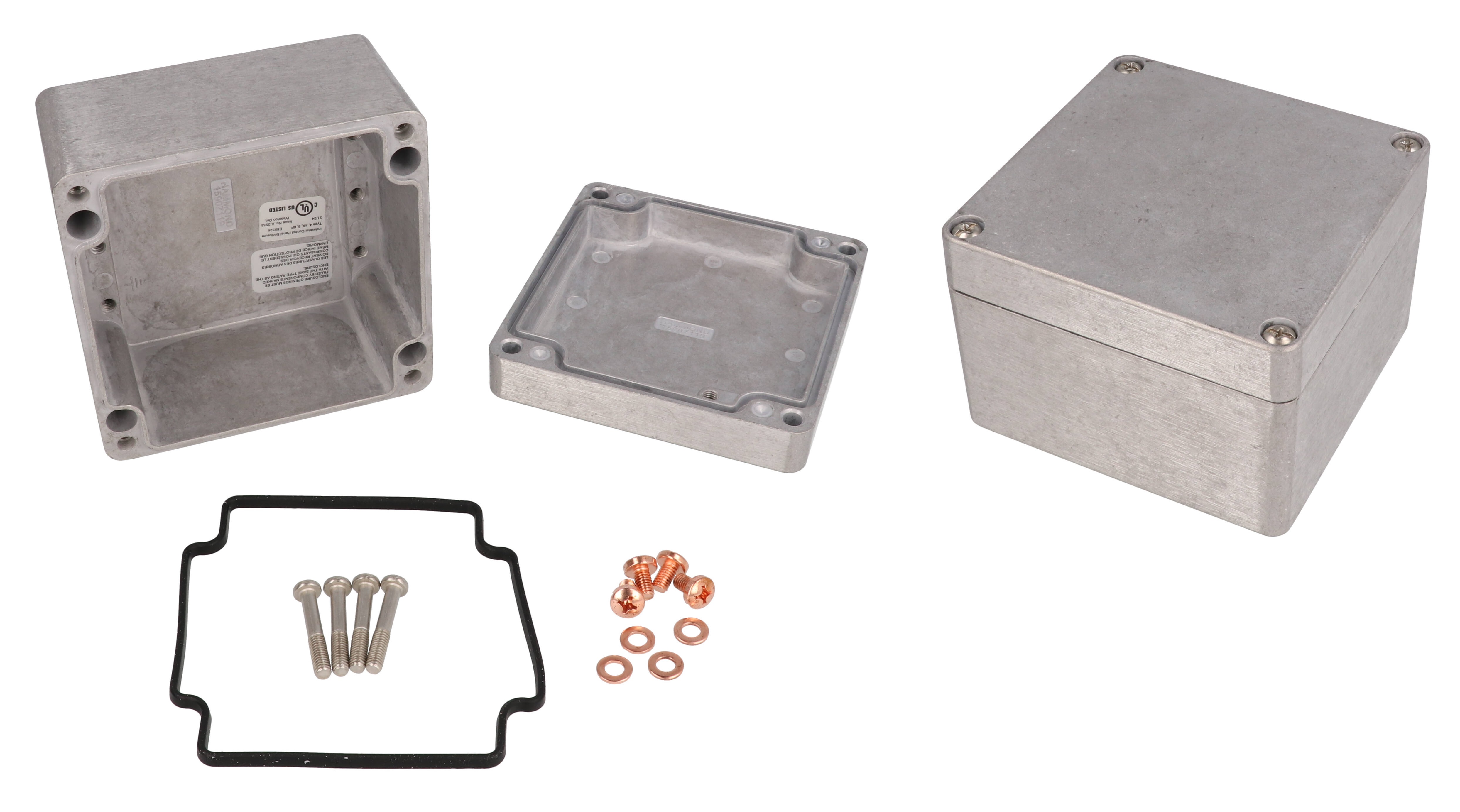

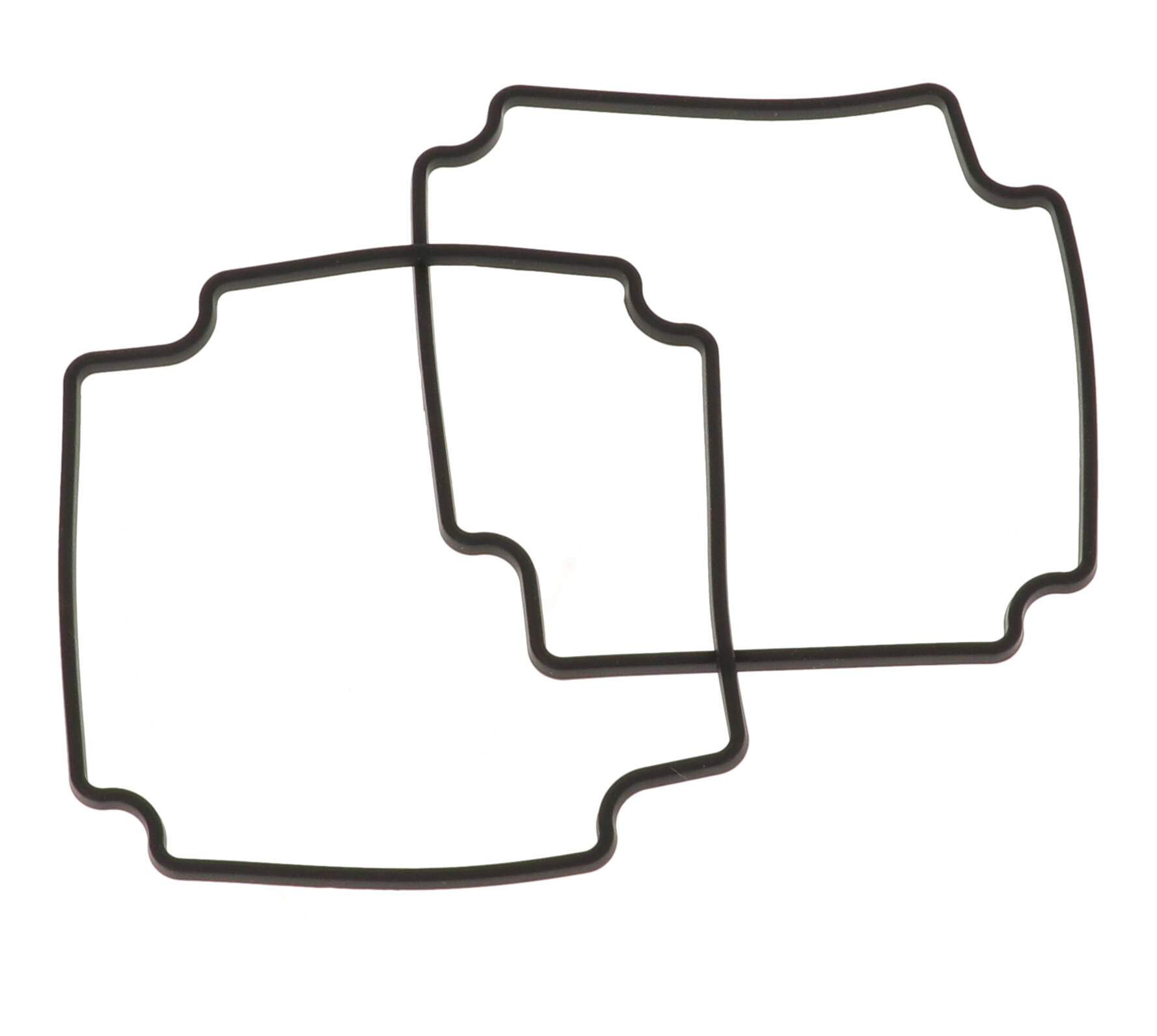

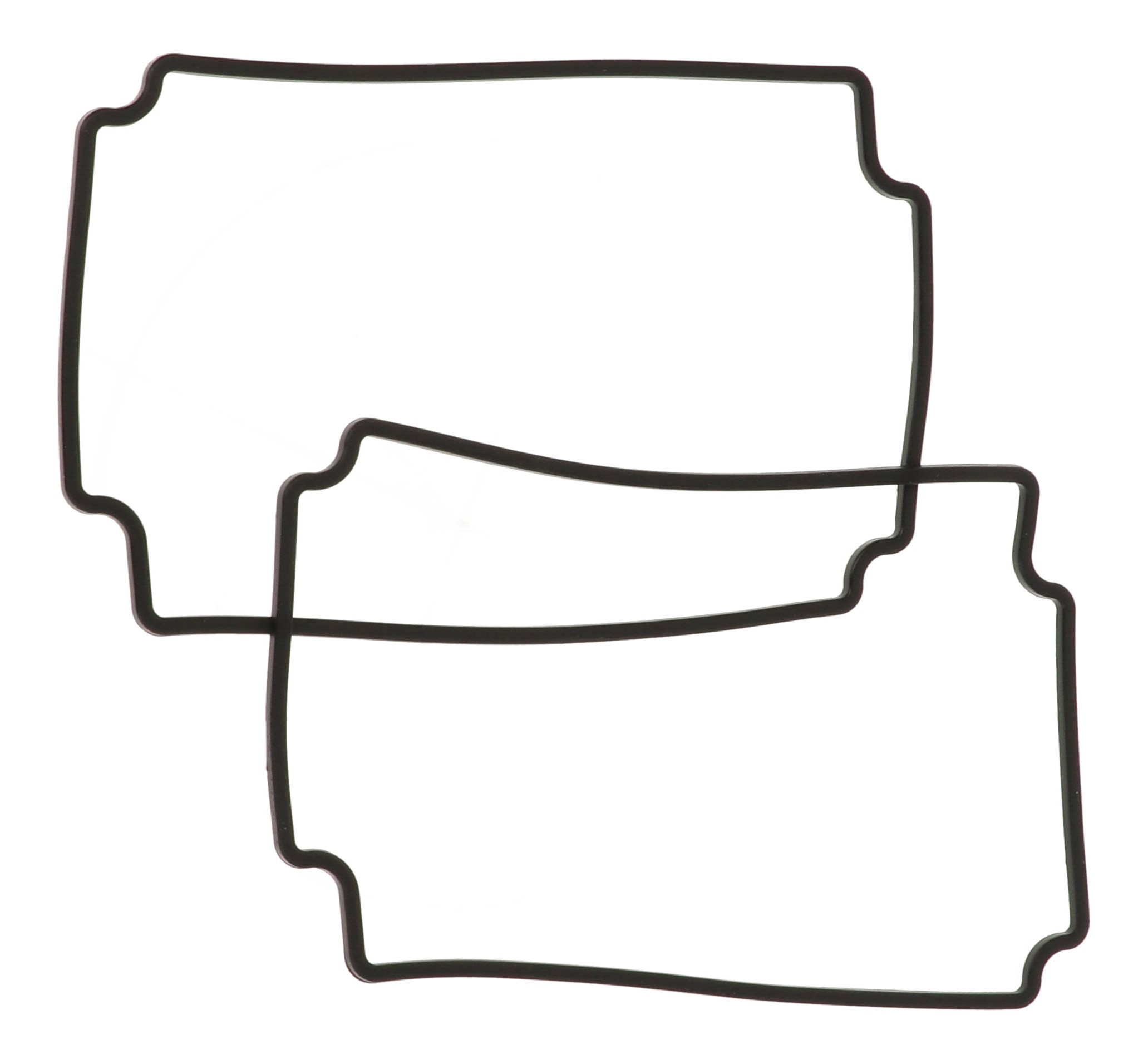

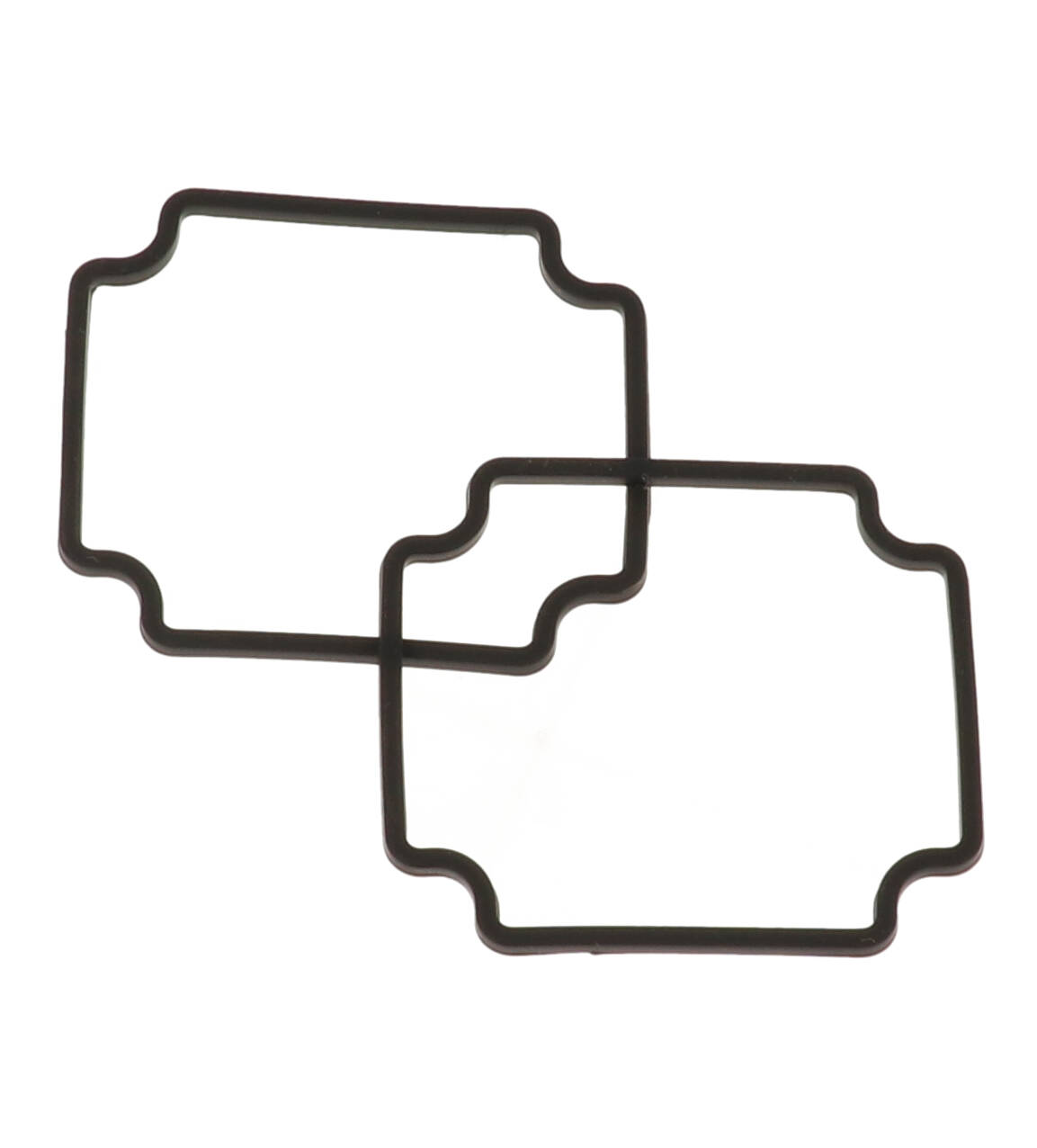

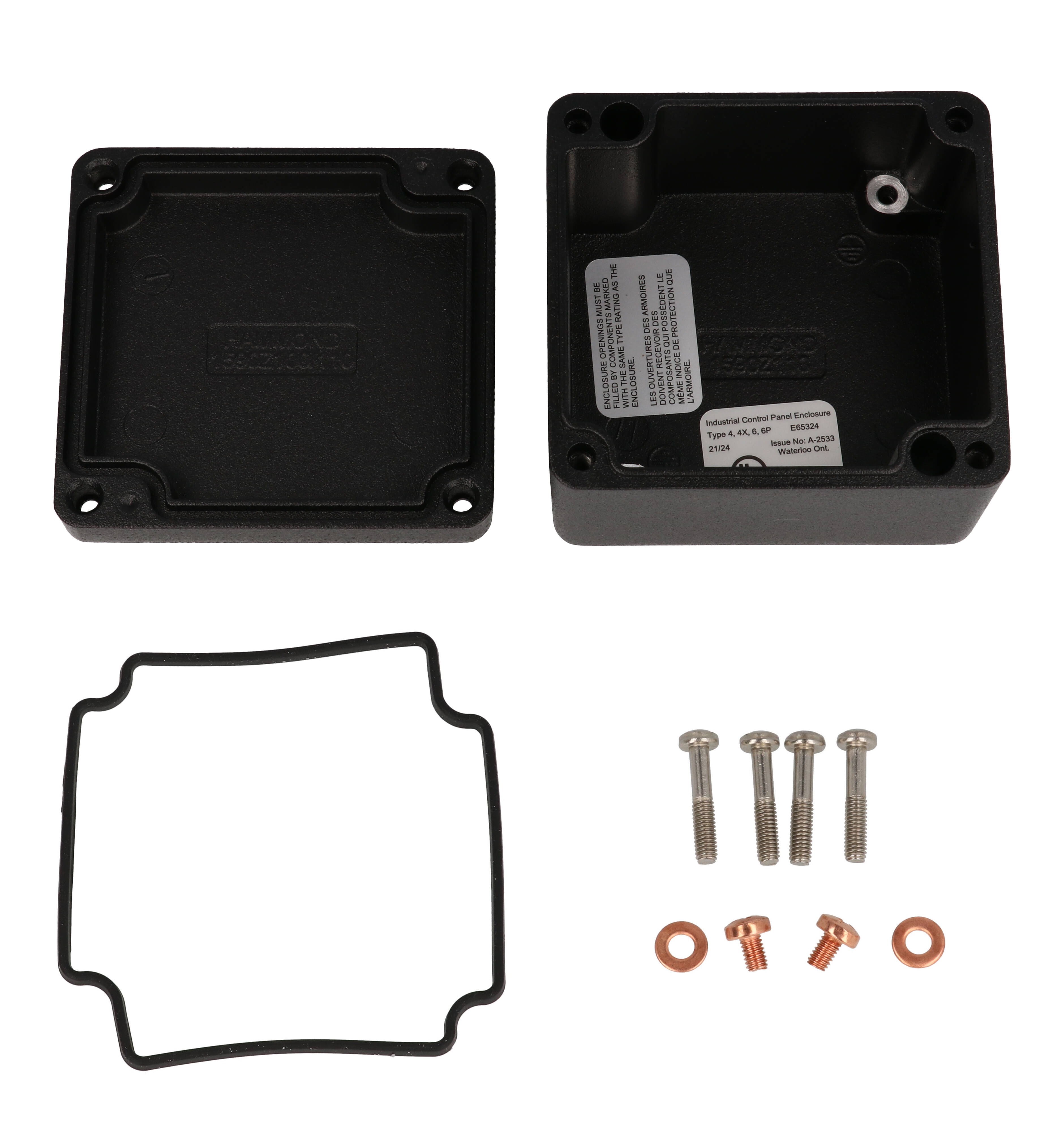

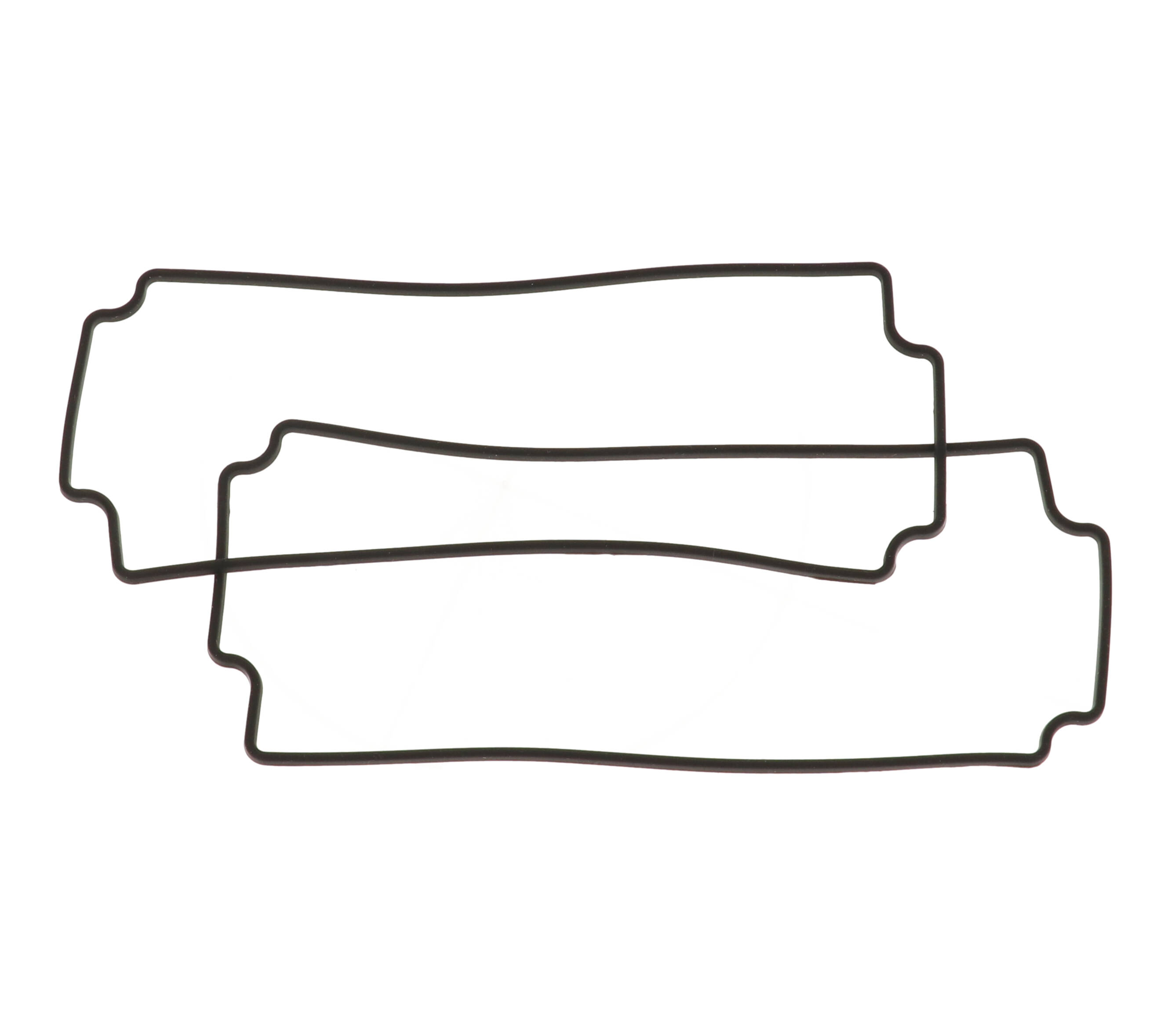

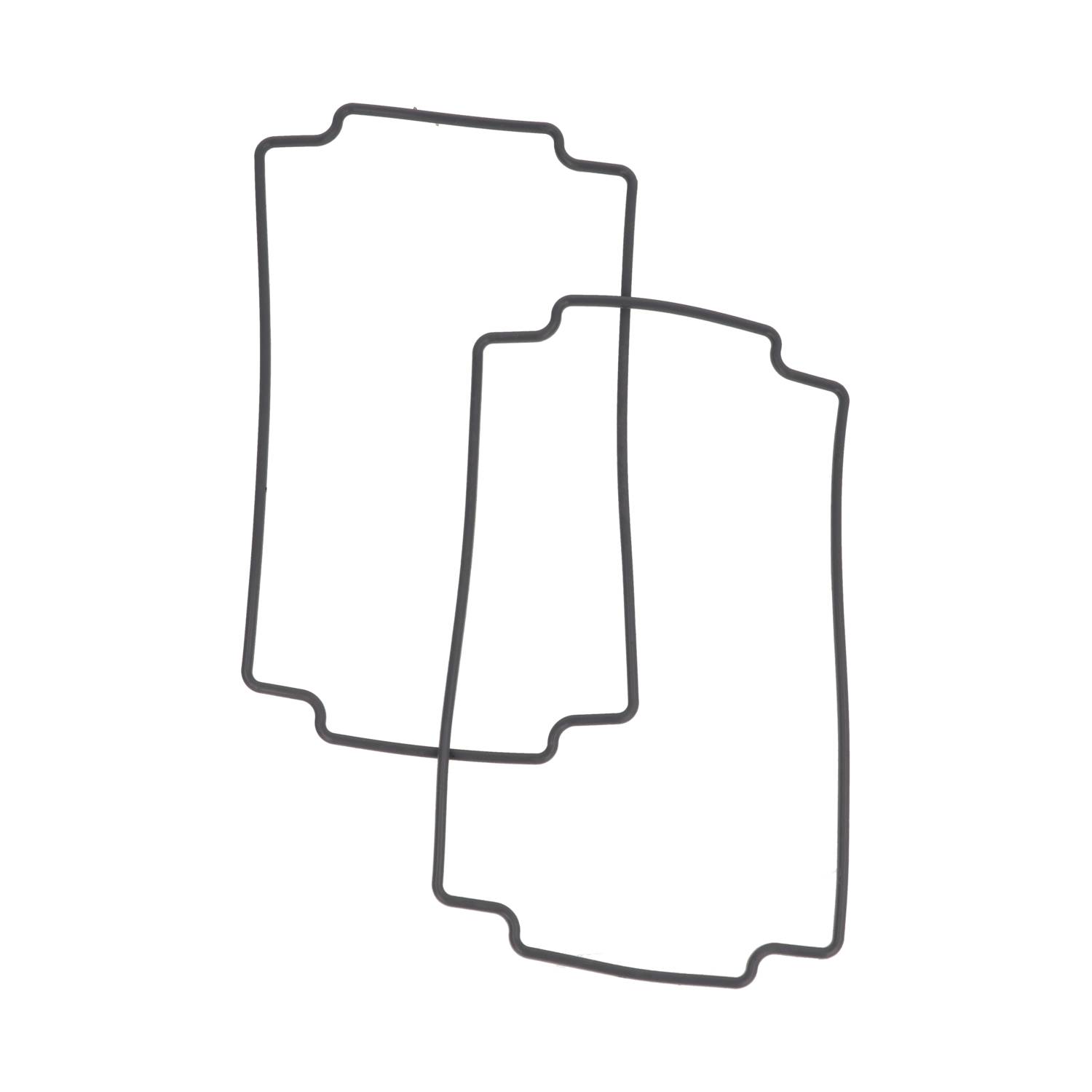

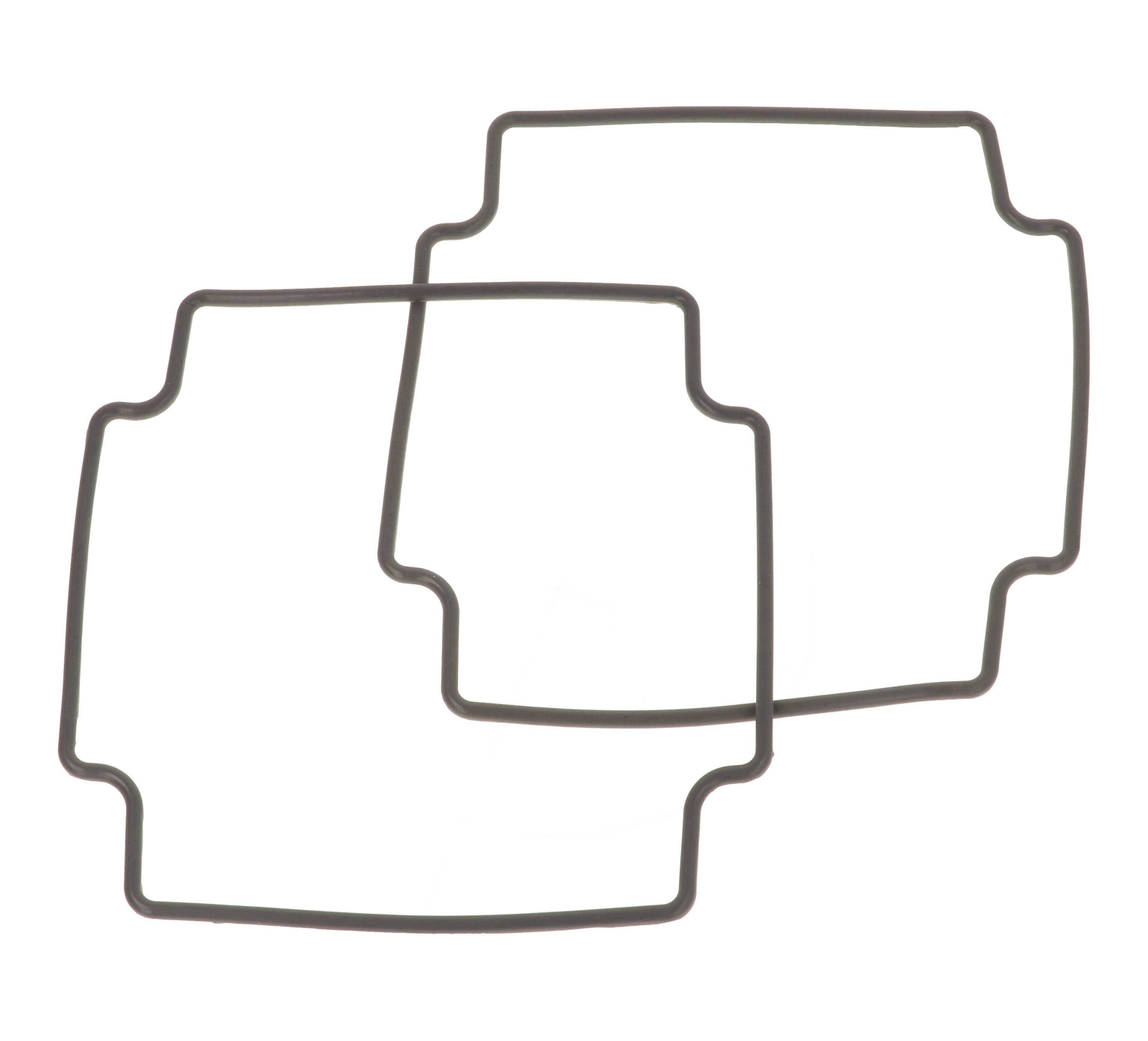

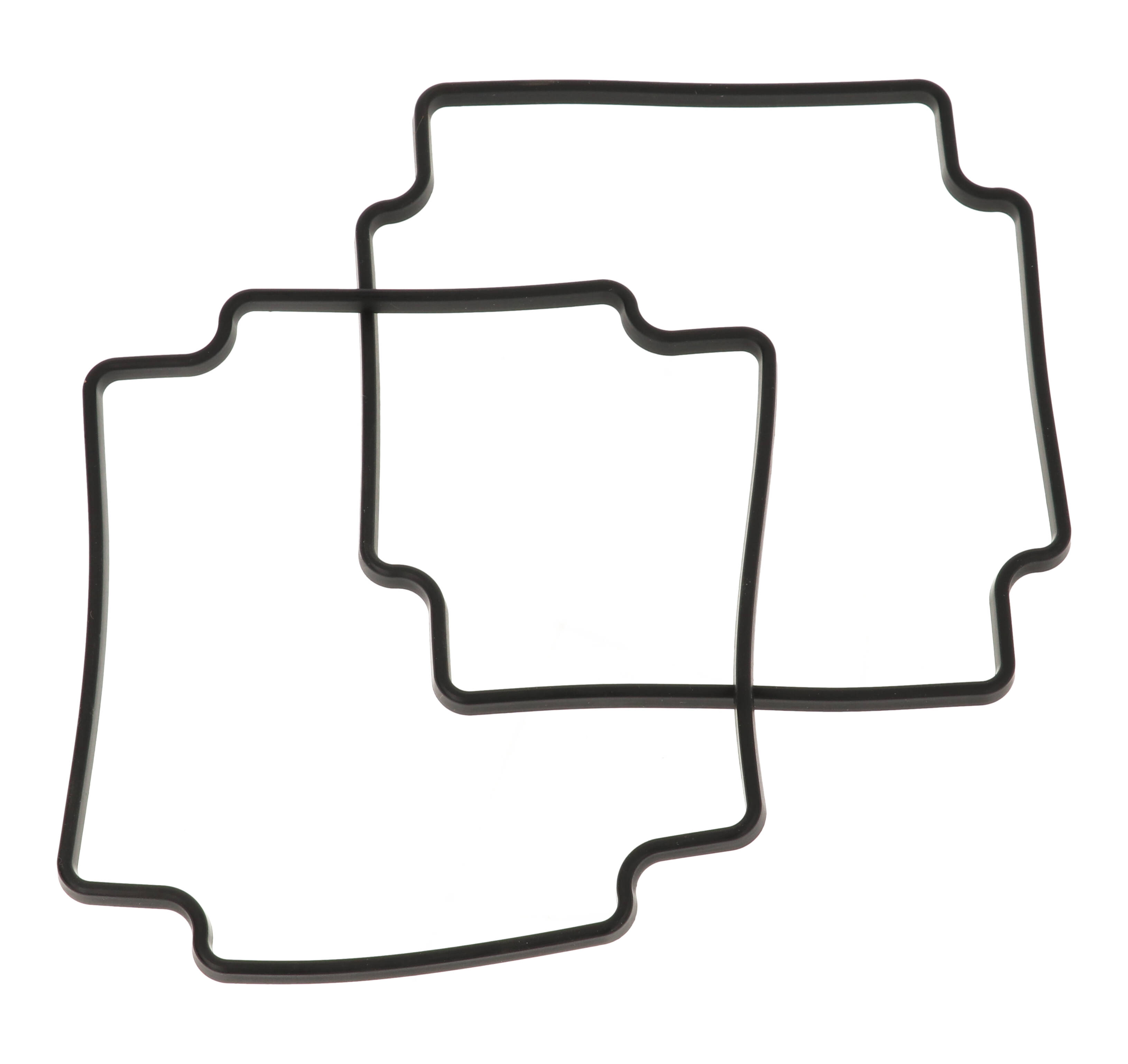

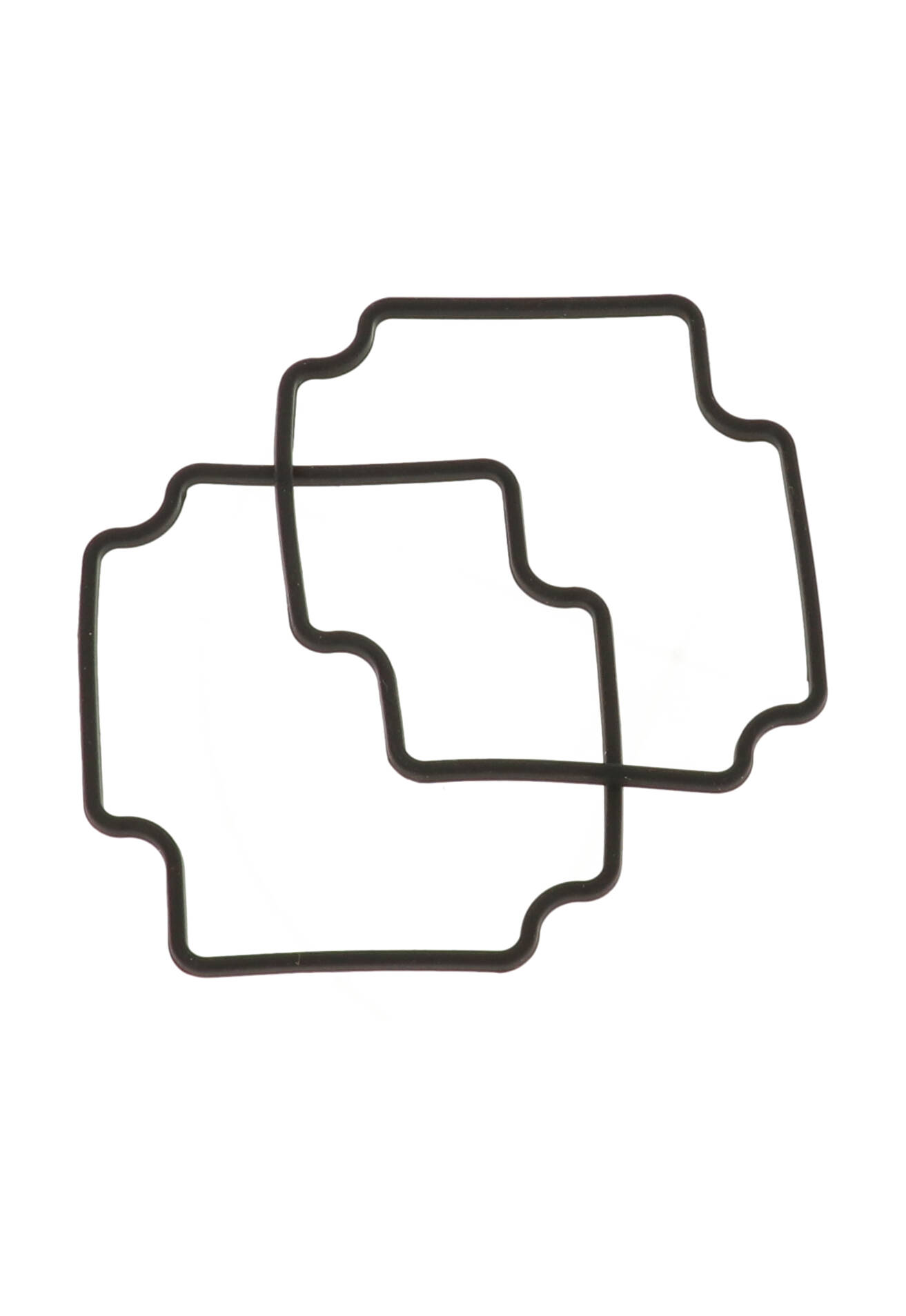

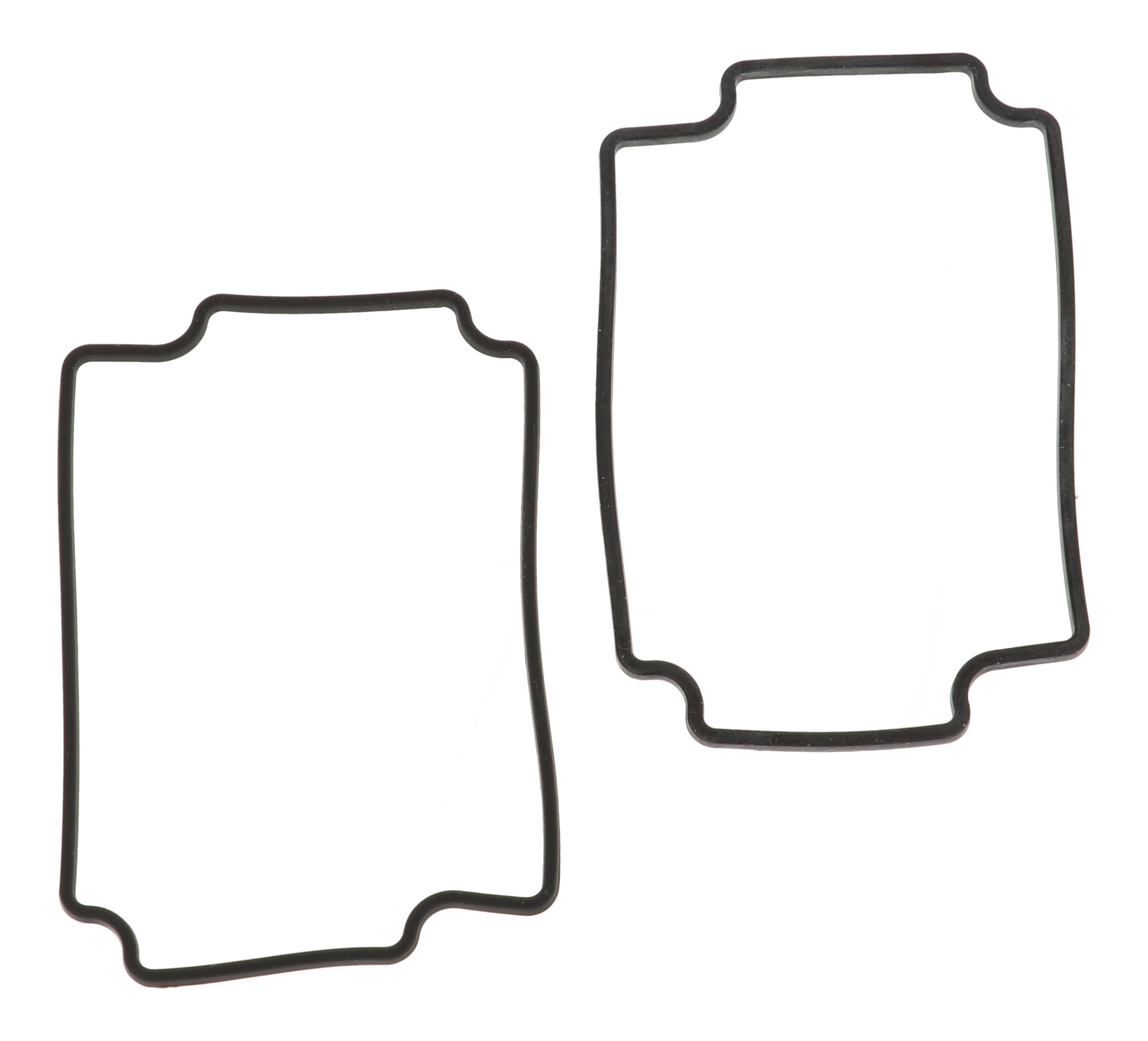

• ■Two piece tongue and groove construction with a replaceable one piece silicone rubber gasket provides protection against ingress of dust and water. Gasket supplied loose inside the enclosure (not pre-installed).
• ■Gasket has a temperature rating of -40C to +150C (-40F to 302F).
• ■Ideal for repetitive opening and closing.
• ■Four recessed stainless steel machine screws secure lid into tapped holes.
• ■Easy to wall mount using blind through hole construction, located outside of gasket protection.

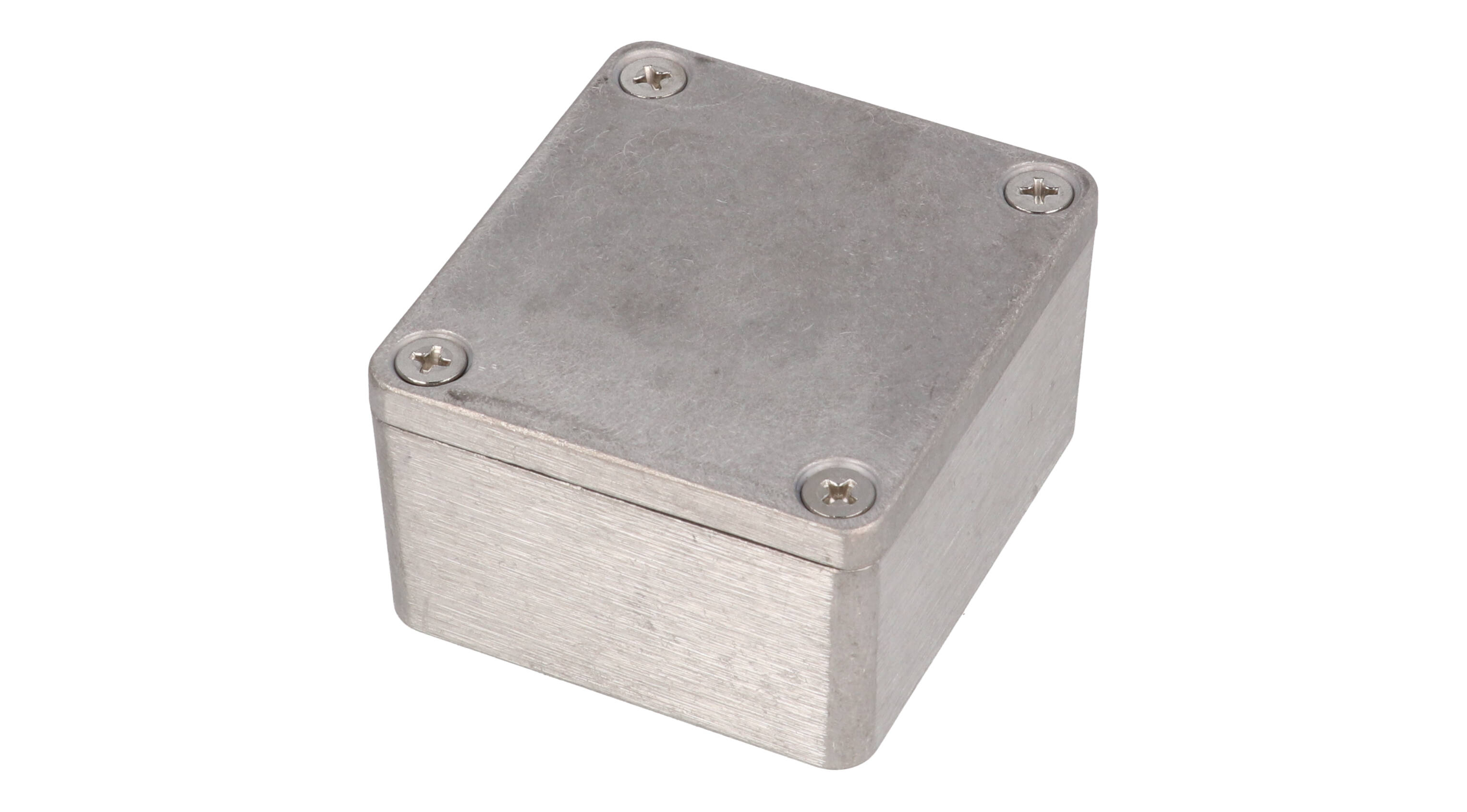

• ■Lid screws are self-captivating and create threads on first installation, excluding 1590Z060 , 1590Z061 , 1590Z062 , and 1590Z063 models.
• ■cUL and UL listed.
• ■Independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings. Customers should conduct their own testing to determine suitability for any specific application.
• ■Customers should conduct their own testing to determine suitability for any specific application.

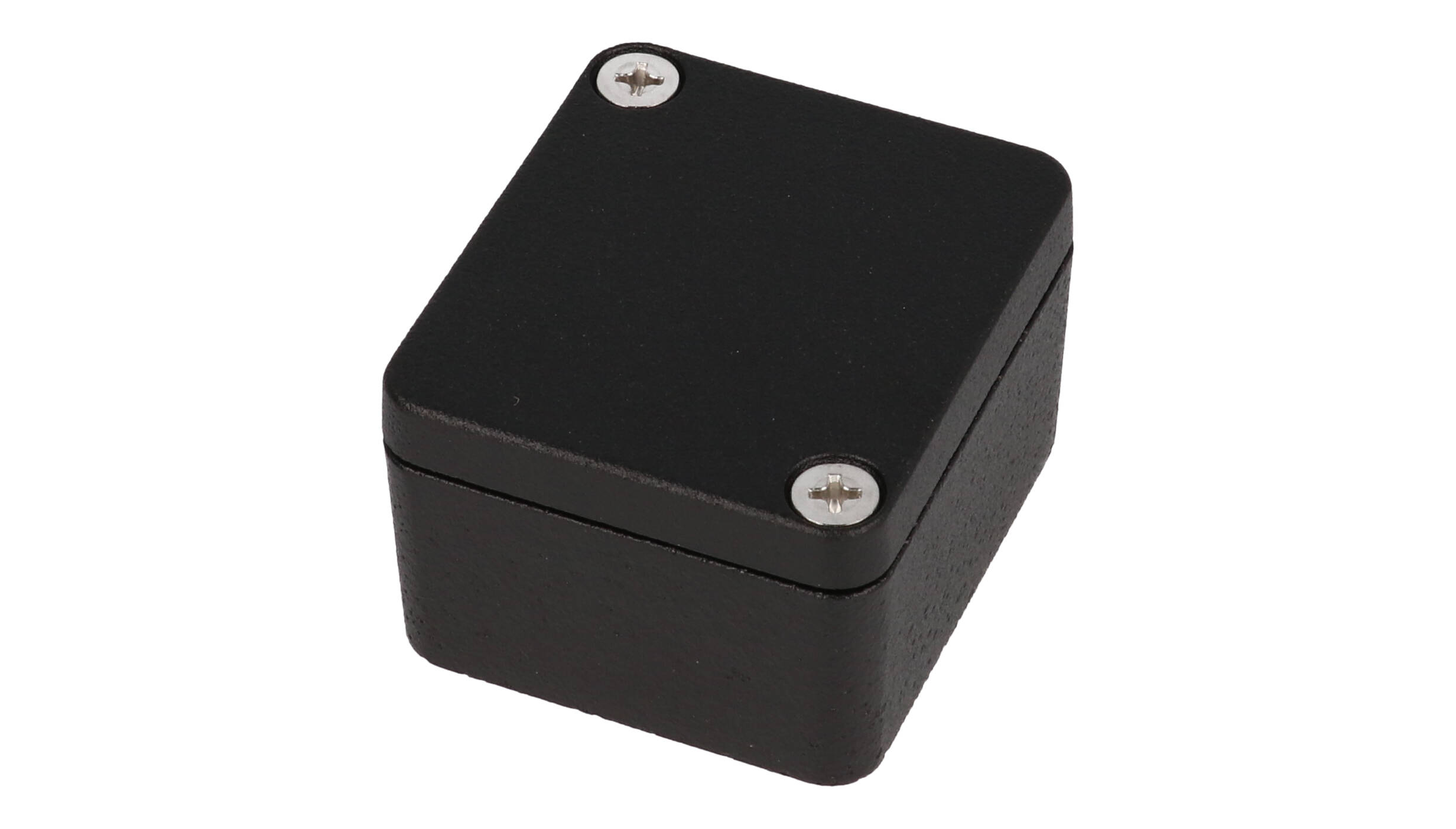

• ■All sizes except 1590Z060** carry an impact rating of IK08 per IEC62262.

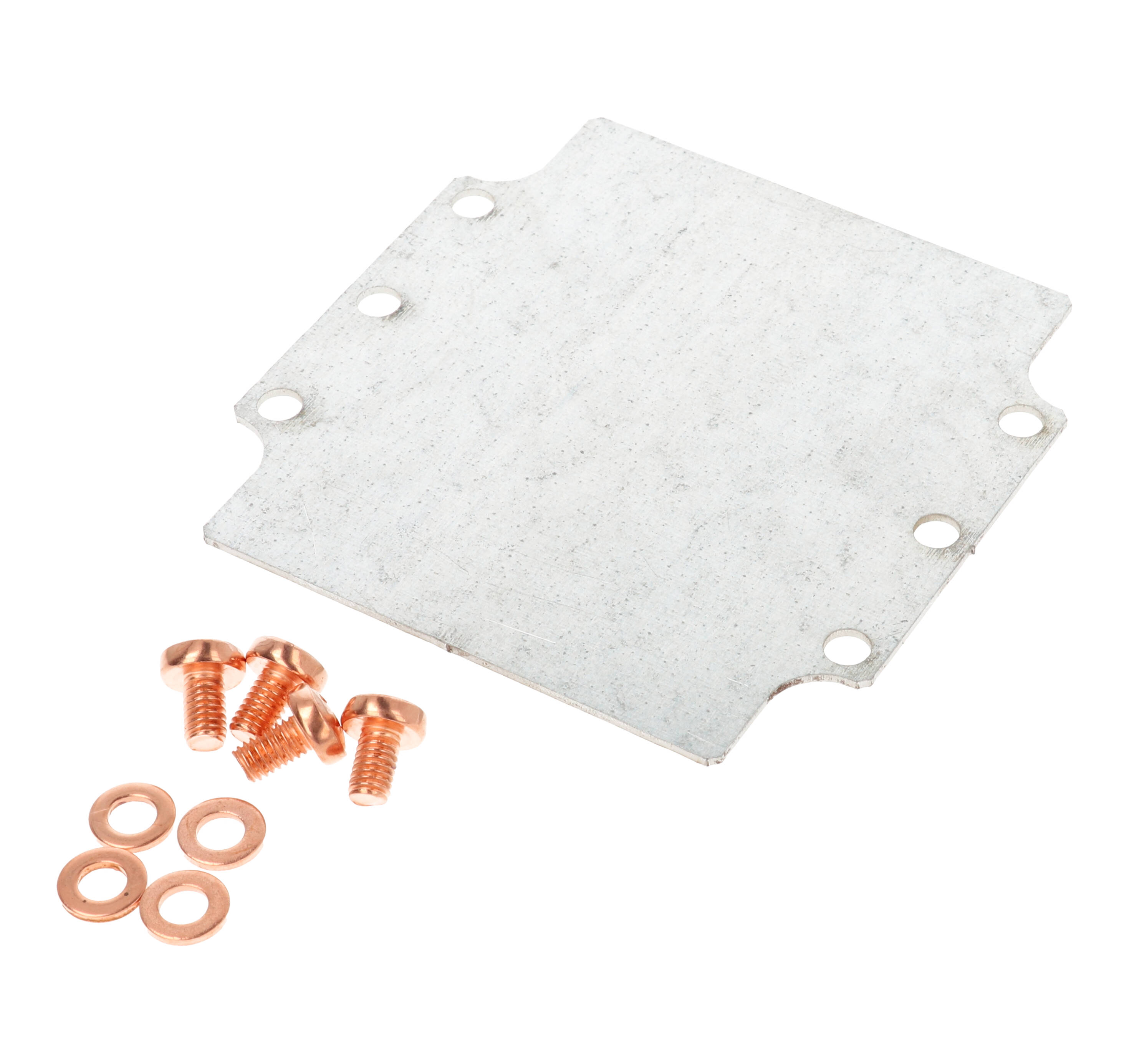

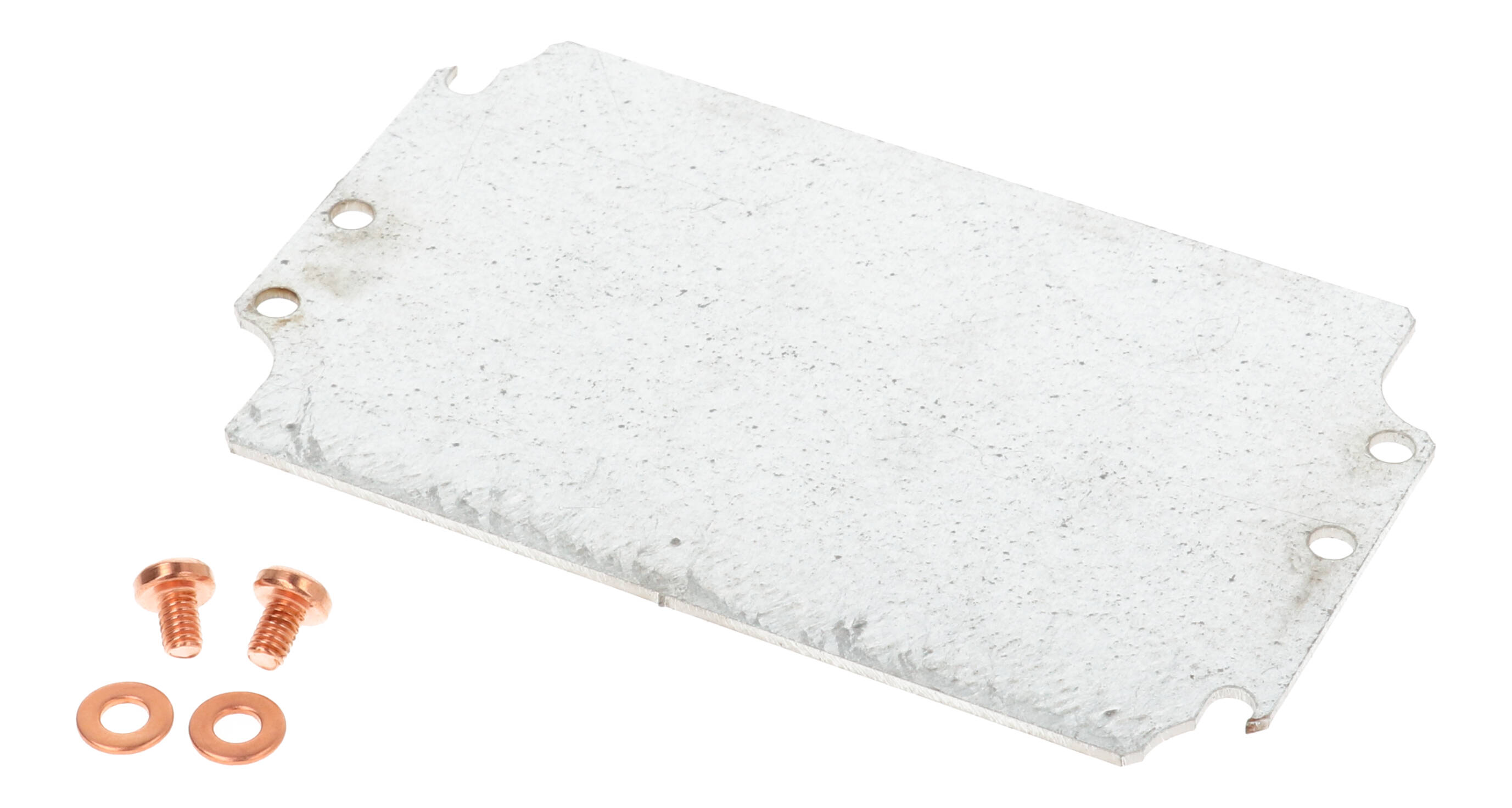

• ■16 gauge galvanized steel inner panels are optional and available for most sizes.

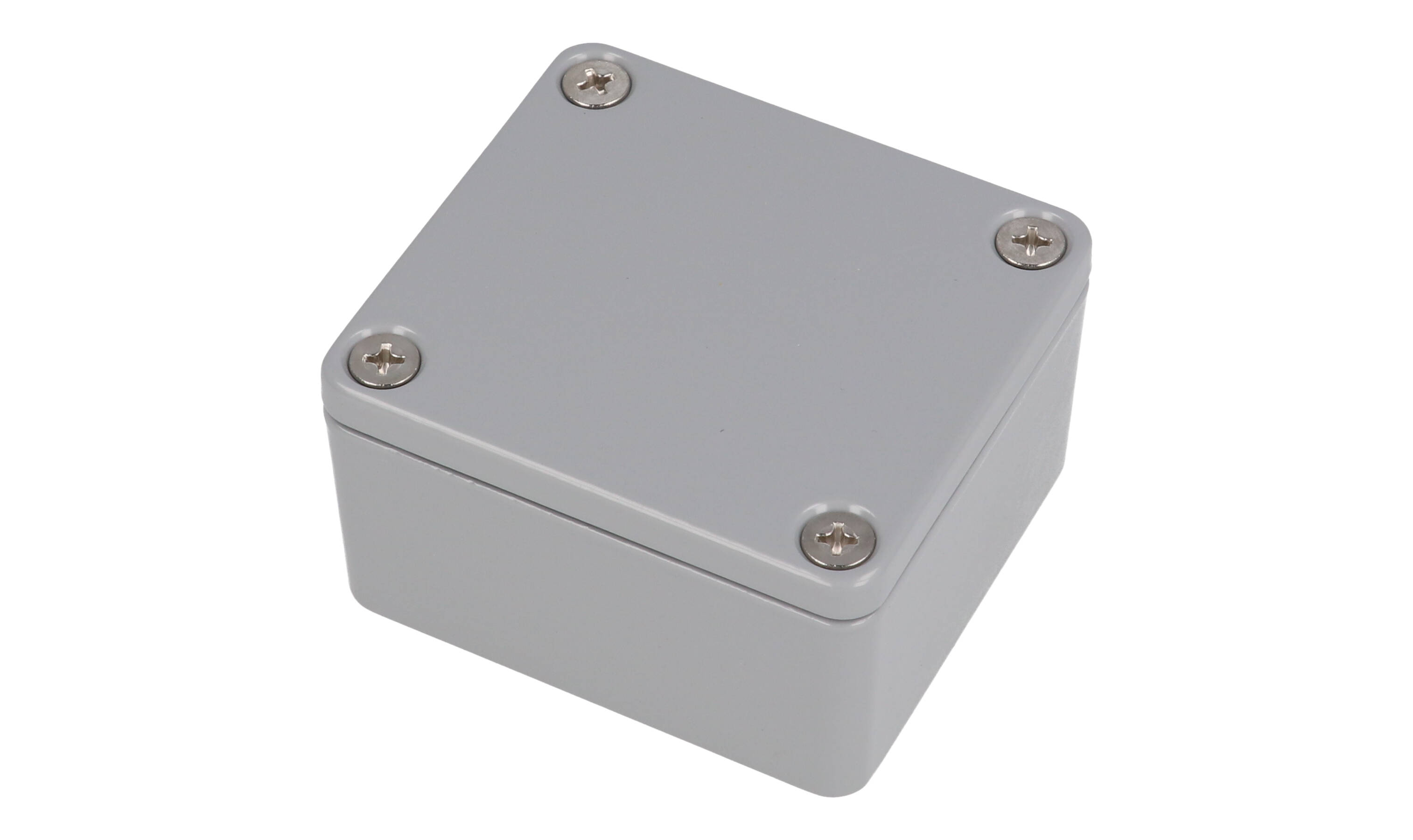

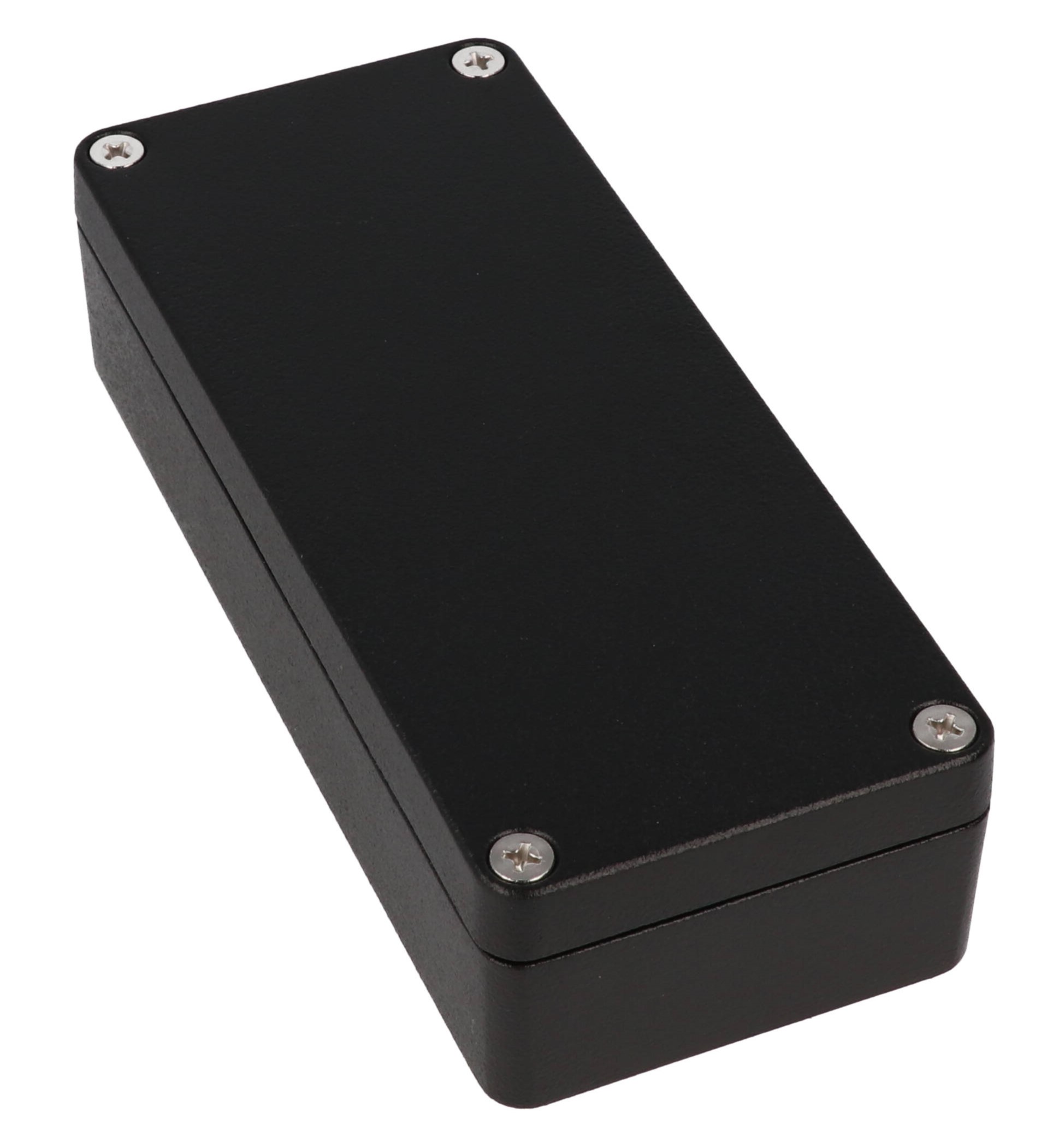

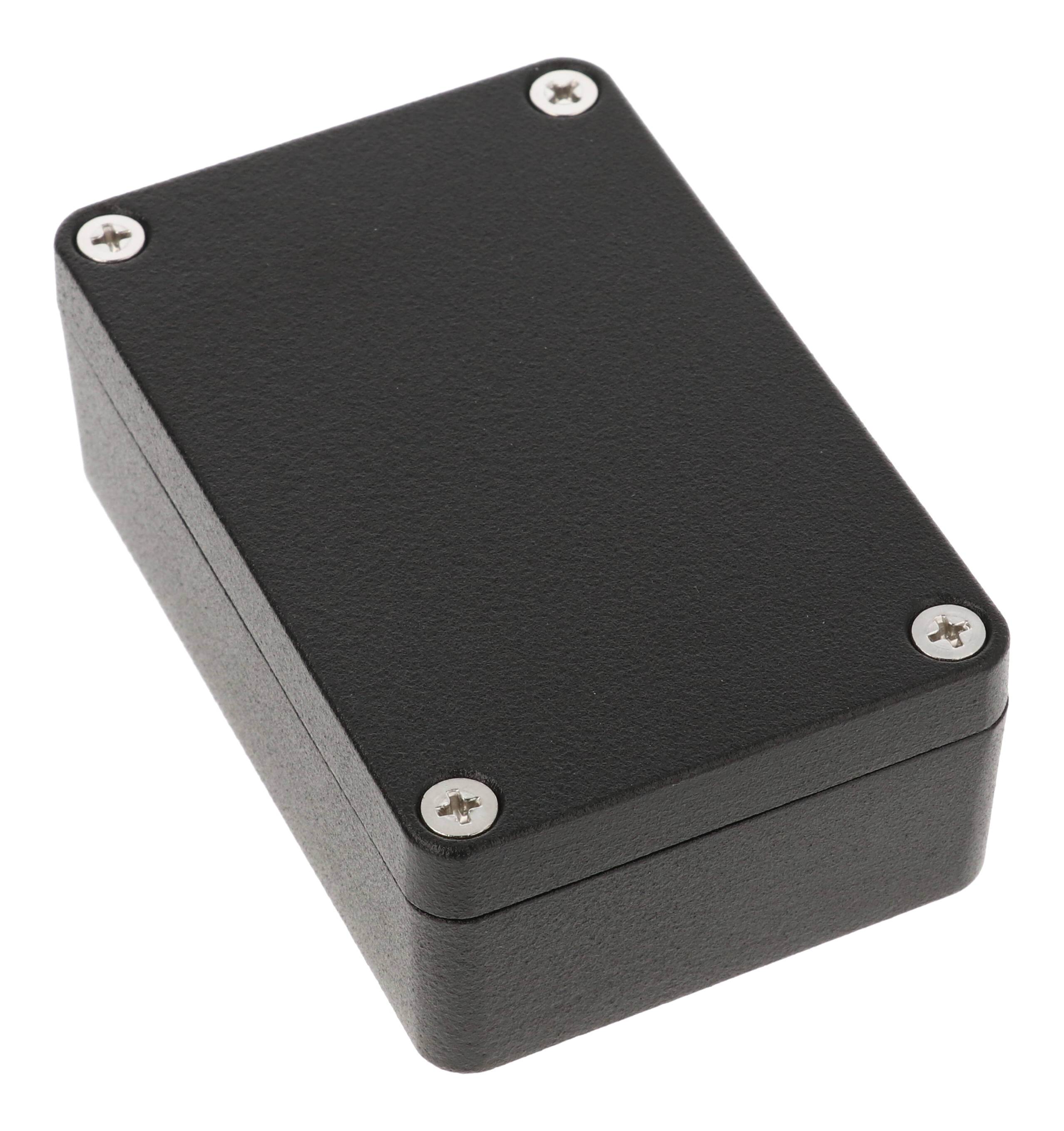

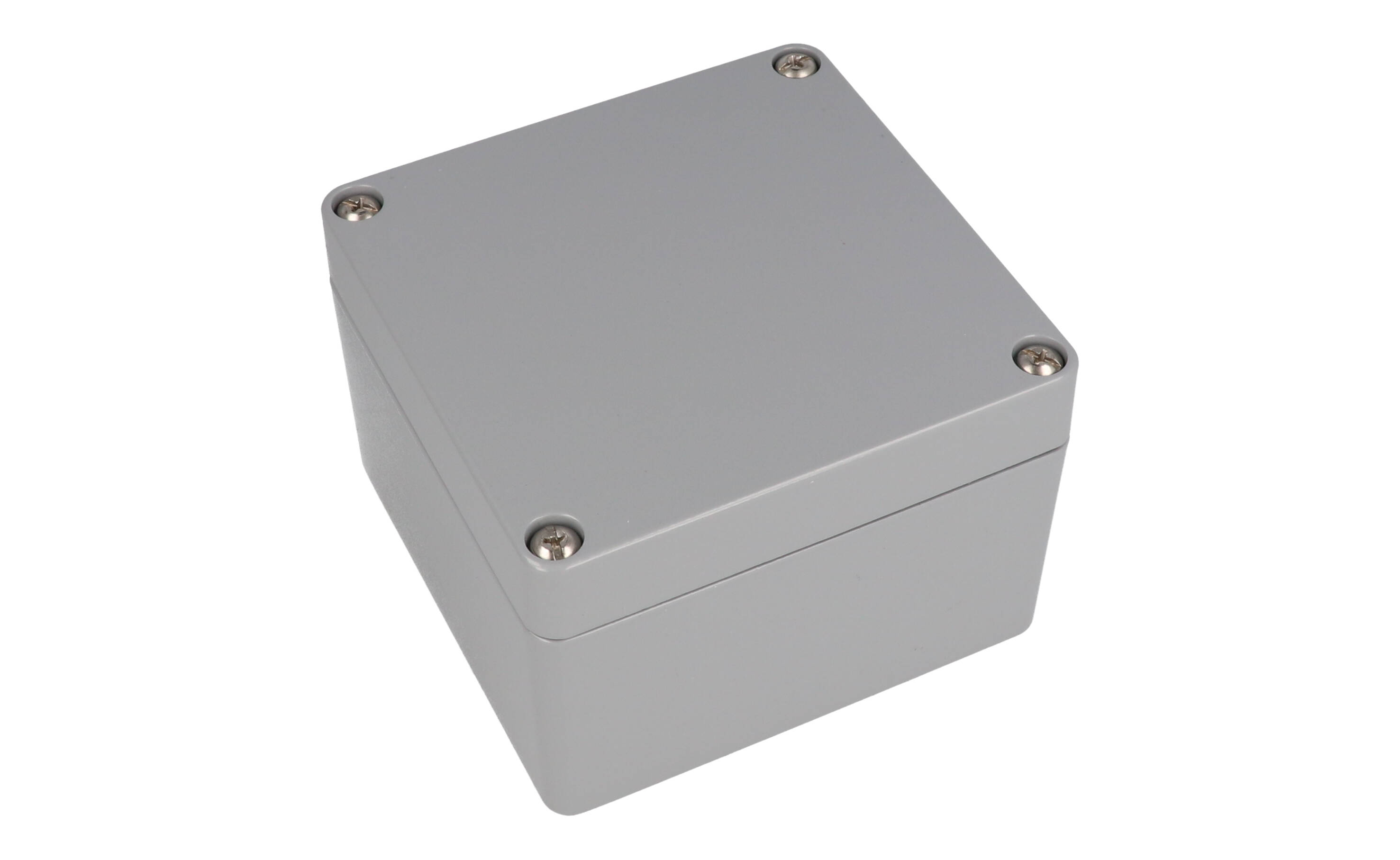

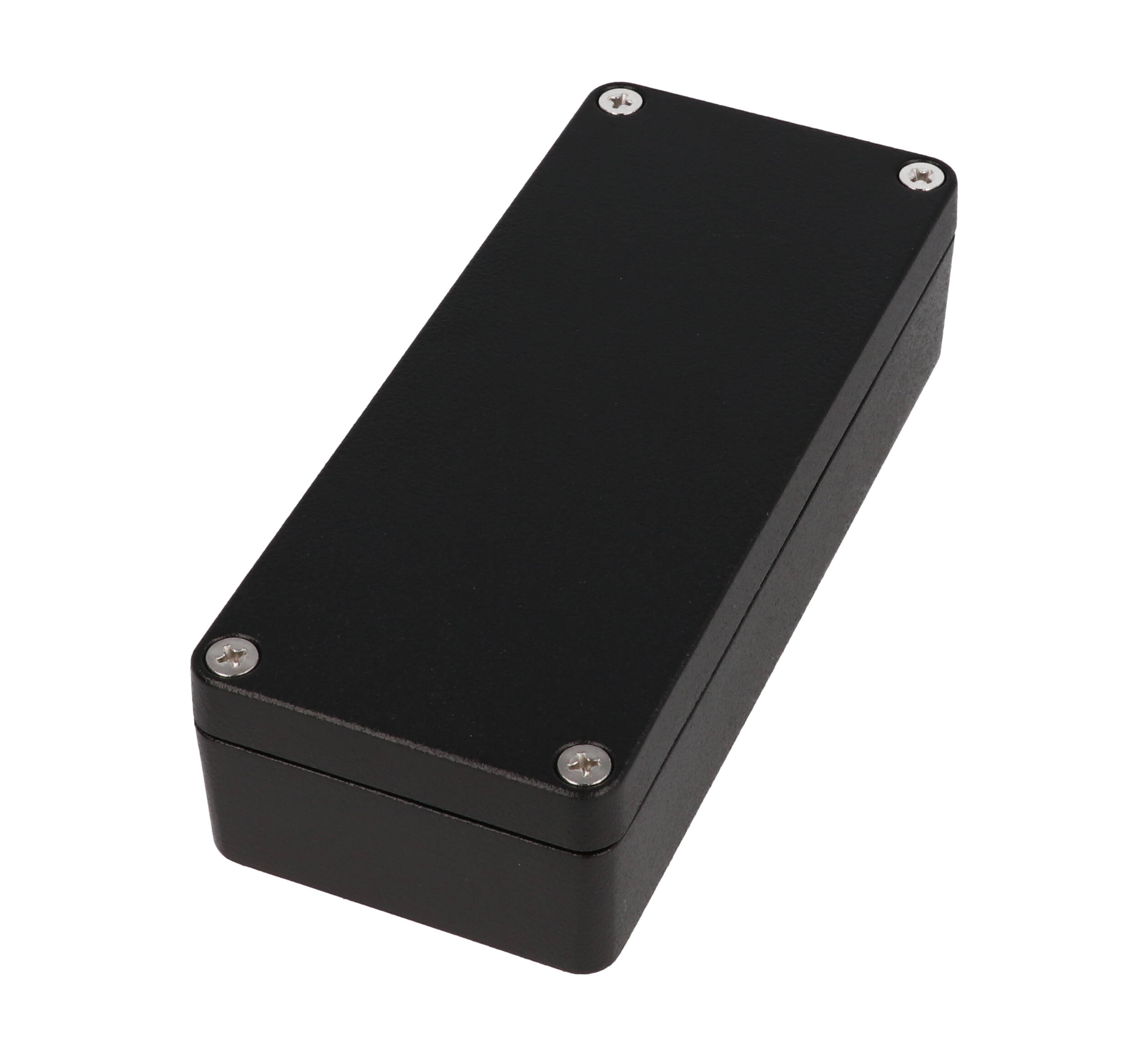

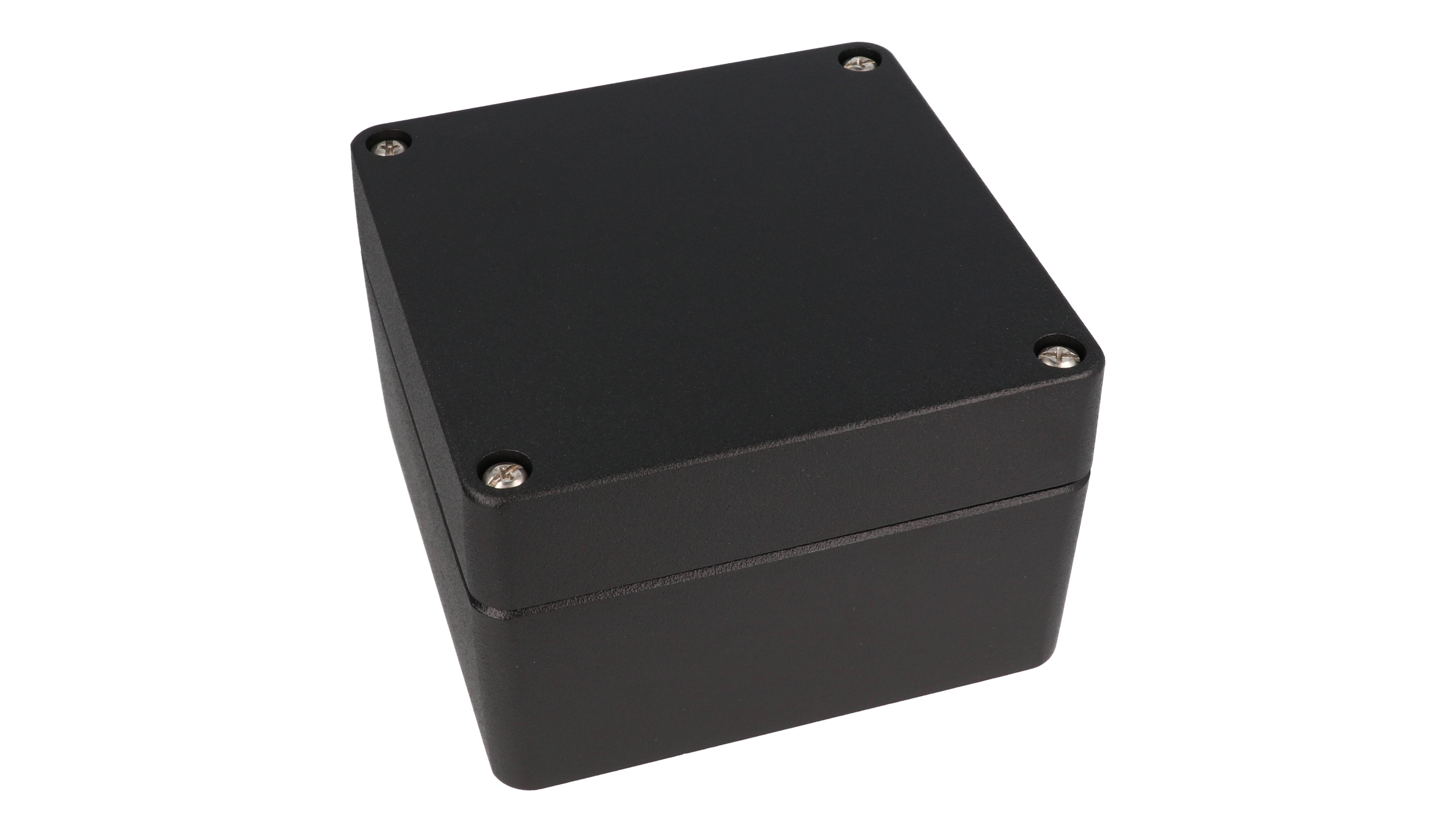

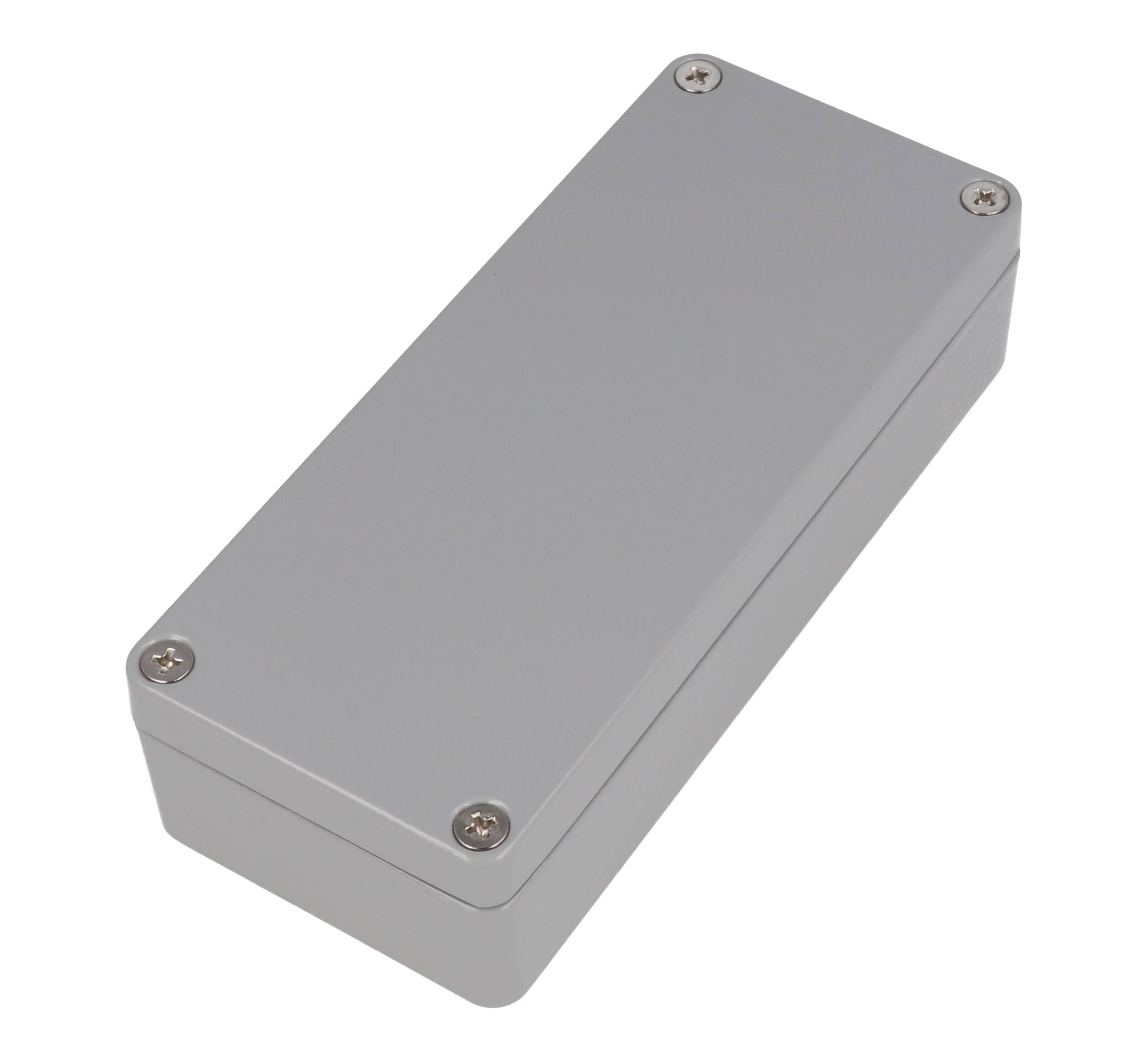

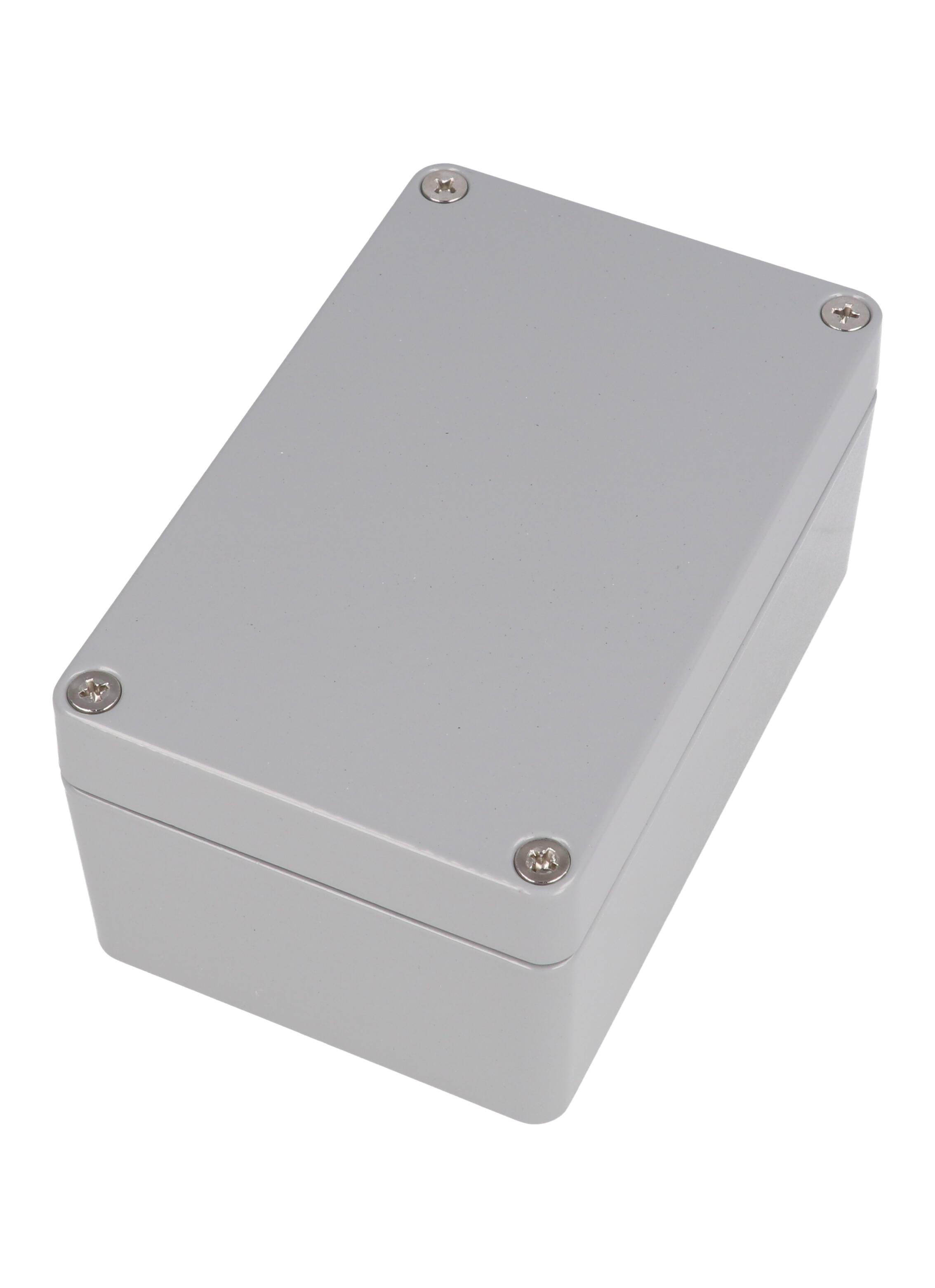

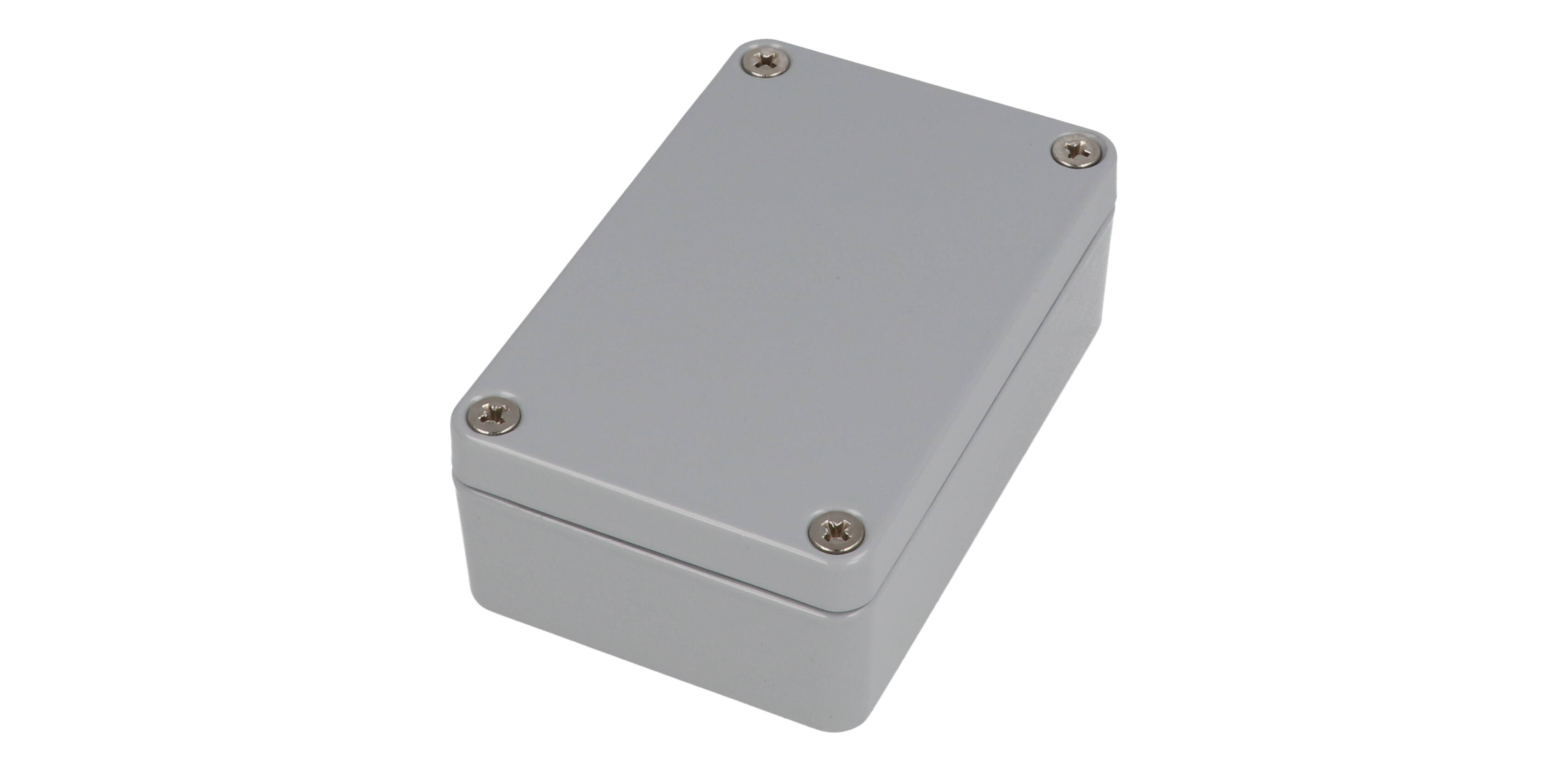

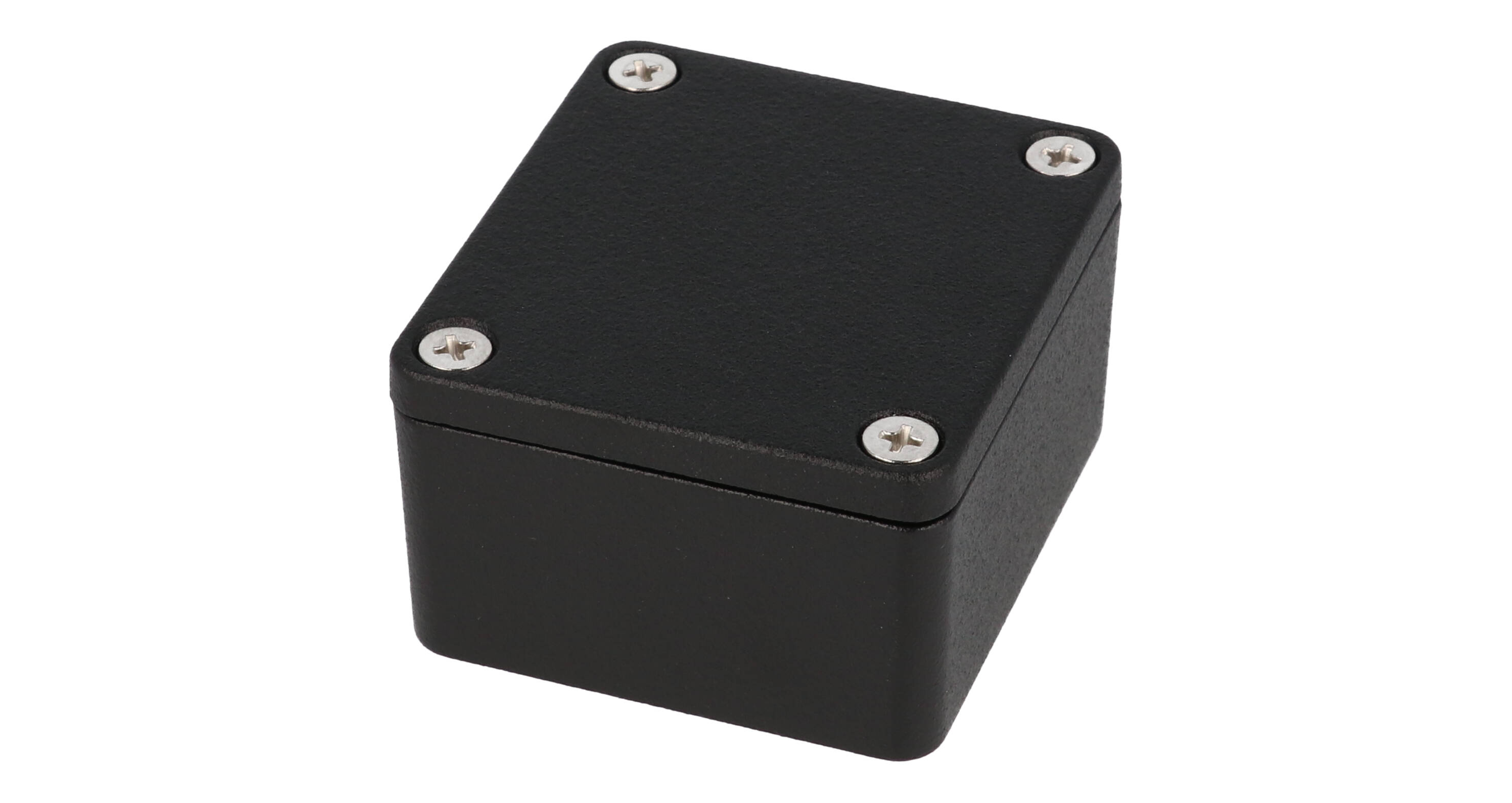

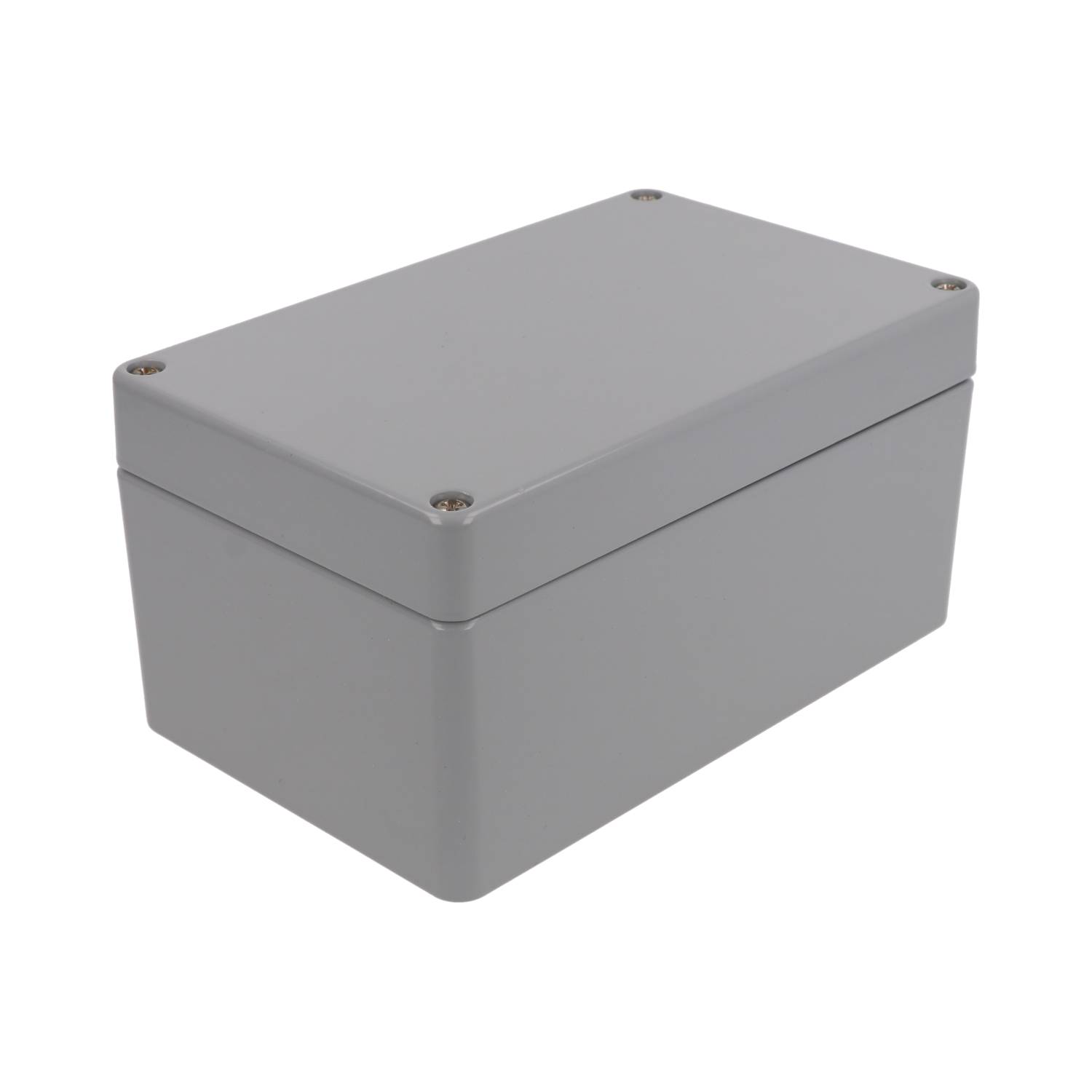

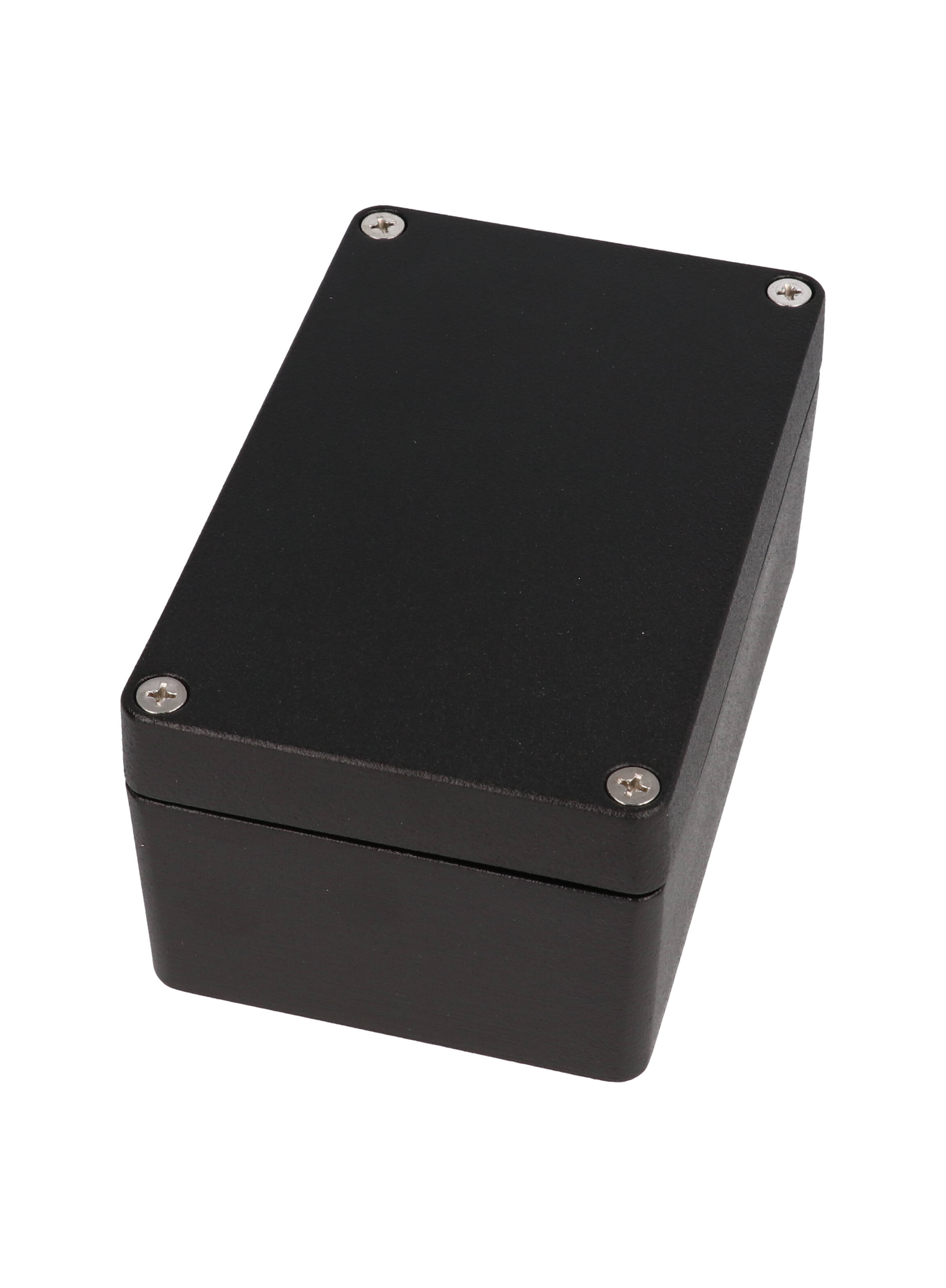

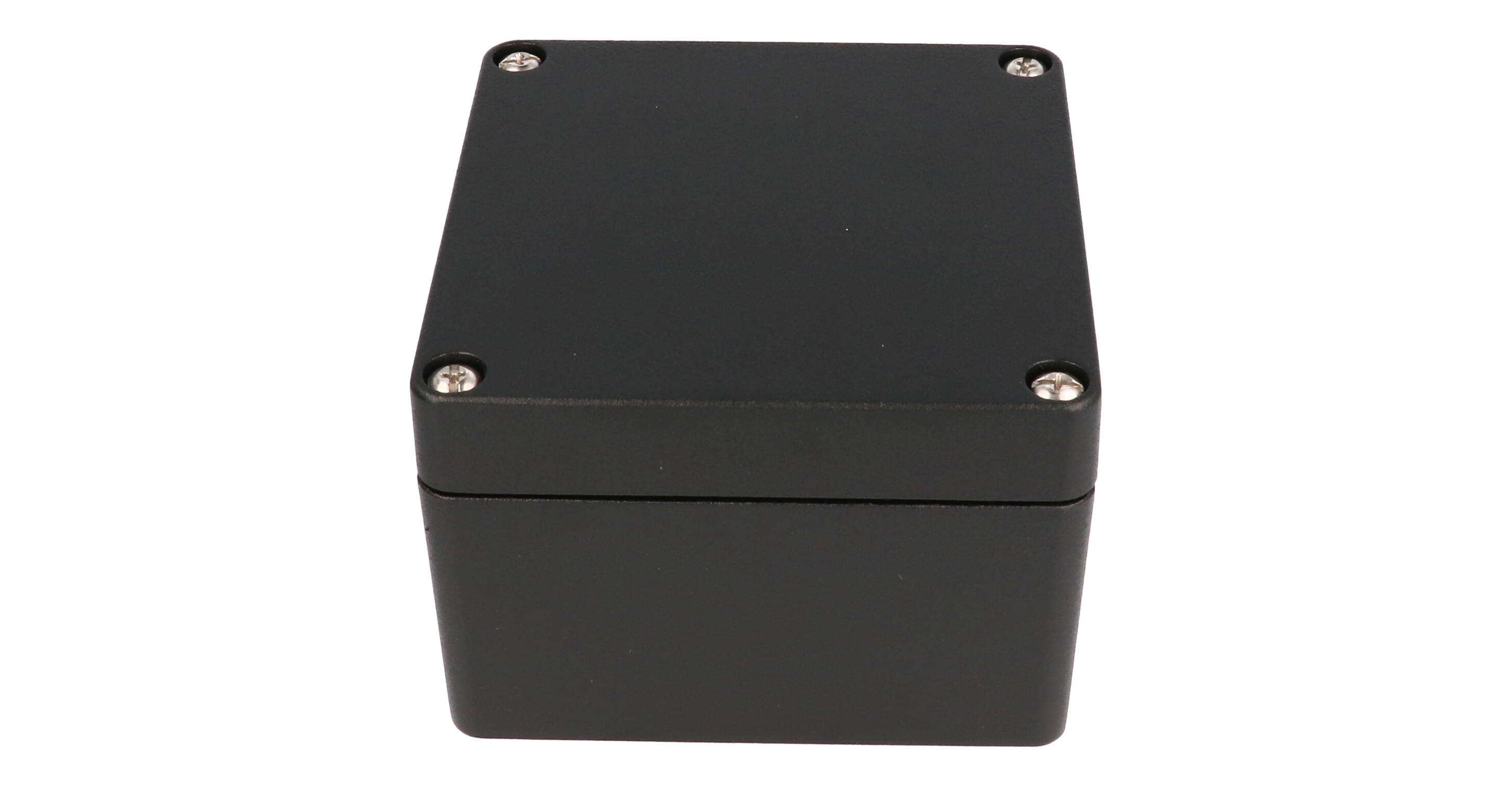

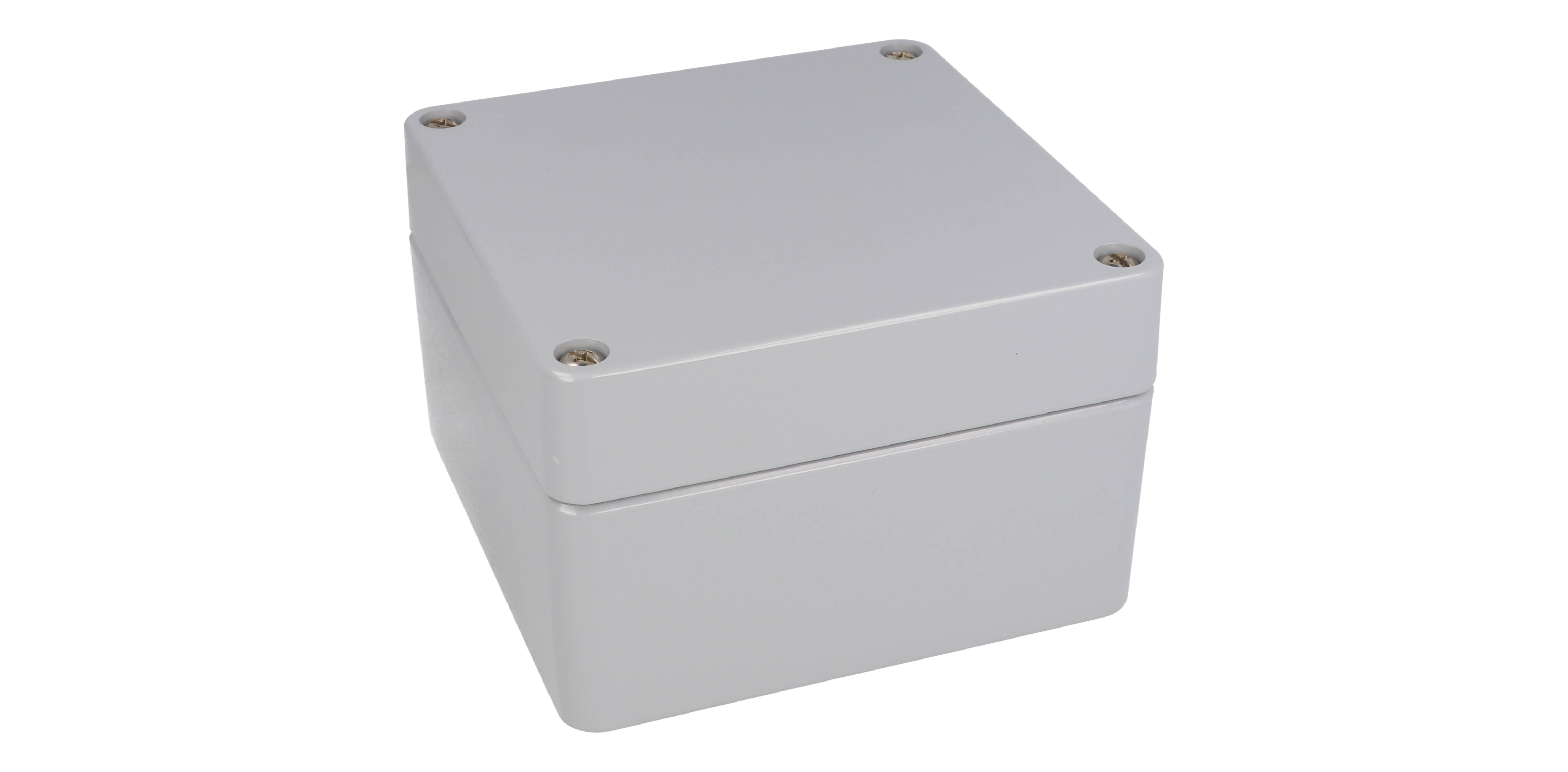

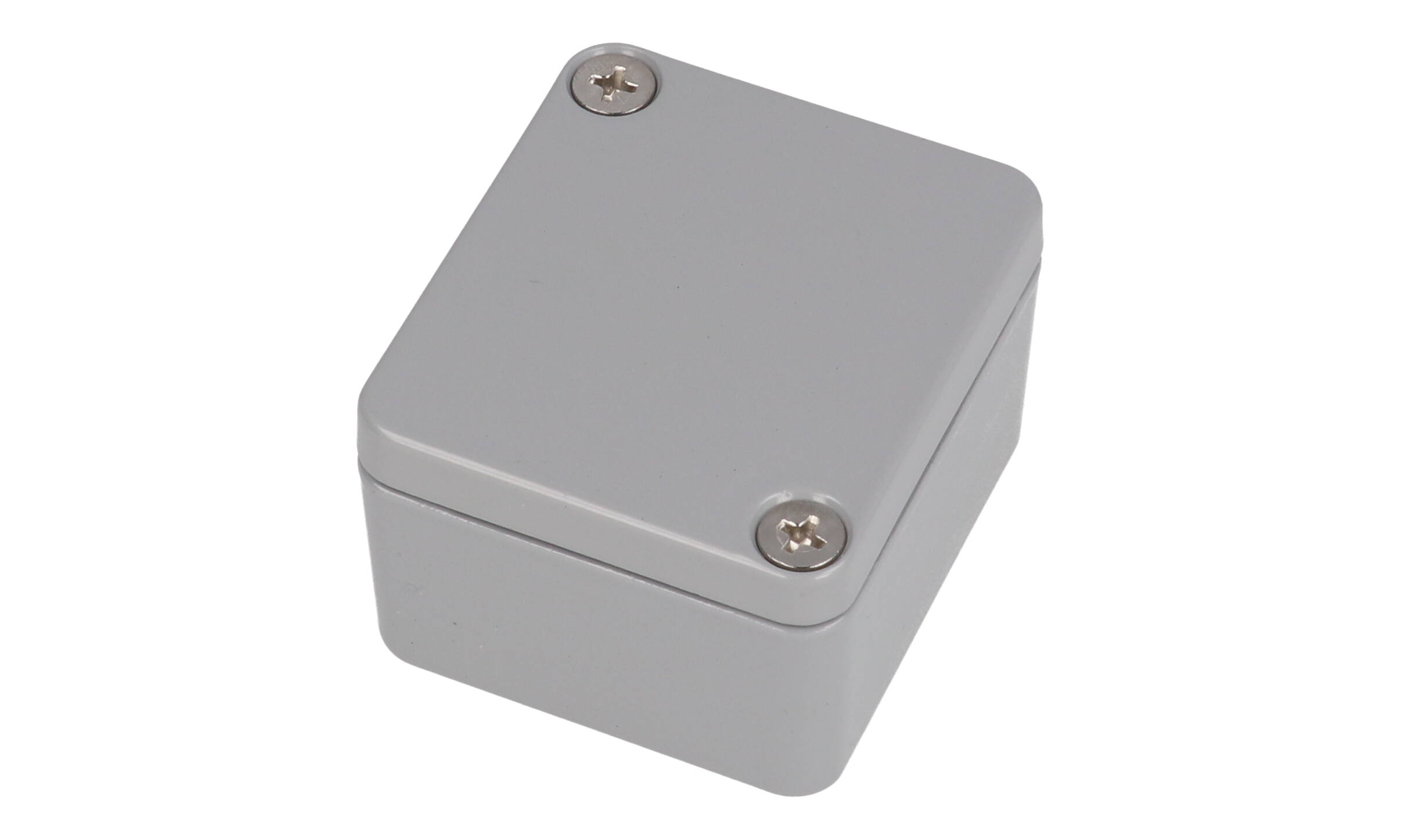

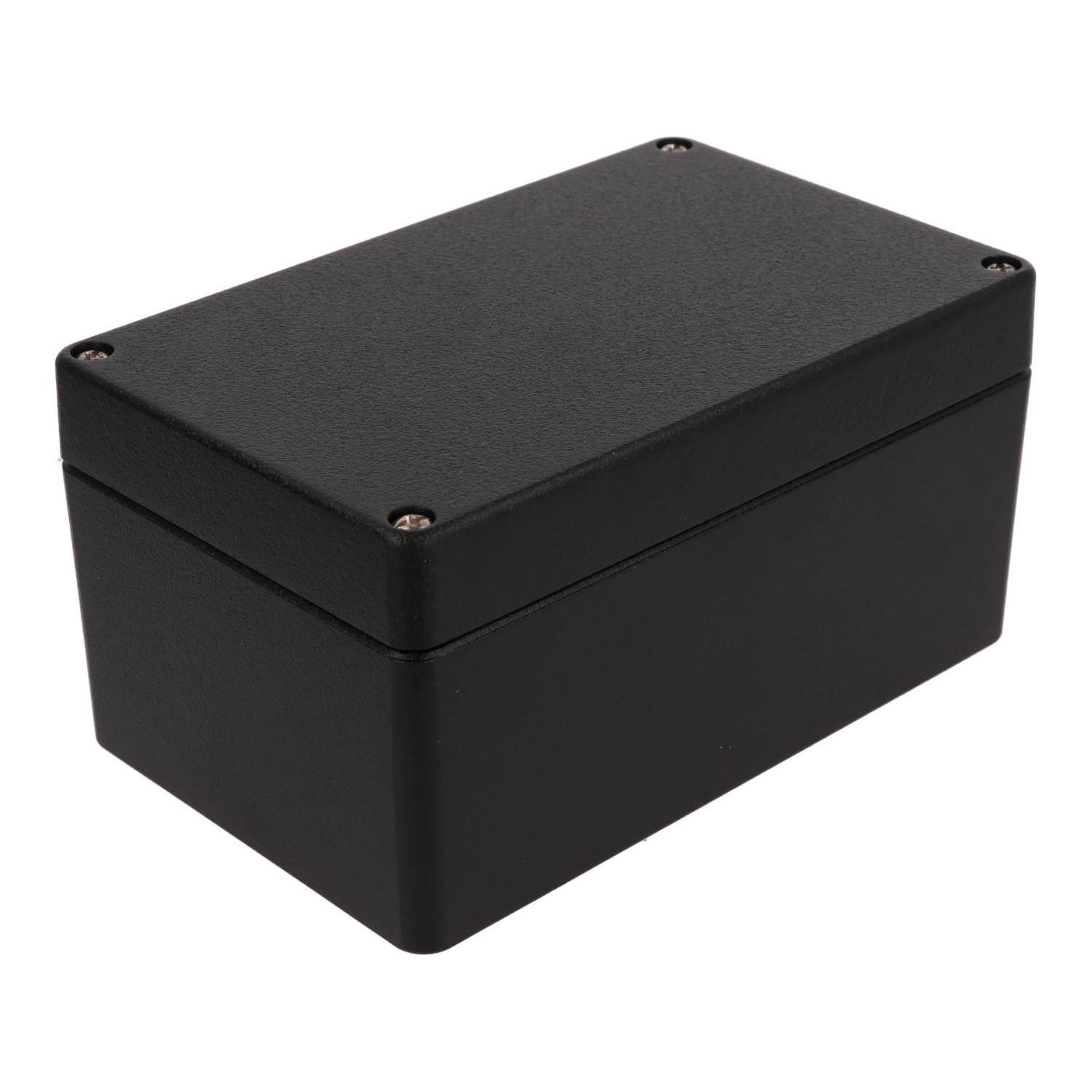

• ■Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth gray (RAL 7001).
• ■For non-metallic (glass reinforced polyester) versions of these enclosures, see series 1590ZGRP
