Hammond 1590Z120GY 125x80x59mm Gray RAL 7001 Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 125 x 80 x 59 mm diecast aluminum alloy enclosure, gray RAL 7001 finish
- cUL and UL listed; tested to IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 & 13
- IK08 impact rating per IEC62262
- Tongue and groove lid with replaceable one-piece silicone gasket rated -40C to +150C
- Four recessed stainless steel lid screws, self-captivating, thread on first installation
- Wall mounting through blind holes located outside the gasket protection
- Internal mounting shelf for optional 1590Z120PL steel inner panel
- Recommended cover screw torque 5-7.5 lbf.in (50-75 cN.m)

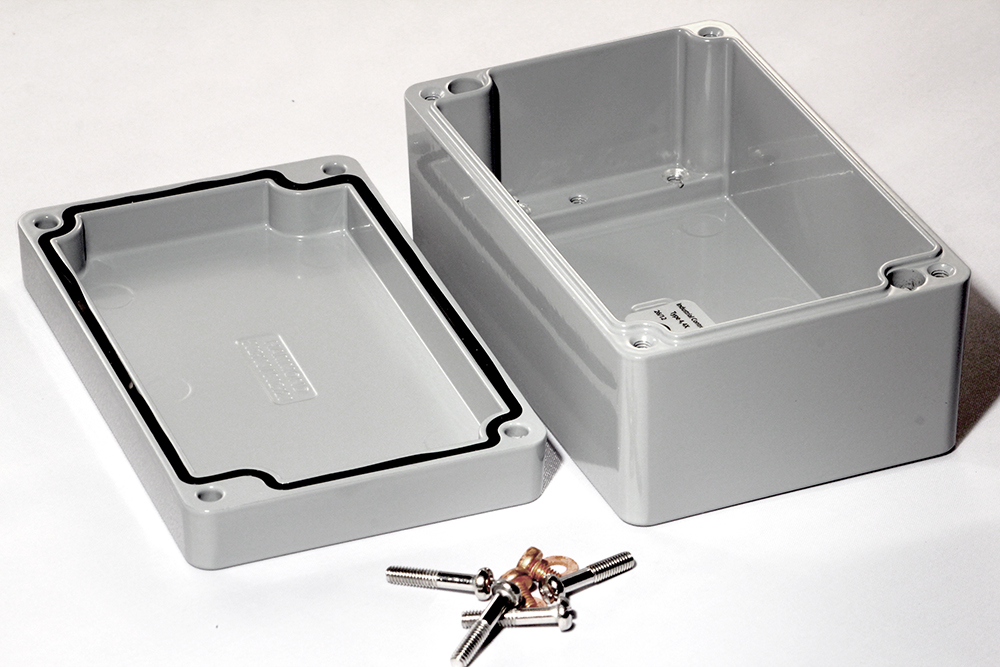

The 1590Z120GY is a thick-wall, watertight diecast aluminum enclosure from the 1590Z Type 4X/ 6P series, powder painted in smooth gray RAL 7001. A compact, rectangular sealed box sized for small circuit boards and instrument electronics, it suits OEM engineers, electricians and integrators.
It is 4.92 in (125 mm) long, 3.15 in (80 mm) wide and 2.32 in (59 mm) in total depth, with a 0.63 in (16 mm) lid; the drawing's overall size is 125.40 x 80.40 x 58.80 mm [4.94 x 3.17 x 2.31 in]. Inside it has 116.04 mm [4.57 in] length, 70.64 mm [2.78 in] width and 50.80 mm [2.00 in] depth, with an average wall of 3.81 mm [.15 in]. Maximum P.C. board size is 69.52 mm x 113.61 mm. Shipping weight is 1.08 lbs (0.49 kg).

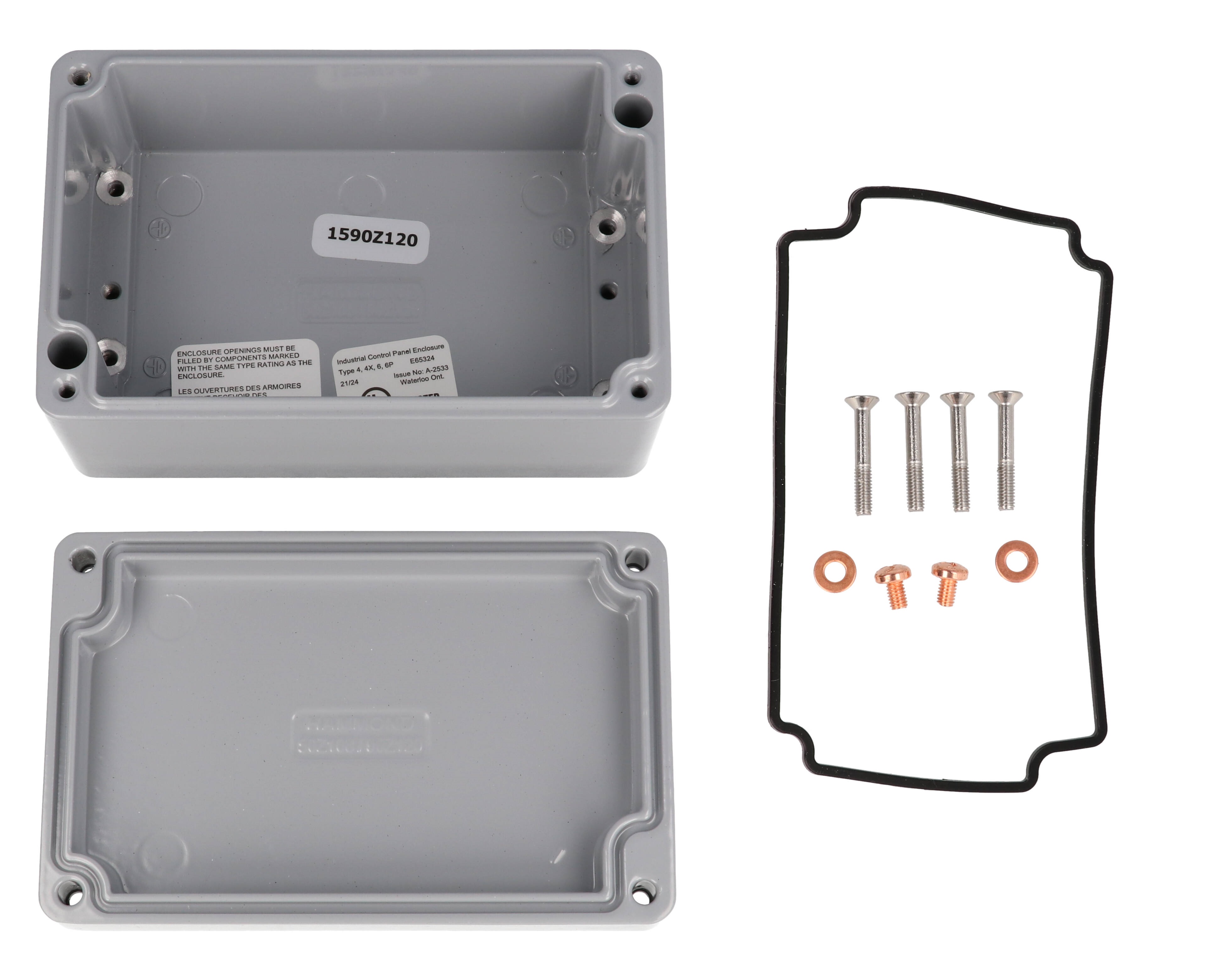

Construction is two-piece tongue and groove with a replaceable one-piece silicone rubber gasket, rated -40C to +150C (-40F to 302F), that is supplied loose inside the enclosure rather than pre-installed. Four recessed stainless steel M4 - 0.7 machine screws hold the lid, with a recommended cover screw torque of 5-7.5 lbf.in (50-75 cN.m). The purchased assembly includes the box, lid, silicone gasket, 4 cover screws and 2 ground screws with washers. The lid screws are self-captivating and create threads on first installation, and the design is intended for repetitive opening and closing.
For installation, blind through-holes located outside the gasket protection allow easy wall mounting. An internal mounting shelf accepts the optional 1590Z120PL steel inner panel. Spares are SC1550Z107-50 lid screws (50 pack, M4 - 0.7 x 25mm), SCGM4-50 copper ground hardware (M4 - 0.7 x 6mm / M4 washer) and the 1590Z120G gasket two-pack.
The series is cUL and UL listed (file E65324), independently tested to IP66, IP67 and IP68 and to NEMA Type 4, 4X, 6, 6P, 12 and 13, and carries an IK08 impact rating per IEC62262. Customers should confirm suitability for their application by their own testing. This gray version (RAL7001 Gloss on the drawing) is powder painted inside and out; the same size is also offered in natural and textured black.
Ideal For
- Sealed electronic instrument housings
- Watertight housings for wet or dusty locations
- Wall-mounted electronics enclosures
- Pole-mounted field electronics (with pole mount kit)
- Circuit board enclosures up to 69.52 mm x 113.61 mm
Overview
| Color | Gray |
| Series | 1590Z Series, Type 4X/ 6P Diecast Aluminum Enclosures |
| Product Type | Diecast aluminum electronic instrument enclosure |
| Solid Models | Available in STEP or IGES |
| Enclosure Type | Thick wall, water-tight |
| Factory Modification | Milling, drilling, printing etc. available by factory quote |
| Manufacturer Description | 1590Z120 PAINTED RAL7001 GREY |
Dimensions
| Lid Depth | 0.63 in (16 mm) |
| Total Depth | 2.32 in (59 mm) |
| Inside Depth | 50.80 mm [2.00 in] |
| Inside Width | 70.64 mm [2.78 in] |
| Inside Length | 116.04 mm [4.57 in] |
| Size L X W X H | 4.94 in x 3.17 in x 2.31 in (125 mm x 81 mm x 59 mm) |
| Wall Thickness | 3.81 mm [.15 in] (average) |
| Overall (Drawing) | 125.40 mm [4.94 in] x 80.40 mm [3.17 in] x 58.80 mm [2.31 in] |
| Max. P.C. Board Width | 113.61 mm |
| Max. P.C. Board Length | 69.52 mm |
| Width (Ordering Table) | 3.15 in (80 mm) |
| Length (Ordering Table) | 4.92 in (125 mm) |
Accessories
| Extra Lid Screws | SC1550Z107-50 (Stainless steel cover screws, 50 pack, M4 - 0.7 x 25mm) |
| Non-Metallic Alternative | Series 1590ZGRP (glass reinforced polyester) |
| Other Series Accessories | Pole mount kit, pressure compensation plug, breather kit, small rainproof ventilator, liquid-tight cordgrips (nylon or nickel plated brass) |
| Extra Panel / Ground Screws | SCGM4-50 (Copper ground hardware, 50 pack, M4 - 0.7 x 6mm / M4 washer) |
| Inner Panel (Sold Separately) | 1590Z120PL (16 gauge galvanized steel) |
| Replacement Gasket (Pack Of 2) | 1590Z120G |
Identifiers
| UPC | 623980280196 |
| UNSPSC | 39121301 |
| Part Number | 1590Z120GY |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.08 lbs (0.49 kg) |
Construction & Finish
| Finish | Smooth gray RAL 7001 powder paint (RAL7001 Gloss), painted inside and out |
| Material | Aluminum (Die-Cast Alloy); box and lid made from diecast aluminum alloy |
| Construction | Two piece tongue and groove with replaceable one piece silicone rubber gasket |
| Ground Screw | Accepts M4 machine screw |
| Gasket Supply | Supplied loose inside the enclosure (not pre-installed) |
| Lid Fastening | Four recessed stainless steel machine screws into tapped holes; self-captivating, create threads on first installation |
| Wall Mounting | Blind through-hole construction, located outside of gasket protection |
| Cover Screw Thread | M4 - 0.7 machine screw |
| Included In Assembly | Box, lid, silicone gasket, 4 cover screws and 2 ground screws with washers |
| Internal Mounting Shelf | YES |
| Recommended Cover Screw Torque | 5-7.5 lbf.in (50-75 cN.m) |
Environmental & Protection
| Impact Rating | IK08 per IEC62262 |
| Suitability Note | Customers should conduct their own testing to determine suitability for any specific application |
| NEMA Type (Tested) | 4, 4X, 6, 6P, 12 & 13 (independently tested) |
| Gasket Temperature Rating | -40C to +150C (-40F to 302F) |
| IP Rating (Part Attribute) | IP68 |
| Ingress Protection (Tested) | IP66, IP67 and IP68 (independently tested) |
| NEMA Rating (Part Attribute) | 4, 4X, 6, 6P, 12 & 13 |
Compliance & Certifications
| Listing | cUL and UL listed |
| UL File | E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1590Z120GY?▾
Per the ordering table it is 4.92 in (125 mm) long, 3.15 in (80 mm) wide and 2.32 in (59 mm) deep, with a 0.63 in (16 mm) lid. Inside it is 116.04 x 70.64 x 50.80 mm [4.57 x 2.78 x 2.00 in].
Is the gasket installed?▾
No. The one-piece silicone rubber gasket is supplied loose inside the enclosure and is not pre-installed. Replacement gaskets are sold as 1590Z120G (pack of 2).
What protection ratings does it have?▾
The series is cUL and UL listed and independently tested to IP66, IP67 and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 and 13, with an IK08 impact rating per IEC62262. Customers should conduct their own testing for a specific application.
What color is the gray version?▾
It is smooth gray RAL 7001 (the drawing lists it as RAL7001 Gloss), powder painted inside and out. The same size is also available in natural aluminum and textured black.
Is an inner mounting panel available?▾
Yes. The 1590Z120GY has an internal mounting shelf, and the 1590Z120PL steel inner panel is sold separately.
What comes in the box?▾
The purchased assembly includes the box, lid, silicone gasket, 4 cover screws and 2 ground screws with washers. Recommended cover screw torque is 5-7.5 lbf.in (50-75 cN.m).
