Liquid-Tight Cordgrips (Nylon) 1427NCG Series

Liquid-Tight Cordgrips (Nylon) · 1427NCG Series

Brand: Hammond Manufacturing · 52 part numbers

IP68, UL Listed. PG & Metric

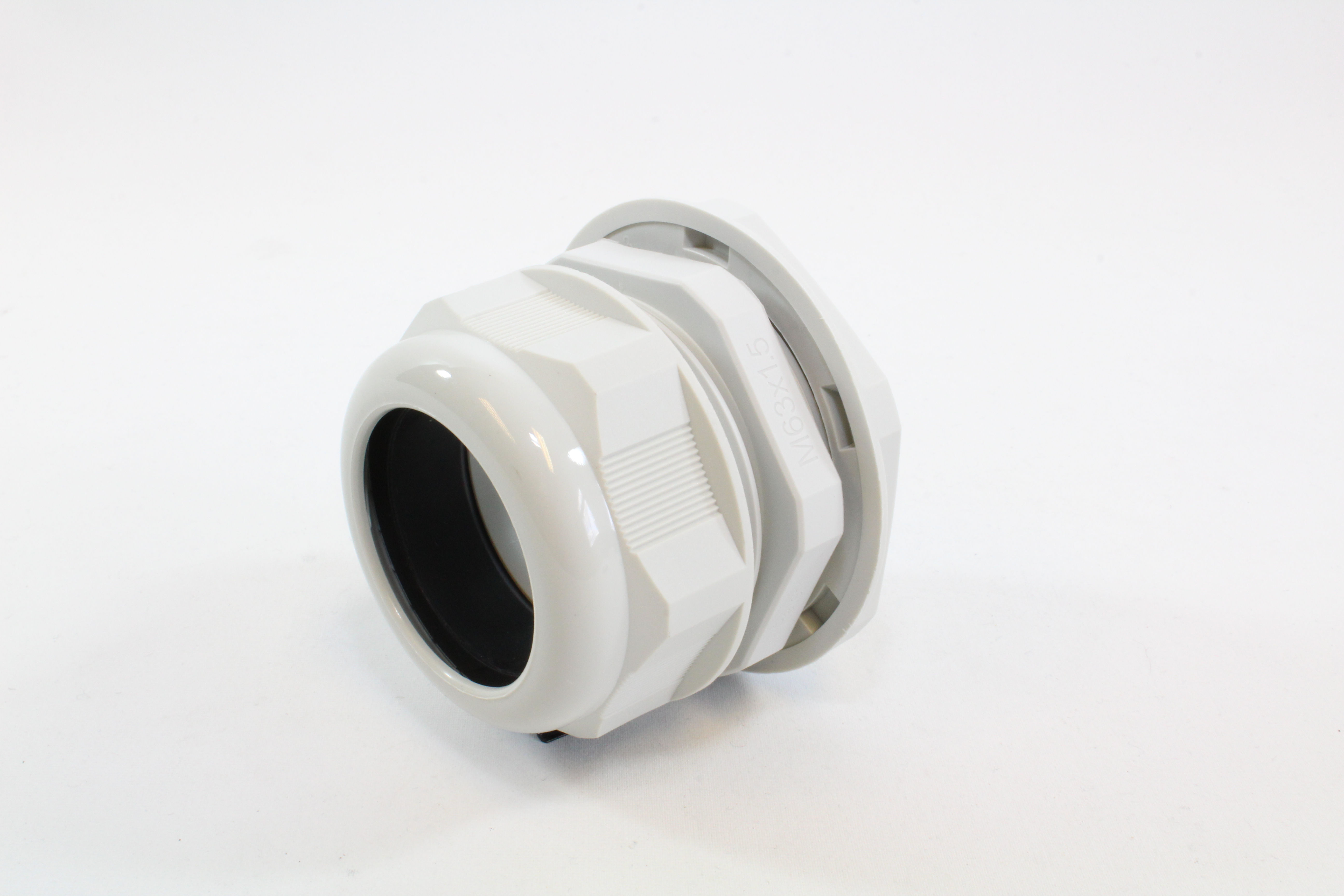

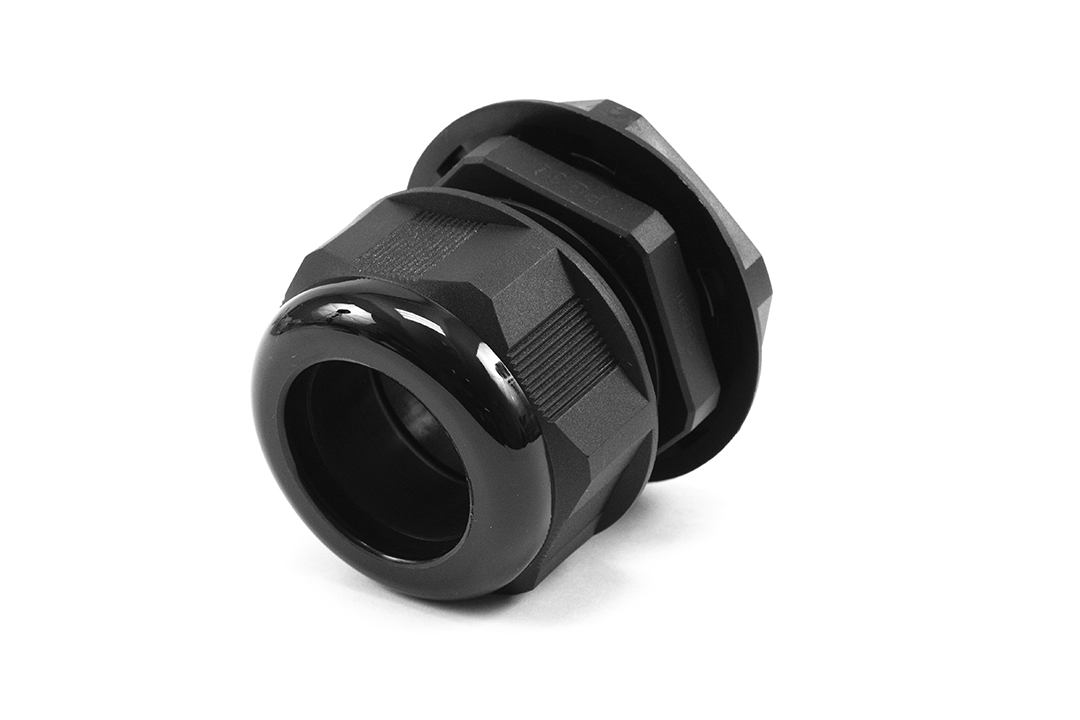

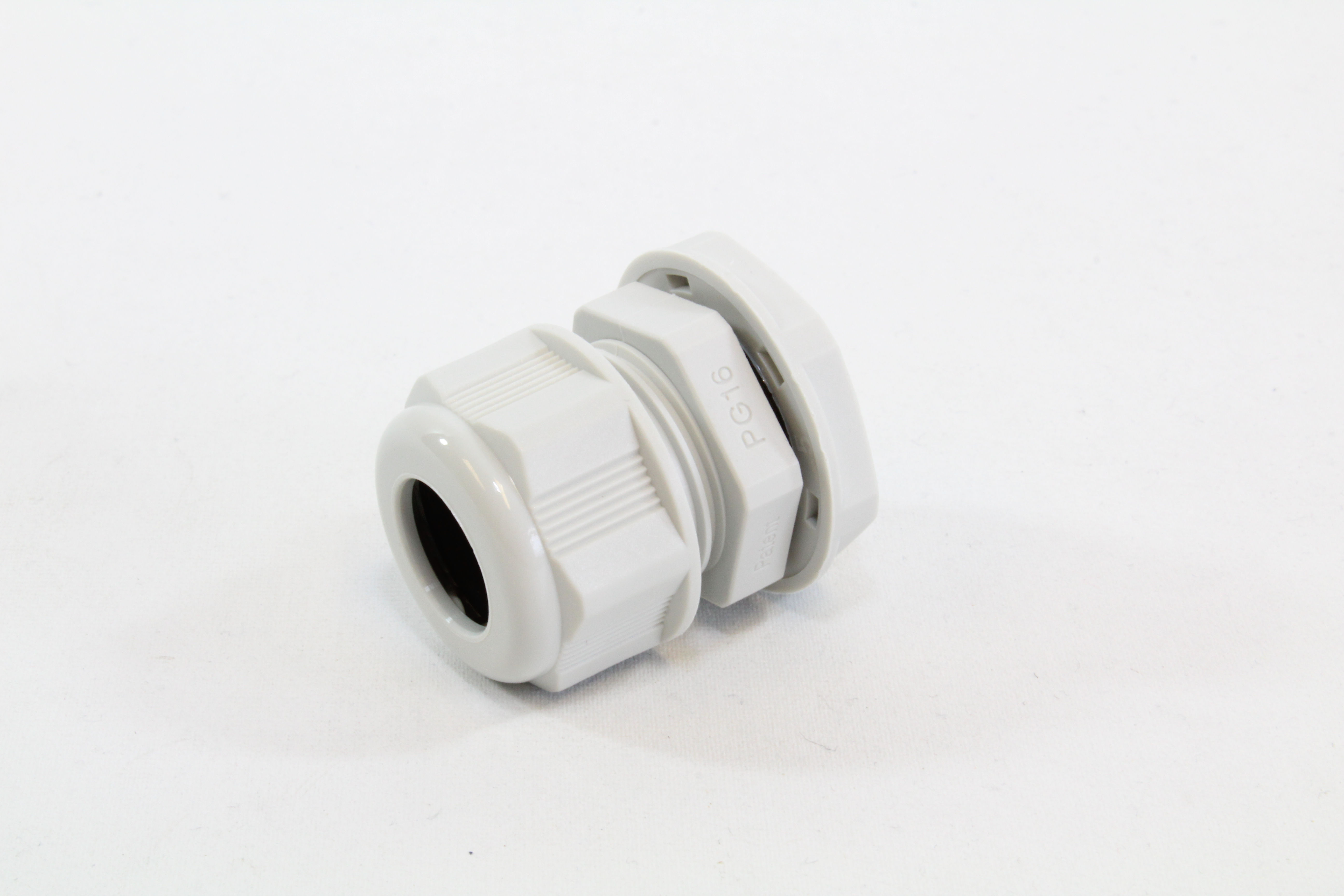

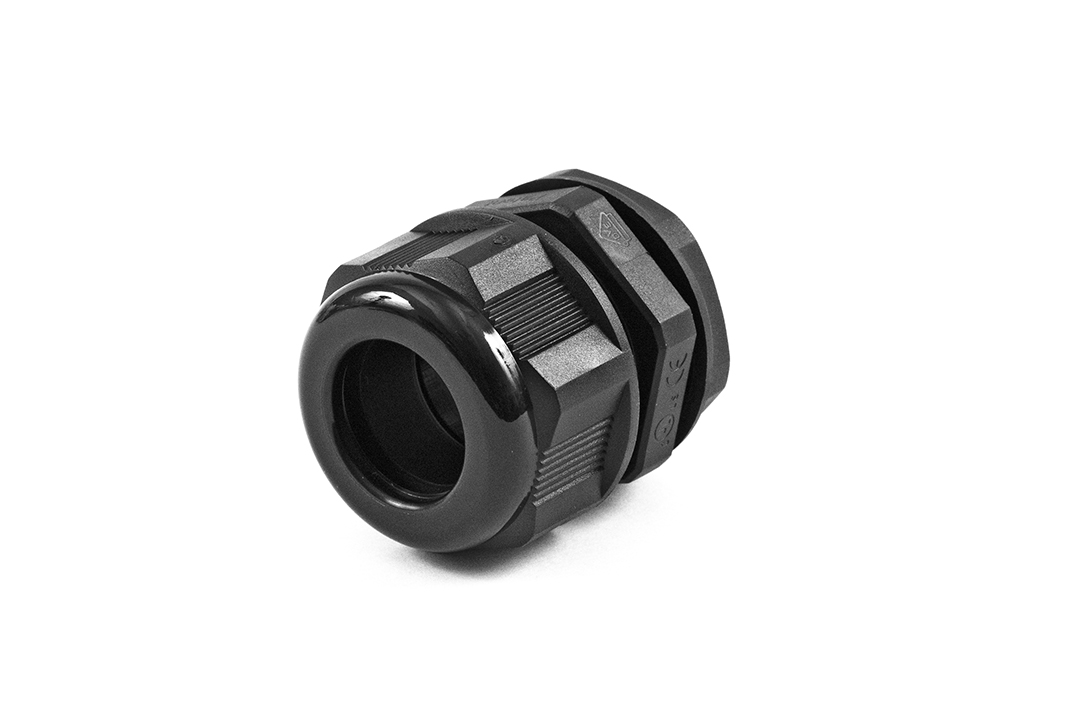

  • ■Liquid-tight cordgrip made from nylon
  • ■Available in black (RAL 9005) or gray (RAL 7035).
  • ■Used where cable is entering or leaving an enclosure.
  • ■Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
  • ■The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
  • ■Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).

from $0.99

52 of 52 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 1427NCG Series part number

Filter 52 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

52 of 52 part numbers · 52 priced online

Dimension tables (inches / mm)

PG Threads (Standard Length)

Units shown: mm . Switch units to: inch

Part Number (Gray)Part Number (Black)MaterialThread Size · (D)Mounting Hole · DiameterWire Diameter · MinWire Diameter · MaxOuter Length · (L)Inner Thread Length · (T)PriceOrder

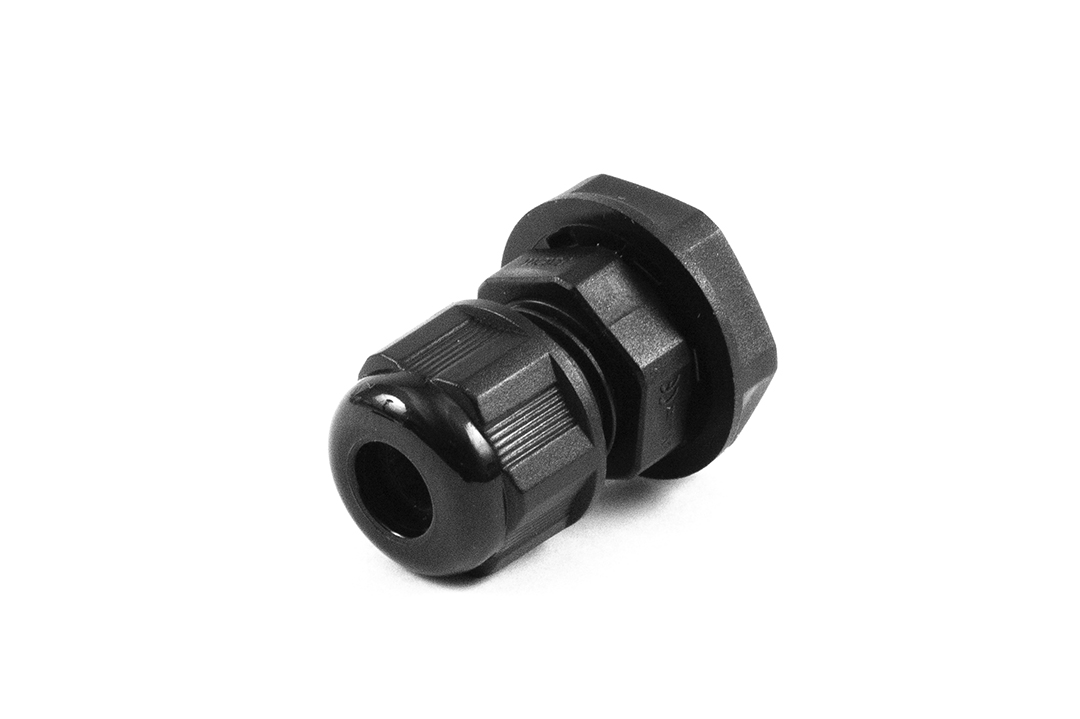

1427NCGPG7G1427NCGPG7BNylonPG70.510.120.280.830.31$0.99In stock1427NCGPG7GBuy now
1427NCGPG9G1427NCGPG9BNylonPG90.590.160.310.870.31$1.03In stock1427NCGPG9GBuy now

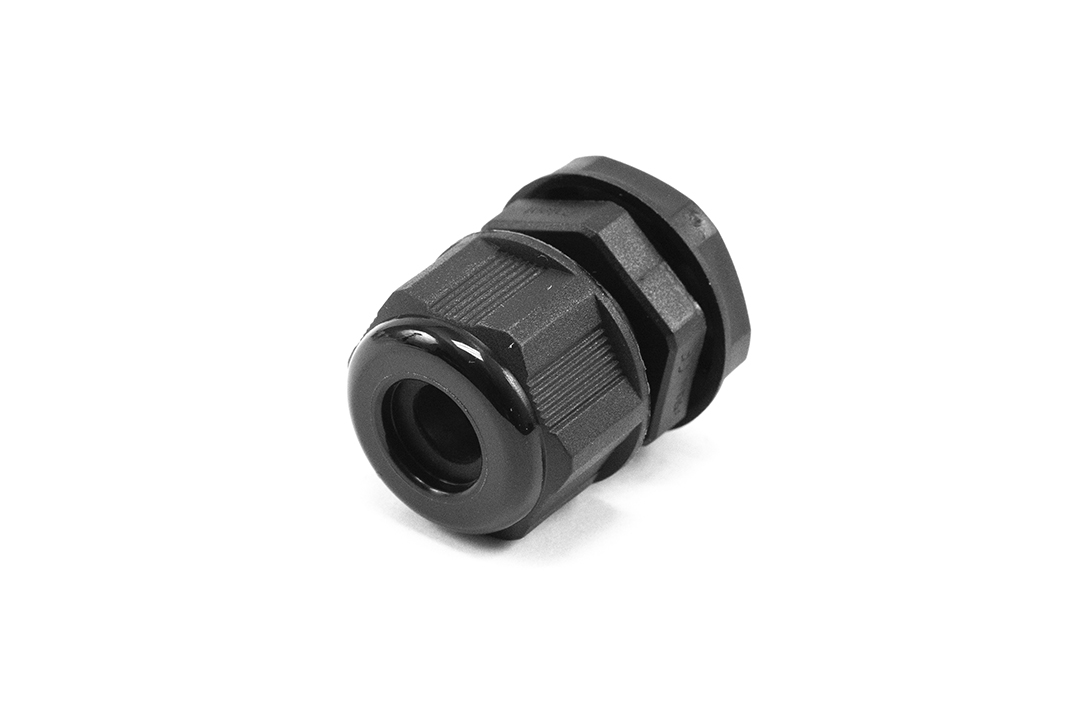

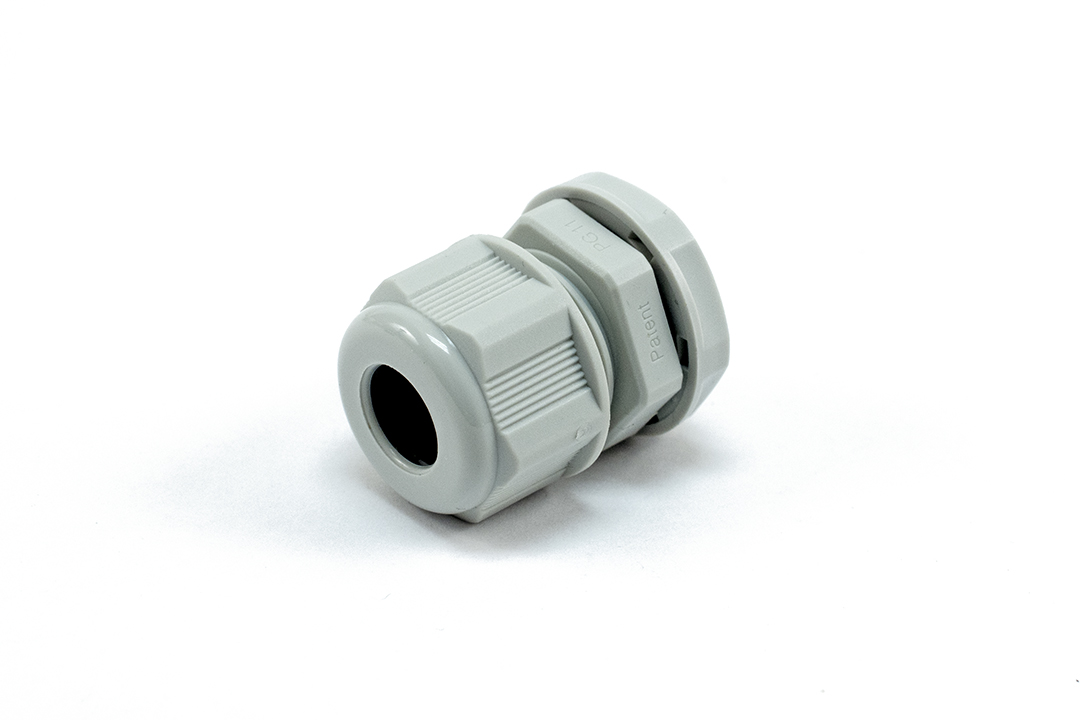

1427NCGPG11G1427NCGPG11BNylonPG110.750.200.390.980.31$1.18In stock1427NCGPG11GBuy now

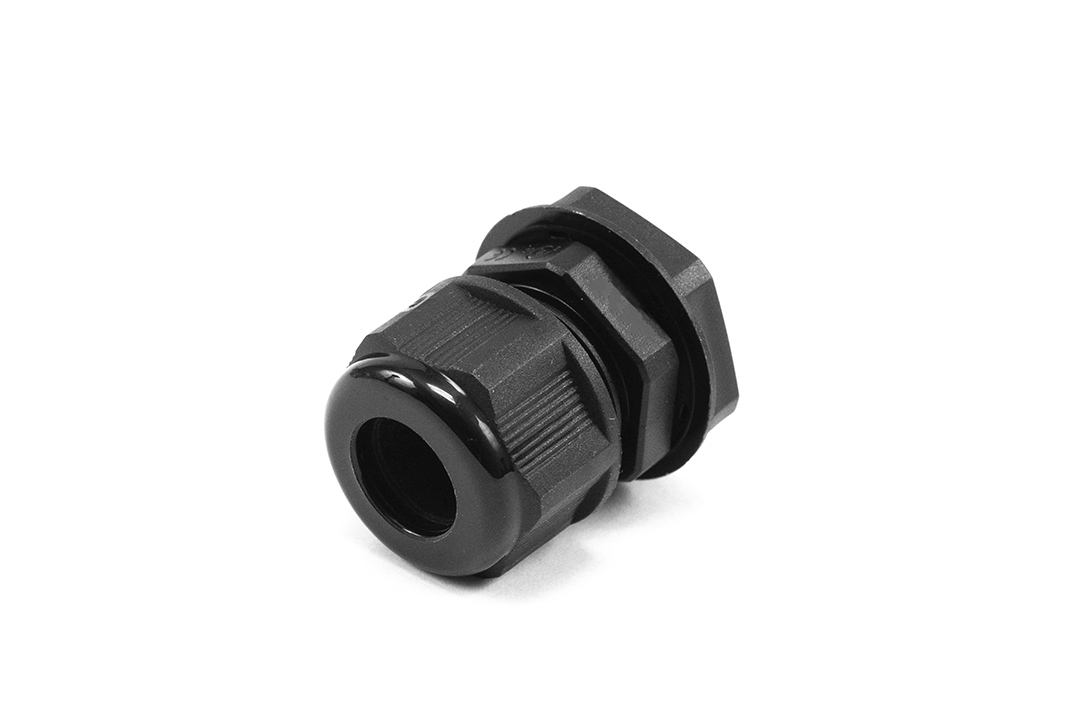

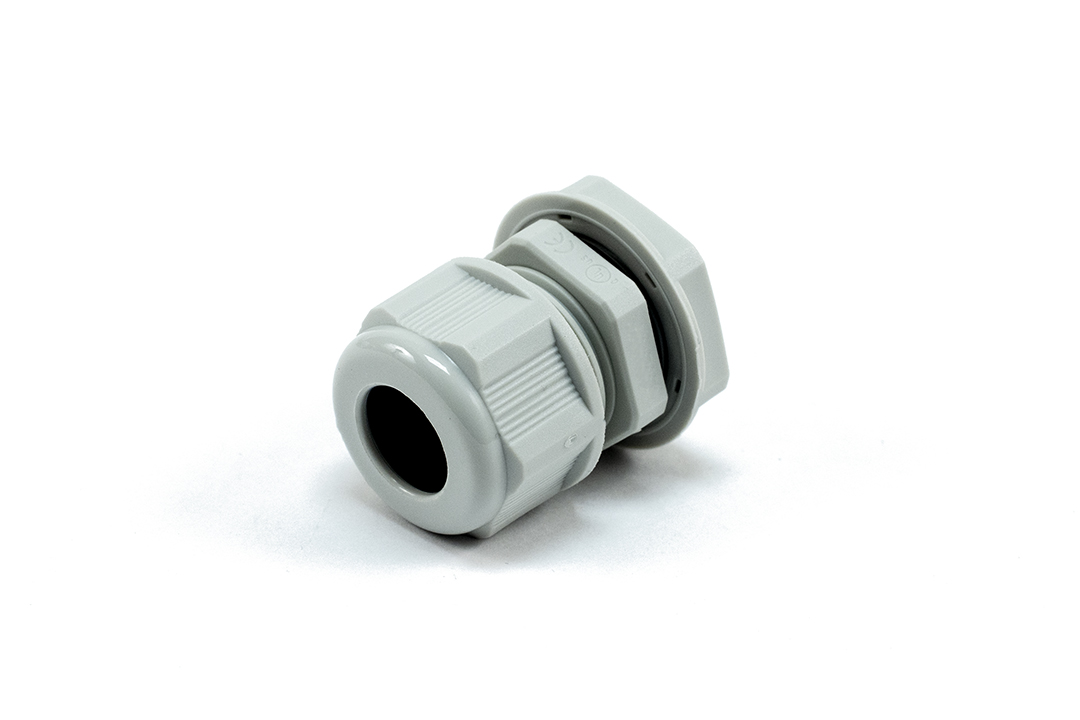

1427NCGPG13G1427NCGPG13BNylonPG13.50.830.240.471.060.35$1.23In stock1427NCGPG13GBuy now

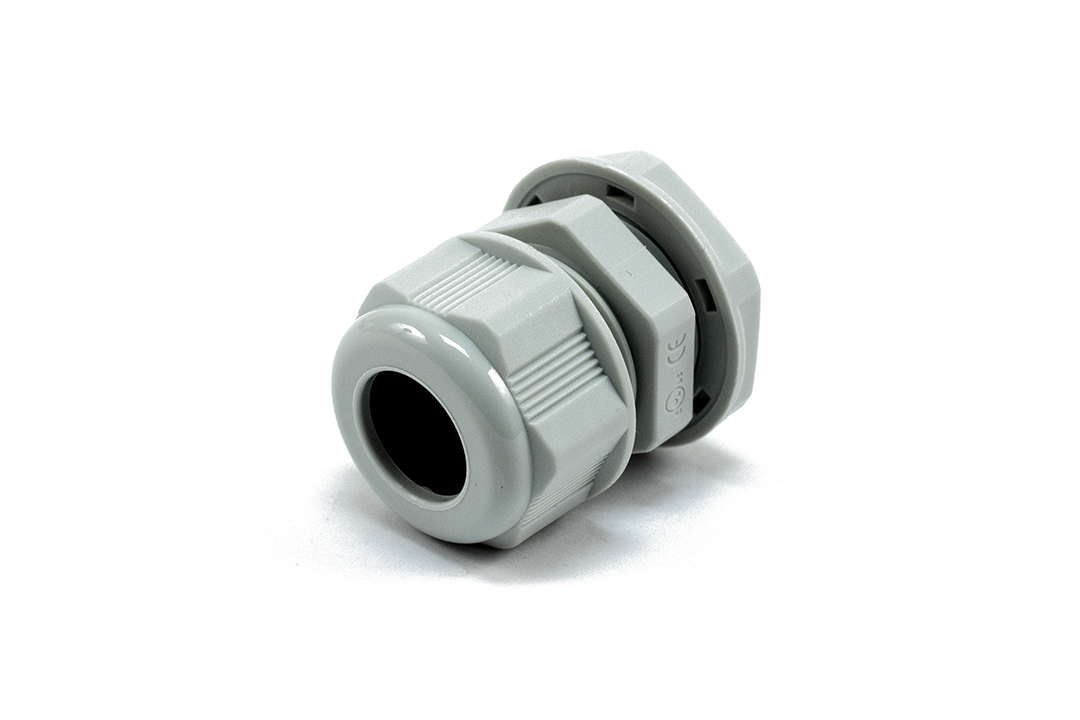

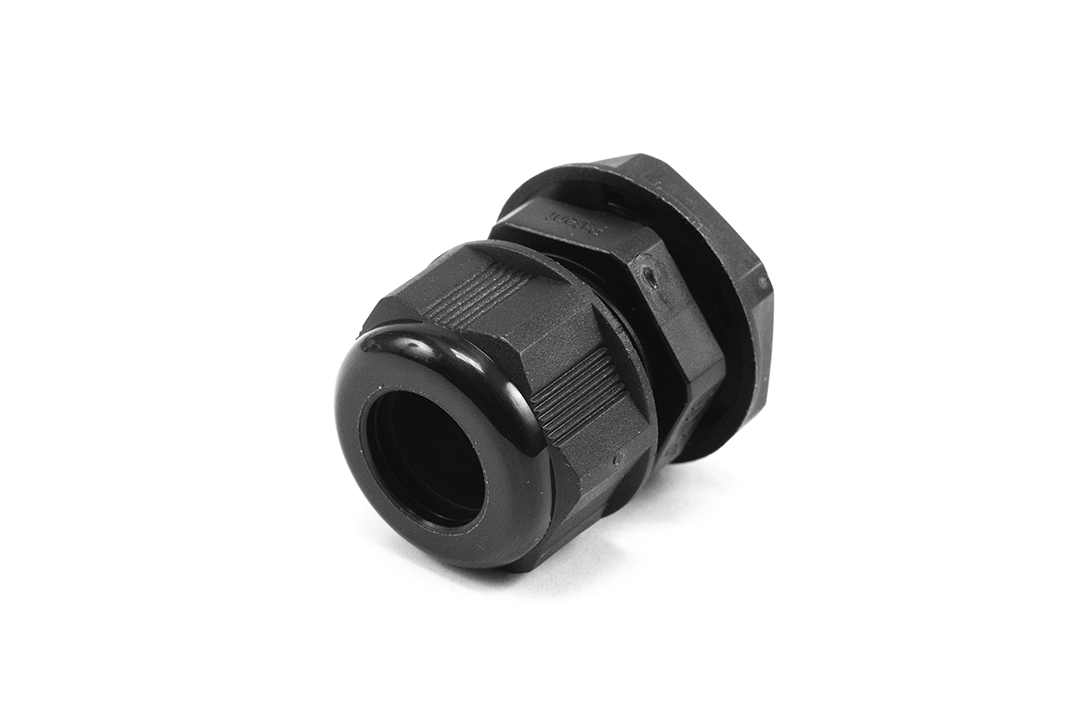

1427NCGPG16G1427NCGPG16BNylonPG160.910.390.551.100.39$1.51In stock1427NCGPG16GBuy now

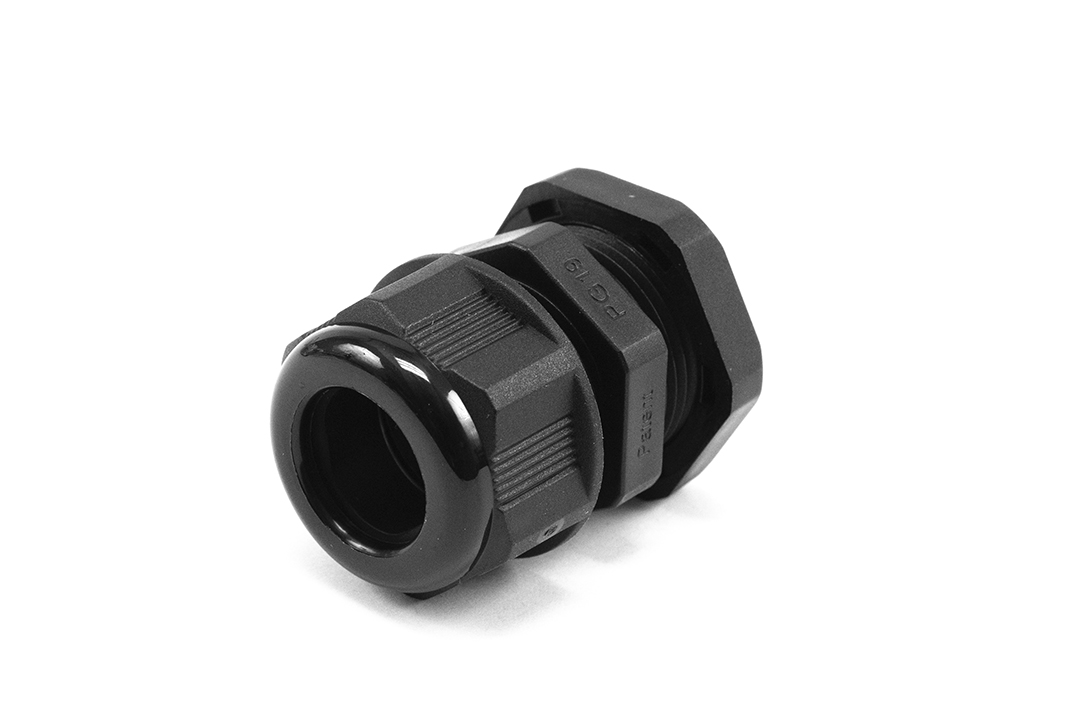

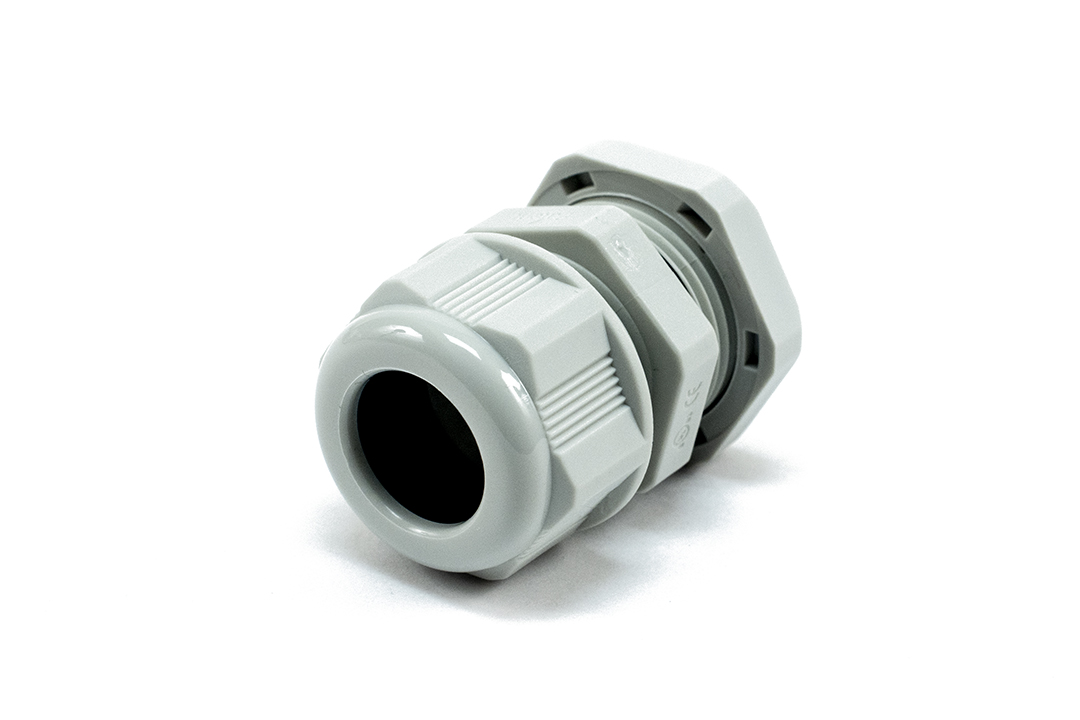

1427NCGPG19G1427NCGPG19BNylonPG190.940.470.591.180.47$1.88In stock1427NCGPG19GBuy now

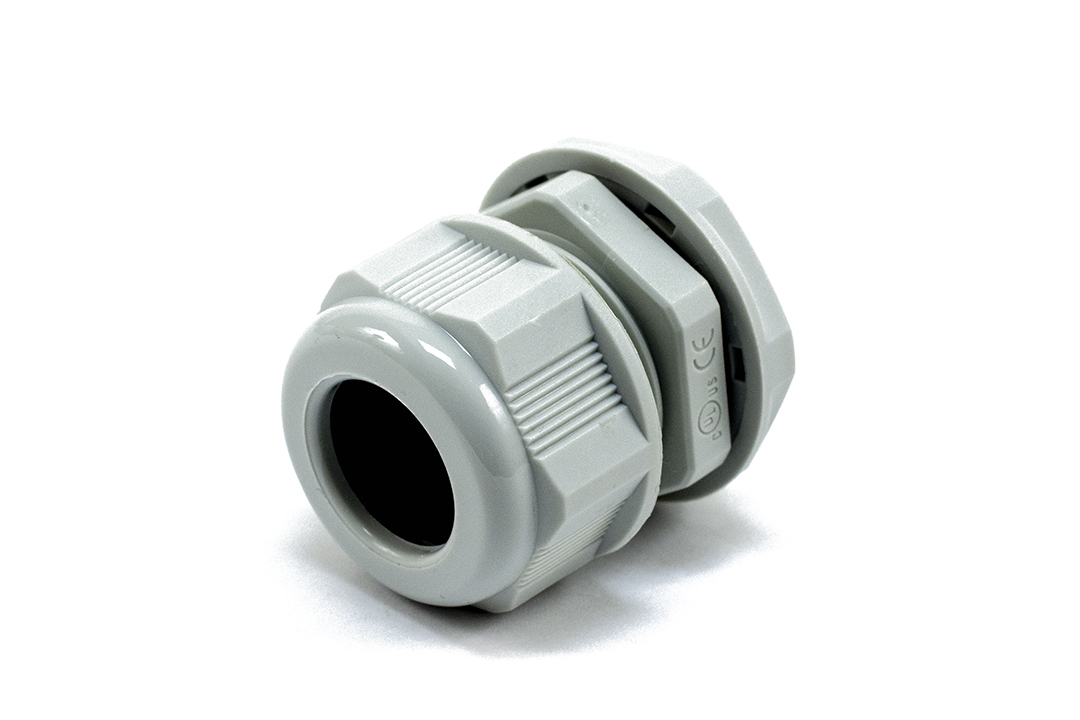

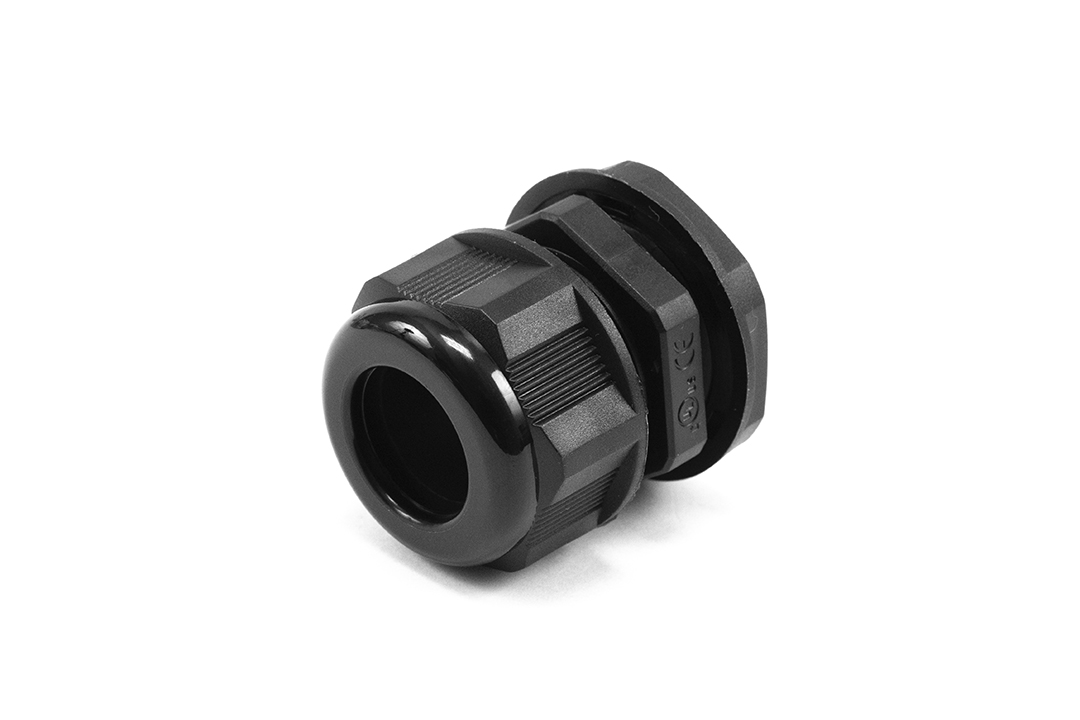

1427NCGPG21G1427NCGPG21BNylonPG211.140.510.711.220.43$1.99In stock1427NCGPG21GBuy now

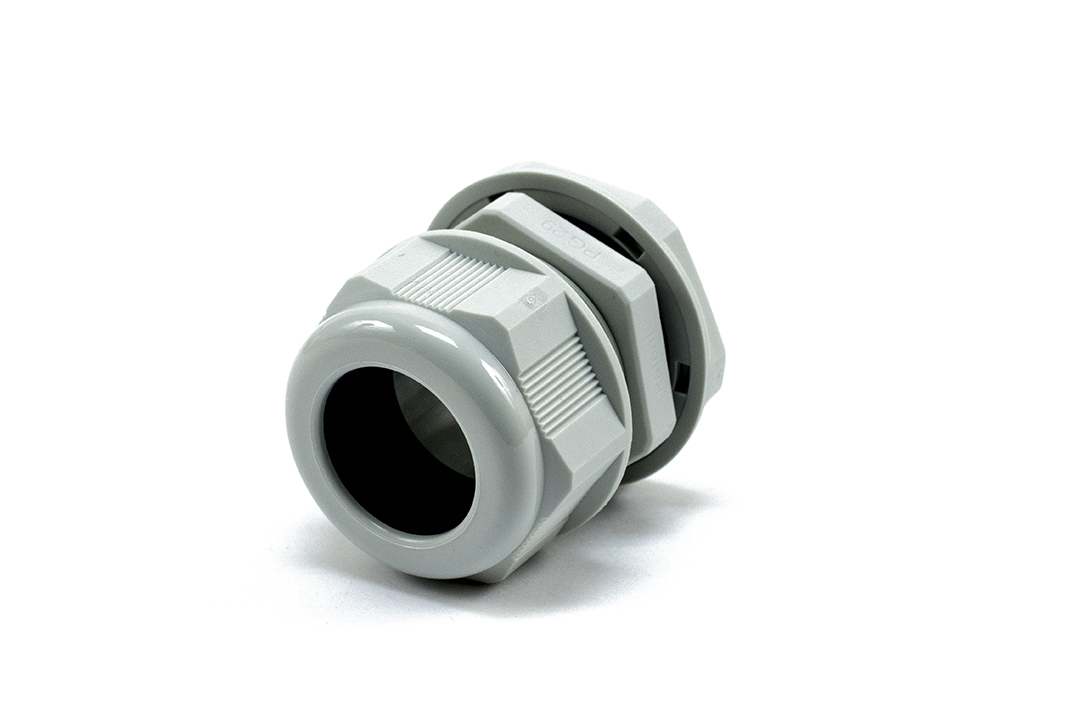

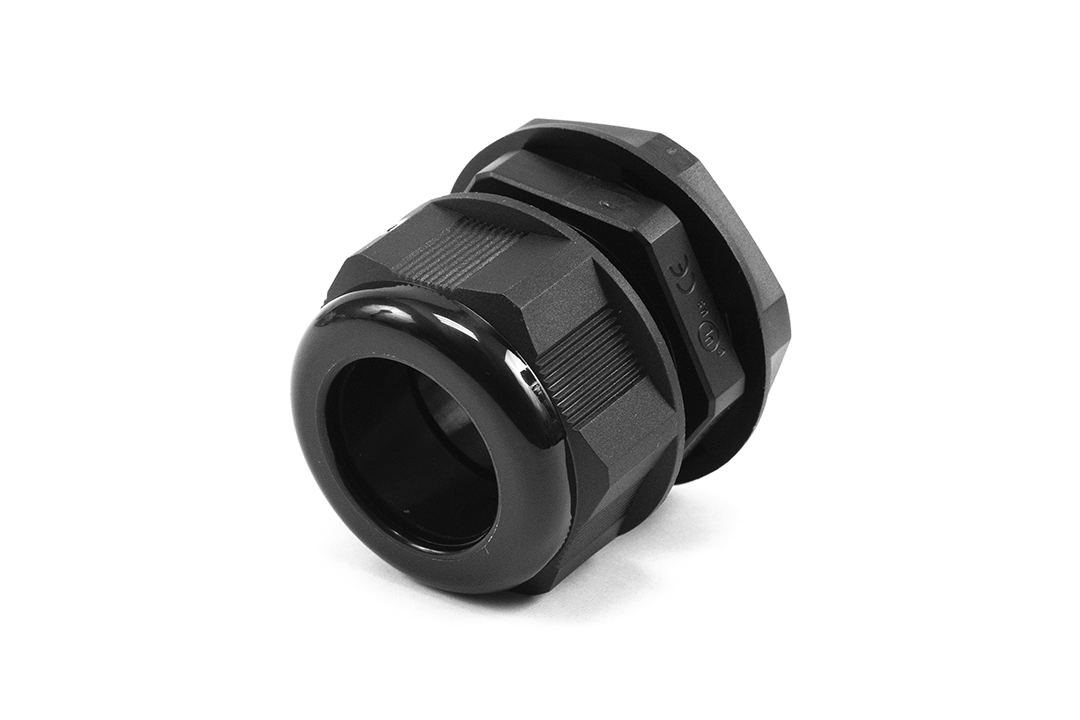

1427NCGPG29G1427NCGPG29BNylonPG291.460.710.981.460.43$2.99In stock1427NCGPG29GBuy now

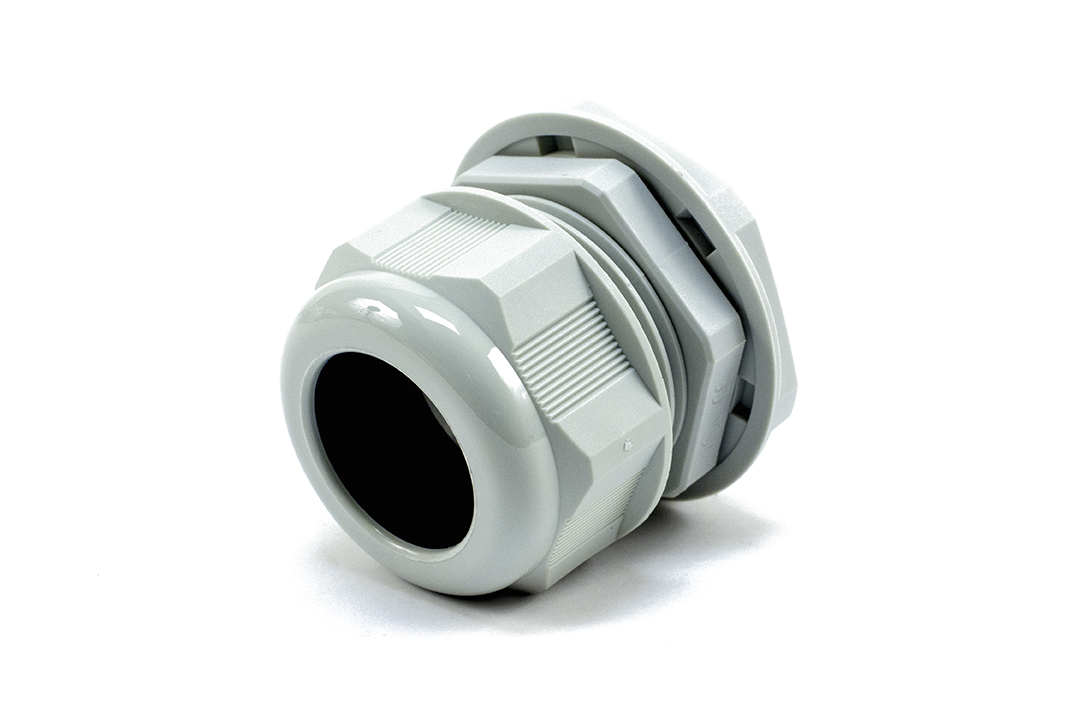

1427NCGPG36G1427NCGPG36BNylonPG361.890.871.261.890.51$4.59In stock1427NCGPG36GBuy now

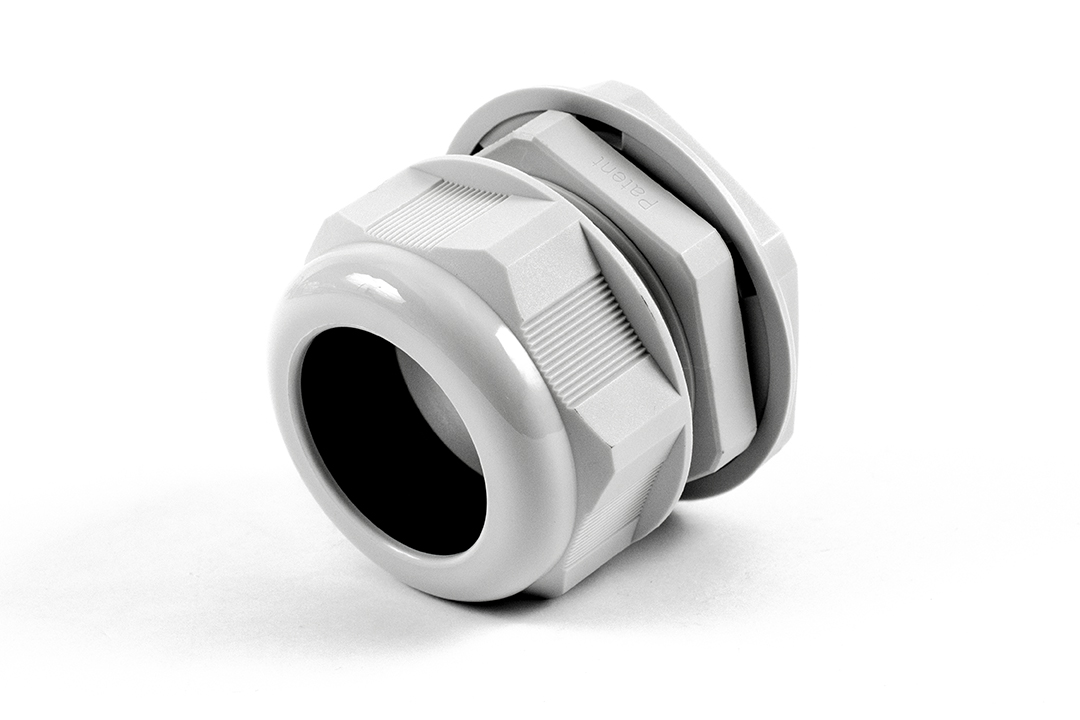

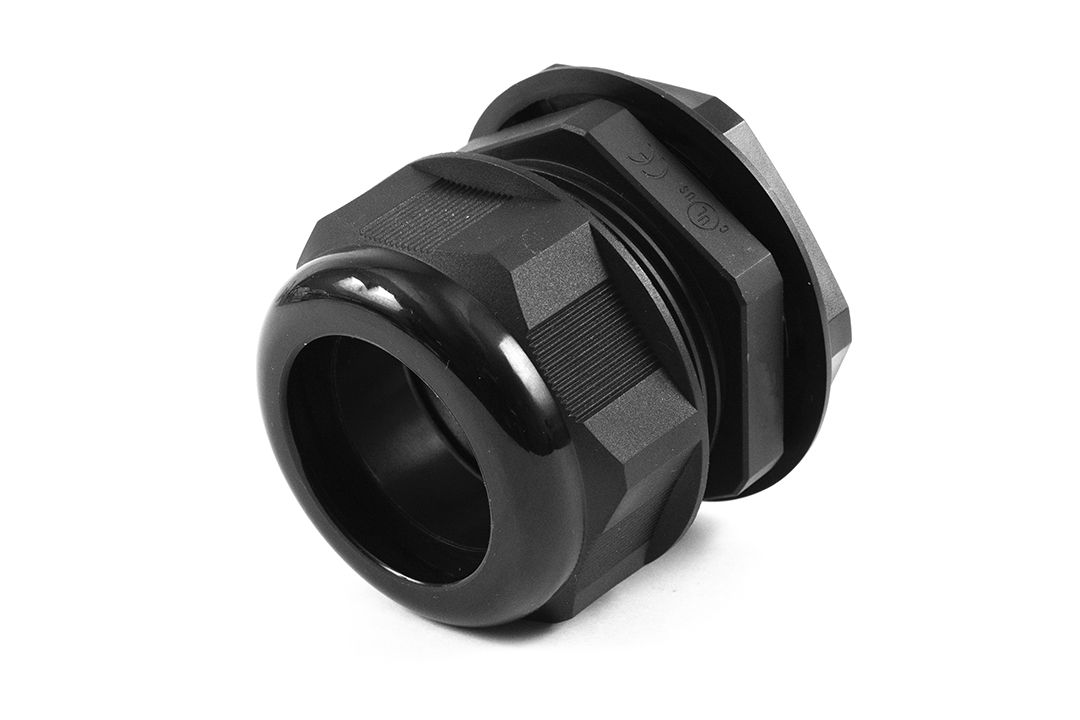

1427NCGPG42G1427NCGPG42BNylonPG422.171.261.501.930.51$6.92In stock1427NCGPG42GBuy now

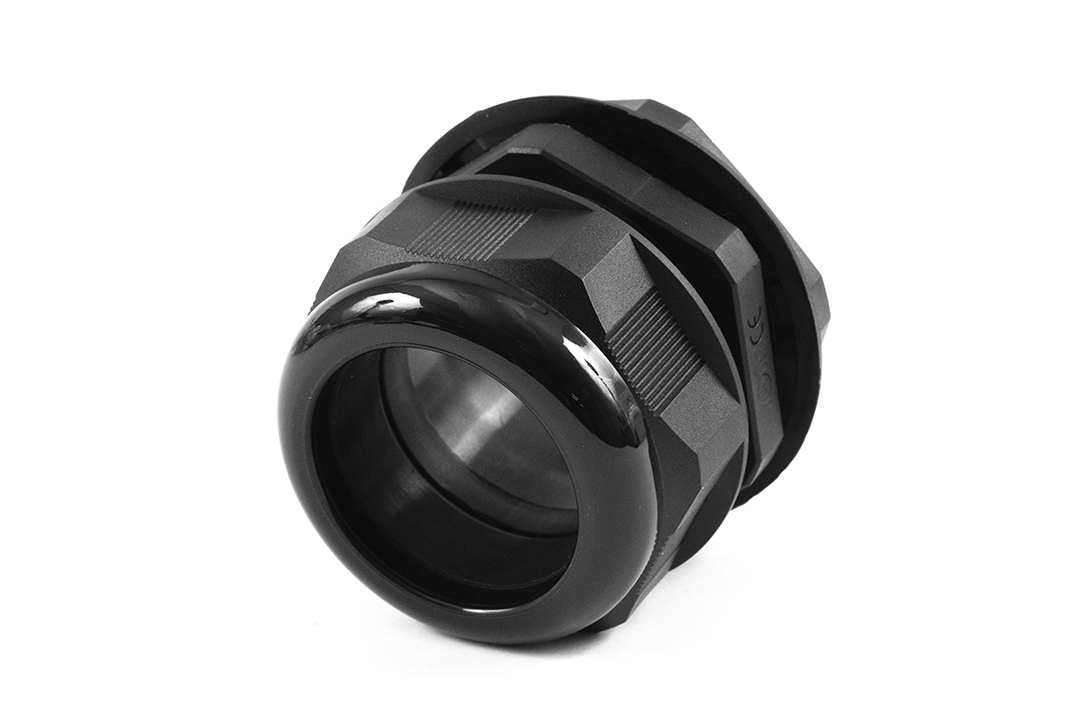

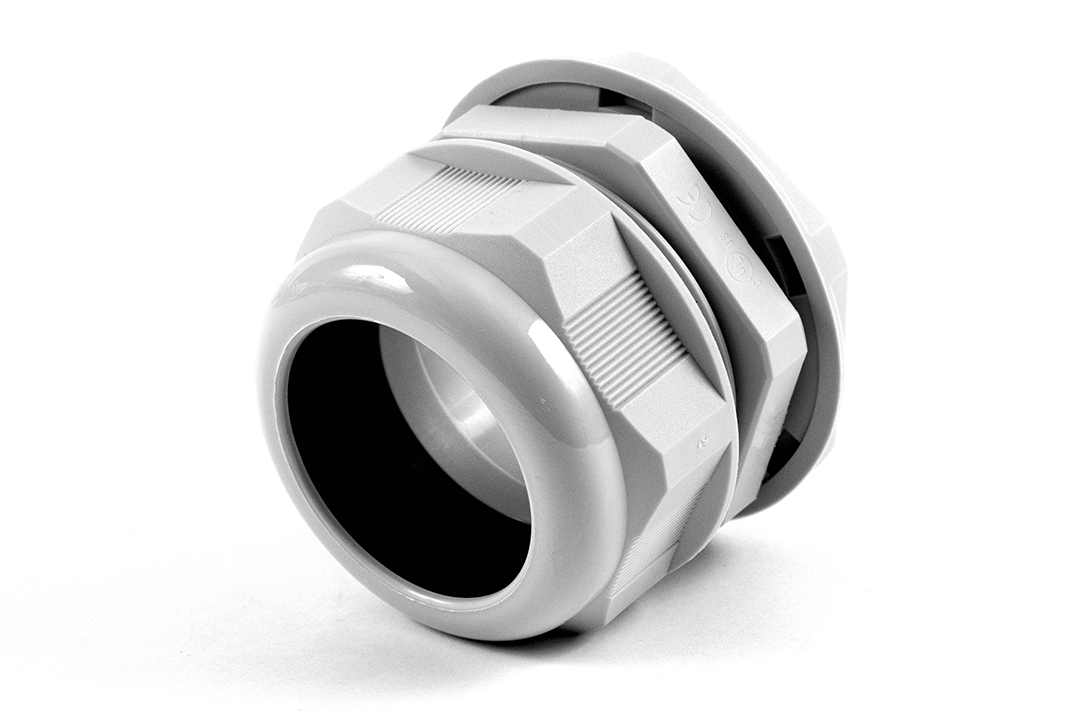

1427NCGPG48G1427NCGPG48BNylonPG482.361.461.731.930.55$8.11In stock1427NCGPG48GBuy now

PG Threads (Extra Long)

Units shown: mm . Switch units to: inch

Part Number (Gray)Part Number (Black)MaterialThread Size · (D)Mounting Hole · DiameterWire Diameter · MinWire Diameter · MaxOuter Length · (L)Inner Thread Length · (T)PriceOrder

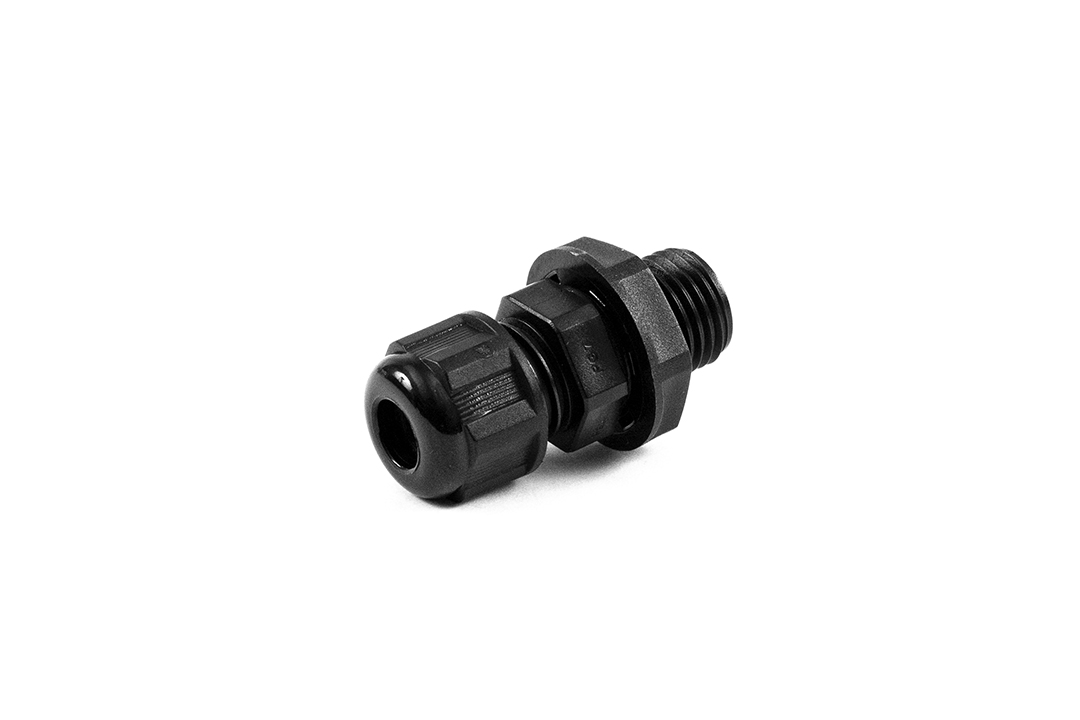

1427NCGPG7LG1427NCGPG7LBNylonPG70.510.120.280.830.59$1.03In stock1427NCGPG7LGBuy now
1427NCGPG9LG1427NCGPG9LBNylonPG90.590.160.310.870.59$1.08In stock1427NCGPG9LGBuy now

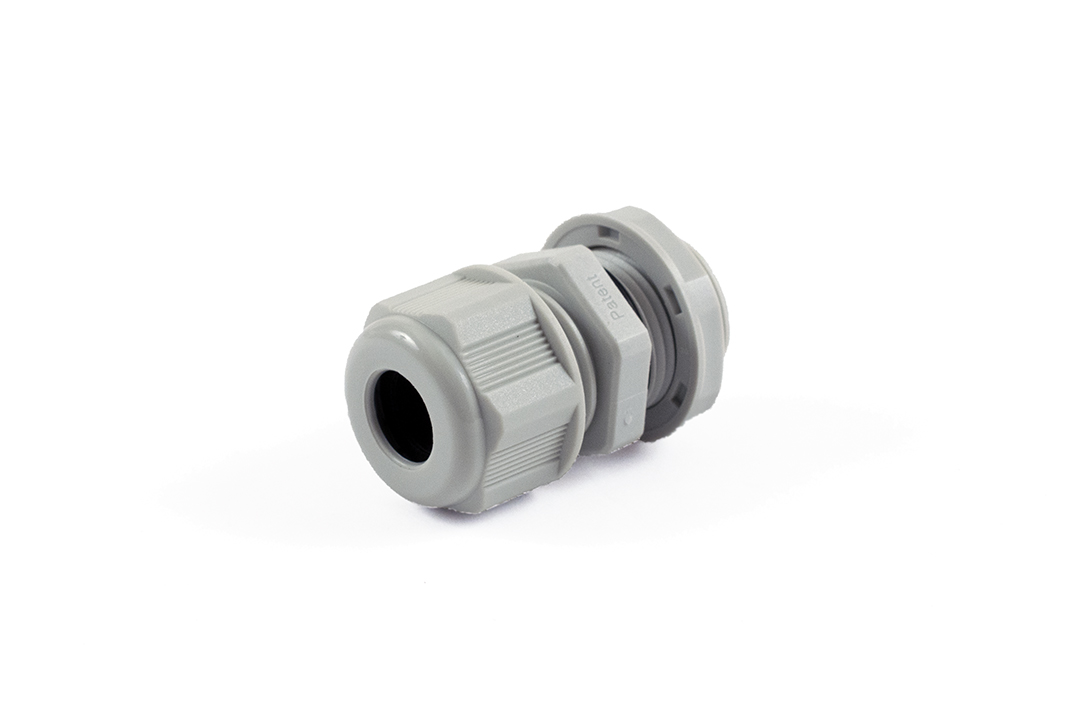

1427NCGPG11LG1427NCGPG11LBNylonPG110.750.200.390.980.59$1.23In stock1427NCGPG11LGBuy now

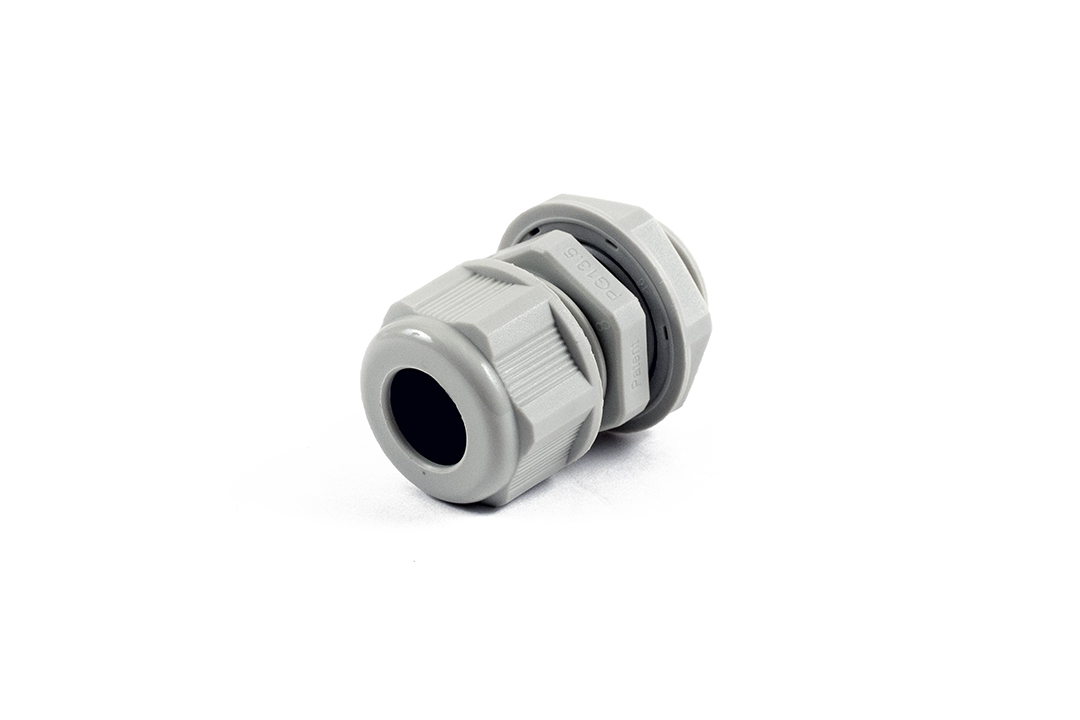

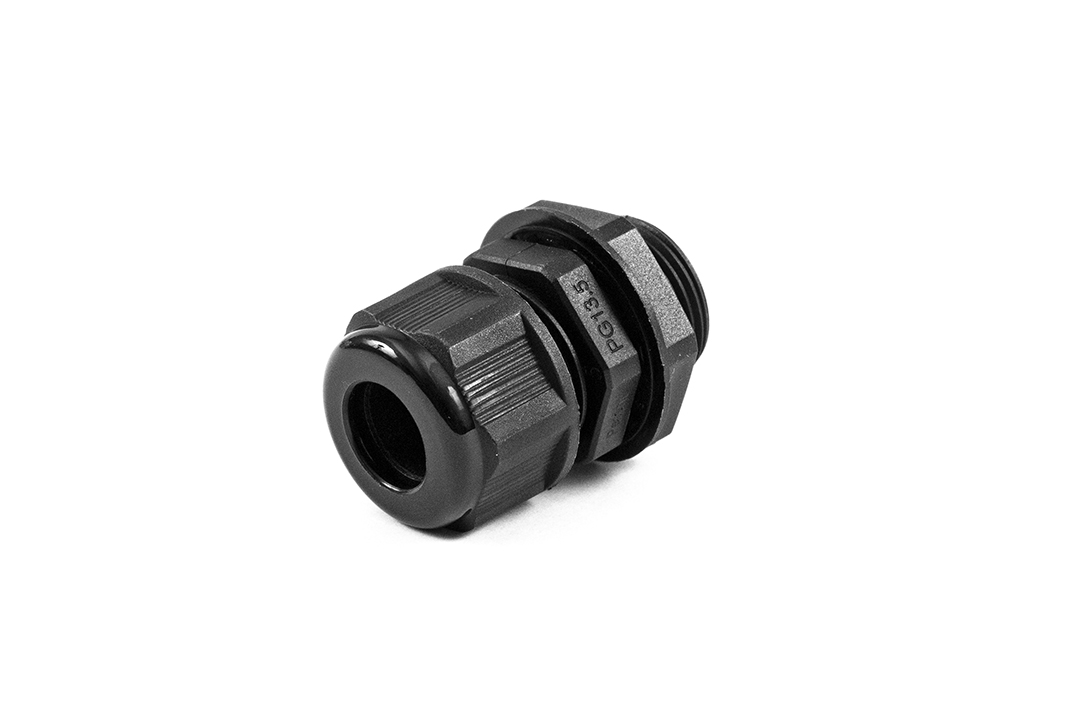

1427NCGPG13LG1427NCGPG13LBNylonPG13.50.830.240.471.060.59$1.31In stock1427NCGPG13LGBuy now

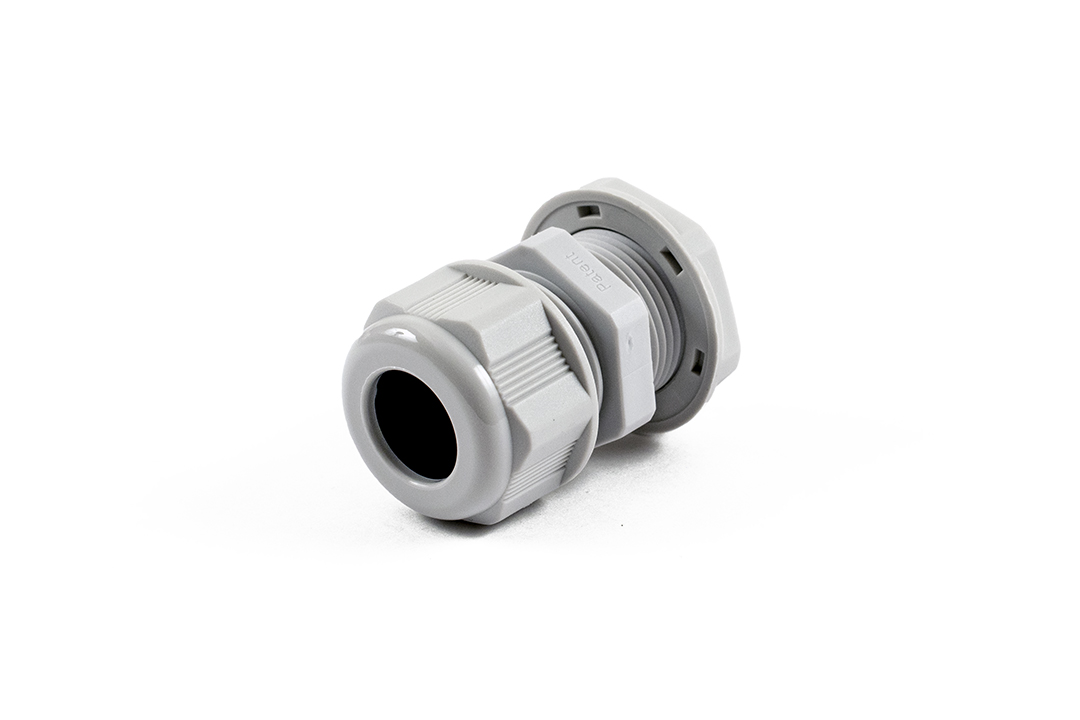

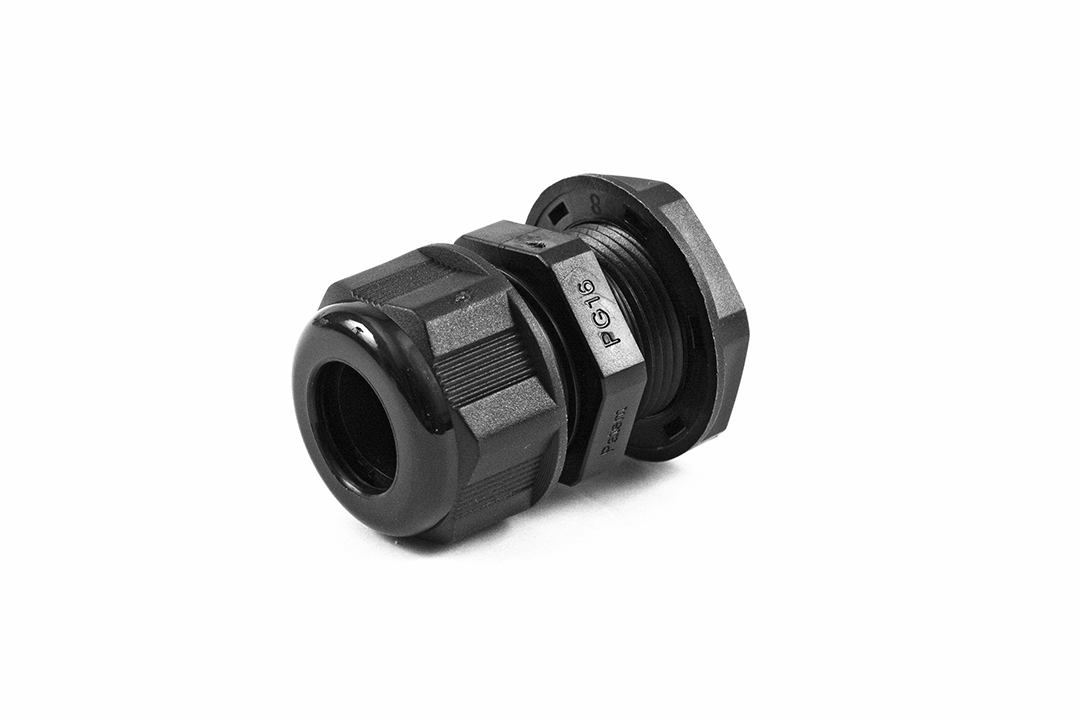

1427NCGPG16LG1427NCGPG16LBNylonPG160.910.390.551.100.59$1.63In stock1427NCGPG16LGBuy now

Metric Threads

Units shown: mm . Switch units to: inch

Part Number (Gray)Part Number (Black)MaterialThread Size · (D)Mounting Hole · DiameterWire Diameter · MinWire Diameter · MaxOuter Length · (L)Inner Thread Length · (T)PriceOrder

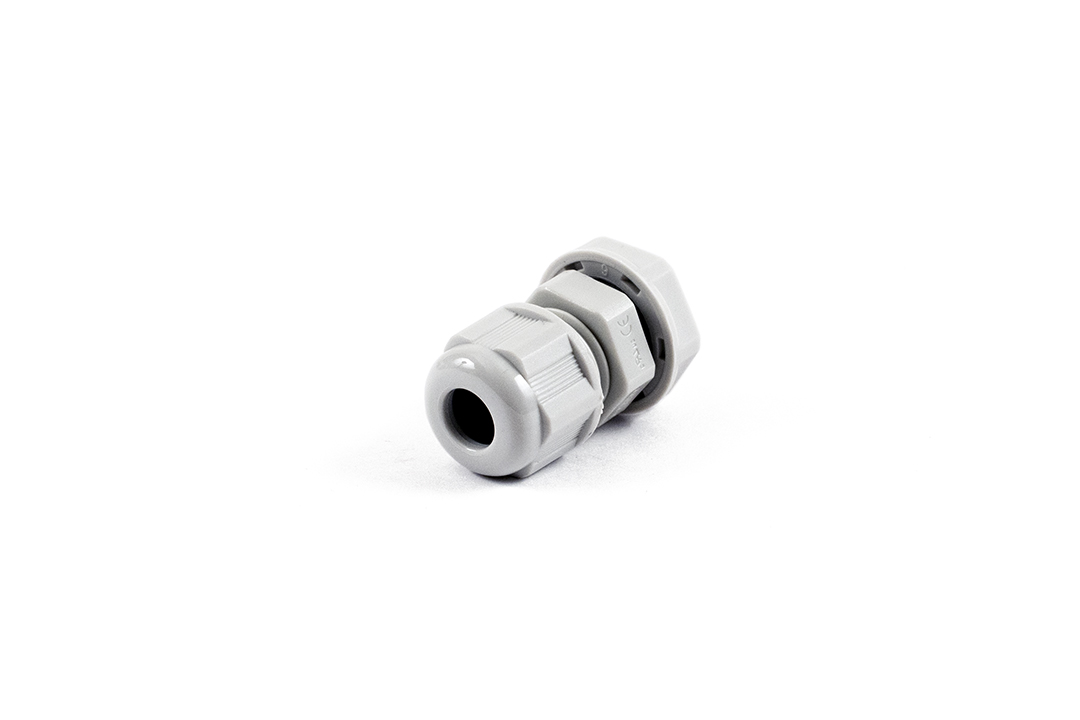

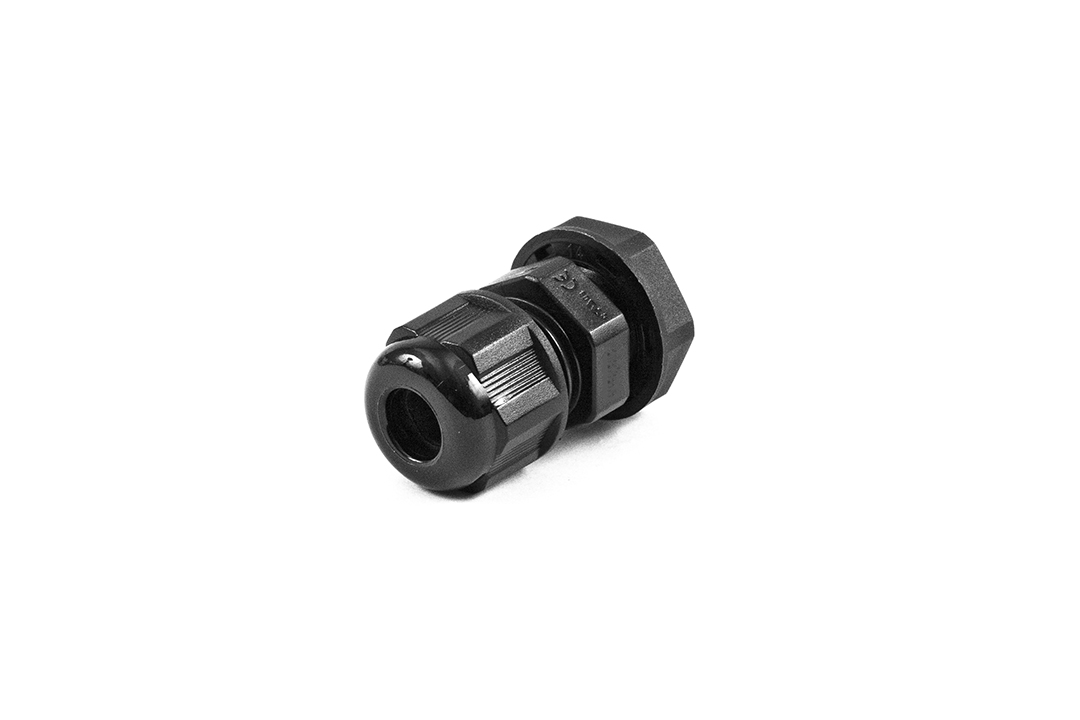

1427NCGM12G1427NCGM12BNylonM12x1.50.470.120.280.830.31$0.99In stock1427NCGM12GBuy now
1427NCGM16G1427NCGM16BNylonM16x1.50.630.160.310.870.31$1.07In stock1427NCGM16GBuy now

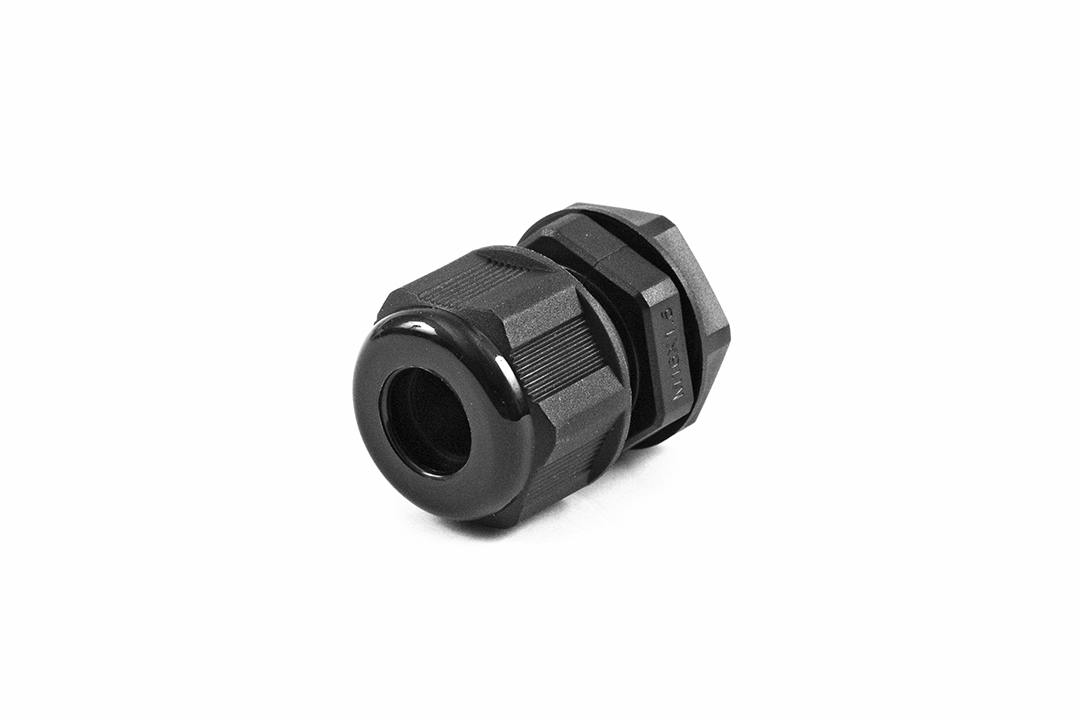

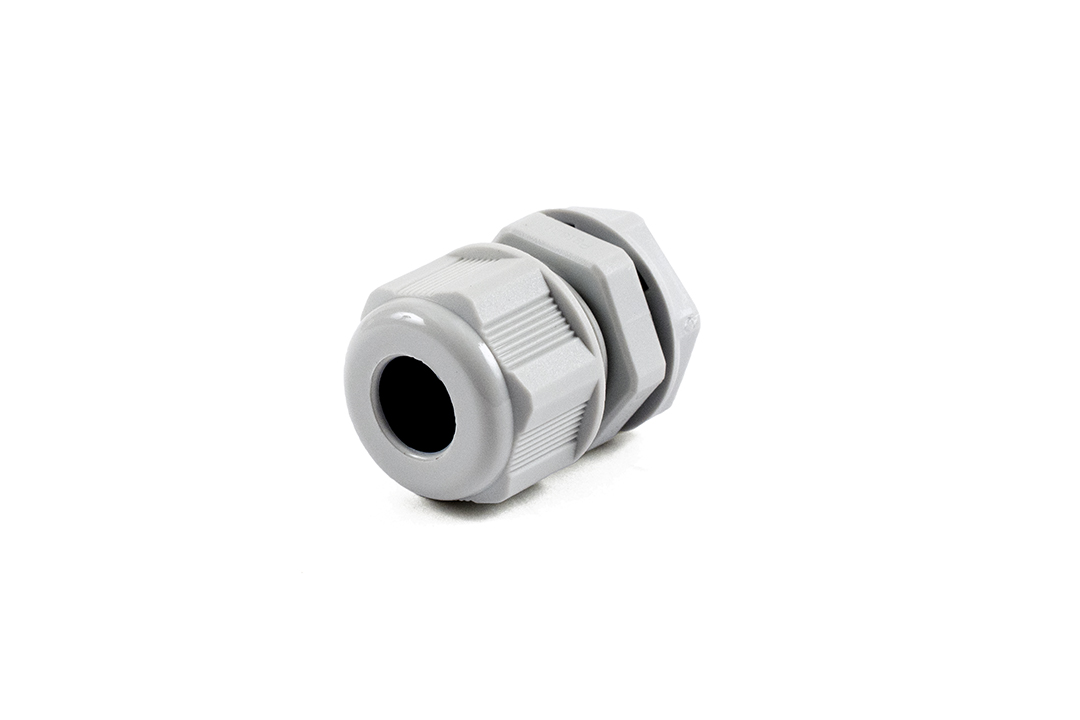

1427NCGM16LG1427NCGM16LBNylonM16x1.50.630.200.390.980.31$1.18In stock1427NCGM16LGBuy now

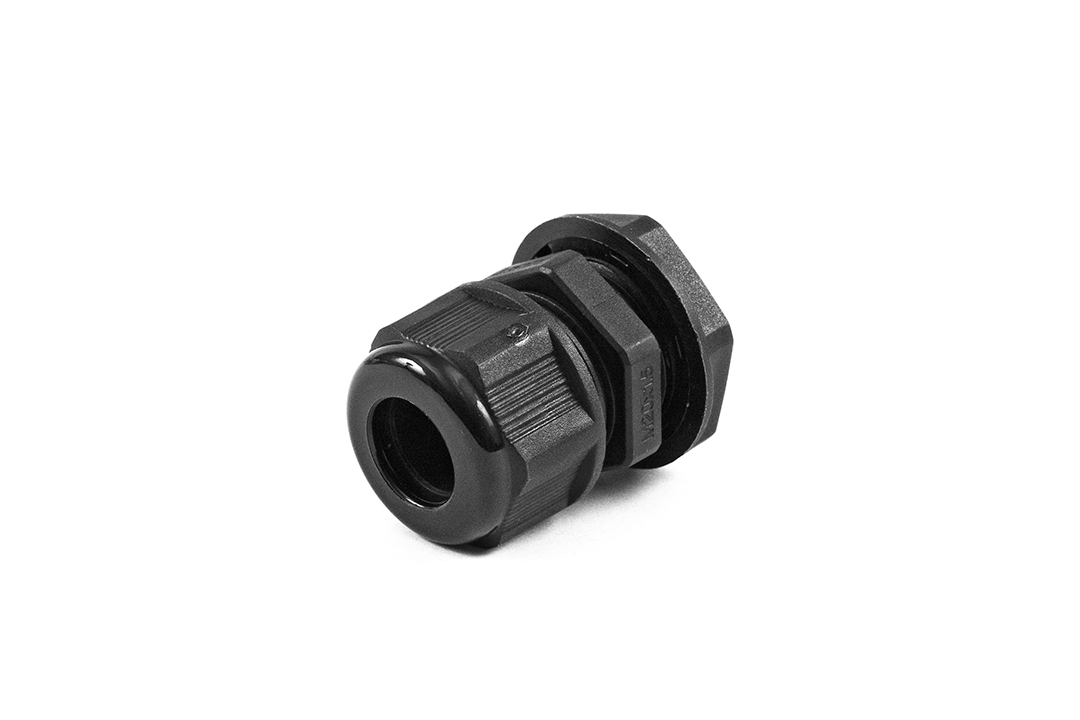

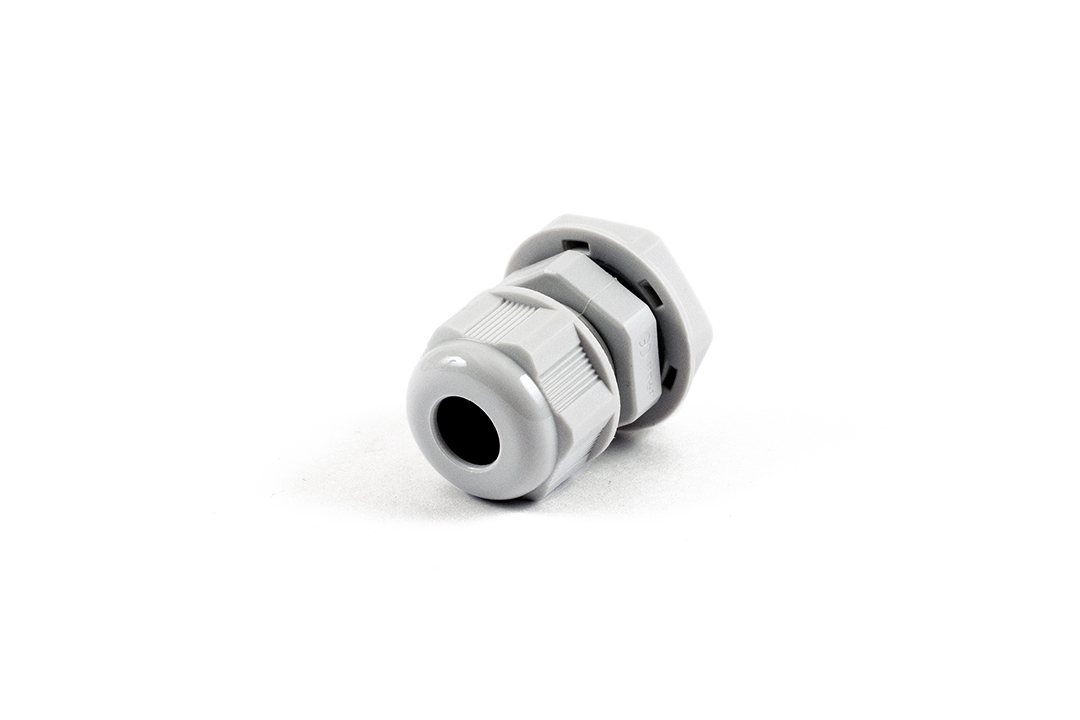

1427NCGM20G1427NCGM20BNylonM20x1.50.790.240.471.060.35$1.23In stock1427NCGM20GBuy now

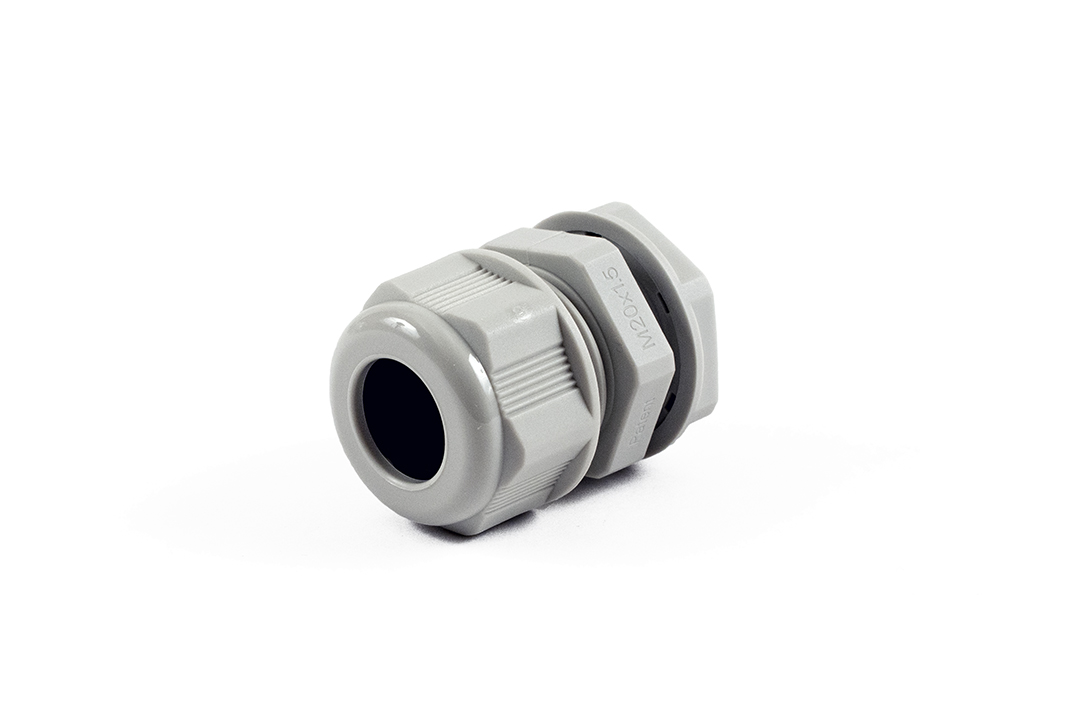

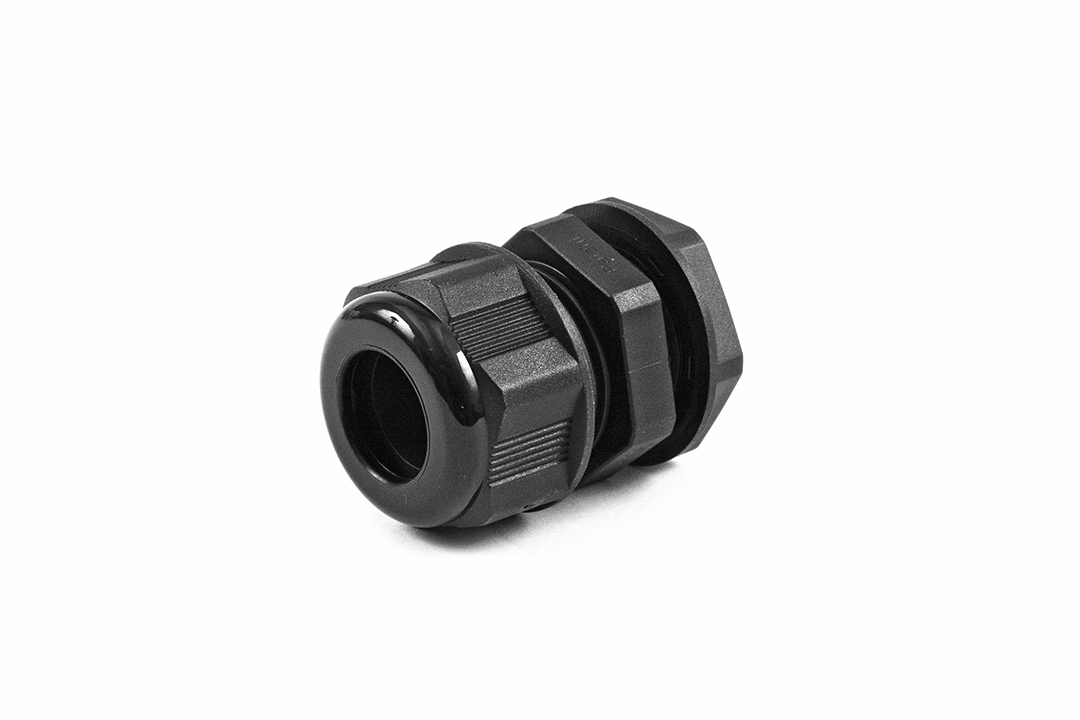

1427NCGM20LG1427NCGM20LBNylonM20x1.50.790.390.551.100.35$1.51In stock1427NCGM20LGBuy now

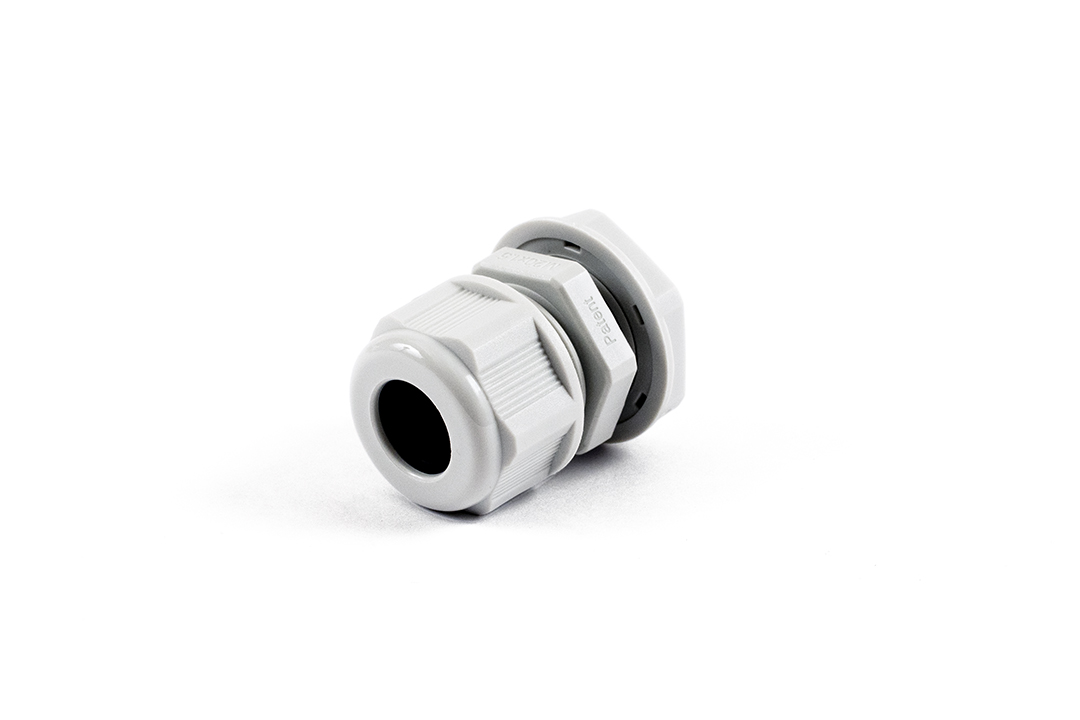

1427NCGM25G1427NCGM25BNylonM25x1.50.980.510.711.220.43$1.99In stock1427NCGM25GBuy now

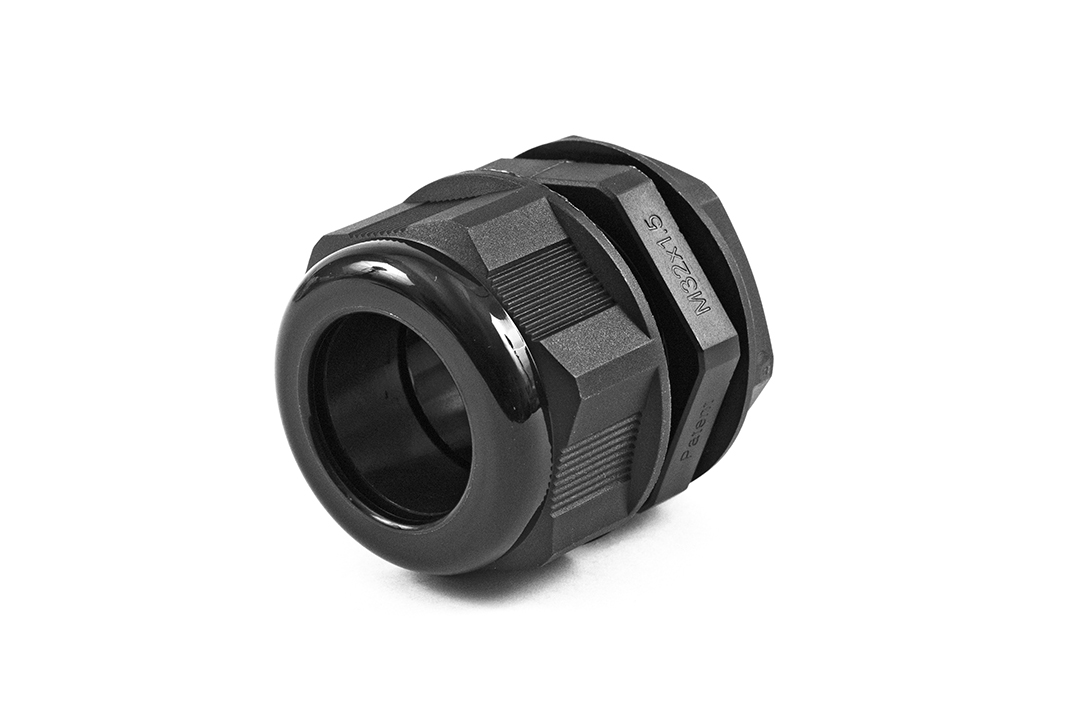

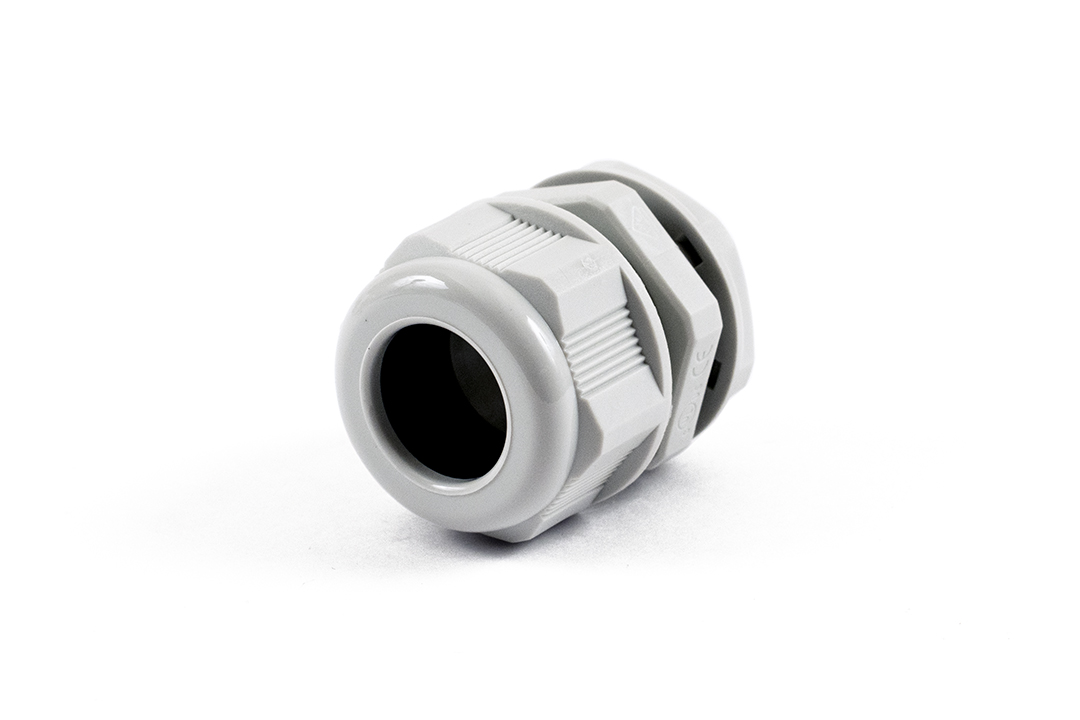

1427NCGM32G1427NCGM32BNylonM32x1.51.260.710.981.460.43$2.99In stock1427NCGM32GBuy now

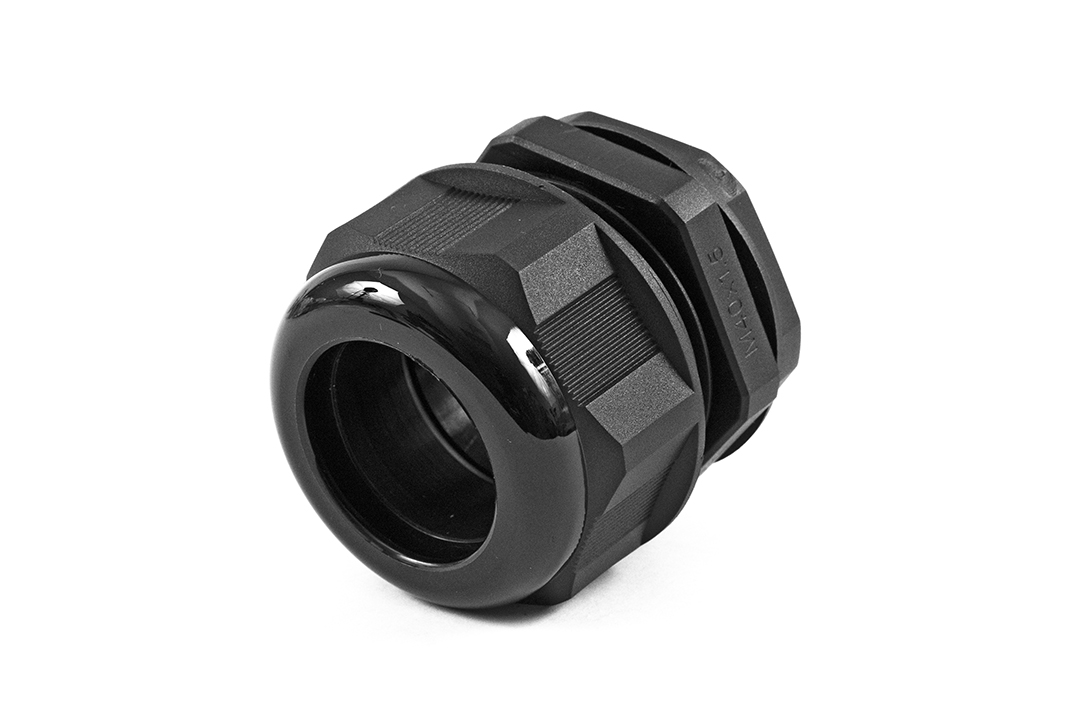

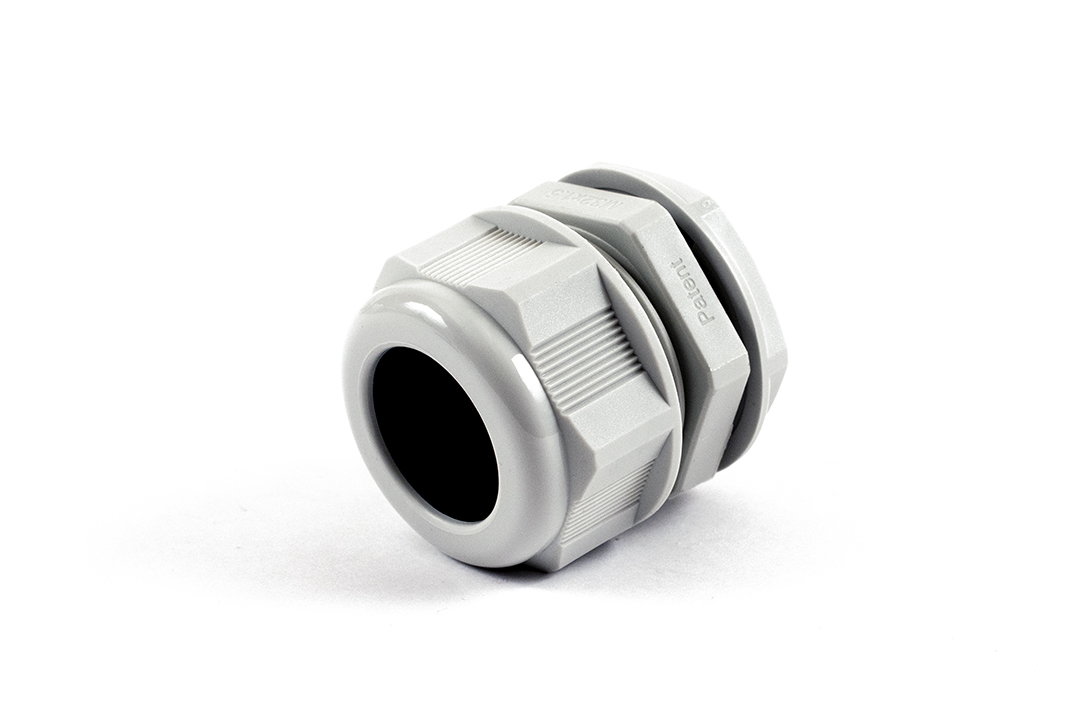

1427NCGM40G1427NCGM40BNylonM40x1.51.570.871.261.890.51$4.59In stock1427NCGM40GBuy now

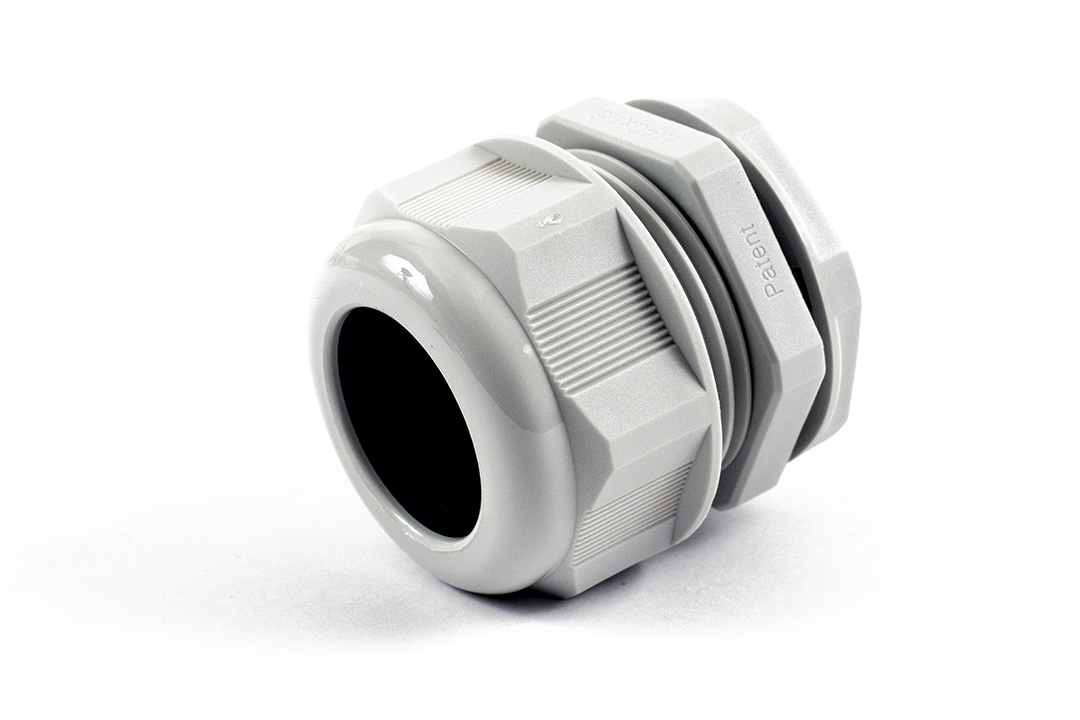

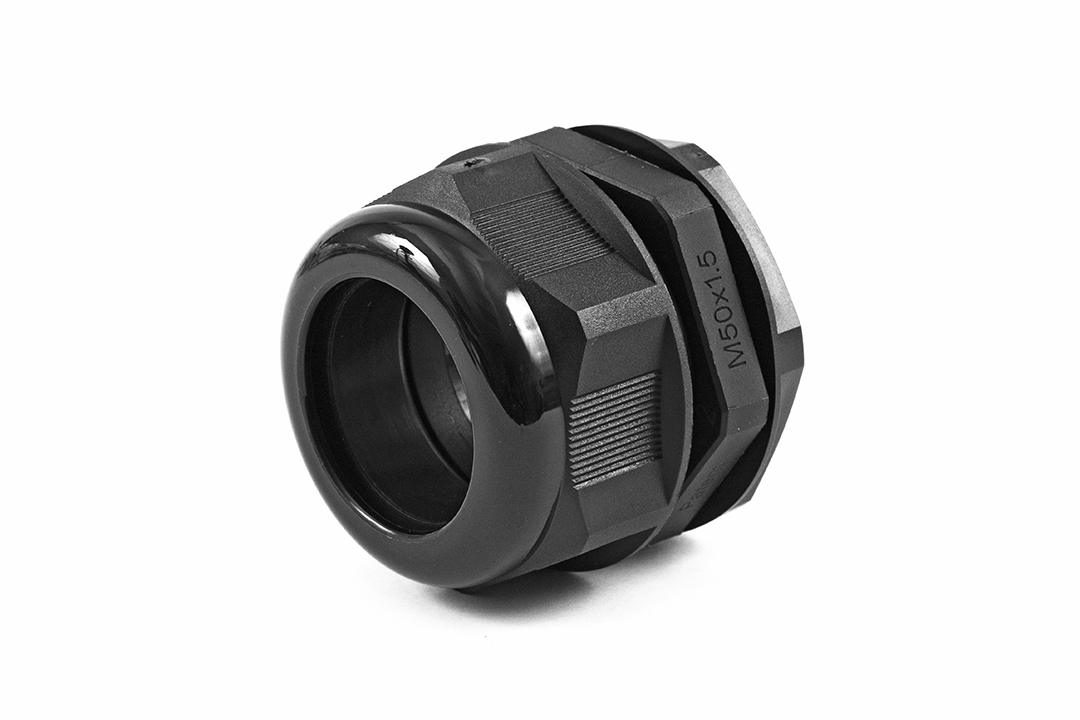

1427NCGM50G1427NCGM50BNylonM50x1.51.971.261.501.930.51$6.92In stock1427NCGM50GBuy now

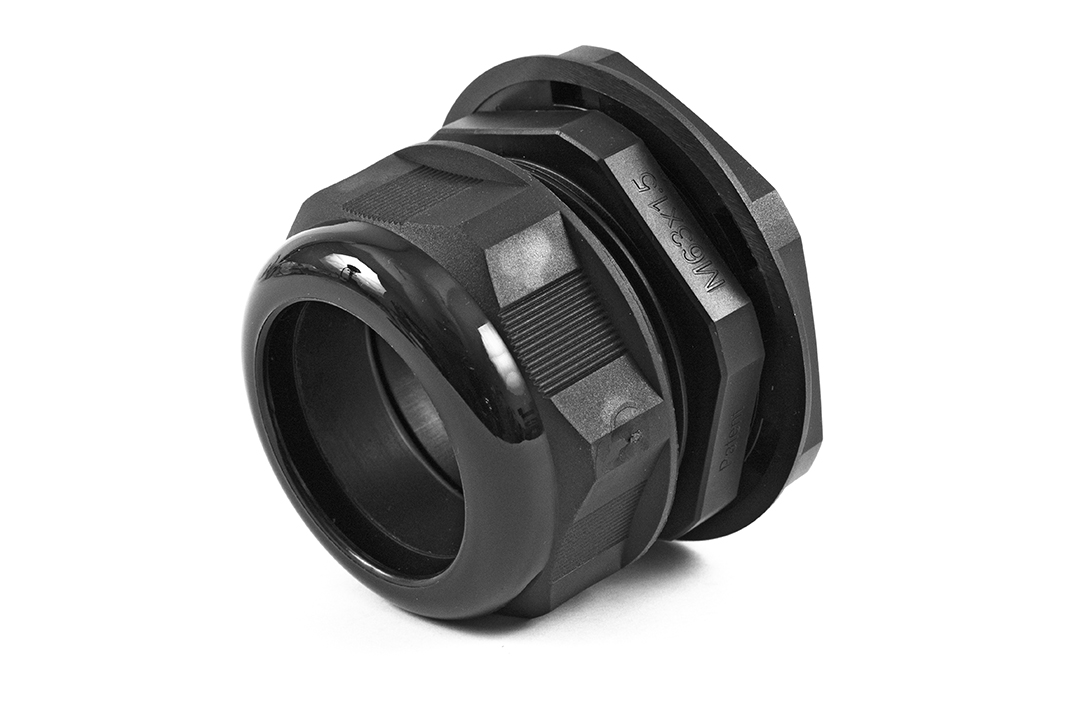

1427NCGM63G1427NCGM63BNylonM63x1.52.481.461.731.930.55$8.11In stock1427NCGM63GBuy now

Torque Specifications

Thread SizeSealing Nut Torque (N-m) · Min.Sealing Nut Torque (N-m) · Max.Locknut Torque (N-m) · Min.Locknut Torque (N-m) · Max.PriceOrder
PG70.81.512QuoteQuote
PG9121.21.8QuoteQuote
PG111.52.51.52.5QuoteQuote
PG13.53.54.535QuoteQuote
PG164546QuoteQuote
PG215647QuoteQuote
PG297857QuoteQuote
PG36810810QuoteQuote
PG42912810QuoteQuote
PG481113810QuoteQuote
M120.81.512QuoteQuote
M16 (small)121.52.5QuoteQuote
M16 (large)2323QuoteQuote
M20 (small)3.54.52.53.5QuoteQuote
M20 (large)453.54.5QuoteQuote
M254625QuoteQuote
M327847QuoteQuote
M40101379QuoteQuote
M501113810QuoteQuote
M631215912QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Liquid-tight cordgrip made from nylon
  • ■Available in black (RAL 9005) or gray (RAL 7035).
  • ■Used where cable is entering or leaving an enclosure.
  • ■Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
  • ■The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
  • ■Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
  • ■Nylon locknut and EPDM o-ring included (as shown).
  • ■Operating Temperatures: Static state: -40°C to 100°C (up to 120° instantaneous) Dynamic state: -20°C to 80°C (up to 100° instantaneous)
  • ■Static state: -40°C to 100°C (up to 120° instantaneous)
  • ■Dynamic state: -20°C to 80°C (up to 100° instantaneous)
  • ■Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 - Protection to IP68.
  • ■UL94-V2 flammability rating.
  • ■UL listed.

Documents

Specification Sheet
