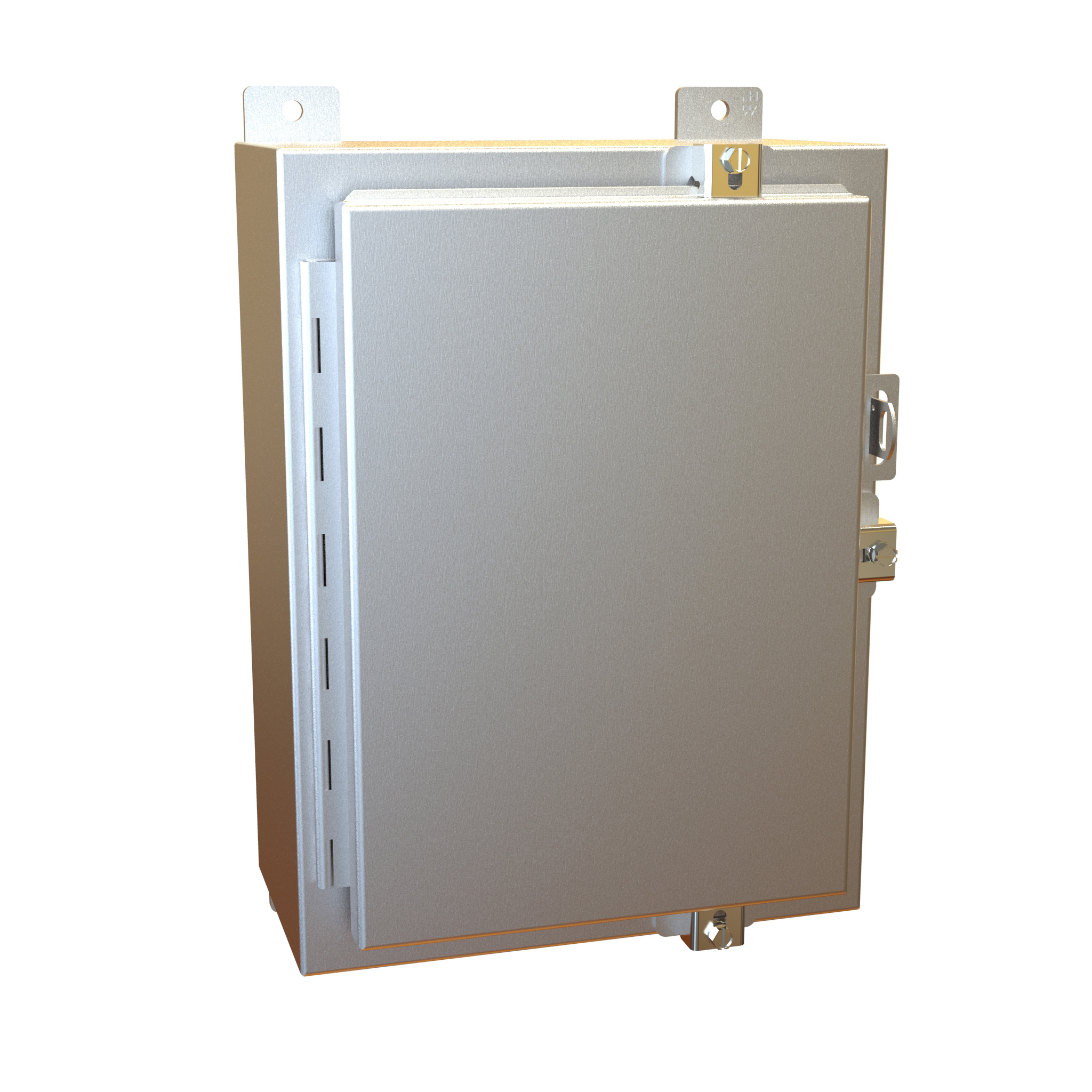

NEMA 4 Aluminum Enclosure 16X12X6
$598.46In stock
Buy now
Type 4X Aluminum Wallmount Enclosure · 1418 N4 AL Series
Brand: Hammond Manufacturing · 12 part numbers
Continuous Hinge Door with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
- ■UL 508A Type 4, 4X, 12 and 13
- ■CSA Type 4, 4X, 12 and 13
- ■Complies with NEMA Type 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 4, 4X, 12 and 13
from $598.46
12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1418 N4 AL Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online
NEMA 4 Aluminum Enclosure 20X16X10
$794.35In stock
Buy now

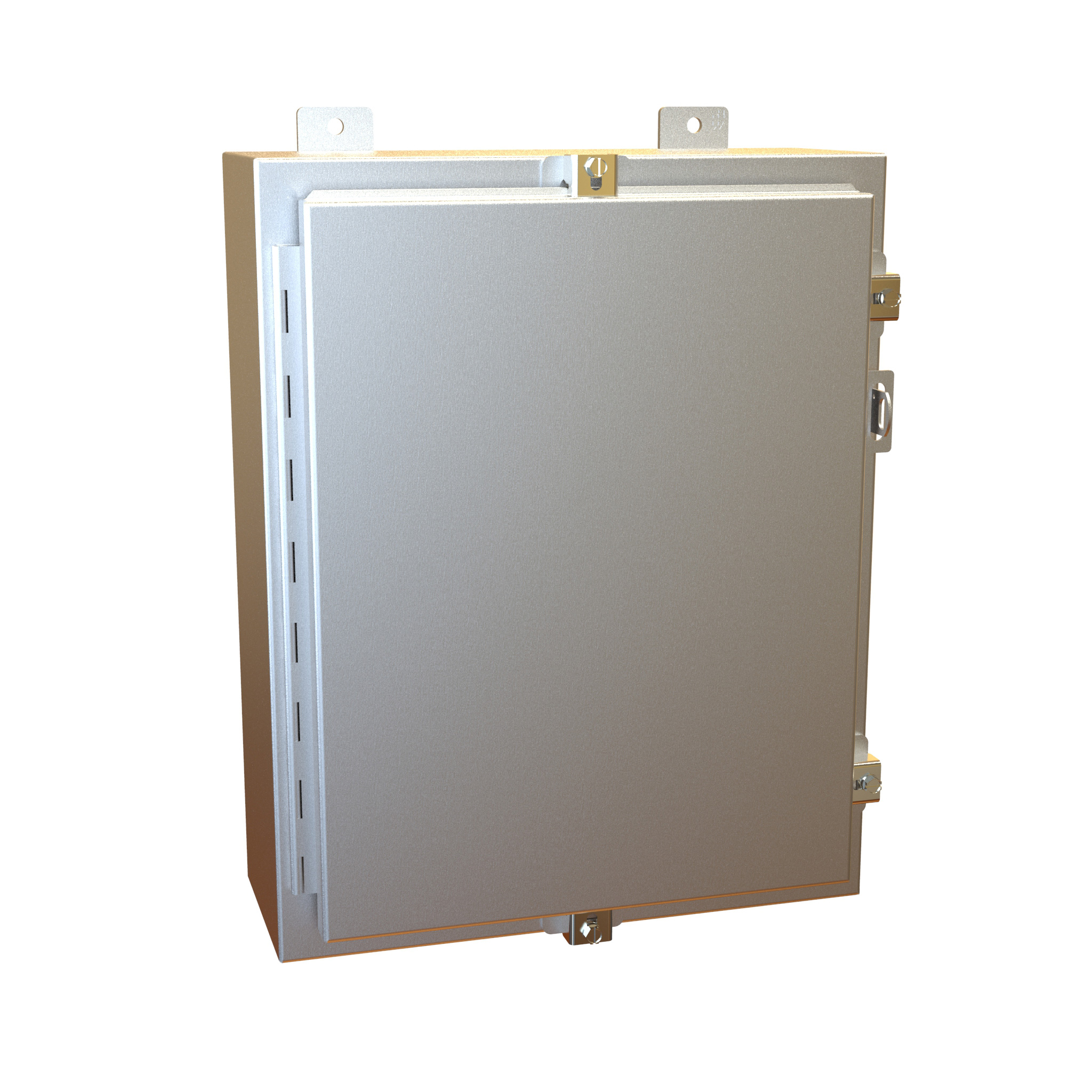

NEMA 4 Aluminum Enclosure 20X16X6
$709.95In stock
Buy now

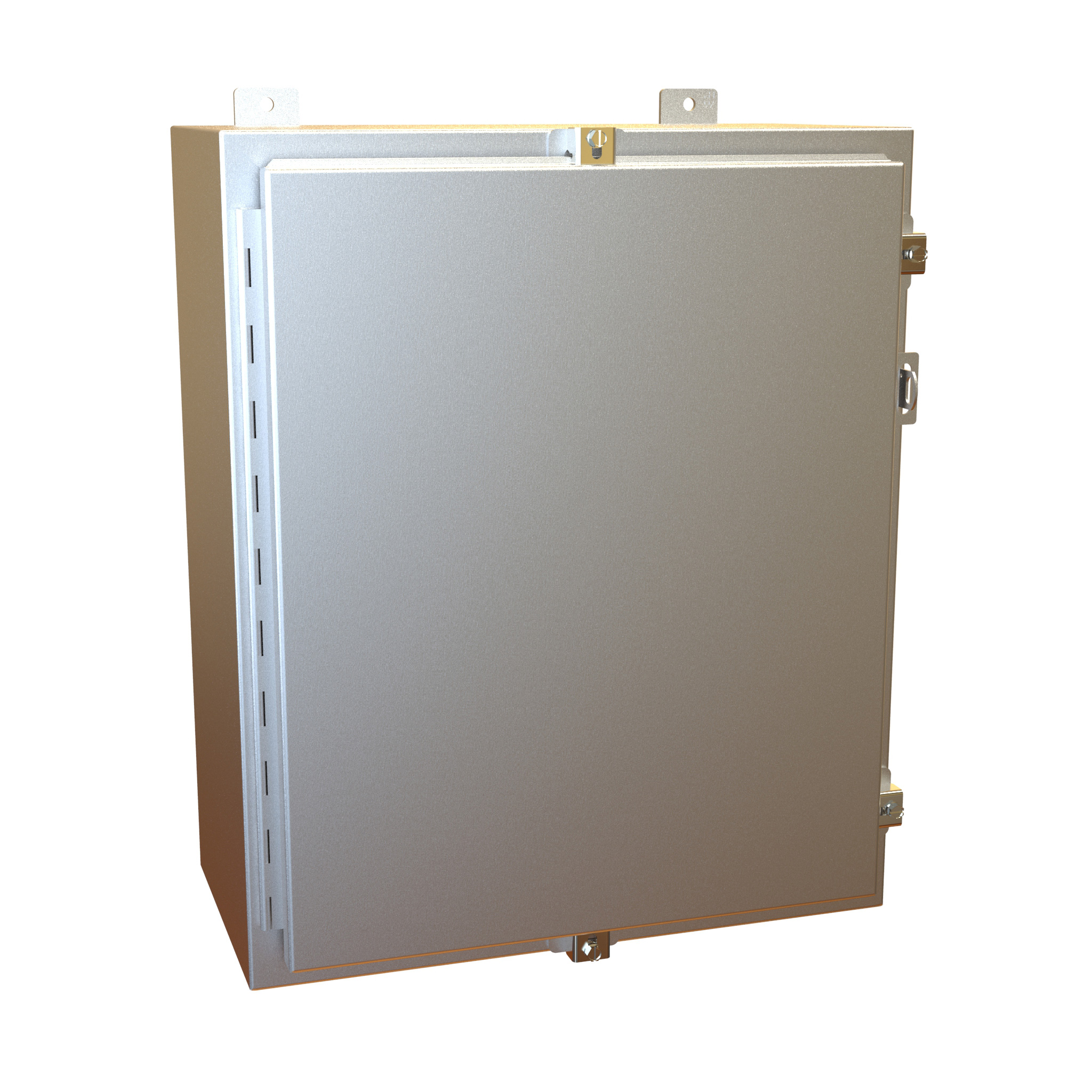

NEMA 4 Aluminum Enclosure 24X20X10
$951.06In stock
Buy now
NEMA 4 Aluminum Enclosure 24X20X6
$848.91In stock
Buy now

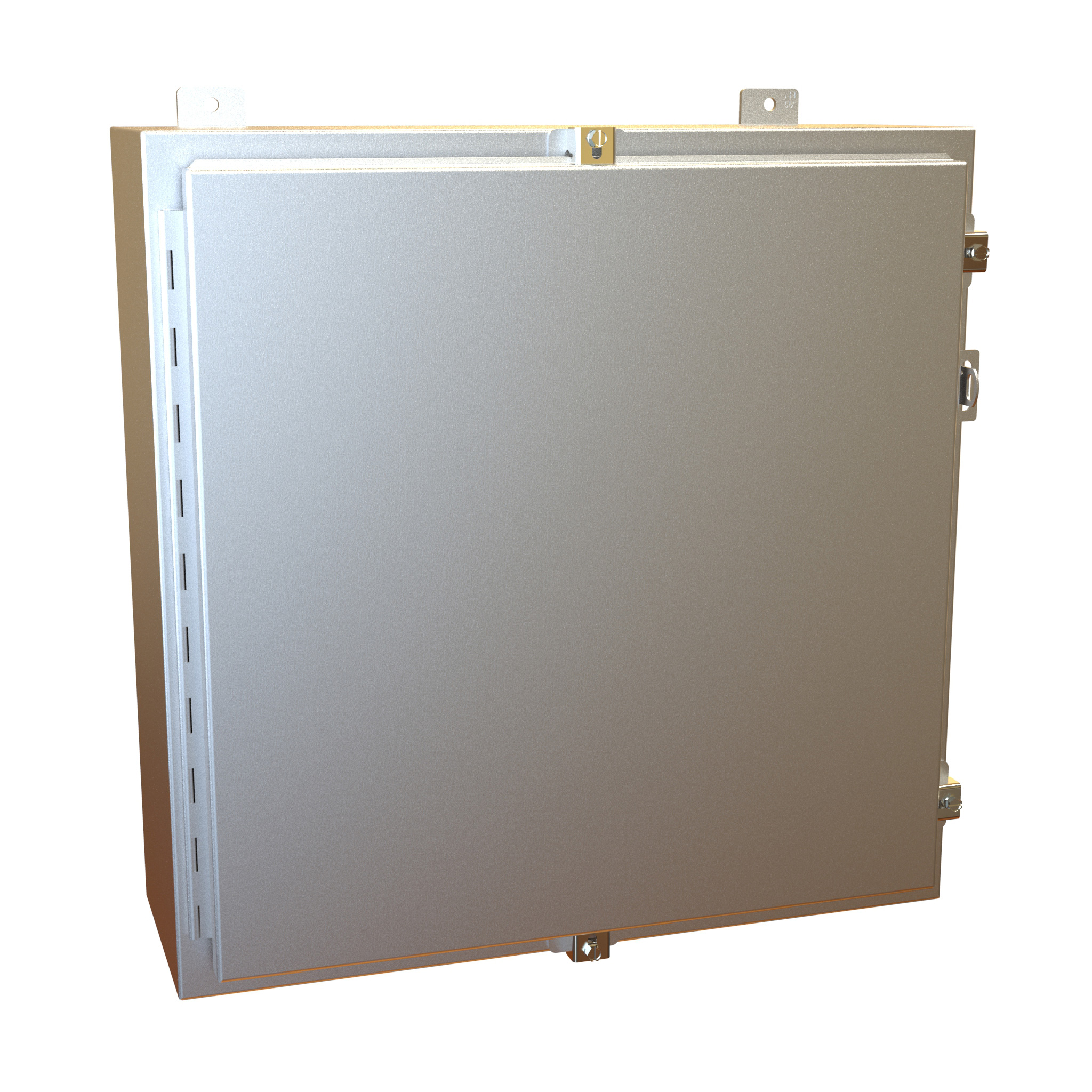

NEMA 4 Aluminum Enclosure 24X24X8
$984.34In stock
Buy now

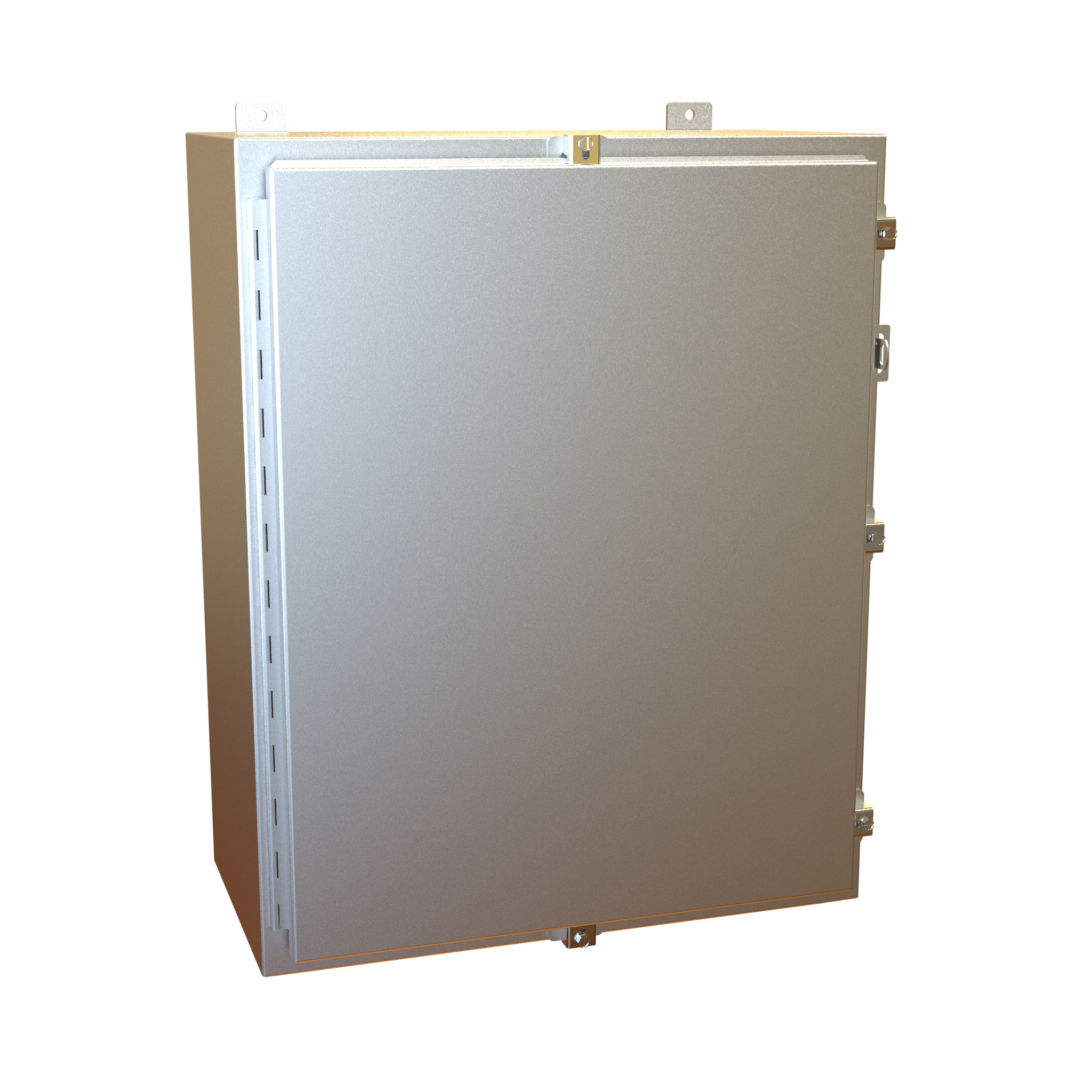

NEMA 4 Aluminum Enclosure 30X24X12
$1,233.24Backorder
Buy now
NEMA 4 Aluminum Enclosure 30X24X8
$1,109.06Backorder
Buy now

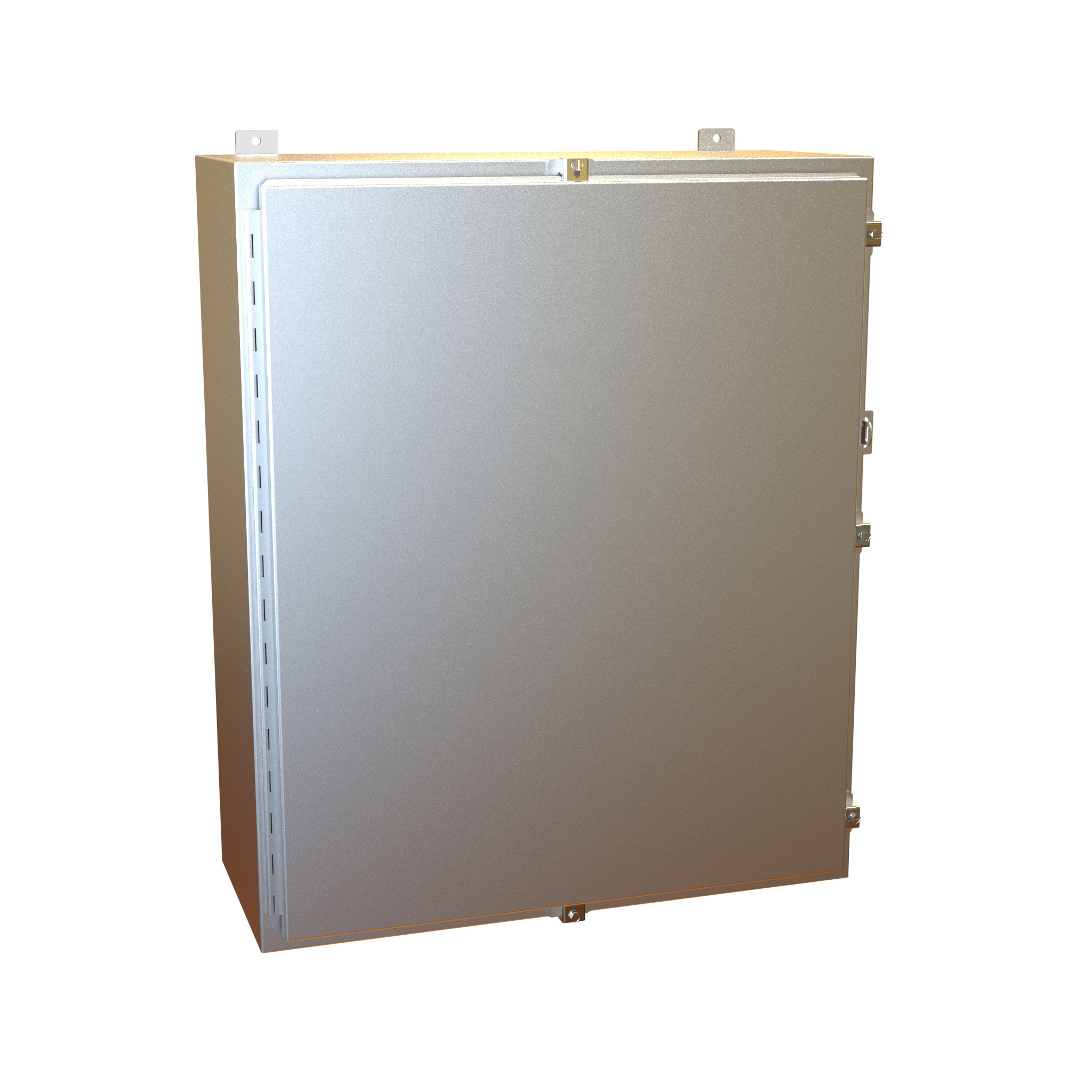

NEMA 4 Aluminum Enclosure 36X30X12
$1,567.09Backorder
Buy now
NEMA 4 Aluminum Enclosure 36X30X8
$1,414.41In stock
Buy now

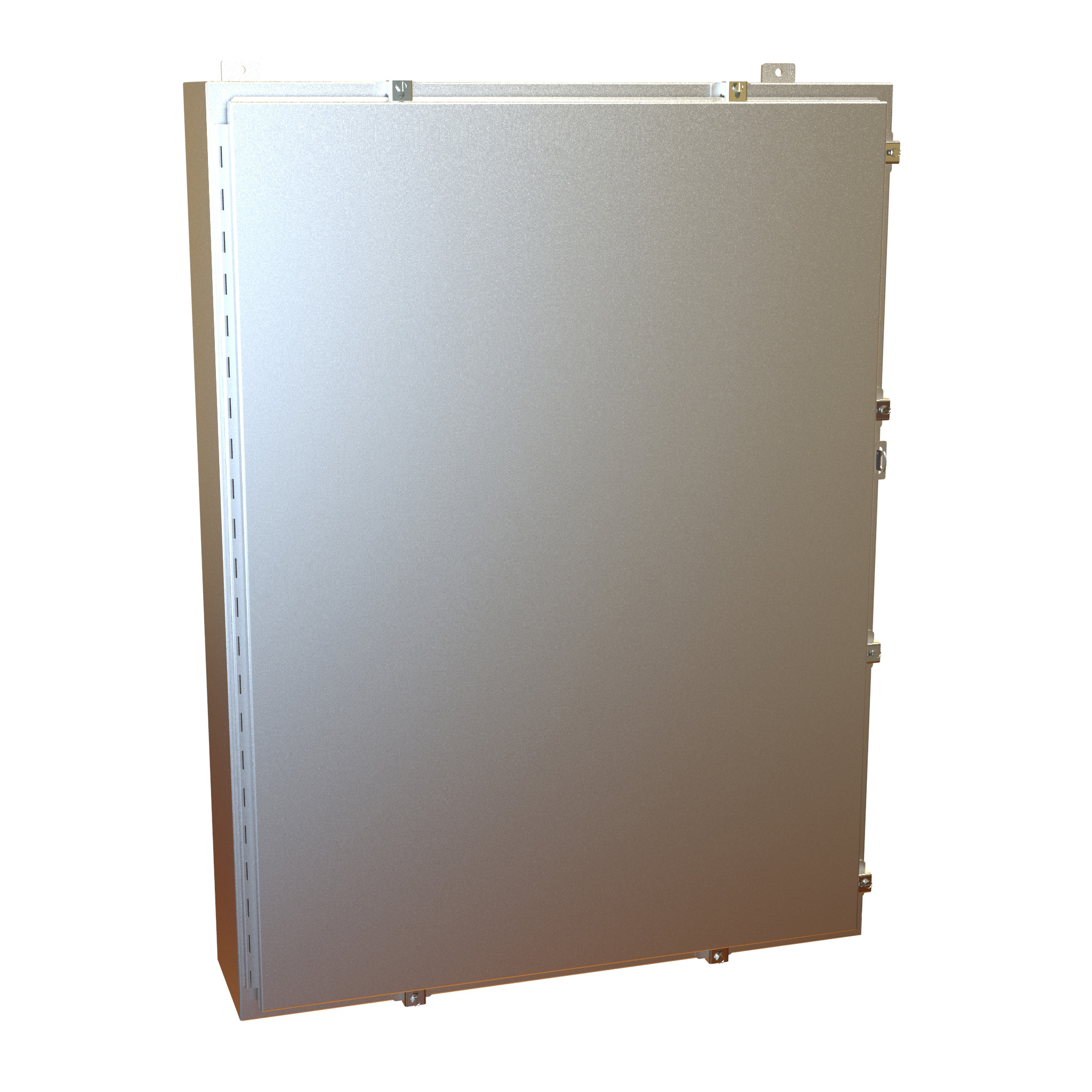

NEMA 4 Aluminum Enclosure 48X36X8
$1,928.36In stock
Buy now

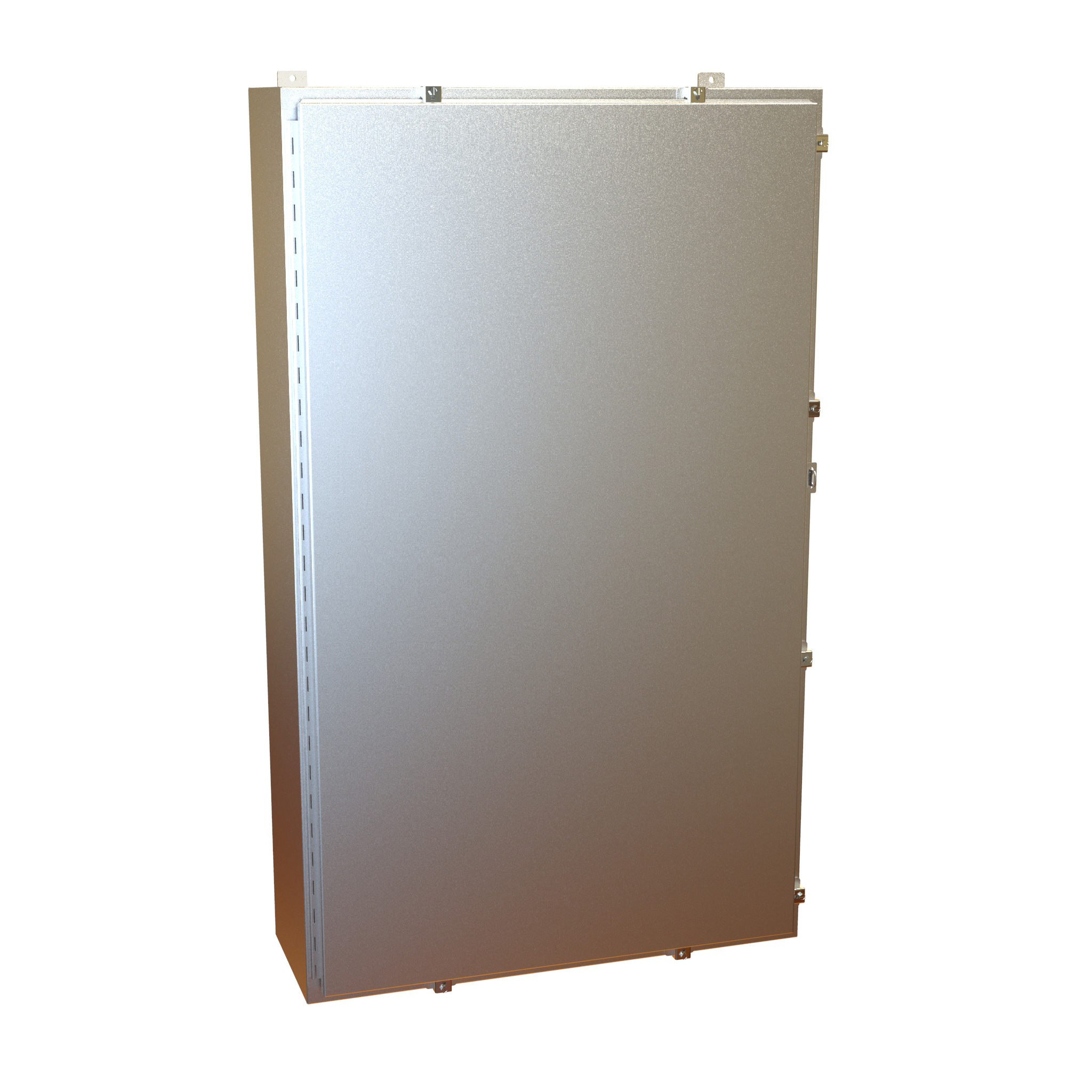

NEMA 4 Aluminum Enclosure 60X36X12
$2,495.53In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1418N4ALB6 | 16.00 | 12.00 | 6.00 | 13.00 | 9.00 | $598.46In stock | Buy now |
| 1418N4ALC6 | 20.00 | 16.00 | 6.00 | 17.00 | 13.00 | $709.95In stock | Buy now |

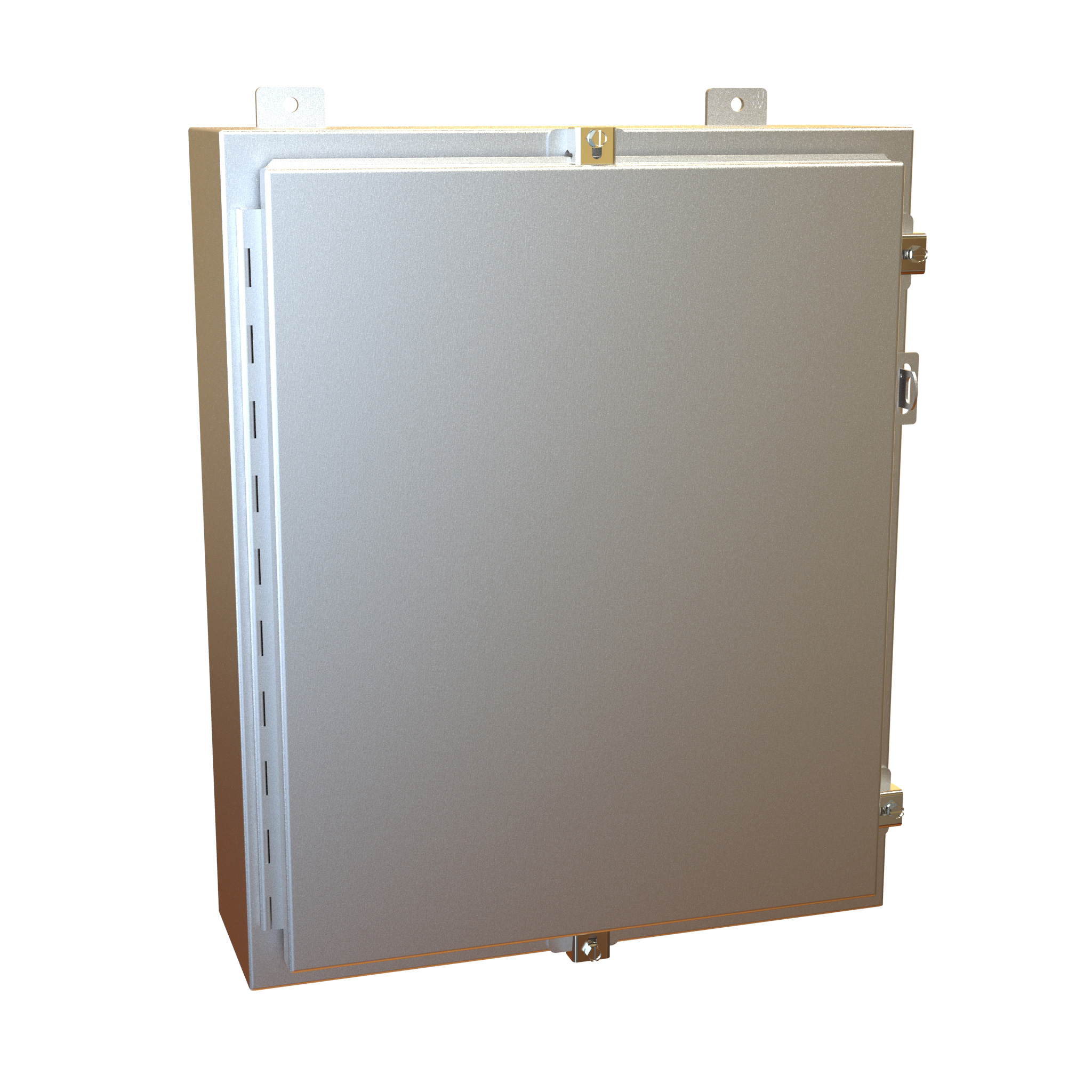

| 1418N4ALE6 | 24.00 | 20.00 | 6.00 | 21.00 | 17.00 | $848.91In stock | Buy now |
| 1418N4ALJ8 | 24.00 | 24.00 | 8.00 | 21.00 | 21.00 | $984.34In stock | Buy now |

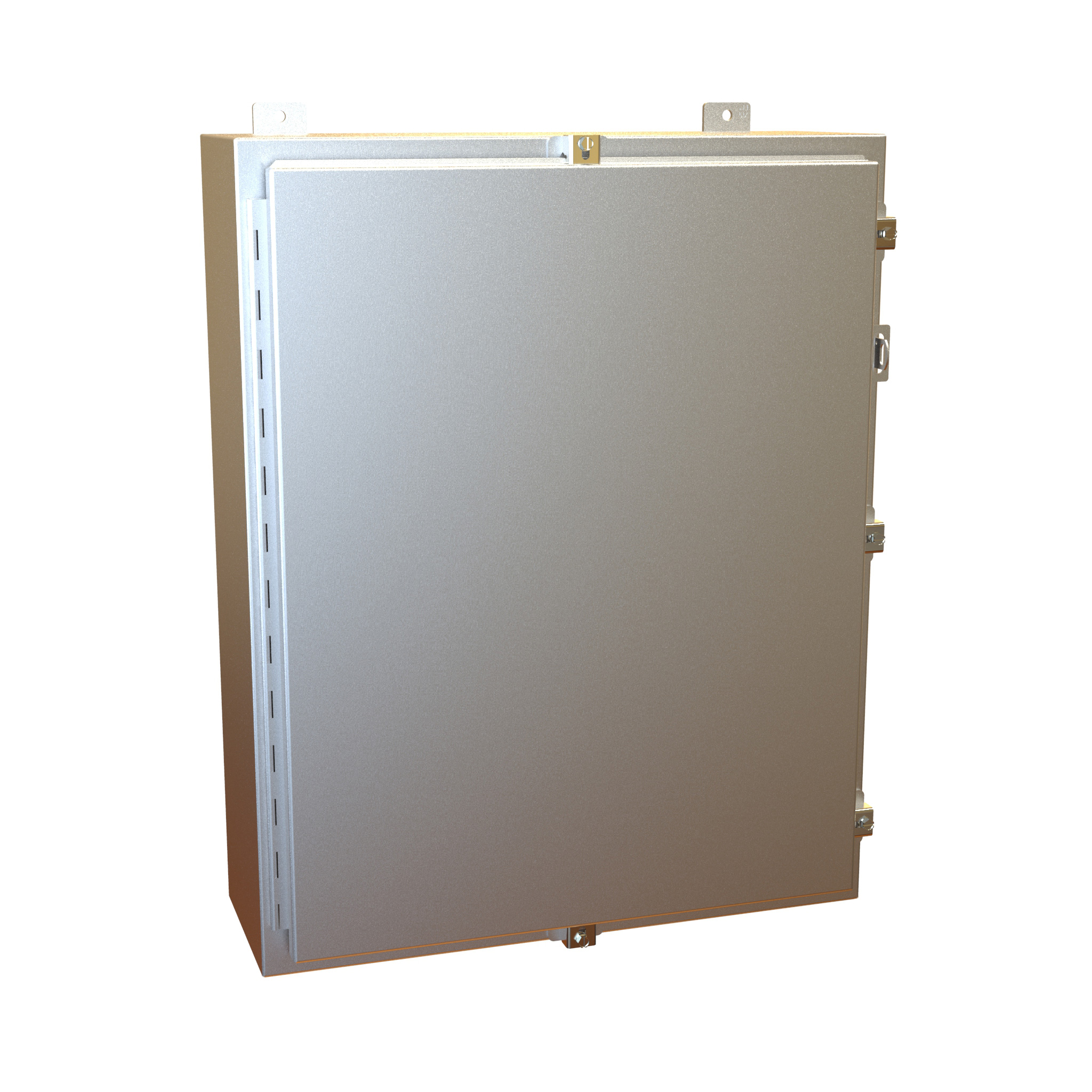

| 1418N4ALK8 | 30.00 | 24.00 | 8.00 | 27.00 | 21.00 | $1,109.06Backorder | Buy now |
| 1418N4ALM8 | 36.00 | 30.00 | 8.00 | 33.00 | 27.00 | $1,414.41In stock | Buy now |
| 1418N4ALS8 | 48.00 | 36.00 | 8.00 | 45.00 | 33.00 | $1,928.36In stock | Buy now |

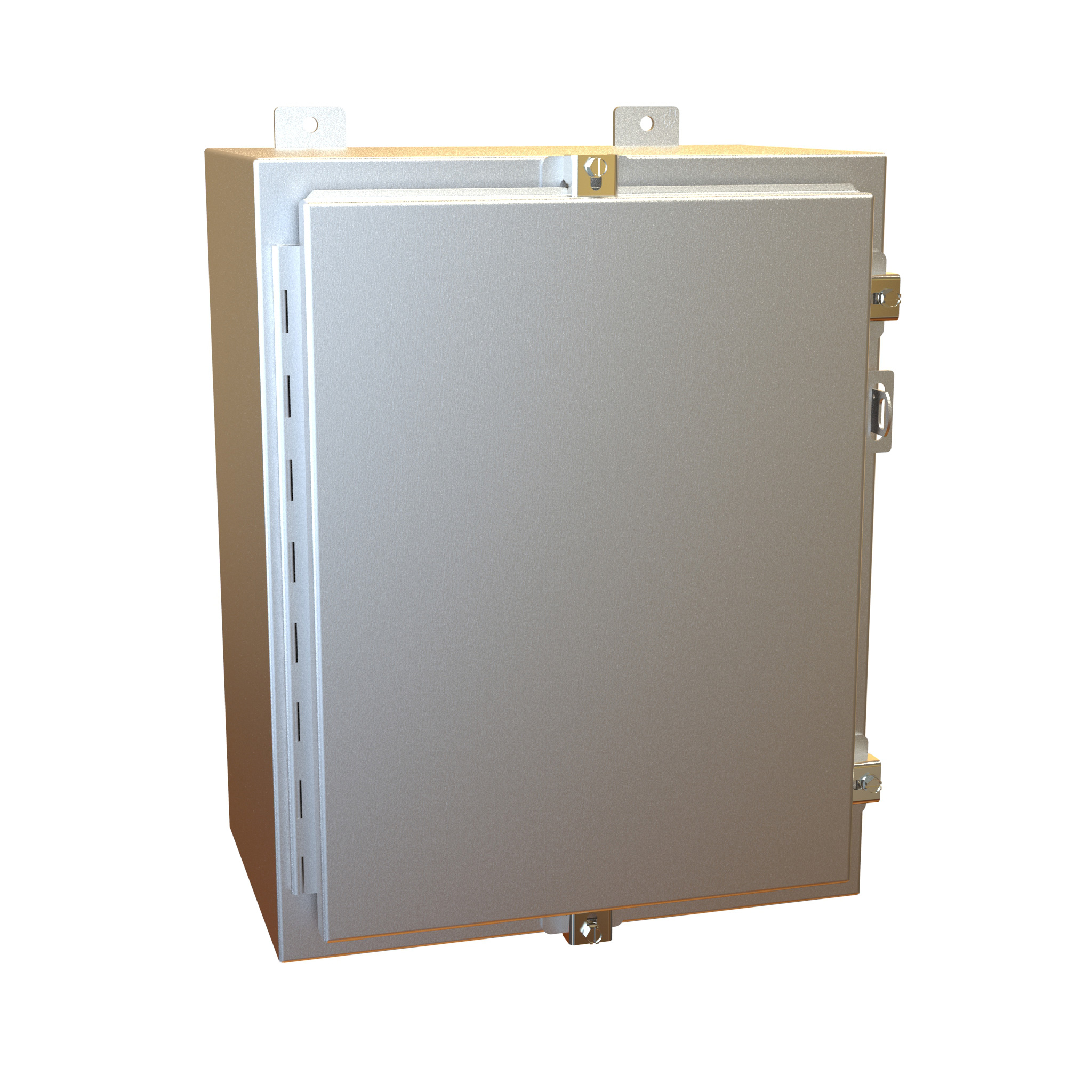

| 1418N4ALC10 | 20.00 | 16.00 | 10.00 | 17.00 | 13.00 | $794.35In stock | Buy now |
| 1418N4ALE10 | 24.00 | 20.00 | 10.00 | 21.00 | 17.00 | $951.06In stock | Buy now |
| 1418N4ALK12 | 30.00 | 24.00 | 12.00 | 27.00 | 21.00 | $1,233.24Backorder | Buy now |
| 1418N4ALM12 | 36.00 | 30.00 | 12.00 | 33.00 | 27.00 | $1,567.09Backorder | Buy now |
| 1418N4ALT12 | 60.00 | 36.00 | 12.00 | 57.00 | 33.00 | $2,495.53In stock | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
Standards
- ■UL 508A Type 4, 4X, 12 and 13
- ■CSA Type 4, 4X, 12 and 13
- ■Complies with NEMA Type 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 4, 4X, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed from 0.081" (Body) / 0.100" (Door) Type 5052 H-32 aluminum.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Door and body stiffeners are provided in the larger enclosures for extra rigidity.
- ■Welded brackets provide for enclosure mounting.
- ■Formed lip on door and enclosure excludes flowing liquids and contaminants.
- ■Aluminum continuous hinge on door may be removed by pulling the aluminum hinge pin.
- ■Door is secured with easily operated aluminum clamps.
- ■Provision for padlocking.
- ■Seamless poured-in place gasket.
- ■A removable 12 gauge steel inner panel is included.
- ■Collar studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are natural unfinished aluminum.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1418N4ALB6 | 16.00 | 12.00 | 6.00 | 13.00 | 9.00 |
| 1418N4ALC6 | 20.00 | 16.00 | 6.00 | 17.00 | 13.00 |
| 1418N4ALE6 | 24.00 | 20.00 | 6.00 | 21.00 | 17.00 |
| 1418N4ALJ8 | 24.00 | 24.00 | 8.00 | 21.00 | 21.00 |
| 1418N4ALK8 | 30.00 | 24.00 | 8.00 | 27.00 | 21.00 |
| 1418N4ALM8 | 36.00 | 30.00 | 8.00 | 33.00 | 27.00 |
| 1418N4ALS8 | 48.00 | 36.00 | 8.00 | 45.00 | 33.00 |
| 1418N4ALC10 | 20.00 | 16.00 | 10.00 | 17.00 | 13.00 |
| 1418N4ALE10 | 24.00 | 20.00 | 10.00 | 21.00 | 17.00 |
| 1418N4ALK12 | 30.00 | 24.00 | 12.00 | 27.00 | 21.00 |
| 1418N4ALM12 | 36.00 | 30.00 | 12.00 | 33.00 | 27.00 |
| 1418N4ALT12 | 60.00 | 36.00 | 12.00 | 57.00 | 33.00 |
