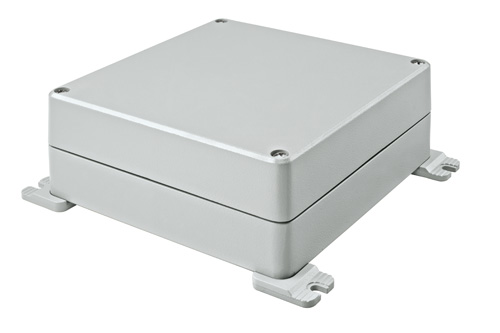

- For Use With Enclo R100, R101 & R102-060
- aluNORM Accessorie R100, R101 & R102-060
QuoteRequest a quote

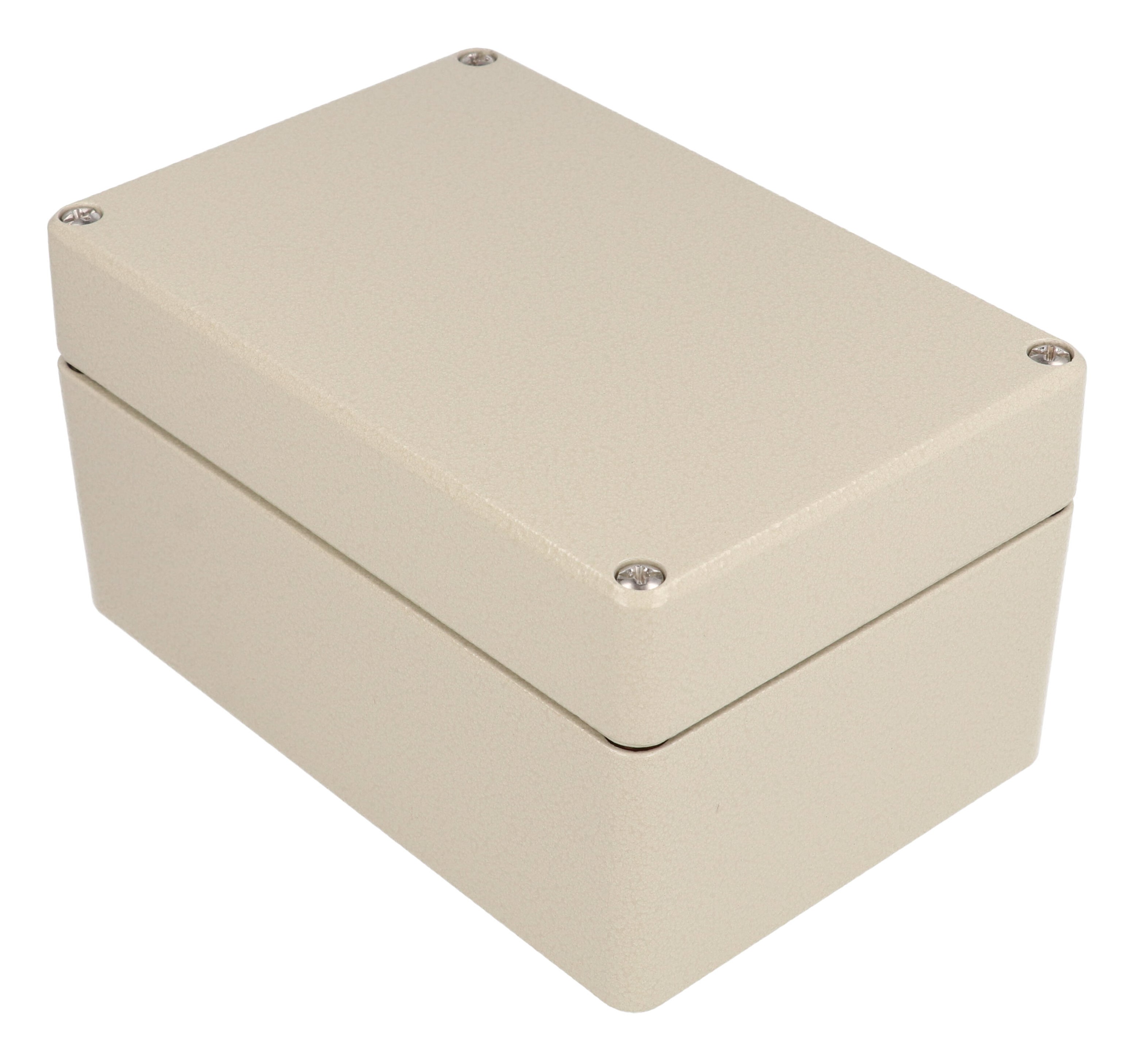

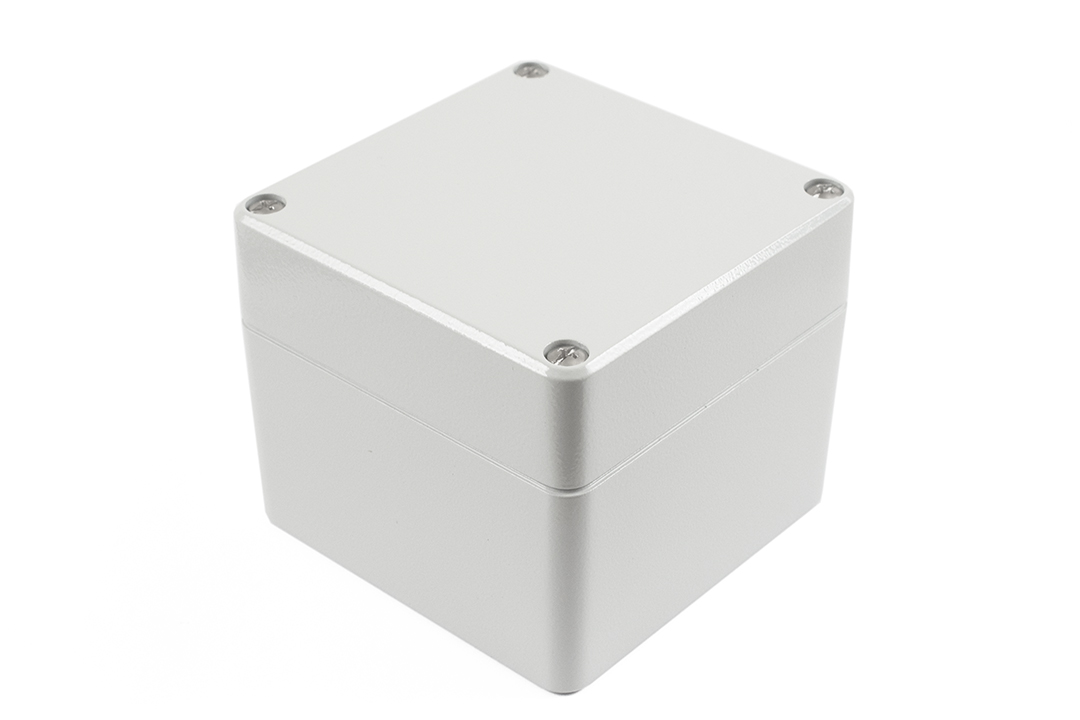

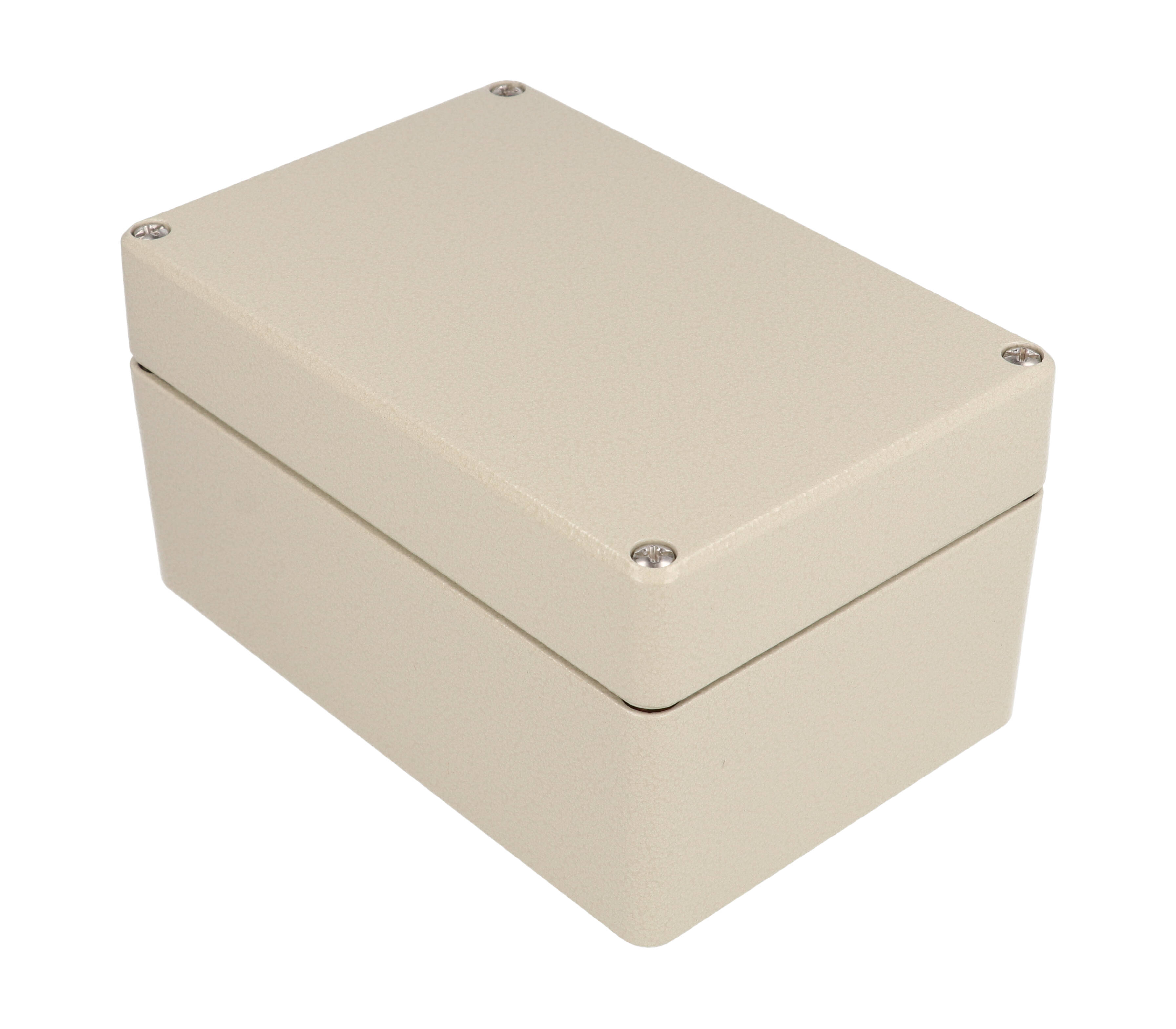

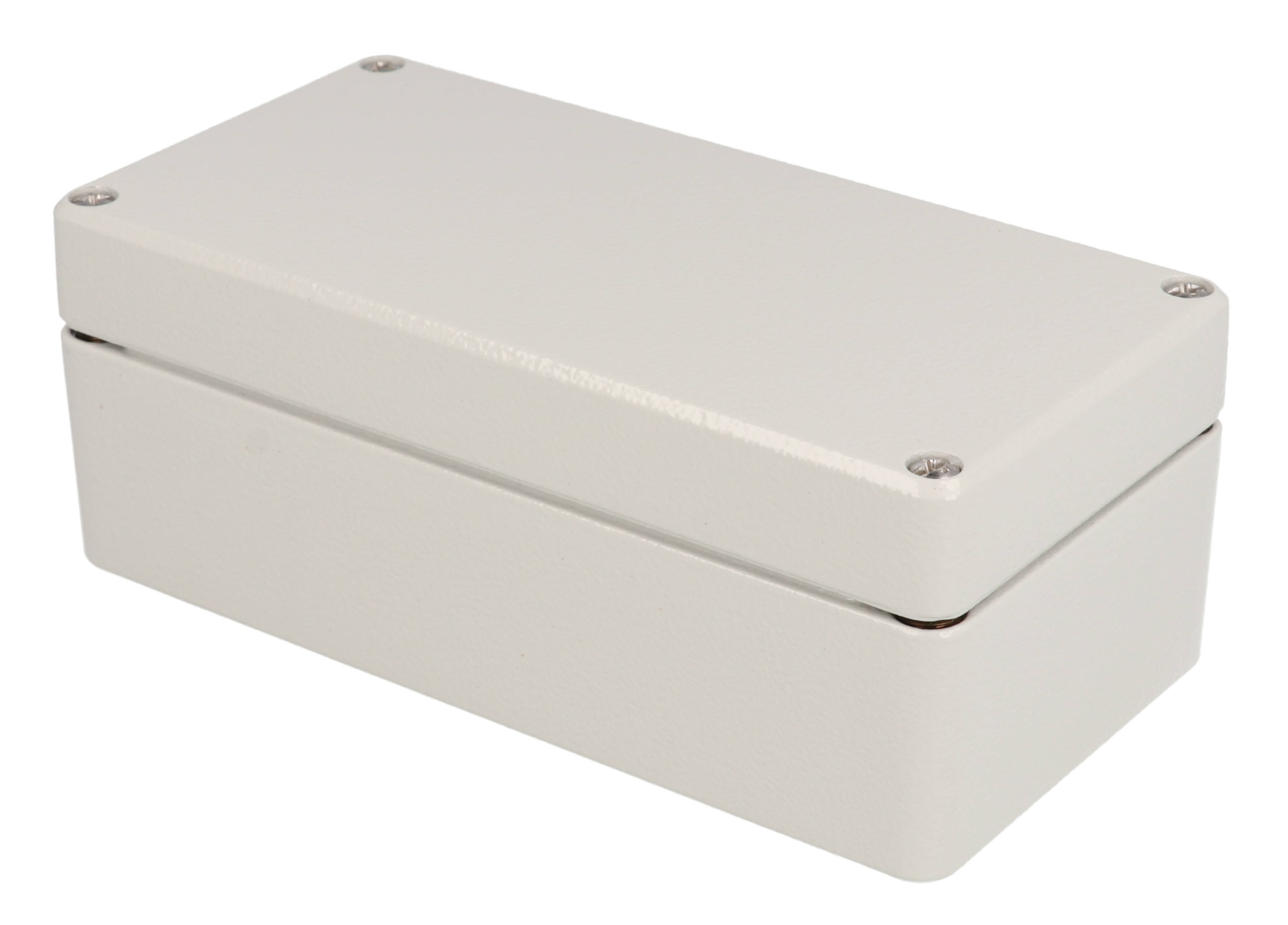

Type 4X Diecast Aluminum Enclosures · R100 Series
Brand: Hammond Manufacturing · 127 part numbers

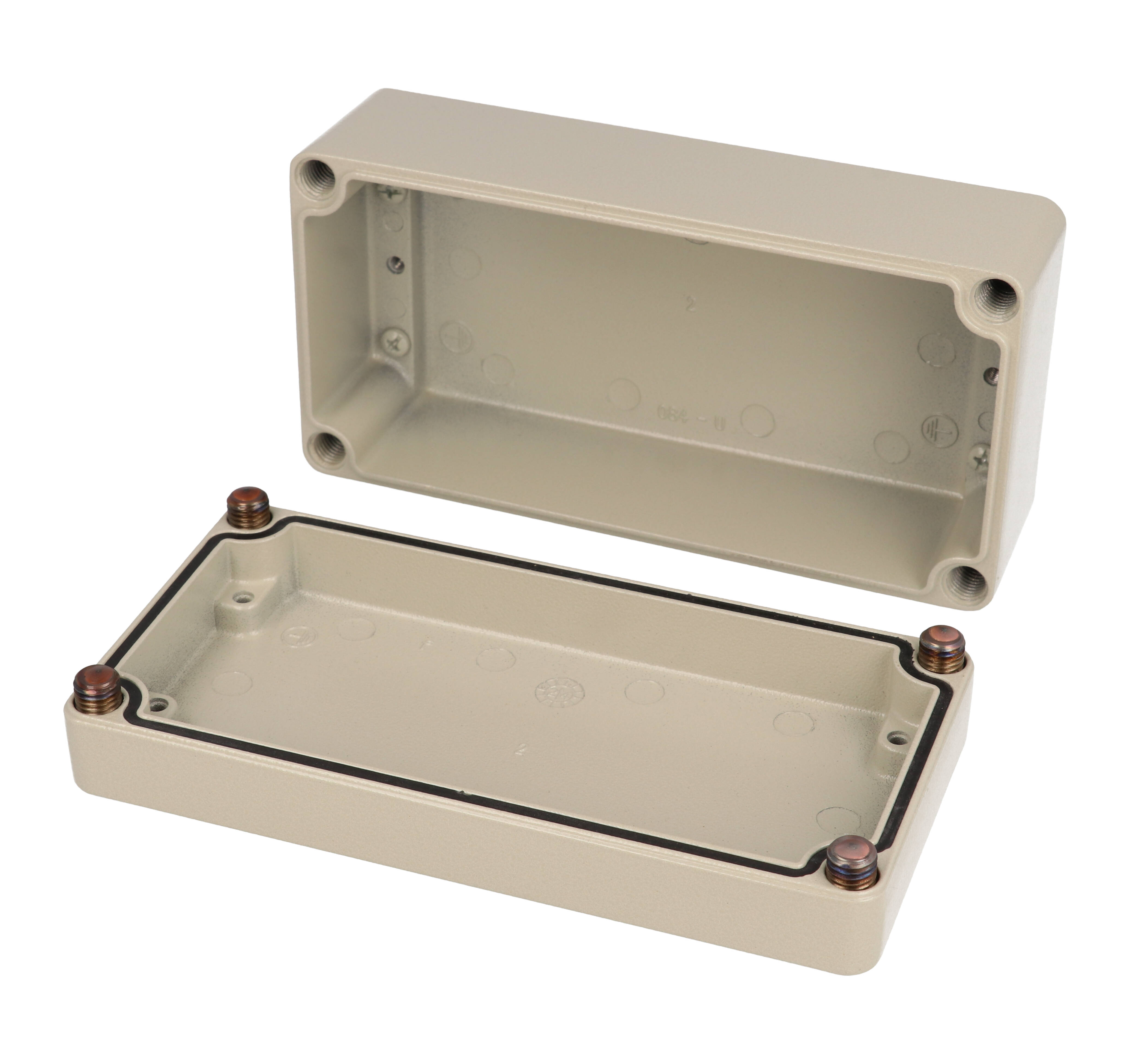

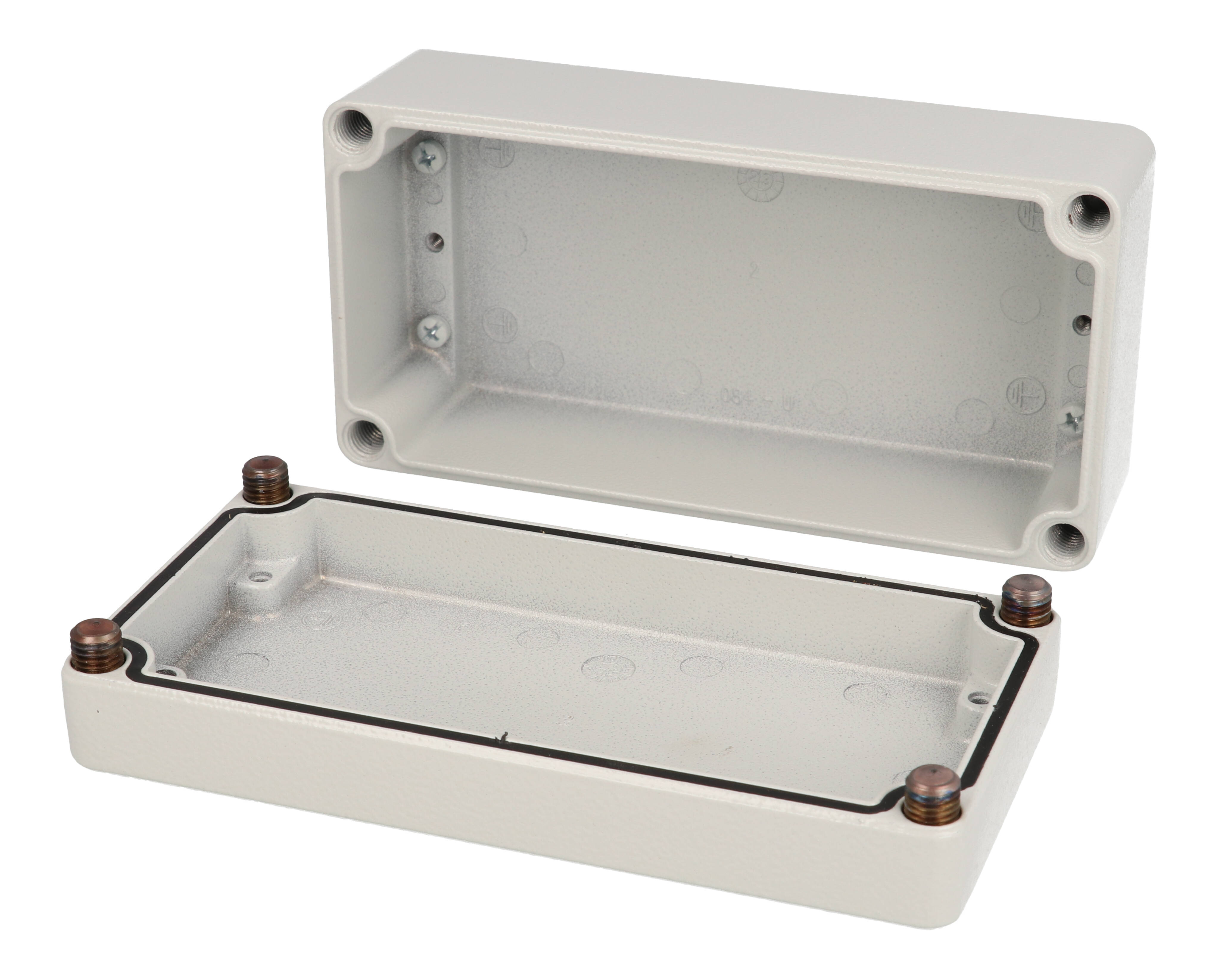

aluNORM - Watertight, Thick Wall
- ■Material - Aluminum die-cast: G AI SI 12 / DIN 1775

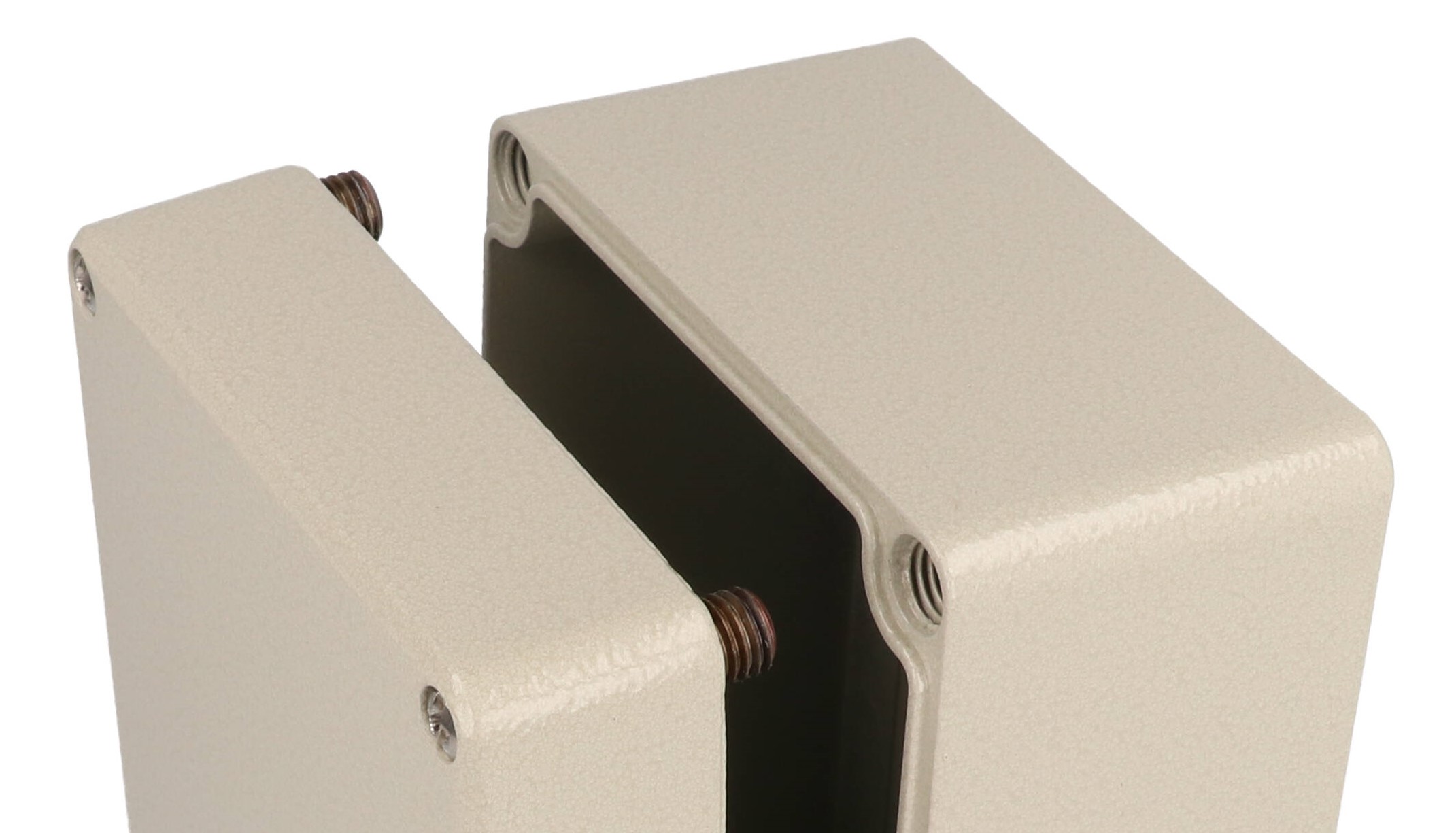

- ■Captive stainless steel lid screws
- ■Neoprene oil and petrol resistant gasket standard.
- ■Rated IP66 and CSA certified, UL Listed Type 4, for use with industrial control equipment.
- ■Operating temperature range is -40ºC up to +80ºC (-40ºF to 176ºF)
- ■Single-channel fastening system.
from $4.02
126 of 127 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your R100 Series part number
Filter 127 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
127 of 127 part numbers · 126 priced online
Aluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$31.88Backorder
Buy now
R100-060 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$31.88In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$36.66In stock
Buy nowR100-062 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$36.66In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$44.09In stock
Buy nowR100-064 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$44.09In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$58.00In stock
Buy nowR100-066 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$58.00In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$53.69In stock
Buy nowR100-080 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$53.69In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$70.30In stock
Buy nowR100-082 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$70.30In stock
Buy now
Aluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$80.03In stock
Buy now
R100-084 RAL7035
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$80.03In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$81.48Backorder
Buy nowR100-100 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$81.48In stock
Buy now
Aluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$99.61In stock
Buy nowR100-102 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$99.61In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$117.74In stock
Buy nowR100-104 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$117.74In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$124.05In stock
Buy now
R100-120 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$124.05In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$140.55In stock
Buy nowR100-122 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$140.55In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$157.04In stock
Buy nowR100-124 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$157.04In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$162.73In stock
Buy nowR100-160 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$162.73In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$204.37In stock
Buy nowAluminum Diecast Enclosure
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$204.37In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$245.18In stock
Buy nowR100-164 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$245.18In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$380.53In stock
Buy nowR100-166 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$380.53In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$364.38Backorder
Buy nowR100-200 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$364.38In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$391.73Backorder
Buy nowR100-202 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$391.73In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$570.63Backorder
Buy nowR100-204 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$570.63Backorder
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$363.90Backorder
Buy nowR100-240 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$363.90In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$469.77Backorder
Buy nowR100-242 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$469.77In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$723.23In stock
Buy nowR100-244 RAL7035
- Type Thick wall, water-tight
- Material Aluminum (Die-Cast Alloy)
- Color Light Gray
$723.23In stock
Buy nowAluminum Diecast Enclosure
- Type Thick Wall, Water-Tight
- Material Aluminum (Die-Cast Alloy)
- Color Beige
$553.22In stock
Buy nowDimension tables (inches / mm)
Shallow Lid, Deep Body (R100 Series)
| Part No (RAL 7032 Beige) | Part No (RAL 7035 Light Gray) | Width (mm) | Length (mm) | Depth With Lid (mm) | Price | Order |
|---|---|---|---|---|---|---|
| R100-060-000 | R100-060-035 | 65 | 50 | 40 | $31.88BackorderR100-060-000 | Buy now |
| R100-062-000 | R100-062-035 | 65 | 65 | 40 | $36.66In stockR100-062-000 | Buy now |
| R100-064-000 | R100-064-035 | 65 | 100 | 40 | $44.09In stockR100-064-000 | Buy now |
| R100-066-000 | R100-066-035 | 65 | 150 | 40 | $58.00In stockR100-066-000 | Buy now |
| R100-080-000 | R100-080-035 | 80 | 80 | 60 | $53.69In stockR100-080-000 | Buy now |
| R100-082-000 | R100-082-035 | 80 | 120 | 60 | $70.30In stockR100-082-000 | Buy now |
| R100-084-000 | R100-084-035 | 80 | 160 | 60 | $80.03In stockR100-084-000 | Buy now |
| R100-100-000 | R100-100-035 | 100 | 100 | 80 | $81.48BackorderR100-100-000 | Buy now |
| R100-102-000 | R100-102-035 | 100 | 150 | 80 | $99.61In stockR100-102-000 | Buy now |
| R100-104-000 | R100-104-035 | 100 | 200 | 80 | $117.74In stockR100-104-000 | Buy now |
| R100-120-000 | R100-120-035 | 120 | 120 | 100 | $124.05In stockR100-120-000 | Buy now |
| R100-122-000 | R100-122-035 | 120 | 180 | 100 | $140.55In stockR100-122-000 | Buy now |
| R100-124-000 | R100-124-035 | 120 | 240 | 100 | $157.04In stockR100-124-000 | Buy now |
| R100-160-000 | R100-160-035 | 160 | 160 | 100 | $162.73In stockR100-160-000 | Buy now |
| R100-162-000 | R100-162-035 | 160 | 240 | 100 | $204.37In stockR100-162-000 | Buy now |
| R100-164-000 | R100-164-035 | 160 | 320 | 100 | $245.18In stockR100-164-000 | Buy now |
| R100-166-000 | R100-166-035 | 160 | 480 | 100 | $380.53In stockR100-166-000 | Buy now |
| R100-200-000 | R100-200-035 | 200 | 200 | 120 | $364.38BackorderR100-200-000 | Buy now |
| R100-202-000 | R100-202-035 | 200 | 300 | 120 | $391.73BackorderR100-202-000 | Buy now |
| R100-204-000 | R100-204-035 | 200 | 400 | 120 | $570.63BackorderR100-204-000 | Buy now |
| R100-240-000 | R100-240-035 | 240 | 240 | 120 | $363.90BackorderR100-240-000 | Buy now |
| R100-242-000 | R100-242-035 | 240 | 360 | 120 | $469.77BackorderR100-242-000 | Buy now |
| R100-244-000 | R100-244-035 | 240 | 480 | 120 | $723.23In stockR100-244-000 | Buy now |
| R100-320-000 | R100-320-035 | 320 | 320 | 120 | $553.22In stockR100-320-000 | Buy now |
| R100-322-000 | R100-322-035 | 320 | 480 | 120 | $748.02In stockR100-322-000 | Buy now |
| R100-324-000 | R100-324-035 | 320 | 640 | 120 | $998.51In stockR100-324-000 | Buy now |
Deep Lid, Shallow Body (R101 Series)
| Part No. | Width (mm) | Length (mm) | Depth With Lid (mm) | Price | Order |
|---|---|---|---|---|---|
| R101-080-000 | 80 | 80 | 60 | $56.93Backorder | Buy now |
| R101-082-000 | 80 | 120 | 60 | $70.06Backorder | Buy now |
| R101-084-000 | 80 | 160 | 60 | $80.48In stock | Buy now |
| R101-100-000 | 100 | 100 | 80 | $82.81Backorder | Buy now |
| R101-102-000 | 100 | 150 | 80 | $99.76Backorder | Buy now |
| R101-104-000 | 100 | 200 | 80 | $120.36In stock | Buy now |
| R101-120-000 | 120 | 120 | 100 | $126.83Backorder | Buy now |
| R101-122-000 | 120 | 180 | 100 | $142.67Backorder | Buy now |
| R101-124-000 | 120 | 240 | 100 | $158.11Backorder | Buy now |
| R101-160-000 | 160 | 160 | 100 | $163.19Backorder | Buy now |
| R101-162-000 | 160 | 240 | 100 | $202.00Backorder | Buy now |
| R101-164-000 | 160 | 320 | 100 | $240.90Backorder | Buy now |
| R101-166-000 | 160 | 480 | 100 | $358.62In stock | Buy now |
| R101-200-000 | 200 | 200 | 120 | $329.10Backorder | Buy now |
| R101-202-000 | 200 | 300 | 120 | $392.36Backorder | Buy now |
| R101-204-000 | 200 | 400 | 120 | $550.96Backorder | Buy now |
| R101-240-000 | 240 | 240 | 120 | $357.30Backorder | Buy now |
| R101-242-000 | 240 | 360 | 120 | $476.56Backorder | Buy now |
| R101-244-000 | 240 | 480 | 120 | $678.54Backorder | Buy now |
| R101-320-000 | 320 | 320 | 120 | $605.77Backorder | Buy now |
| R101-322-000 | 320 | 480 | 120 | $789.84Backorder | Buy now |
| R101-324-000 | 320 | 640 | 120 | $975.43Backorder | Buy now |
Matching Lid & Body (R102 Series)
| Part No. | Width (mm) | Length (mm) | Depth With Lid (mm) | Price | Order |
|---|---|---|---|---|---|
| R102-080-000 | 80 | 80 | 40 | $64.37Backorder | Buy now |
| R102-082-000 | 80 | 120 | 40 | $80.78In stock | Buy now |
| R102-084-000 | 80 | 160 | 40 | $92.96In stock | Buy now |
| R102-100-000 | 100 | 100 | 54 | $95.67Backorder | Buy now |
| R102-102-000 | 100 | 150 | 54 | $115.15In stock | Buy now |
| R102-104-000 | 100 | 200 | 54 | $139.40Backorder | Buy now |
| R102-120-000 | 120 | 120 | 66 | $146.54In stock | Buy now |
| R102-122-000 | 120 | 180 | 66 | $164.24Backorder | Buy now |
| R102-124-000 | 120 | 240 | 66 | $182.34Backorder | Buy now |
| R102-160-000 | 160 | 160 | 66 | $188.45Backorder | Buy now |
| R102-162-000 | 160 | 240 | 66 | $233.50Backorder | Buy now |
| R102-164-000 | 160 | 320 | 66 | $277.67In stock | Buy now |
| R102-166-000 | 160 | 480 | 66 | $426.35Backorder | Buy now |
| R102-200-000 | 200 | 200 | 80 | $370.74In stock | Buy now |
| R102-202-000 | 200 | 300 | 80 | $442.35Backorder | Buy now |
| R102-204-000 | 200 | 400 | 80 | $621.45Backorder | Buy now |
| R102-240-000 | 240 | 240 | 80 | $412.36Backorder | Buy now |
| R102-242-000 | 240 | 360 | 80 | $600.12Backorder | Buy now |
| R102-244-000 | 240 | 480 | 80 | $783.20Backorder | Buy now |
| R102-320-000 | 320 | 320 | 80 | $1,240.69In stock | Buy now |
| R102-322-000 | 320 | 480 | 80 | $891.80Backorder | Buy now |
| R102-324-000 | 320 | 640 | 80 | $1,100.04Backorder | Buy now |
aluNORM Accessories
| For Use With · Enclosure Types | External Feet · (Set of 2 or 4) · Part No. | Inner Panel 2mm, · Galvanized Steel · Part No. | Hinge · (Set of 2) · Part No. | Price | Order |
|---|---|---|---|---|---|
| R100, R101 & R102-060 | N/A | N/A | N/A | Quote | Quote |
| R100, R101 & R102-062 | N/A | R507-062-000 | N/A | $4.02In stock | Buy now |
| R100, R101 & R102-064 | N/A | R507-064-000 | N/A | $4.40In stock | Buy now |
| R100, R101 & R102-066 | N/A | R507-066-000 | N/A | $4.95In stock | Buy now |
| R100, R101 & R102-080 | R501-002-080 | R507-080-000 | N/A | $23.10BackorderR501-002-080 | Buy now |
| R100, R101 & R102-082 | R501-002-080 | R507-082-000 | N/A | $23.10BackorderR501-002-080 | Buy now |
| R100, R101 & R102-084 | R501-002-080 | R507-084-000 | N/A | $23.10BackorderR501-002-080 | Buy now |
| R100, R101 & R102-100 | R501-002-100 | R507-100-000 | N/A | $23.10BackorderR501-002-100 | Buy now |
| R100, R101 & R102-102 | R501-002-100 | R507-102-000 | R510-000-000 | $23.10BackorderR501-002-100 | Buy now |
| R100, R101 & R102-104 | R501-002-100 | R507-104-000 | R510-000-000 | $23.10BackorderR501-002-100 | Buy now |
| R100, R101 & R102-120 | R501-000-011 | R507-120-000 | R510-000-000 | $23.10BackorderR501-000-011 | Buy now |
| R100, R101 & R102-122 | R501-000-011 | R507-122-000 | R510-000-000 | $23.10BackorderR501-000-011 | Buy now |
| R100, R101 & R102-124 | R501-000-011 | R507-124-000 | R510-000-000 | $23.10BackorderR501-000-011 | Buy now |
| R100, R101 & R102-160 | R501-000-012 | R507-160-000 | R510-000-000 | $23.10BackorderR501-000-012 | Buy now |
| R100, R101 & R102-162 | R501-000-012 | R507-162-000 | R510-000-000 | $23.10BackorderR501-000-012 | Buy now |
| R100, R101 & R102-164 | R501-000-012 | R507-164-000 | R510-000-000 | $23.10BackorderR501-000-012 | Buy now |
| R100, R101 & R102-166 | R501-000-012 | R507-166-000 | R510-000-000 | $23.10BackorderR501-000-012 | Buy now |
| R100, R101 & R102-200 | N/A | R507-200-000 | R510-000-000 | $33.58In stockR507-200-000 | Buy now |
| R100, R101 & R102-202 | N/A | R507-202-000 | R510-000-000 | $44.24In stockR507-202-000 | Buy now |
| R100, R101 & R102-204 | N/A | R507-204-000 | R510-000-000 | $52.67In stockR507-204-000 | Buy now |
| R100, R101 & R102-240 | N/A | R507-240-000 | R510-000-000 | $42.83In stockR507-240-000 | Buy now |
| R100, R101 & R102-242 | N/A | R507-242-000 | R510-000-000 | $50.08In stockR507-242-000 | Buy now |
| R100, R101 & R102-244 | N/A | R507-244-000 | R510-000-000 | $57.82In stockR507-244-000 | Buy now |
| R100, R101 & R102-320 | N/A | R507-320-000 | R510-000-000 | $70.09In stockR507-320-000 | Buy now |
| R100, R101 & R102-322 | N/A | R507-322-000 | R510-000-000 | $82.91In stockR507-322-000 | Buy now |
| R100, R101 & R102-324 | N/A | R507-324-000 | R510-000-000 | $121.65In stockR507-324-000 | Buy now |
Key Features:
- ■Material - Aluminum die-cast: G AI SI 12 / DIN 1775
- ■Captive stainless steel lid screws
- ■Neoprene oil and petrol resistant gasket standard.
- ■Rated IP66 and CSA certified, UL Listed Type 4, for use with industrial control equipment.
- ■Operating temperature range is -40ºC up to +80ºC (-40ºF to 176ºF)
- ■Single-channel fastening system.
- ■Specially developed external mounting feet are made from zinc diecast. Can be turned through 90º. The fastening holes have engagement lugs for this purpose.
- ■All sizes have inner blind holes.
- ■Inner mounting panel of galvanized steel available as an accessory for most sizes.
- ■Textured polyester powder coat is available in beige (RAL7032) or light gray (RAL7035). Enclosures can be supplied unpainted on special order.
Features
Patented Single Channel System
Accessories (see table below for compatibility)
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
- ■Lid screws and mounting holes outside of the gasket seal.
- ■Space-saving single channel mounting. The same channel is used for enclosure mounting and lid assembly screws.

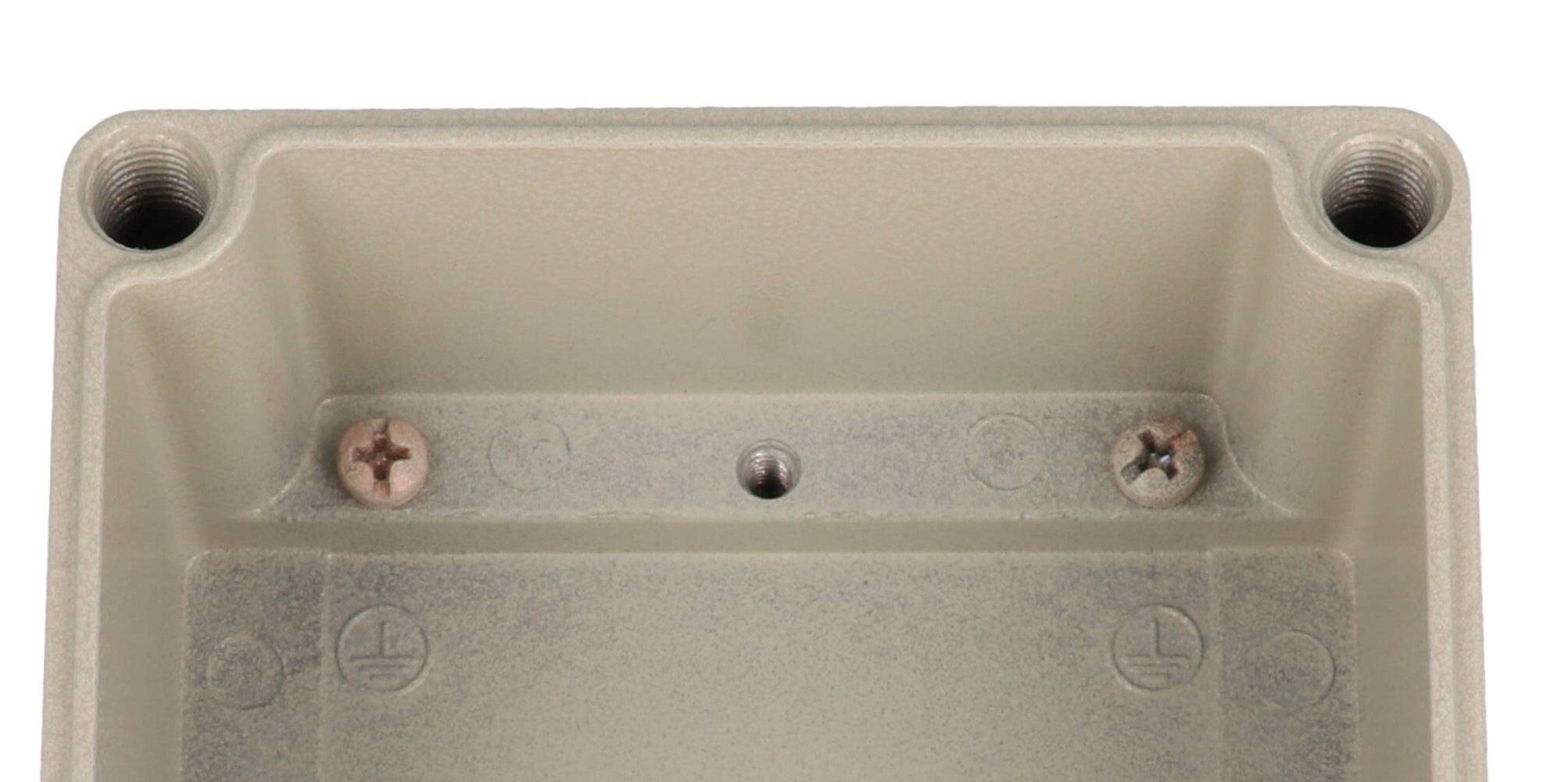

- ■Internal mounting shelves placed along both sides of enclosure include blind holes and grounding screws.
- ■Captive stainless steel lid screws.
- ■Enclosure holes threaded for easy installation and disassembly.
- ■Provides larger interior space than dual channel enclosures.
- ■Uses the same enclosure hole for mounting the enclosure and fastening the lid.
Documents
Additional information
Shallow Lid, Deep Body (R100 Series)
| Part No (RAL 7032 Beige) | Part No (RAL 7035 Light Gray) | Width (mm) | Length (mm) | Depth With Lid (mm) |
|---|---|---|---|---|
| R100-060-000 | R100-060-035 | 65 | 50 | 40 |
| R100-062-000 | R100-062-035 | 65 | 65 | 40 |
| R100-064-000 | R100-064-035 | 65 | 100 | 40 |
| R100-066-000 | R100-066-035 | 65 | 150 | 40 |
| R100-080-000 | R100-080-035 | 80 | 80 | 60 |
| R100-082-000 | R100-082-035 | 80 | 120 | 60 |
| R100-084-000 | R100-084-035 | 80 | 160 | 60 |
| R100-100-000 | R100-100-035 | 100 | 100 | 80 |
| R100-102-000 | R100-102-035 | 100 | 150 | 80 |
| R100-104-000 | R100-104-035 | 100 | 200 | 80 |
| R100-120-000 | R100-120-035 | 120 | 120 | 100 |
| R100-122-000 | R100-122-035 | 120 | 180 | 100 |
| R100-124-000 | R100-124-035 | 120 | 240 | 100 |
| R100-160-000 | R100-160-035 | 160 | 160 | 100 |
| R100-162-000 | R100-162-035 | 160 | 240 | 100 |
| R100-164-000 | R100-164-035 | 160 | 320 | 100 |
| R100-166-000 | R100-166-035 | 160 | 480 | 100 |
| R100-200-000 | R100-200-035 | 200 | 200 | 120 |
| R100-202-000 | R100-202-035 | 200 | 300 | 120 |
| R100-204-000 | R100-204-035 | 200 | 400 | 120 |
| R100-240-000 | R100-240-035 | 240 | 240 | 120 |
| R100-242-000 | R100-242-035 | 240 | 360 | 120 |
| R100-244-000 | R100-244-035 | 240 | 480 | 120 |
| R100-320-000 | R100-320-035 | 320 | 320 | 120 |
| R100-322-000 | R100-322-035 | 320 | 480 | 120 |
| R100-324-000 | R100-324-035 | 320 | 640 | 120 |
Deep Lid, Shallow Body (R101 Series)
| Part No. | Width (mm) | Length (mm) | Depth With Lid (mm) |
|---|---|---|---|
| R101-080-000 ¹ | 80 | 80 | 60 |
| R101-082-000 ¹ | 80 | 120 | 60 |
| R101-084-000 ¹ | 80 | 160 | 60 |
| R101-100-000 ¹ | 100 | 100 | 80 |
| R101-102-000 ¹ | 100 | 150 | 80 |
| R101-104-000 ¹ | 100 | 200 | 80 |
| R101-120-000 ¹ | 120 | 120 | 100 |
| R101-122-000 ¹ | 120 | 180 | 100 |
| R101-124-000 ¹ | 120 | 240 | 100 |
| R101-160-000 ¹ | 160 | 160 | 100 |
| R101-162-000 ¹ | 160 | 240 | 100 |
| R101-164-000 ¹ | 160 | 320 | 100 |
| R101-166-000 ¹ | 160 | 480 | 100 |
| R101-200-000 ¹ | 200 | 200 | 120 |
| R101-202-000 ¹ | 200 | 300 | 120 |
| R101-204-000 ¹ | 200 | 400 | 120 |
| R101-240-000 ¹ | 240 | 240 | 120 |
| R101-242-000 ¹ | 240 | 360 | 120 |
| R101-244-000 ¹ | 240 | 480 | 120 |
| R101-320-000 ¹ | 320 | 320 | 120 |
| R101-322-000 ¹ | 320 | 480 | 120 |
| R101-324-000 ¹ | 320 | 640 | 120 |
Matching Lid & Body (R102 Series)
| Part No. | Width (mm) | Length (mm) | Depth With Lid (mm) |
|---|---|---|---|
| R102-080-000 ¹ | 80 | 80 | 40 |
| R102-082-000 ¹ | 80 | 120 | 40 |
| R102-084-000 ¹ | 80 | 160 | 40 |
| R102-100-000 ¹ | 100 | 100 | 54 |
| R102-102-000 ¹ | 100 | 150 | 54 |
| R102-104-000 ¹ | 100 | 200 | 54 |
| R102-120-000 ¹ | 120 | 120 | 66 |
| R102-122-000 ¹ | 120 | 180 | 66 |
| R102-124-000 ¹ | 120 | 240 | 66 |
| R102-160-000 ¹ | 160 | 160 | 66 |
| R102-162-000 ¹ | 160 | 240 | 66 |
| R102-164-000 ¹ | 160 | 320 | 66 |
| R102-166-000 ¹ | 160 | 480 | 66 |
| R102-200-000 ¹ | 200 | 200 | 80 |
| R102-202-000 ¹ | 200 | 300 | 80 |
| R102-204-000 ¹ | 200 | 400 | 80 |
| R102-240-000 ¹ | 240 | 240 | 80 |
| R102-242-000 ¹ | 240 | 360 | 80 |
| R102-244-000 ¹ | 240 | 480 | 80 |
| R102-320-000 ¹ | 320 | 320 | 80 |
| R102-322-000 ¹ | 320 | 480 | 80 |
| R102-324-000 ¹ | 320 | 640 | 80 |
aluNORM Accessories
| For Use With · Enclosure Types | External Feet · (Set of 2 or 4) · Part No. | Inner Panel 2mm, · Galvanized Steel · Part No. | Hinge · (Set of 2) · Part No. |
|---|---|---|---|
| R100, R101 & R102-060 | N/A | N/A | N/A |
| R100, R101 & R102-062 | N/A | R507-062-000 | N/A |
| R100, R101 & R102-064 | N/A | R507-064-000 | N/A |
| R100, R101 & R102-066 | N/A | R507-066-000 | N/A |
| R100, R101 & R102-080 | R501-002-080 | R507-080-000 | N/A |
| R100, R101 & R102-082 | R501-002-080 | R507-082-000 | N/A |
| R100, R101 & R102-084 | R501-002-080 | R507-084-000 | N/A |
| R100, R101 & R102-100 | R501-002-100 | R507-100-000 | N/A |
| R100, R101 & R102-102 | R501-002-100 | R507-102-000 | R510-000-000 |
| R100, R101 & R102-104 | R501-002-100 | R507-104-000 | R510-000-000 |
| R100, R101 & R102-120 | R501-000-011 | R507-120-000 | R510-000-000 |
| R100, R101 & R102-122 | R501-000-011 | R507-122-000 | R510-000-000 |
| R100, R101 & R102-124 | R501-000-011 | R507-124-000 | R510-000-000 |
| R100, R101 & R102-160 | R501-000-012 | R507-160-000 | R510-000-000 |
| R100, R101 & R102-162 | R501-000-012 | R507-162-000 | R510-000-000 |
| R100, R101 & R102-164 | R501-000-012 | R507-164-000 | R510-000-000 |
| R100, R101 & R102-166 | R501-000-012 | R507-166-000 | R510-000-000 |
| R100, R101 & R102-200 | N/A | R507-200-000 | R510-000-000 |
| R100, R101 & R102-202 | N/A | R507-202-000 | R510-000-000 |
| R100, R101 & R102-204 | N/A | R507-204-000 | R510-000-000 |
| R100, R101 & R102-240 | N/A | R507-240-000 | R510-000-000 |
| R100, R101 & R102-242 | N/A | R507-242-000 | R510-000-000 |
| R100, R101 & R102-244 | N/A | R507-244-000 | R510-000-000 |
| R100, R101 & R102-320 | N/A | R507-320-000 | R510-000-000 |
| R100, R101 & R102-322 | N/A | R507-322-000 | R510-000-000 |
| R100, R101 & R102-324 | N/A | R507-324-000 | R510-000-000 |
Any questions? Talk with an expert
Call us (224) 955-1644
