Hammond R507-322-000 320 x 480 mm Enclosure Galvanized Inner Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Formed inner mounting panel for R100, R101 and R102 enclosures, size -322 (320 x 480 mm)
- 14 GA galvanized steel construction (drawing note); series table lists 2 mm galvanized steel
- Drawing overall size 462.90 mm [18.22 in] x 303.00 mm [11.93 in]
- Shipping weight 1 lbs (0.45 kg)
- RoHS compliant and REACH compliant
- Pairs with hinge kit R510-000-000 for the same enclosure size
- Factory modification and .stp / .x_t solid models available per drawing
The R507-322-000 is a formed inner mounting panel for the 320 x 480 mm size of the R100, R101 and R102 aluNORM Type 4X diecast aluminum enclosures (enclosure part numbers ending in -322). It gives OEM engineers, panel builders and electricians a steel plate on which to mount components, instead of fixing them directly to the enclosure casting.
The panel is made from 14 GA galvanized steel; the series ordering table lists aluNORM inner panels as 2 mm galvanized steel. For the 320 x 480 mm enclosure, the manufacturer's drawing shows a 462.90 x 303.00 mm plate, giving a wide rectangular mounting field.
The manufacturer's drawing shows an overall plate of 462.90 mm [18.22 in] by 303.00 mm [11.93 in]. Shipping weight is 1 lbs (0.45 kg), and the part ships in a box.
In the aluNORM accessory table, the 320 x 480 mm enclosure size pairs this panel with no external feet listed for this size, but the R510-000-000 hinge kit (set of 2). The R100 enclosures have internal mounting shelves along both sides with blind holes and grounding screws, and all sizes have inner blind holes. The R507-322-000 is RoHS compliant and REACH compliant. The drawing notes that factory modification (milling, drilling, printing etc.) is available on request and that solid models are available in .stp or .x_t format.
Ideal For
- Component mounting inside 320 x 480 mm aluNORM diecast enclosures
- Mounting plate for industrial control equipment enclosures
- Internal component panel for IP66-rated diecast enclosures
- Retrofit mounting surface for R100, R101 or R102 enclosures
Overview
| Type | Inner Panel |
| Description | Hardware - formed inner panel for R100, R101, and R102 series |
| Part Number | R507-322-000 |
Dimensions
| Overall Width (Drawing) | 303.00 mm [11.93 in] |
| Overall Length (Drawing) | 462.90 mm [18.22 in] |
Identifiers
| UPC | 623980837208 |
| UNSPSC | 39121301 |
Compatibility
| Series | aluNORM R100 Series (Type 4X Diecast Aluminum Enclosures) |
| Matching External Feet | N/A |
| For Use With Enclosure Types | R100, R101 & R102-322 |
| Matching Hinge Kit (Set Of 2) | R510-000-000 |
| Compatible Enclosure Size (W X L) | 320 mm x 480 mm |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Material | Steel |
| Solid Models | .stp or .x_t |
| Factory Modification | Milling, drilling, printing etc. available from factory (quote required) |
| Material (Drawing Note) | 14 GA Steel Galvanized |
| Panel Specification (Series Table) | Inner Panel 2mm, Galvanized Steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the R507-322-000 fit?▾
It is listed for enclosure types R100, R101 & R102-322, which is the 320 mm wide x 480 mm long aluNORM enclosure size.
What is the R507-322-000 made of?▾
The part is listed as steel; the drawing specifies 14 GA galvanized steel, and the series accessory table describes the inner panels as 2 mm galvanized steel.
What are the panel's dimensions?▾
The drawing shows an overall size of 462.90 mm [18.22 in] x 303.00 mm [11.93 in].
What other accessories are listed for the same enclosure size?▾
The hinge kit R510-000-000 (set of 2); no external feet are listed for this enclosure size.
Is it RoHS and REACH compliant?▾
Yes, the part is listed as both RoHS compliant and REACH compliant.
Can the panel be modified?▾
The drawing notes that factory modification such as milling, drilling and printing is available on a quote basis, and that solid models are available in .stp or .x_t.
Related Products
Save 52%R507-320-000 — hardware - formed inner panel for R100, R101, and R102 series
Hammond Manufacturing · R507-320-000
Save 52%R507-324-000 — hardware - formed inner panel for R100, R101, and R102 series
Hammond Manufacturing · R507-324-000
Save 52%R507-244-000 — hardware - formed inner panel for R100, R101, and R102 series
Hammond Manufacturing · R507-244-000

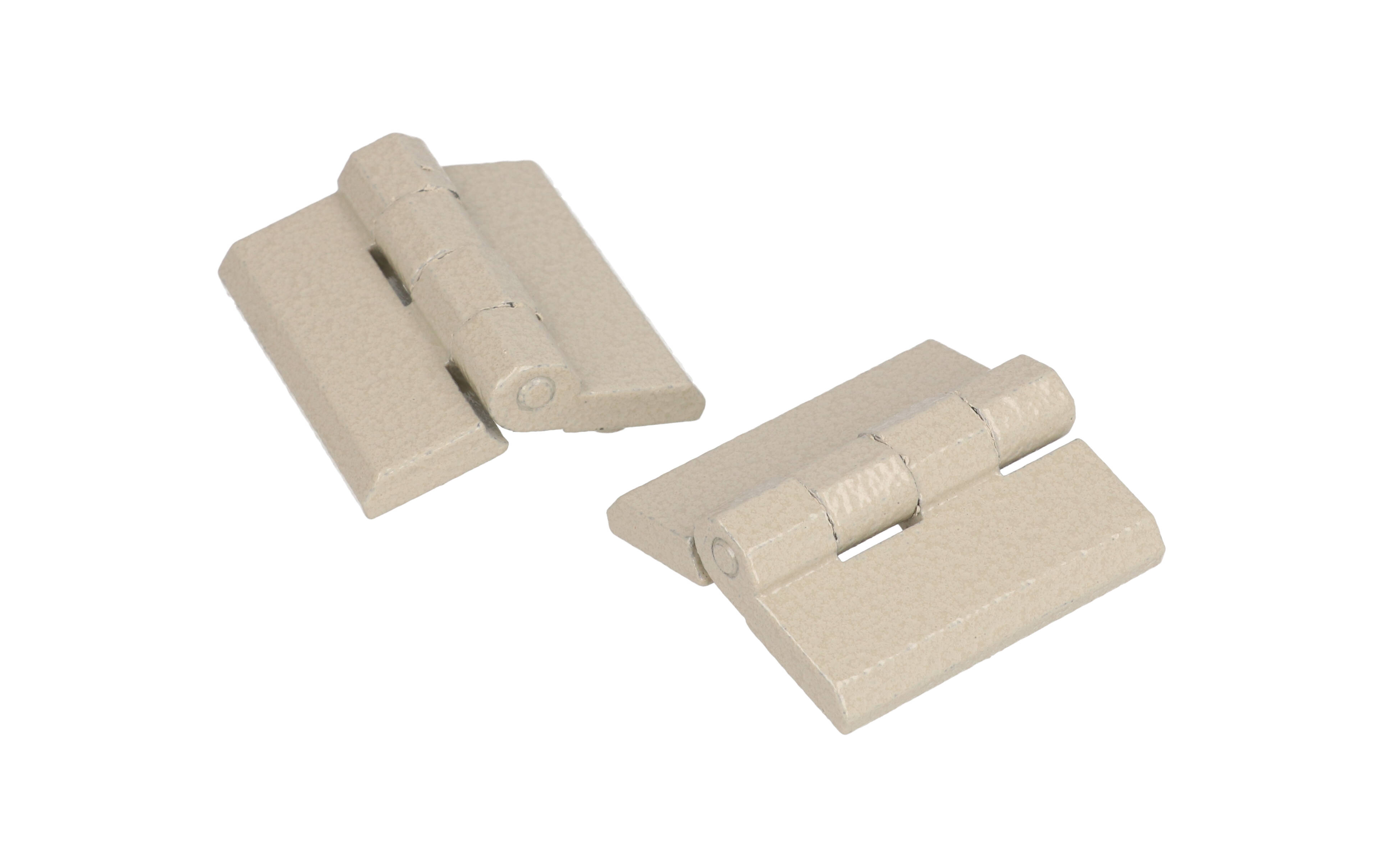

Save 52%R510-000-000 — hardware - hinge kit for R100, R101, and R102 series
