NEMA 4 Aluminum Enclosure 4X4X3
$134.29In stock
Buy now
Type 4X Aluminum Junction Box · 1414 N4 AL Series
Brand: Hammond Manufacturing · 10 part numbers
Lift-Off Cover with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a problem.
- ■UL 508A Type 4, 4X, 12 and 13
- ■CSA Type 4, 4X, 12 and 13
- ■Complies with NEMA Type 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 4, 4X, 12 and 13
from $134.29
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1414 N4 AL Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
NEMA 4 Aluminum Enclosure 6X4X3
$154.56Backorder
Buy now
NEMA 4 Aluminum Enclosure 6X6X4
$172.57In stock
Buy now
NEMA 4 Aluminum Enclosure 8X6X3.5
$181.70In stock
Buy now
NEMA 4 Aluminum Enclosure 10X8X4
$213.48In stock
Buy now
NEMA 4 Aluminum Enclosure 12X10X5
$261.43Backorder
Buy now
NEMA 4 Aluminum Enclosure 14X12X6
$317.83In stock
Buy now

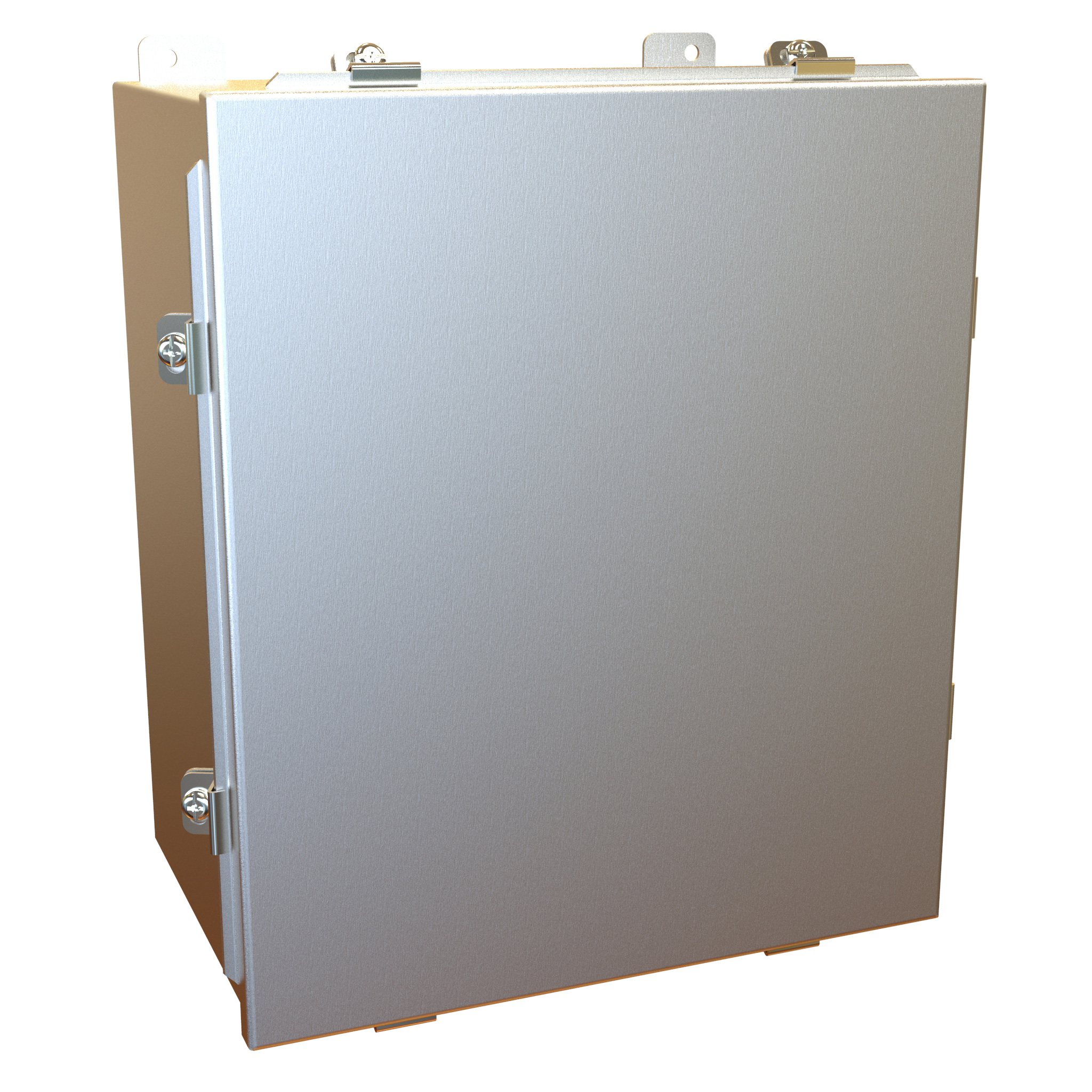

NEMA 4 Aluminum Enclosure 14X12X8
$360.83In stock
Buy now
NEMA 4 Aluminum Enclosure 16X14X10
$479.22Backorder
Buy now
NEMA 4 Aluminum Enclosure 16X14X6
$366.64In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|

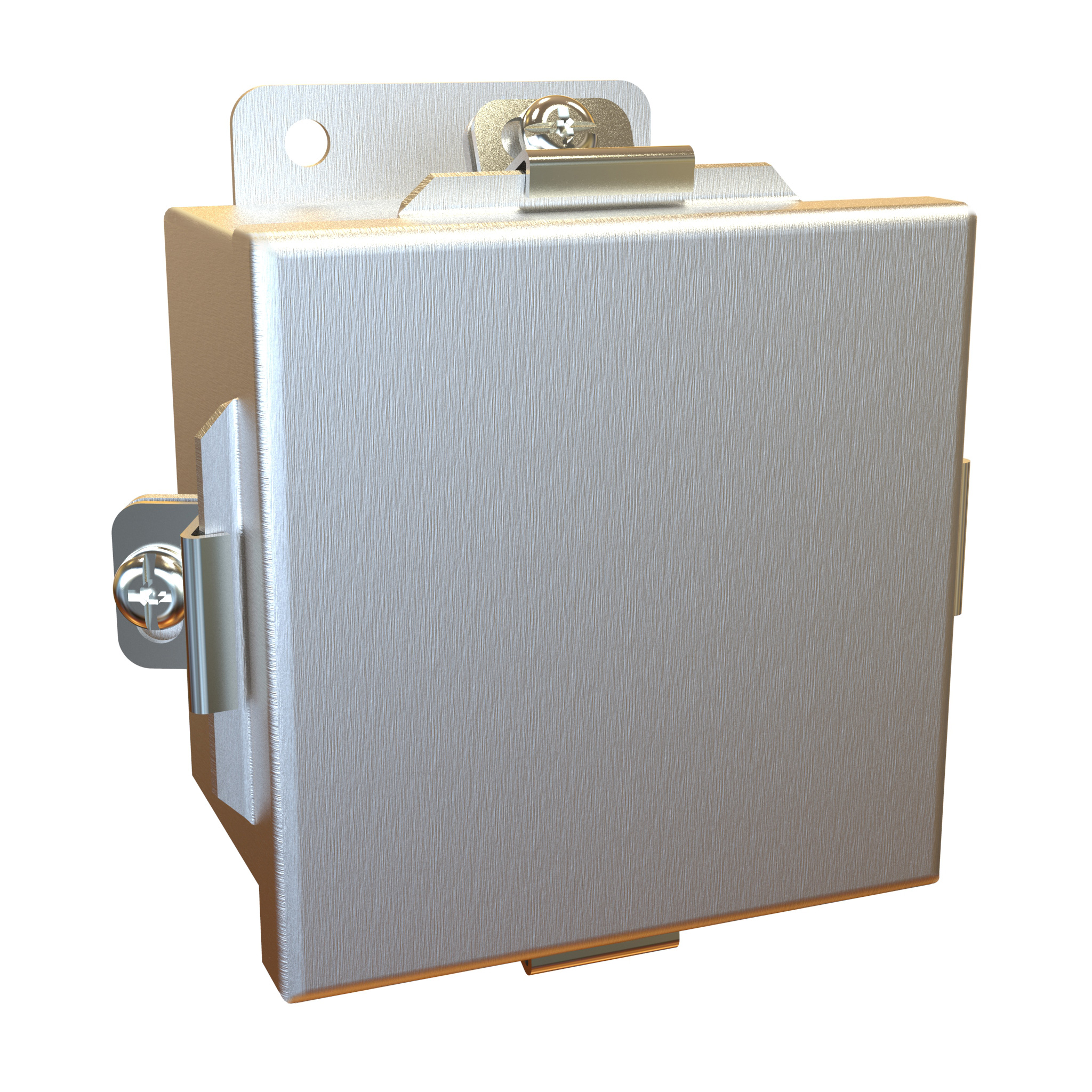

| 1414N4ALA | 4.00 | 4.00 | 3.00 | - | - | $134.29In stock | Buy now |

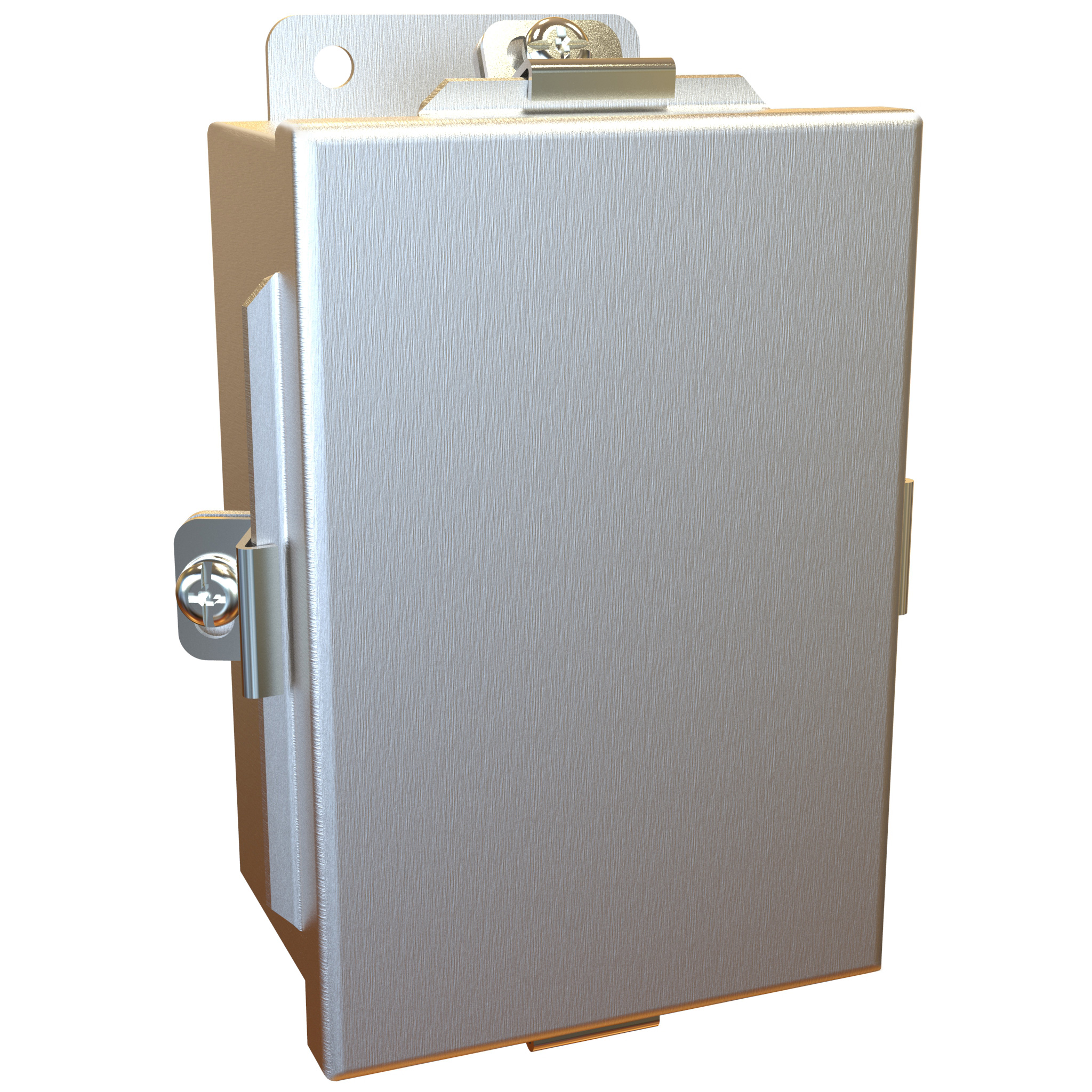

| 1414N4ALC | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 | $154.56Backorder | Buy now |

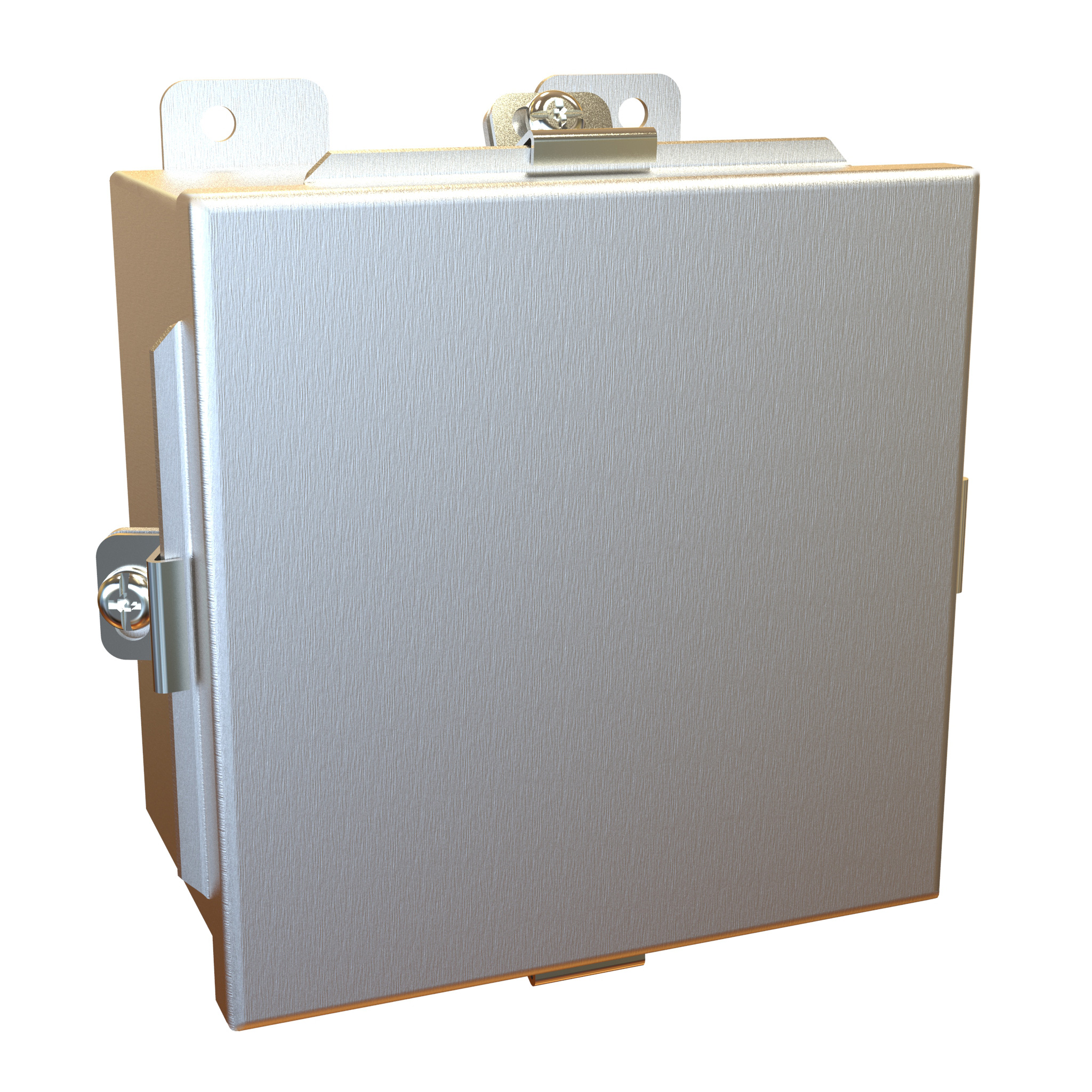

| 1414N4ALE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 | $172.57In stock | Buy now |

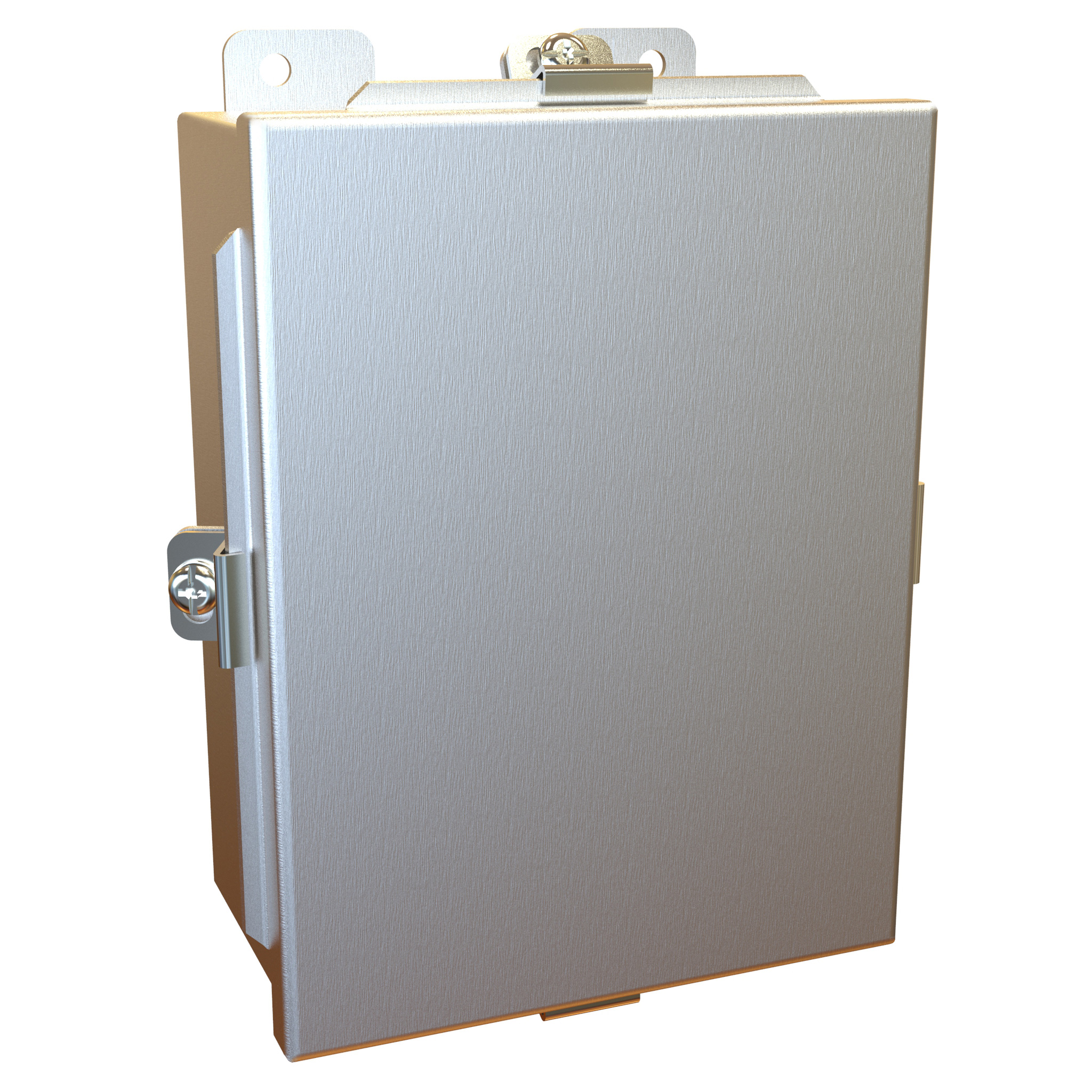

| 1414N4ALG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 | $181.70In stock | Buy now |

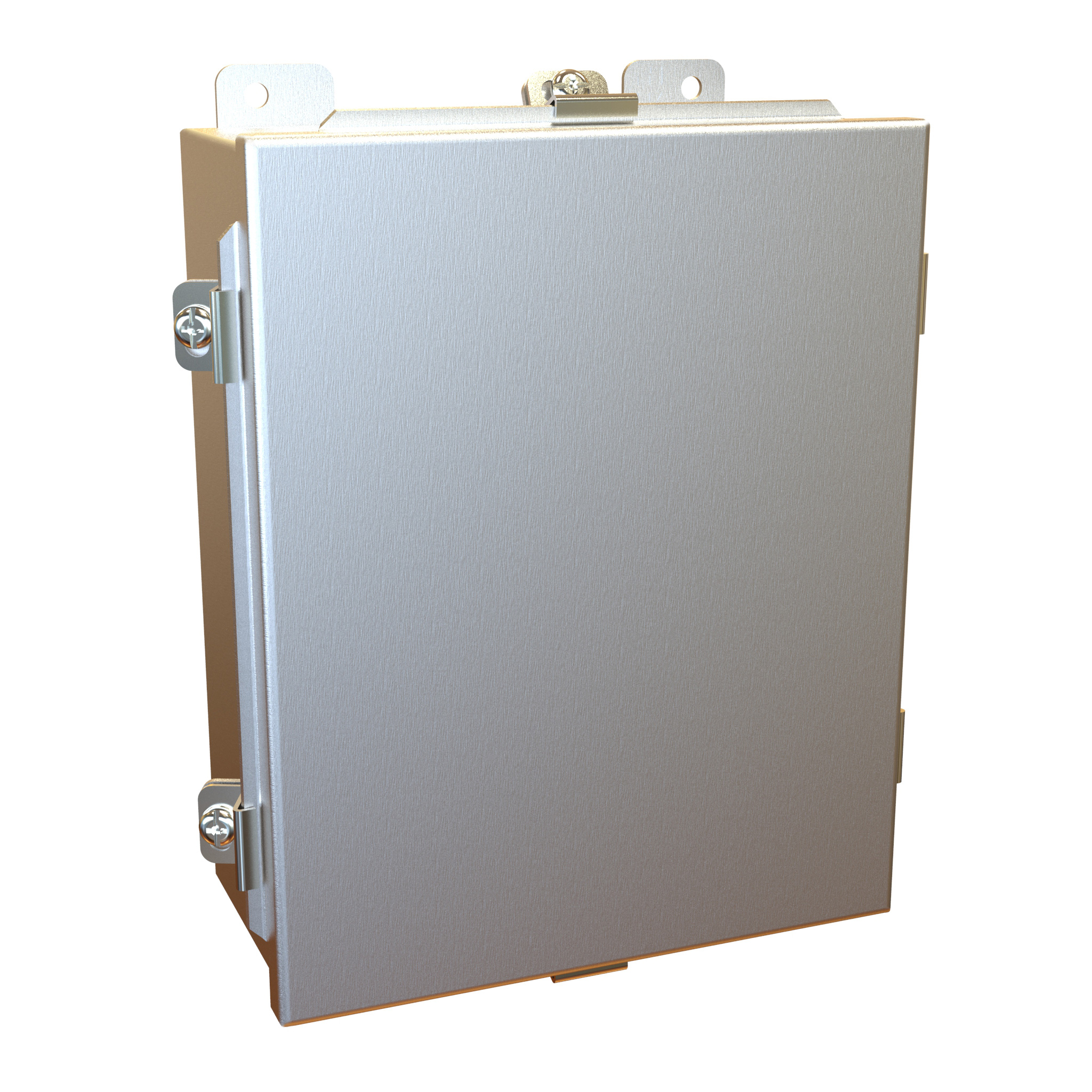

| 1414N4ALI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 | $213.48In stock | Buy now |

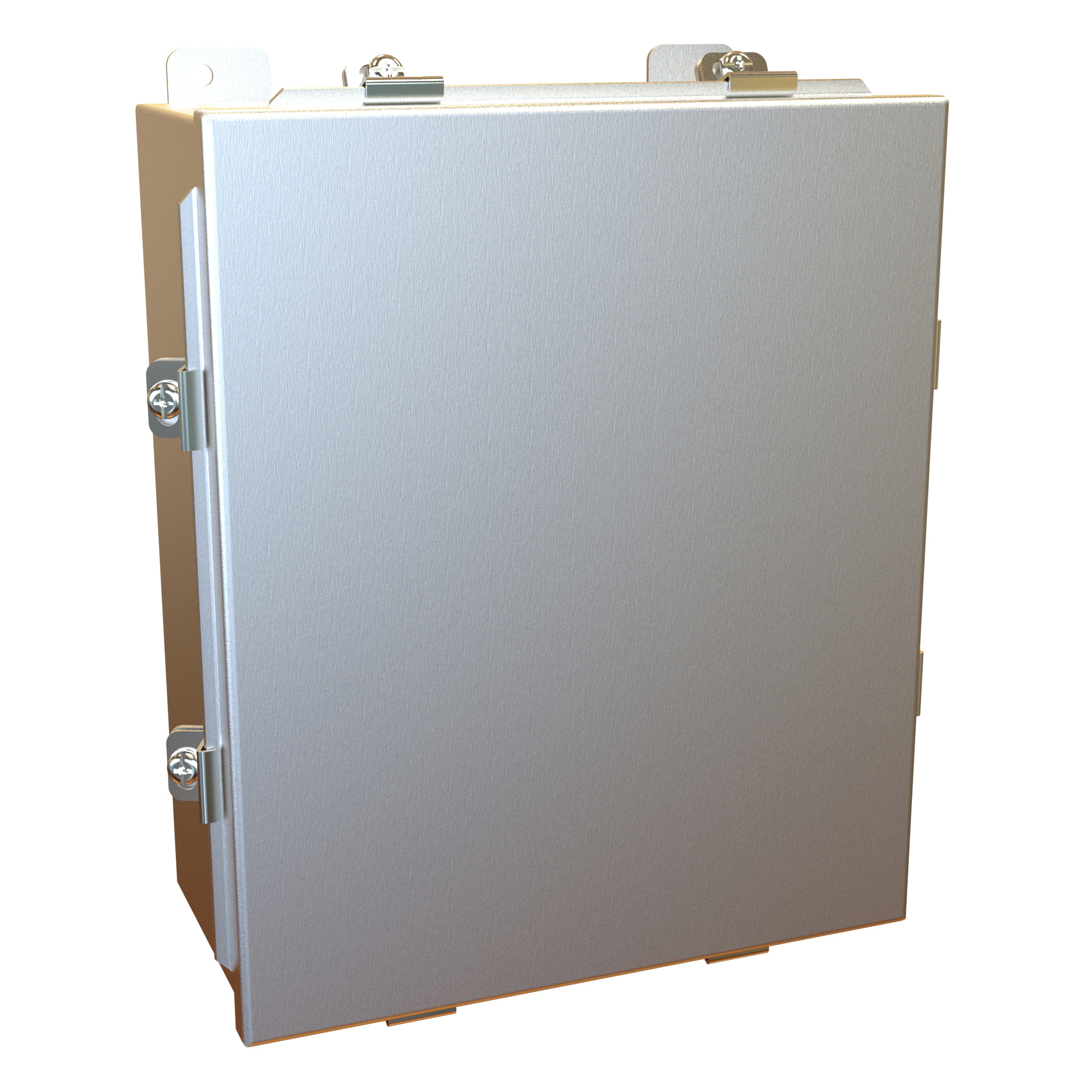

| 1414N4ALK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 | $261.43Backorder | Buy now |

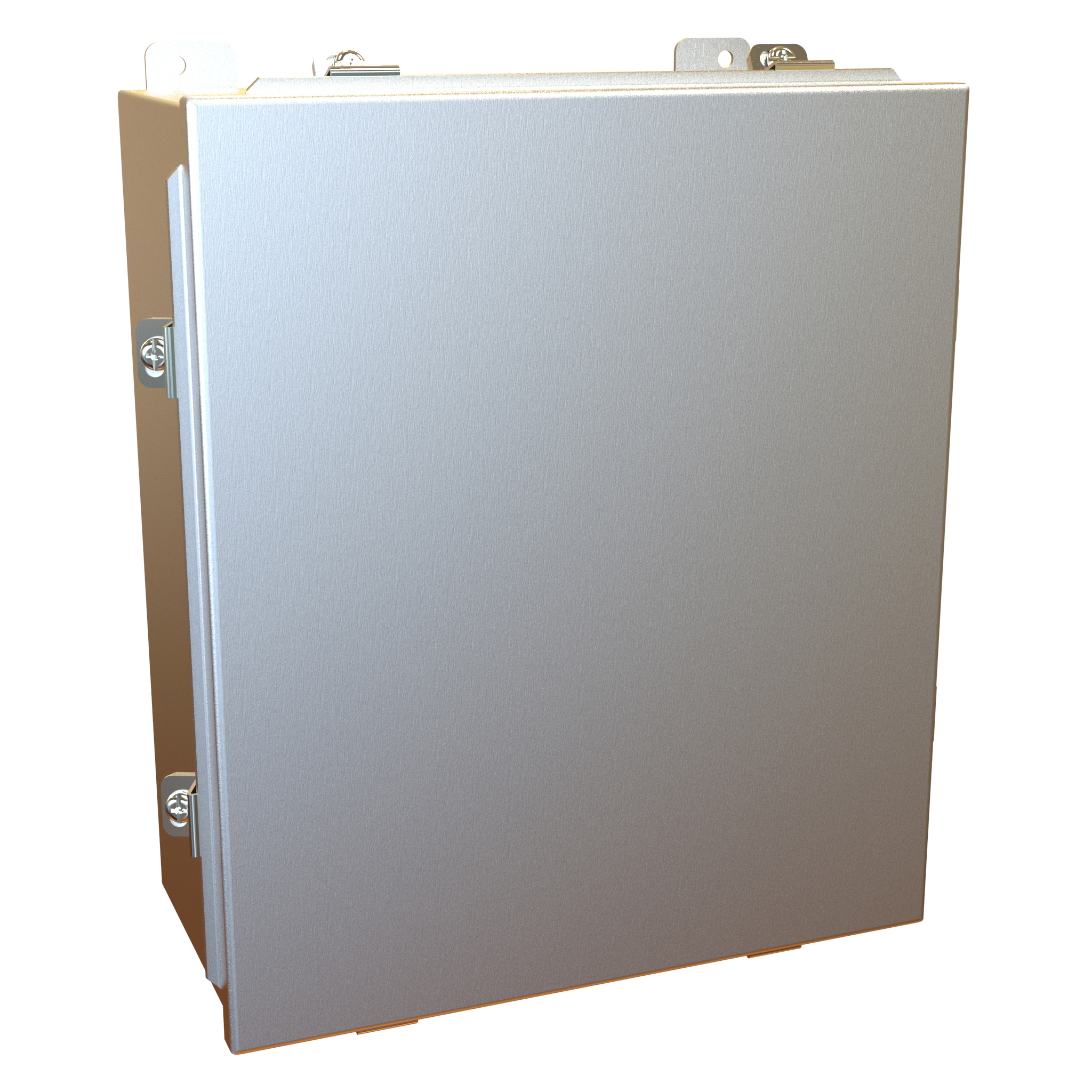

| 1414N4ALM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 | $317.83In stock | Buy now |

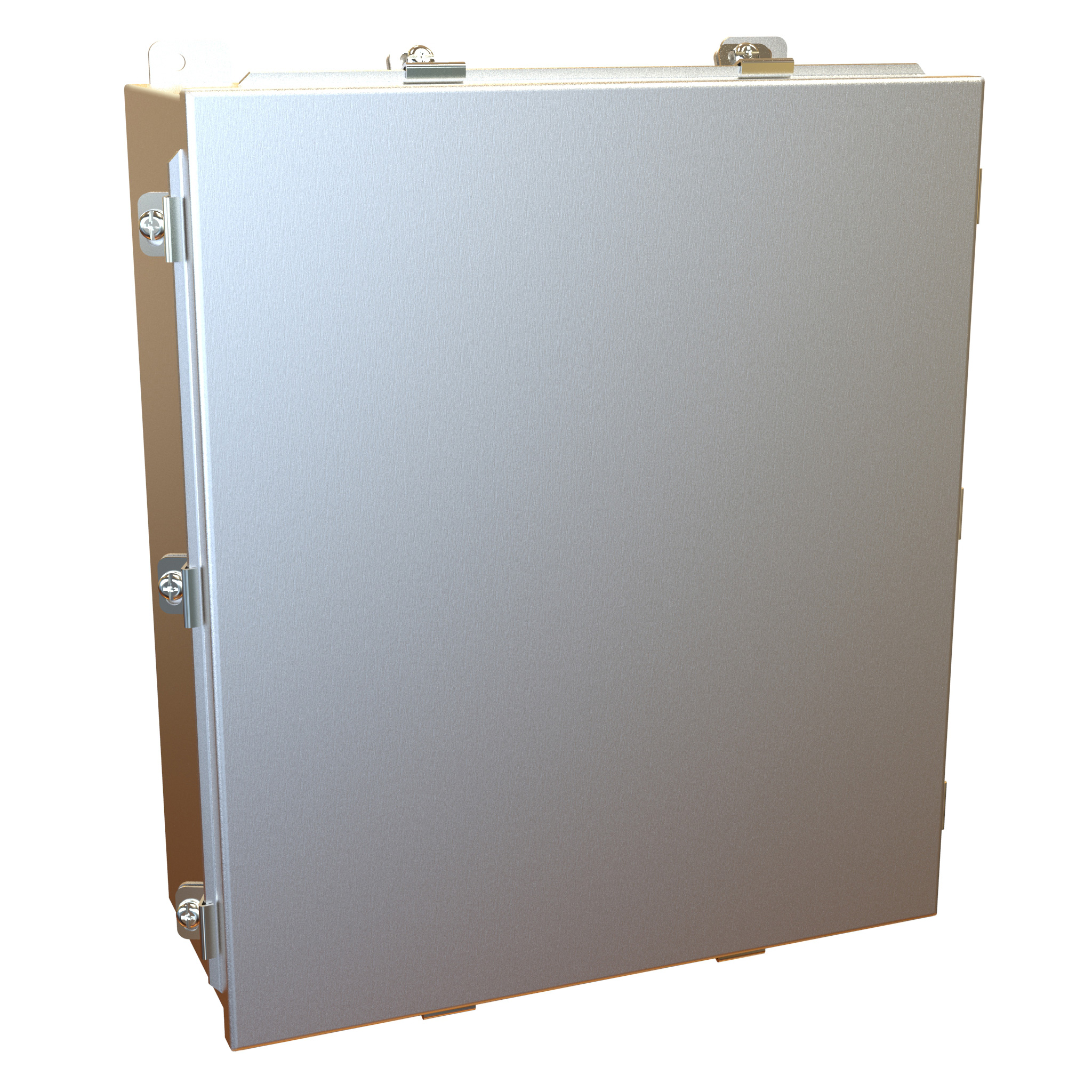

| 1414N4ALO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 | $366.64In stock | Buy now |
| 1414N4ALM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 | $360.83In stock | Buy now |
| 1414N4ALO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 | $479.22Backorder | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a problem.
Standards
- ■UL 508A Type 4, 4X, 12 and 13
- ■CSA Type 4, 4X, 12 and 13
- ■Complies with NEMA Type 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 4, 4X, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed from 0.08" Type 5052 H-32 aluminum.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Welded brackets provide for enclosure mounting.
- ■Cover is secured with easily operated aluminum clamps.
- ■Seamless poured-in place gasket.
- ■All models larger than 4" x 4" include a removable 14 gauge inner panel.
- ■Tapped studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- ■Cover and enclosure are natural unfinished aluminum.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1414N4ALA | 4.00 | 4.00 | 3.00 | - | - |
| 1414N4ALC | 6.00 | 4.00 | 3.00 | 4.88 | 2.88 |
| 1414N4ALE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 |
| 1414N4ALG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 |
| 1414N4ALI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 |
| 1414N4ALK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 |
| 1414N4ALM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 |
| 1414N4ALO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 |
| 1414N4ALM8 | 14.00 | 12.00 | 8.00 | 12.75 | 10.88 |
| 1414N4ALO10 | 16.00 | 14.00 | 10.00 | 14.75 | 12.88 |
