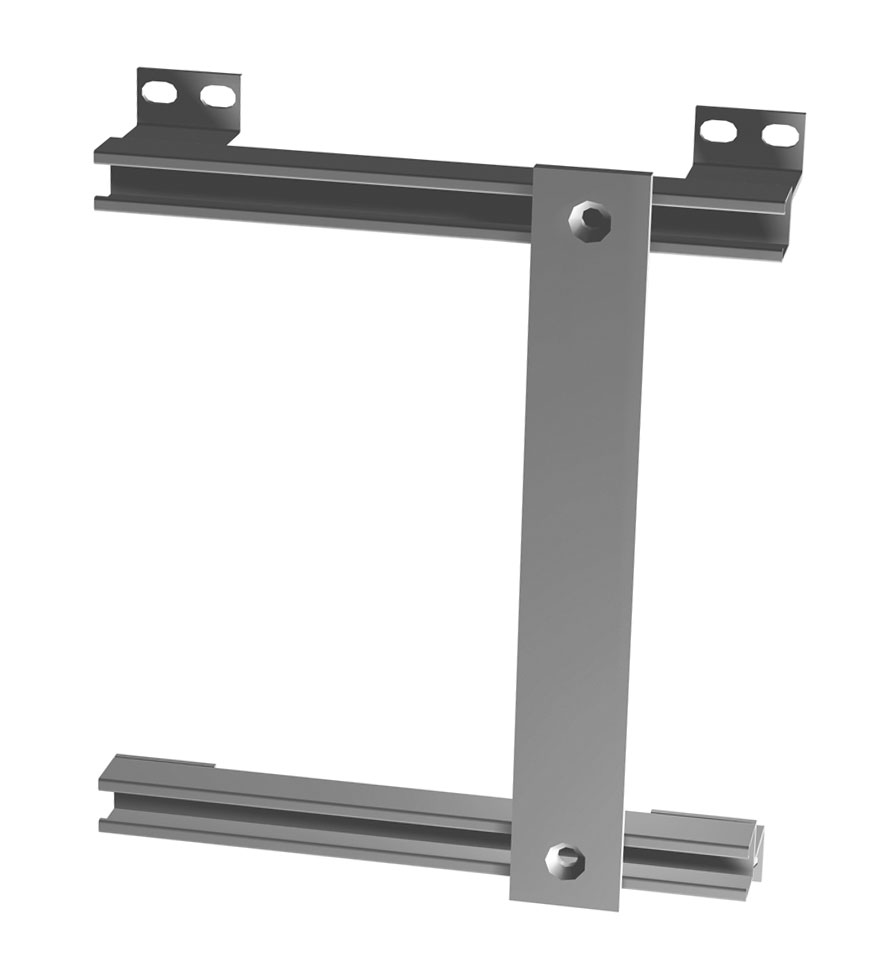

Terminal Straps and Brackets for 1414/EJ/PJ Series Enclosures · 14TK Series

Brand: Hammond Manufacturing · 10 part numbers

■Used to provide convenient mounting for terminal blocks in 1414 Series enclosures and some sizes of "PJ" Series enclosures.
■Finished in white.
■Each kit consists of two brackets.
■"C" channel construction provides easy alignment of terminal straps.
■1.5" wide x 0.187" thick steel.
■Each strap includes spring locking hardware.

from $10.16

10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 14TK Series part number

Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

10 of 10 part numbers · 10 priced online

14B10

Terminal Bracket L9

Fits PJ Enclosure PJ12106...¹

$21.80In stock

Buy now

14B12

Terminal Bracket L11

Fits PJ Enclosure PJ14126...¹

$22.87In stock

Buy now

14B14

Terminal Bracket L13

Fits PJ Enclosure PJ16148...¹

$23.88In stock

Buy now

14B6

Terminal Bracket L5

Fits PJ Enclosure PJ864...¹

$19.39In stock

Buy now

14B8

Terminal Bracket L7

Fits PJ Enclosure PJ1086...¹

$20.67In stock

Buy now

14S10

Terminal Bracket L8

Fits PJ Enclosure PJ1086...¹

$10.77In stock

Buy now

14S12

Terminal Bracket L10

Fits PJ Enclosure PJ12106...¹

$11.30In stock

Buy now

14S14

Terminal Bracket L12

Fits PJ Enclosure PJ14126...¹

$11.90In stock

Buy now

14S16

Terminal Bracket L14

Fits PJ Enclosure PJ16148...¹

$12.57In stock

Buy now

14S8

Terminal Bracket L6

Fits PJ Enclosure PJ864...¹

$10.16In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Single Strap · Part No.	L	Usable · Mounting Space	Bracket (Pair) · Part No.	W	A	B	C	Fits PJ · Enclosure	Price	Order
14S8	6.19	4.30	14B6	6.00	5.00	4.25	1.55	PJ864...¹	$10.16In stock14S8	Buy now
14S10	8.19	6.30	14B8	8.00	7.00	6.25	1.55	PJ1086...¹	$10.77In stock14S10	Buy now
14S12	10.19	8.30	14B10	10.00	9.00	8.25	2.79	PJ12106...¹	$11.30In stock14S12	Buy now
14S14	12.19	10.30	14B12	12.00	11.00	10.25	2.79	PJ14126...¹	$11.90In stock14S14	Buy now
14S16	14.19	12.30	14B14	14.00	13.00	12.25	2.79	PJ16148...¹	$12.57In stock14S16	Buy now

Features

■Used to provide convenient mounting for terminal blocks in 1414 Series enclosures and some sizes of "PJ" Series enclosures.
■Finished in white.

Bracket Assembly

■Each kit consists of two brackets.
■"C" channel construction provides easy alignment of terminal straps.

Terminal Strap

■1.5" wide x 0.187" thick steel.
■Each strap includes spring locking hardware.
■Countersunk holes in straps provide extra terminal mounting space.

How to Order

■Each enclosure requires one bracket assembly kit and the required number of straps (Strap Part No. corresponds to enclosure dimension "A" and is mounted parallel to same, Bracket Part No. corresponds to enclosure dimension "B" and is mounted parallel to same).
■Example: For a PJ864L enclosure, order one 14B6 bracket assembly and a minimum of one 14B8 terminal strap kits. Additional terminal strap kits will provide additional mounting space.
