Type 4X Aluminum Junction Box Eclipse Junior Series

Type 4X Aluminum Junction Box · Eclipse Junior Series

Brand: Hammond Manufacturing · 22 part numbers

Continuous Hinge Door with Quarter Turn

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
  • ■UL 508A Type 3R, 4, 4X, 12, and 13
  • ■CSA Type 3R, 4, 4X, 12, and 13
  • ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4, 4X, 12 and 13

from $134.94

22 of 22 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your Eclipse Junior Series part number

Filter 22 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

22 of 22 part numbers · 22 priced online

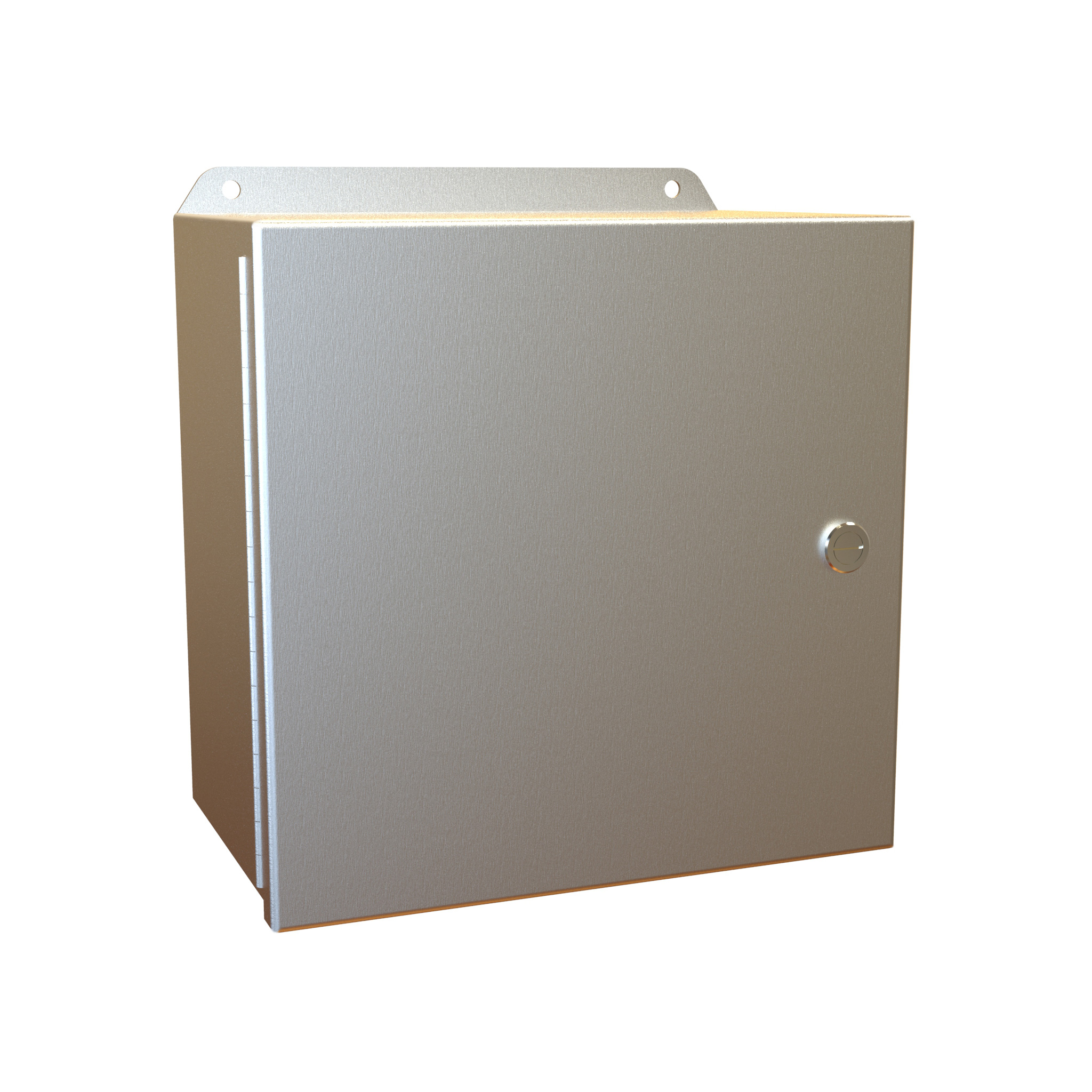

EJ10106AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$275.84Backorder
Buy now

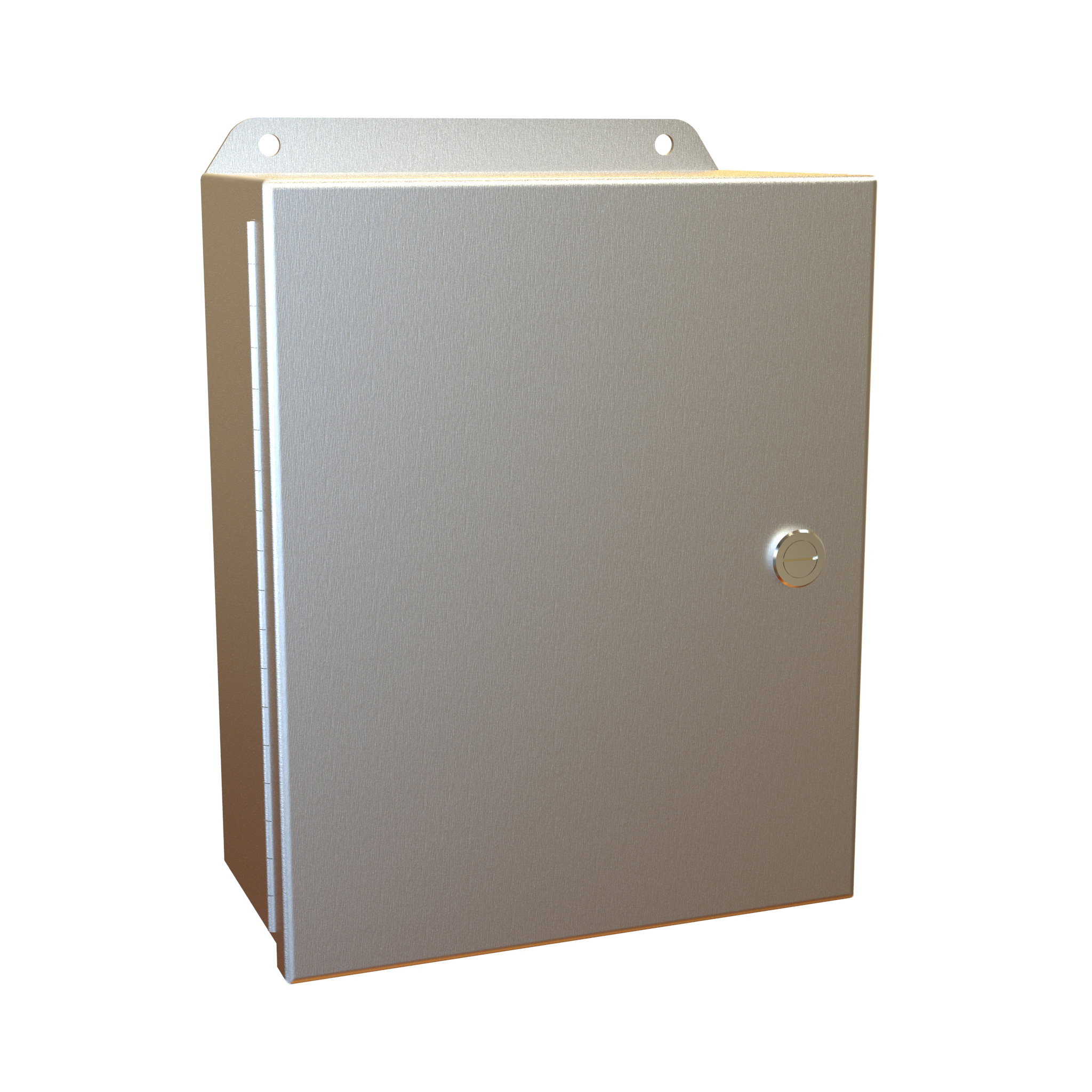

EJ1084AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$218.91In stock
Buy now

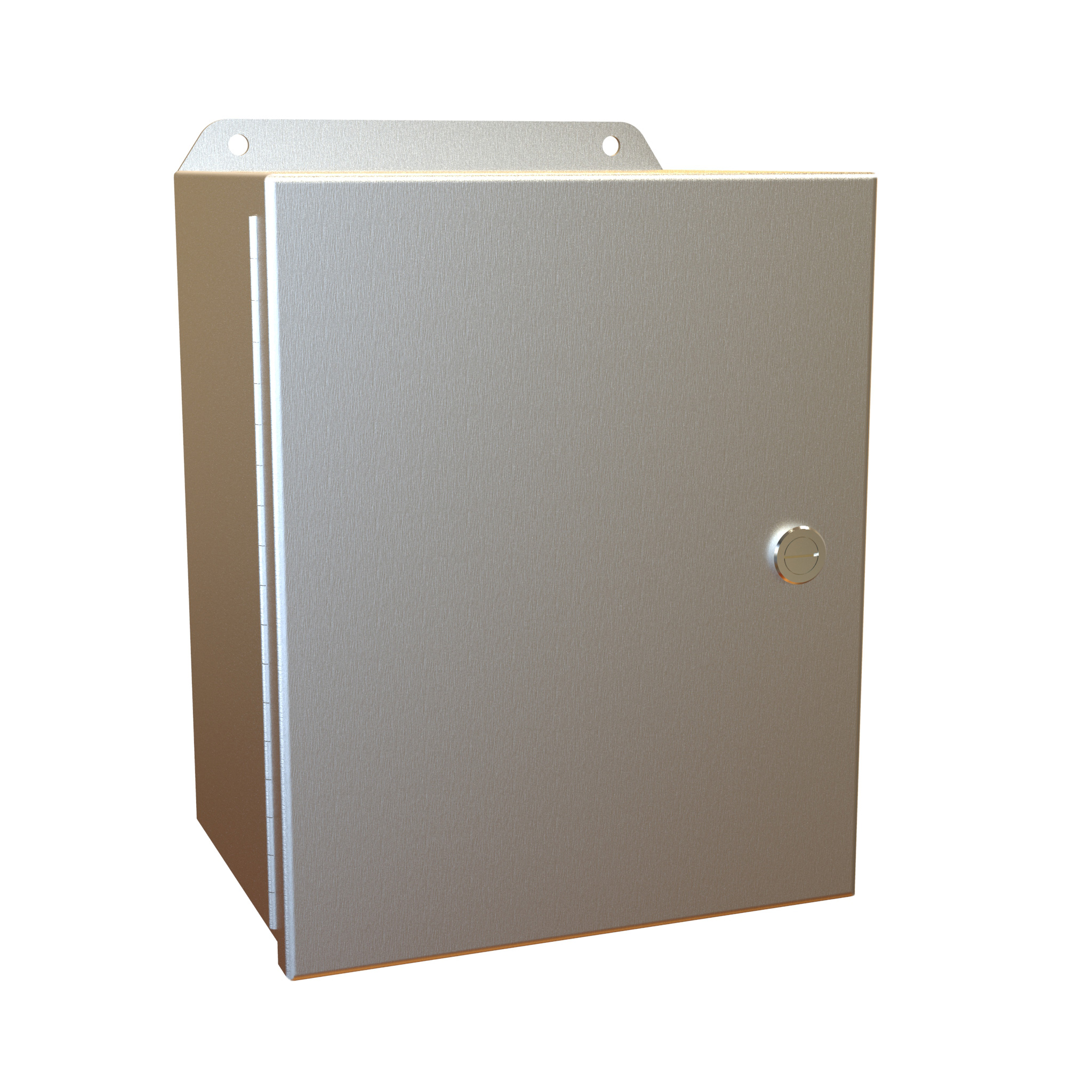

EJ1086AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$251.86In stock
Buy now

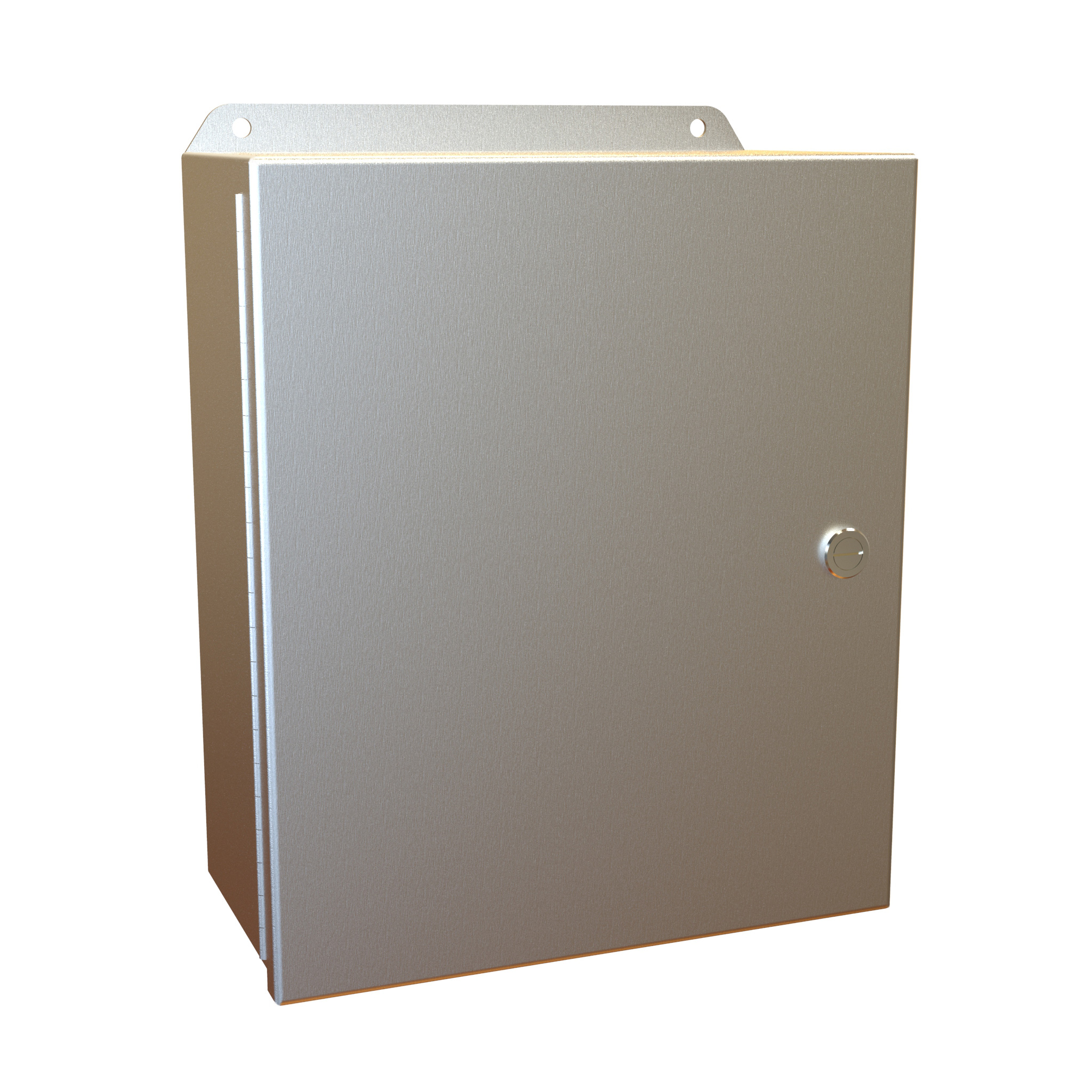

EJ12105AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$269.82In stock
Buy now

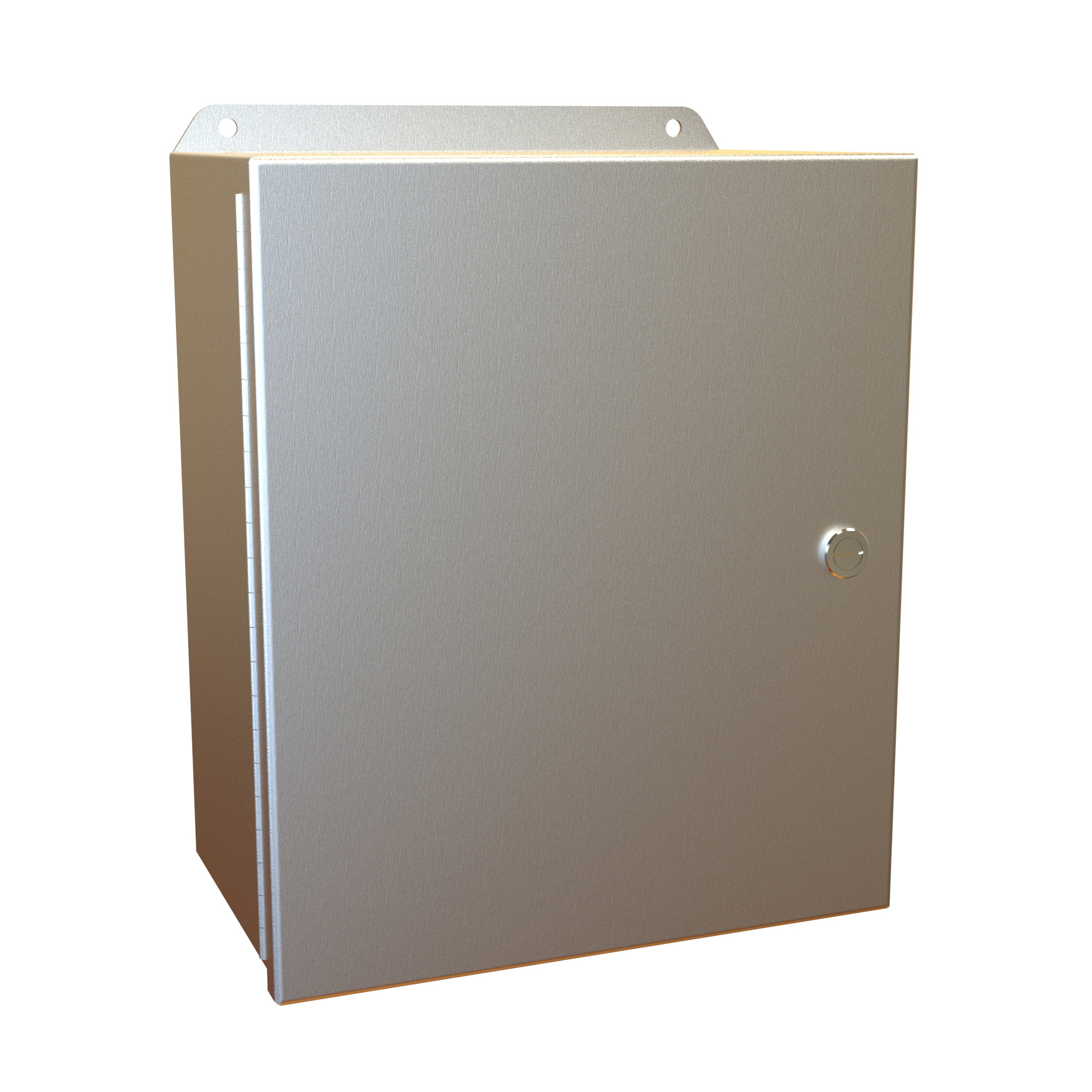

EJ12106AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$287.83In stock
Buy now

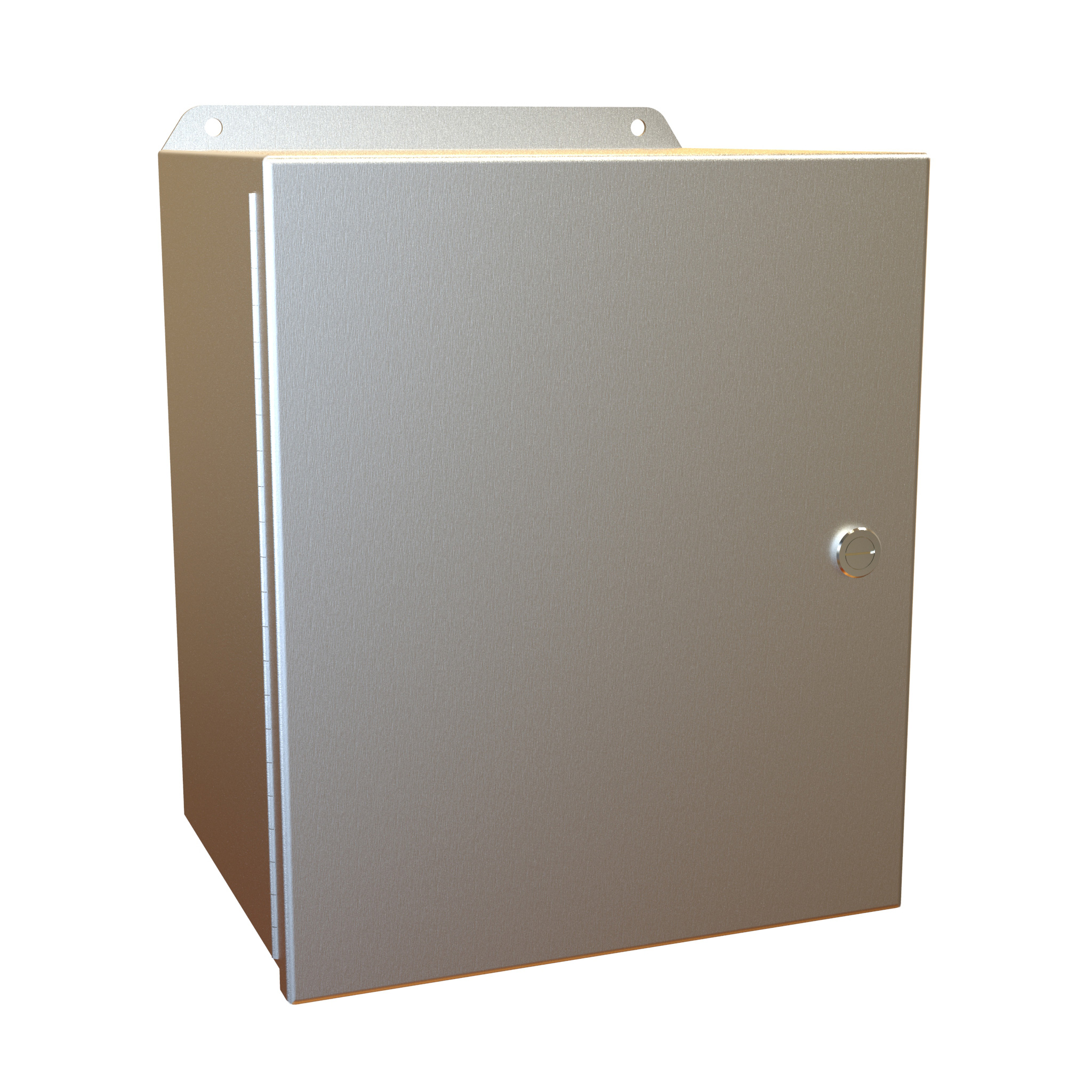

EJ12108AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$314.82In stock
Buy now

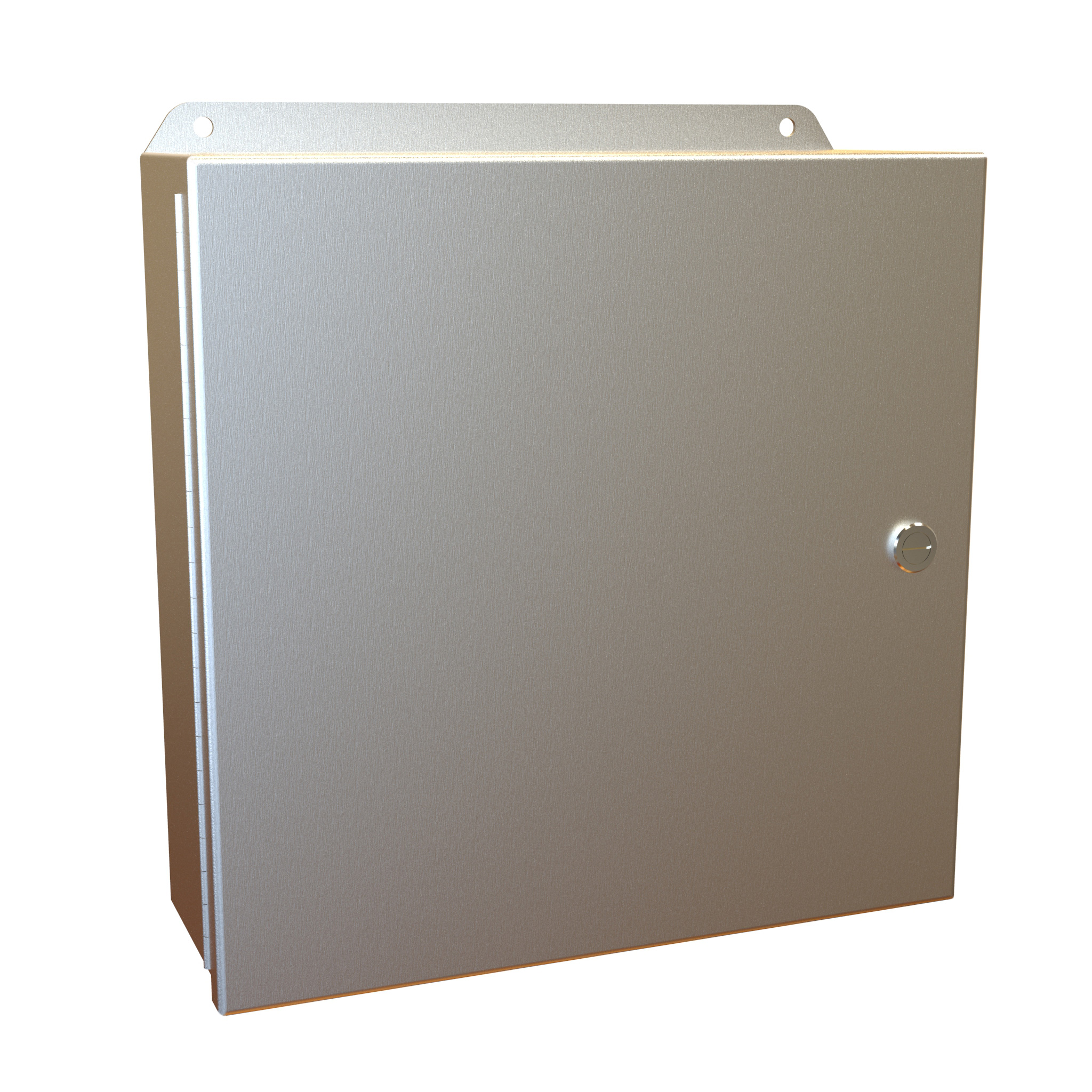

EJ12124AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$299.82In stock
Buy now

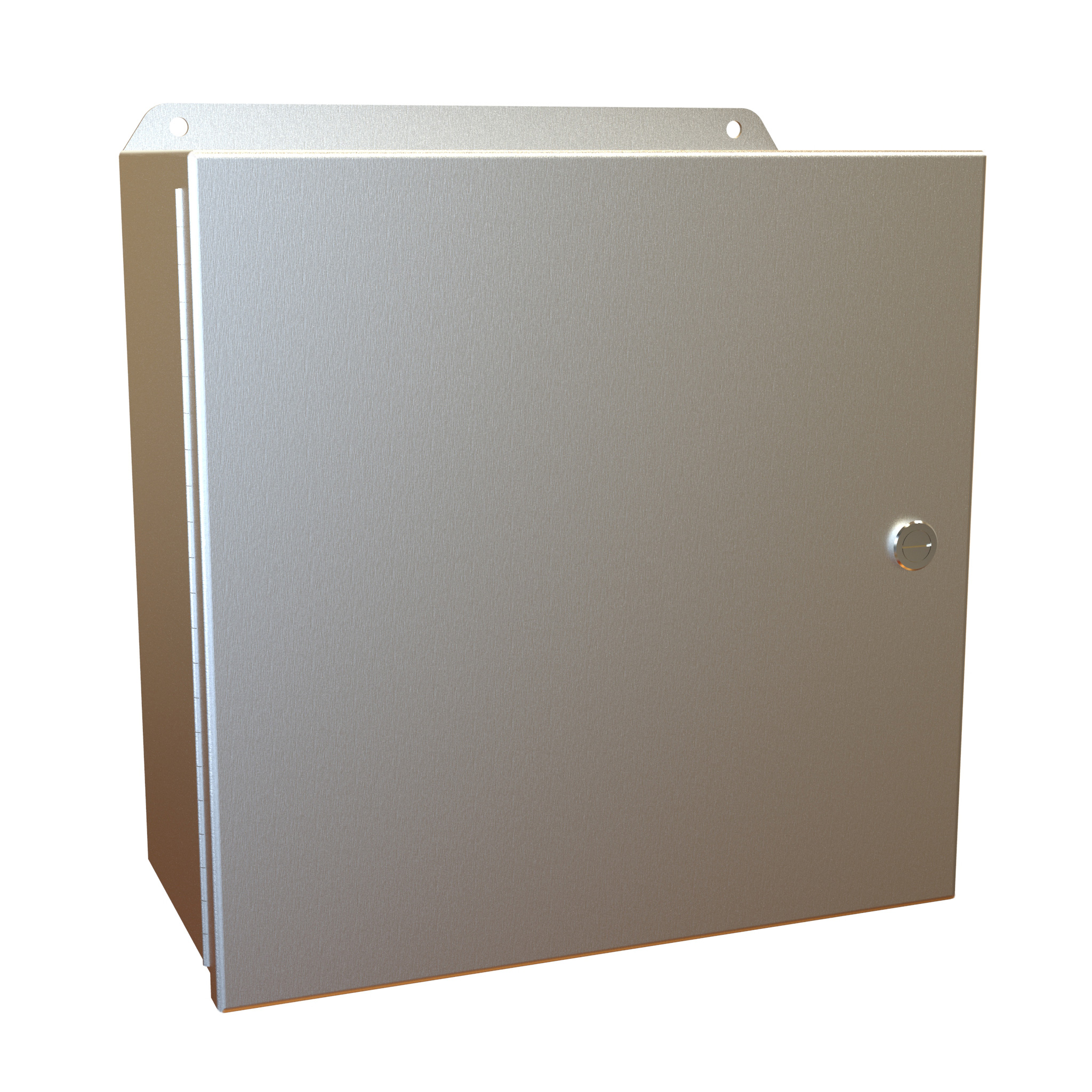

EJ12126AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$311.86Backorder
Buy now

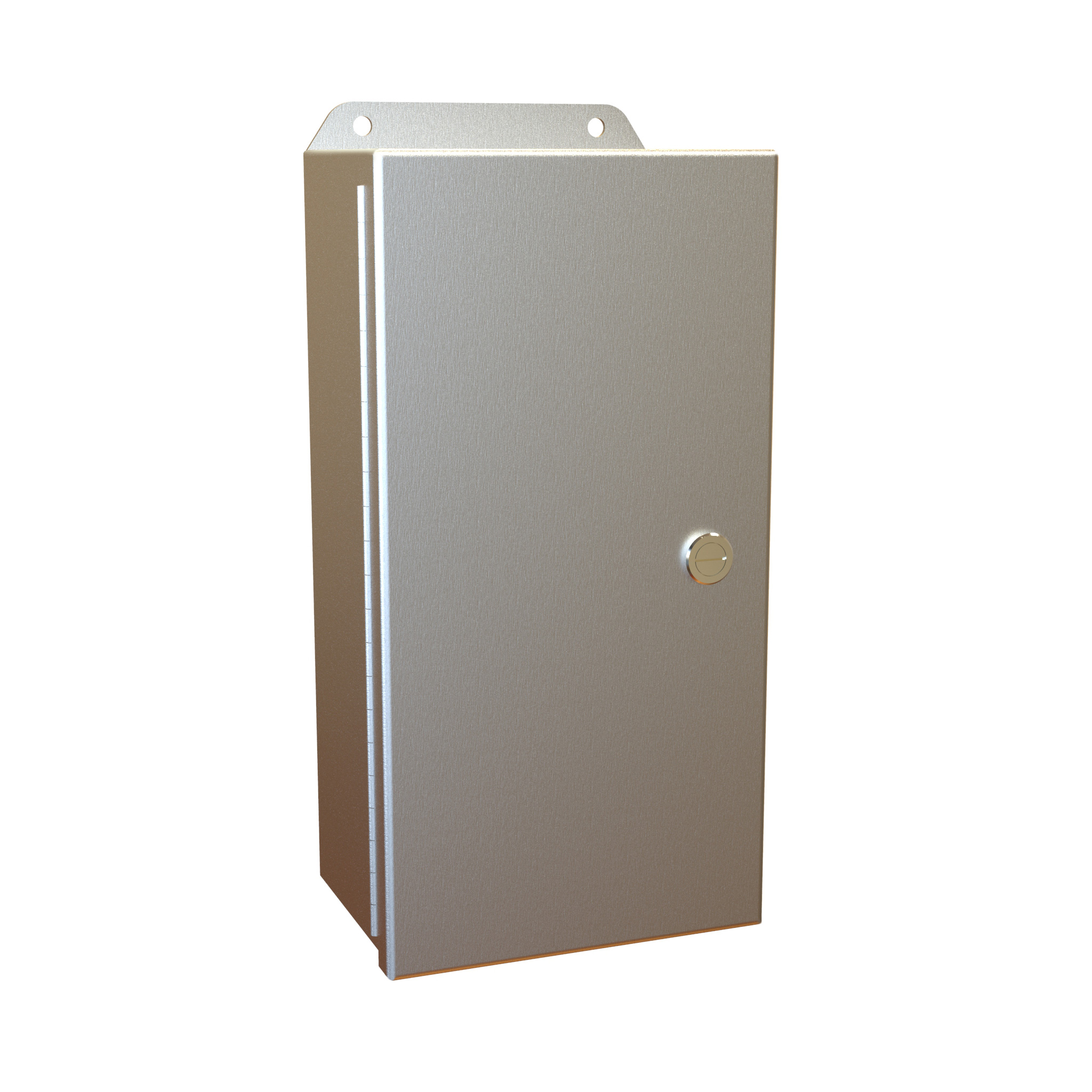

EJ1264AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$221.91In stock
Buy now

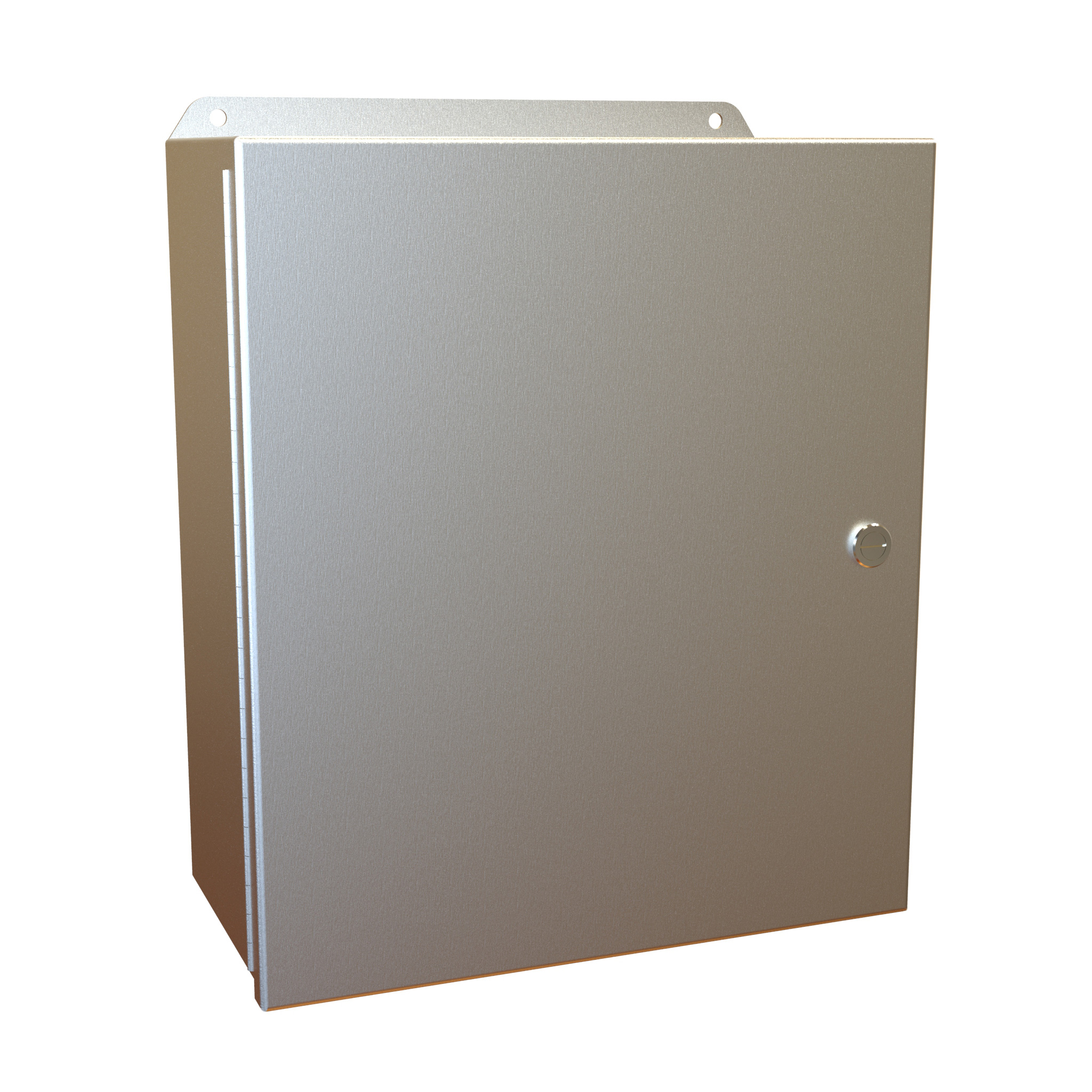

EJ14126AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$323.58Backorder
Buy now

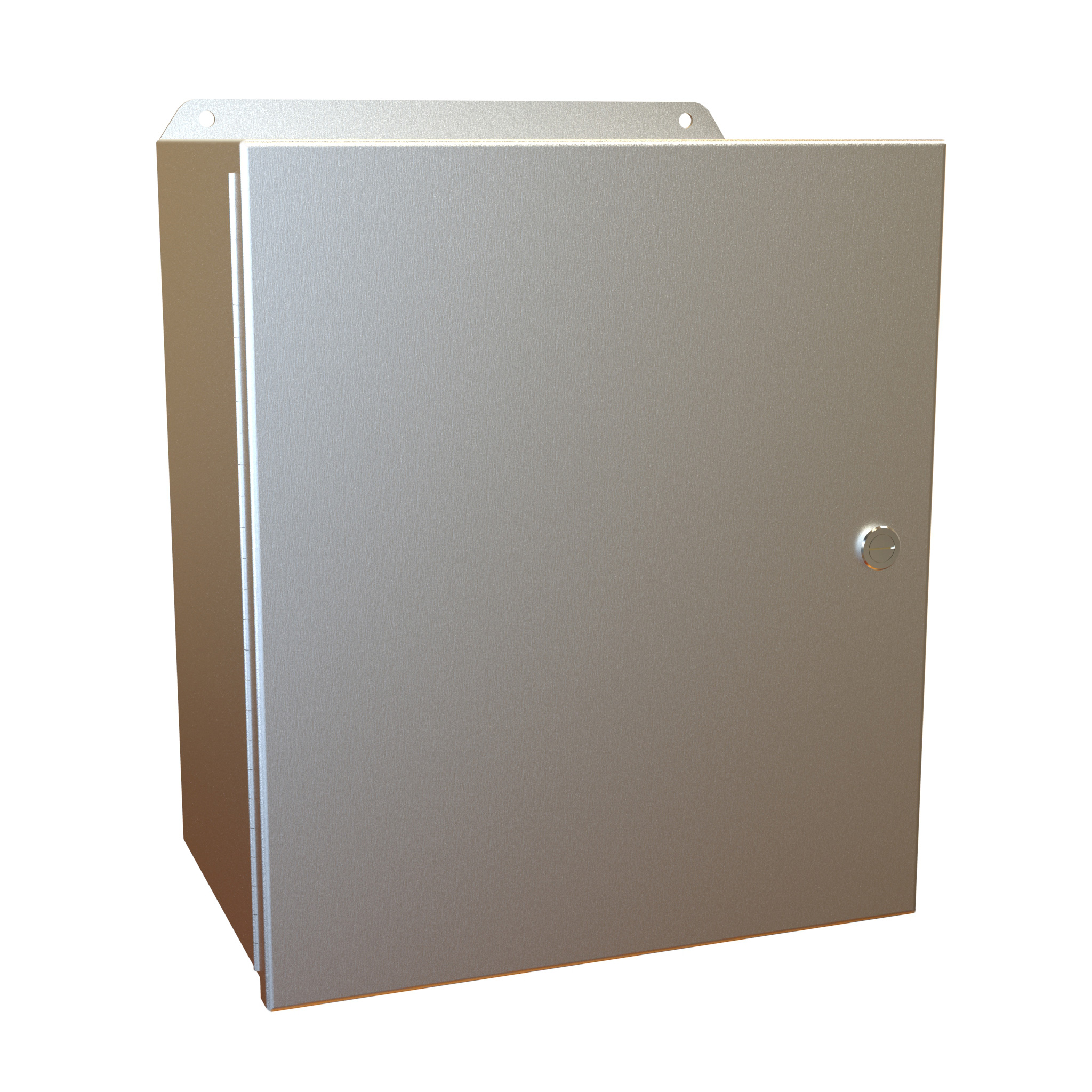

EJ14128AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$364.65In stock
Buy now

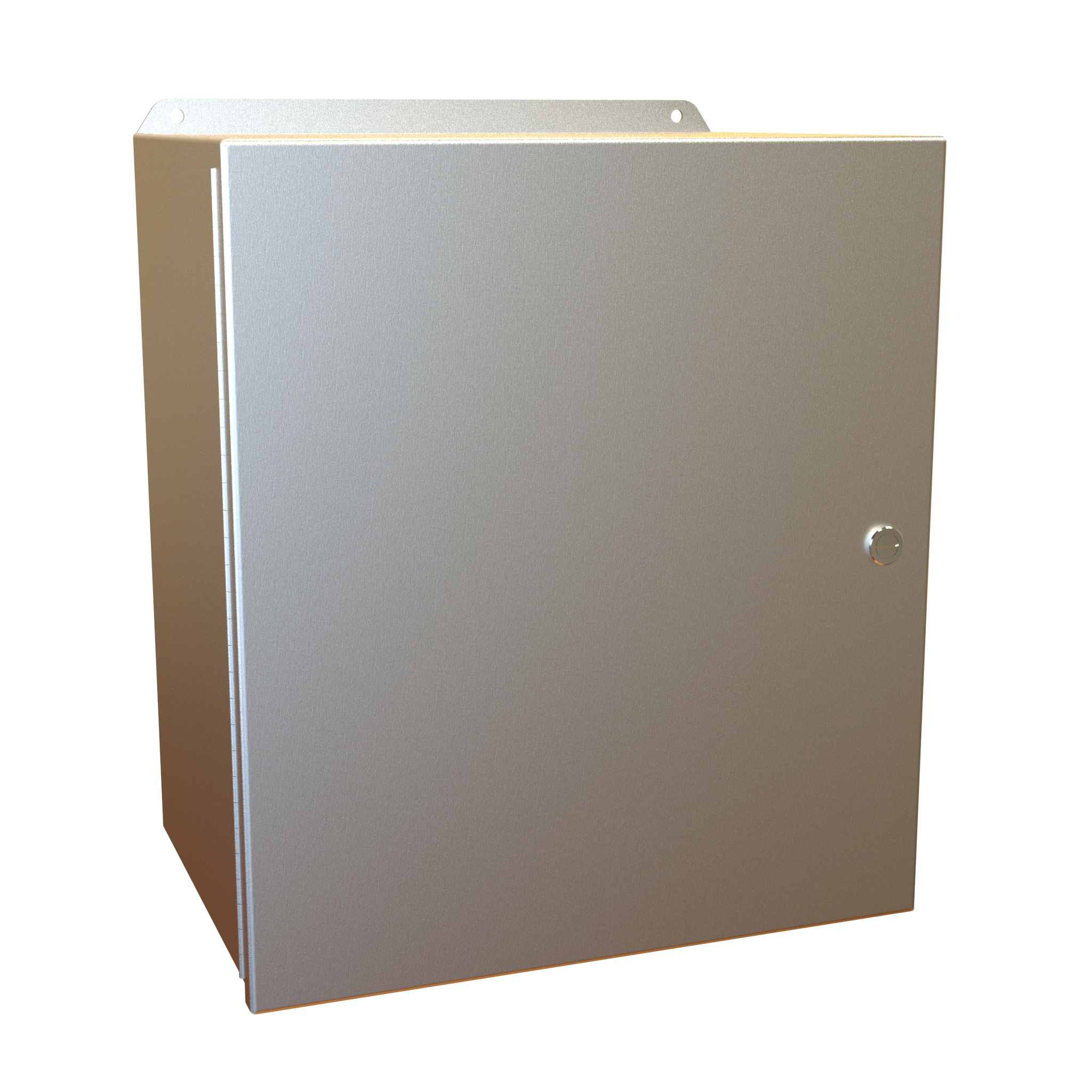

EJ161410AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$485.29Backorder
Buy now

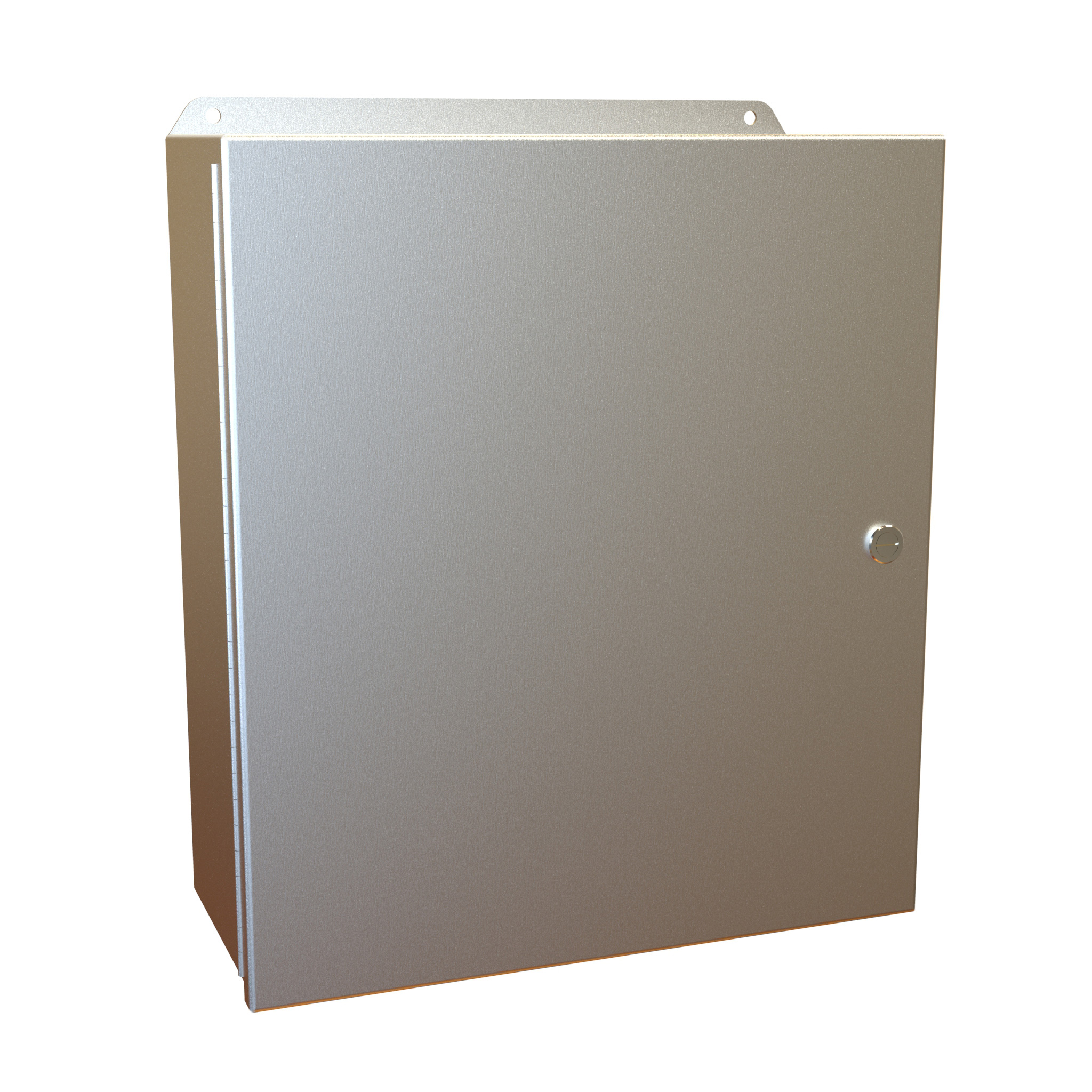

EJ16146AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$373.58Backorder
Buy now
EJ16148AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$464.70Backorder
Buy now

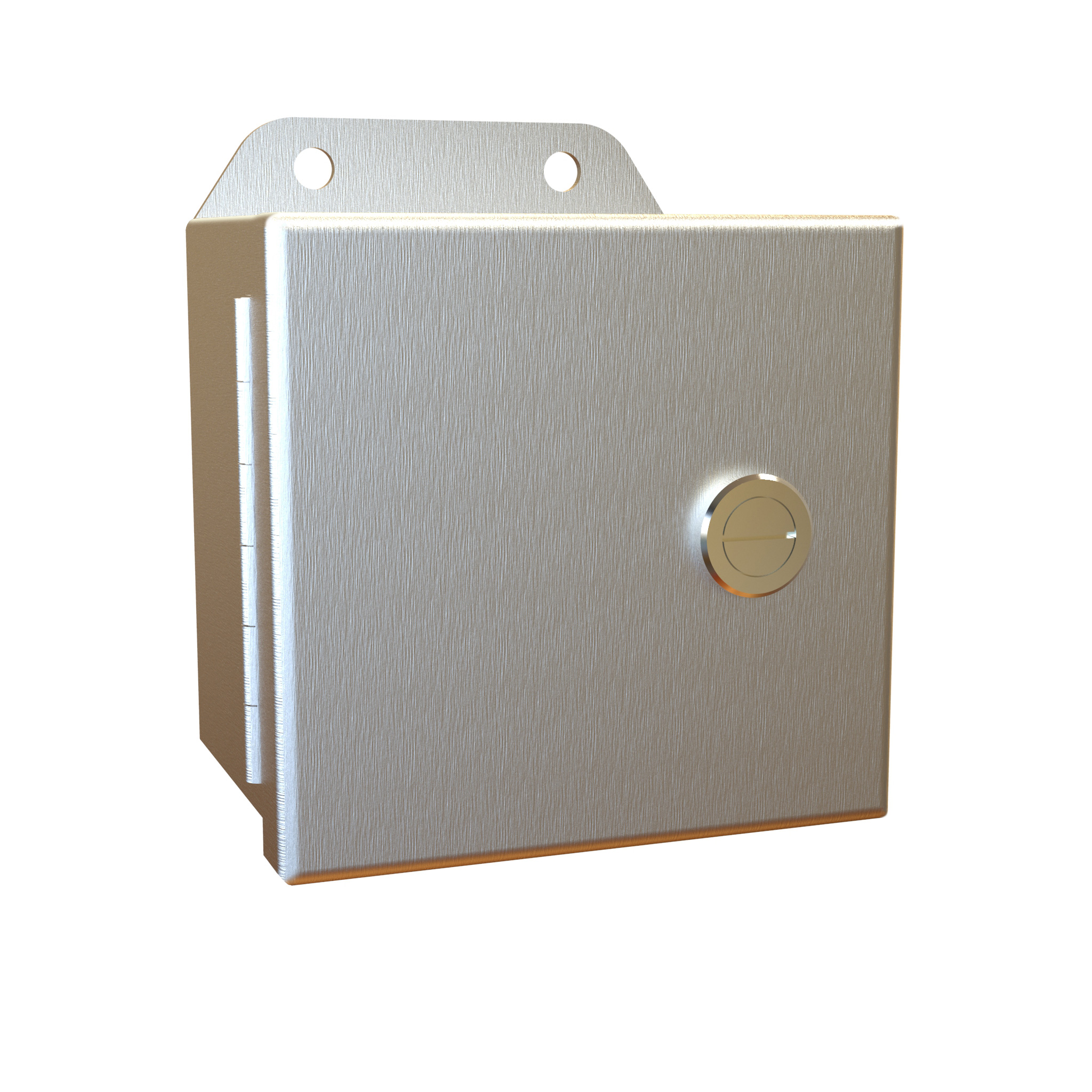

EJ443AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$134.94In stock
Buy now

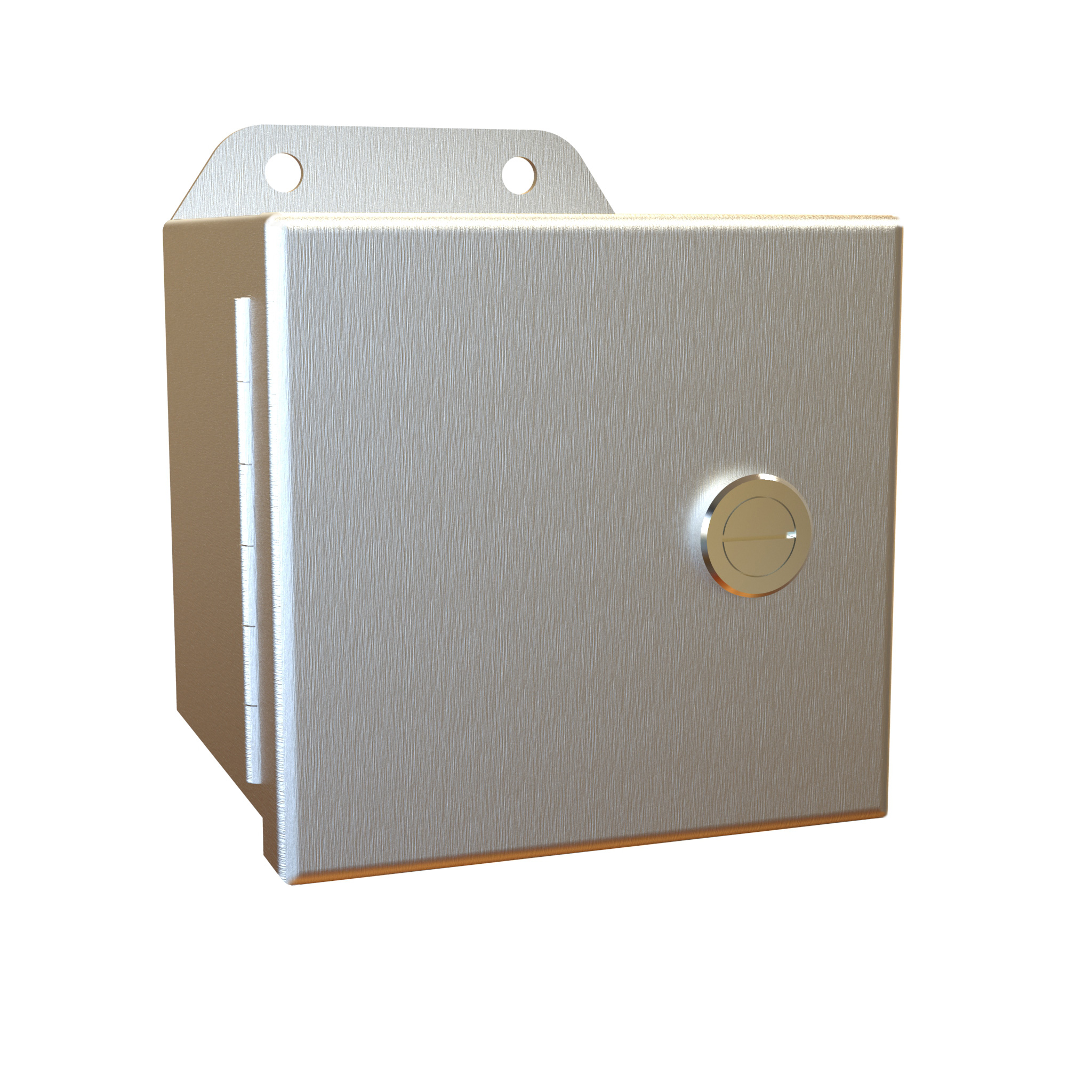

EJ444AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$140.91In stock
Buy now

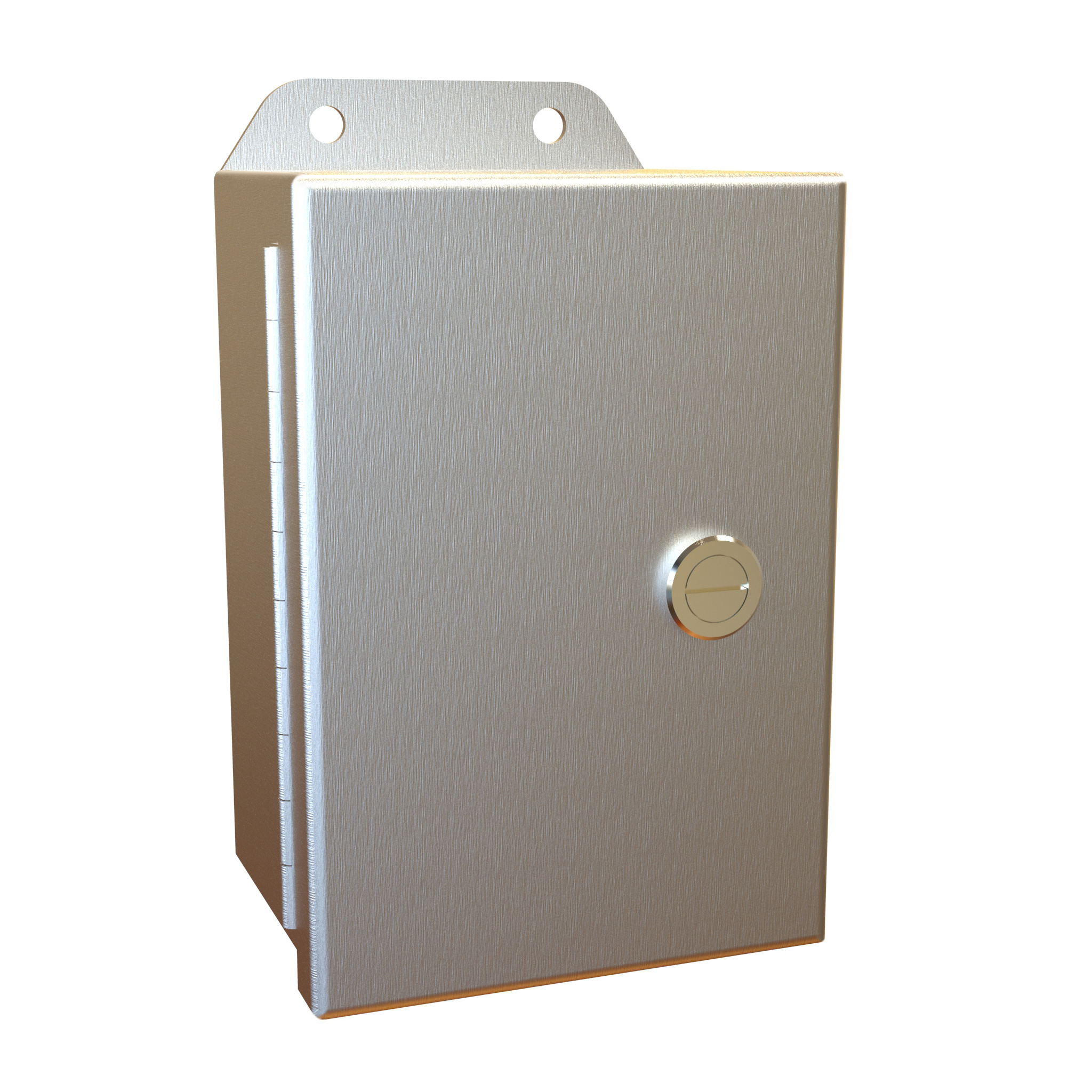

EJ643AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$158.92In stock
Buy now

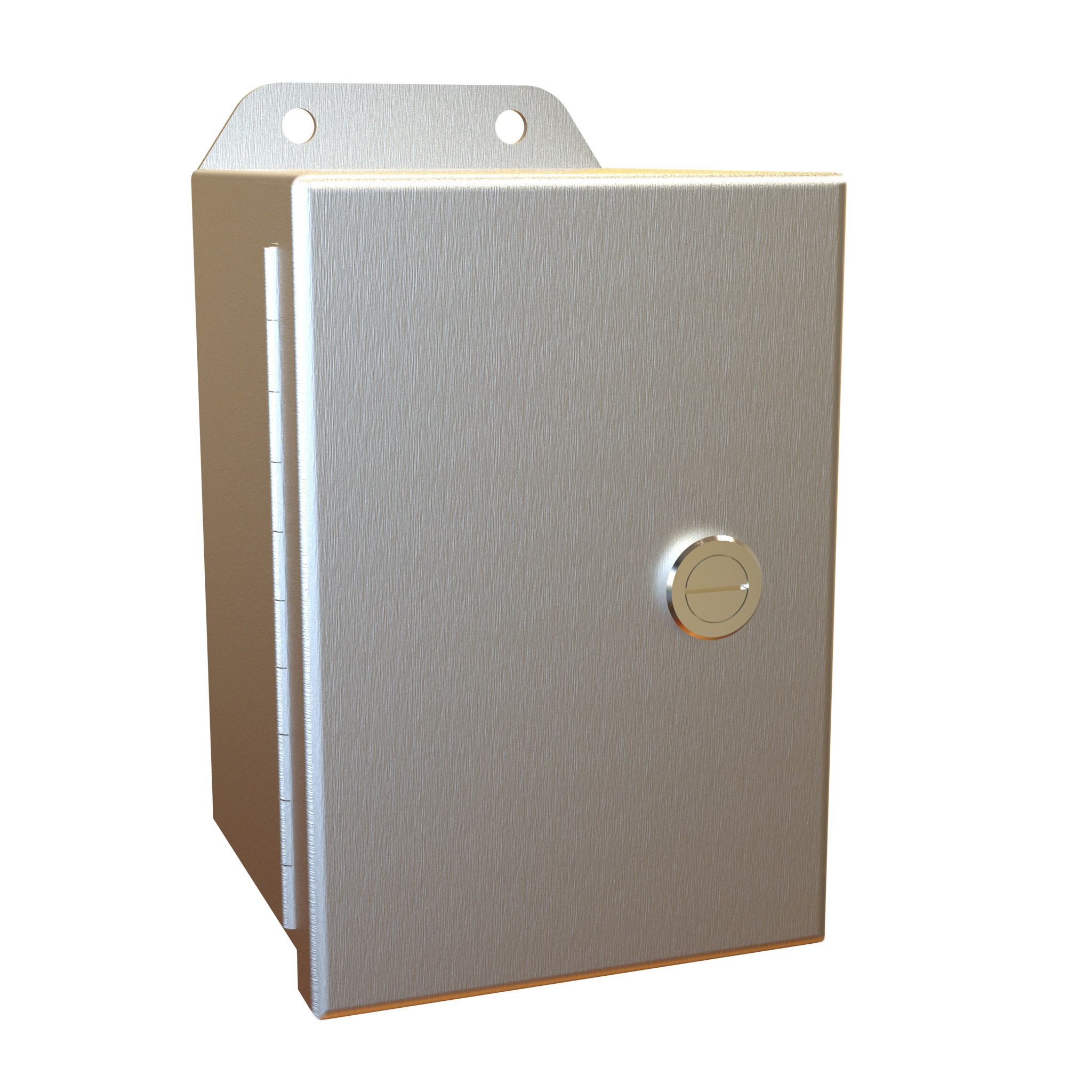

EJ644AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$164.88In stock
Buy now

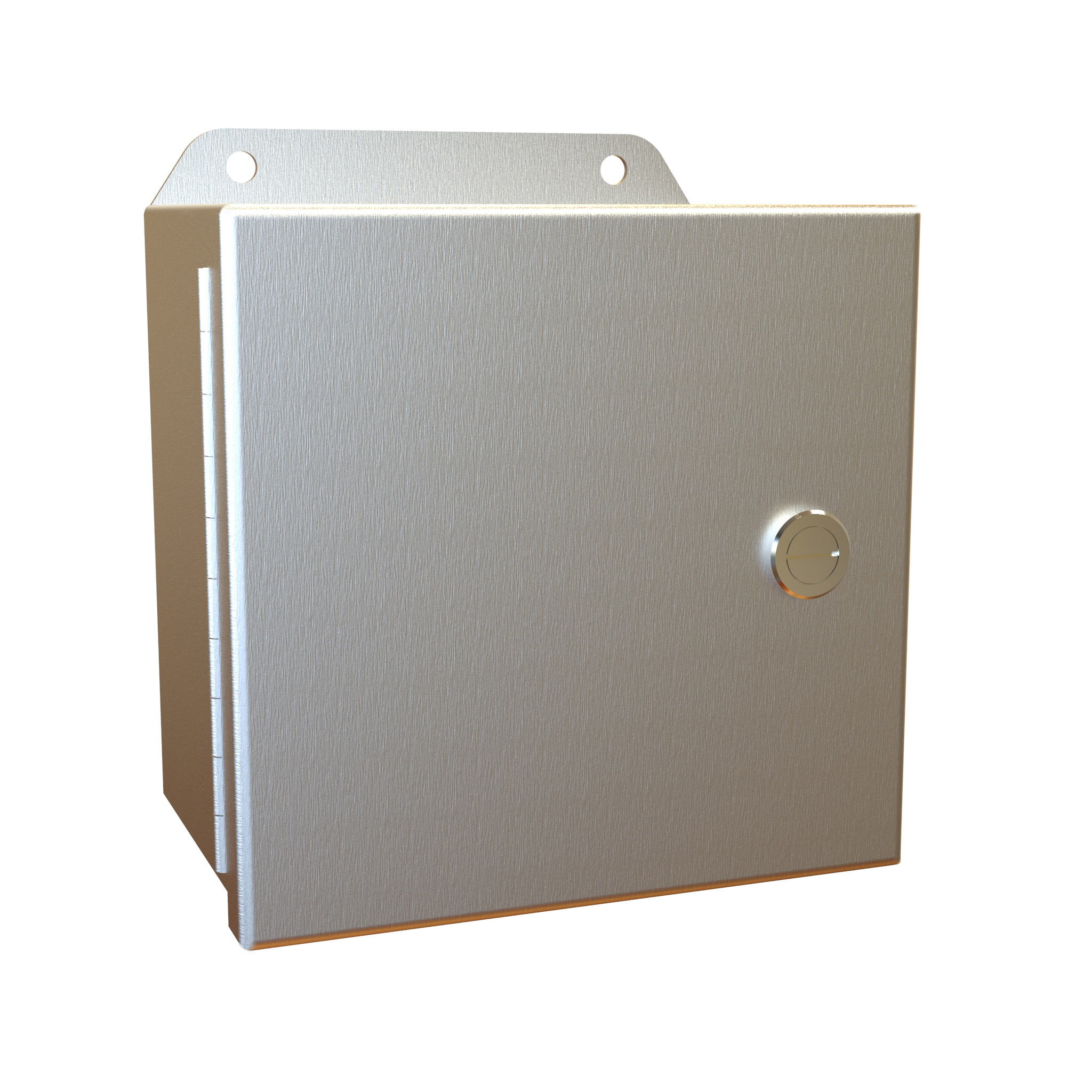

EJ664AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$176.92In stock
Buy now

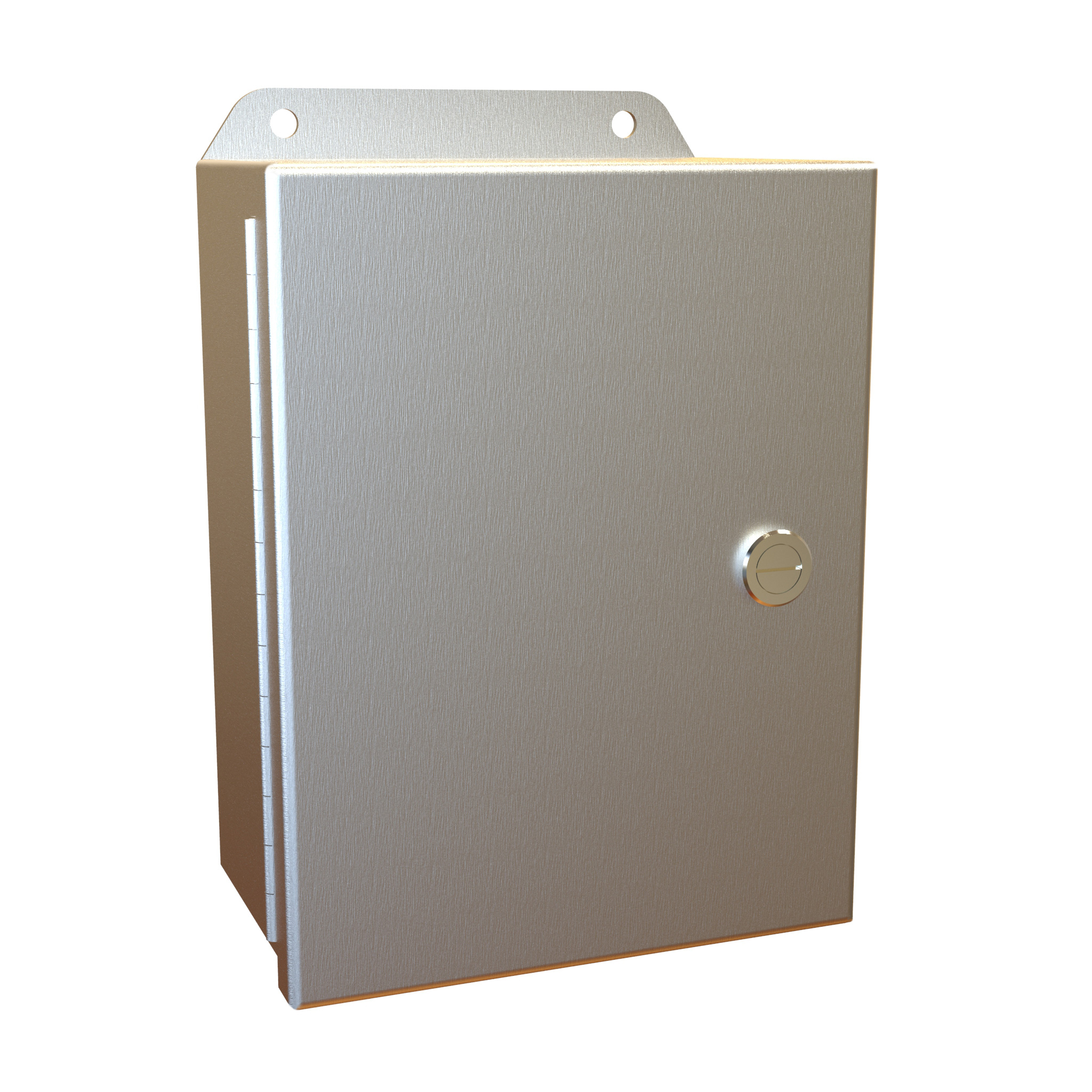

EJ863AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$185.90In stock
Buy now

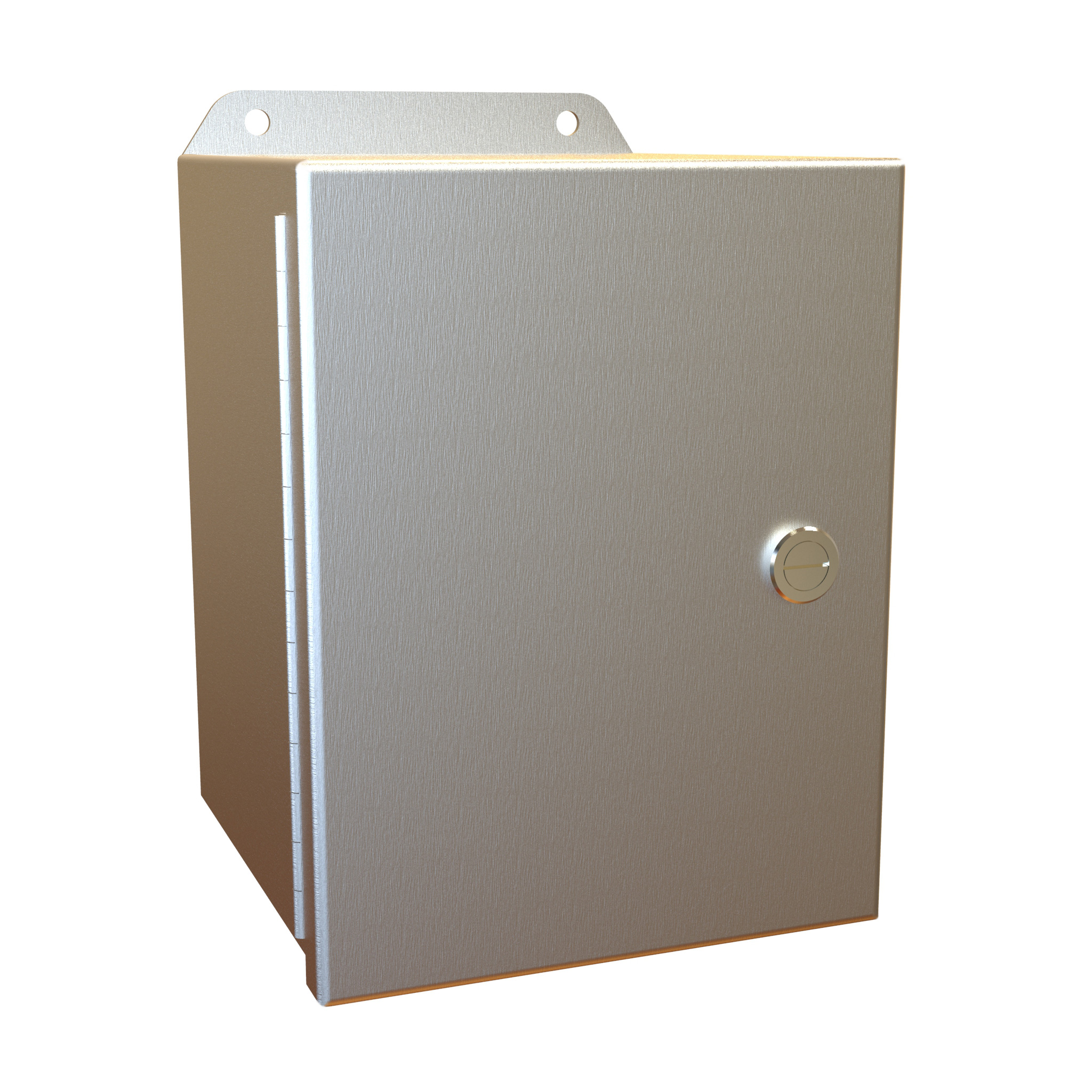

EJ866AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$209.88In stock
Buy now

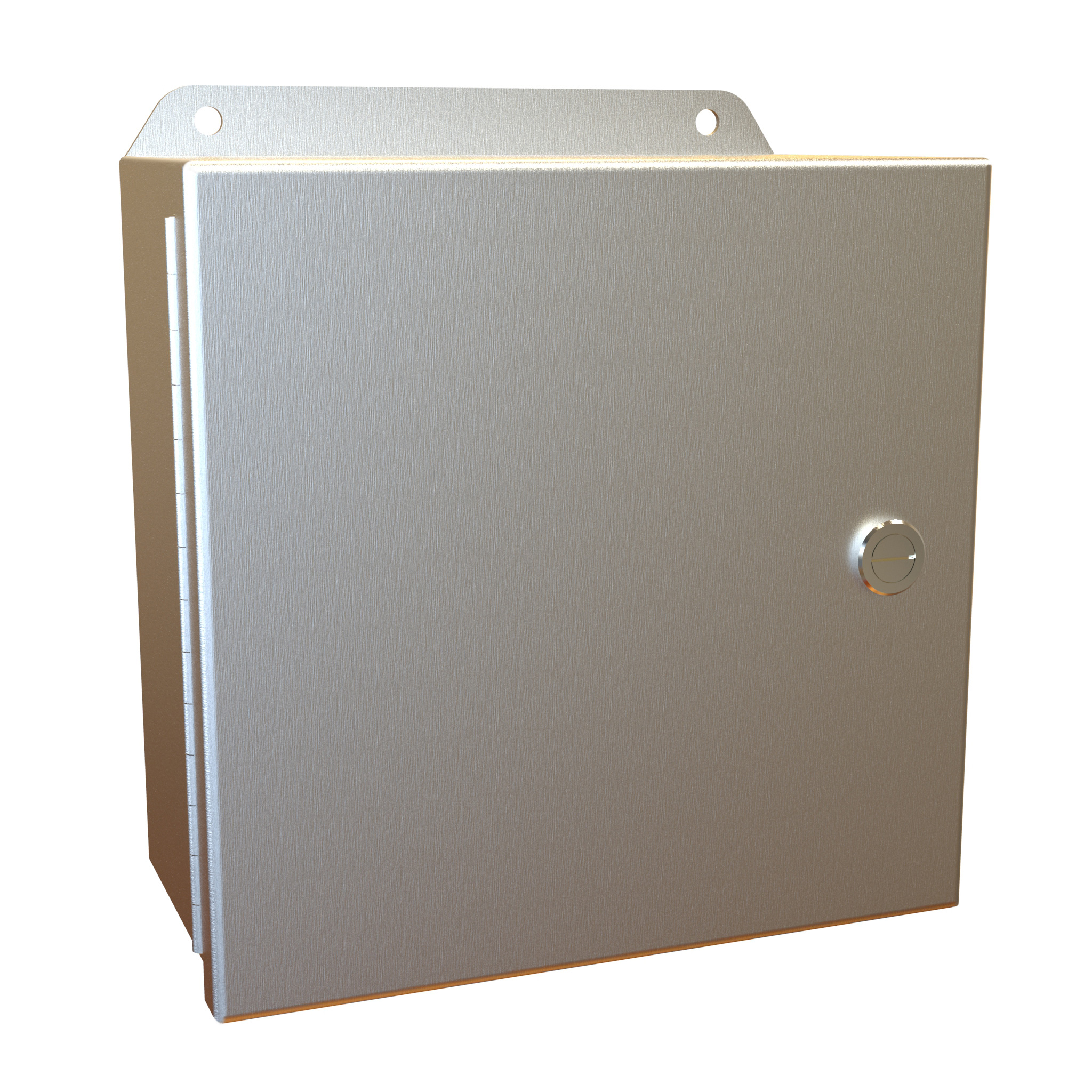

EJ884AL

Eclipse Jr. Aluminum - 1 Dr Wallmt

$203.91In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DPanel · HPanel · WPriceOrder
EJ443AL4.004.003.00N/AN/A$134.94In stockBuy now
EJ643AL6.004.003.004.882.88$158.92In stockBuy now
EJ863AL8.006.003.506.754.88$185.90In stockBuy now
EJ444AL4.004.004.00N/AN/A$140.91In stockBuy now
EJ644AL6.004.004.004.882.88$164.88In stockBuy now
EJ664AL6.006.004.004.884.88$176.92In stockBuy now
EJ884AL8.008.004.006.756.88$203.91In stockBuy now
EJ1084AL10.008.004.008.756.88$218.91In stockBuy now
EJ1264AL12.006.004.0010.754.88$221.91In stockBuy now
EJ12124AL12.0012.004.0010.7510.88$299.82In stockBuy now
EJ12105AL12.0010.005.0010.758.88$269.82In stockBuy now
EJ866AL8.006.006.006.754.88$209.88In stockBuy now
EJ1086AL10.008.006.008.756.88$251.86In stockBuy now
EJ10106AL10.0010.006.008.758.88$275.84BackorderBuy now
EJ12106AL12.0010.006.0010.758.88$287.83In stockBuy now
EJ12126AL12.0012.006.0010.7510.88$311.86BackorderBuy now
EJ14126AL14.0012.006.0012.7510.88$323.58BackorderBuy now
EJ16146AL16.0014.006.0014.7512.88$373.58BackorderBuy now
EJ12108AL12.0010.008.0010.758.88$314.82In stockBuy now
EJ14128AL14.0012.008.0012.7510.88$364.65In stockBuy now
EJ16148AL16.0014.008.0014.7512.88$464.70BackorderBuy now
EJ161410AL16.0014.0010.0014.7512.88$485.29BackorderBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.

Standards

  • ■UL 508A Type 3R, 4, 4X, 12, and 13
  • ■CSA Type 3R, 4, 4X, 12, and 13
  • ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4, 4X, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Formed from 0.08" Type 5052 H-32 aluminum.
  • ■Smooth, continuously welded seams without knockouts, cutouts, or holes.
  • ■Formed lip on enclosure to exclude flowing liquids and contaminants.
  • ■Welded brackets provide for enclosure mounting.
  • ■Continuously hinged cover has aluminum hinge and provides 180° opening.
  • ■Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • ■Quarter turn latches formed from 316 stainless steel.
  • ■Seamless poured-in place gasket.
  • ■Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
  • ■Tapped studs are provided for mounting inner panels.
  • ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
  • ■Grounding and panel mounting hardware provided.

Finish

  • ■Cover and enclosure are natural unfinished aluminum.
  • ■Removable inner panel is unpainted galvanized steel.

Documents

Specification SheetCE Declaration

Additional information

Part Details

Part No.Enclosure · HEnclosure · WEnclosure · DPanel · HPanel · W
EJ443AL4.004.003.00N/AN/A
EJ643AL6.004.003.004.882.88
EJ863AL8.006.003.506.754.88
EJ444AL4.004.004.00N/AN/A
EJ644AL6.004.004.004.882.88
EJ664AL6.006.004.004.884.88
EJ884AL8.008.004.006.756.88
EJ1084AL10.008.004.008.756.88
EJ1264AL12.006.004.0010.754.88
EJ12124AL12.0012.004.0010.7510.88
EJ12105AL12.0010.005.0010.758.88
EJ866AL8.006.006.006.754.88
EJ1086AL10.008.006.008.756.88
EJ10106AL10.0010.006.008.758.88
EJ12106AL12.0010.006.0010.758.88
EJ12126AL12.0012.006.0010.7510.88
EJ14126AL14.0012.006.0012.7510.88
EJ16146AL16.0014.006.0014.7512.88
EJ12108AL12.0010.008.0010.758.88
EJ14128AL14.0012.008.0012.7510.88
EJ16148AL16.0014.008.0014.7512.88
EJ161410AL16.0014.0010.0014.7512.88
