Hammond R510-000-000 Two-Piece Hinge Kit for aluNORM Diecast Enclosures

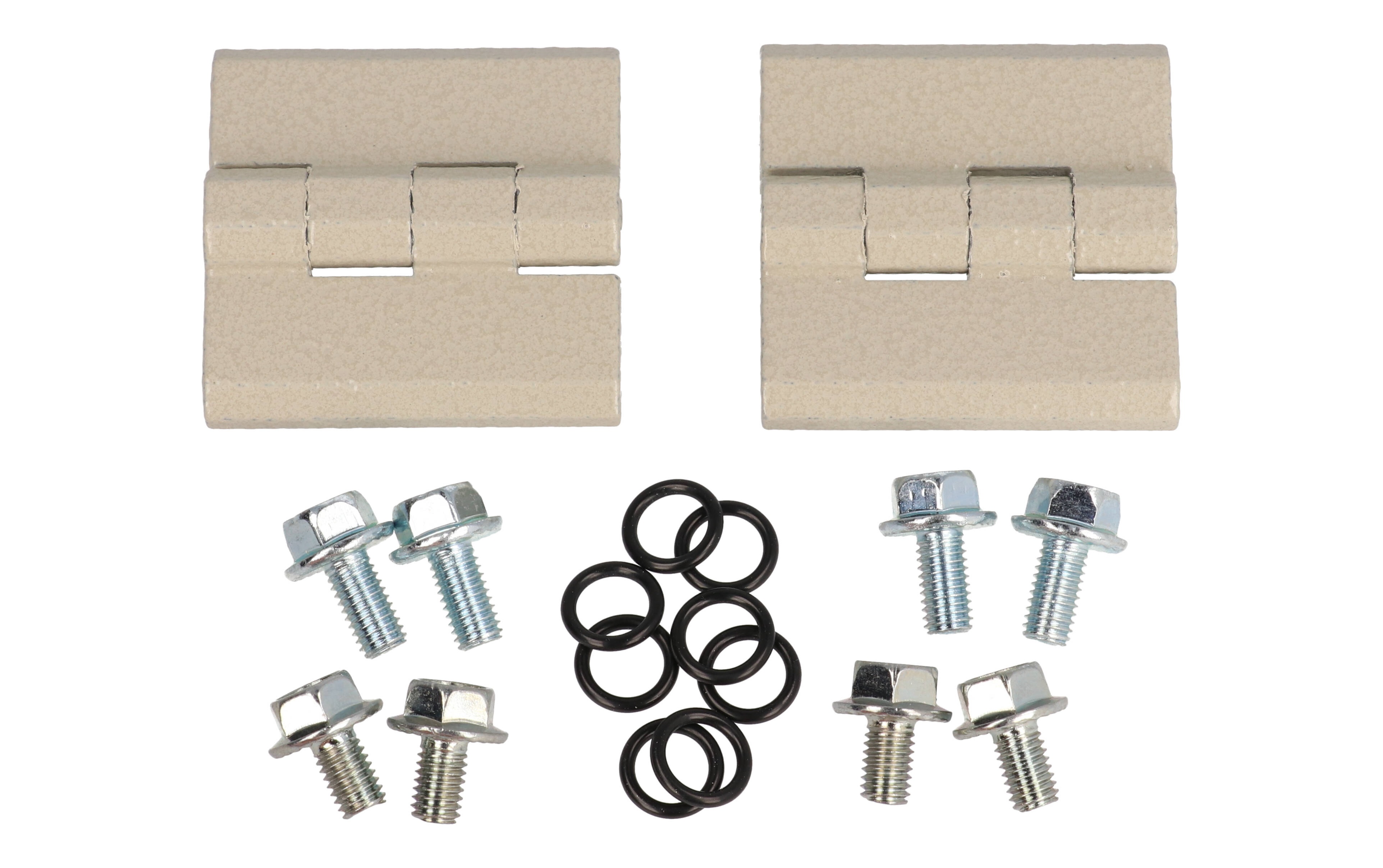

The R510-000-000 is a hinge kit for the R100, R101 and R102 aluNORM Type 4X diecast aluminum enclosures. The aluNORM accessory table lists it as a set of 2 hinges, letting installers and OEM builders convert a screw-fastened lid into a hinged lid for easier access to the equipment inside.

The hinges are listed as aluminum with a beige colour. One kit covers a wide range of enclosure sizes: every R100, R101 and R102 size from -102 (100 x 150 mm) up to -324 (320 x 640 mm). It is not listed for the smaller -060 to -100 sizes, where the accessory table shows no hinge.

• 100 mm wide: -102, -104
• 120 mm wide: -120, -122, -124
• 160 mm wide: -160, -162, -164, -166
• 200 mm wide: -200, -202, -204
• 240 mm wide: -240, -242, -244
• 320 mm wide: -320, -322, -324

On the aluNORM enclosures, lid screws and mounting holes sit outside the gasket seal, and the lids use captive stainless steel lid screws. For the same enclosure sizes, the accessory table also lists R507 galvanized steel inner panels and, for sizes up to -166, external mounting feet.

The R510-000-000 is RoHS compliant and REACH compliant, has a shipping weight of 1 lbs (0.45 kg), and ships in a box.
