1418 Perforated Inner Panel 13X9
$26.69In stock
Buy now

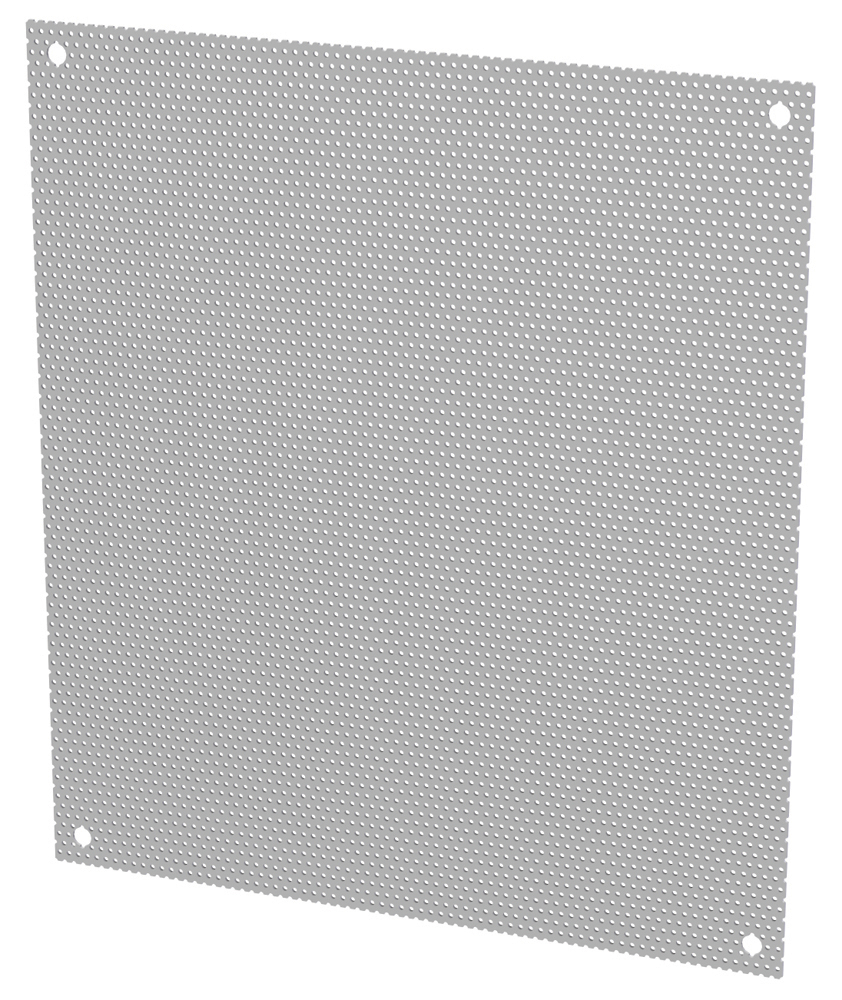

Perforated Inner Panels · 18PP Series
Brand: Hammond Manufacturing · 12 part numbers
1418, 1447, PJW, and PHW Wallmount Enclosures
- ■For use with 1418, 1447, PJW and PHW enclosures
- ■Made from 16 ga steel
- ■Accepts self tapping screws, eliminating time-consuming measurement, marking, and drilling of component mounting holes
- ■1/8" dia holes on 1/4" staggered centers
- ■ANSI 61 gray powder finish
from $26.69
12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 18PP Series part number
Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
12 of 12 part numbers · 12 priced online
1418 Perforated Inner Panel 13X13
$32.77In stock
Buy now1418 Perforated Inner Panel 15X15
$35.71In stock
Buy now1418 Perforated Inner Panel 17X13
$38.98In stock
Buy now1418 Perforated Inner Panel 17X17
$46.95In stock
Buy now1418 Perforated Inner Panel 21X17
$60.85In stock
Buy now1418 Perforated Inner Panel 21X21
$69.88In stock
Buy now1418 Perforated Inner Panel 27X21
$84.73In stock
Buy now1418 Perforated Inner Panel 27X27
$119.83In stock
Buy now1418 Perforated Inner Panel 33X21
$102.98In stock
Buy now1418 Perforated Inner Panel 33X27
$135.82In stock
Buy now1418 Perforated Inner Panel 33X33
$159.75In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Panel · L | Panel · W | For Use with Enclosure · H | For Use with Enclosure · W | # Folds | Price | Order |
|---|---|---|---|---|---|---|---|
| 18P1309PP | 13.00 | 9.00 | 16.00 | 12.00 | 0 | $26.69In stock | Buy now |
| 18P1313PP | 13.00 | 13.00 | 16.00 | 16.00 | 0 | $32.77In stock | Buy now |
| 18P1515PP | 15.00 | 15.00 | 18.00 | 18.00 | 0 | $35.71In stock | Buy now |
| 18P1713PP | 17.00 | 13.00 | 20.00 | 16.00 | 0 | $38.98In stock | Buy now |
| 18P1717PP | 17.00 | 17.00 | 20.00 | 20.00 | 0 | $46.95In stock | Buy now |
| 18P2117PP | 21.00 | 17.00 | 24.00 | 20.00 | 0 | $60.85In stock | Buy now |
| 18P2121PP | 21.00 | 21.00 | 24.00 | 24.00 | 4 | $69.88In stock | Buy now |
| 18P2721PP | 27.00 | 21.00 | 30.00 | 24.00 | 4 | $84.73In stock | Buy now |
| 18P2727PP | 27.00 | 27.00 | 30.00 | 30.00 | 4 | $119.83In stock | Buy now |
| 18P3321PP | 33.00 | 21.00 | 36.00 | 24.00 | 4 | $102.98In stock | Buy now |
| 18P3327PP | 33.00 | 27.00 | 36.00 | 30.00 | 4 | $135.82In stock | Buy now |
| 18P3333PP | 33.00 | 33.00 | 36.00 | 36.00 | 4 | $159.75In stock | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■For use with 1418, 1447, PJW and PHW enclosures
- ■Made from 16 ga steel
- ■Accepts self tapping screws, eliminating time-consuming measurement, marking, and drilling of component mounting holes
- ■1/8" dia holes on 1/4" staggered centers
- ■ANSI 61 gray powder finish
Documents
Additional information
Part Details
| Part No. | Panel · L | Panel · W | For Use with Enclosure · H | For Use with Enclosure · W | # Folds |
|---|---|---|---|---|---|
| 18P1309PP | 13.00 | 9.00 | 16.00 | 12.00 | 0 |
| 18P1313PP | 13.00 | 13.00 | 16.00 | 16.00 | 0 |
| 18P1515PP | 15.00 | 15.00 | 18.00 | 18.00 | 0 |
| 18P1713PP | 17.00 | 13.00 | 20.00 | 16.00 | 0 |
| 18P1717PP | 17.00 | 17.00 | 20.00 | 20.00 | 0 |
| 18P2117PP | 21.00 | 17.00 | 24.00 | 20.00 | 0 |
| 18P2121PP | 21.00 | 21.00 | 24.00 | 24.00 | 4 |
| 18P2721PP | 27.00 | 21.00 | 30.00 | 24.00 | 4 |
| 18P2727PP | 27.00 | 27.00 | 30.00 | 30.00 | 4 |
| 18P3321PP | 33.00 | 21.00 | 36.00 | 24.00 | 4 |
| 18P3327PP | 33.00 | 27.00 | 36.00 | 30.00 | 4 |
| 18P3333PP | 33.00 | 33.00 | 36.00 | 36.00 | 4 |
