Aluminum Panel For Wallmt 16X12
$40.92In stock
Buy now

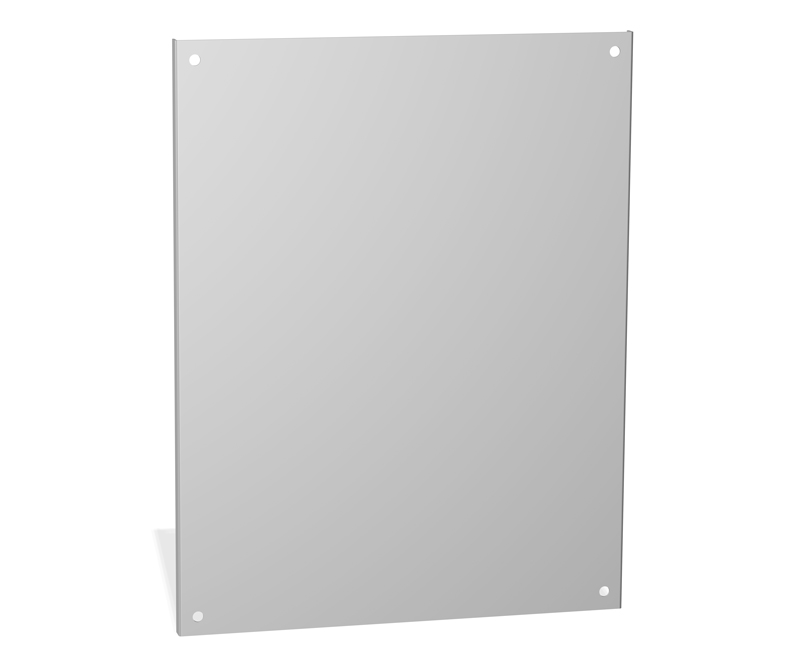

Inner Panels · 18P Series
Brand: Hammond Manufacturing · 90 part numbers
1418, 1447, PJW, and PHW Wallmount Enclosures
- ■Steel panels are 12 gauge steel and are finished in white.
- ■Galvanized panels are 12 gauge unpainted galvanized steel.
- ■Stainless steel panels are 12 gauge and are brushed 316 SS.
- ■Aluminum panels are 5052-H32 aluminum alloy.
- ■Larger panels have two or four formed flanges.
- ■Some larger panels are 10 gauge.
from $12.71
90 of 90 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 18P Series part number
Filter 91 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
91 of 91 part numbers · 90 priced online
Aluminum Panel For Wallmt 16X16
$50.82In stock
Buy nowAluminum Panel For Wallmt 20X16
$60.72In stock
Buy nowAluminum Panel For Wallmt 20X20
$74.23In stock
Buy nowAluminum Panel For Wallmt 24X20
$124.39In stock
Buy nowAluminum Panel For Wallmt 24X24
$143.78In stock
Buy nowAluminum Panel For Wallmt 30X24
$171.86In stock
Buy nowAluminum Panel For Wallmt 36X24
$201.95In stock
Buy nowAluminum Panel For Wallmt 36X30
$247.42In stock
Buy nowAluminum Panel For Wallmt 48X36
$385.85In stock
Buy nowAluminum Panel For Wallmt 60X36
$477.47In stock
Buy nowGalv Panel For Wallmt 12X12
$12.71In stock
Buy nowGalv Panel For Wallmt 16X12
$28.22In stock
Buy nowGalv Panel For Wallmt 16X16
$34.71In stock
Buy nowGalv Panel For Wallmt 18X18
$37.79In stock
Buy nowGalv Panel For Wallmt 20X12
$32.70In stock
Buy nowGalv Panel For Wallmt 20X16
$41.18In stock
Buy nowGalv Panel For Wallmt 20X20
$49.62In stock
Buy nowGalv Panel For Wallmt 24X12
$41.26In stock
Buy nowGalv Panel For Wallmt 24X16
$47.82Backorder
Buy nowGalv Panel For Wallmt 24X20
$64.26Backorder
Buy nowGalv Panel For Wallmt 24X24
$74.23Backorder
Buy nowGalv Panel For Wallmt 30X12
$59.11In stock
Buy nowGalv Panel For Wallmt 30X16
$63.73In stock
Buy nowGalv Panel For Wallmt 30X20
$78.91In stock
Buy nowGalv Panel For Wallmt 30X24
$90.95In stock
Buy nowGalv Panel For Wallmt 30X30
$127.72In stock
Buy nowGalv Panel For Wallmt 36X24
$109.00In stock
Buy nowGalv Panel For Wallmt 36X30
$145.11In stock
Buy nowGalv Panel For Wallmt 36X36
$169.85In stock
Buy nowGalv Panel For Wallmt 42X24
$131.07Backorder
Buy nowGalv Panel For Wallmt 42X30
$165.85In stock
Buy nowGalv Panel For Wallmt 42X36
$193.93In stock
Buy nowGalv Panel For Wallmt 48X24
$150.46Backorder
Buy nowGalv Panel For Wallmt 48X30
$185.24In stock
Buy nowGalv Panel For Wallmt 48X36
$218.67In stock
Buy nowGalv Panel For Wallmt 60X24
$183.23Backorder
Buy nowGalv Panel For Wallmt 60X36
$226.02In stock
Buy nowGalv Panel For Wallmt 72X30
$283.61In stock
Buy nowGalv Panel For Wallmt 72X36
$316.98In stock
Buy nowPanel 9 X 9 Fits Encl. 12X12
$20.72In stock
Buy nowPanel 13 X 9 - Fits Encl. 16X1
$28.22In stock
Buy nowPanel 13 X 9 - Fits Encl. 16 X
$80.92In stock
Buy nowPanel 13 X 13 Fits Encl. 16X16
$34.71In stock
Buy nowPanel 13 X 13 - Fits Encl. 16
$99.64In stock
Buy nowInner Panel 15X15
$37.79In stock
Buy nowPanel 17 X 09 - Fits ENCL20X16
$32.70In stock
Buy nowPanel 17X13 Fits Enclosure 20X16
$41.18In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Steel · Part No. | Galv. Steel · Part No. | Stainless Steel · Part No. | Aluminum · Part No. | Fiberglass · Part No. | Panel · L | Panel · W | For Use With Enclosure · H | For Use With Enclosure · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 18P0909 | 18G0909 | 9.00 | 9.00 | 12.00 | 12.00 | $20.72In stock18P0909 | Buy now | |||
| 18P1309 | 18G1309 | 18P1309S16 | 18A1309 | 13.00 | 9.00 | 16.00 | 12.00 | $28.22In stock18P1309 | Buy now | |
| 18P1313 | 18G1313 | 18P1313S16 | 18A1313 | 13.00 | 13.00 | 16.00 | 16.00 | $34.71In stock18P1313 | Buy now | |
| 18P1515 | 18G1515 | 15.00 | 15.00 | 18.00 | 18.00 | $37.79In stock18P1515 | Buy now | |||
| 18P1709 | 18G1709 | 17.00 | 9.00 | 20.00 | 12.00 | $32.70In stock18P1709 | Buy now | |||
| 18P1713 | 18G1713 | 18P1713S16 | 18A1713 | 17.00 | 13.00 | 20.00 | 16.00 | $41.18In stock18P1713 | Buy now | |
| 18P1717 | 18G1717 | 18P1717S16 | 18A1717 | 17.00 | 17.00 | 20.00 | 20.00 | $49.62In stock18P1717 | Buy now | |
| 18P2109 | 18G2109 | 21.00 | 9.00 | 24.00 | 12.00 | $41.33In stock18P2109 | Buy now | |||
| 18P2113 | 18G2113 | 18P2113S16 | 21.00 | 13.00 | 24.00 | 16.00 | $47.82In stock18P2113 | Buy now | ||
| 18P2117 | 18G2117 | 18P2117S16 | 18A2117 | F2420 | 21.00 | 17.00 | 24.00 | 20.00 | $64.26In stock18P2117 | Buy now |
| 18P2121 | 18G2121 | 18P2121S16 | 18A2121 | F2424 | 21.00 | 21.00 | 24.00 | 24.00 | $74.23In stock18P2121 | Buy now |
| 18P2709 | 18G2709 | 27.00 | 9.00 | 30.00 | 12.00 | $59.19In stock18P2709 | Buy now | |||
| 18P2713 | 18G2713 | 27.00 | 13.00 | 30.00 | 16.00 | $63.73In stock18P2713 | Buy now | |||
| 18P2717 | 18G2717 | 18P2717S16 | 27.00 | 17.00 | 30.00 | 20.00 | $78.91In stock18P2717 | Buy now | ||
| 18P2721 | 18G2721 | 18P2721S16 | 18A2721 | F3024 | 27.00 | 21.00 | 30.00 | 24.00 | $90.95In stock18P2721 | Buy now |
| 18P2727 | 18G2727 | 18P2727S16 | 27.00 | 27.00 | 30.00 | 30.00 | $127.72In stock18P2727 | Buy now | ||
| 18P3317 | 33.00 | 17.00 | 36.00 | 20.00 | $94.42In stock | Buy now | ||||
| 18P3321 | 18G3321 | 18P3321S16 | 18A3321 | 33.00 | 21.00 | 36.00 | 24.00 | $109.00In stock18P3321 | Buy now | |
| 18P3327 | 18G3327 | 18P3327S16 | 18A3327 | 33.00 | 27.00 | 36.00 | 30.00 | $145.11In stock18P3327 | Buy now | |
| 18P3333 | 18G3333 | 18P3333S16 | 33.00 | 33.00 | 36.00 | 36.00 | $169.85In stock18P3333 | Buy now | ||
| 18P3921 | 18G3921 | 39.00 | 21.00 | 42.00 | 24.00 | $131.07In stock18P3921 | Buy now | |||
| 18P3927 | 18G3927 | 18P3927S16 | 39.00 | 27.00 | 42.00 | 30.00 | $165.85In stock18P3927 | Buy now | ||
| 18P3933 | 18G3933 | 18P3933S16 | 39.00 | 33.00 | 42.00 | 36.00 | $193.93In stock18P3933 | Buy now | ||
| 18P4521 | 18G4521 | 45.00 | 21.00 | 48.00 | 24.00 | $150.46In stock18P4521 | Buy now | |||
| 18P4527 | 18G4527 | 45.00 | 27.00 | 48.00 | 30.00 | $185.24In stock18P4527 | Buy now | |||
| 18P4533 | 18G4533 | 18P4533S16 | 18A4533 | 45.00 | 33.00 | 48.00 | 36.00 | $218.67In stock18P4533 | Buy now | |
| 18P5721 | 18G5721 | 57.00 | 21.00 | 60.00 | 24.00 | $183.23Backorder18P5721 | Buy now | |||
| 18P5733 | 18G5733 | 18P5733S16 | 18A5733 | 57.00 | 33.00 | 60.00 | 36.00 | $268.82In stock18P5733 | Buy now | |
| 18P6927 | 18G6927 | 69.00 | 27.00 | 72.00 | 30.00 | $283.80Backorder18P6927 | Buy now | |||
| 18P6933 | 18G6933 | 69.00 | 33.00 | 72.00 | 36.00 | $316.98In stock18P6933 | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Steel panels are 12 gauge steel and are finished in white.
- ■Galvanized panels are 12 gauge unpainted galvanized steel.
- ■Stainless steel panels are 12 gauge and are brushed 316 SS.
- ■Aluminum panels are 5052-H32 aluminum alloy.
- ■Larger panels have two or four formed flanges.
- ■Some larger panels are 10 gauge.
- ■Panel mounting hardware not included (provided with enclosure).
Documents
Additional information
Part Details
| Steel · Part No. | Galv. Steel · Part No. | Stainless Steel · Part No. | Aluminum · Part No. | Fiberglass · Part No. | Panel · L | Panel · W | For Use With Enclosure · H | For Use With Enclosure · W |
|---|---|---|---|---|---|---|---|---|
| 18P0909 | 18G0909 | 9.00 | 9.00 | 12.00 | 12.00 | |||
| 18P1309 | 18G1309 | 18P1309S16 | 18A1309 | 13.00 | 9.00 | 16.00 | 12.00 | |
| 18P1313 | 18G1313 | 18P1313S16 | 18A1313 | 13.00 | 13.00 | 16.00 | 16.00 | |
| 18P1515 | 18G1515 | 15.00 | 15.00 | 18.00 | 18.00 | |||
| 18P1709 | 18G1709 | 17.00 | 9.00 | 20.00 | 12.00 | |||
| 18P1713 | 18G1713 | 18P1713S16 | 18A1713 | 17.00 | 13.00 | 20.00 | 16.00 | |
| 18P1717 | 18G1717 | 18P1717S16 | 18A1717 | 17.00 | 17.00 | 20.00 | 20.00 | |
| 18P2109 | 18G2109 | 21.00 | 9.00 | 24.00 | 12.00 | |||
| 18P2113 | 18G2113 | 18P2113S16 | 21.00 | 13.00 | 24.00 | 16.00 | ||
| 18P2117 | 18G2117 | 18P2117S16 | 18A2117 | F2420 | 21.00 | 17.00 | 24.00 | 20.00 |
| 18P2121 | 18G2121 | 18P2121S16 | 18A2121 | F2424 | 21.00 | 21.00 | 24.00 | 24.00 |
| 18P2709 | 18G2709 | 27.00 | 9.00 | 30.00 | 12.00 | |||
| 18P2713 | 18G2713 | 27.00 | 13.00 | 30.00 | 16.00 | |||
| 18P2717 | 18G2717 | 18P2717S16 | 27.00 | 17.00 | 30.00 | 20.00 | ||
| 18P2721 | 18G2721 | 18P2721S16 | 18A2721 | F3024 | 27.00 | 21.00 | 30.00 | 24.00 |
| 18P2727 | 18G2727 | 18P2727S16 | 27.00 | 27.00 | 30.00 | 30.00 | ||
| 18P3317 | 33.00 | 17.00 | 36.00 | 20.00 | ||||
| 18P3321 | 18G3321 | 18P3321S16 | 18A3321 | 33.00 | 21.00 | 36.00 | 24.00 | |
| 18P3327 | 18G3327 | 18P3327S16 | 18A3327 | 33.00 | 27.00 | 36.00 | 30.00 | |
| 18P3333 | 18G3333 | 18P3333S16 | 33.00 | 33.00 | 36.00 | 36.00 | ||
| 18P3921 | 18G3921 | 39.00 | 21.00 | 42.00 | 24.00 | |||
| 18P3927 | 18G3927 | 18P3927S16 | 39.00 | 27.00 | 42.00 | 30.00 | ||
| 18P3933 | 18G3933 | 18P3933S16 | 39.00 | 33.00 | 42.00 | 36.00 | ||
| 18P4521 | 18G4521 | 45.00 | 21.00 | 48.00 | 24.00 | |||
| 18P4527 | 18G4527 | 45.00 | 27.00 | 48.00 | 30.00 | |||
| 18P4533 | 18G4533 | 18P4533S16 | 18A4533 | 45.00 | 33.00 | 48.00 | 36.00 | |
| 18P5721 | 18G5721 | 57.00 | 21.00 | 60.00 | 24.00 | |||
| 18P5733 | 18G5733 | 18P5733S16 | 18A5733 | 57.00 | 33.00 | 60.00 | 36.00 | |
| 18P6927 | 18G6927 | 69.00 | 27.00 | 72.00 | 30.00 | |||
| 18P6933 | 18G6933 | 69.00 | 33.00 | 72.00 | 36.00 |
