Hammond SCG060-50 #6-32 Copper Ground Screw Kit with Washer, 50 Pack

The SCG060-50 is a #6-32 ground screw kit supplied in a 50 pack, listed as replacement grounding hardware for the 1590Z and 1550Z series. It suits electricians, integrators and OEM engineers who need to re-establish or add a ground connection on these enclosures.

In the Small Case Hardware ordering table the item is classed as Ground Screws, with the description "#6-32 x 5/16" copper screws and washer". The part page confirms the material as copper and catalogues the part under Hardware, type Screws, with the short description "#6-32 GROUND SCREW KIT-50 pk".

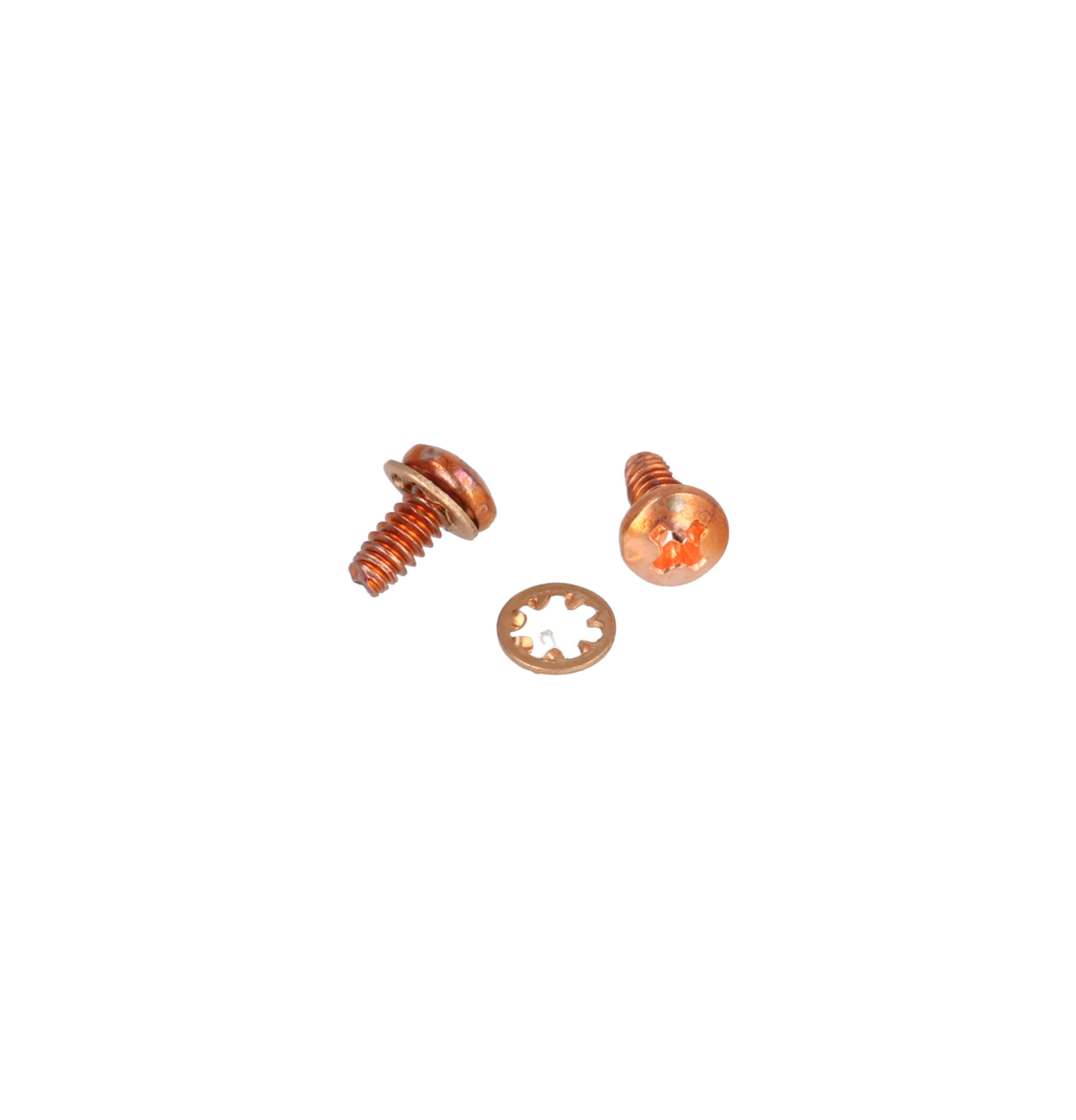

• Thread and length: #6-32 x 5/16"
• Material: copper, with washer
• Quantity: 50 per pack
• Size: 2.5 in x 1.5 in x 0.75 in (64 mm x 38 mm x 19 mm)
• Shipping weight: 0.4 lbs (0.18 kg)

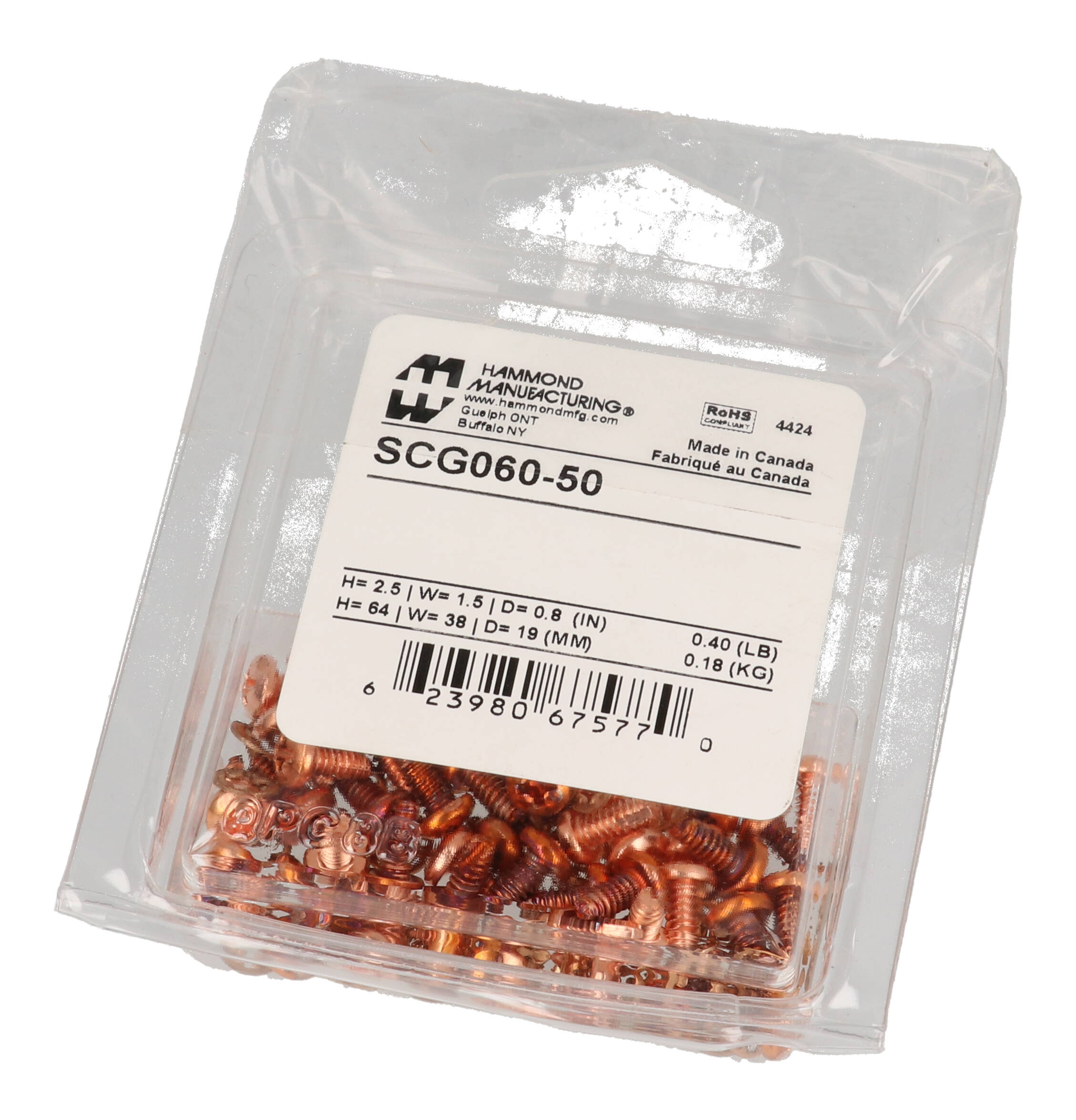

The kit is packed in a plastic clamshell. Hammond enclosures generally include all hardware needed for assembly, and hardware packs may not be compatible with every part in a listed series, so confirm the SCG060-50 against the series landing page or the "Replacement Parts and Accessories" section on your enclosure's part page.

The kit is listed as RoHS compliant and REACH compliant.
