Hammond 1590Z061G Silicone Gasket 2-Pack for 64x58x35 mm Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pack of 2 pre-formed silicone rubber gaskets
- Fits 1590Z061, 1590Z061BK and 1590Z061GY enclosures
- IP66 rating listed on the part page
- Outline 60.06 x 54.06 mm [2.364 x 2.128 in]
- Section profile 2.10 x 2.00 mm
- Series temperature rating -40C to +150C
- RoHS and REACH compliant

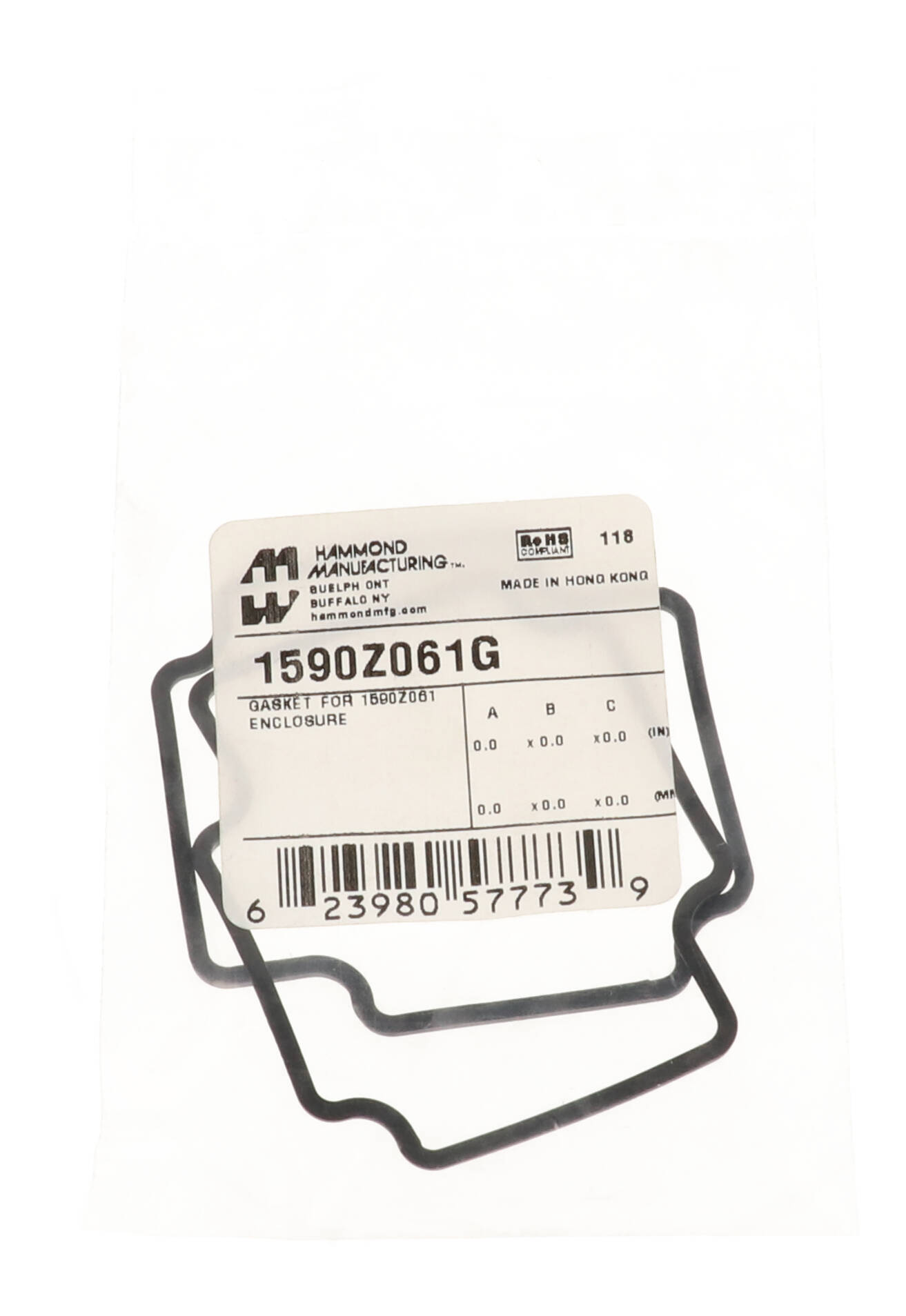

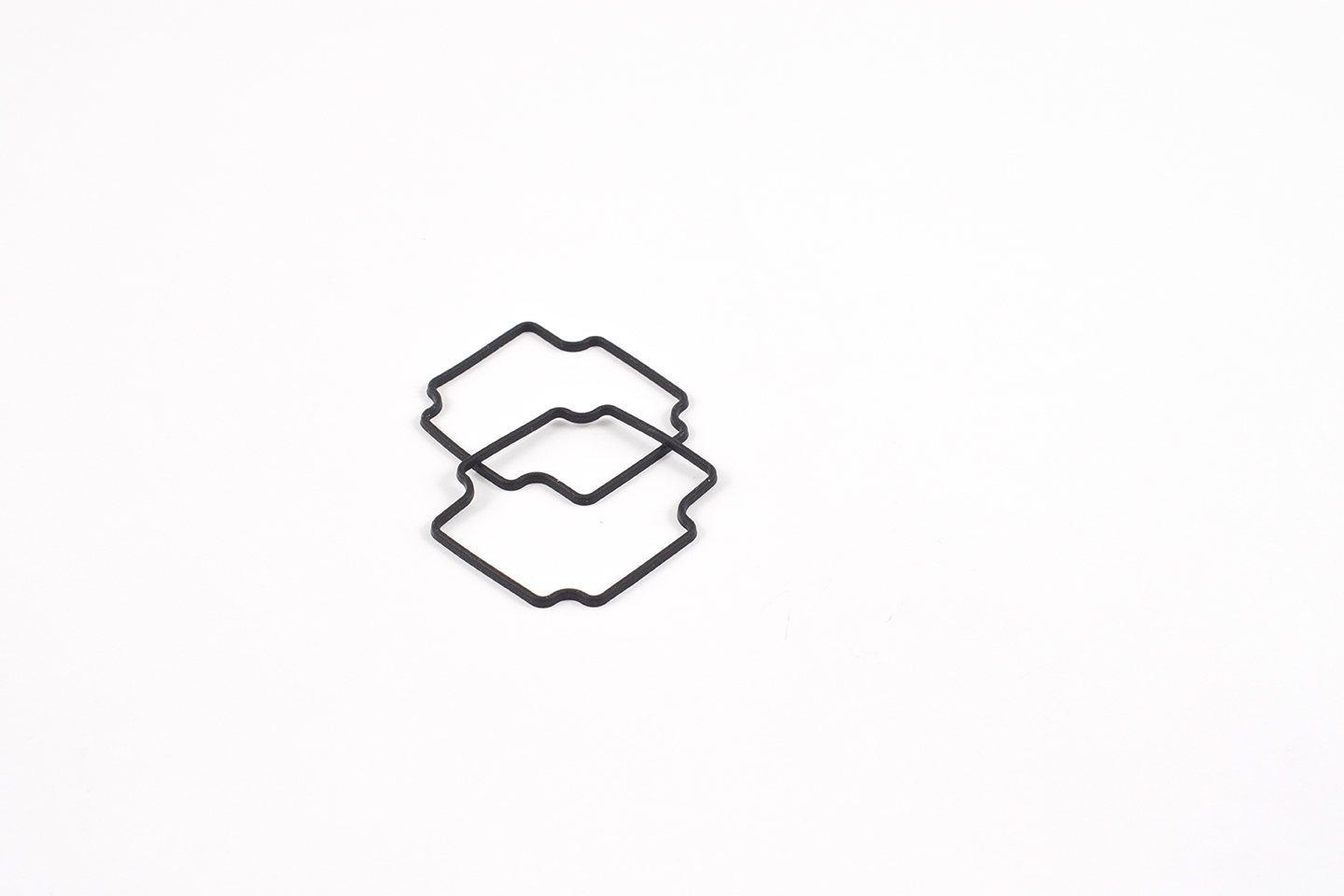

The 1590Z061G is a two-pack of pre-formed silicone replacement gaskets for 1590Z061 enclosures, covering the natural 1590Z061, black 1590Z061BK and gray 1590Z061GY versions of the 64 mm x 58 mm x 35 mm box. It lets service technicians and OEM builders renew the lid seal on installed units.
The gasket is silicone rubber; drawing G061 also names an alternate material manufactured by Shin-Etsu, Type KE-931U & KE-941U (1:1) mixture. The part page lists an IP66 rating, and the 1590Z series gasket is rated for temperatures from -40C to +150C (-40F to 302F).
The drawing shows a gasket outline of 2.364 in x 2.128 in [60.06 mm x 54.06 mm] with a section A-A profile of 0.083 in x 0.079 in [2.10 mm x 2.00 mm]. It corresponds to the enclosure listed at 2.52 in (64 mm) long, 2.28 in (58 mm) wide and 1.38 in (35 mm) total depth.
In the enclosure, the one-piece gasket seals a two-piece tongue and groove joint and is designed to be replaced. The 1590Z061G is packaged in a bag, weighs 0.01 lbs (0.00 kg) shipped, and is RoHS and REACH compliant.
Ideal For
- Resealing 1590Z061 enclosures during maintenance
- Spare seals for field service stock
- Refurbishing outdoor diecast enclosures
Overview
| Type | Gasket |
| Quantity | Pack of 2 (Pre-Formed Silicone Gasket) |
| Part Number | 1590Z061G |
| Fits Enclosures | 1590Z061, 1590Z061BK, 1590Z061GY |
| Long Description | replacement gasket for 1590Z061 enclosures |
| Short Description | 2x GASKET FOR 1590Z061 |
Dimensions
| Gasket Outline (Drawing) | 60.06 mm x 54.06 mm [2.364 in x 2.128 in] |
| Section A-A Profile (Drawing) | 2.10 mm x 2.00 mm [0.083 in x 0.079 in] |
| Enclosure Size (L X W X Total Depth) | 2.52 in (64 mm) x 2.28 in (58 mm) x 1.38 in (35 mm) |
Identifiers
| UPC | 623980577739 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | Silicone |
| Drawing Material | Silicone Rubber |
| Drawing Reference | G061 |
| Alternate Material | Manufactured by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture |
Environmental & Protection
| IP Rating | IP66 |
| Temperature Rating (Series) | -40C to +150C (-40F to 302F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures use the 1590Z061G?▾
The 1590Z061, 1590Z061BK and 1590Z061GY list 1590Z061G as their replacement gasket (pack of 2).
What IP rating is listed for the gasket?▾
The part page lists IP66.
What are the gasket's dimensions?▾
The drawing shows an outline of 60.06 mm x 54.06 mm [2.364 in x 2.128 in] and a section profile of 2.10 mm x 2.00 mm.
What material is it?▾
Silicone rubber, with an alternate material from Shin-Etsu, Type KE-931U & KE-941U (1:1) mixture, listed on the drawing.
