Hammond 1590Z061 64x58x35 mm IP68 Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 64 x 58 x 35 mm thick-wall diecast aluminum enclosure, natural finish
- IP68; NEMA 4, 4X, 6, 6P, 12 & 13; IK08 per IEC62262
- cUL and UL listed
- Inside 57.05 x 50.85 x 27.89 mm
- Four recessed stainless steel lid screws; replaceable silicone gasket
- Wall mounting holes outside the gasket channel
- Includes 4 cover screws and 2 ground screws with washers
The 1590Z061 is a natural-finish, thick-wall diecast aluminum enclosure from the 1590Z Type 4X/6P series, sized at 64 mm x 58 mm x 35 mm. It suits OEM engineers and electricians sealing small control boards, transmitters or terminal connections in outdoor, washdown or dusty locations.

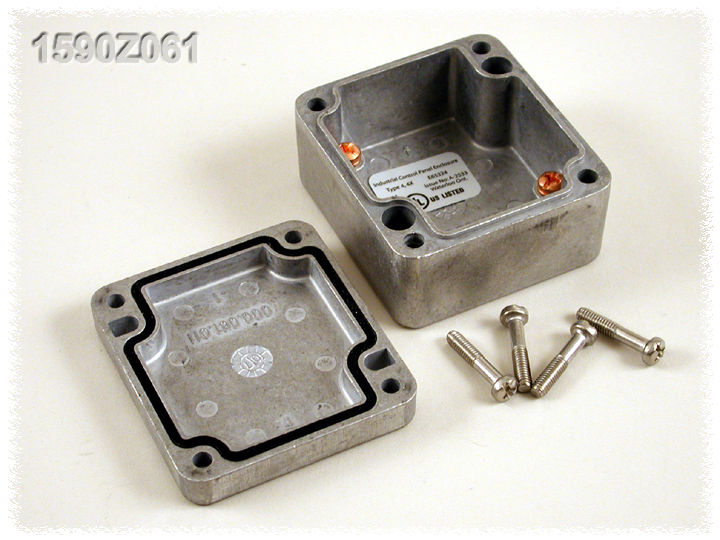

A diecast aluminum alloy box and lid meet at a two-piece tongue and groove joint sealed by a replaceable one-piece silicone rubber gasket, rated -40C to +150C (-40F to 302F) and supplied loose inside the box. The lid is held by four recessed stainless steel machine screws into tapped holes, and the design is intended for repetitive opening and closing. Average wall thickness on the drawing is 2.86 mm [.11 in].

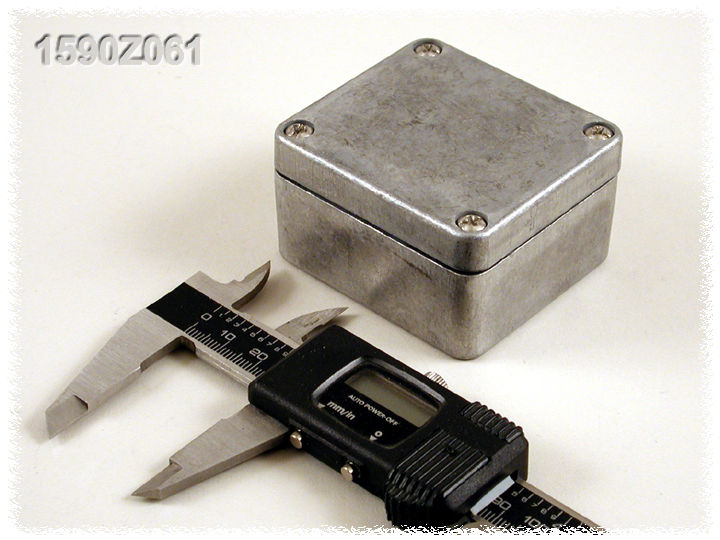

The series table lists 2.52 in (64 mm) length, 2.28 in (58 mm) width, 1.38 in (35 mm) total depth and 0.20 in (5 mm) lid depth. The drawing gives inside dimensions of 57.05 mm [2.25 in] long, 50.85 mm [2.00 in] wide and 27.89 mm [1.10 in] deep. There is no internal mounting shelf.

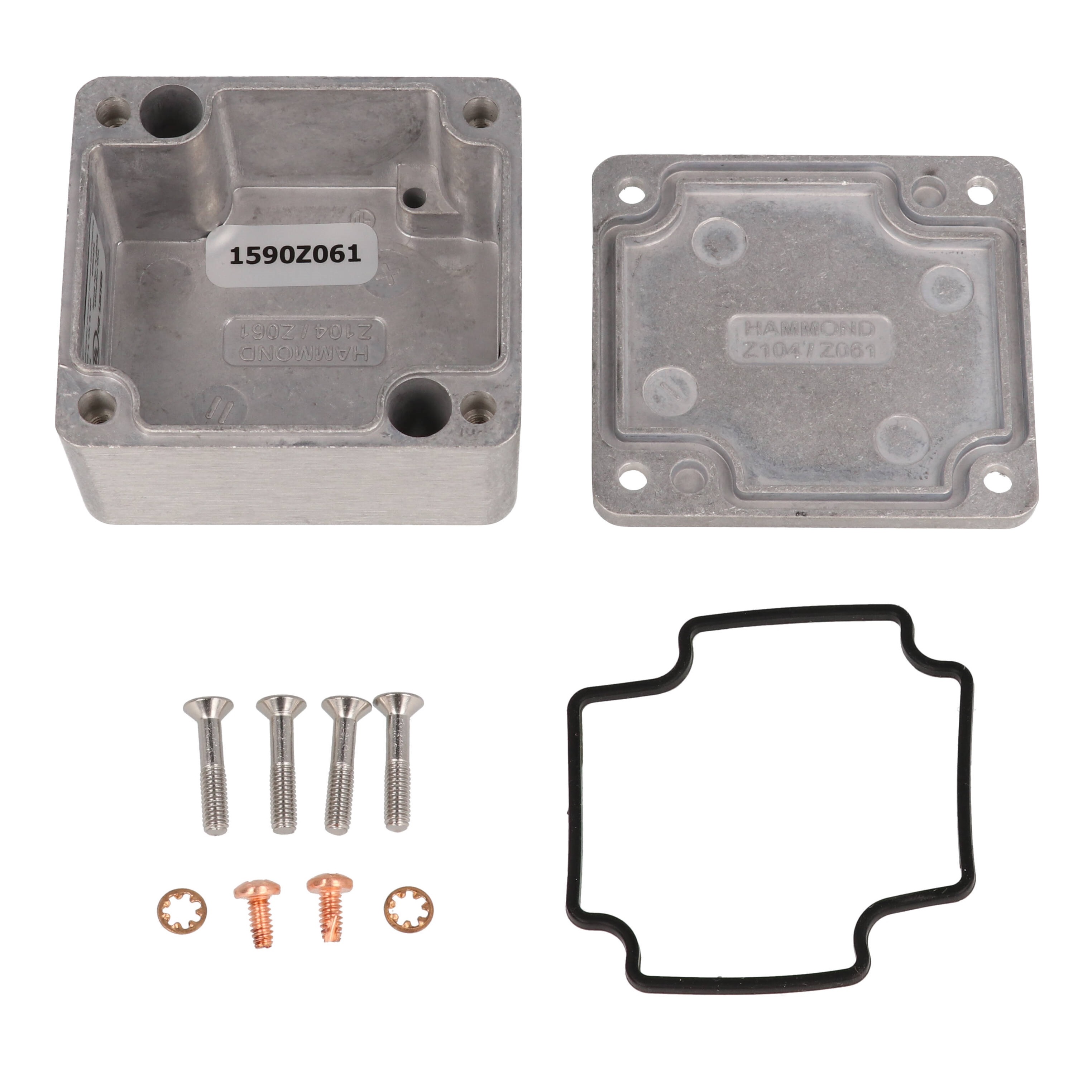

The 1590Z061 is rated IP68, NEMA 4, 4X, 6, 6P, 12 & 13 and IK08 per IEC62262, and the series is cUL and UL listed. Blind through holes outside the gasket allow wall mounting. The shrink-wrapped assembly includes box, lid, silicone gasket, 4 cover screws and 2 ground screws with washers, at 0.37 lbs (0.17 kg).
Ideal For
- Sealed housings for small control and transmitter boards
- Outdoor and washdown electrical connections
- Wall-mounted NEMA 4X enclosures
- OEM instrument cases
Mounting
| Ground Screw | Accepts #6 self tapping ground screw |
| Wall Mounting | Blind through hole construction, located outside of gasket protection |
| Lid Screw Holes | Accepts M4 - 0.7 machine screw |
| Internal Mounting Shelf | NO |
Overview
| Type | Thick wall, water-tight |
| Series | 1590Z Series Type 4X/ 6P Diecast Aluminum Enclosures |
| Part Number | 1590Z061 |
| Long Description | enclosure - diecast |
| Short Description | 58 X 64 X 34 HD ALM ENCL. |
Dimensions
| Width | 2.28 in (58 mm) |
| Length | 2.52 in (64 mm) |
| Lid Depth | 0.20 in (5 mm) |
| Total Depth | 1.38 in (35 mm) |
| Inside Depth | 27.89 mm [1.10 in] |
| Inside Width | 50.85 mm [2.00 in] |
| Inside Length | 57.05 mm [2.25 in] |
| Average Wall Thickness | 2.86 mm [.11 in] |
| Overall Width (Drawing) | 58.20 mm [2.29 in] |
| Nominal Size (L X W X H) | 2.51 in x 2.29 in x 1.39 in (64 mm x 58 mm x 35 mm) |
| Overall Height (Drawing) | 35.40 mm [1.39 in] |
| Overall Length (Drawing) | 64.20 mm [2.53 in] |
Accessories
| Extra Lid Screws | SC1550Z103-50 (Stainless Steel Cover screws, 50 pkg, M4 - 0.7 x 20mm) |
| Replacement Gasket (Pack Of 2) | 1590Z061G |
| Extra Panel Screws / Ground Hardware (50 Pack) | SCG060-50 (Copper #6-32X5/16 Self-Tapping / #6 Bronze lock Washer) |
Identifiers
| UPC | 623980287461 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, silicone gasket, 4 cover screws and 2 ground screws with washers |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.37 lbs (0.17 kg) |
Construction & Finish
| Color | Natural Aluminum (Natural) |
| Finish | Natural (unfinished) |
| Gasket | Replaceable one piece silicone rubber gasket, supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Screws | Recessed stainless steel machine screws (lid screws are not self-captivating on this model) |
| Construction | Two piece tongue and groove construction |
| Solid Models | Available in .stp or .x_t |
| Box And Lid Material | Diecast Aluminum Alloy |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Gasket Temperature Rating | -40C to +150C (-40F to 302F) |
| Recommended Cover Screw Torque | 6.6-8.8 lbf.in (75-100 cN.m) |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC62262 |
| Series Test Ratings | Independently tested to meet IP66, IP67 and IP68 |
Compliance & Certifications
| UL Listing | cUL and UL listed (cUL US Listed, File #E65324) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1590Z061?▾
Inside length 57.05 mm [2.25 in], inside width 50.85 mm [2.00 in] and inside depth 27.89 mm [1.10 in], per the drawing.
What impact rating does it have?▾
IK08 per IEC62262; the series applies this rating to all sizes except the 1590Z060 versions.
What hardware is included?▾
Box, lid, silicone gasket, 4 cover screws and 2 ground screws with washers.
Which replacement gasket fits the 1590Z061?▾
1590Z061G, a pack of 2 pre-formed silicone gaskets.
Are the lid screws self-captivating?▾
No. The series notes that self-captivating, thread-forming lid screws apply to other 1590Z sizes, excluding the 1590Z060, 1590Z061, 1590Z062 and 1590Z063 models, so the 1590Z061 uses standard recessed stainless steel machine screws into tapped holes.
