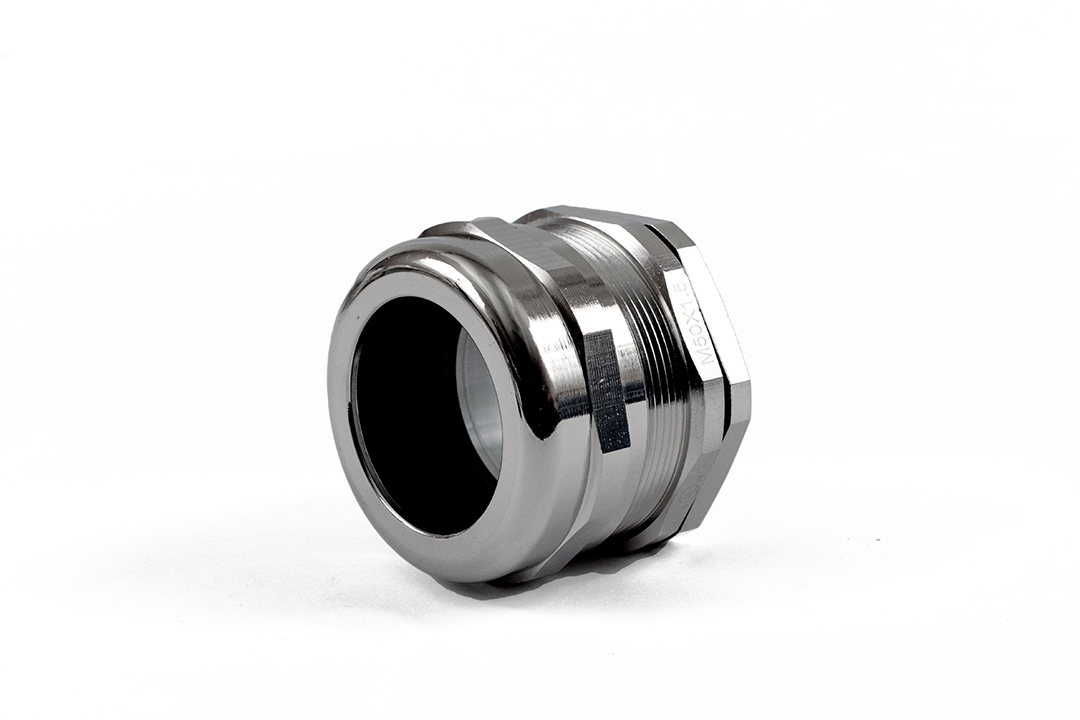

Liquid-Tight Cordgrips (Nickel Plated Brass) 1427BCG Series

Liquid-Tight Cordgrips (Nickel Plated Brass) · 1427BCG Series

Brand: Hammond Manufacturing · 20 part numbers

IP68, UL Listed. PG & Metric

  • ■Liquid-tight cordgrip made from nickel plated brass
  • ■Used where cable is entering or leaving an enclosure.
  • ■Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
  • ■The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
  • ■Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
  • ■Locknut and EPDM o-ring included (as shown).

from $4.00

20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 1427BCG Series part number

Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

20 of 20 part numbers · 20 priced online

Dimension tables (inches / mm)

PG Threads

Units shown: mm . Switch units to: inch

Part NumberMaterialThread Size · (D)Mounting Hole · DiameterWire Diameter · MinWire Diameter · MaxOuter Length · (L)Inner Thread Length · (T)PriceOrder

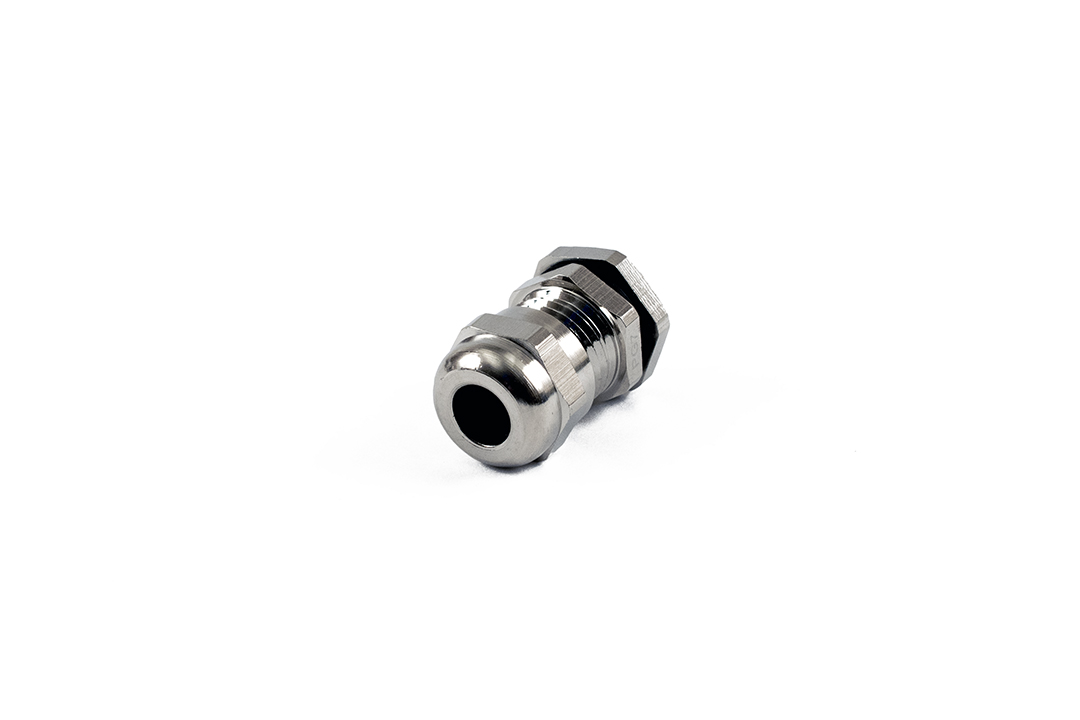

1427BCGPG7Nickel Plated BrassPG70.940.120.160.750.20$4.00In stockBuy now

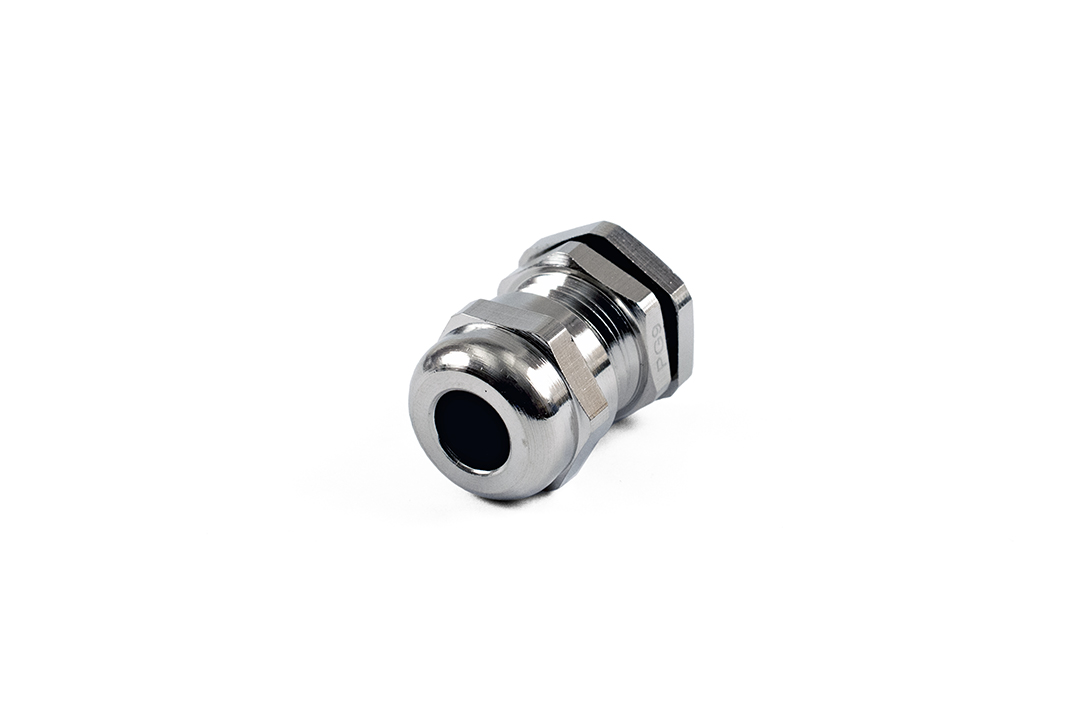

1427BCGPG9Nickel Plated BrassPG90.590.160.310.830.24$4.57In stockBuy now

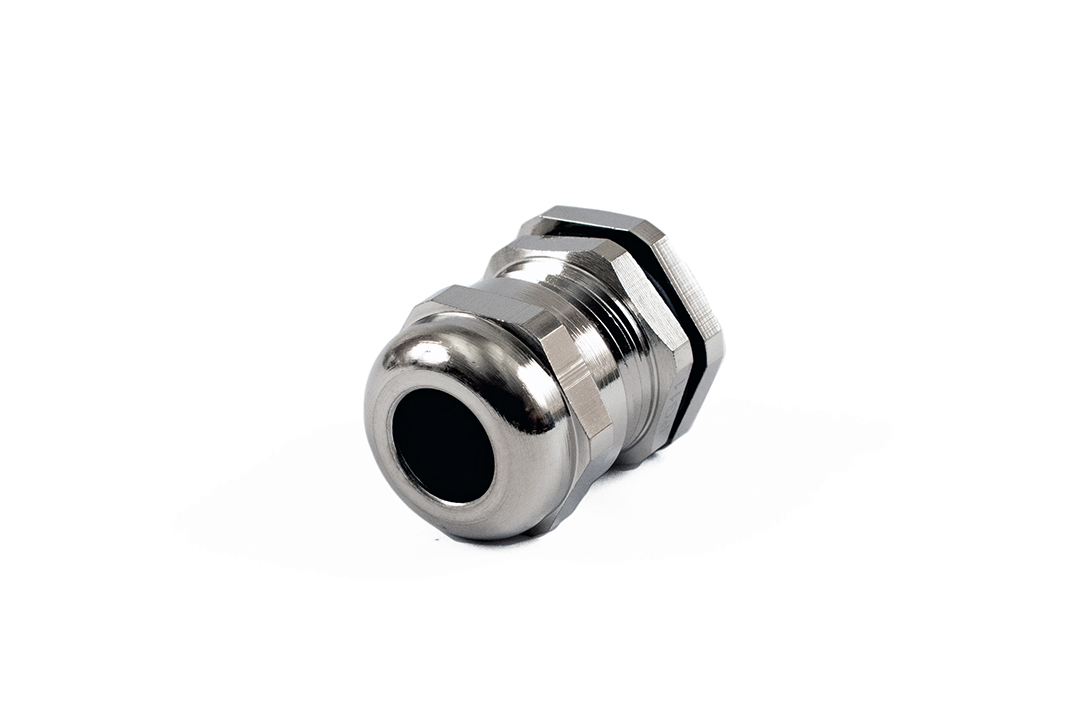

1427BCGPG11Nickel Plated BrassPG110.750.200.390.870.24$4.87In stockBuy now

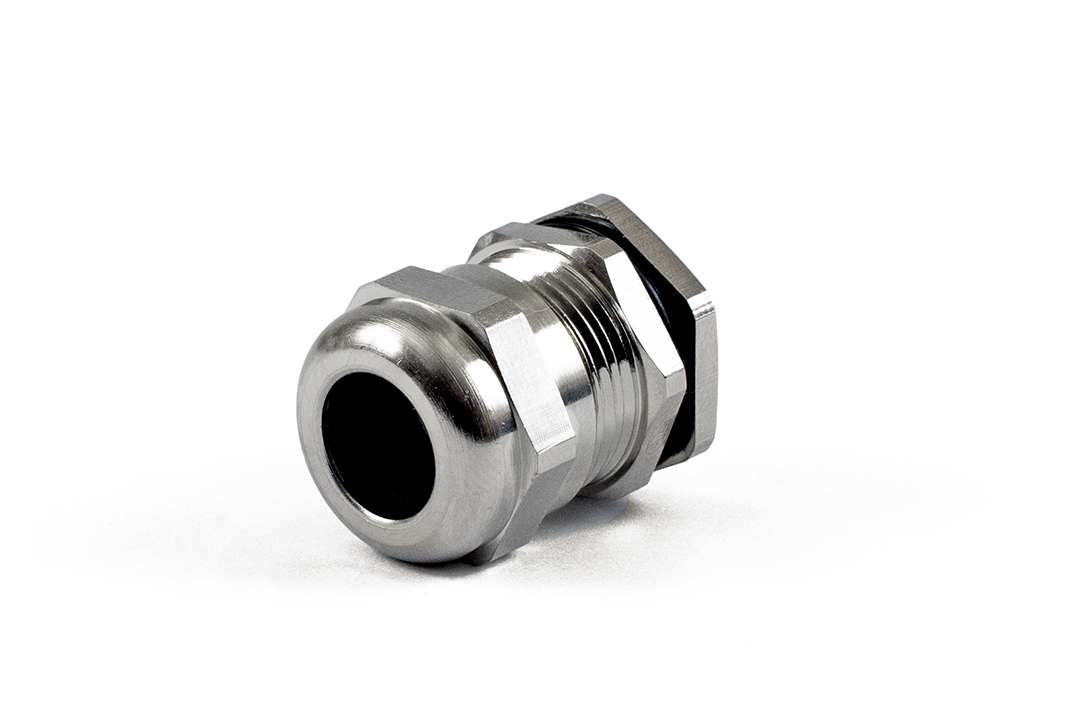

1427BCGPG13Nickel Plated BrassPG130.830.240.470.910.28$5.53In stockBuy now
1427BCGPG16Nickel Plated BrassPG160.910.390.550.940.28$6.13In stockBuy now
1427BCGPG21Nickel Plated BrassPG211.140.510.710.940.28$8.61In stockBuy now

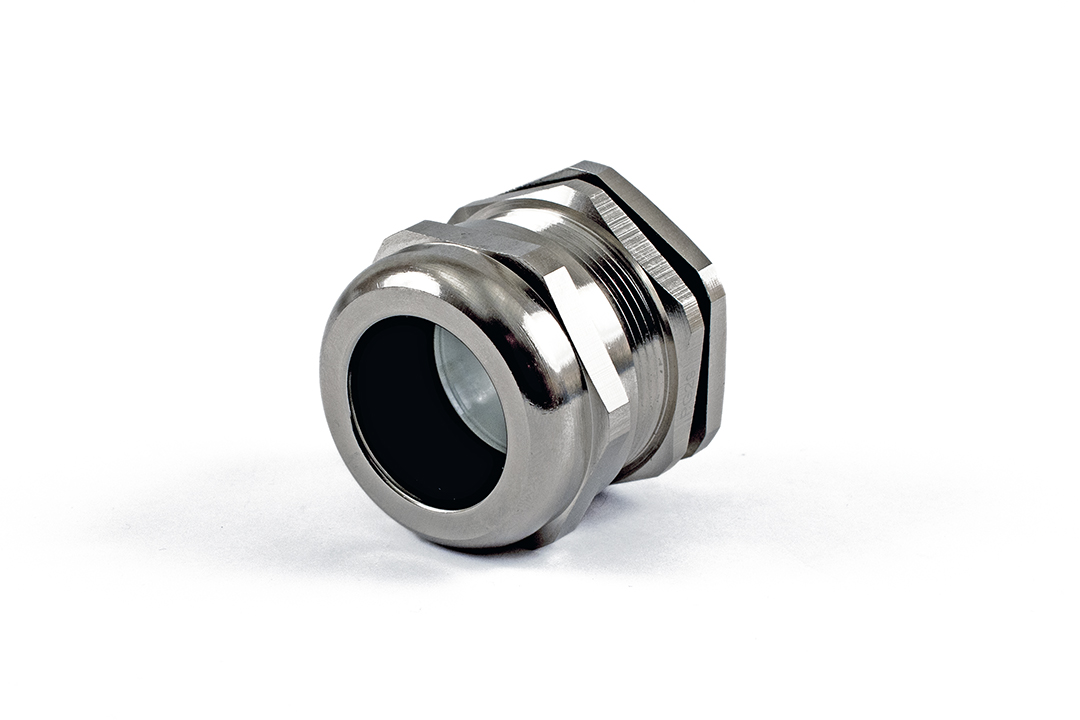

1427BCGPG29Nickel Plated BrassPG291.460.710.981.220.31$14.21In stockBuy now

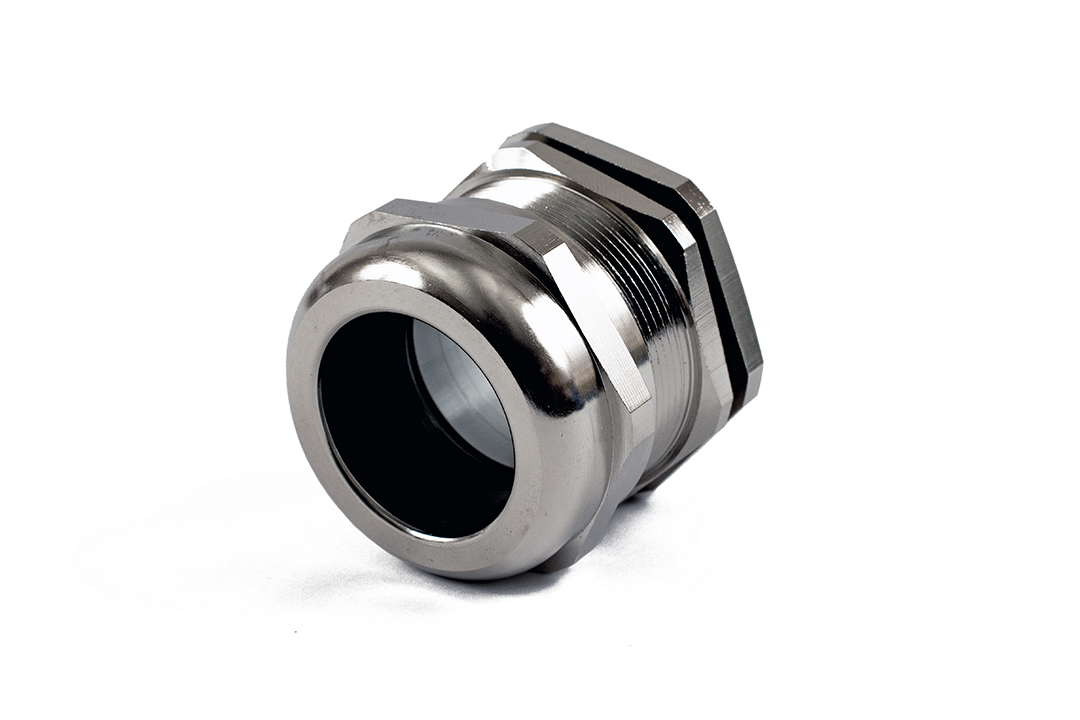

1427BCGPG36Nickel Plated BrassPG361.890.871.261.460.31$24.08In stockBuy now

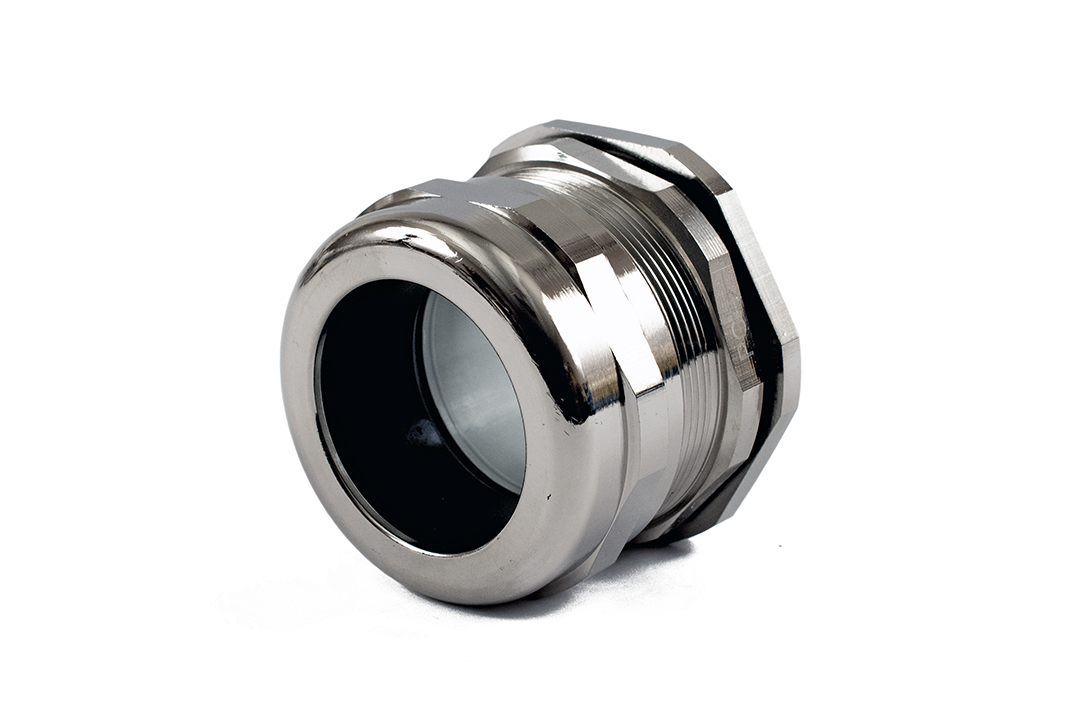

1427BCGPG42Nickel Plated BrassPG422.171.261.501.460.35$31.70In stockBuy now
1427BCGPG48Nickel Plated BrassPG482.361.461.731.500.39$51.52In stockBuy now

Metric Threads

Units shown: mm . Switch units to: inch

Part NumberMaterialThread Size · (D)Mounting Hole · DiameterWire Diameter · MinWire Diameter · MaxOuter Length · (L)Inner Thread Length · (T)PriceOrder

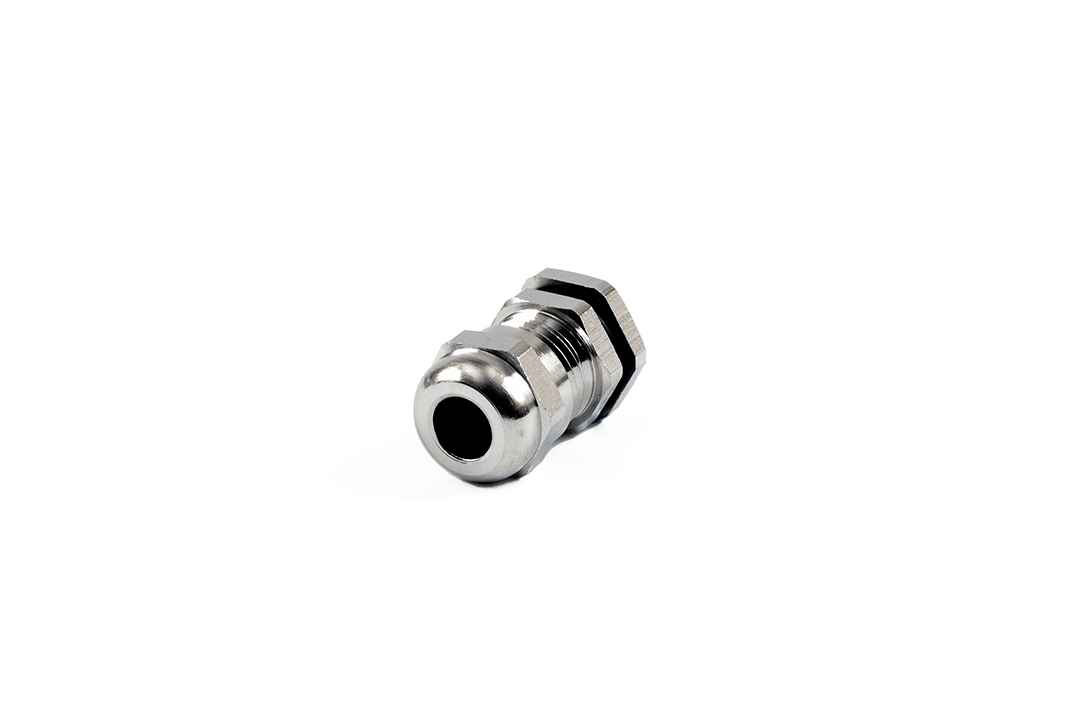

1427BCGM12Nickel Plated BrassM12x1.50.470.120.280.750.28$4.00In stockBuy now

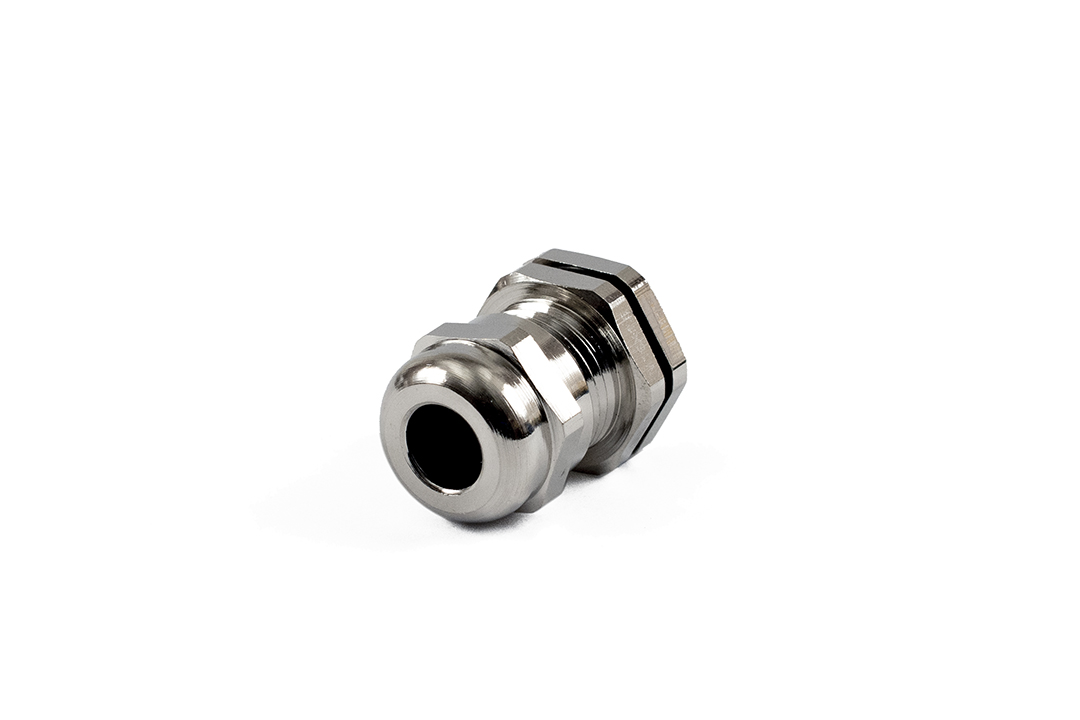

1427BCGM16Nickel Plated BrassM16x1.50.630.160.310.830.24$4.57In stockBuy now

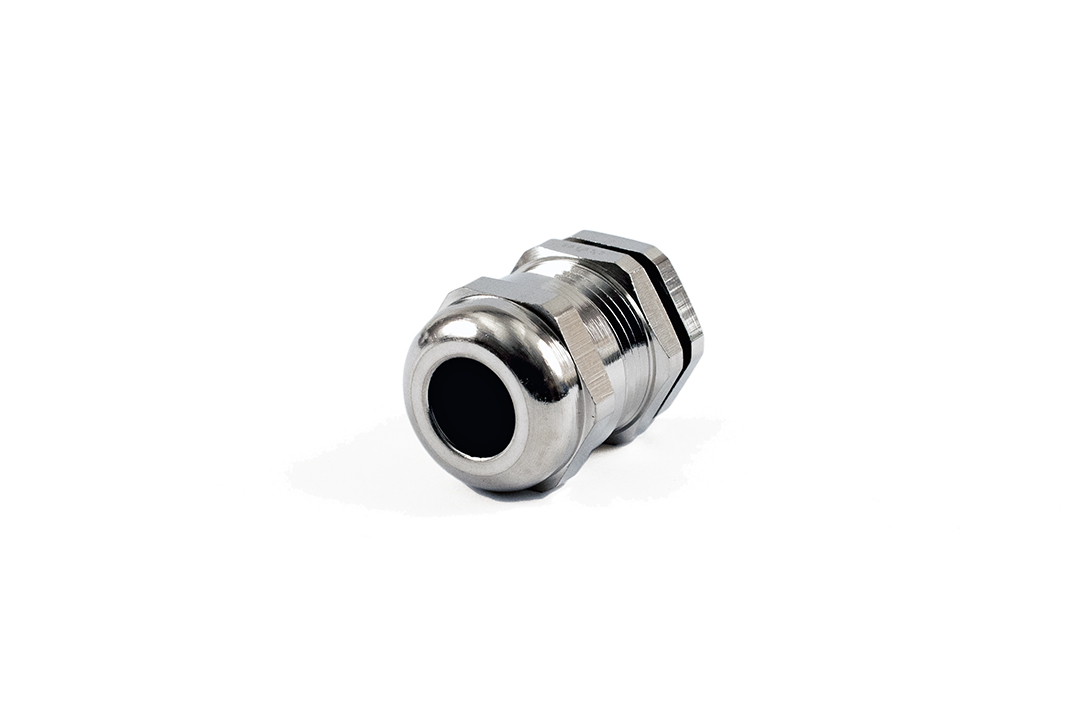

1427BCGM16LNickel Plated BrassM16x1.50.630.200.390.870.24$4.87In stockBuy now

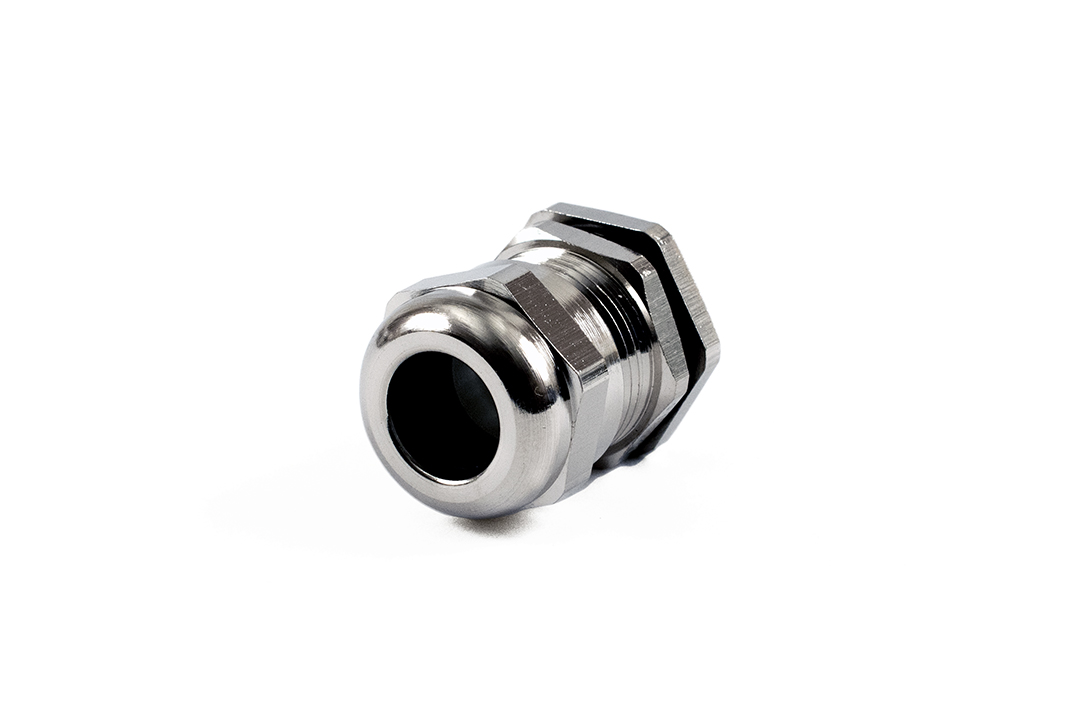

1427BCGM20Nickel Plated BrassM20x1.50.790.240.470.910.24$5.53In stockBuy now

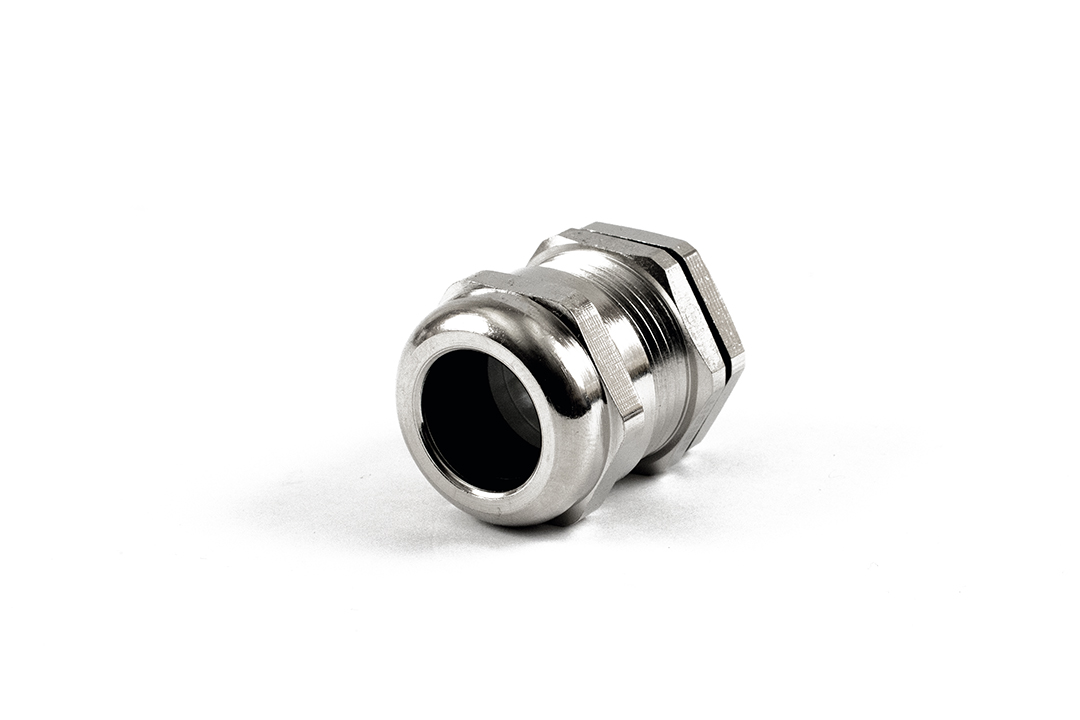

1427BCGM20LNickel Plated BrassM20x1.50.790.390.550.940.24$6.13In stockBuy now

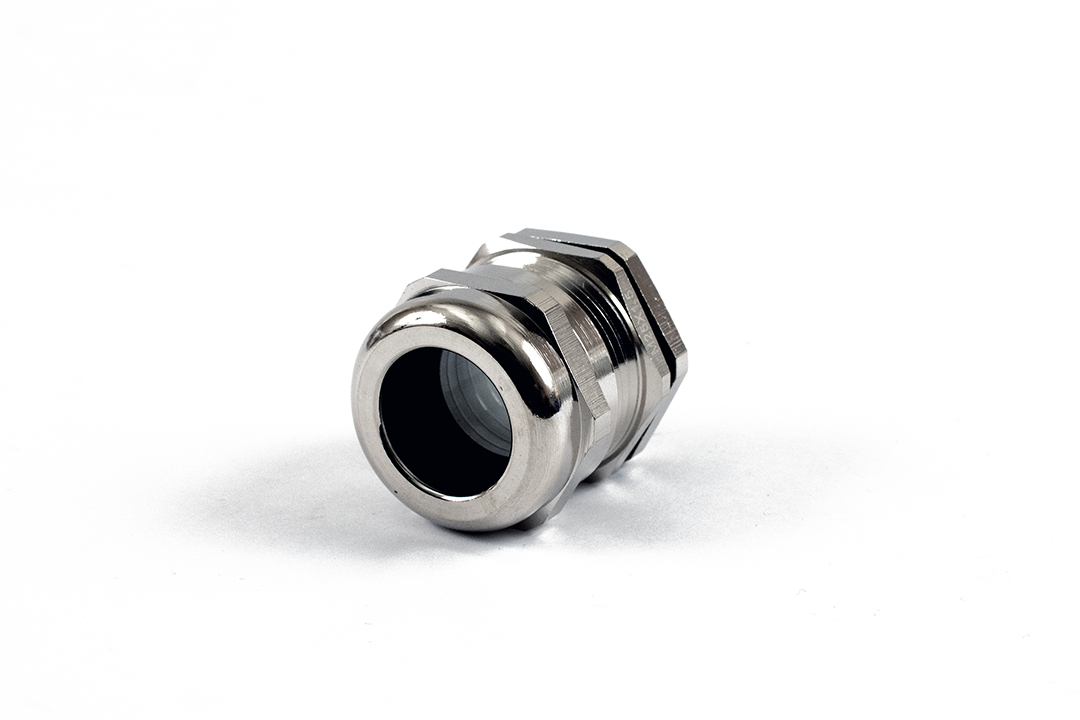

1427BCGM25Nickel Plated BrassM25x1.51.020.510.710.980.28$8.61In stockBuy now

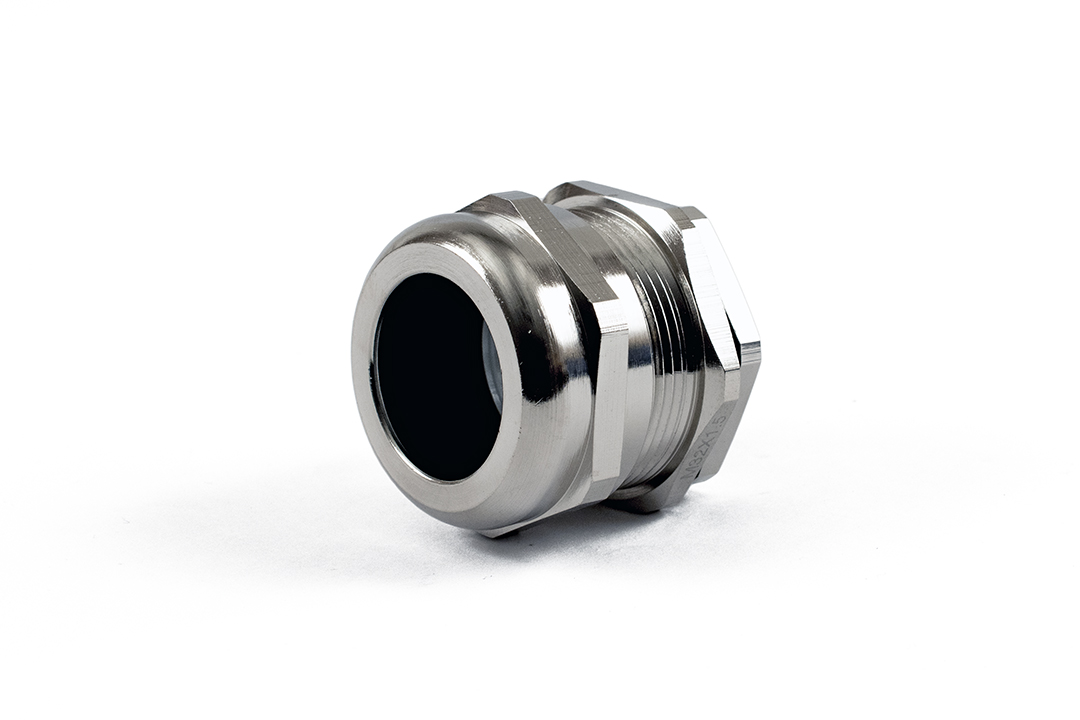

1427BCGM32Nickel Plated BrassM32x1.51.260.710.981.220.31$14.21In stockBuy now

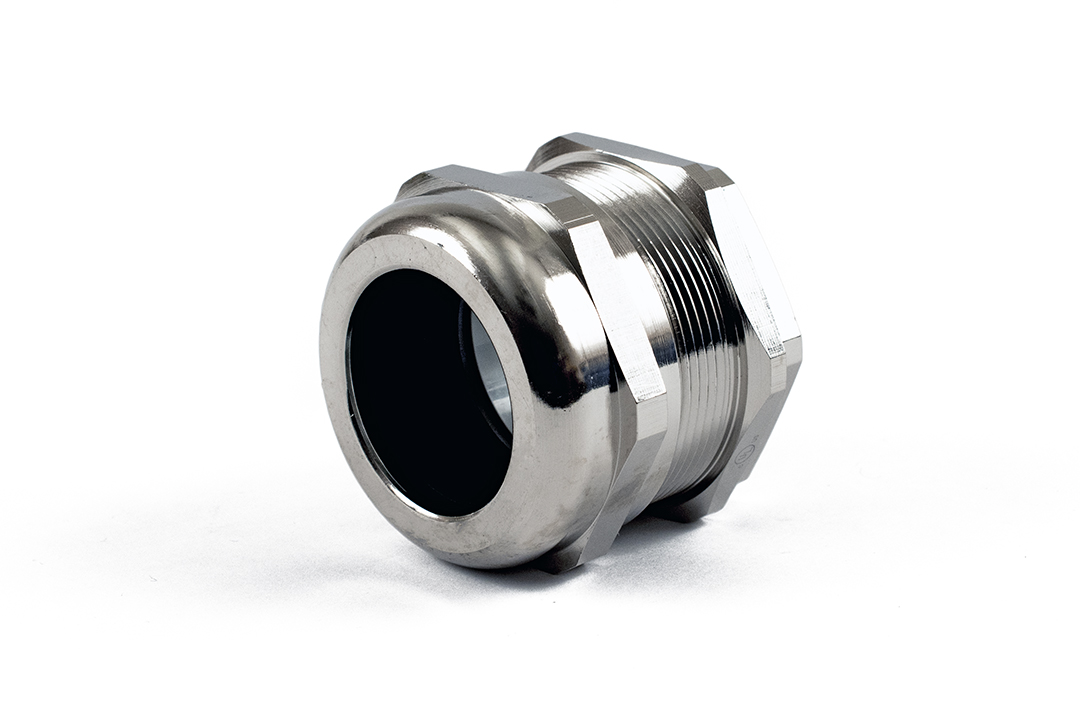

1427BCGM40Nickel Plated BrassM40x1.51.570.871.261.460.31$24.08In stockBuy now
1427BCGM50Nickel Plated BrassM50x1.51.971.261.501.460.35$31.70In stockBuy now

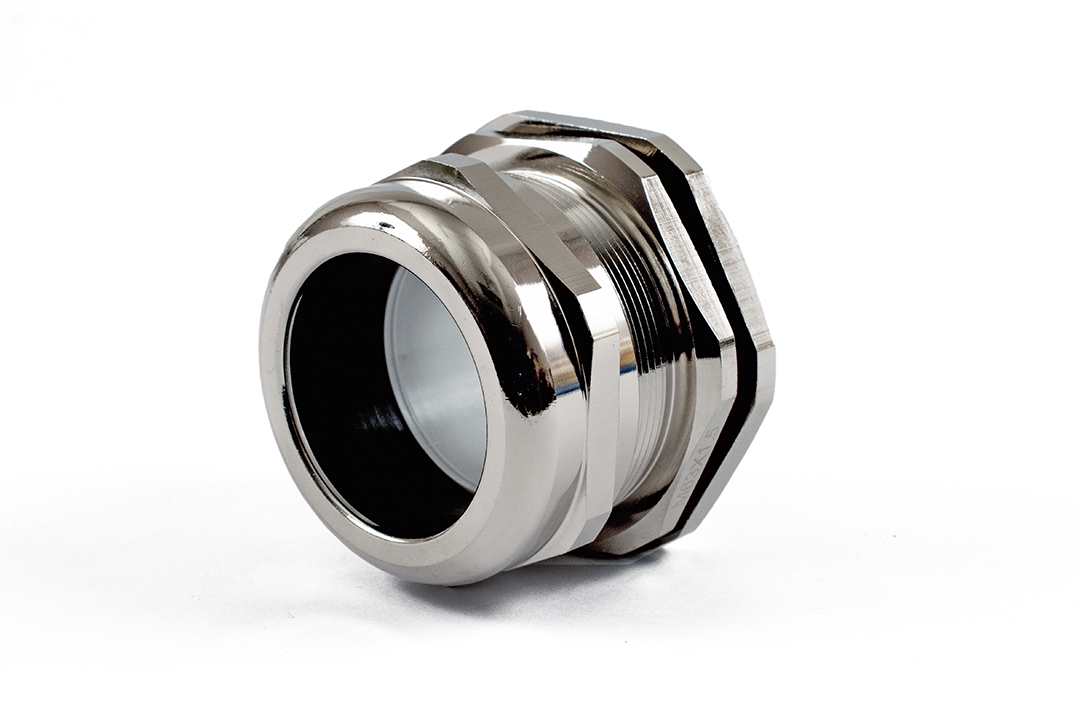

1427BCGM63Nickel Plated BrassM63x1.52.481.141.381.500.39$51.52In stockBuy now

Torque Specifications

Thread SizeSealing Nut Torque (N-m) · Min.Sealing Nut Torque (N-m) · Max.Locknut Torque (N-m) · Min.Locknut Torque (N-m) · Max.PriceOrder
PG71.52.52.53.5QuoteQuote
PG9233.54.5QuoteQuote
PG11344.55.5QuoteQuote
PG13.54568QuoteQuote
PG165779QuoteQuote
PG2168810QuoteQuote
PG29810911QuoteQuote
PG3613161315QuoteQuote
PG4218201519QuoteQuote
PG4821241720QuoteQuote
M12122.53.5QuoteQuote
M16 (small)233.54.5QuoteQuote
M16 (large)3445QuoteQuote
M20 (small)4556QuoteQuote
M20 (large)5679QuoteQuote
M2568810QuoteQuote
M3212141014QuoteQuote
M4017191518QuoteQuote
M5020241720QuoteQuote
M6324271923QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Liquid-tight cordgrip made from nickel plated brass
  • ■Used where cable is entering or leaving an enclosure.
  • ■Accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal.
  • ■The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
  • ■Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
  • ■Locknut and EPDM o-ring included (as shown).
  • ■Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 - Protection to IP68.
  • ■-40C to + 100C working temp with a temporary heat resistance up to 120C.
  • ■UL listed.

Documents

Specification Sheet
