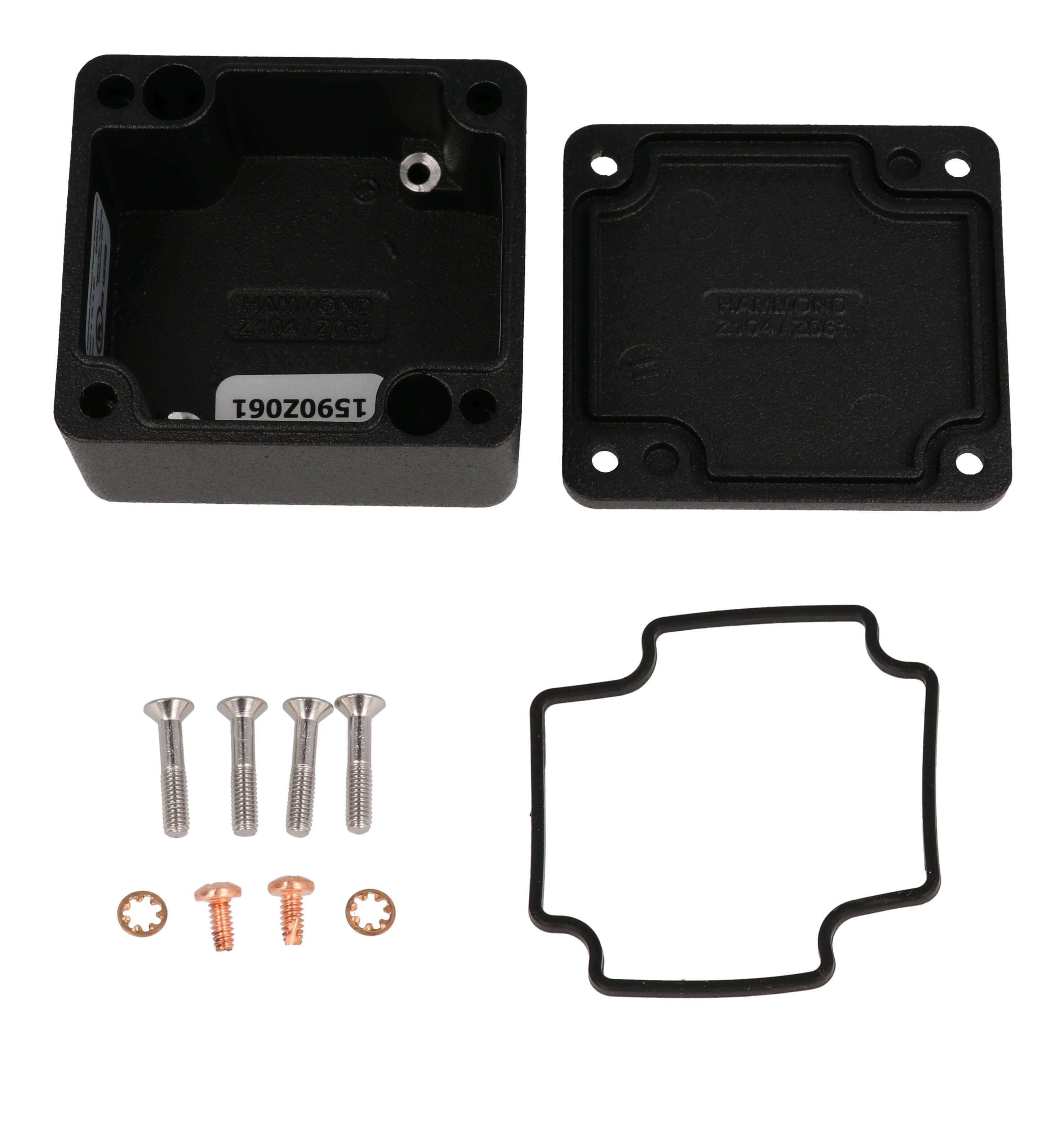

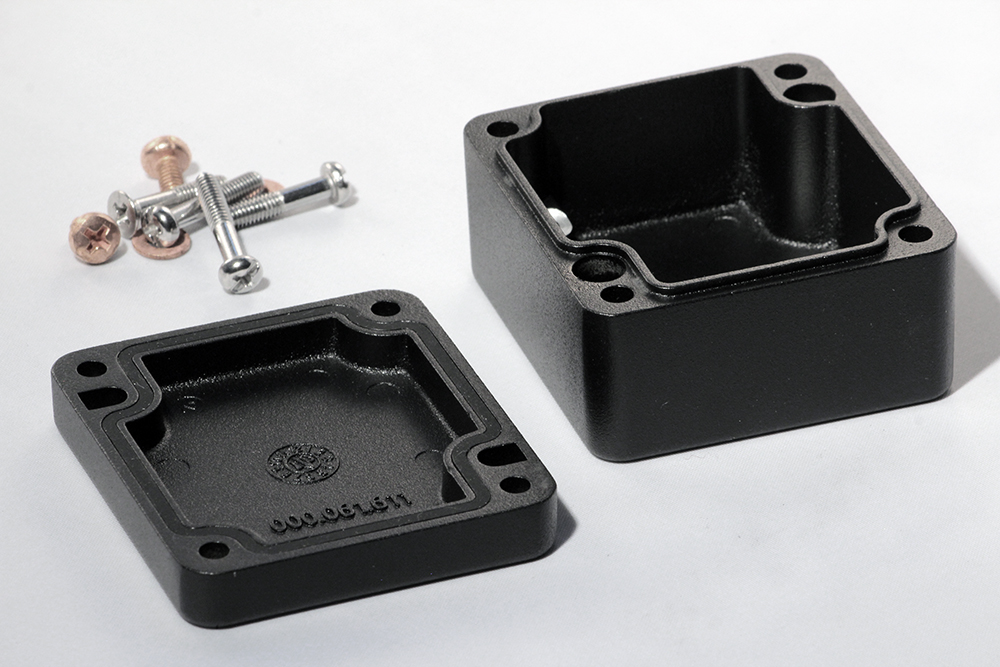

Hammond 1590Z061BK 64x58x35 mm Black IP68 Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint inside and out
- 64 x 58 x 35 mm outside, 57.05 x 50.85 x 27.89 mm inside
- IP68; NEMA 4, 4X, 6, 6P, 12 & 13
- IK08 impact rating per IEC62262
- cUL and UL listed
- Replaceable silicone gasket, -40C to +150C
- Ships with 4 cover screws and 2 ground screws
The 1590Z061BK is the textured black version of the 64 mm x 58 mm x 35 mm 1590Z061 enclosure. It gives designers of outdoor or industrial electronics a small, rugged diecast aluminum housing with a dark finish and a sealed lid rated for submersion-class protection.
The diecast aluminum alloy box and lid are powder painted inside and out in textured black. Sealing comes from a two-piece tongue and groove joint with a replaceable one-piece silicone rubber gasket rated -40C to +150C (-40F to 302F); the gasket is supplied loose inside rather than pre-installed. Four recessed stainless steel machine screws close the lid, torqued to 6.6-8.8 lbf.in (75-100 cN.m).
Dimensions are 2.52 in (64 mm) long, 2.28 in (58 mm) wide and 1.38 in (35 mm) total depth, with a 0.20 in (5 mm) lid depth. Inside, the drawing shows 57.05 mm [2.25 in] x 50.85 mm [2.00 in] x 27.89 mm [1.10 in], and the average wall thickness is 2.86 mm [.11 in]. It has no internal mounting shelf.
The 1590Z061BK is rated IP68, NEMA 4, 4X, 6, 6P, 12 & 13 and IK08 per IEC62262, and the series is cUL and UL listed. It wall mounts through blind holes outside the gasket seal and accepts a #6 self-tapping ground screw. It ships shrink wrapped with 4 cover screws and 2 ground screws with washers, weighing 0.38 lbs (0.17 kg).
Ideal For
- Black sealed enclosures for outdoor electronics
- Industrial control and sensor housings
- Wall-mounted connection boxes in wet areas
Mounting
| Ground Screw | Accepts #6 self tapping ground screw |
| Wall Mounting | Blind through hole construction, located outside of gasket protection |
| Lid Screw Holes | Accepts M4 - 0.7 machine screw |
| Internal Mounting Shelf | NO |
Overview
| Type | Thick wall, water-tight |
| Series | 1590Z Series Type 4X/ 6P Diecast Aluminum Enclosures |
| Part Number | 1590Z061BK |
| Long Description | enclosure - diecast |
| Short Description | 1590Z061 PAINTED BLACK TEXTURE |
Dimensions
| Width | 2.28 in (58 mm) |
| Length | 2.52 in (64 mm) |
| Lid Depth | 0.20 in (5 mm) |
| Total Depth | 1.38 in (35 mm) |
| Inside Depth | 27.89 mm [1.10 in] |
| Inside Width | 50.85 mm [2.00 in] |
| Inside Length | 57.05 mm [2.25 in] |
| Average Wall Thickness | 2.86 mm [.11 in] |
| Overall Width (Drawing) | 58.20 mm [2.29 in] |
| Nominal Size (L X W X H) | 2.51 in x 2.29 in x 1.39 in (64 mm x 58 mm x 35 mm) |
| Overall Height (Drawing) | 35.40 mm [1.39 in] |
| Overall Length (Drawing) | 64.20 mm [2.53 in] |
Accessories
| Extra Lid Screws | SC1550Z103-50 (Stainless Steel Cover screws, 50 pkg, M4 - 0.7 x 20mm) |
| Replacement Gasket (Pack Of 2) | 1590Z061G |
| Extra Panel Screws / Ground Hardware (50 Pack) | SCG060-50 (Copper #6-32X5/16 Self-Tapping / #6 Bronze lock Washer) |
Identifiers
| UPC | 623980287478 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, silicone gasket, 4 cover screws and 2 ground screws with washers |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.38 lbs (0.17 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black powder paint, painted inside and out |
| Gasket | Replaceable one piece silicone rubber gasket, supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Screws | Recessed stainless steel machine screws (lid screws are not self-captivating on this model) |
| Construction | Two piece tongue and groove construction |
| Solid Models | Available in .stp or .x_t |
| Box And Lid Material | Diecast Aluminum Alloy |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Gasket Temperature Rating | -40C to +150C (-40F to 302F) |
| Recommended Cover Screw Torque | 6.6-8.8 lbf.in (75-100 cN.m) |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC62262 |
| Series Test Ratings | Independently tested to meet IP66, IP67 and IP68 |
Compliance & Certifications
| UL Listing | cUL and UL listed (cUL US Listed, File #E65324) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between the 1590Z061BK and the 1590Z061?▾
They share the same 64 x 58 x 35 mm size and ratings; the 1590Z061BK is powder painted textured black inside and out, while the 1590Z061 is natural.
Is the 1590Z061BK submersible?▾
It carries an IP68 rating and NEMA 4, 4X, 6, 6P, 12 & 13. The series advises customers to conduct their own testing to determine suitability for any specific application.
Does it have a mounting shelf inside?▾
No, the series table lists no internal mounting shelf for this size.
What are the extra screw part numbers?▾
Extra lid screws are SC1550Z103-50 and extra panel screws (ground hardware, 50 pack) are SCG060-50.
How much does it weigh?▾
Shipping weight is 0.38 lbs (0.17 kg).
