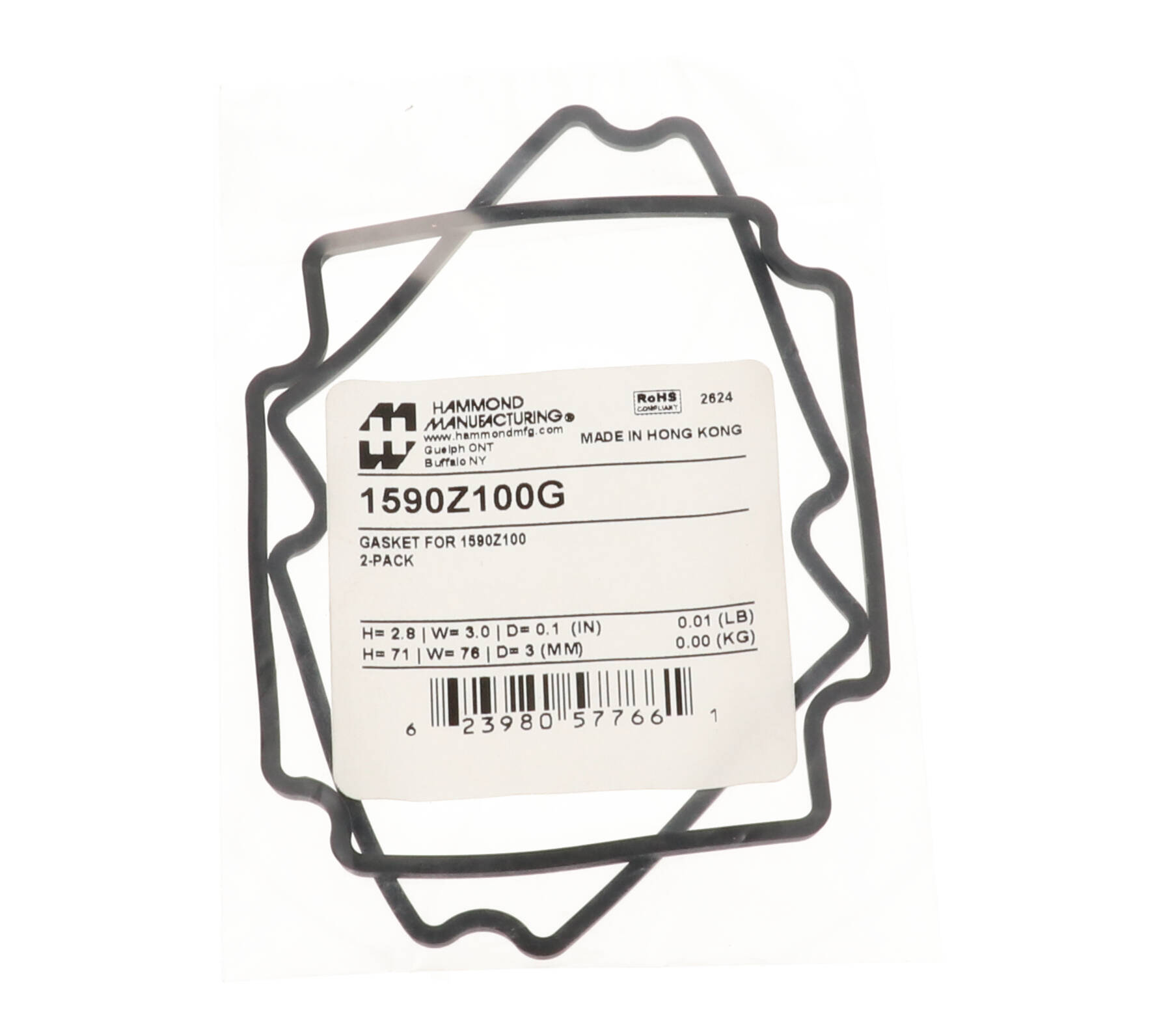

Hammond 1590Z100G Silicone Replacement Gasket Pair, 80 x 75 mm Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pack of 2 gaskets for 1590Z100 and 1590Z110 enclosures
- Fits natural, black and gray versions of both sizes (six part numbers)
- Silicone rubber; alternate Shin-Etsu KE-931U & KE-941U (1:1) mix
- Outer size 75.88 x 70.70 mm; 2.50 x 2.40 mm cross-section
- 1590Z Series gasket rated -40C to +150C (-40F to 302F)
- RoHS and REACH compliant

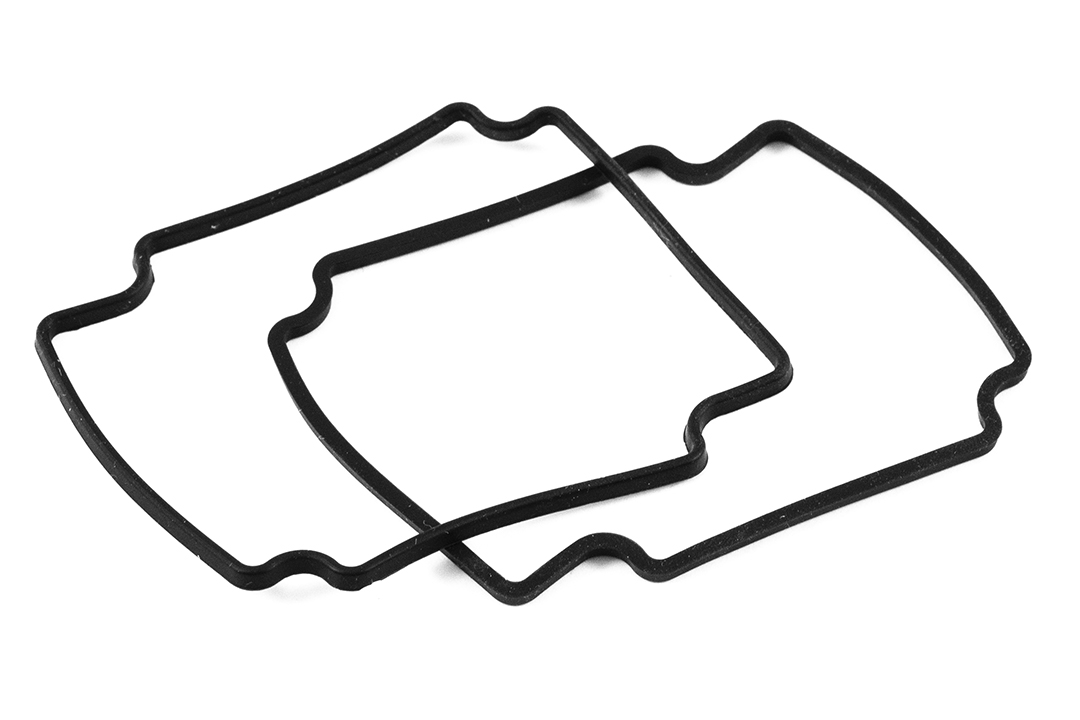

The 1590Z100G is a two-pack of replacement silicone gaskets shared by the 1590Z100 and 1590Z110 enclosures, the 80 x 75 x 52 mm heavy-duty sizes of the 1590Z Series. It lets service technicians and OEM production teams replace a worn or damaged lid seal on either version, with or without the internal mounting shelf.
The drawing (reference G100) specifies silicone rubber, with an alternate material manufactured by Shin-Etsu as a 1:1 mixture of types KE-931U and KE-941U. The series describes the gasket as a replaceable one piece silicone rubber gasket rated -40C to +150C (-40F to 302F), fitted in the tongue and groove joint between box and lid.
The part page lists the gasket at 2.78 x 2.99 x 0.1 in (71 x 76 x 3 mm). The drawing gives outer dimensions of 2.987 in [75.88 mm] by 2.783 in [70.70 mm] and a cross-section of 0.098 in [2.50 mm] by 0.094 in [2.40 mm]. Shipping weight is 0.01 lbs and it ships in a bag.
The series ordering table assigns the 1590Z100G to all six enclosures of this size: 1590Z100, 1590Z100BK, 1590Z100GY, 1590Z110, 1590Z110BK and 1590Z110GY. It is RoHS and REACH compliant.
Ideal For
- Resealing 1590Z100 and 1590Z110 enclosures
- Spare lid seals for compact outdoor electronics
- Maintenance stock for washdown-area enclosures
Overview
| Type | Gasket |
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |
| Quantity | Pack of 2 |
| Description | 2x GASKET FOR 1590Z100 / 110 |
| Part Number | 1590Z100G |
| Product Type | Replacement gasket for 1590Z100 / 110 enclosures |
| Drawing Reference | G100 |
Dimensions
| Size (L X W X H) | 2.78 in x 2.99 in x 0.1 in (71 mm x 76 mm x 3 mm) |
| Outer Width (Drawing) | 2.783 in [70.70 mm] |
| Outer Length (Drawing) | 2.987 in [75.88 mm] |
| Cross-Section (Drawing) | 0.098 in [2.50 mm] x 0.094 in [2.40 mm] |
Identifiers
| UPC | 623980577661 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Size | Length 3.15 in (80 mm), width 2.95 in (75 mm), total depth 2.05 in (52 mm), lid depth 0.47 in (12 mm) |
| Fits Enclosures | 1590Z100, 1590Z100BK, 1590Z100GY, 1590Z110, 1590Z110BK, 1590Z110GY |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | Silicone Rubber |
| Gasket Design | Replaceable one piece silicone rubber gasket |
| Alternate Material | Manufactured by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture |
Environmental & Protection
| Temperature Rating | -40C to +150C (-40F to 302F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1590Z100G fit the 1590Z110?▾
Yes. The part is described as a replacement gasket for 1590Z100 / 110 enclosures, and the ordering table lists it for 1590Z100, 1590Z100BK, 1590Z100GY, 1590Z110, 1590Z110BK and 1590Z110GY.
How many gaskets are included?▾
Two per pack (2x GASKET FOR 1590Z100 / 110).
What is it made of?▾
Silicone rubber. The drawing lists an alternate material manufactured by Shin-Etsu, a 1:1 mixture of types KE-931U and KE-941U.
What are the gasket dimensions?▾
The drawing shows 2.987 in [75.88 mm] by 2.783 in [70.70 mm] outside, with a 0.098 in [2.50 mm] by 0.094 in [2.40 mm] cross-section. The part page lists 71 x 76 x 3 mm.
