Hammond 1590Z062BK 98x64x34 mm Black IP68 Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint inside and out
- 98 x 64 x 34 mm outside; 91.25 x 57.24 x 28.60 mm inside
- IP68; NEMA 4, 4X, 6, 6P, 12 & 13
- IK08 per IEC62262; cUL and UL listed
- Silicone gasket supplied loose, replaceable
- Four recessed stainless steel lid screws
- Includes 2 ground screws with washers

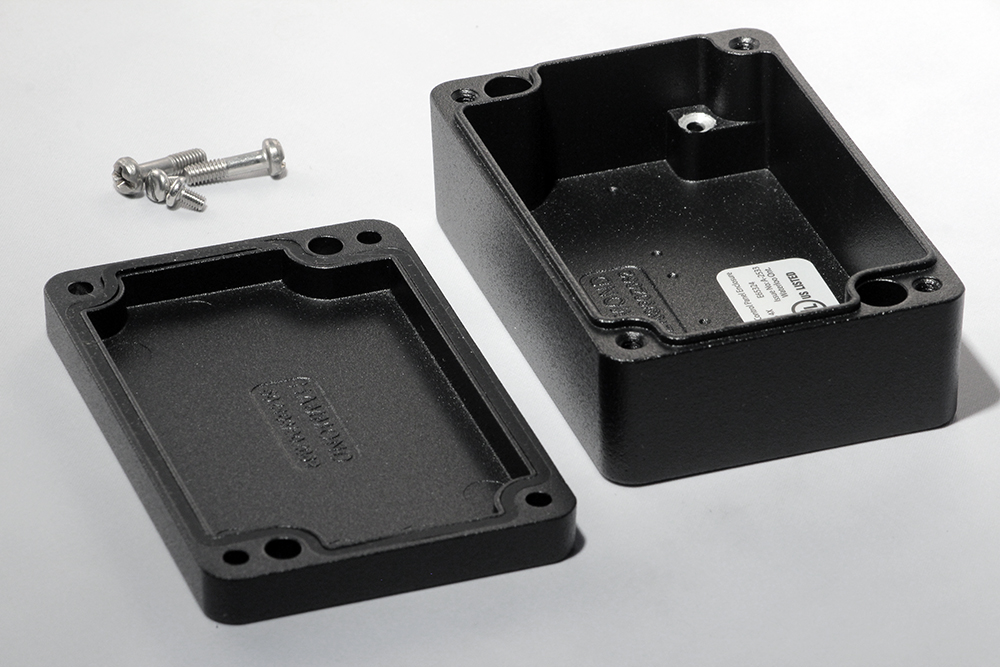

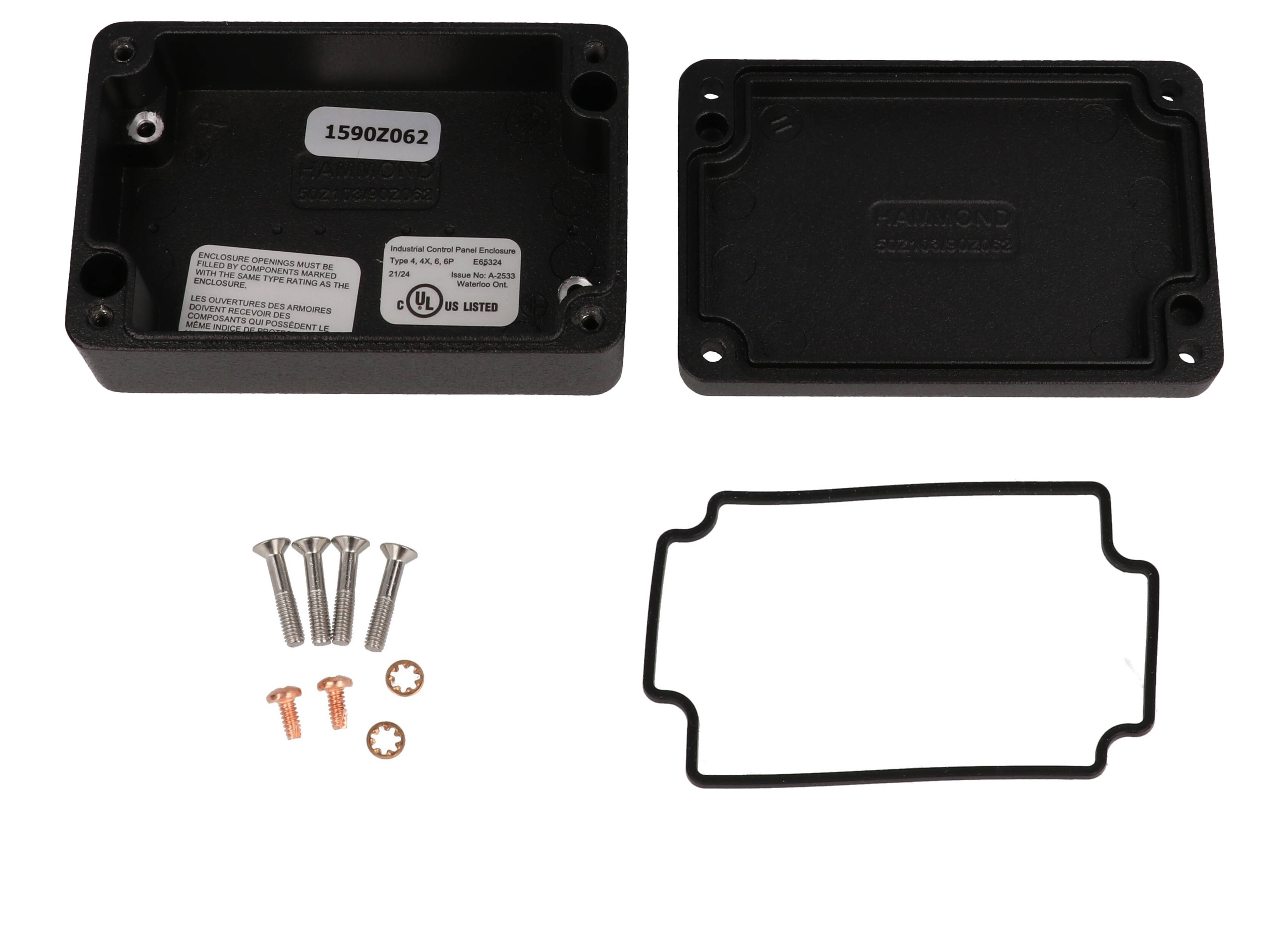

The 1590Z062BK is the textured black version of the 1590Z062, a 98 mm x 64 mm x 34 mm watertight diecast aluminum enclosure. It is aimed at designers who need a narrow, sealed metal housing with a black finish for control electronics, sensors or wiring in exposed locations.
Hammond powder paints this enclosure in textured black, inside and out, over a diecast aluminum alloy box and lid. The two-piece tongue and groove joint is sealed by a replaceable one-piece silicone rubber gasket (rated -40C to +150C / -40F to 302F) that comes loose inside the box. Four recessed stainless steel machine screws hold the lid, and the enclosure is built for repeated opening and closing.
It measures 3.86 in (98 mm) long, 2.52 in (64 mm) wide and 1.34 in (34 mm) in total depth, with a 0.35 in (9 mm) lid. Inside dimensions per the drawing are 91.25 mm [3.59 in] x 57.24 mm [2.25 in] x 28.60 mm [1.13 in], and average wall thickness is 3.01 mm [.12 in]. There is no internal mounting shelf.
The 1590Z062BK is rated IP68, NEMA 4, 4X, 6, 6P, 12 & 13 and IK08 per IEC62262, and the series is cUL and UL listed. It wall mounts through blind holes outside the gasket seal. The shrink-wrapped assembly contains box, lid, gasket, 4 cover screws and 2 ground screws with washers and weighs 0.54 lbs (0.24 kg).
Ideal For
- Black sealed housings for control electronics
- Outdoor sensor and wiring enclosures
- Wall-mounted boxes in wet locations
Mounting
| Ground Screw | Accepts #6 self tapping ground screw |
| Wall Mounting | Blind through hole construction, located outside of gasket protection |
| Lid Screw Holes | Accepts M4 - 0.7 machine screw |
| Internal Mounting Shelf | NO |
Overview
| Type | Thick wall, water-tight |
| Series | 1590Z Series Type 4X/ 6P Diecast Aluminum Enclosures |
| Part Number | 1590Z062BK |
| Long Description | enclosure - diecast |
| Short Description | 1590Z062 PAINTED BLACK TEXTURE |
Dimensions
| Width | 2.52 in (64 mm) |
| Length | 3.86 in (98 mm) |
| Lid Depth | 0.35 in (9 mm) |
| Total Depth | 1.34 in (34 mm) |
| Inside Depth | 28.60 mm [1.13 in] |
| Inside Width | 57.24 mm [2.25 in] |
| Inside Length | 91.25 mm [3.59 in] |
| Average Wall Thickness | 3.01 mm [.12 in] |
| Overall Width (Drawing) | 64.40 mm [2.54 in] |
| Nominal Size (L X W X H) | 3.86 in x 2.52 in x 1.35 in (98 mm x 64 mm x 34 mm) |
| Overall Height (Drawing) | 34.40 mm [1.35 in] |
| Overall Length (Drawing) | 98.40 mm [3.87 in] |
Accessories
| Extra Lid Screws | SC1550Z103-50 (Stainless Steel Cover screws, 50 pkg, M4 - 0.7 x 20mm) |
| Replacement Gasket (Pack Of 2) | 1590Z062G |
| Extra Panel Screws / Ground Hardware (50 Pack) | SCG060-50 (Copper #6-32X5/16 Self-Tapping / #6 Bronze lock Washer) |
Identifiers
| UPC | 623980287423 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Box, lid, silicone gasket, 4 cover screws and 2 ground screws with washers |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.54 lbs (0.24 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black powder paint, painted inside and out |
| Gasket | Replaceable one piece silicone rubber gasket, supplied loose inside the enclosure (not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Screws | Recessed stainless steel machine screws (lid screws are not self-captivating on this model) |
| Construction | Two piece tongue and groove construction |
| Solid Models | Available in .stp or .x_t |
| Box And Lid Material | Diecast Aluminum Alloy |
| Factory Modification | Milling, drilling, printing etc. available from factory |
| Gasket Temperature Rating | -40C to +150C (-40F to 302F) |
| Recommended Cover Screw Torque | 6.6-8.8 lbf.in (75-100 cN.m) |
Environmental & Protection
| IP Rating | IP68 |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC62262 |
| Series Test Ratings | Independently tested to meet IP66, IP67 and IP68 |
Compliance & Certifications
| UL Listing | cUL and UL listed (cUL US Listed, File #E65324) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590Z062BK differ from the 1590Z062?▾
It is the same 98 x 64 x 34 mm enclosure, powder painted textured black inside and out instead of natural.
What is the lid depth?▾
0.35 in (9 mm), within a total depth of 1.34 in (34 mm).
Which gasket replaces the original?▾
1590Z062G, a pack of 2 pre-formed silicone gaskets.
Can it be modified at the factory?▾
Yes. The drawing notes enclosures can be factory modified (milling, drilling, printing etc.), and solid models are available in .stp or .x_t.
How much does it weigh?▾
Shipping weight is 0.54 lbs (0.24 kg).
