Hammond 1590Z060G Replacement Silicone Gasket 2-Pack, 50x45x30 mm Box

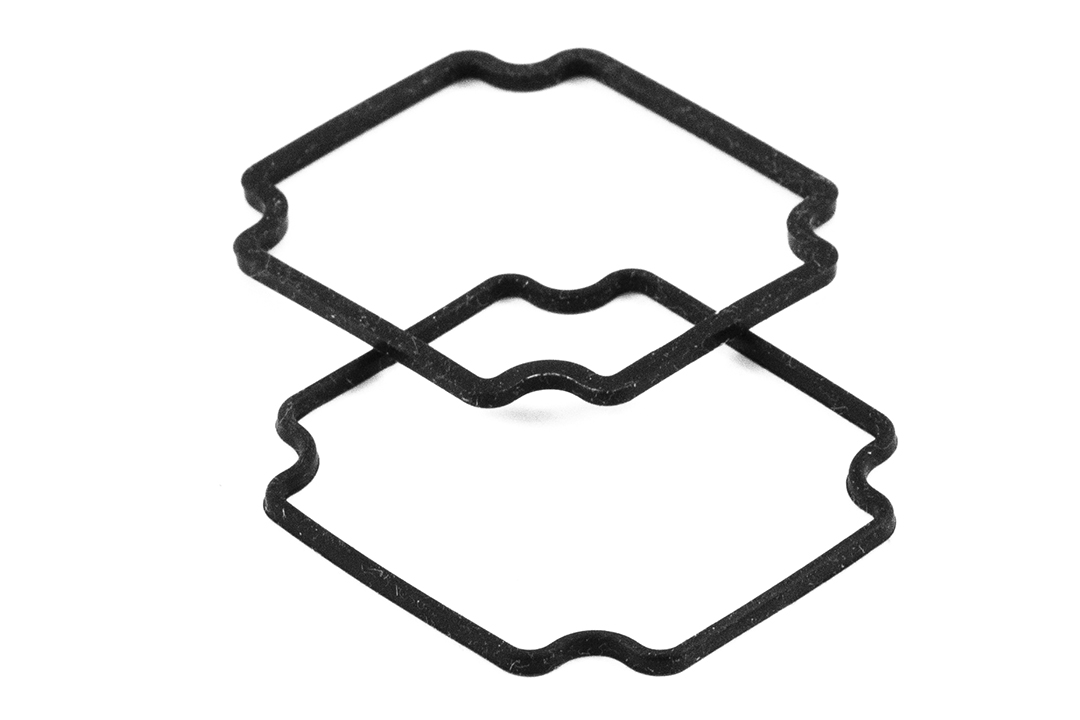

The 1590Z060G is a pack of two pre-formed silicone replacement gaskets for the 50 mm x 45 mm x 30 mm 1590Z060 diecast aluminum enclosure, in natural, black (1590Z060BK) or gray (1590Z060GY). Maintenance teams and OEM builders keep these on hand to restore the lid seal after repeated opening or when refurbishing an installed box.

Each gasket is a one-piece silicone rubber part; the drawing (G060) also lists an alternate material manufactured by Shin-Etsu, Type KE-931U & KE-941U in a 1:1 mixture. In the 1590Z series the gasket sits in a two-piece tongue and groove joint and is rated for -40C to +150C (-40F to 302F).

Per the drawing, the gasket outline measures 1.896 in x 1.699 in [48.15 mm x 43.15 mm] and its section A-A profile is 0.075 in x 0.059 in [1.90 mm x 1.50 mm]. It matches the enclosure listed with a 1.97 in (50 mm) length, 1.77 in (45 mm) width and 1.18 in (30 mm) total depth.

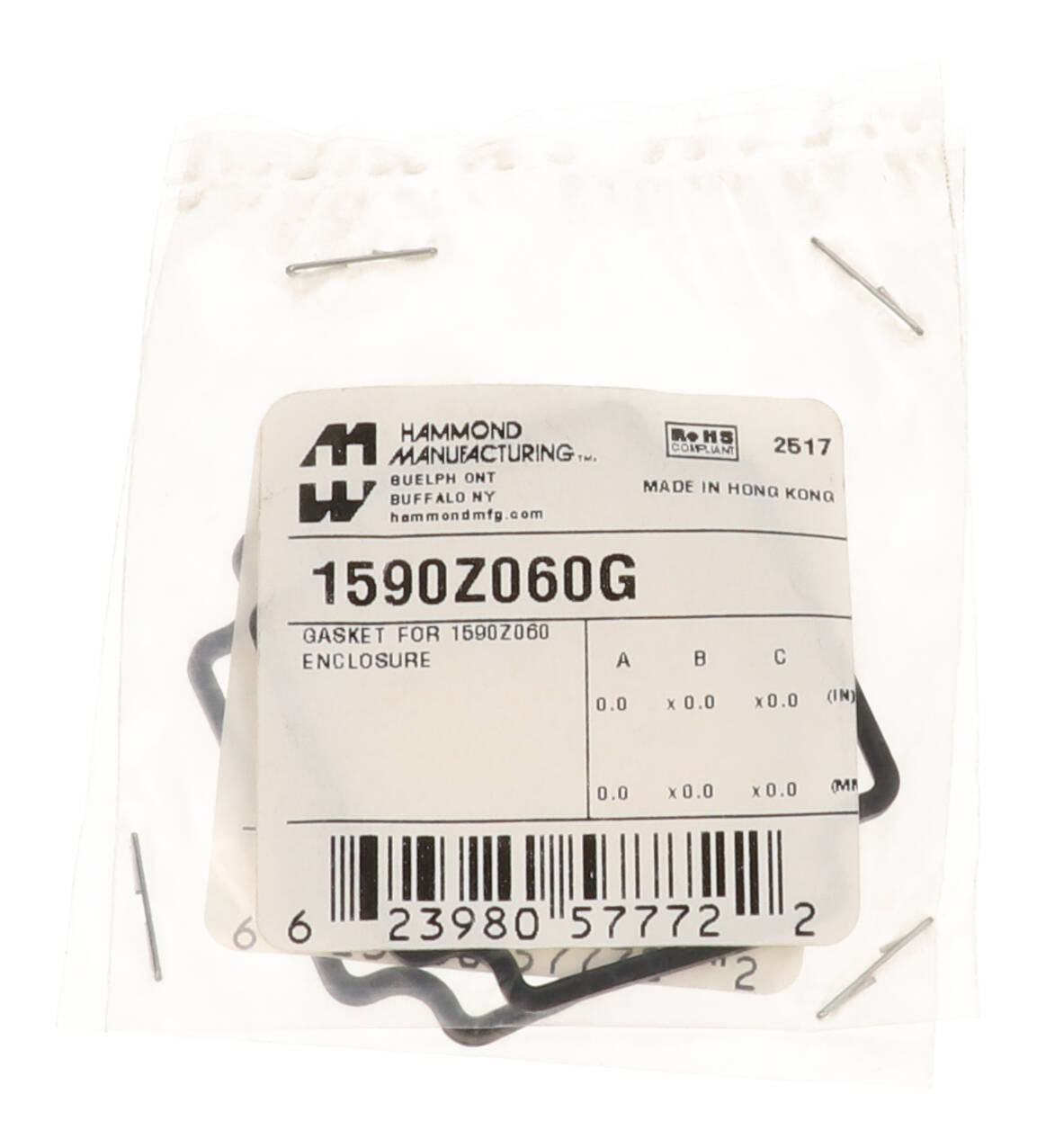

The 1590Z060G ships in a bag at a shipping weight of 0.01 lbs (0.00 kg) and is RoHS and REACH compliant. Because the enclosure gasket is replaceable rather than bonded in place, swapping it is part of routine upkeep for the 1590Z060 family.
