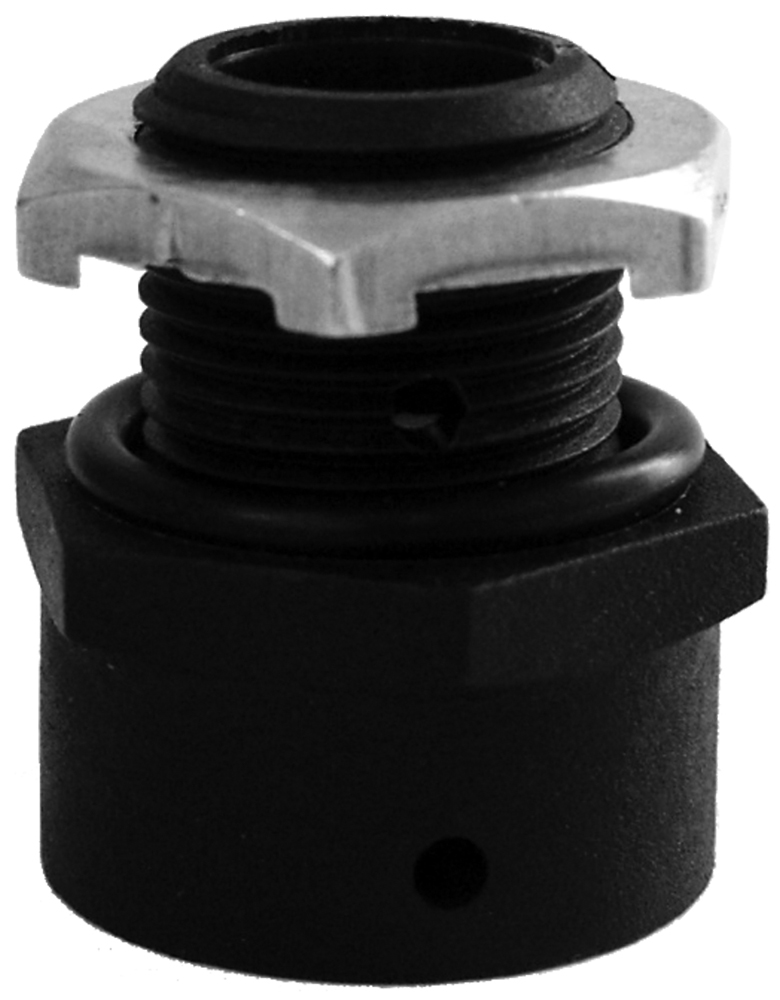

Pressure Compensation Plug · BDN Series

Brand: Hammond Manufacturing · 2 part numbers

from $79.41

1 of 2 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Documents Additional information

Configure & price

Find your BDN Series part number

Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

2 of 2 part numbers · 1 priced online

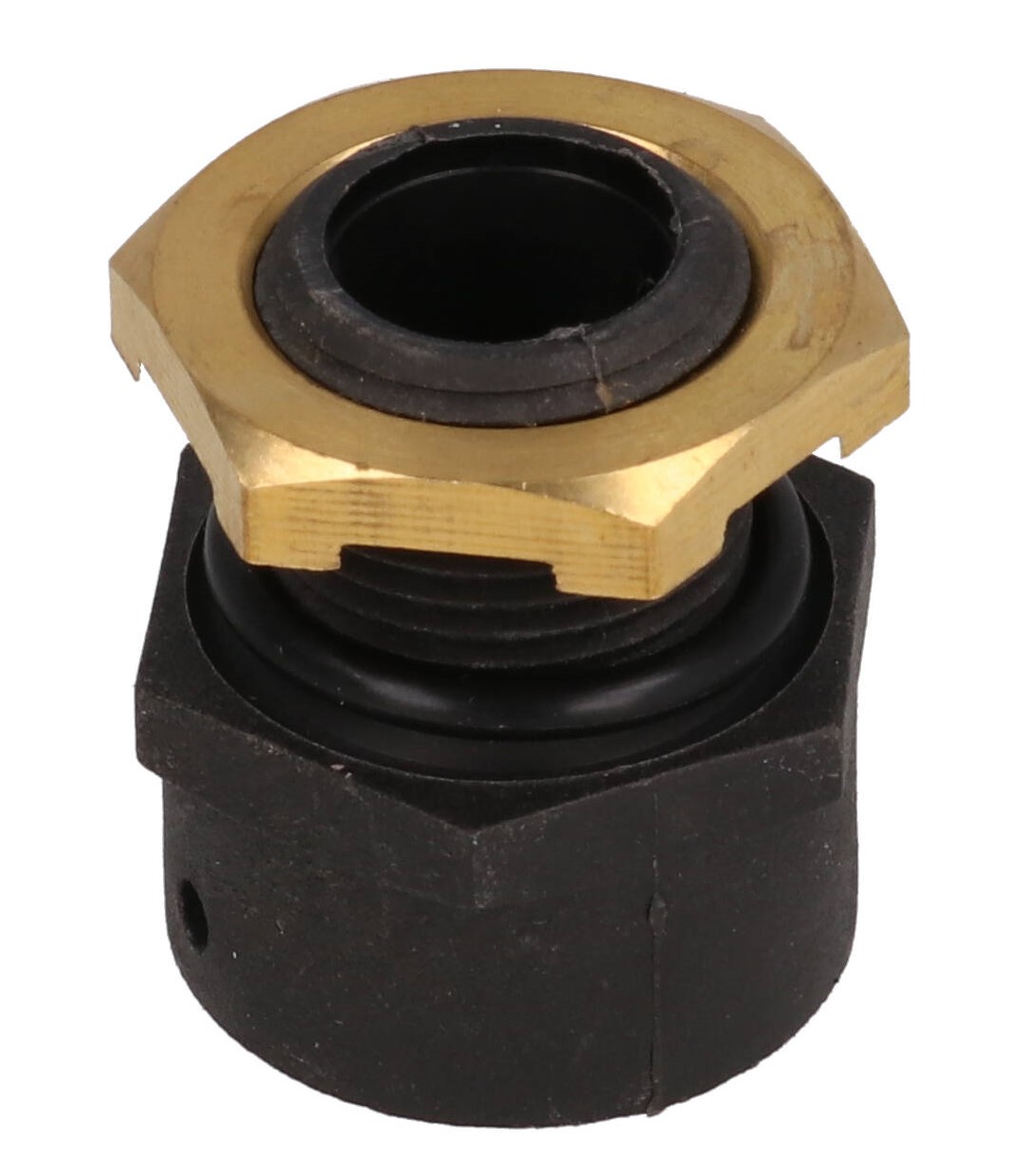

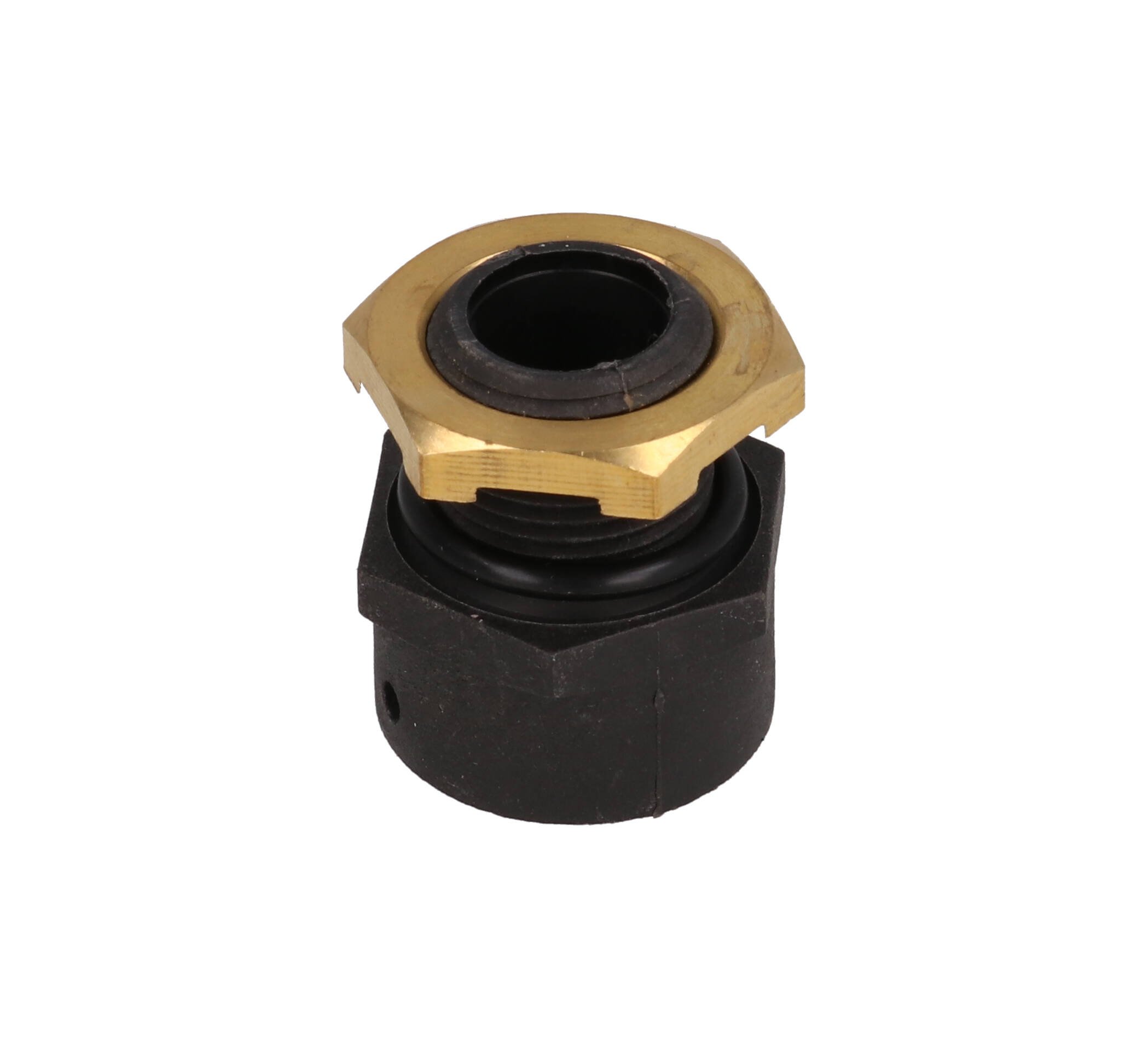

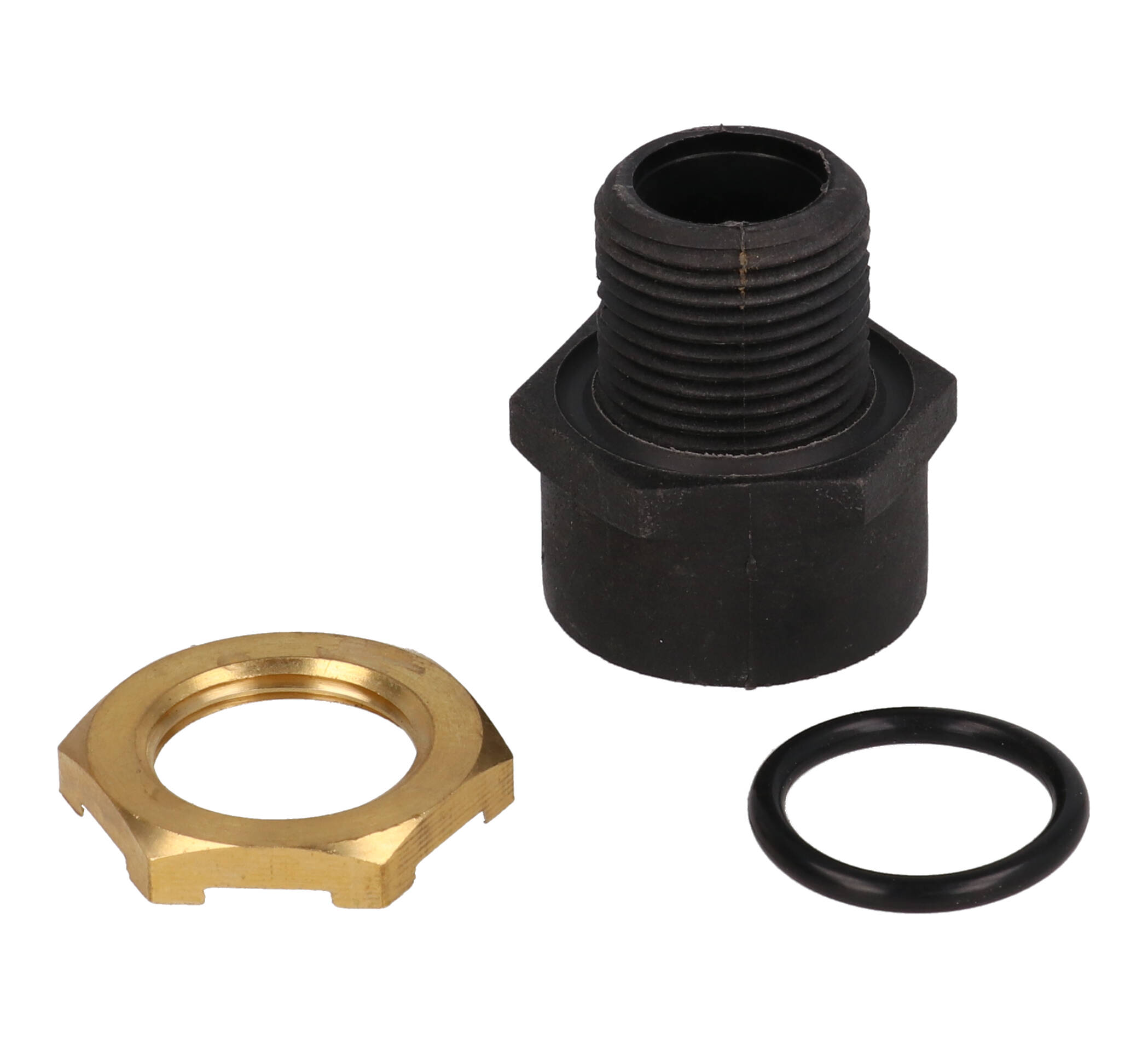

BDN4XN1

Breather Drain - Nylon

QuoteRequest a quote

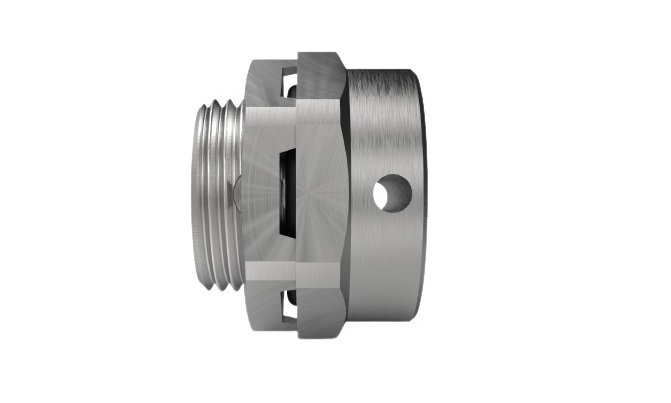

BDN4XS16

Breather Drain - Stainless

$79.41In stock

Buy now

Dimension tables (inches / mm)

Units shown: mm . Switch units to: inch

Part No.	B	L	A	Price	Order
BDN4XN1	0.79	0.67	1.10	Quote	Quote
BDN4XS16	0.59	0.47	1.18	$79.41In stock	Buy now

col1	BDN4XN1	BDN4XS16	Price	Order
CSA/A Ex Approvals:	Class I, Zone 1, Ex e II	Class I, Zone 1, Ex e II	Quote	Quote
	Class I Division 2 Groups ABCD	Class I Division 2 Groups ABCD	Quote	Quote
	Class II EFG, Class III	Class II EFG, Class III	Quote	Quote
Ingress Protection:	IP66, CSA Enclosure Type NEMA 4X	IP66, CSA Enclosure Type NEMA 4X	Quote	Quote
Impact Resistance:	20Nm (7Nm GF Nylon)	N/A	Quote	Quote
Materials:	Durethan BKV 30 N1 30% Glass Filled Nylon	316L Stainless Steel	Quote	Quote
	O Ring - Nitrile	O Ring - Nitrile	Quote	Quote
	Fixing nut - Brass	Fixing nut - 316L SS	Quote	Quote
Operating Temp:	-50C to +85C	-30C to +100C	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Documents

Specification Sheet

Additional information

Part Details

Part No.	B	L	A
BDN4XN1	20	17	28
BDN4XS16	15	12	30

Part Details

col1	BDN4XN1	BDN4XS16
CSA/A Ex Approvals:	Class I, Zone 1, Ex e II	Class I, Zone 1, Ex e II
	Class I Division 2 Groups ABCD	Class I Division 2 Groups ABCD
	Class II EFG, Class III	Class II EFG, Class III
Ingress Protection:	IP66, CSA Enclosure Type NEMA 4X	IP66, CSA Enclosure Type NEMA 4X
Impact Resistance:	20Nm (7Nm GF Nylon)	N/A
Materials:	Durethan BKV 30 N1 30% Glass Filled Nylon	316L Stainless Steel
	O Ring - Nitrile	O Ring - Nitrile
	Fixing nut - Brass	Fixing nut - 316L SS
Operating Temp:	-50C to +85C	-30C to +100C
