Hammond 1590Z080G Silicone Replacement Gasket Two-Pack, 100 mm Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pack of 2 replacement gaskets for 1590Z080 enclosures
- Fits 1590Z080, 1590Z080BK and 1590Z080GY (100 x 100 x 80 mm)
- Silicone construction; series gasket rated -40C to +150C
- Gasket size 96 x 96 x 3 mm (3.79 x 3.79 x 0.11 in)
- IP66 rating listed on part data
- RoHS and REACH compliant

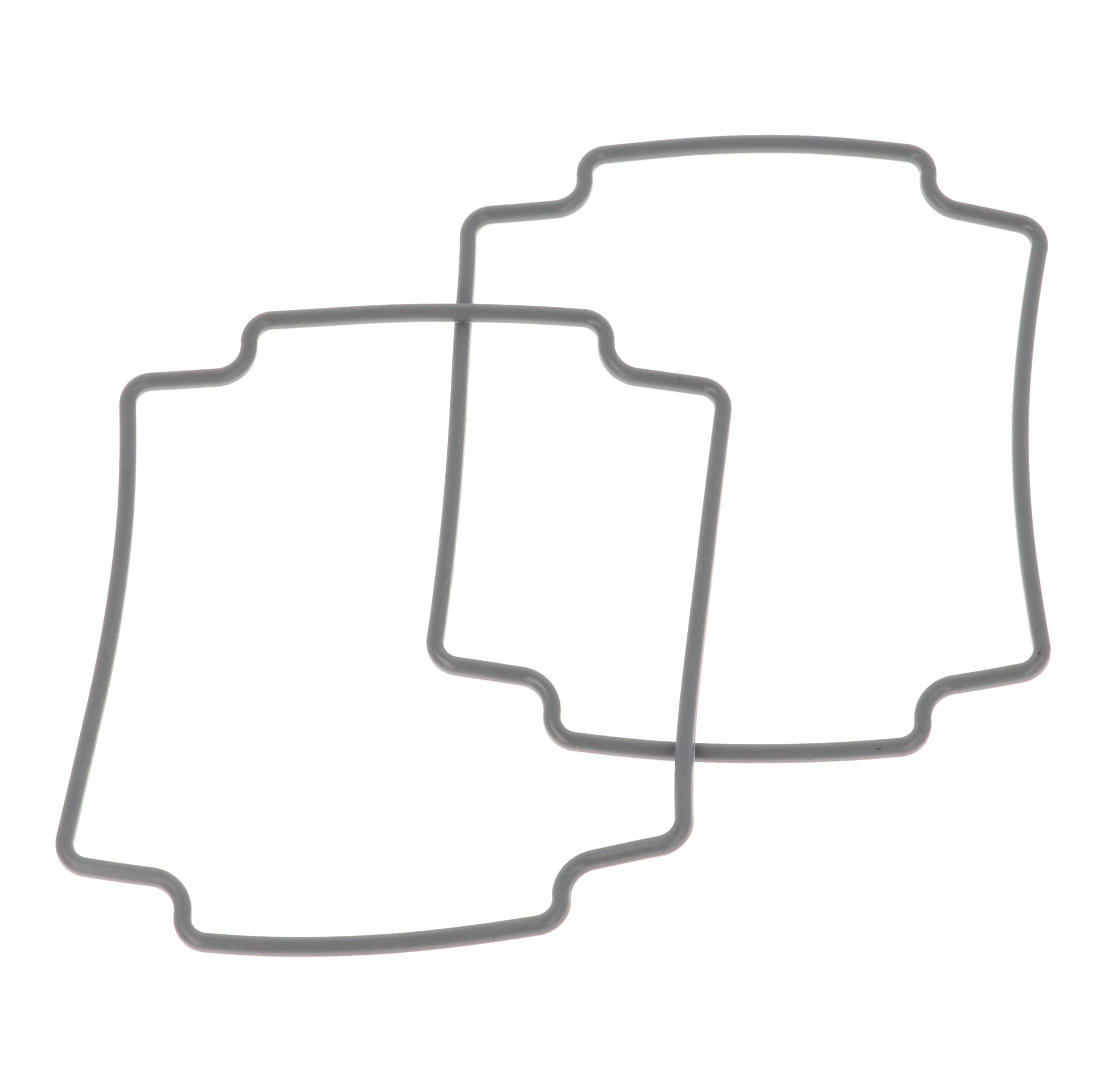

The 1590Z080G is a pack of two replacement silicone gaskets for the 1590Z080 size of 1590Z Series diecast aluminum enclosures. It is intended for maintenance technicians and OEM builders who need to restore the lid seal after service, or keep spares on hand for enclosures that are opened frequently.
The 1590Z Series uses a replaceable one piece silicone rubber gasket seated in the tongue and groove joint between box and lid. Hammond rates the series gasket for -40C to +150C (-40F to 302F), and the enclosures are designed for repetitive opening and closing, so being able to swap in a fresh gasket keeps the seal performing.

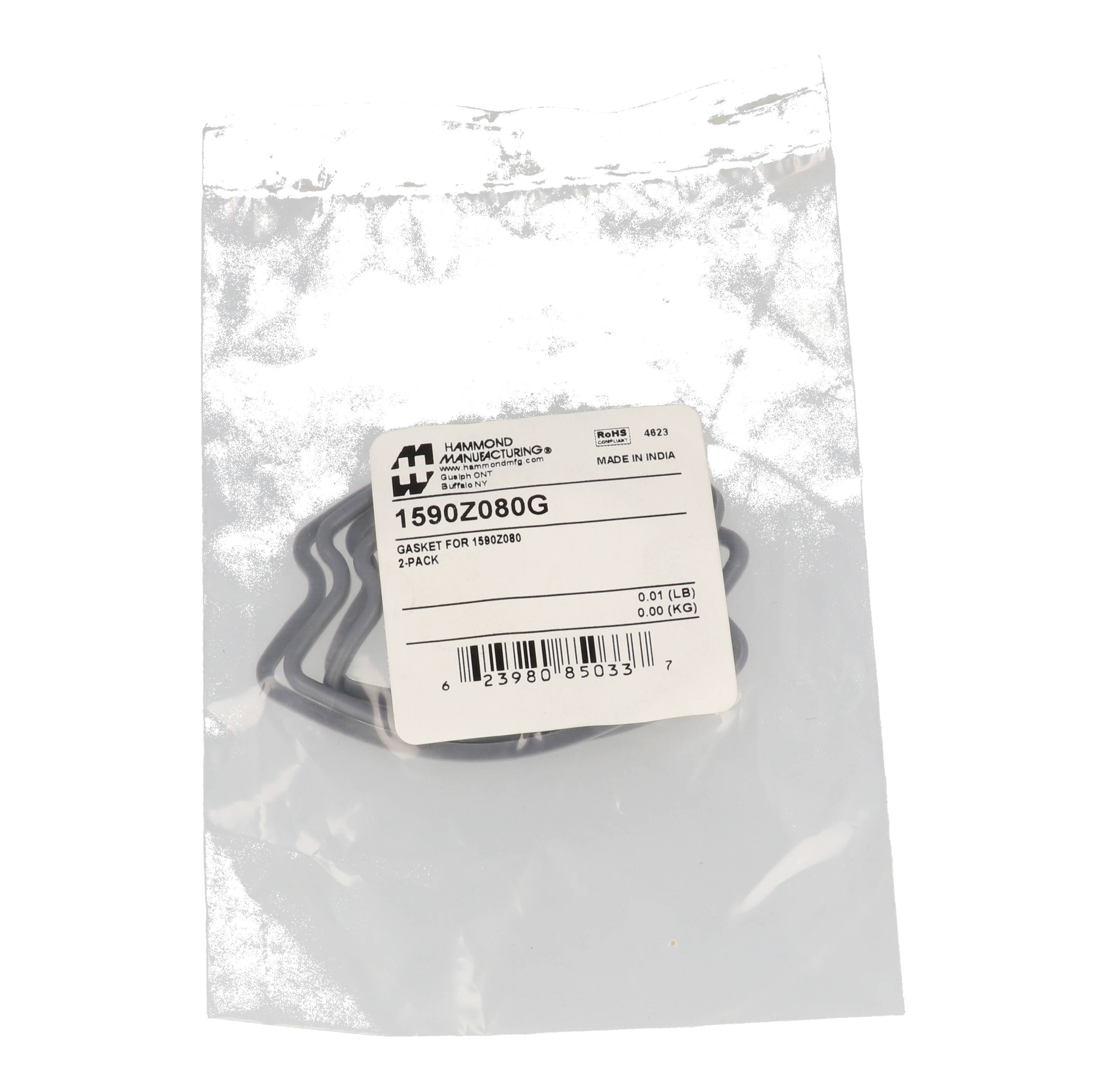

Each gasket measures 3.79 x 3.79 x 0.11 in (96 x 96 x 3 mm). The part is listed with an IP66 rating, is made of silicone and ships in a bag with a shipping weight of 0.01 lbs.
According to the series ordering table, the 1590Z080G fits the natural 1590Z080, textured black 1590Z080BK and smooth gray 1590Z080GY enclosures, all 100 x 100 x 80 mm with a 20 mm lid depth. The gasket is RoHS and REACH compliant.
Ideal For
- Resealing 1590Z080 enclosures after service
- Spare gaskets for frequently opened enclosures
- Maintenance stock for outdoor electronics housings
Overview
| Type | Gasket |
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |
| Quantity | Pack of 2 |
| Description | 2x GASKET FOR 1590Z080 |
| Part Number | 1590Z080G |
| Product Type | Replacement gasket for 1590Z080 enclosures |
Dimensions
| Size (L X W X H) | 3.79 in x 3.79 in x 0.11 in (96 mm x 96 mm x 3 mm) |
Identifiers
| UPC | 623980850337 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Size | 3.94 in x 3.94 in x 3.15 in (100 mm x 100 mm x 80 mm), lid depth 0.79 in (20 mm) |
| Fits Enclosures | 1590Z080, 1590Z080BK, 1590Z080GY |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | Silicone |
| Gasket Design | Replaceable one piece silicone rubber gasket |
Environmental & Protection
| IP Rating | IP66 |
| Temperature Rating | -40C to +150C (-40F to 302F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many gaskets are in the 1590Z080G?▾
It is a pack of 2 (Hammond short description: 2x GASKET FOR 1590Z080).
Which enclosures does it fit?▾
The 1590Z080 size: 1590Z080 (natural), 1590Z080BK (black) and 1590Z080GY (gray).
What temperature range does the gasket handle?▾
The 1590Z Series silicone gasket is rated -40C to +150C (-40F to 302F).
What are the gasket dimensions?▾
3.79 x 3.79 x 0.11 in (96 x 96 x 3 mm).
