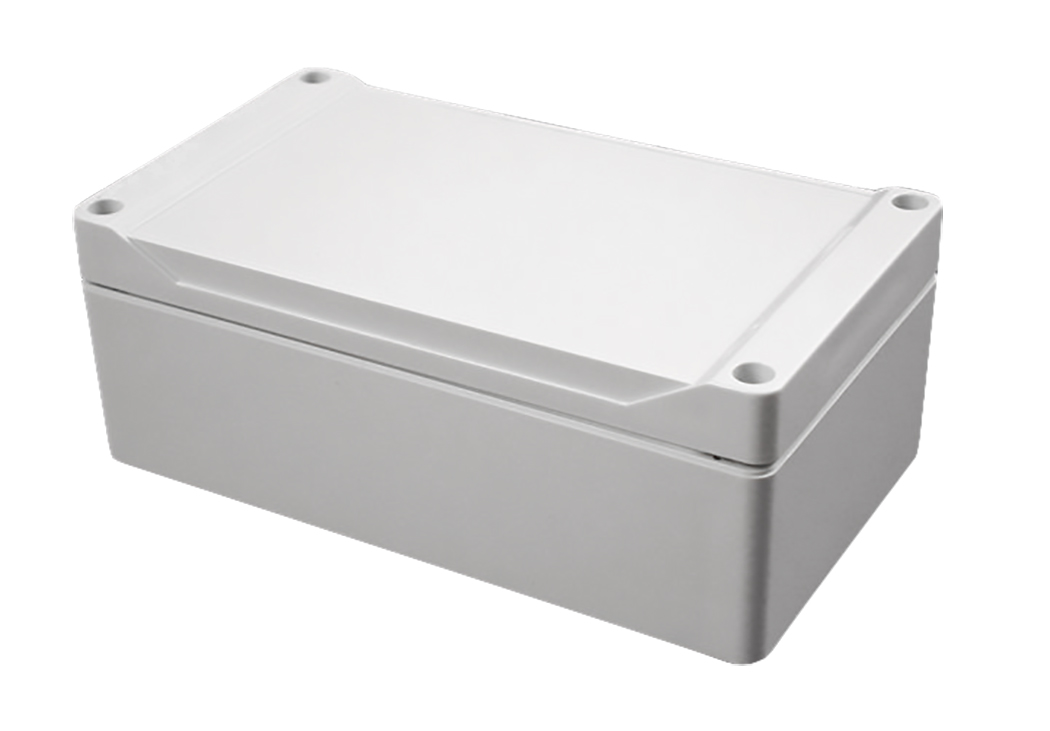

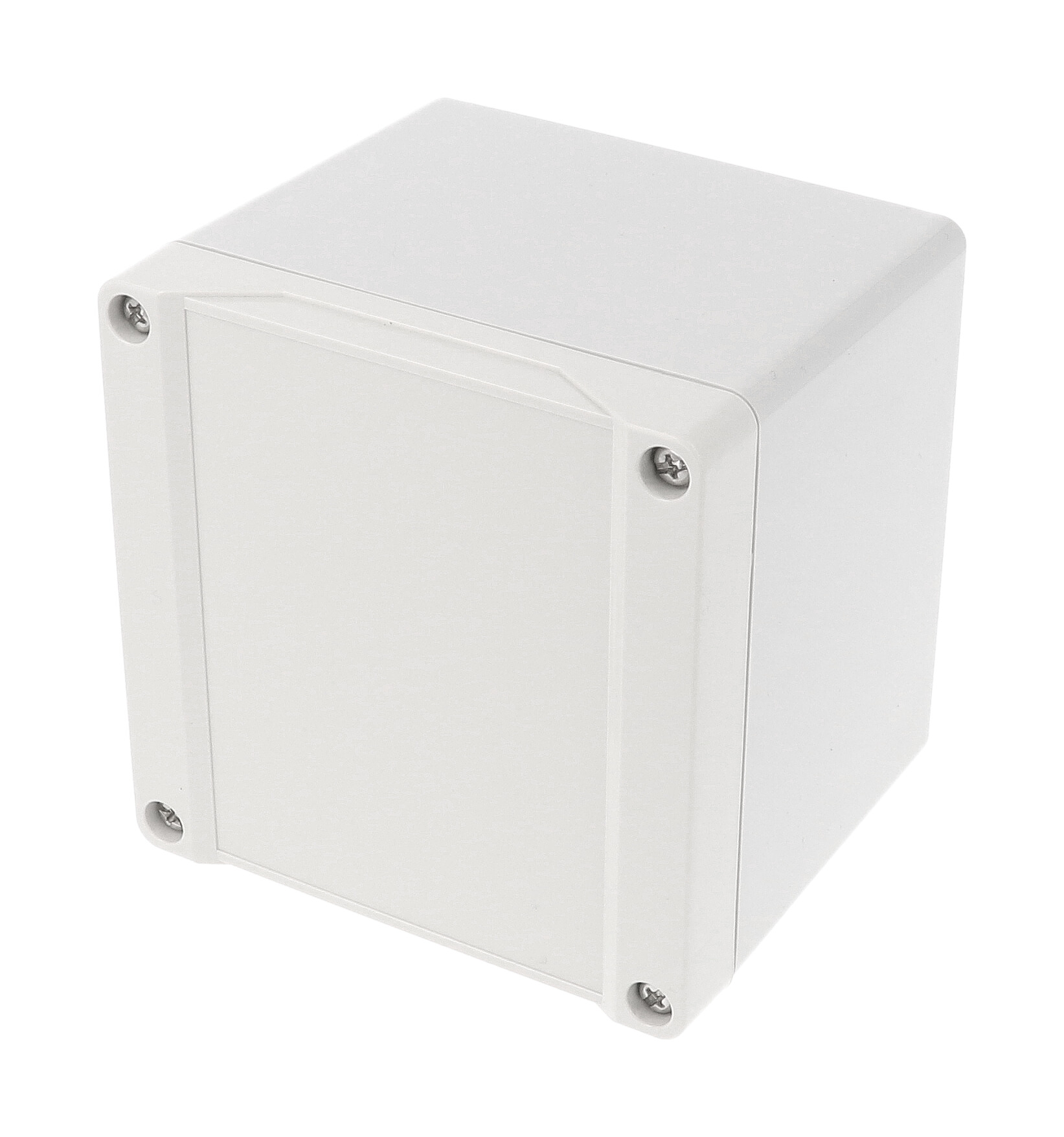

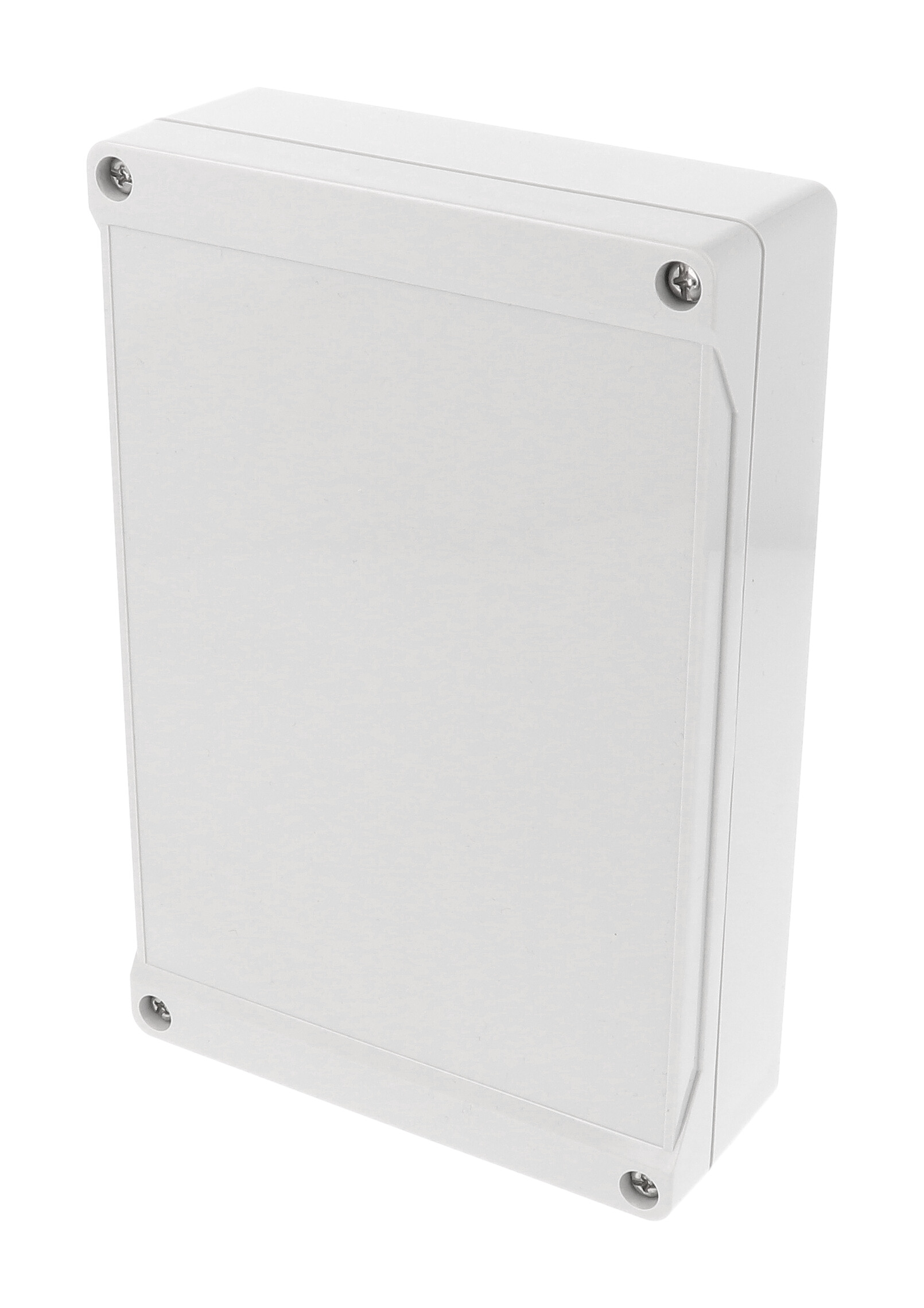

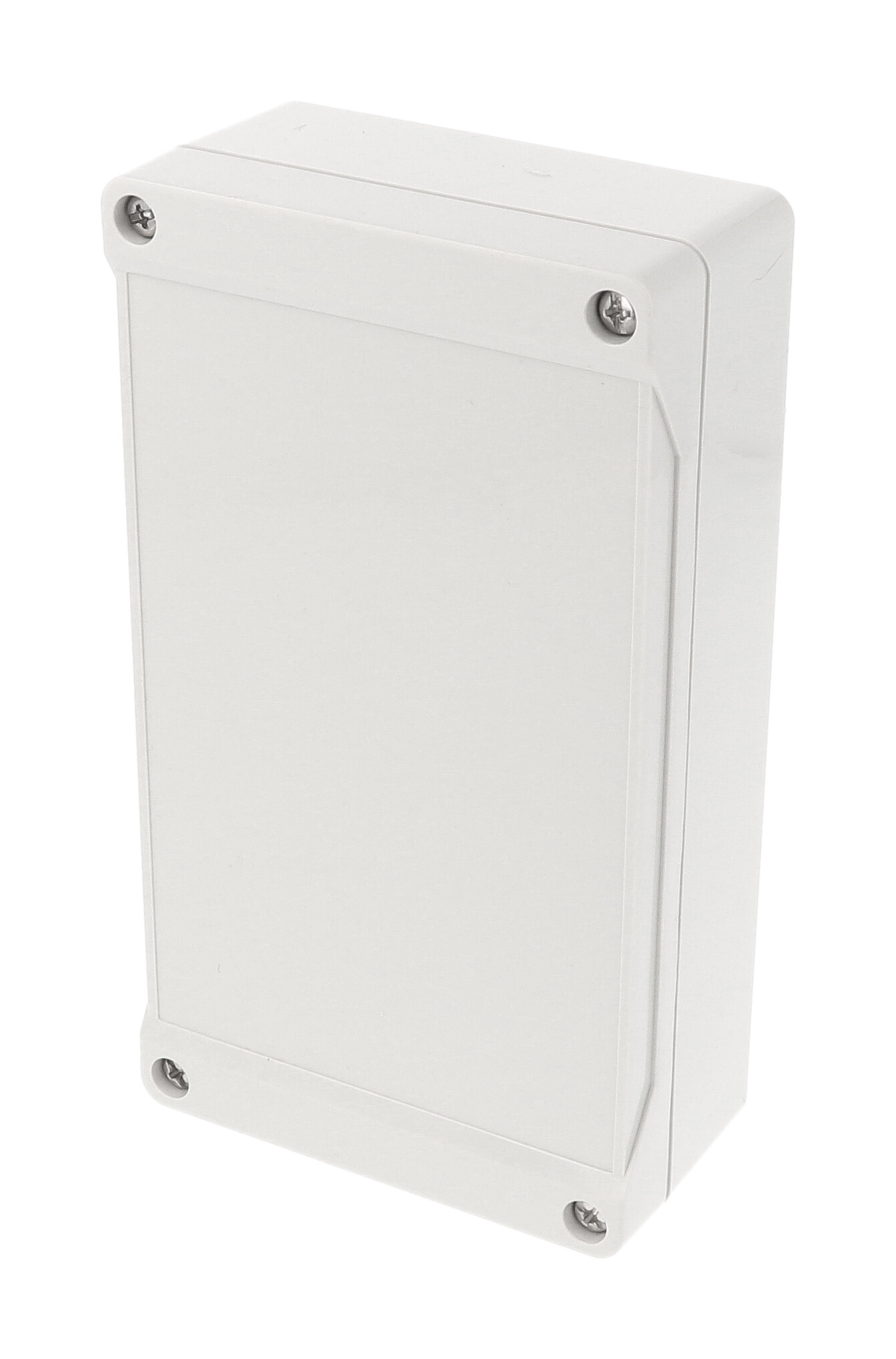

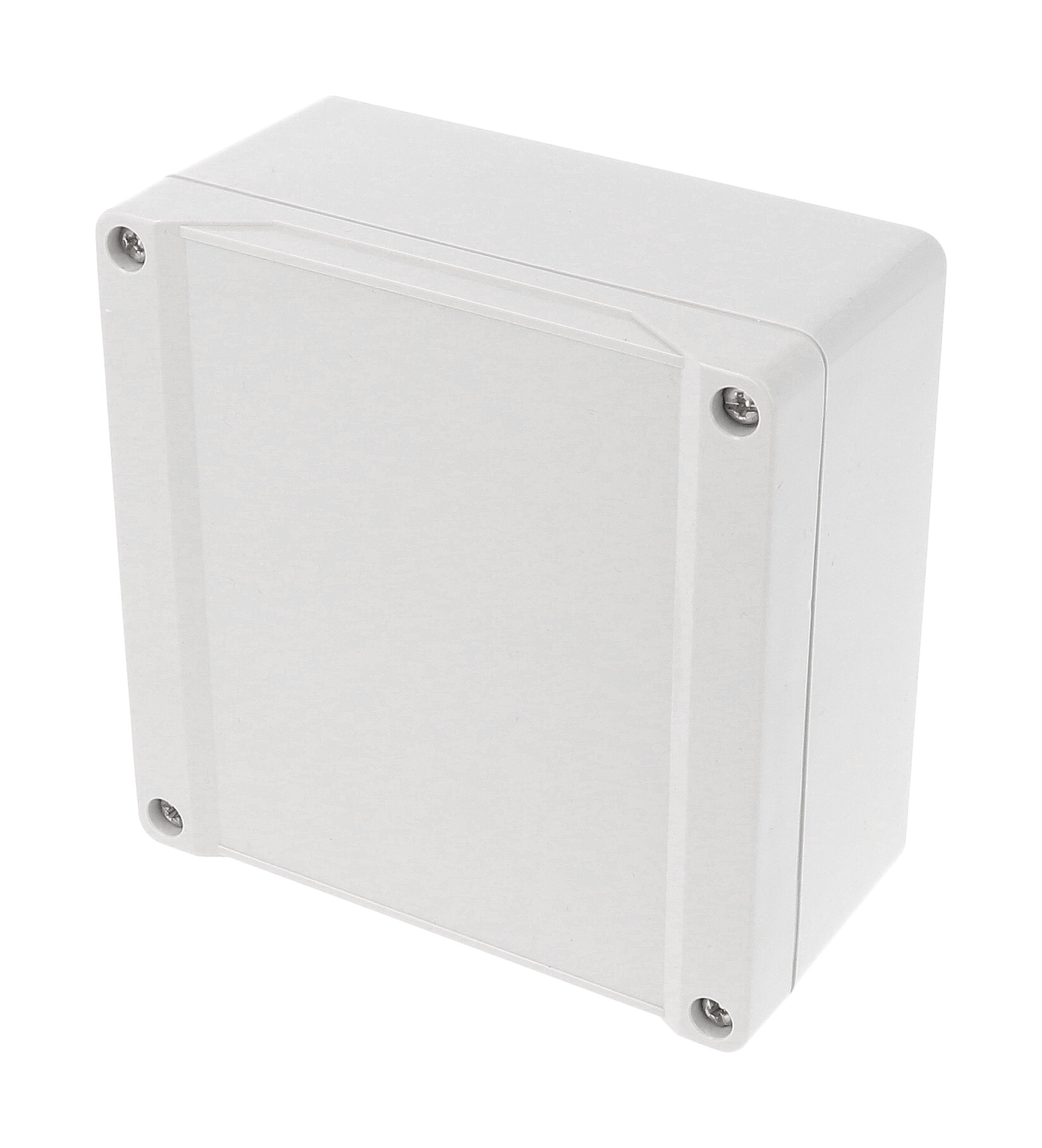

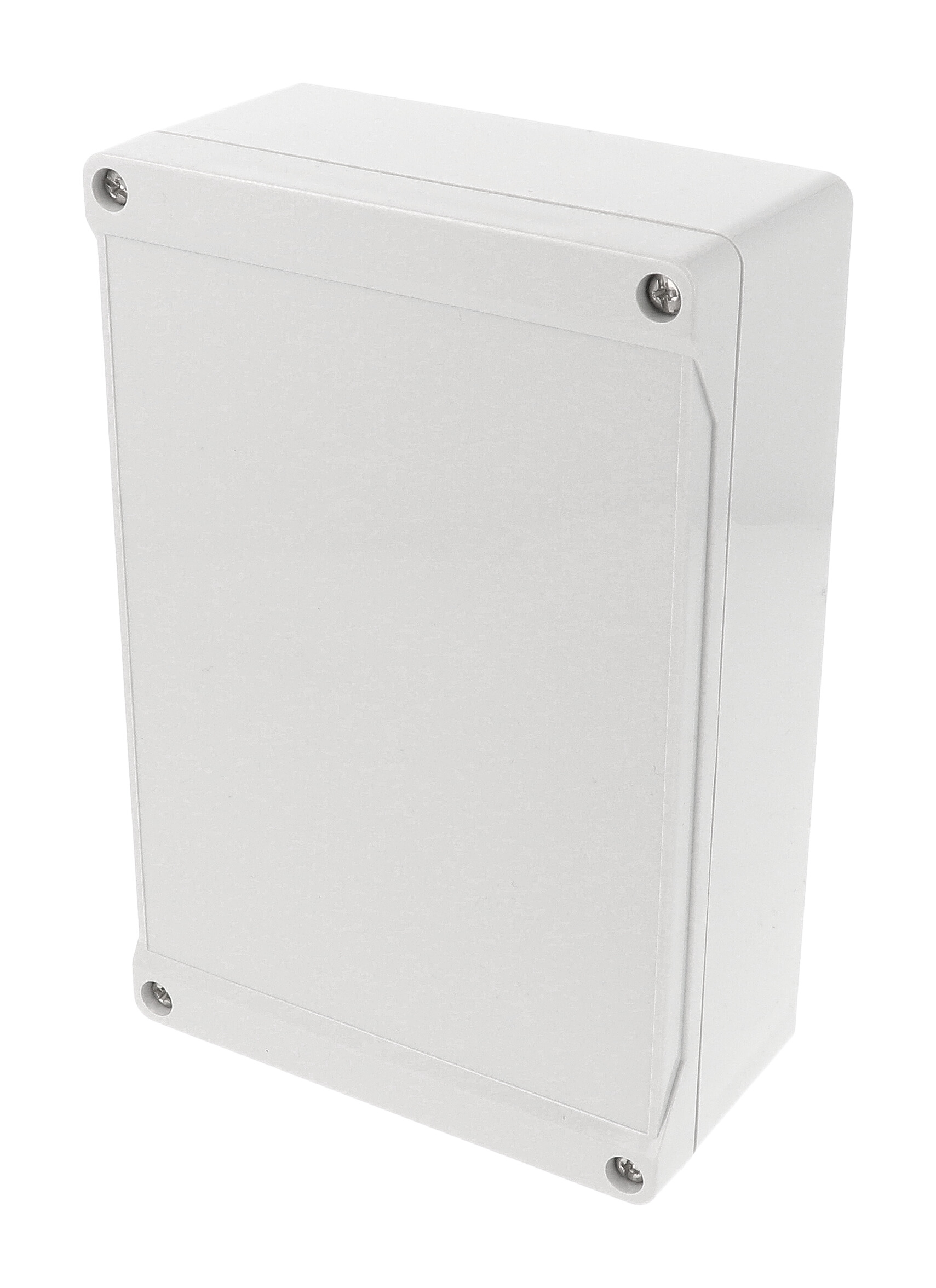

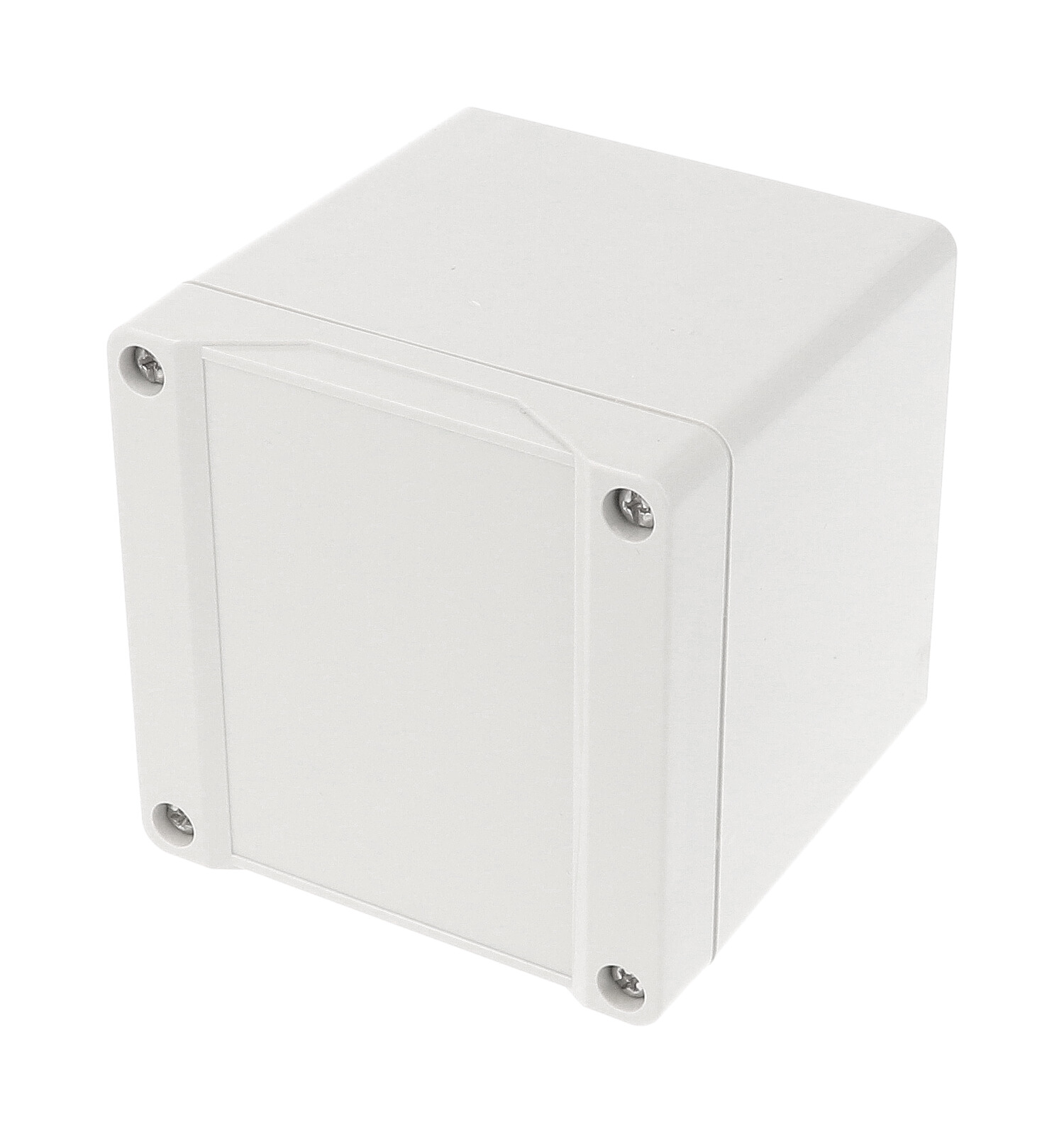

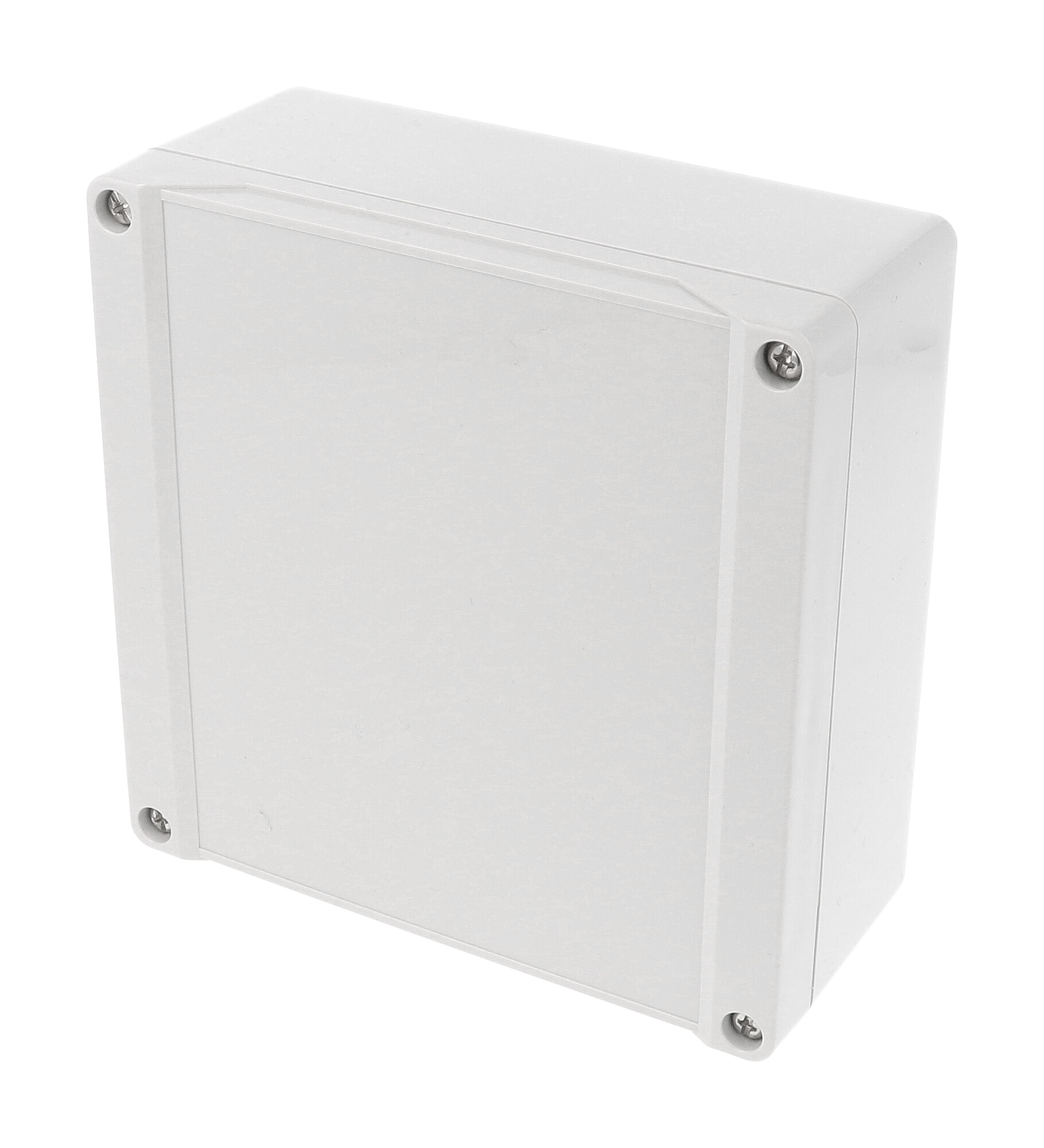

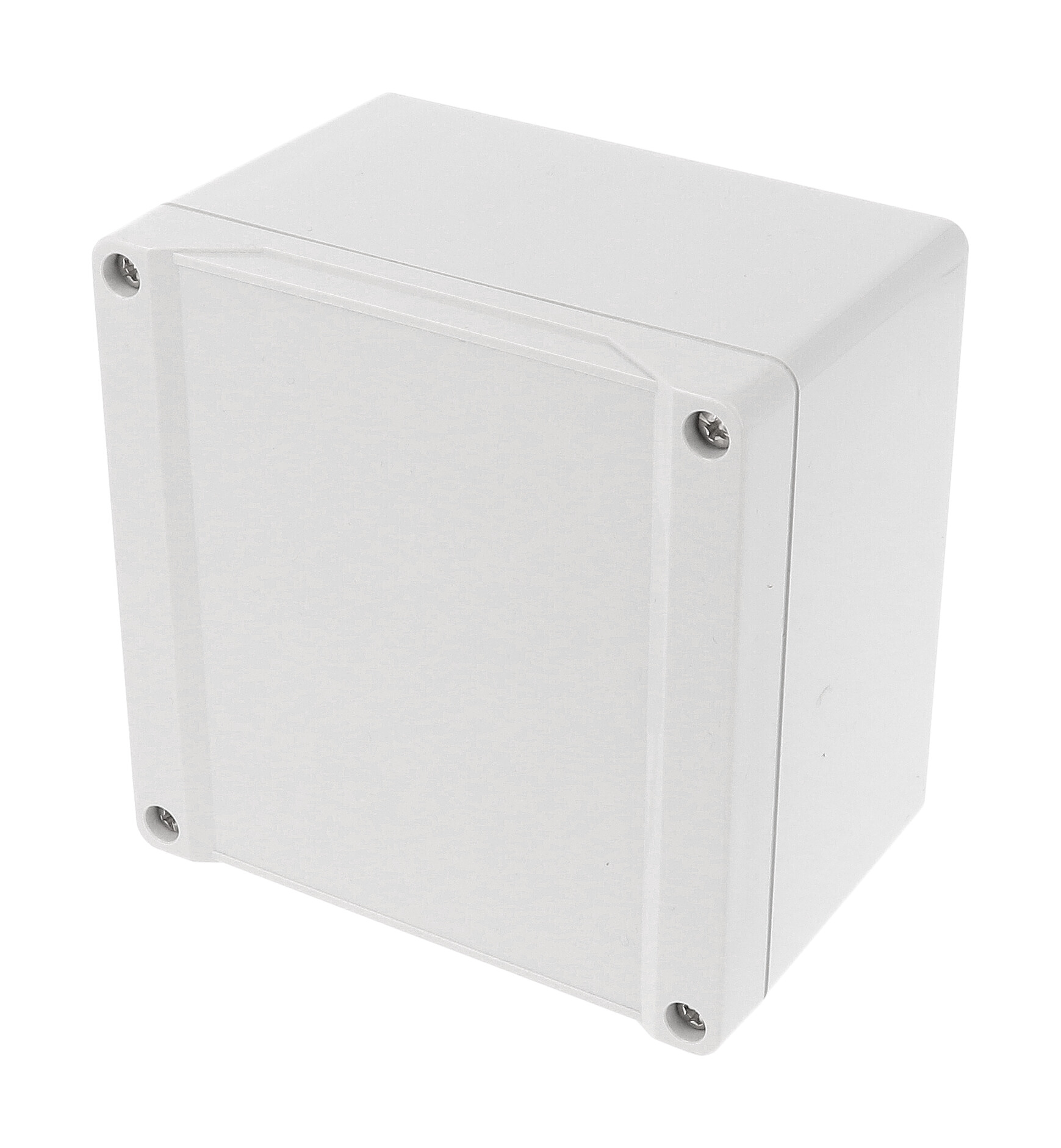

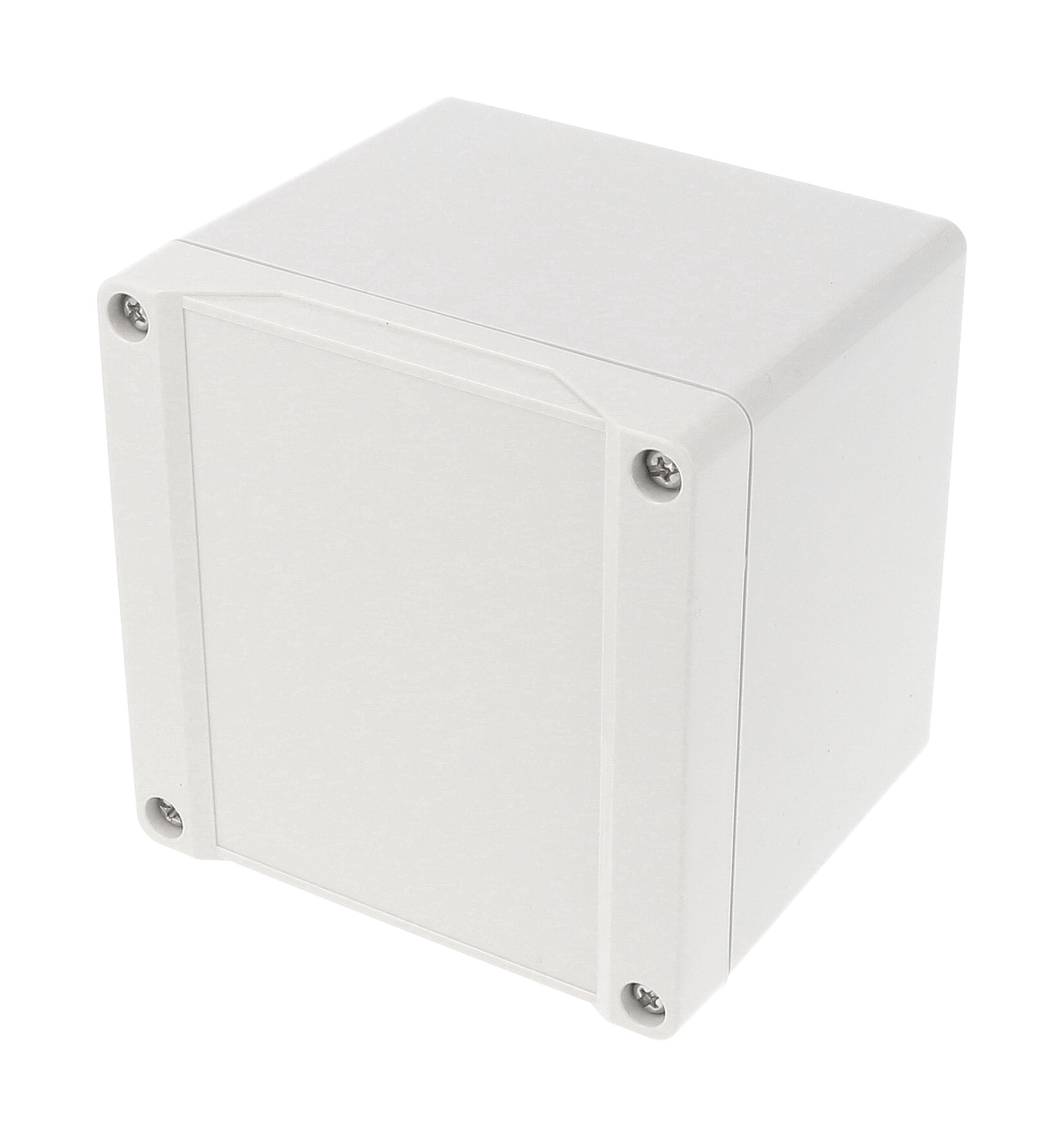

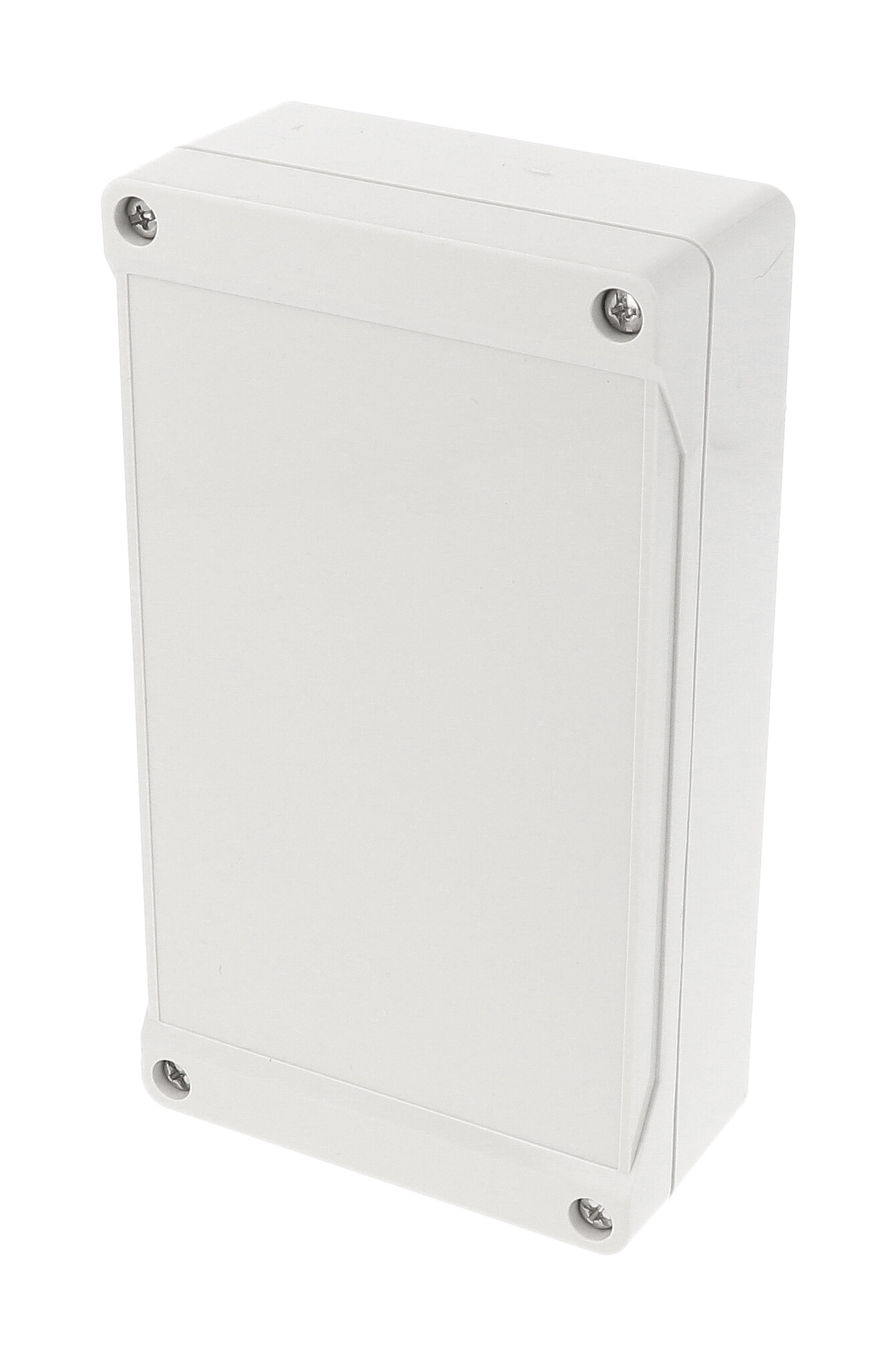

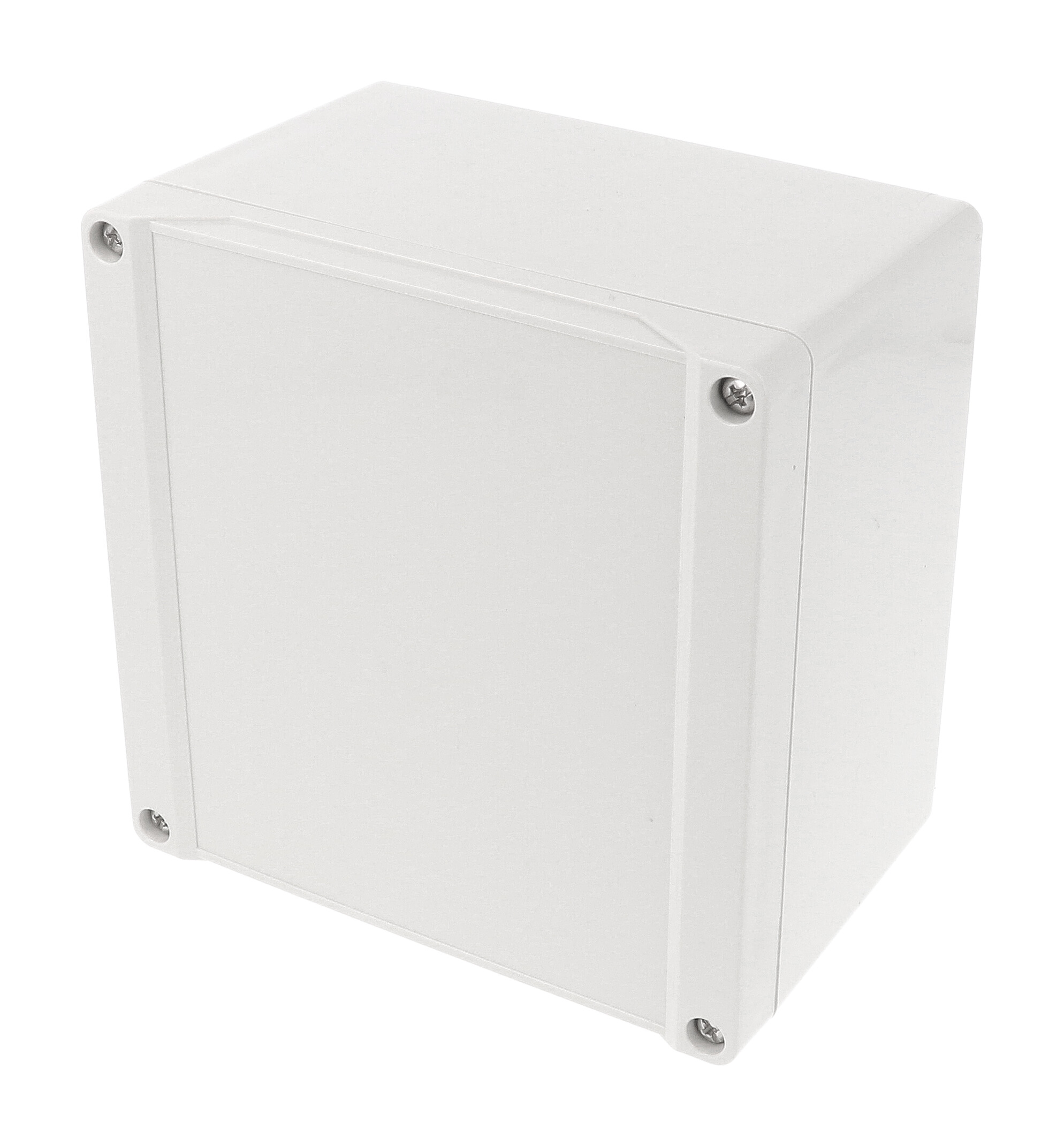

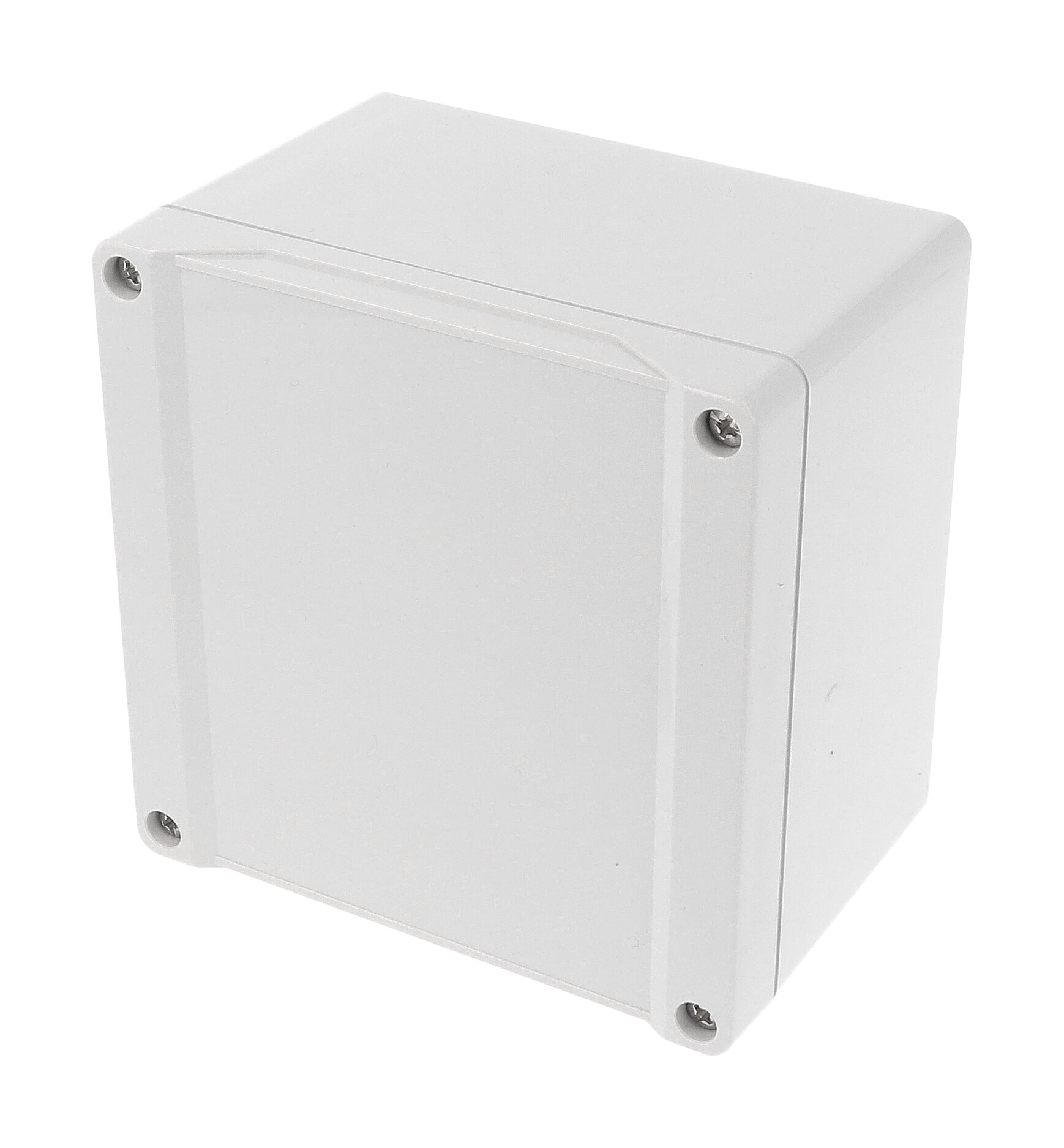

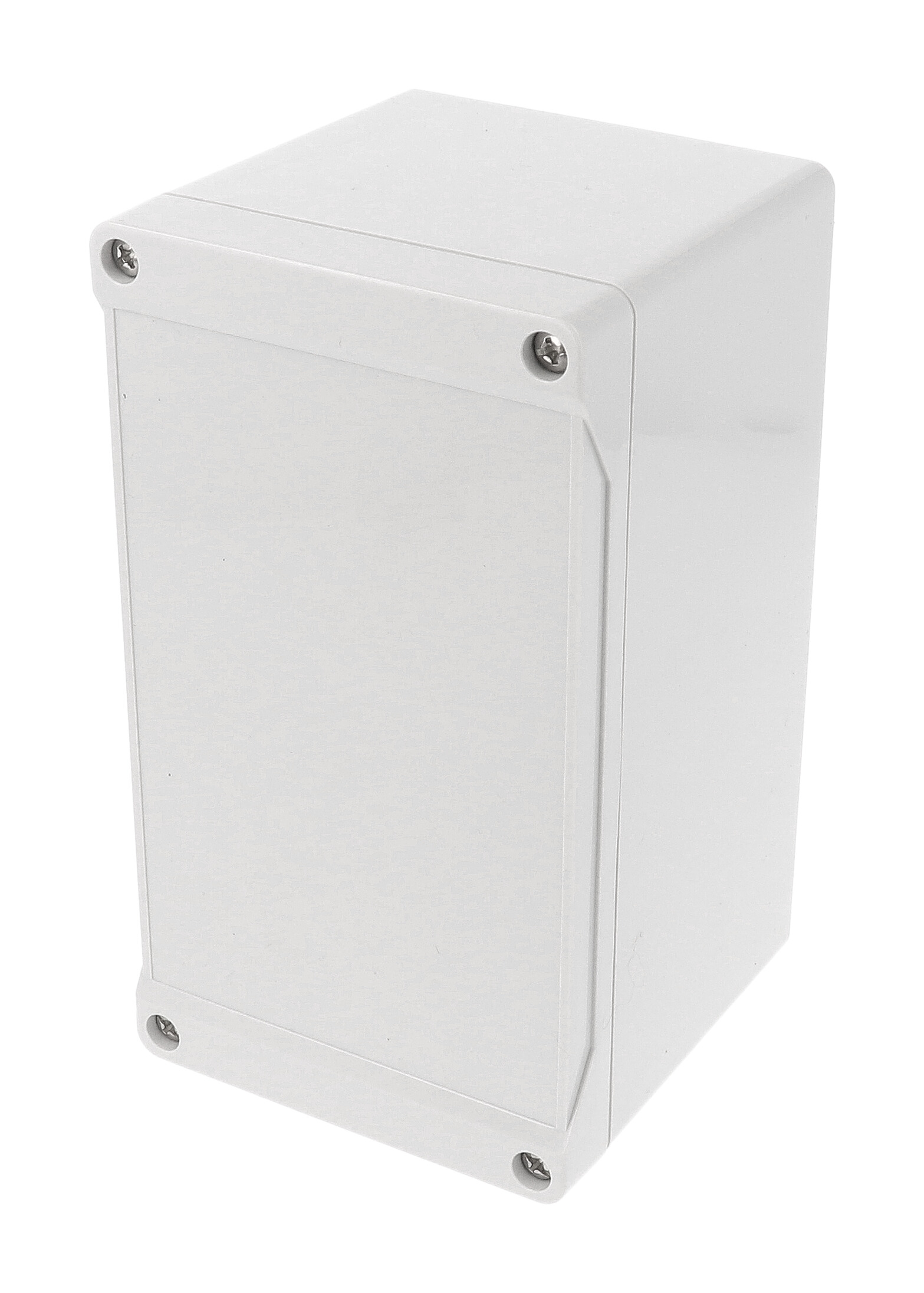

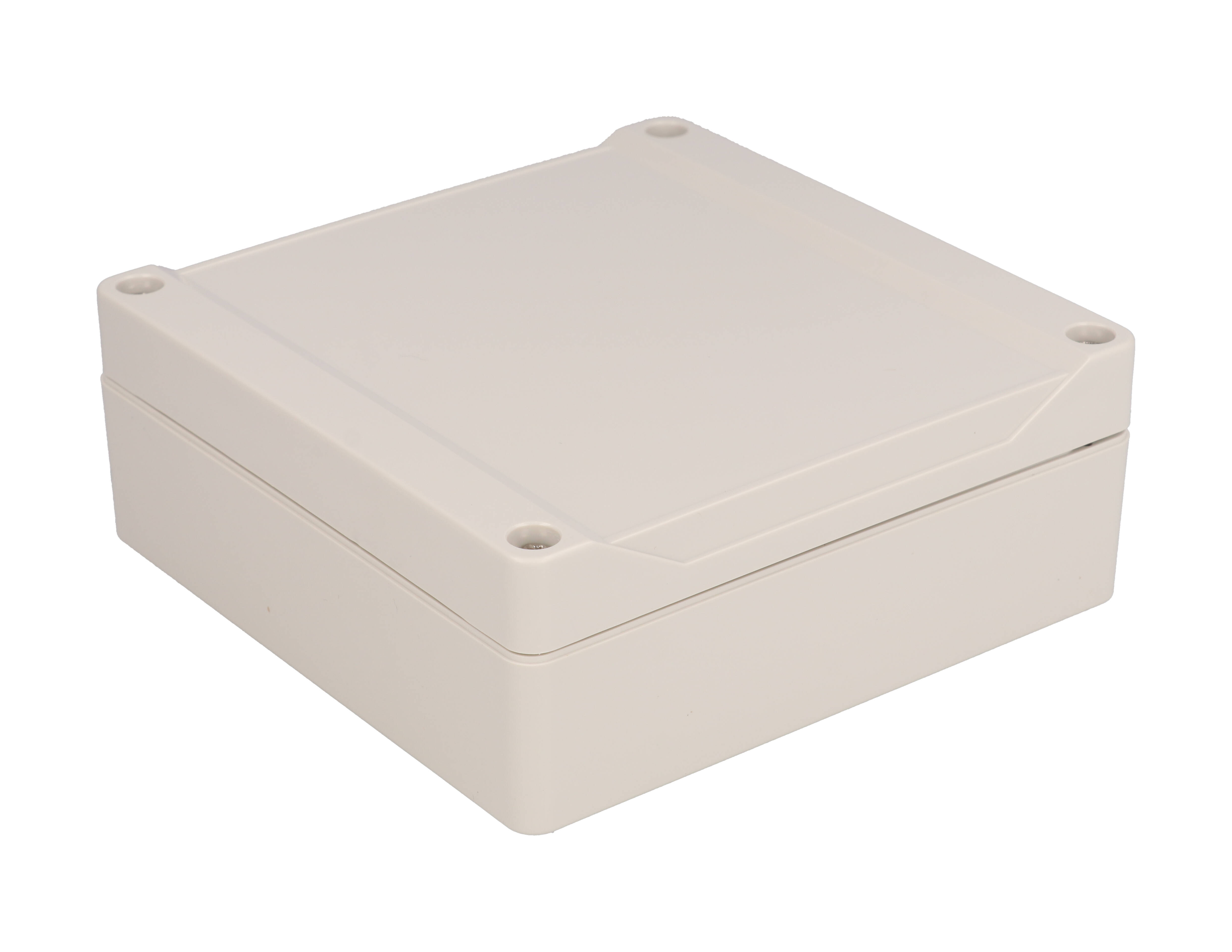

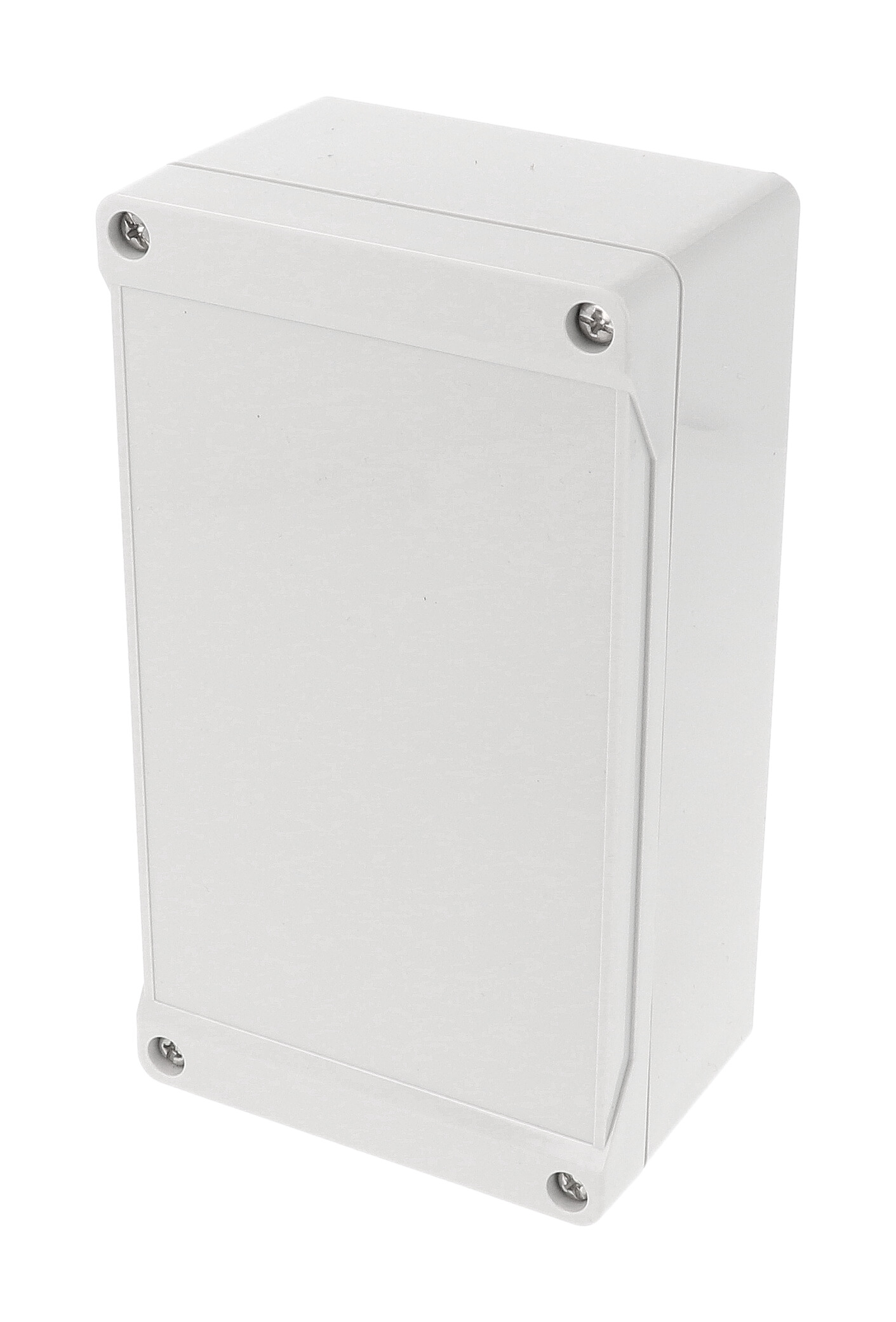

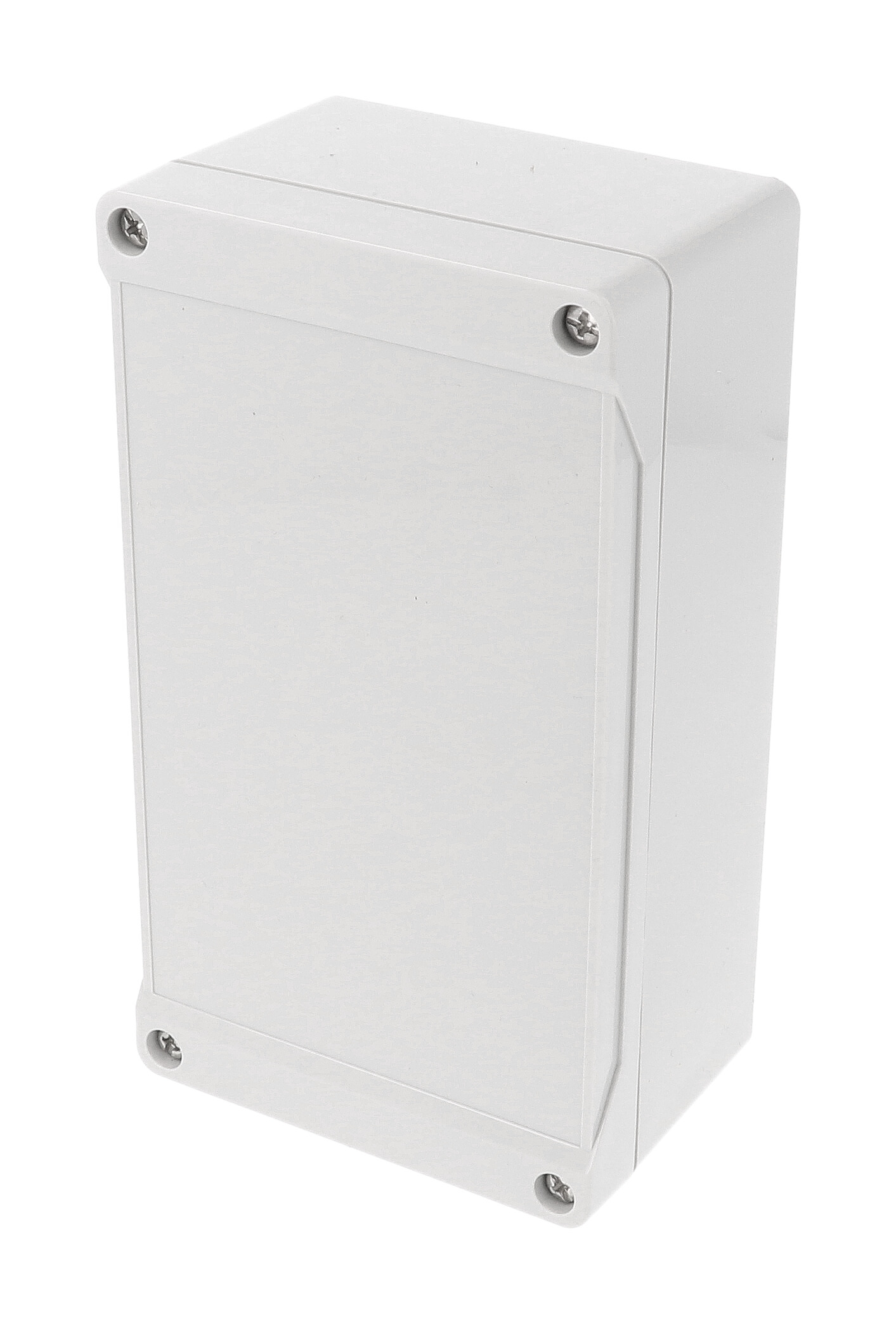

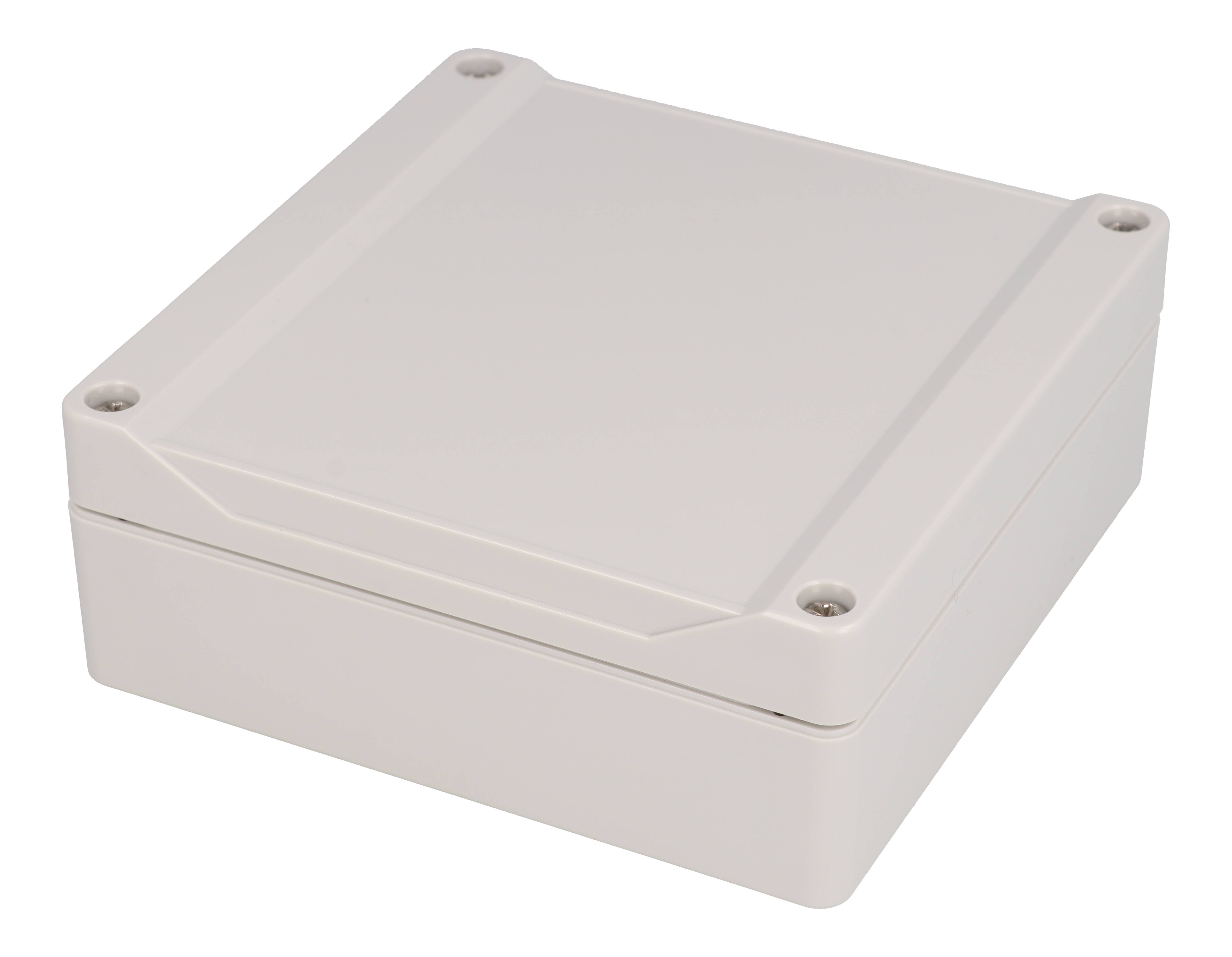

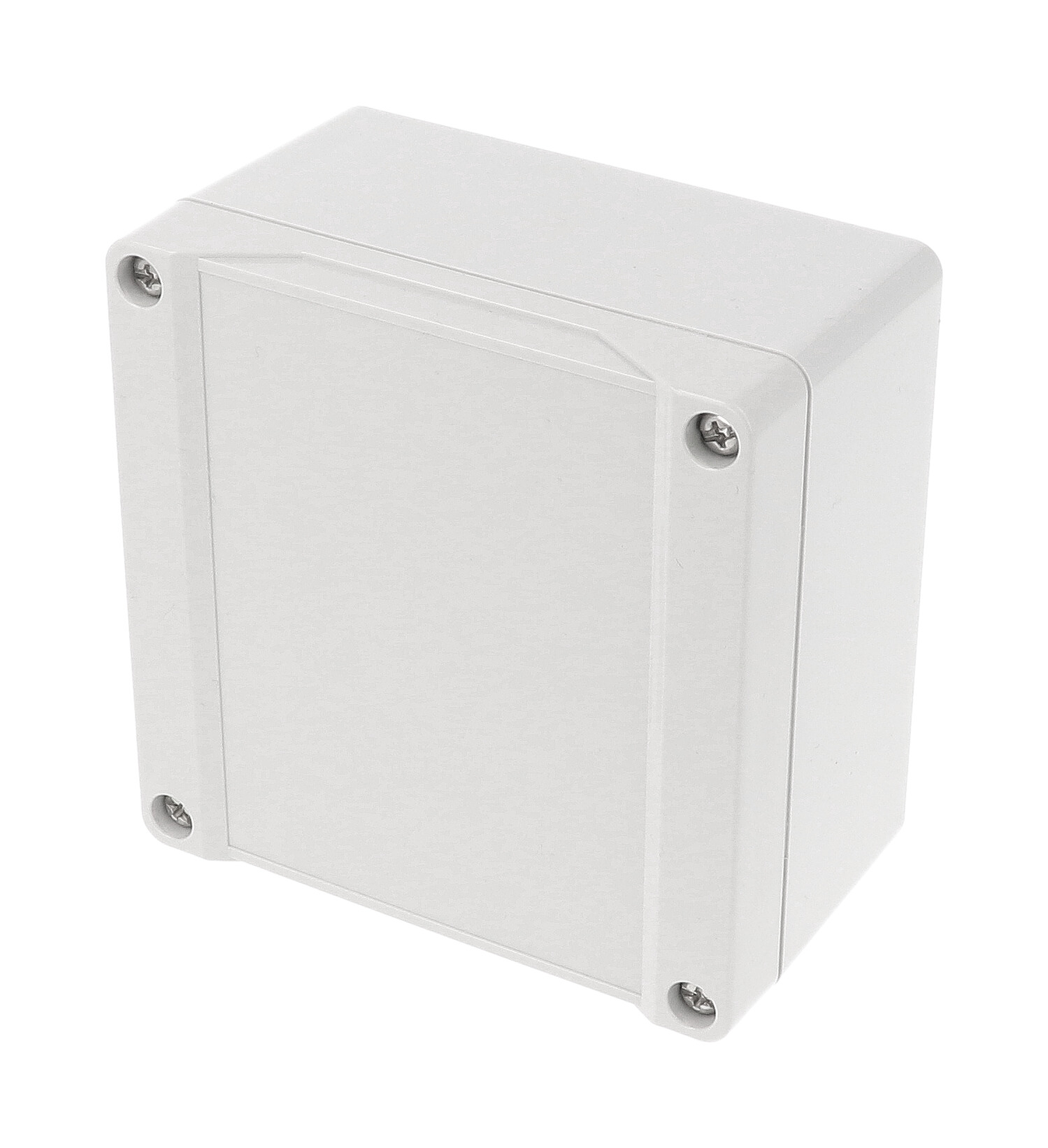

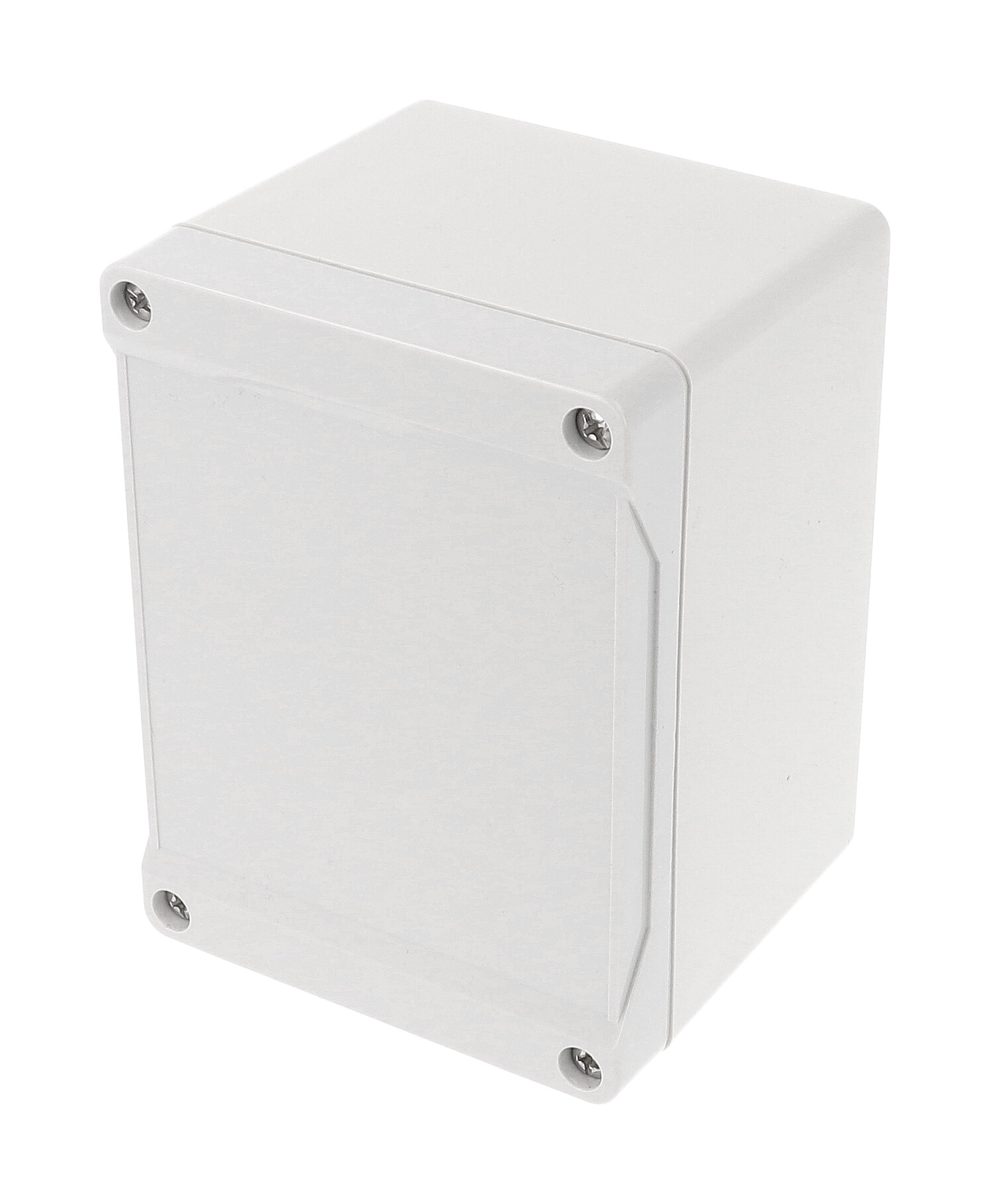

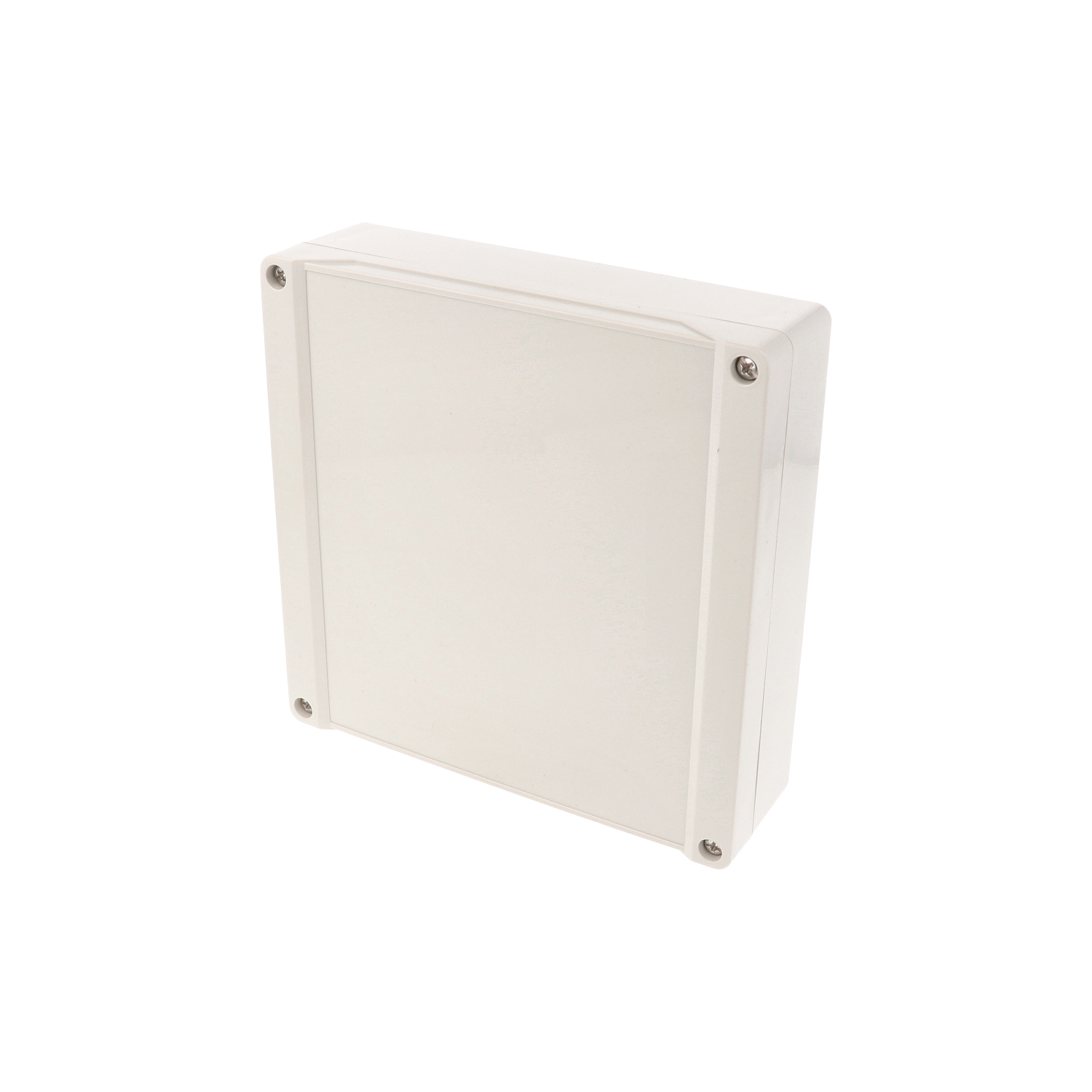

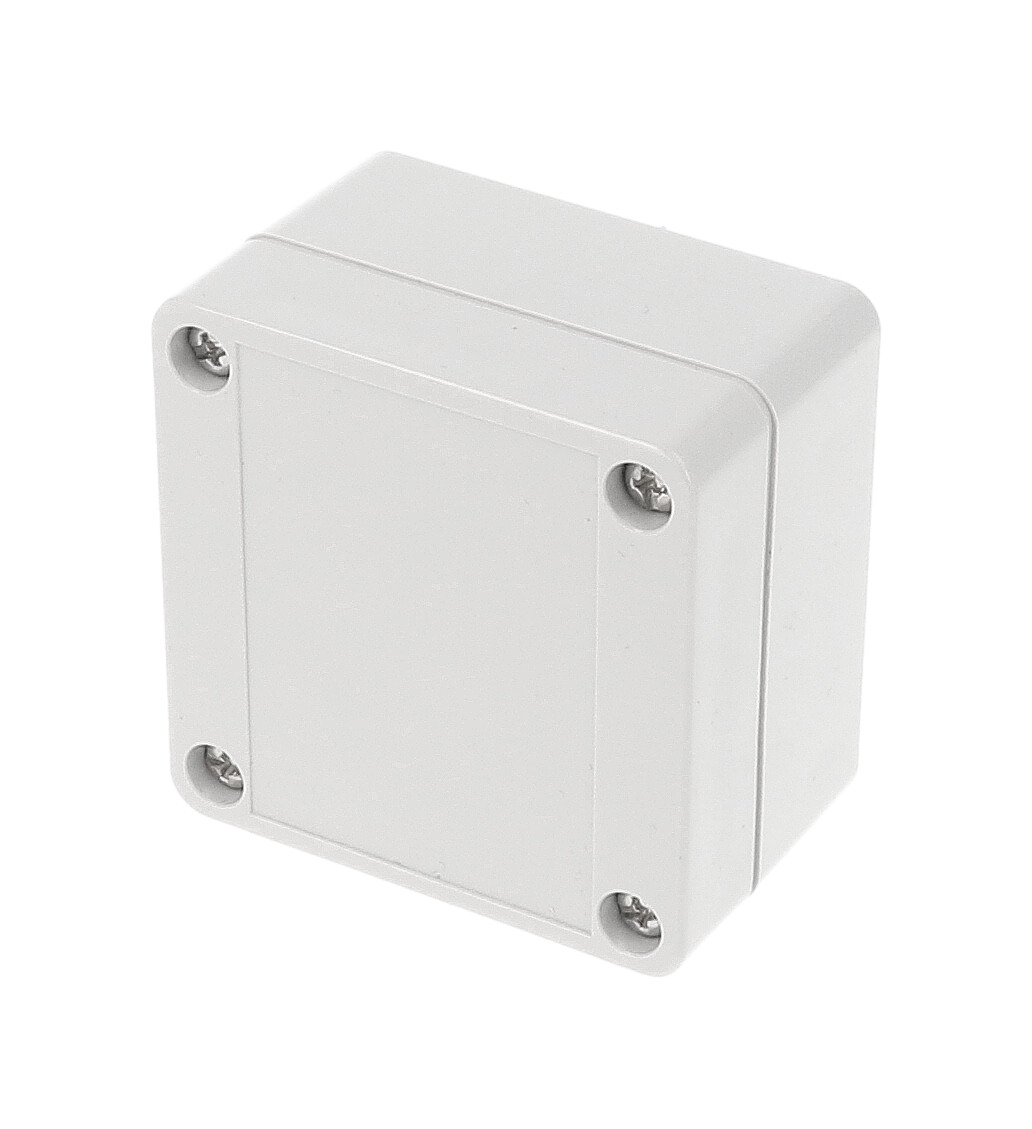

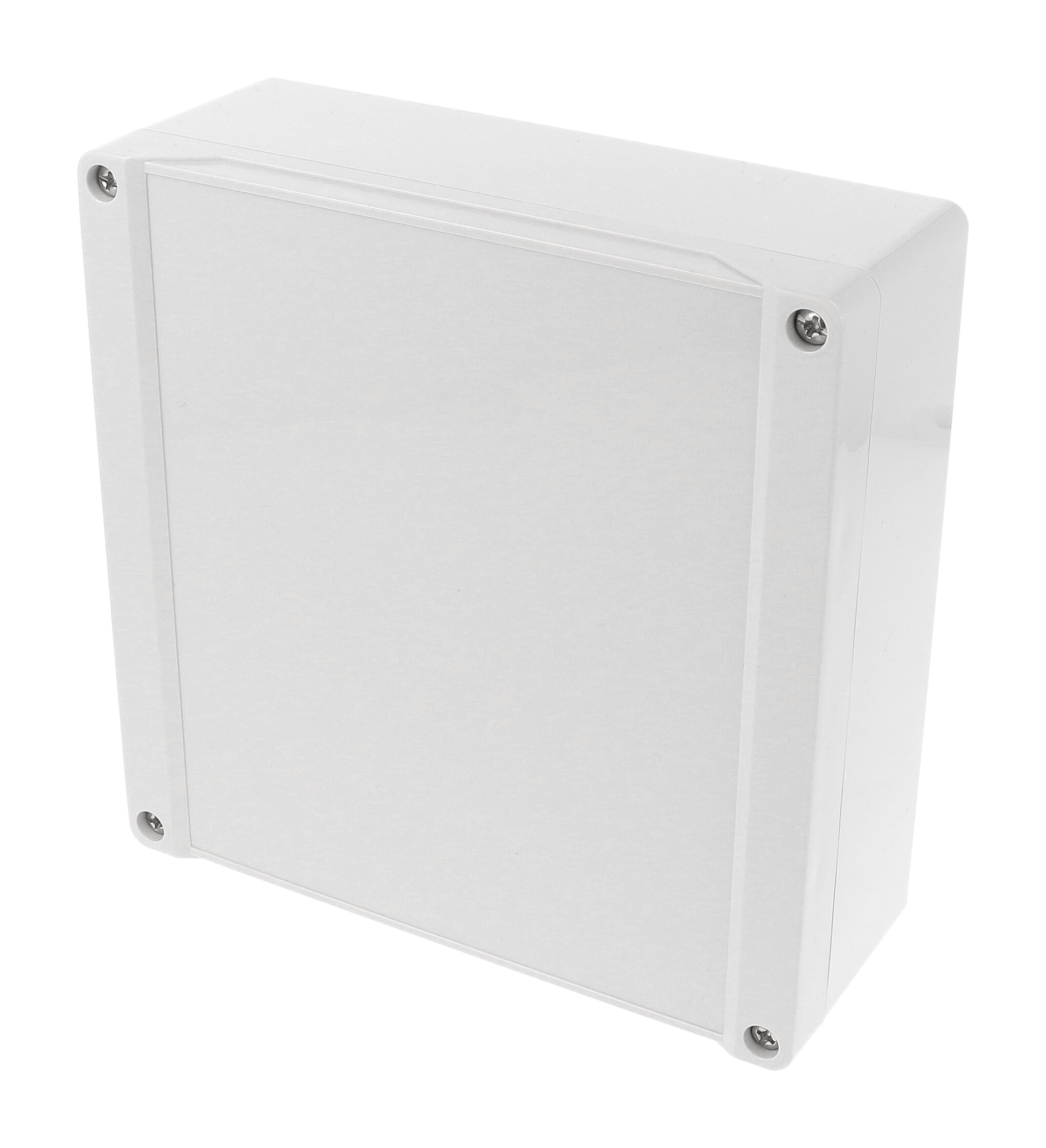

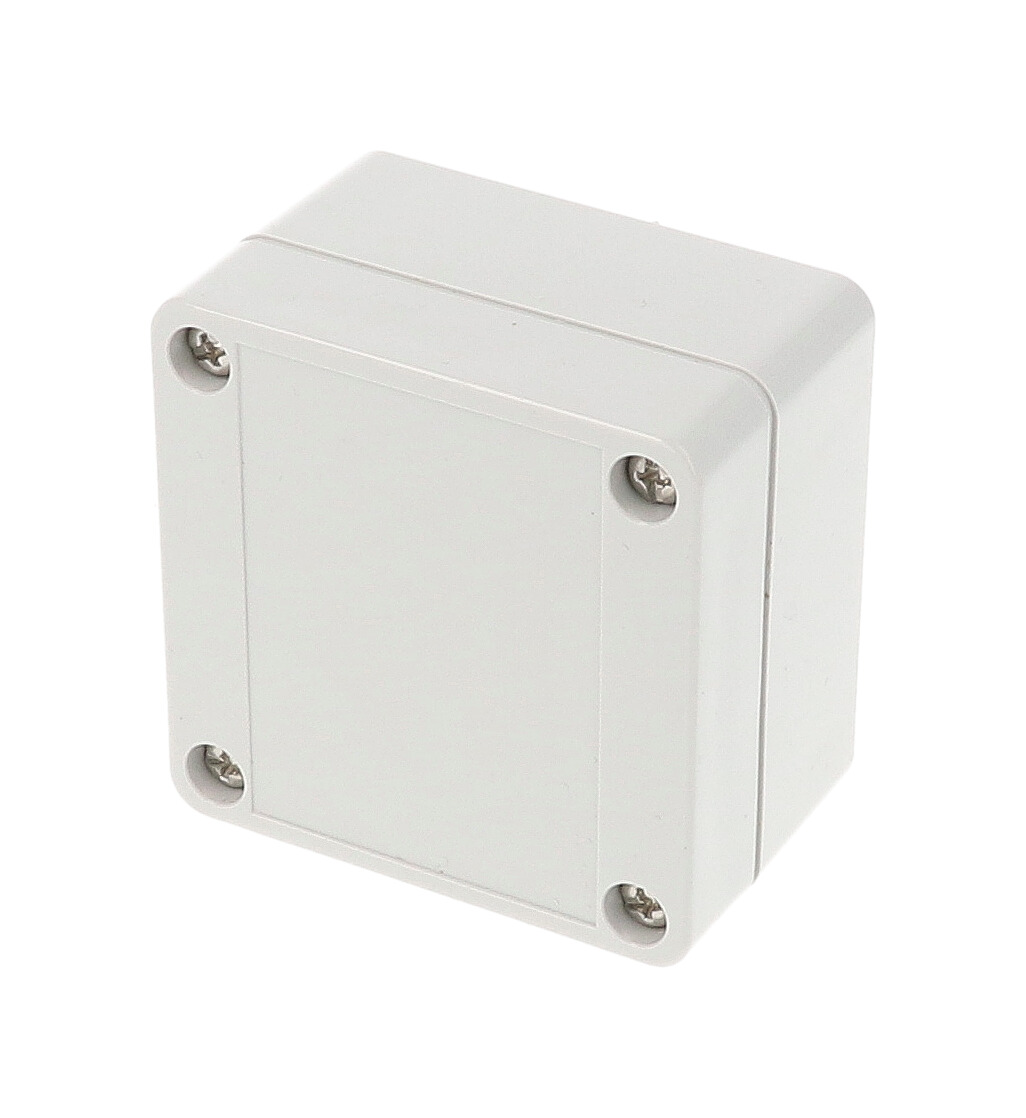

Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures · 1555 Series

Key Features

• ■Ideally suited for mounting printed circuit boards or DIN rail mounted components.

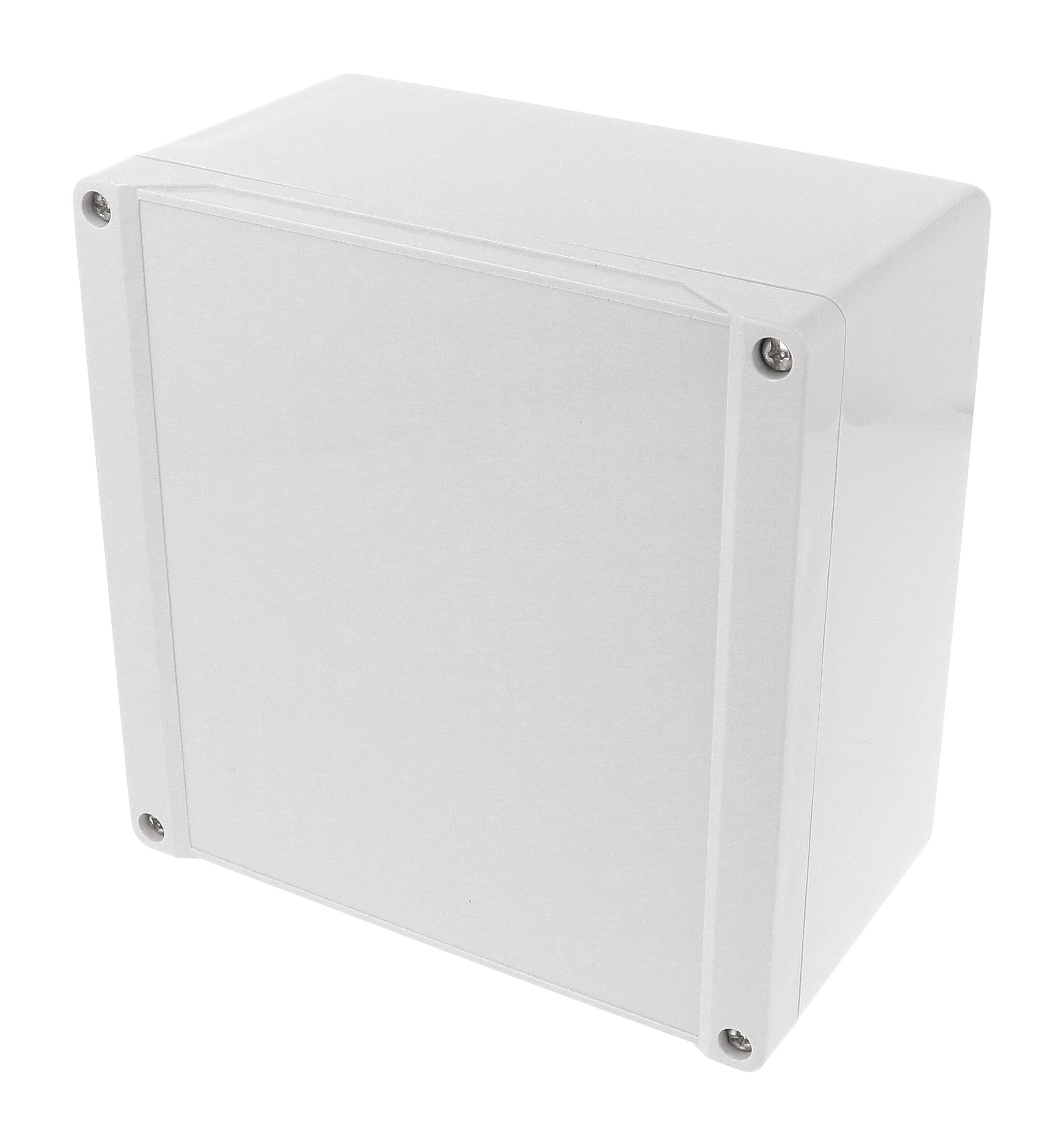

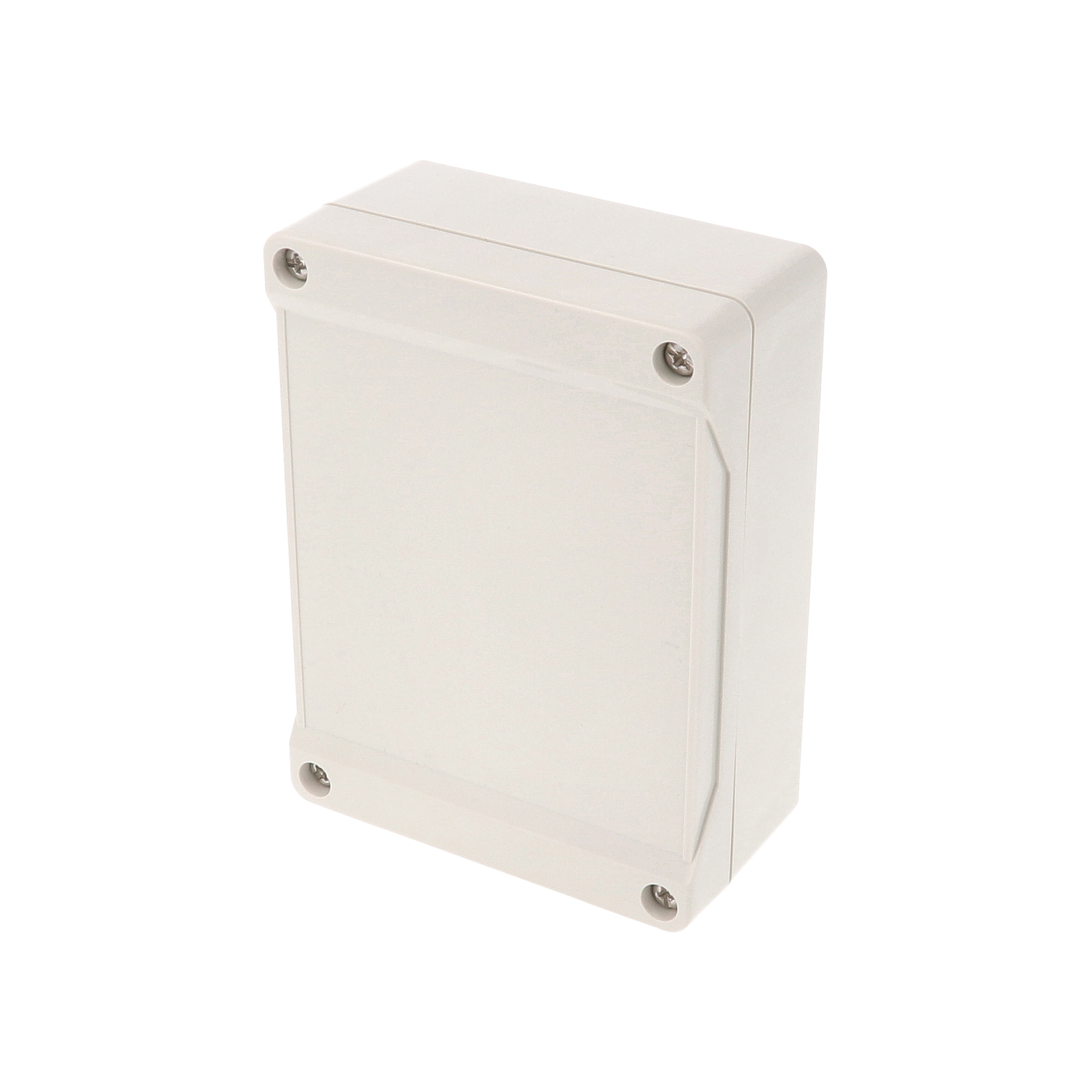

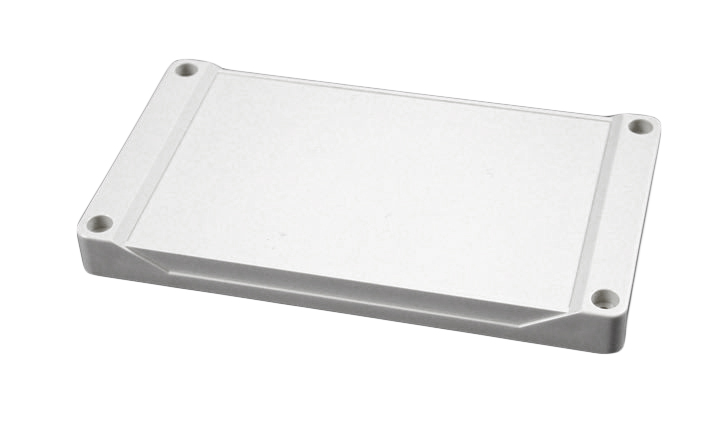

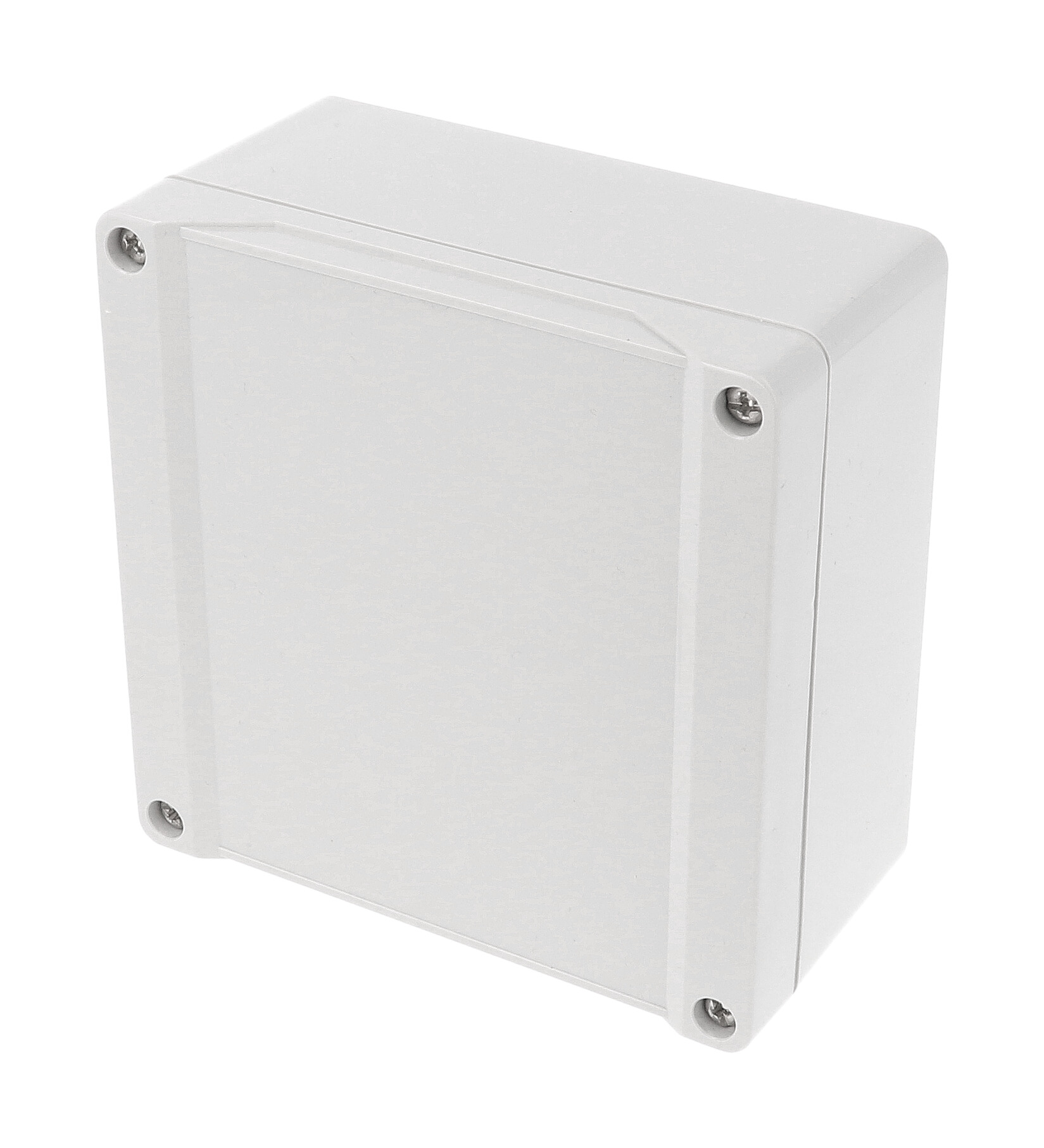

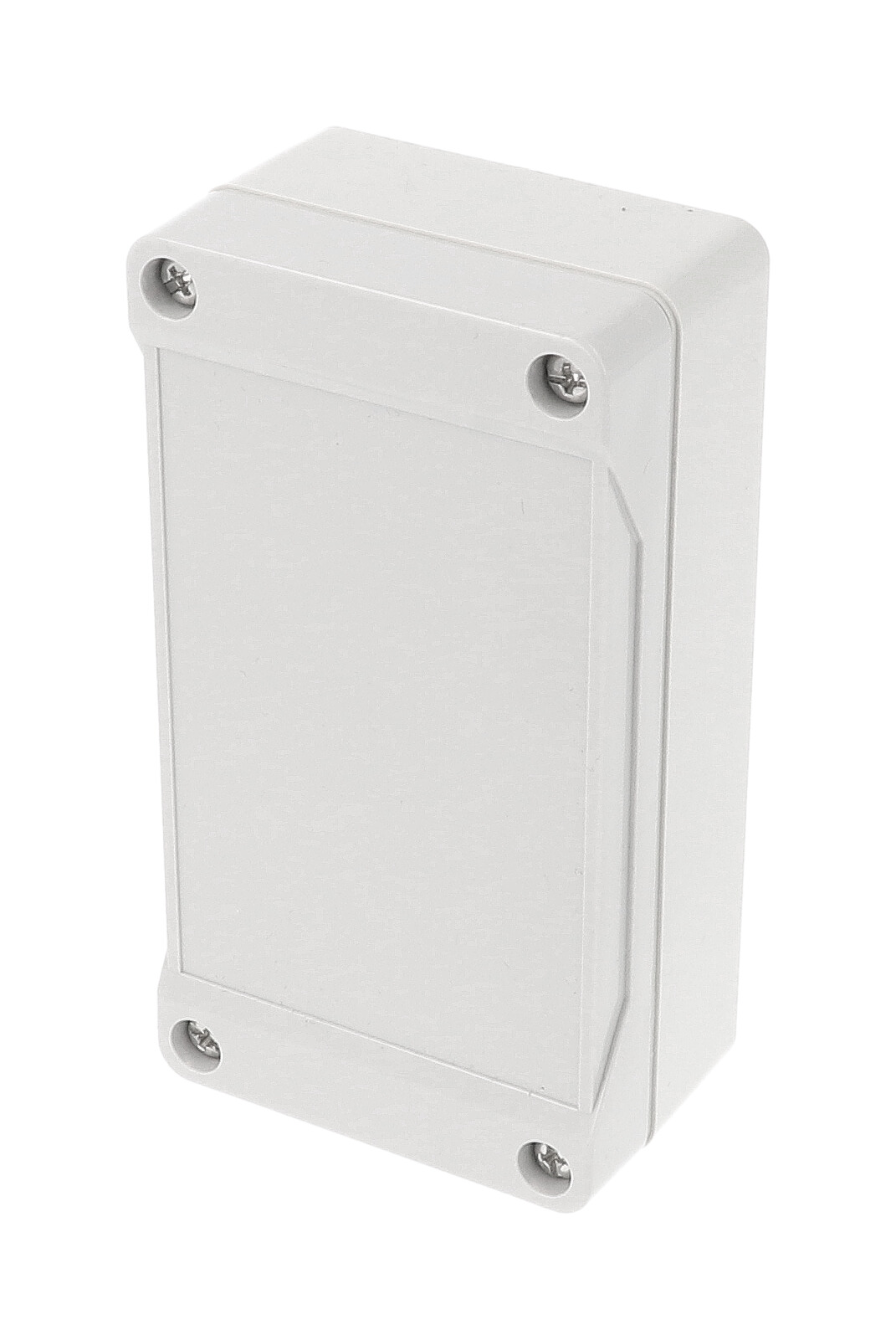

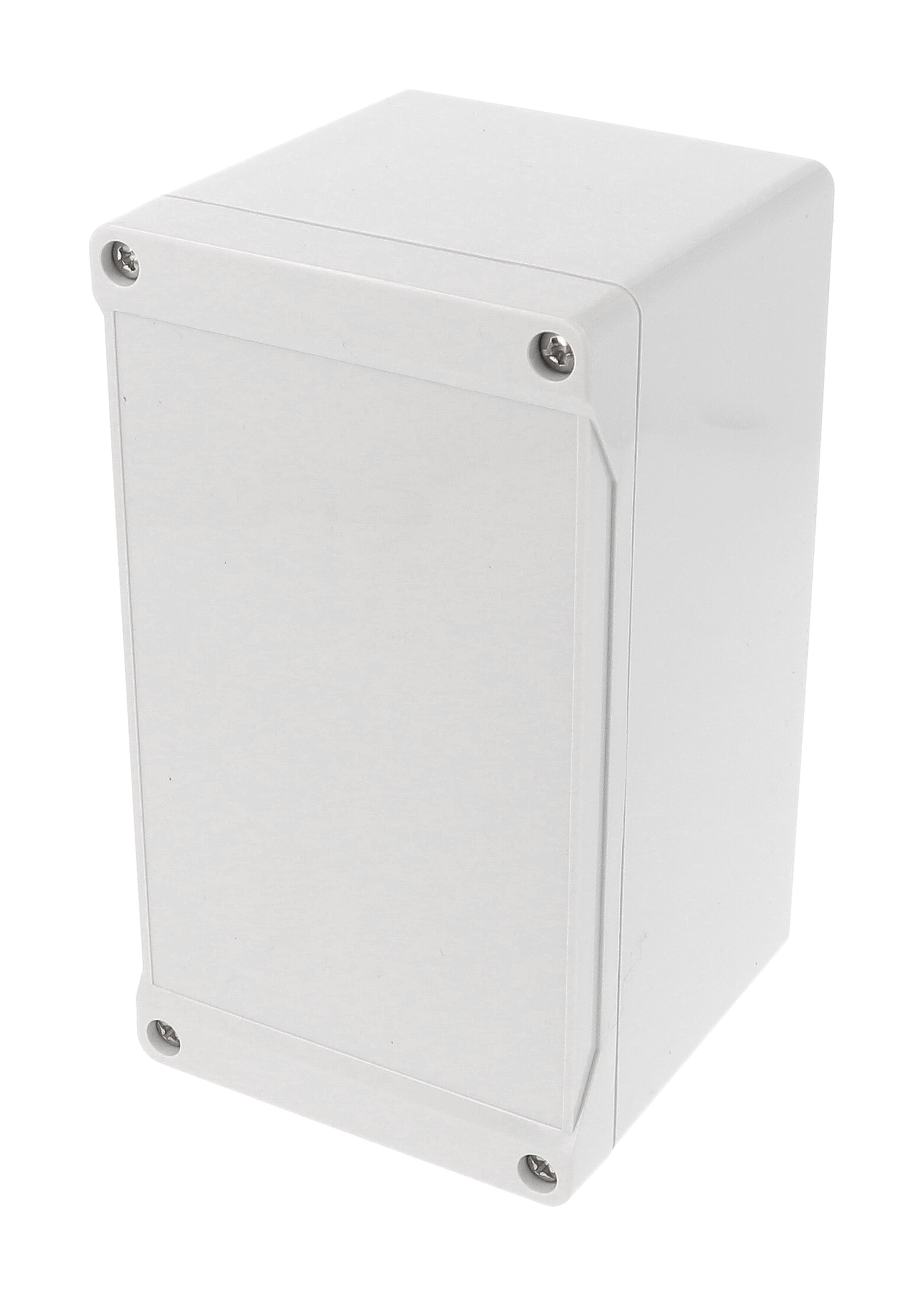

• ■Styled lid version provides a smooth, recessed surface on lid for a membrane keypad or label.
• ■Standoffs molded in the interior of the lid (except for sizes "A" and “B”). Designed for #6 self tapping screws.
• ■Enclosure color is a light gray (RAL 7035).

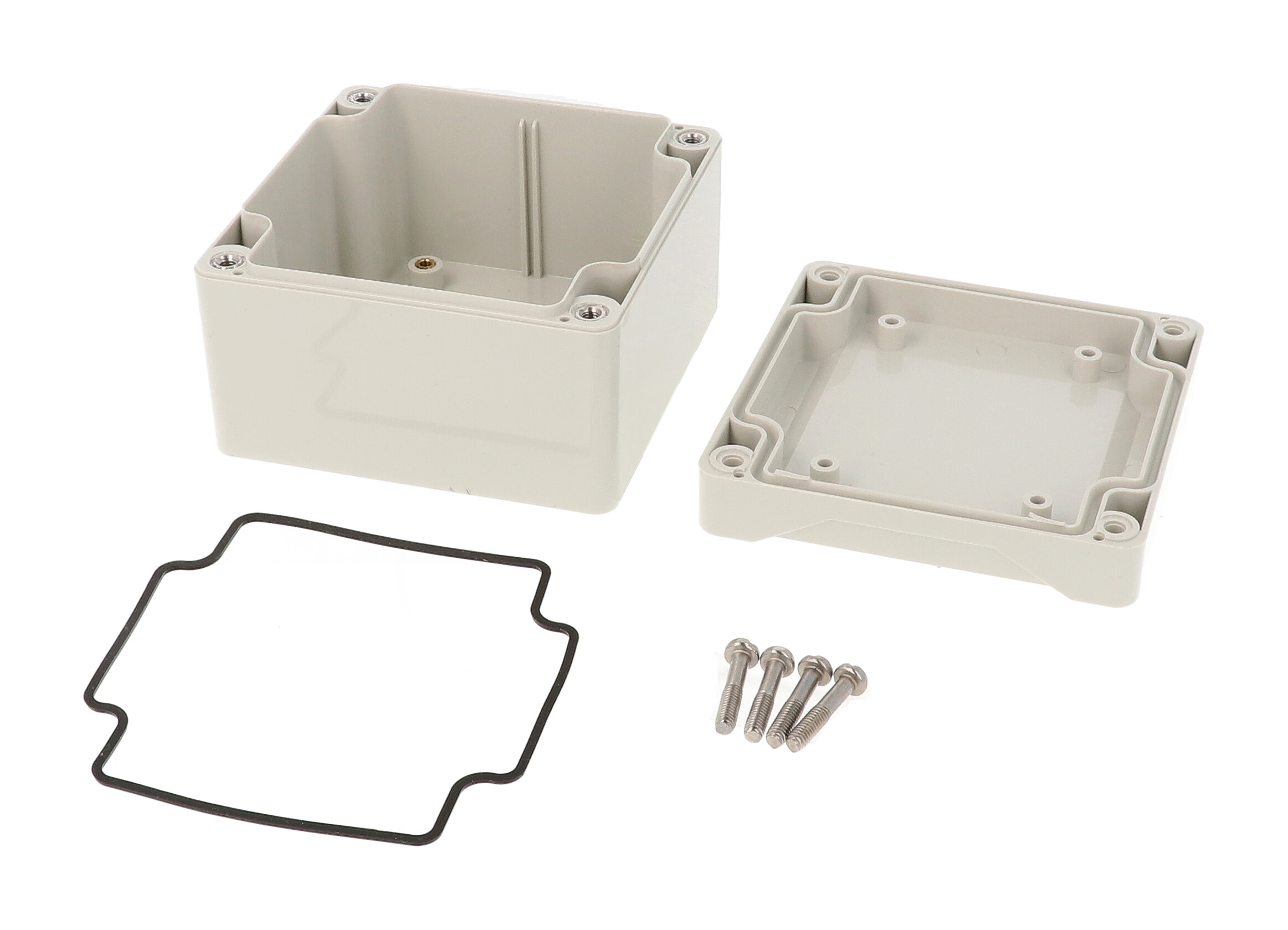

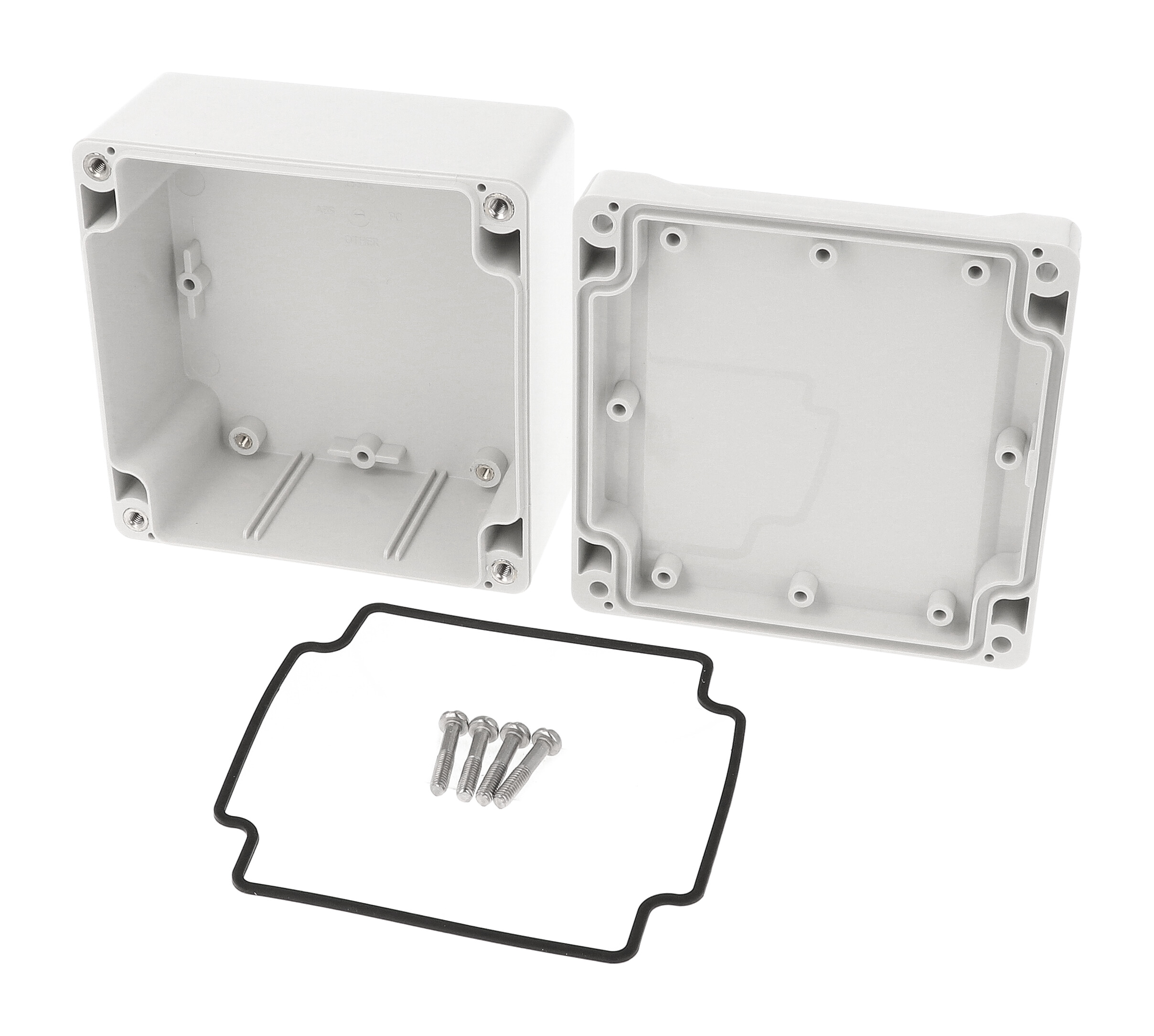

• ■Gasketed lid with two piece tongue and groove construction provides protection against access of oil, dust, and water.
• ■Replaceable gasket is one piece made from high temperature UL listed silicone. Supplied loose inside the enclosure (not pre-installed).
• ■Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant inserts. All hardware is designed to avoid corrosion caused by harsh environments over time.
• ■Lid screws are self captivating. Lid holes are threaded with the first installation of lid screws.

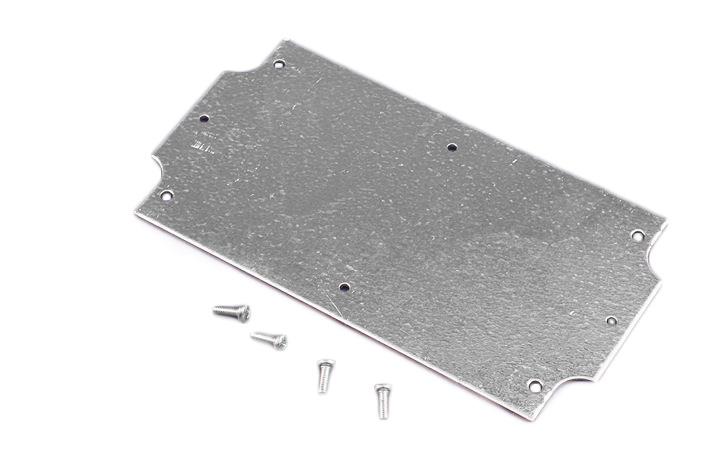

• ■Internal features are maximized for mounting options and vary with size: Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”. Threaded (M3) integral brass inserts and/or standoffs (for #6 self tapping screws) for PC board or inner panel mounting in all but the smallest sizes ("A" and “B”). Vertical PC card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest sizes ("A" and “B”).
• ■Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.
• ■Threaded (M3) integral brass inserts and/or standoffs (for #6 self tapping screws) for PC board or inner panel mounting in all but the smallest sizes ("A" and “B”).
• ■Vertical PC card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest sizes ("A" and “B”).
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

ABS

• ■ABS versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
• ■ABS versions are not UL listed but have been tested to and meet IP66 ratings.
• ■ABS versions carry an impact rating of IK07 per IEC 62262:2021.
• ■Recommended operating temperature: -20°C to +60°C (-4°F to +140°F).

Polycarbonate

• ■Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
• ■Polycarbonate versions are cUL and UL 508A listed under file #E65324.
• ■Polycarbonate versions have been independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings. Exception: 1555V2GY is Type 4, 4X only.
• ■Exception: 1555V2GY is Type 4, 4X only.
• ■Polycarbonate versions carry an impact rating of IK08 per IEC 62262:2021.
• ■Recommended operating temperature: -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for any specific application.
• ■Customers should conduct their own testing to determine suitability for any specific application.

Photo Features:

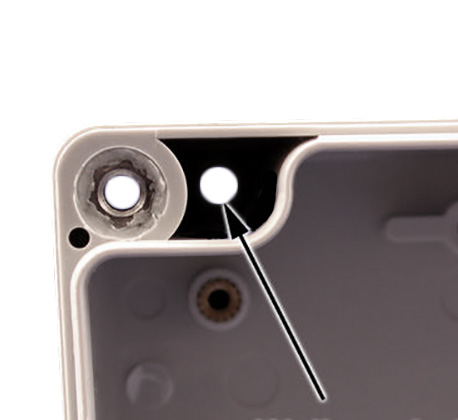

Wall-mounting holes are located outside of the gasket channel

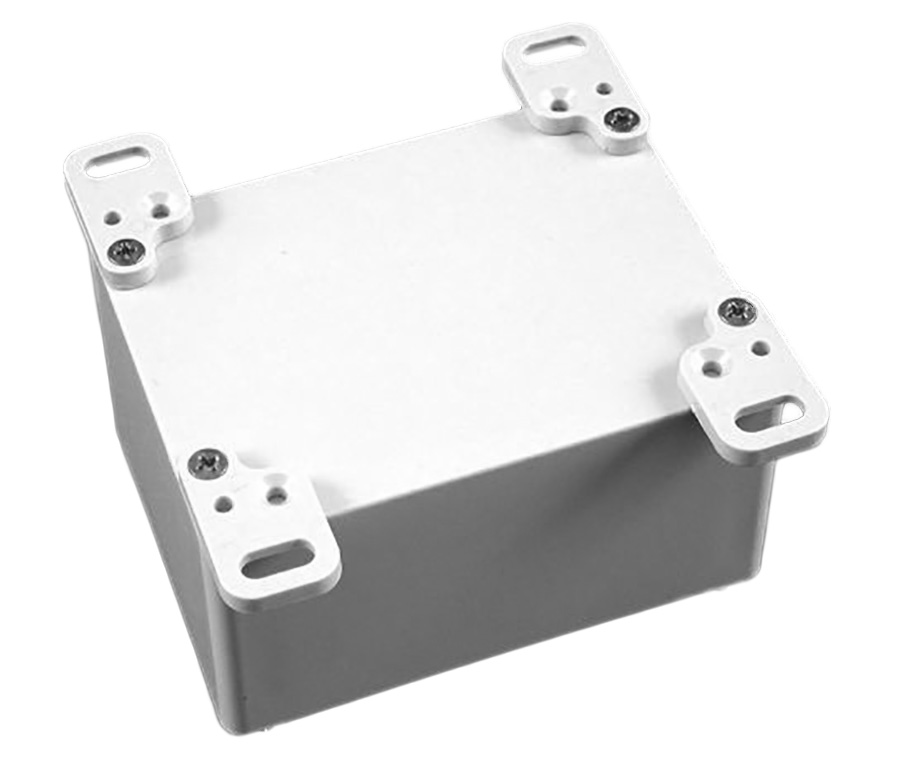

Same wall mounting holes can be used to install an accessory foot kit, 1554FT
