Hammond 1555XAGY 300x200x120mm ABS Watertight Enclosure, IP66
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS, 300 x 200 x 120 mm (11.81 in x 7.87 in x 4.72 in), light gray RAL 7035
- Tested to IP66; IK07 impact rating per IEC 62262:2021; UL94-HB material for indoor use
- Inside length 289.09 mm, inside height 109.25 mm; max P.C. board 185 x 285 mm
- 6 self captivating M4 stainless steel lid screws in corrosion resistant inserts; torque 8-9 lbf-in (90-100 cN-m)
- Tongue and groove lid with replaceable one piece silicone gasket, supplied loose inside the enclosure
- Molded DIN rail tabs, M3 brass inserts, #8 self-tapping screw mounting and card guides for 1.5 mm boards
- Wall-mounting holes outside the gasket channel; accepts 1554FT-XY foot kit and 1554XPL steel inner panel
- Recommended operating temperature -20°C to +60°C (-4°F to +140°F)

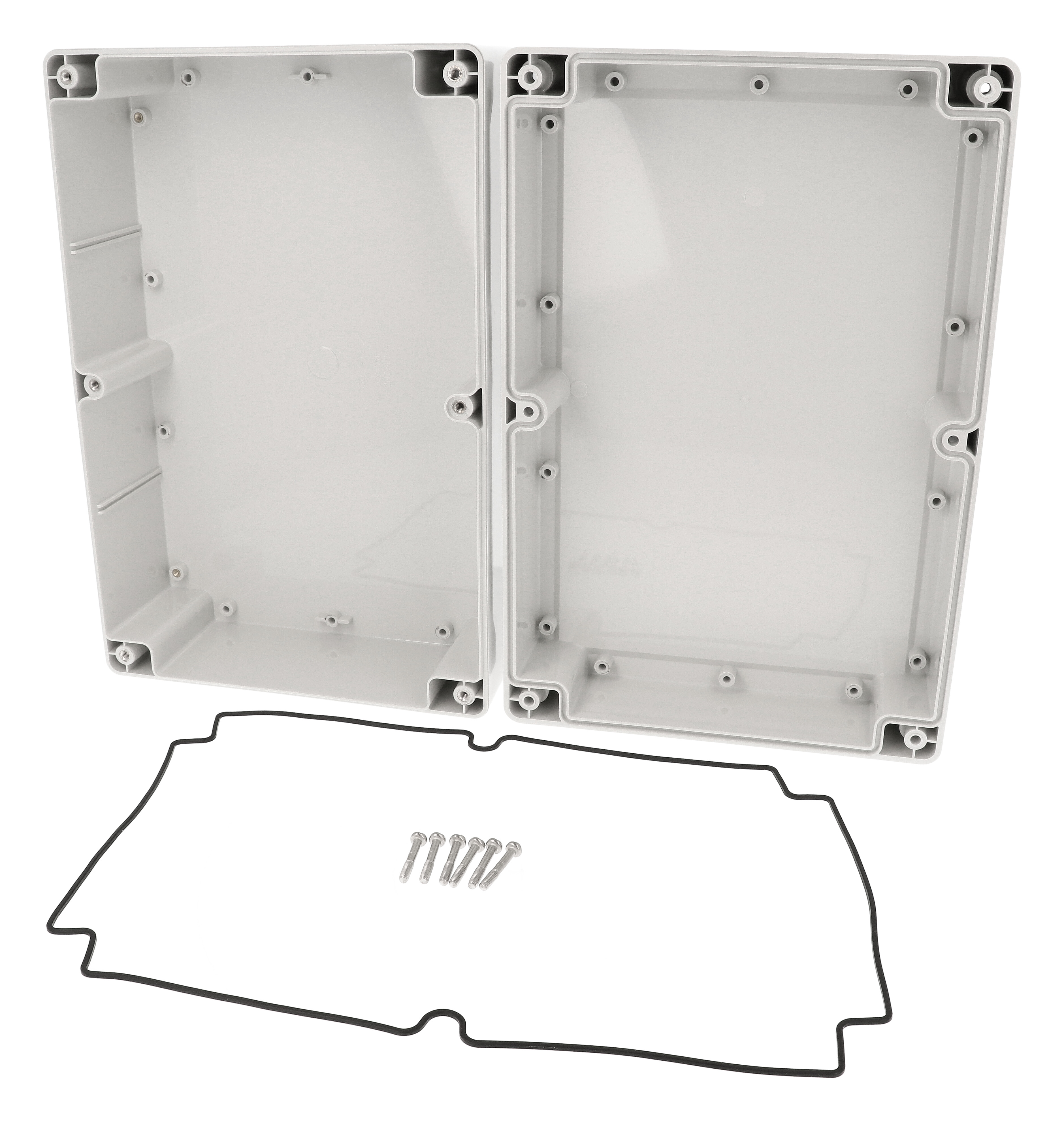

The 1555XAGY is a large, deep general purpose ABS enclosure measuring 300 x 200 x 120 mm (11.81 x 7.87 x 4.72 in), finished in light gray RAL 7035. It is suited to indoor PC board and DIN rail projects that need a watertight box with generous internal space.
The tongue and groove lid seals on a one piece, high temperature UL listed silicone gasket supplied loose inside. Six M4 stainless steel machine screws thread into M4 corrosion resistant inserts; they are self captivating and the recommended cover screw torque is 8-9 lbf-in (90-100 cN-m).
The drawing lists overall dimensions of 299.33 x 199.55 x 119.73 mm with an inside length of 289.09 mm and an inside height of 109.25 mm. P.C. boards up to 185 x 285 mm fit, and the interior provides four M3 brass inserts and ten positions accepting #8 self-tapping screws, plus molded DIN rail tabs and card guides. The 1554XPL steel inner panel fits in the box or lid and is ordered separately.
ABS 1555 enclosures are tested to IP66, carry an IK07 impact rating and UL94-HB flammability rating, and are recommended for indoor use from -20°C to +60°C; they are not UL listed. Four 4.39 mm wall-mounting holes outside the gasket channel also accept the 1554FT-XY foot kit. Choose 1555XA2GY for the UL listed polycarbonate version.
Ideal For
- Indoor watertight electronics boxes
- Large PCB and DIN rail assemblies
- Deep indoor DIN rail housings
Overview
| Type | Water-tight |
| Series | 1555 Series |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555XAGY |
| Material Version | General Purpose ABS |
| Short Description | 300X200X120MM ABS NEMA ENCL. |
| Enclosure Size Code | 1555XA |
| Alternate Material Version | 1555XA2GY (Polycarbonate, UL Listed) |
Dimensions
| Inside Height | 109.25 mm [4.30 in] |
| Inside Length | 289.09 mm [11.38 in] |
| Size (L X W X H) | 11.81 in x 7.87 in x 4.72 in (300 mm x 200 mm x 120 mm) |
| Max. P.C. Board Width | 285 mm |
| Max. P.C. Board Length | 185 mm |
| Width (Ordering Table) | 7.87 in (200 mm) |
| Length (Ordering Table) | 11.81 in (300 mm) |
| Overall Width (Drawing) | 199.55 mm [7.86 in] |
| Overall Height (Drawing) | 119.73 mm [4.71 in] |
| Overall Length (Drawing) | 299.33 mm [11.78 in] |
| Total Height (Ordering Table) | 4.72 in (120 mm) |
Accessories
| Foot Kit | 1554FT-XY |
| Replacement Gasket | 1554XGASKET (silicone pre-formed gasket, black, Pkg 2) |
| Replacement Cover Screws | SC583-50 (M4-0.7 x 25mm, Pkg 50), stainless steel |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Steel Inner Panel (Order Separately) | 1554XPL (fits in box or lid) |
| Steel Panel / P.C. Board Self Tapping Screw | SC554-100 (#8 x 5/16" (6.4mm)) |
Identifiers
| UPC | 623980406435 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 2.48 lbs (1.12 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid, 6 cover screws and preformed silicone gasket |
| Material | ABS Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 6 x M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Lid Inserts | M4 corrosion resistant inserts (6X) |
| Internal Inserts | Threaded (M3) integral brass inserts (4X) |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Features | Internal DIN rail mounting tabs; lid standoffs; vertical PC card guides for 1.5 mm thick P.C. boards |
| Wall Mounting Holes | 4X 4.39 mm, located outside of the gasket channel |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Self-Tapping Screw Mounting | Accepts #8 self-tapping screws (10X) |
| Recommended Cover Screw Torque | 8-9 lbf-in (90-100 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Environment | Indoor use |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) recommended |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version is not UL approved) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555XAGY?▾
The ordering table lists 11.81 in (300 mm) long, 7.87 in (200 mm) wide and 4.72 in (120 mm) total height; the part page lists 11.81 in x 7.87 in x 4.72 in (300 mm x 200 mm x 120 mm). Inside length is 289.09 mm [11.38 in] and inside height is 109.25 mm [4.30 in].
Is the 1555XAGY UL listed or suitable for outdoor use?▾
No. The 1555XAGY is the general purpose ABS version, which is not UL listed and is intended for indoor use. It has been tested to IP66 and carries an IK07 impact rating. The UL listed, UV stabilized polycarbonate version is 1555XA2GY.
What comes with the enclosure?▾
The assembly includes the box, lid, 6 M4 stainless steel cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed. The 1554XPL steel inner panel is ordered separately.
What size circuit board will fit?▾
The maximum P.C. board size is 185 x 285 mm. Boards can mount on the M3 brass inserts or #8 self-tapping screw positions, and vertical card guides accept 1.5 mm thick P.C. boards.
How tight should the lid screws be?▾
The drawing recommends a cover screw torque of 8-9 lbf-in (90-100 cN-m). The lid screws are self captivating, and the lid holes are threaded the first time the screws are installed.
What temperature range is it rated for?▾
The recommended operating temperature for ABS versions is -20°C to +60°C (-4°F to +140°F).
