Hammond 1555H2GY 180x120x61 mm Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated
- cUL and UL 508A listed, file E65324; UL94 5VA
- 180 x 120 x 61 mm; 172.91 x 108.91 x 52.00 mm inside
- Fits P.C. boards up to 106.68 x 167.13 mm
- UV stabilized, IK08 impact, -40°C to +110°C
- DIN rail tabs, M3 brass inserts and card guides molded in
- Styled lid recess for keypad or label; 4 captive M4 stainless screws

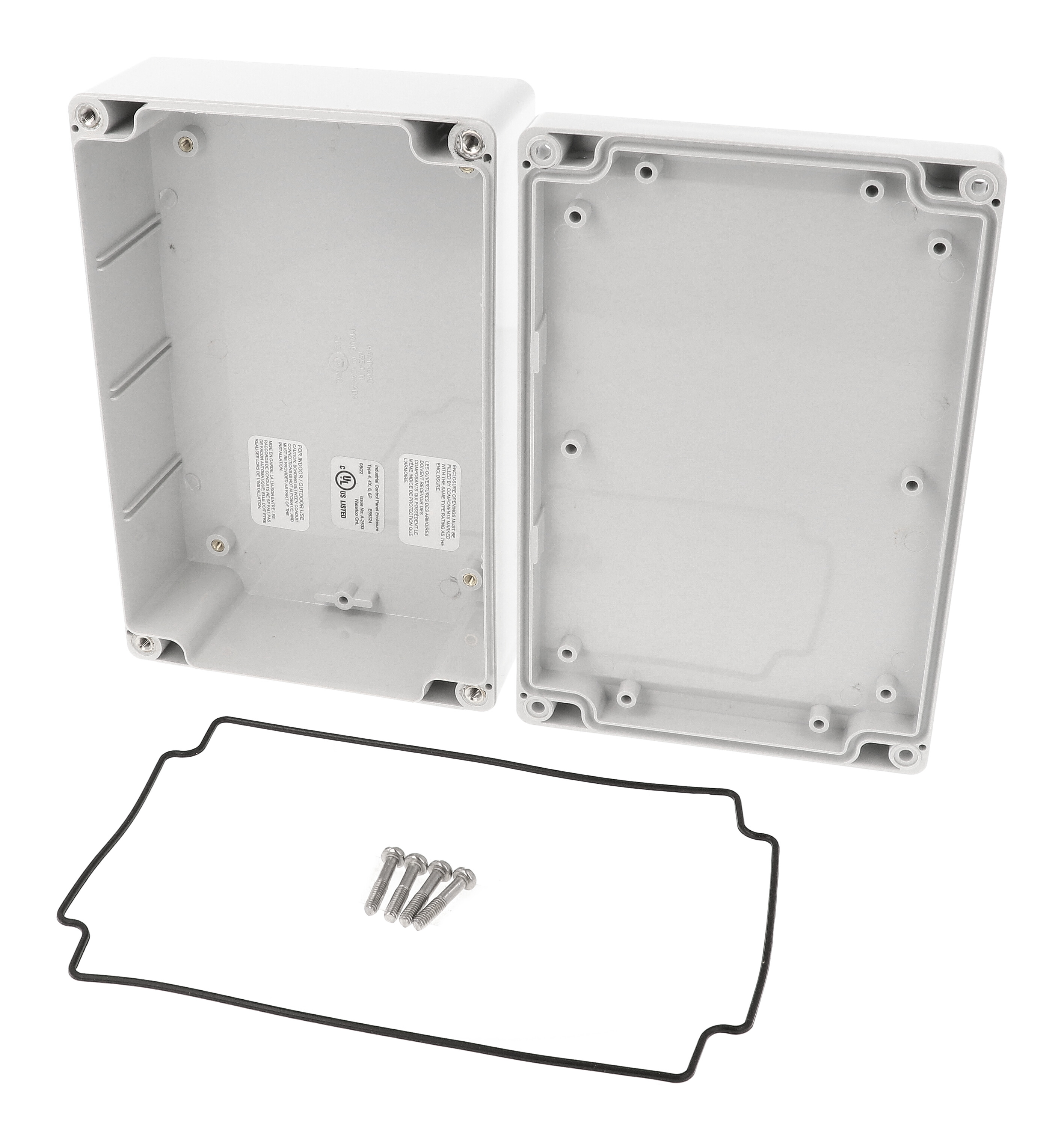

Measuring 180 x 120 mm with a 61 mm total height, the 1555H2GY is a light gray (RAL 7035) polycarbonate enclosure in the 1555 Series. Its long, low footprint suits panel-builders and OEM designers mounting larger printed circuit boards or DIN rail components in a sealed, outdoor-capable box.
Polycarbonate construction is UV stabilized and carries a UL94 5VA flame rating. The enclosure is cUL and UL 508A listed under file E65324, rated IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, and has an IK08 impact rating per IEC 62262:2021. Recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
Inside you get 172.91 x 108.91 mm of floor area and 52.00 mm of height, with room for a P.C. board up to 106.68 x 167.13 mm. The interior includes molded DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical guides for 1.5 mm boards. The 1554HPL steel inner panel is available separately and fits in the box or lid.
The styled lid has a smooth recess for a membrane keypad or label, a two-piece tongue and groove seal with a replaceable one-piece silicone gasket (supplied loose), and four captive M4 stainless steel screws in corrosion resistant inserts. Four 4.00 mm wall-mounting holes are outside the gasket channel and double as the attachment for the 1554FT foot kit.
Ideal For
- Outdoor control and sensor electronics
- Larger PCB assemblies in sealed housings
- DIN rail terminal and relay boxes
- Membrane keypad operator stations
Mounting
| Lid Standoffs | Molded in the lid interior, for #6 self-tapping screws |
| PC Card Guides | Vertical, for 1.5 mm thick P.C. boards |
| Internal Mounting | Molded DIN rail mounting tabs; M3 integral brass inserts and standoffs for #6 self-tapping screws |
| Wall Mounting Holes | 4 x 4.00 mm [0.16 in] diameter, located outside the gasket channel |
| Inner Panel (Order Separately) | 1554HPL steel inner panel, fits in box or lid |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-tight |
| Series | 1555 Series – Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Size Code | 1555H Regular Enclosure |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555H2GY |
| Short Description | 180X120X60MM P/C NEMA ENCL. |
| ABS Equivalent (Gray Lid) | 1555HGY |
Dimensions
| Inside Width | 108.91 mm [4.29 in] |
| Inside Height | 52.00 mm [2.05 in] |
| Inside Length | 172.91 mm [6.81 in] |
| Size (L X W X H) | 7.1 in x 4.7 in x 2.4 in (180 mm x 119 mm x 61 mm) |
| Max. P.C. Board Width | 167.13 mm |
| Max. P.C. Board Length | 106.68 mm |
| Width (Ordering Table) | 4.72 in (120 mm) |
| Length (Ordering Table) | 7.09 in (180 mm) |
| Total Height (Ordering Table) | 2.40 in (61 mm) |
Identifiers
| UPC | 623980842745 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.53 lbs (0.24 kg) |
Construction & Finish
| Lid | Styled lid with smooth recessed surface for a membrane keypad or label |
| Color | Light Gray (RAL 7035) |
| Included | 4 cover screws, and preformed silicone gasket |
| Lid Seal | Two-piece tongue and groove construction with replaceable one-piece silicone gasket (high temperature, UL listed silicone), supplied loose |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws, self captivating, threaded into M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Replacement Gasket | 1554HGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing etc. available from the factory; solid models available in .stp or .x_t |
| Panel / PC Board Screws | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100); 1598ATS100 (#6 x 1/4 in (6.4 mm) self-tapping, plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (series tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F), recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the largest P.C. board the 1555H2GY holds?▾
The maximum P.C. board size is 106.68 mm x 167.13 mm.
What are the inside dimensions?▾
172.91 mm long, 108.91 mm wide and 52.00 mm high.
Is it rated for wet or washdown locations?▾
It is rated IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
What is the replacement gasket part number?▾
1554HGASKET, a black pre-formed silicone gasket sold in packs of 2.
How is the enclosure mounted?▾
Through four 4.00 mm wall-mounting holes located outside the gasket channel; the same holes accept the 1554FT foot kit.
