Hammond 1555JLGY 160x90x46 mm Low-Profile ABS Enclosure, IP66
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Slim 46 mm total height, 160 x 90 mm footprint
- ABS tested to IP66; UL94 HB; indoor use
- Inside 153.09 x 83.09 x 36.95 mm
- Fits P.C. boards up to 77.47 x 147.32 mm
- IK07 impact rating, -20°C to +60°C
- Includes styled lid, 4 cover screws and silicone gasket
- Shipping weight 0.39 lbs (0.18 kg)
The 1555JLGY is a slim, 46 mm tall ABS enclosure on a 160 x 90 mm footprint, finished in light gray RAL 7035. It is the lightest part in this group at 0.39 lbs (0.18 kg) shipping weight, and suits flat indoor electronics such as board-level controllers and interface modules.
General purpose ABS with a UL94 HB flame rating is intended for indoor use. The enclosure is not UL listed but has been tested to and meets IP66 and carries an IK07 impact rating per IEC 62262:2021. Recommended operating temperature is -20°C to +60°C (-4°F to +140°F). For UL 508A listing, see the polycarbonate 1555JL2GY.
The interior measures 153.09 x 83.09 mm with 36.95 mm of height; boards up to 77.47 x 147.32 mm fit. DIN rail mounting tabs, M3 integral brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards are molded in, and a 1554JPL steel inner panel is available.

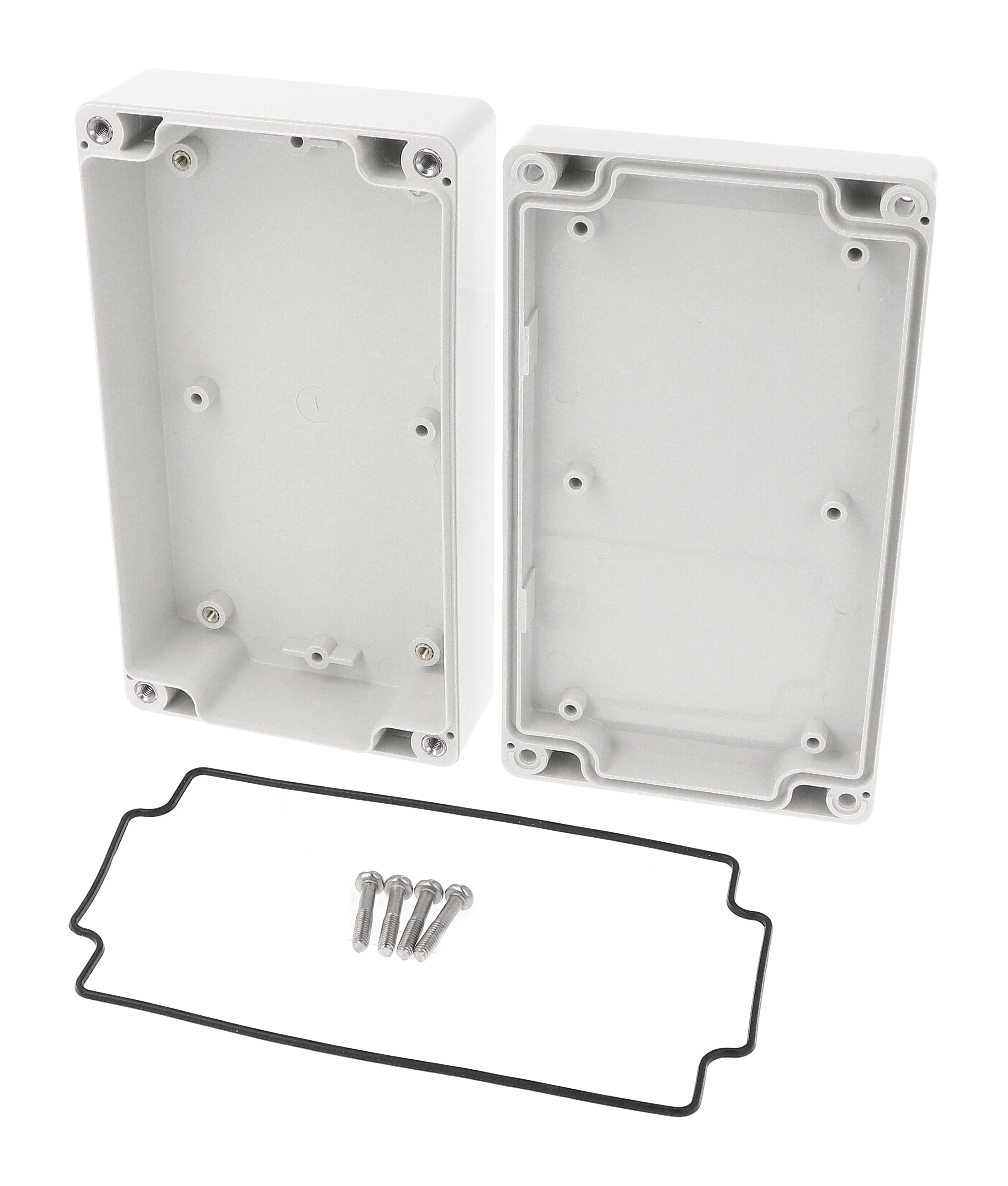

The purchased assembly includes the box, styled lid, 4 cover screws and a preformed silicone gasket supplied loose. A smooth recess in the lid takes a membrane keypad or label, and the M4 stainless steel screws are self captivating. Four 4.30 mm wall-mounting holes are located outside the gasket channel.
Ideal For
- Low-profile indoor controllers
- Flat PCB interface modules
- Keypad or label-faced housings
- DIN rail component boxes
Mounting
| Lid Standoffs | Molded in the lid interior, for #6 self-tapping screws |
| PC Card Guides | Vertical, for 1.5 mm thick P.C. boards |
| Internal Mounting | Molded DIN rail mounting tabs; M3 integral brass inserts and standoffs for #6 self-tapping screws |
| Wall Mounting Holes | 4 x 4.30 mm [0.17 in] diameter, located outside the gasket channel |
| Inner Panel (Order Separately) | 1554JPL steel inner panel, fits in box or lid |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-Tight |
| Series | 1555 Series – Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Size Code | 1555JL Regular Enclosure |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555JLGY |
| Short Description | 160X90X45MM ABS NEMA ENCL |
| Polycarbonate UL Listed Equivalent (Gray Lid) | 1555JL2GY |
Dimensions
| Inside Width | 83.09 mm [3.27 in] |
| Inside Height | 36.95 mm [1.45 in] |
| Inside Length | 153.09 mm [6.03 in] |
| Size (L X W X H) | 6.3 in x 3.54 in x 1.77 in (160 mm x 90 mm x 45 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
| Width (Ordering Table) | 3.54 in (90 mm) |
| Length (Ordering Table) | 6.30 in (160 mm) |
| Total Height (Ordering Table) | 1.81 in (46 mm) |
Identifiers
| UPC | 623980513829 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.39 lbs (0.18 kg) |
Construction & Finish
| Lid | Styled lid with smooth recessed surface for a membrane keypad or label |
| Color | Light Gray (RAL 7035) |
| Included | Purchased assembly includes box, styled lid, 4 cover screws, and preformed silicone gasket |
| Lid Seal | Two-piece tongue and groove construction with replaceable one-piece silicone gasket (high temperature, UL listed silicone), supplied loose |
| Material | ABS Plastic |
| Lid Screws | M4 stainless steel machine screws, self captivating, threaded into M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing etc. available from the factory; solid models available in .stp or .x_t |
| Panel / PC Board Screws | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100); 1598ATS100 (#6 x 1/4 in (6.4 mm) self-tapping, plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
| Intended Environment | Indoor use |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F), recommended |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version) |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1555JLGY suitable for outdoor use?▾
ABS versions are specified for indoor use. The polycarbonate 1555JL2GY is UV stabilized for outdoor use.
What is the inside height?▾
36.95 mm.
Is it UL listed?▾
No. The ABS version is not UL listed; it carries a UL94 HB flame rating.
What replacement gasket does it use?▾
1554JGASKET.
Can I add a foot kit?▾
Yes, the wall-mounting holes accept the 1554FT foot kit.
