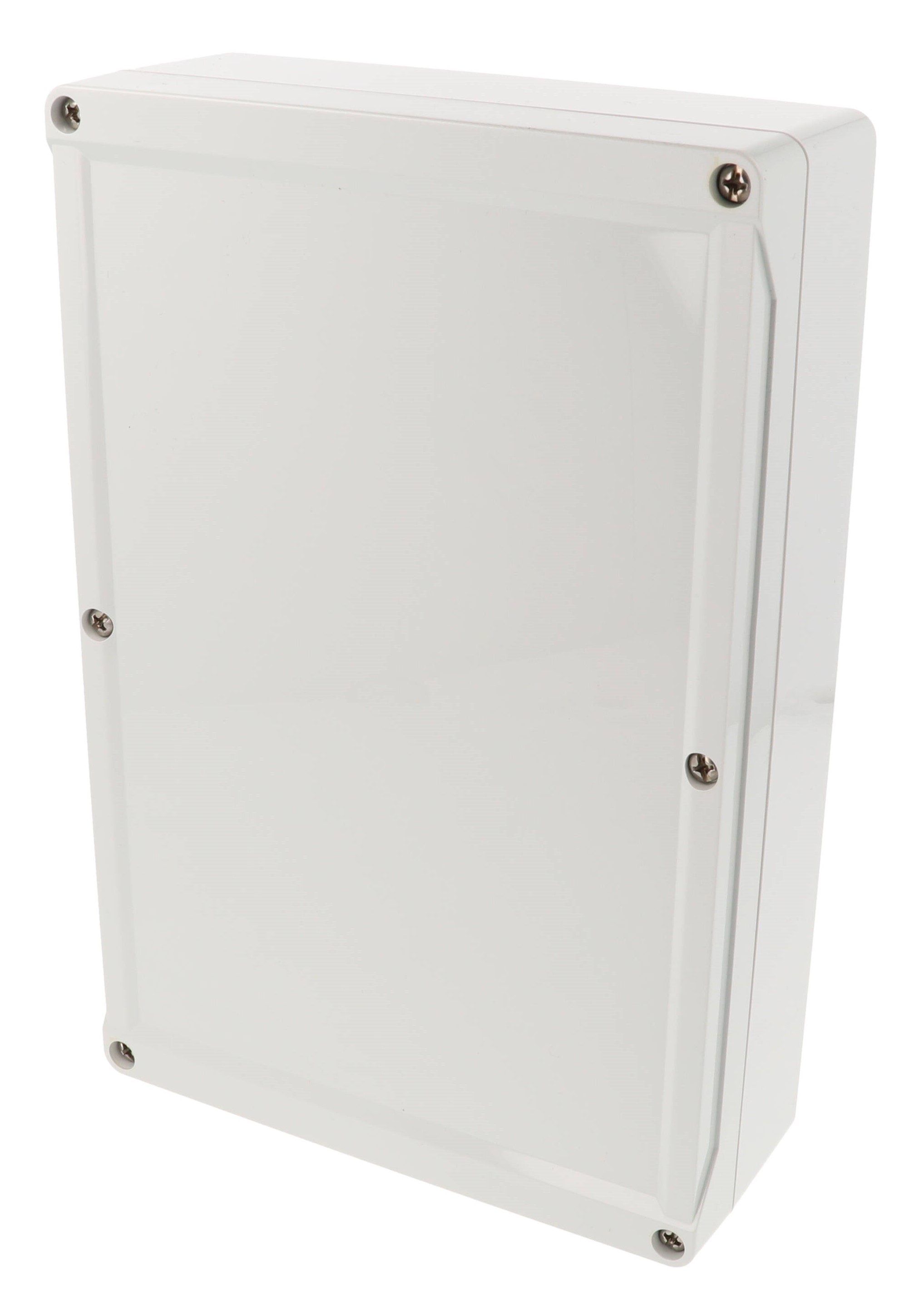

Hammond 1555VAL2GY 240x160x60mm Polycarbonate NEMA 4X Enclosure, IP68
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- UV stabilized polycarbonate, 240 x 160 x 60 mm (9.45 in x 6.30 in x 2.36 in), light gray RAL 7035
- cUL and UL 508A listed (file E65324); IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12 & 13
- Inside length 232.35 mm, inside height 50.80 mm; max P.C. board 145.5 x 226.82 mm
- 6 self captivating M4 stainless steel lid screws in corrosion resistant inserts; torque 85 - 92 ozf-in (60-65 cN-m)
- Tongue and groove lid with replaceable one piece silicone gasket, supplied loose inside the enclosure
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping screw mounting and card guides for 1.5 mm boards
- Wall-mounting holes outside the gasket channel; accepts 1554FT foot kit and 1554VAPL steel inner panel
- IK08 impact rating, UL94-5VA material, -40°C to +110°C recommended range

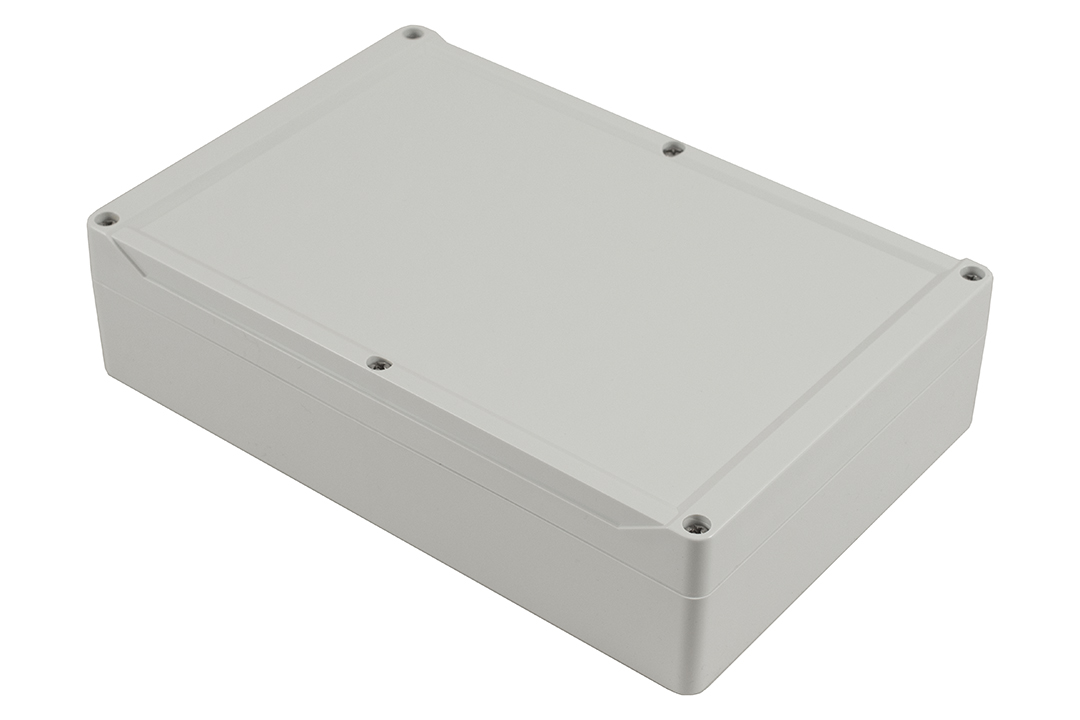

The 1555VAL2GY is a low-profile, UL listed polycarbonate enclosure measuring 240 x 160 x 60 mm (9.45 x 6.30 x 2.36 in). Its light gray RAL 7035 body is UV stabilized for outdoor use, making it a fit for electricians, OEMs and field integrators housing slim electronics in wet, dusty or washdown locations.
Polycarbonate versions of the 1555 Series are cUL and UL 508A listed under file E65324 and have been independently tested to IP66, IP67 and IP68 plus NEMA Type 4, 4X, 6, 6P, 12 and 13. The material carries a UL94-5VA flame rating, and the enclosure is rated IK08 for impact per IEC 62262:2021, with a recommended operating range of -40°C to +110°C.

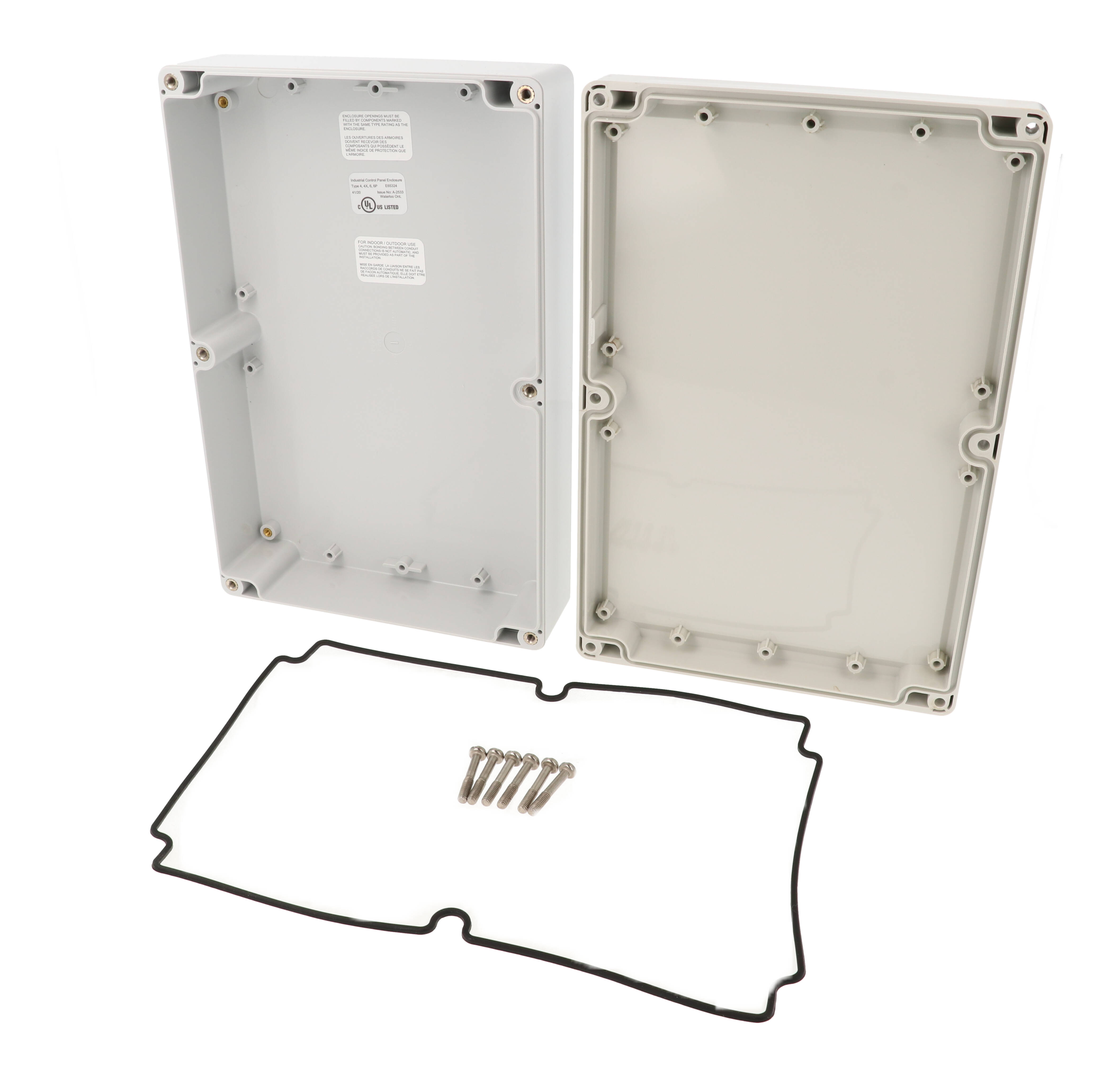

The assembly ships with the box, a styled lid with a recessed surface for a keypad or label, six M4 stainless steel cover screws and a preformed silicone gasket supplied loose. Screws are self captivating and thread into corrosion resistant inserts; recommended torque is 85 - 92 ozf-in (60-65 cN-m).
Inside the 1555VAL2GY you get 232.35 x 152.35 mm and 50.80 mm of height, with DIN rail tabs, M3 brass inserts, #6 self tapping screw standoffs and card guides for 1.5 mm boards; boards up to 145.5 x 226.82 mm fit. Four 4.50 mm wall-mounting holes sit outside the gasket channel and accept the 1554FT foot kit. The 1554VAPL steel panel and 1554VAGASKET replacement gasket are available separately.
Ideal For
- Outdoor electronics and sensor housings
- Washdown and wet-location controls
- UL 508A control panel builds
- Slim membrane keypad interfaces
Overview
| Type | Water-tight |
| Series | 1555 Series |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555VAL2GY |
| Material Version | Polycarbonate (UL Listed) |
| Short Description | 240X160X60MM P/C NEMA ENCL. |
| Enclosure Size Code | 1555VAL |
| Alternate Material Version | 1555VALGY (General Purpose ABS) |
Dimensions
| Inside Width | 152.35 mm [6.00 in] |
| Inside Height | 50.80 mm [2.00 in] |
| Inside Length | 232.35 mm [9.15 in] |
| Size (L X W X H) | 9.45 in x 6.3 in x 2.36 in (240 mm x 160 mm x 60 mm) |
| Max. P.C. Board Width | 226.82 mm |
| Max. P.C. Board Length | 145.5 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Total Height (Ordering Table) | 2.36 in (60 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554VAGASKET (silicone pre-formed gasket, black, Pkg 2) |
| Replacement Cover Screws | SC583-50 (M4-0.7 x 25mm, Pkg 50), stainless steel |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Steel Inner Panel (Order Separately) | 1554VAPL (fits in box or lid) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) Plated, Pkg 100) |
Identifiers
| UPC | 623980513935 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.14 lbs (0.52 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid (styled), 6 cover screws and preformed silicone gasket |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 6 x M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Internal Inserts | Threaded (M3) integral brass inserts |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Features | Internal DIN rail mounting tabs; lid standoffs; vertical PC card guides for 1.5 mm thick P.C. boards |
| Wall Mounting Holes | 4X 4.50 mm [.18 in], located outside of the gasket channel |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Self-Tapping Screw Mounting | Accepts #6 self-tapping screws |
| Recommended Cover Screw Torque | 85 - 92 ozf-in (60-65 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 5VA (UL94 - 5VA @ 3mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, Type 4, 4X, 6, 6P |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555VAL2GY?▾
The ordering table lists 9.45 in (240 mm) long, 6.30 in (160 mm) wide and 2.36 in (60 mm) total height; the part page lists 9.45 in x 6.3 in x 2.36 in (240 mm x 160 mm x 60 mm). Inside length is 232.35 mm [9.15 in], inside width 152.35 mm [6.00 in] and inside height is 50.80 mm [2.00 in].
What ratings does the 1555VAL2GY carry?▾
Polycarbonate 1555 enclosures such as the 1555VAL2GY are cUL and UL 508A listed under file E65324, tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, rated IK08 per IEC 62262:2021, and UV stabilized for outdoor use.
What comes with the enclosure?▾
The assembly includes the box, lid (styled), 6 M4 stainless steel cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed. The 1554VAPL steel inner panel is ordered separately.
What size circuit board will fit?▾
The maximum P.C. board size is 145.5 x 226.82 mm. Boards can mount on the M3 brass inserts or #6 self-tapping screw positions, and vertical card guides accept 1.5 mm thick P.C. boards.
How tight should the lid screws be?▾
The drawing recommends a cover screw torque of 85 - 92 ozf-in (60-65 cN-m). The lid screws are self captivating, and the lid holes are threaded the first time the screws are installed.
What temperature range is it rated for?▾
The recommended operating temperature for polycarbonate versions is -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for a specific application.
