Hammond 1555JGY 160x90x61 mm ABS Watertight Enclosure, IP66
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- ABS tested to IP66; UL94 HB; indoor use
- 160 x 90 x 61 mm; inside 152.91 x 78.91 x 52.00 mm
- Fits P.C. boards up to 77.47 x 147.32 mm
- IK07 impact rating, -20°C to +60°C
- DIN rail tabs, M3 brass inserts and card guides molded in
- Styled lid recess for keypad or label
- Replaceable 1554JGASKET silicone gasket

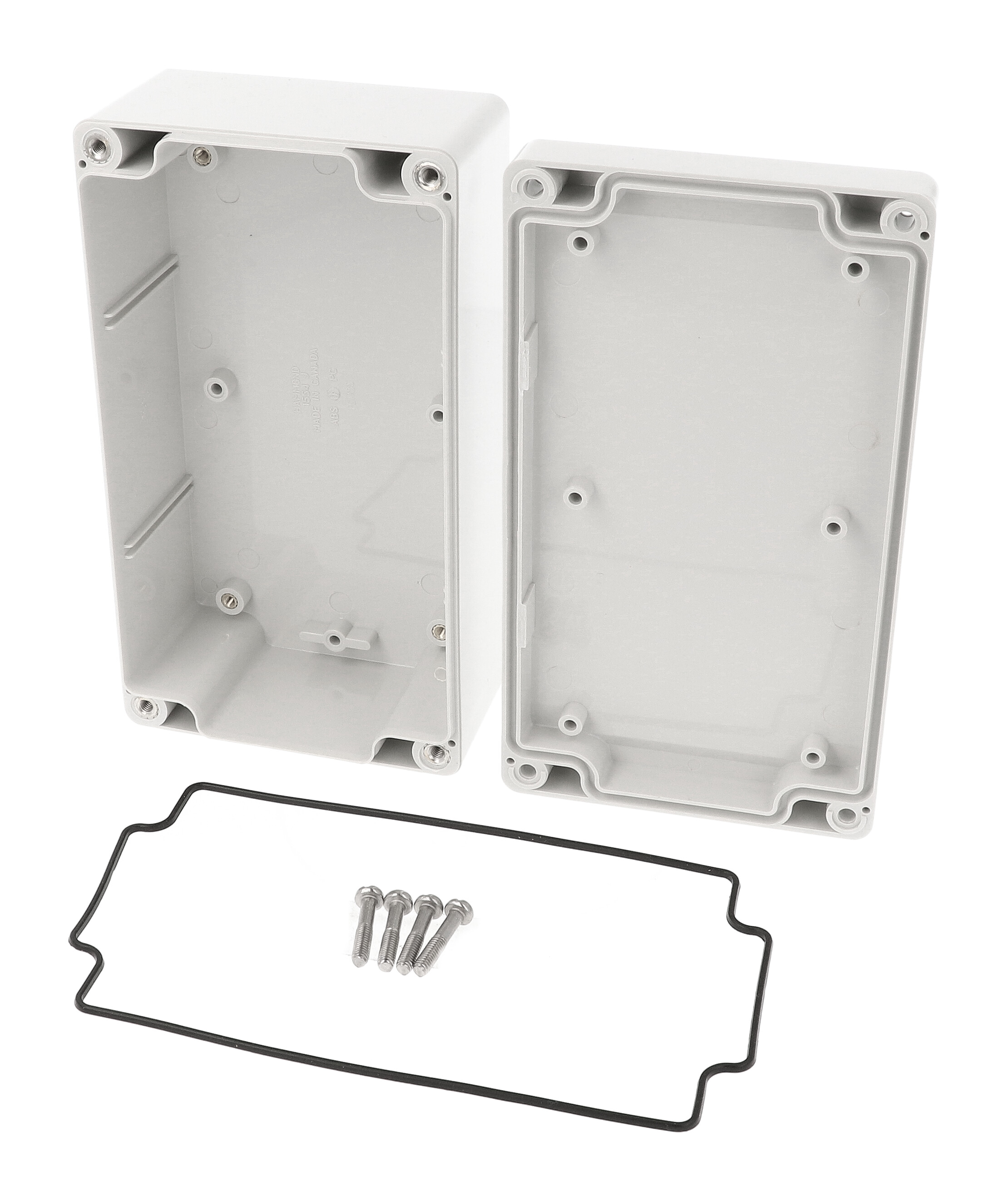

The 1555JGY is a 160 x 90 mm general purpose ABS enclosure, 61 mm high overall, in light gray RAL 7035. Its elongated shape suits narrow circuit boards and compact DIN rail assemblies in indoor equipment.
The ABS body has a UL94 HB flame rating and is specified for indoor use. It is not UL listed but has been tested to and meets IP66, and it carries an IK07 impact rating per IEC 62262:2021. The recommended operating temperature is -20°C to +60°C (-4°F to +140°F). The polycarbonate, UL listed alternative is 1555J2GY.
Internally the box offers 152.91 x 78.91 mm with 52.00 mm of height and takes a P.C. board up to 77.47 x 147.32 mm. Molded DIN rail tabs, M3 integral brass inserts, standoffs for #6 self-tapping screws and vertical guides for 1.5 mm boards are all present; the 1554JPL steel inner panel is sold separately.
The styled lid presents a smooth recess for a label or membrane keypad and seals on a tongue and groove with a replaceable silicone gasket supplied loose. Four self captivating M4 stainless steel screws thread into corrosion resistant inserts at a recommended 43-57 ozf-in (30-40 cN-m). The 1555JGY ships shrink wrapped at 0.44 lbs (0.20 kg).
Ideal For
- Indoor PCB housings
- Compact DIN rail assemblies
- Label-faced instrument enclosures
- Electronics prototyping
Mounting
| Lid Standoffs | Molded in the lid interior, for #6 self-tapping screws |
| PC Card Guides | Vertical, for 1.5 mm thick P.C. boards |
| Internal Mounting | Molded DIN rail mounting tabs; M3 integral brass inserts and standoffs for #6 self-tapping screws |
| Wall Mounting Holes | 4 x 4.00 mm [0.16 in] diameter, located outside the gasket channel |
| Inner Panel (Order Separately) | 1554JPL steel inner panel, fits in box or lid |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-tight |
| Series | 1555 Series – Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Size Code | 1555J Regular Enclosure |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555JGY |
| Short Description | 160X90X60MM ABS NEMA ENCL |
| Polycarbonate UL Listed Equivalent (Gray Lid) | 1555J2GY |
Dimensions
| Inside Width | 78.91 mm [3.11 in] |
| Inside Height | 52.00 mm [2.05 in] |
| Inside Length | 152.91 mm [6.02 in] |
| Size (L X W X H) | 6.3 in x 3.5 in x 2.4 in (160 mm x 89 mm x 61 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
| Width (Ordering Table) | 3.54 in (90 mm) |
| Length (Ordering Table) | 6.30 in (160 mm) |
| Total Height (Ordering Table) | 2.40 in (61 mm) |
Identifiers
| UPC | 623980842547 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Lid | Styled lid with smooth recessed surface for a membrane keypad or label |
| Color | Light Gray (RAL 7035) |
| Included | 4 cover screws, and preformed silicone gasket |
| Lid Seal | Two-piece tongue and groove construction with replaceable one-piece silicone gasket (high temperature, UL listed silicone), supplied loose |
| Material | ABS Plastic |
| Lid Screws | M4 stainless steel machine screws, self captivating, threaded into M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing etc. available from the factory; solid models available in .stp or .x_t |
| Panel / PC Board Screws | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100); 1598ATS100 (#6 x 1/4 in (6.4 mm) self-tapping, plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
| Intended Environment | Indoor use |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F), recommended |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version) |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1555JGY UL listed?▾
No, the ABS version is not UL listed. Choose 1555J2GY for a cUL and UL 508A listed polycarbonate enclosure.
What are the inside dimensions?▾
152.91 mm long, 78.91 mm wide and 52.00 mm high.
What IP rating does it meet?▾
IP66.
What mounting options are inside?▾
Molded DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards.
Which inner panel fits?▾
1554JPL steel inner panel, ordered separately.
