Hammond 1554FT Polycarbonate Mounting Feet Kit, Set of 4

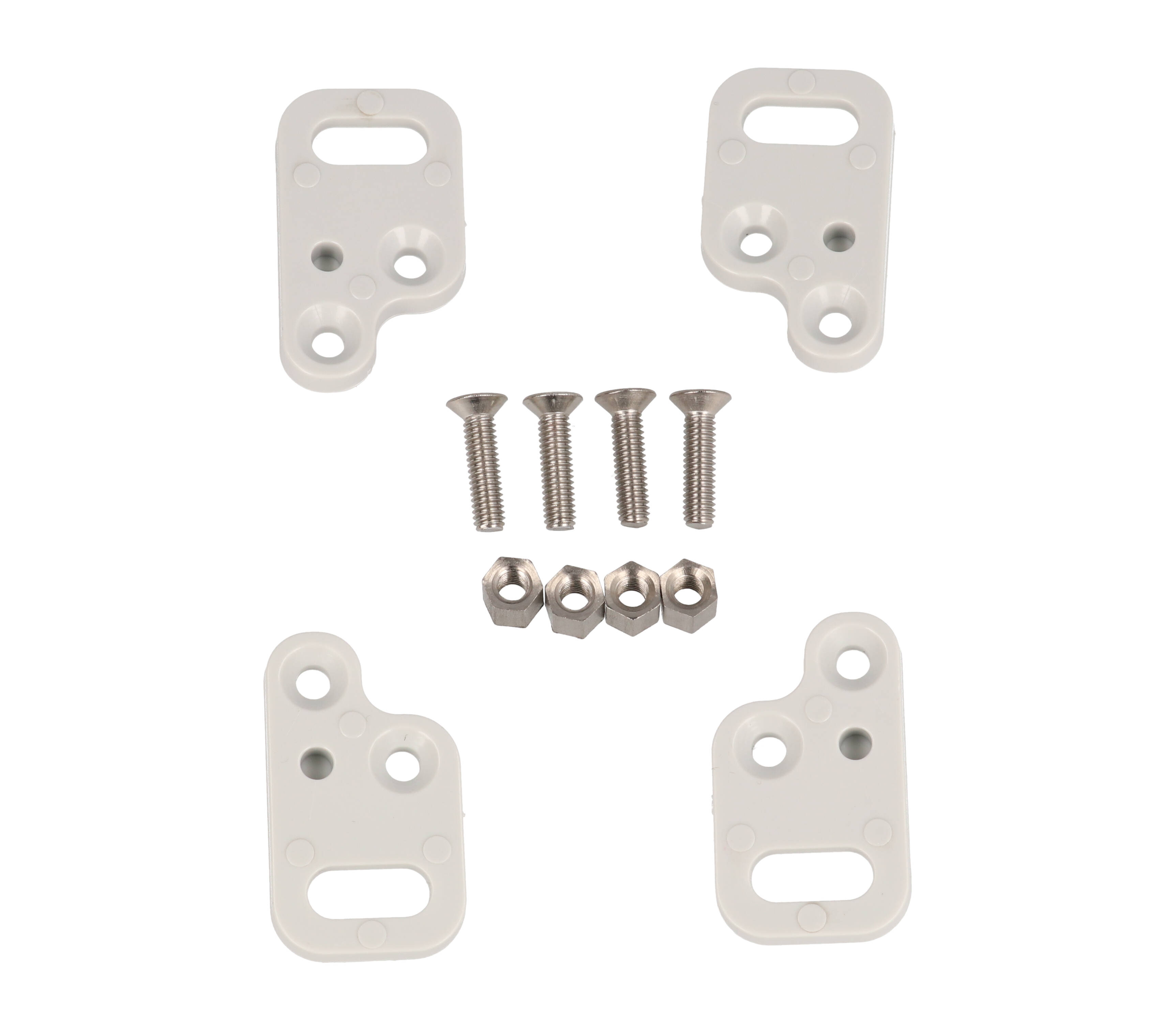

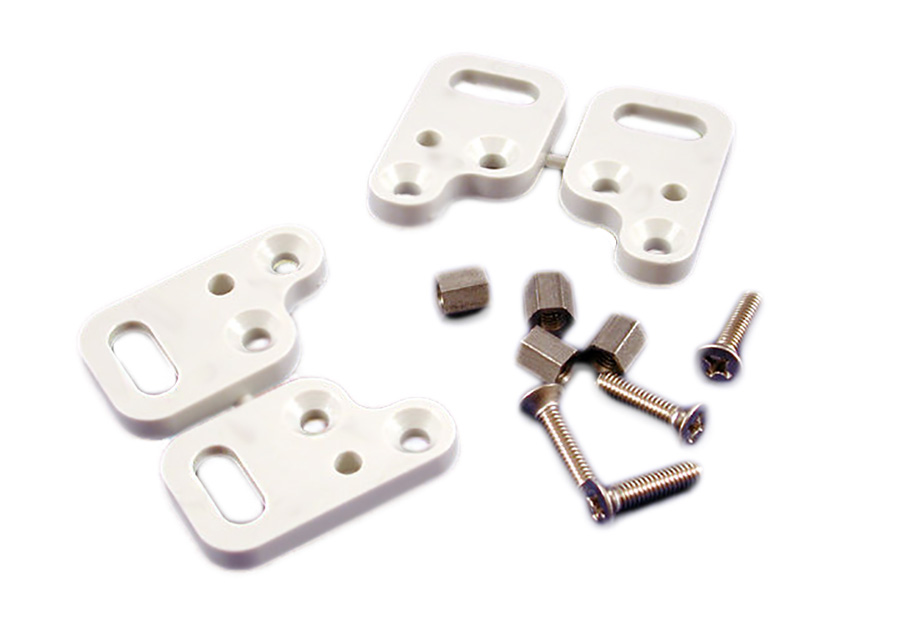

The 1554FT is a set of four light gray polycarbonate mounting feet for 1554 series enclosures. The feet attach through the same wall-mounting holes that sit outside the enclosure's gasket channel, giving installers an external way to fix the box to a wall, panel or equipment surface without drilling through the sealed interior.

The ordering table lists this kit as the foot kit for a wide range of 1554 sizes, from the small 1554B and 1554E through the 120 x 90 mm 1554FL, 1554F and 1554G bodies, up to the 1554V, 1554VA and 1554VB enclosures. The largest 1554X and 1554Y sizes use the separate 1554FT-XY kit instead, and the smallest 1554A has no foot kit listed.

Each foot is molded from polycarbonate in light gray, and the part is listed with a UL94 V-0 flame rating, UL file E65324, and REACH and RoHS compliance. The part page gives a size of 1.9 x 1.5 x 0.58 in (48 x 38 x 15 mm). The drawing shows a foot length of 37.58 mm and a Ø4.00 mm hole with a Ø8.00 mm countersink.

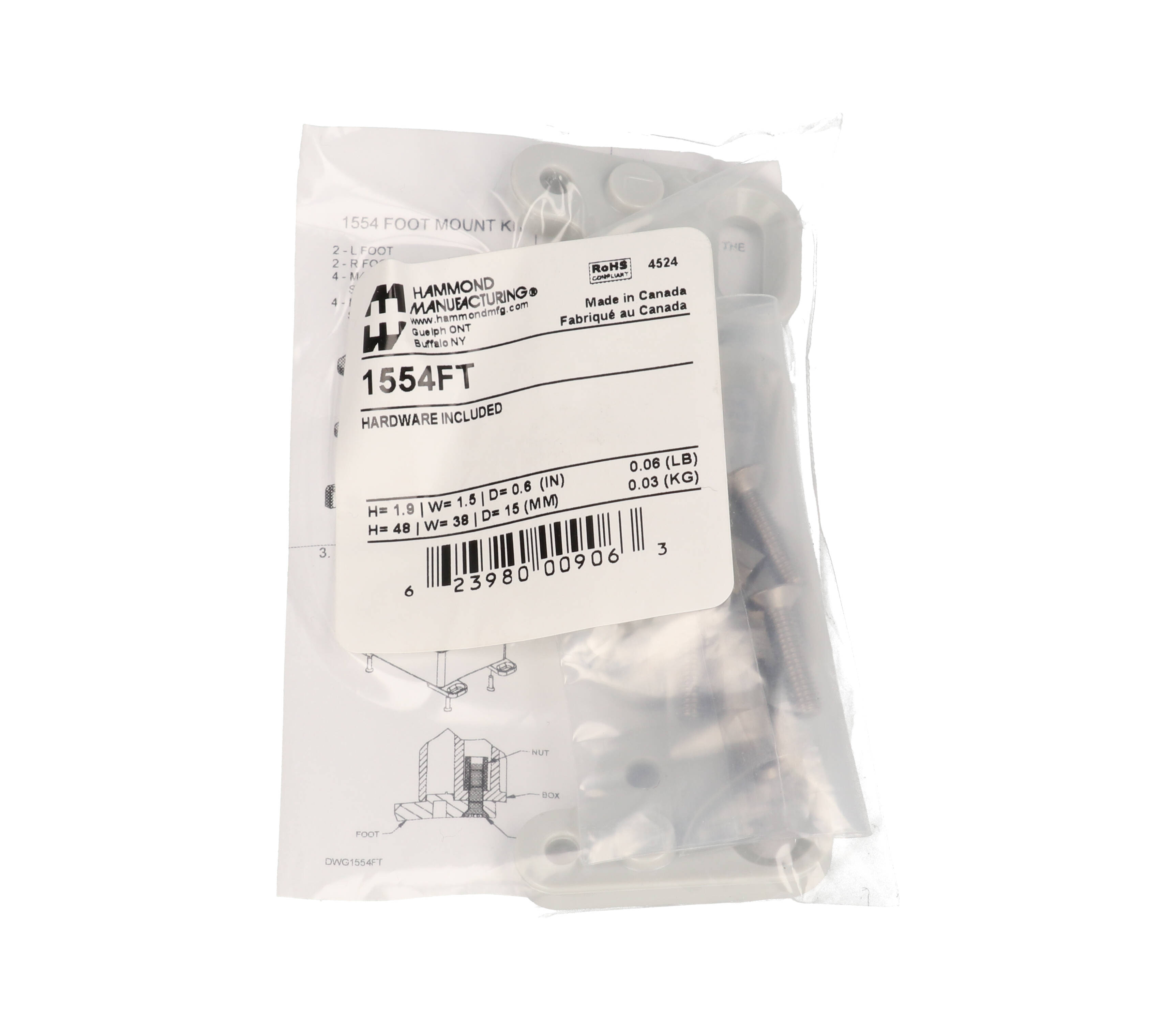

The 1554FT ships in a bag with a shipping weight of 0.06 lbs (0.03 kg). The same wall-mounting holes can alternatively be used to fasten the enclosure directly, so the feet are an optional accessory.
