Hammond 1555VAGY 240x160x90mm ABS Watertight Enclosure, IP66 Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS, 240 x 160 x 90 mm (9.45 in x 6.30 in x 3.54 in), light gray RAL 7035
- Tested to IP66; IK07 impact rating per IEC 62262:2021; UL94-HB material for indoor use
- Inside length 231.29 mm, inside height 80.80 mm; max P.C. board 145.5 x 226.82 mm
- 6 self captivating M4 stainless steel lid screws in corrosion resistant inserts; torque 85 - 92 ozf-in (60-65 cN-m)

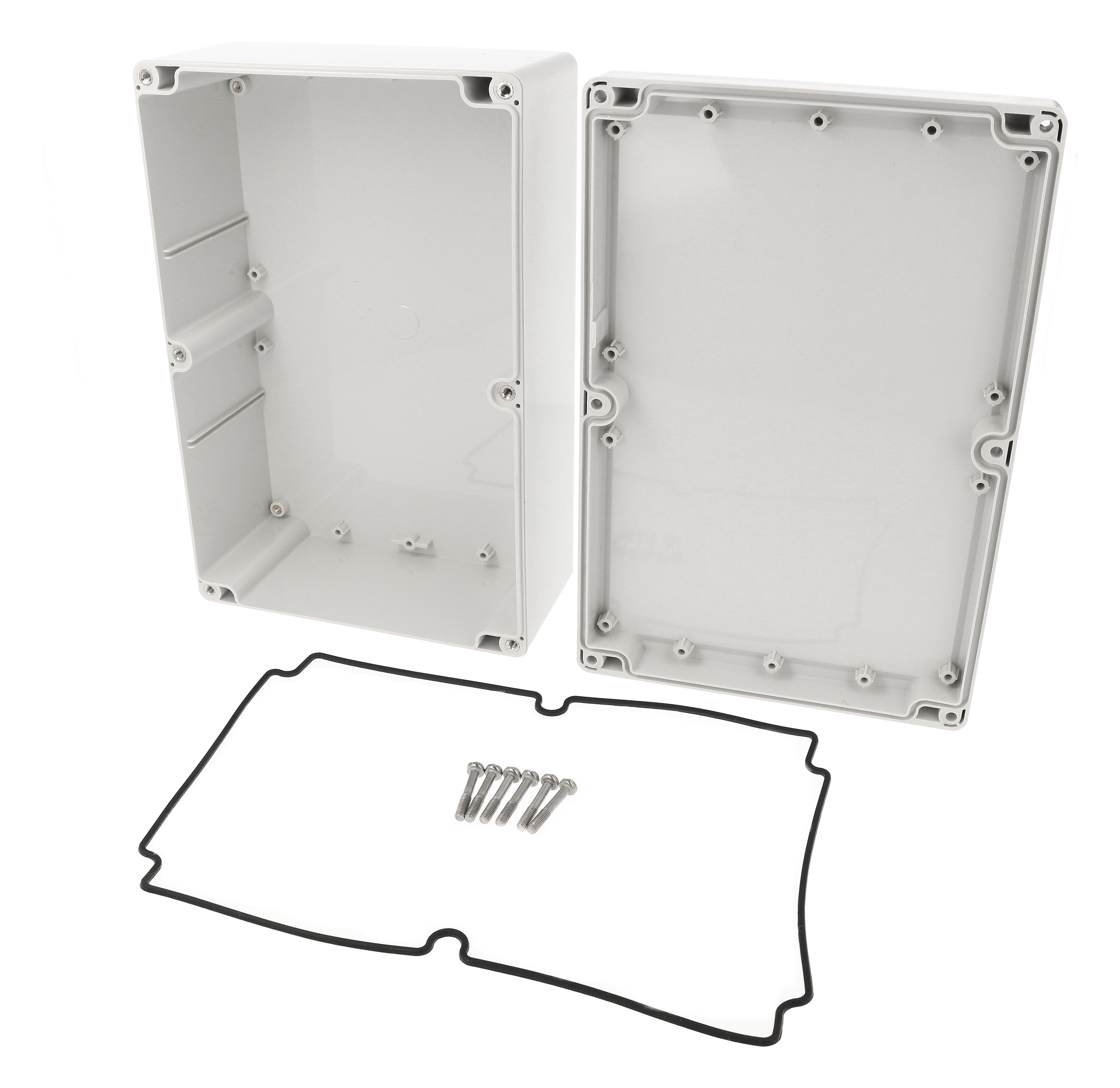

- Tongue and groove lid with replaceable one piece silicone gasket, supplied loose inside the enclosure
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping screw mounting and card guides for 1.5 mm boards
- Wall-mounting holes outside the gasket channel; accepts 1554FT foot kit and 1554VAPL steel inner panel
- Recommended operating temperature -20°C to +60°C (-4°F to +140°F)
The 1555VAGY is a general purpose ABS enclosure from the 1555 Series, sized 240 x 160 x 90 mm (9.45 x 6.30 x 3.54 in) and finished in light gray RAL 7035. It suits OEM engineers, panel builders and integrators who need an indoor, watertight housing for printed circuit boards or DIN rail mounted components.
The lid uses two piece tongue and groove construction with a one piece, high temperature UL listed silicone gasket that is supplied loose inside the enclosure. Six M4 stainless steel machine screws thread into corrosion resistant inserts; the screws are self captivating and the lid holes are threaded on first installation. Recommended cover screw torque is 85 - 92 ozf-in (60-65 cN-m).
Inside, the 1555VAGY offers roughly 231.29 x 147.29 mm of floor space and 80.80 mm of height, with molded DIN rail tabs, threaded M3 brass inserts, standoffs for #6 self tapping screws and vertical card guides for 1.5 mm P.C. boards. Maximum P.C. board size is 145.5 x 226.82 mm, and the 1554VAPL steel inner panel (ordered separately) fits in the box or the lid.
The ABS version is not UL listed but has been tested to IP66, carries an IK07 impact rating per IEC 62262:2021 and a UL94-HB flammability rating, and is recommended for -20°C to +60°C indoors. Four 4.50 mm wall-mounting holes sit outside the gasket channel and also accept the 1554FT foot kit. For UL 508A listing and outdoor ratings, the polycarbonate twin is 1555VA2GY.
Ideal For
- Indoor PCB and electronics housings
- DIN rail component enclosures
- Wall or foot-kit mounted indoor boxes
- Membrane keypad or label front panels
Overview
| Type | Water-tight |
| Series | 1555 Series |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555VAGY |
| Material Version | General Purpose ABS |
| Short Description | 240X160X90MM ABS NEMA ENCL. |
| Enclosure Size Code | 1555VA |
| Alternate Material Version | 1555VA2GY (Polycarbonate, UL Listed) |
Dimensions
| Inside Width | 147.29 mm [5.80 in] |
| Inside Height | 80.80 mm [3.18 in] |
| Inside Length | 231.29 mm [9.11 in] |
| Size (L X W X H) | 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm) |
| Max. P.C. Board Width | 226.82 mm |
| Max. P.C. Board Length | 145.5 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Total Height (Ordering Table) | 3.54 in (90 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554VAGASKET (silicone pre-formed gasket, black, Pkg 2) |
| Replacement Cover Screws | SC583-50 (M4-0.7 x 25mm, Pkg 50), stainless steel |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Steel Inner Panel (Order Separately) | 1554VAPL (fits in box or lid) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) Plated, Pkg 100) |
Identifiers
| UPC | 623980401485 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.34 lbs (0.61 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid, 6 cover screws and preformed silicone gasket |
| Material | ABS Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 6 x M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Internal Inserts | Threaded (M3) integral brass inserts |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Features | Internal DIN rail mounting tabs; lid standoffs; vertical PC card guides for 1.5 mm thick P.C. boards |
| Wall Mounting Holes | 4X 4.50 mm [.18 in], located outside of the gasket channel |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Self-Tapping Screw Mounting | Accepts #6 self-tapping screws |
| Recommended Cover Screw Torque | 85 - 92 ozf-in (60-65 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Environment | Indoor use |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) recommended |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version is not UL approved) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555VAGY?▾
The ordering table lists 9.45 in (240 mm) long, 6.30 in (160 mm) wide and 3.54 in (90 mm) total height; the part page lists 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm). Inside length is 231.29 mm [9.11 in], inside width 147.29 mm [5.80 in] and inside height is 80.80 mm [3.18 in].
Is the 1555VAGY UL listed or suitable for outdoor use?▾
No. The 1555VAGY is the general purpose ABS version, which is not UL listed and is intended for indoor use. It has been tested to IP66 and carries an IK07 impact rating. The UL listed, UV stabilized polycarbonate version is 1555VA2GY.
What comes with the enclosure?▾
The assembly includes the box, lid, 6 M4 stainless steel cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed. The 1554VAPL steel inner panel is ordered separately.
What size circuit board will fit?▾
The maximum P.C. board size is 145.5 x 226.82 mm. Boards can mount on the M3 brass inserts or #6 self-tapping screw positions, and vertical card guides accept 1.5 mm thick P.C. boards.
How tight should the lid screws be?▾
The drawing recommends a cover screw torque of 85 - 92 ozf-in (60-65 cN-m). The lid screws are self captivating, and the lid holes are threaded the first time the screws are installed.
What temperature range is it rated for?▾
The recommended operating temperature for ABS versions is -20°C to +60°C (-4°F to +140°F).
