Hammond 1554APL Galvanized Steel Inner Panel, 42x44 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Galvanized mild steel inner panel for 1554/1555 size A
- Panel size 42 x 44 x 2 mm (1.65 x 1.73 x 0.07 in)
- Fits 1554AGY, 1554A2GY, 1554A2GYCL and 1554A2GYSL
- Provides a steel mounting surface inside 52 x 50 x 40 mm enclosures
- REACH and RoHS compliant
- Light 0.04 lbs (0.02 kg) shipping weight

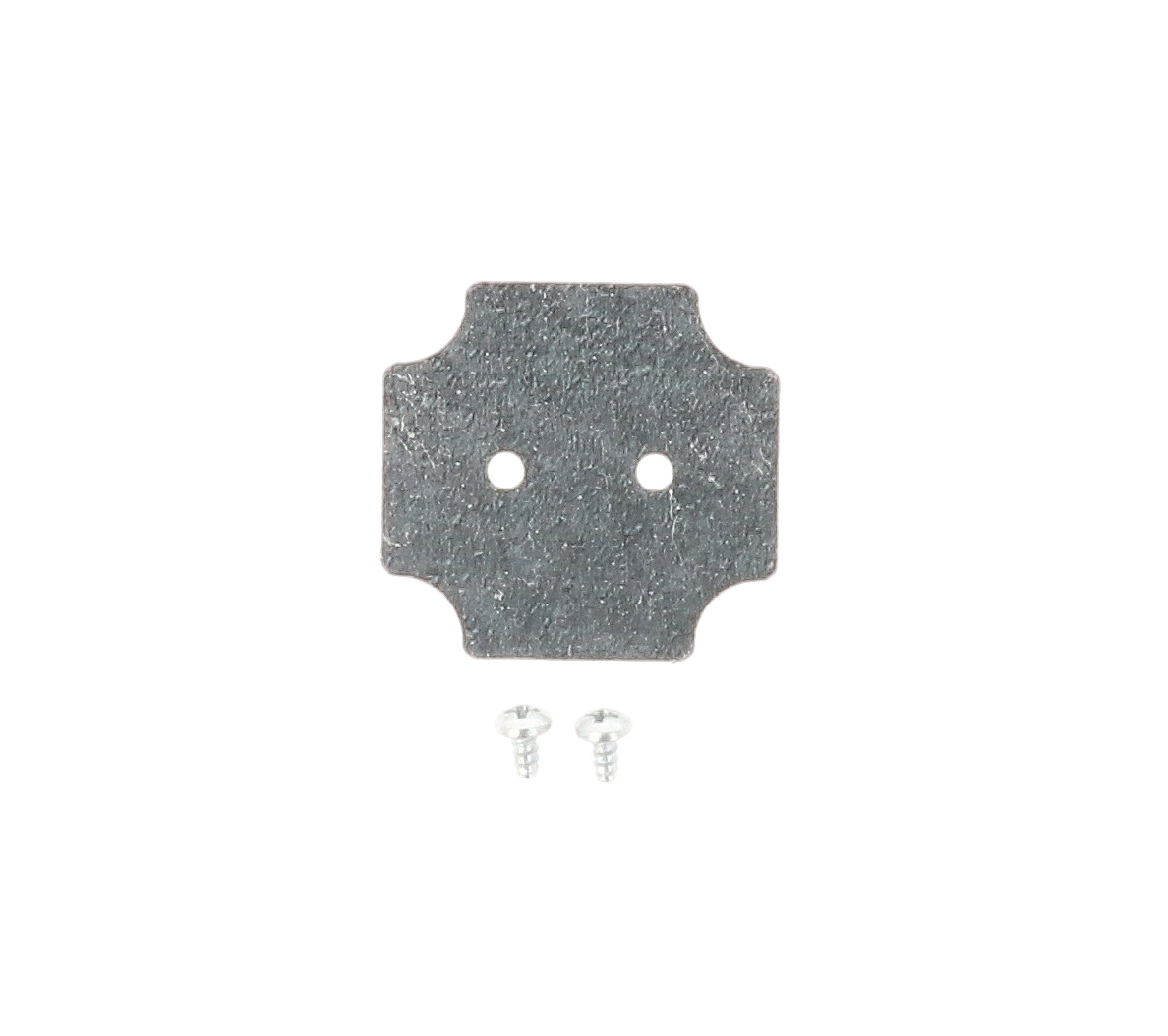

The 1554APL is a galvanized steel inner panel for size A enclosures in the 1554 and 1555 families. It gives panel builders and OEM engineers a flat metal plate to mount components on inside the 52 mm x 50 mm x 40 mm (2.05 in x 1.97 in x 1.57 in) 1554A boxes: 1554AGY, 1554A2GY, 1554A2GYCL and 1554A2GYSL.
The panel is made of mild steel with a galvanized finish and measures 1.65 in x 1.73 in x 0.07 in (42 mm x 44 mm x 2 mm). The drawing confirms the 42.00 mm x 44.00 mm plate outline. It is supplied as an accessory and is ordered separately from the enclosure.
Use the 1554APL when you want to build up a sub-assembly outside the box and drop it in, or when components are easier to fix to steel than to the plastic body. It matches the inner panel listed for size A in the 1554 series ordering table, alongside the 1554AGASKET replacement gasket and SC576-50 lid screws for the same enclosures.
The part is REACH and RoHS compliant, and the part page lists UL file E65324. Shipping weight is 0.04 lbs (0.02 kg).
Ideal For
- Mounting components inside 1554A enclosures
- Pre-building sub-assemblies on a steel plate
- Adding a metal mounting surface to small plastic boxes
Overview
| Type | Inner Panel |
| Description | galvanized steel inner panel for 1554/55 A |
| Part Number | 1554APL |
| Short Description | 1554A INNER PANEL |
Dimensions
| Size (L X W X H) | 1.65 in x 1.73 in x 0.07 in (42 mm x 44 mm x 2 mm) |
| Panel Outline (Drawing) | 42.00 mm [1.65 in] x 44.00 mm [1.73 in] |
Identifiers
| UPC | 623980039909 |
| UNSPSC | 39121301 |
| Drawing Revision | REV: 10.04.2024 |
Compatibility
| Fits Enclosures | 1554/1555 size A: 1554AGY, 1554A2GY, 1554A2GYCL, 1554A2GYSL |
| Mating Enclosure Nominal Size | 2.05 in (52 mm) x 1.97 in (50 mm) x 1.57 in (40 mm) |
Packaging & Shipping
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Finish | Galvanized |
| Material | Mild Steel |
| Solid Models | Available in .stp or .x_t |
Compliance & Certifications
| UL File # | E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1554APL fit?▾
Size A of the 1554/1555 series, including 1554AGY, 1554A2GY, 1554A2GYCL and 1554A2GYSL.
What is the 1554APL made of?▾
Galvanized mild steel.
What are its dimensions?▾
1.65 in x 1.73 in x 0.07 in (42 mm x 44 mm x 2 mm).
Is the inner panel included with the enclosure?▾
No. The enclosure drawings mark the steel panel as ordered separately.
