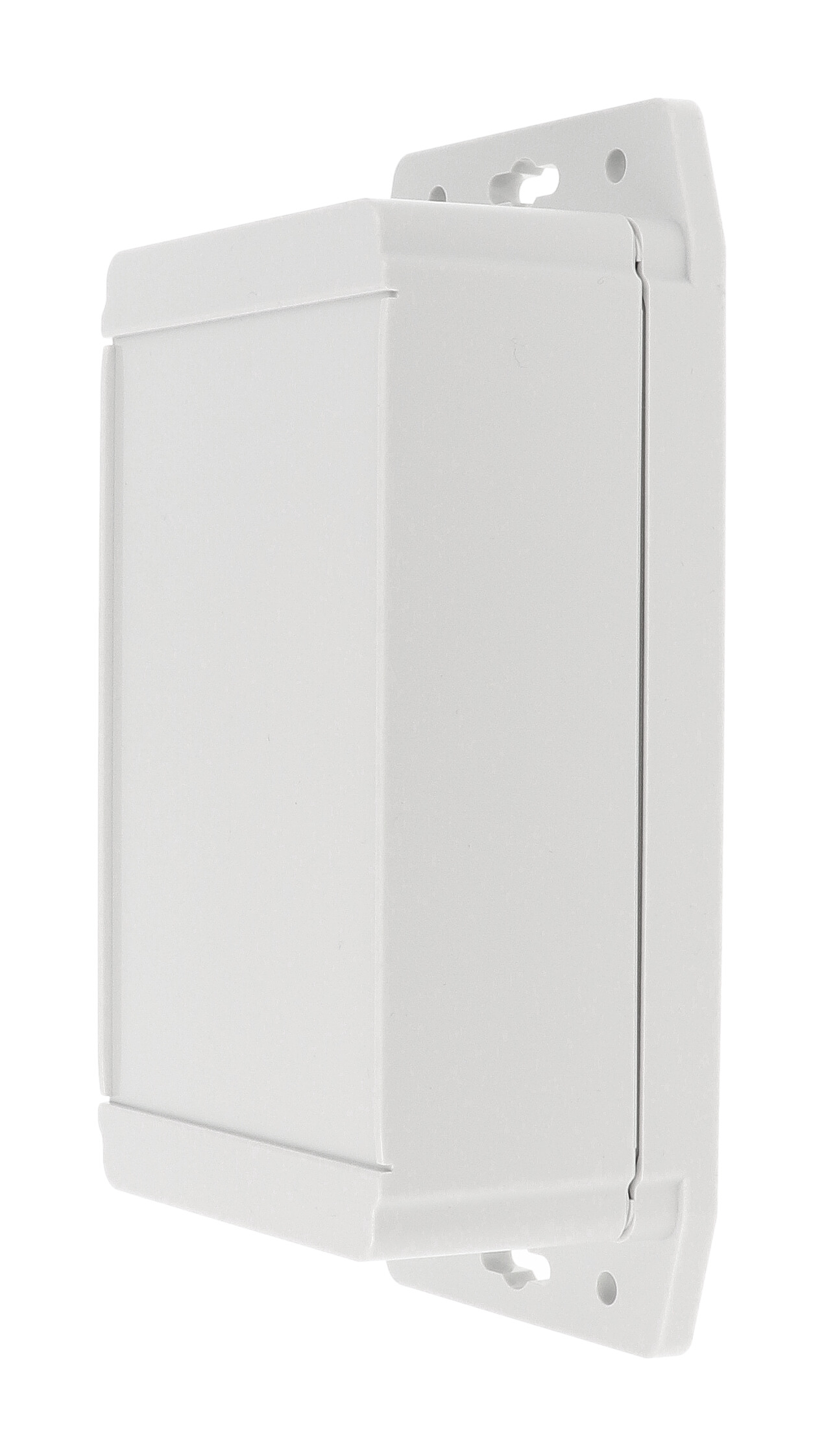

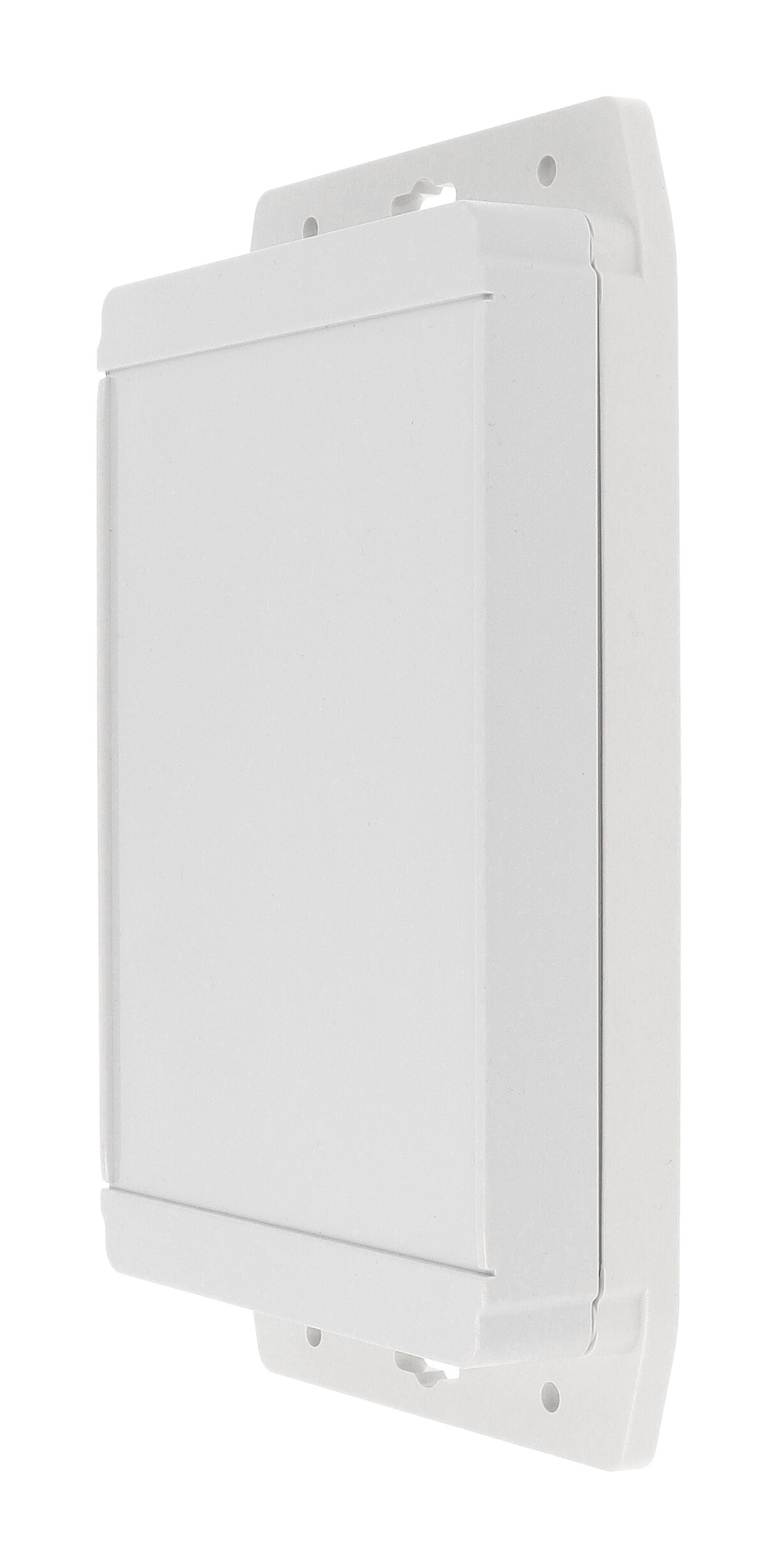

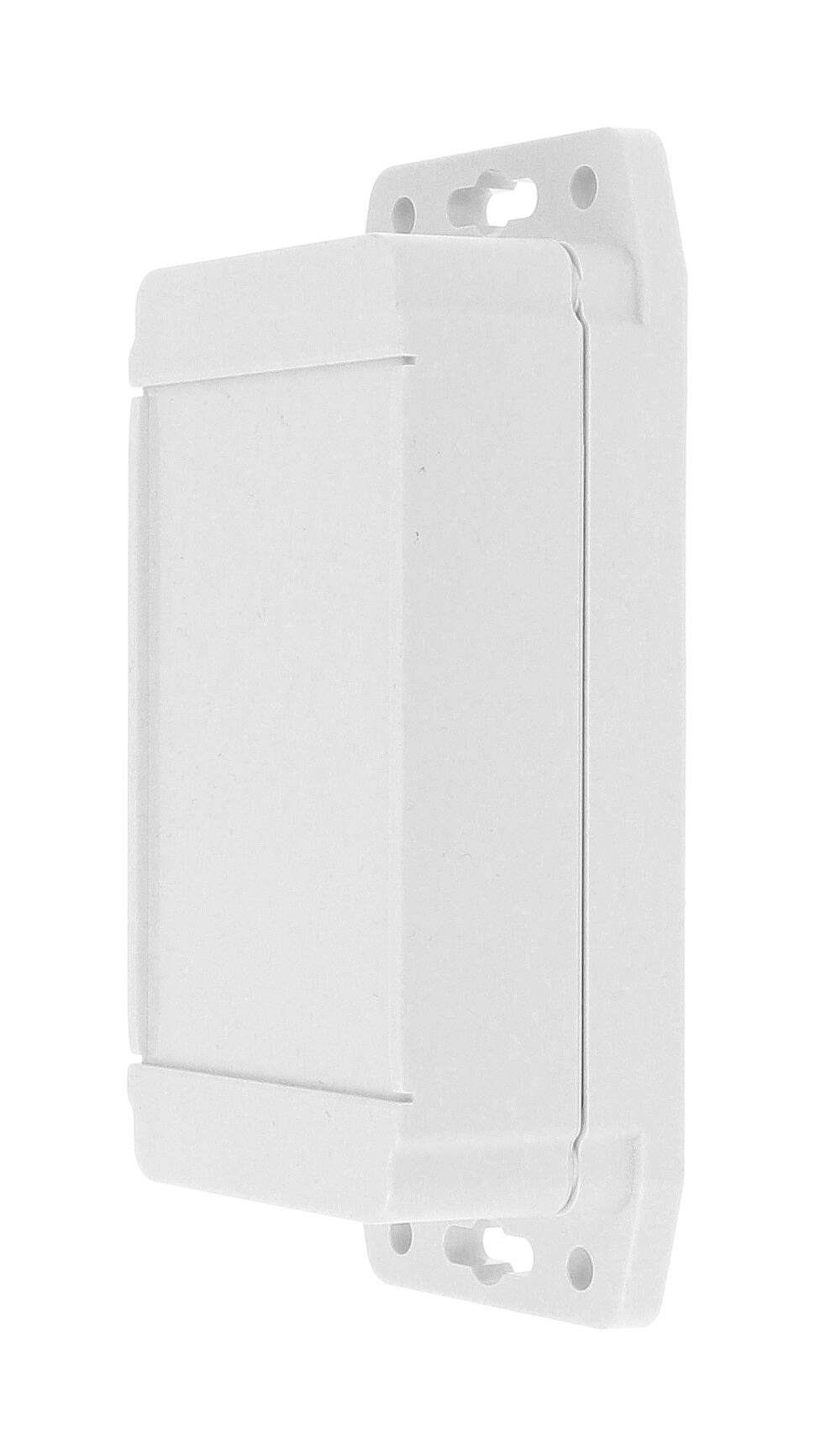

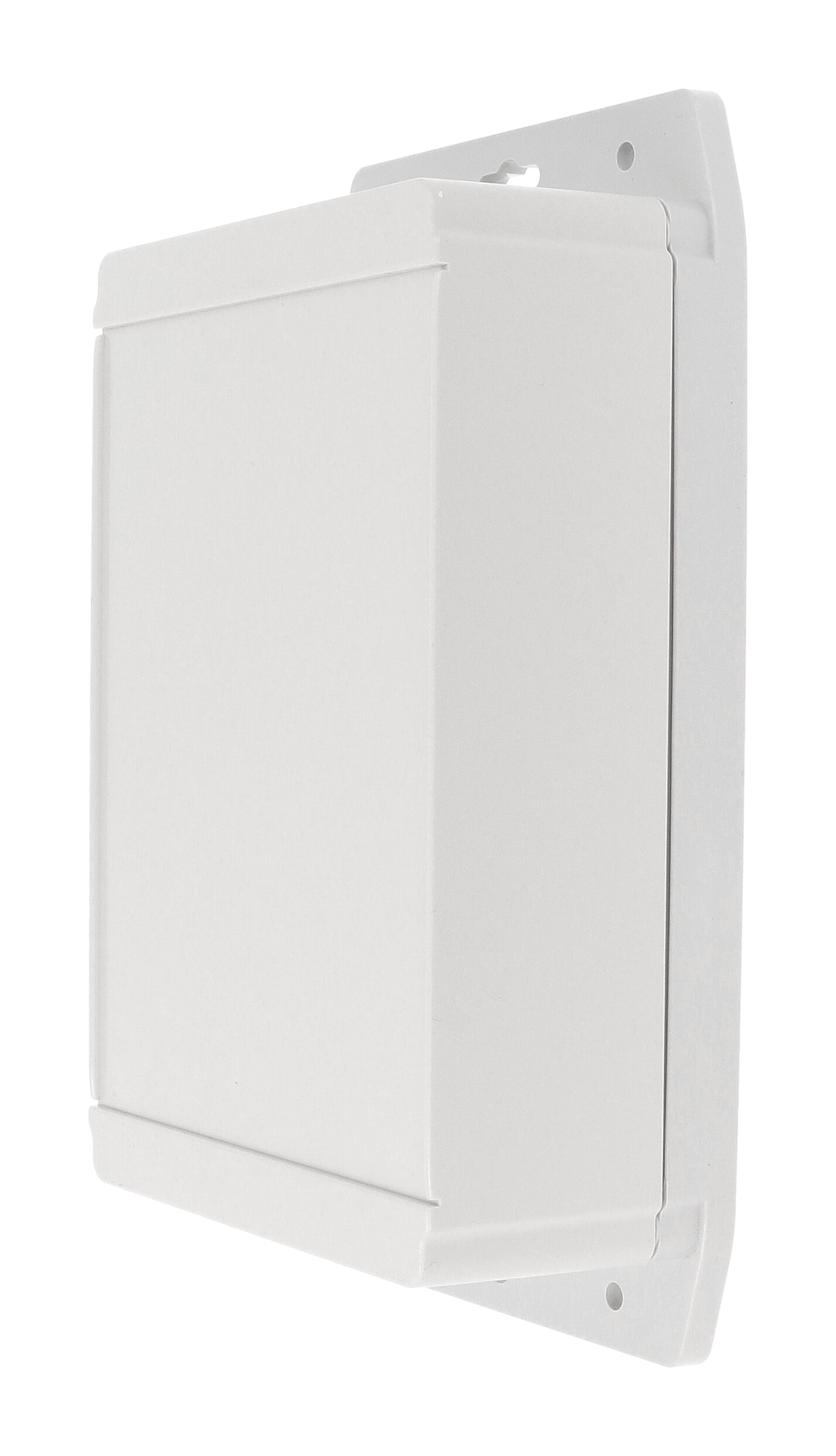

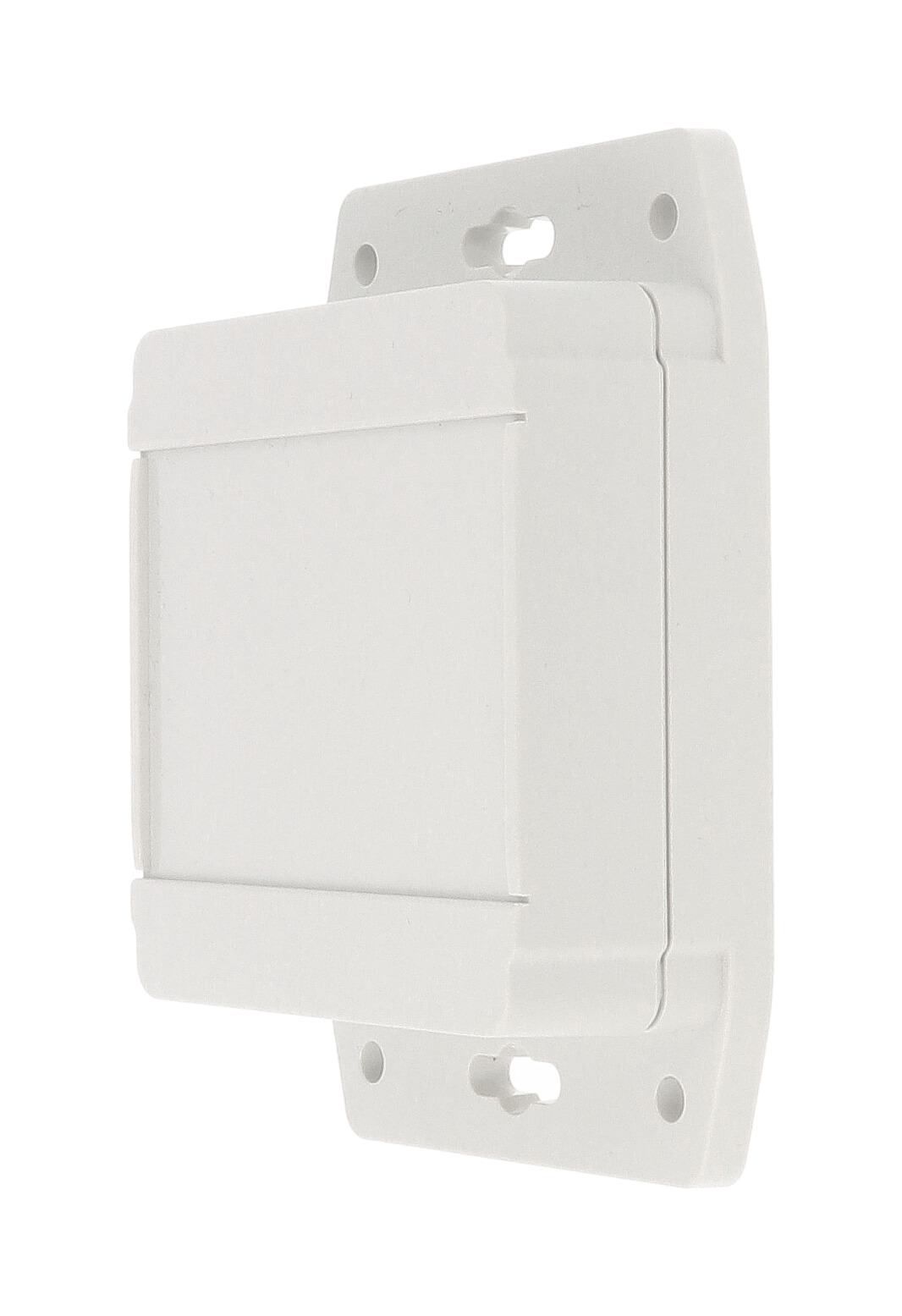

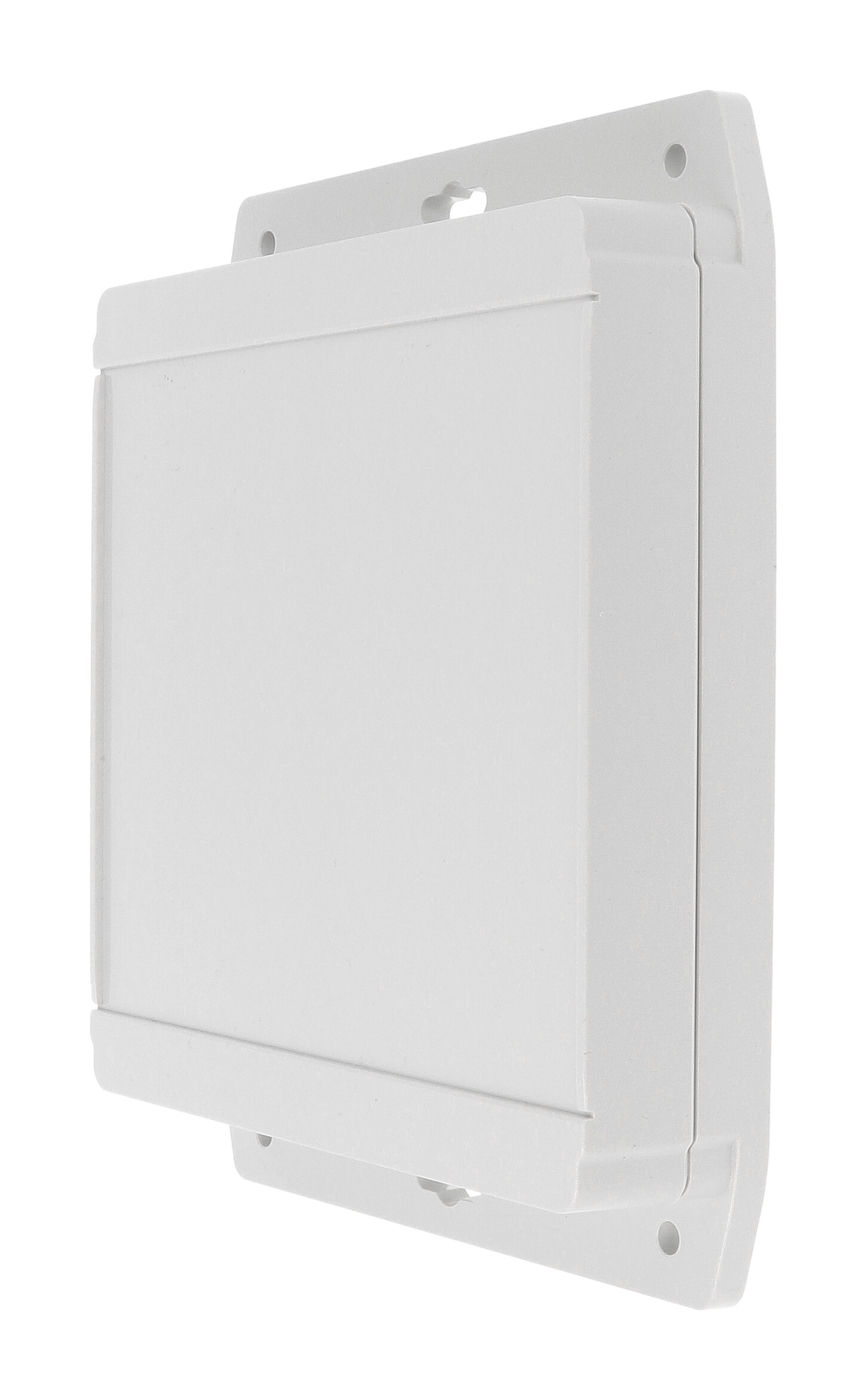

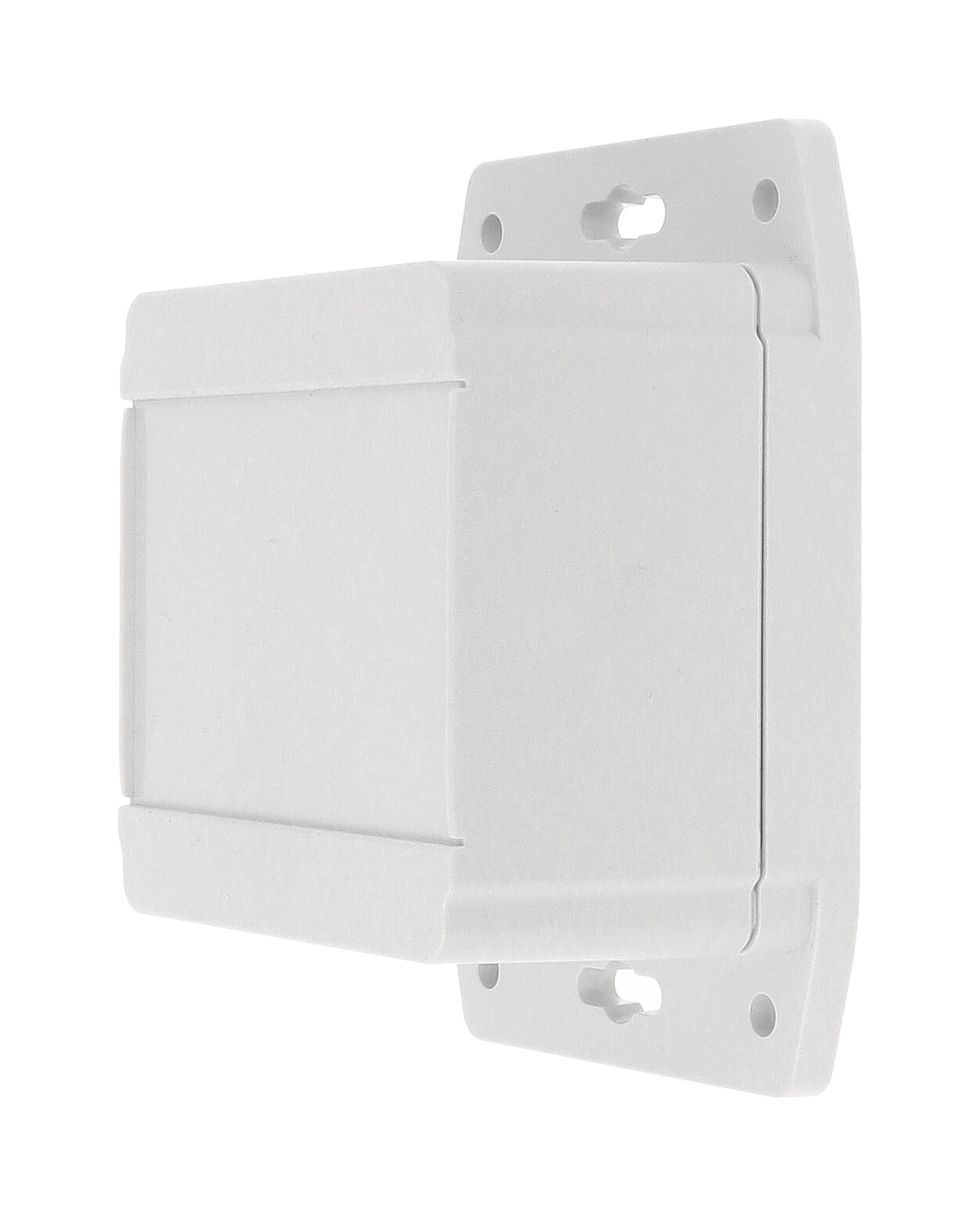

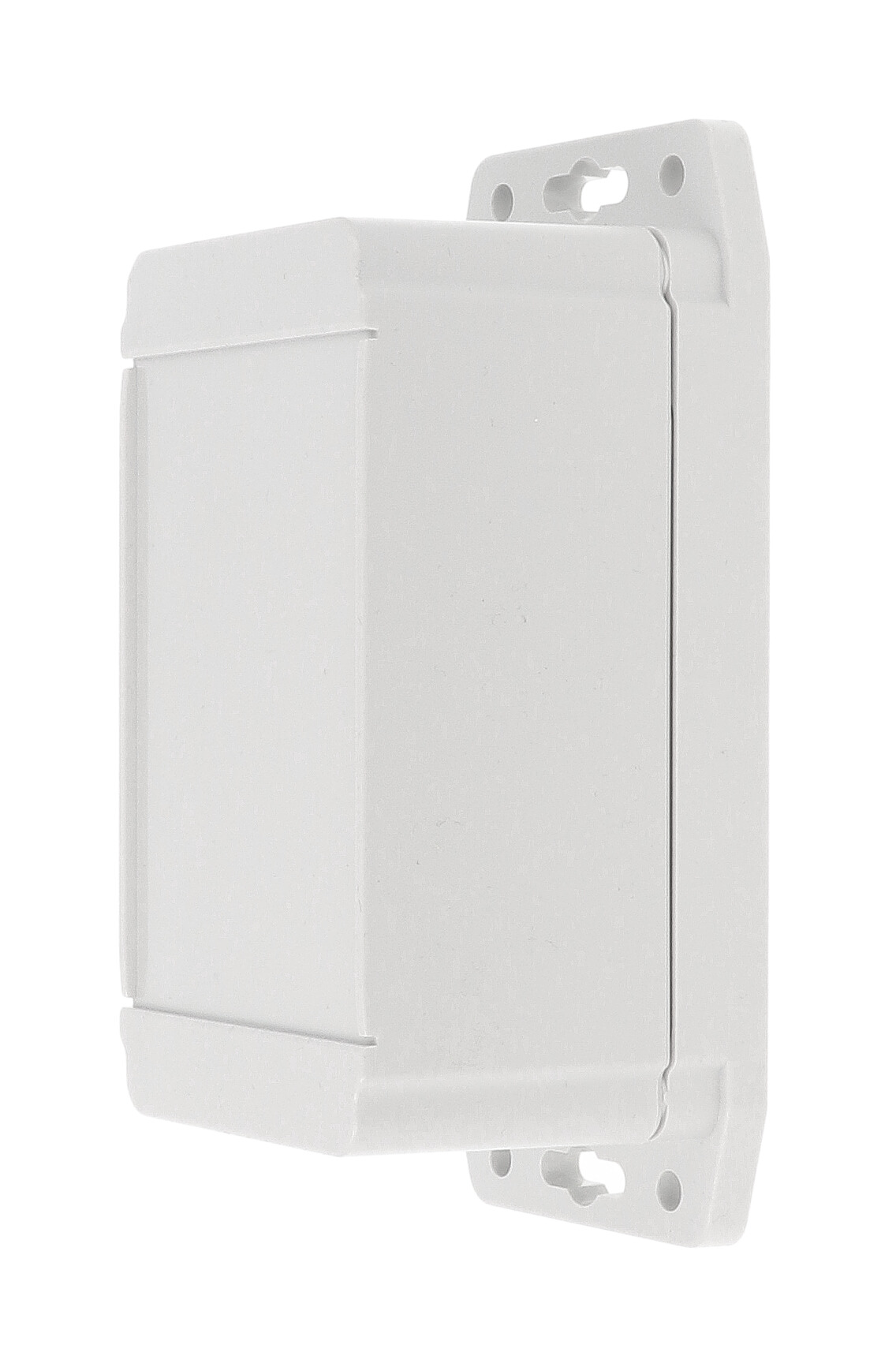

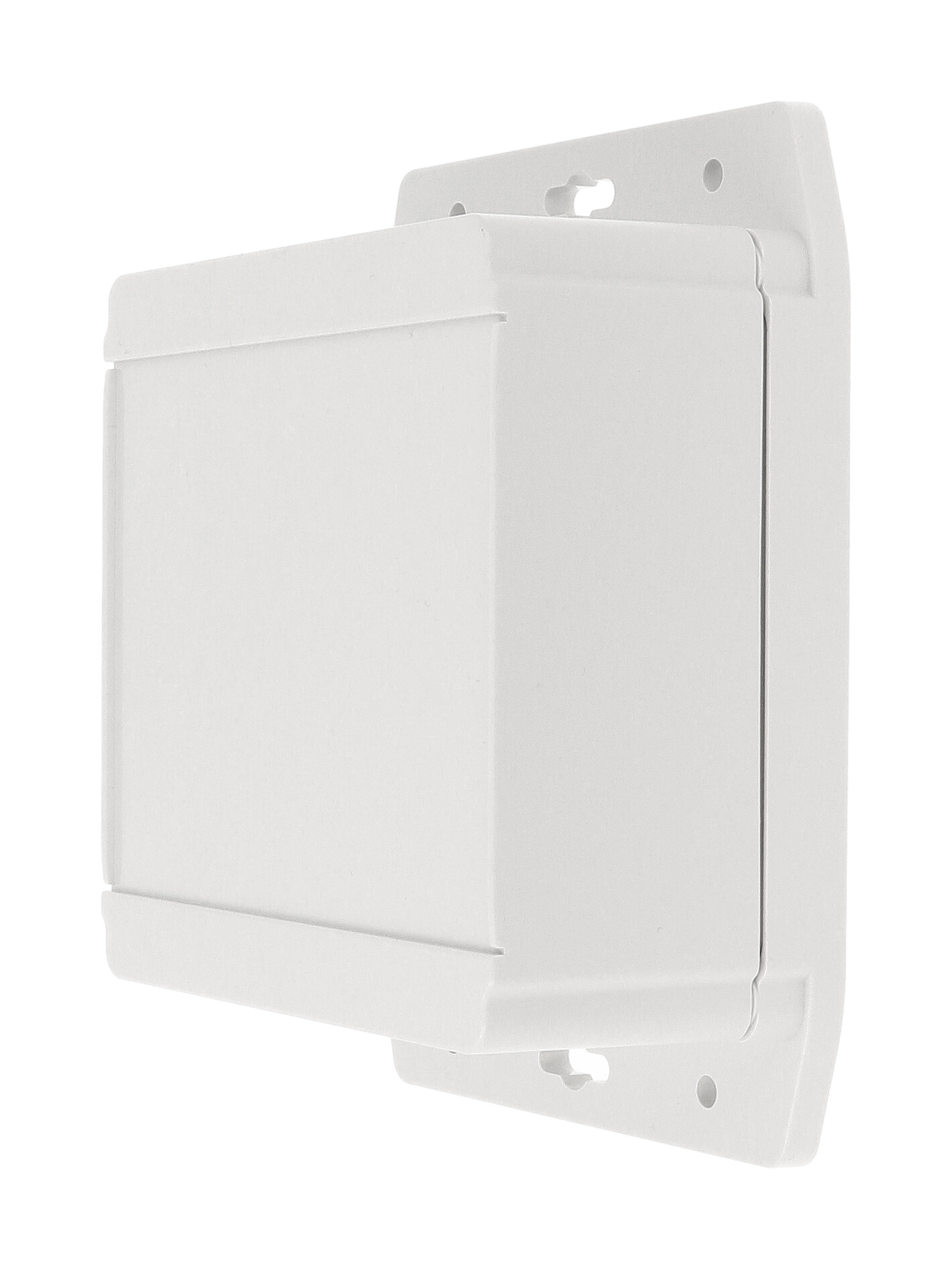

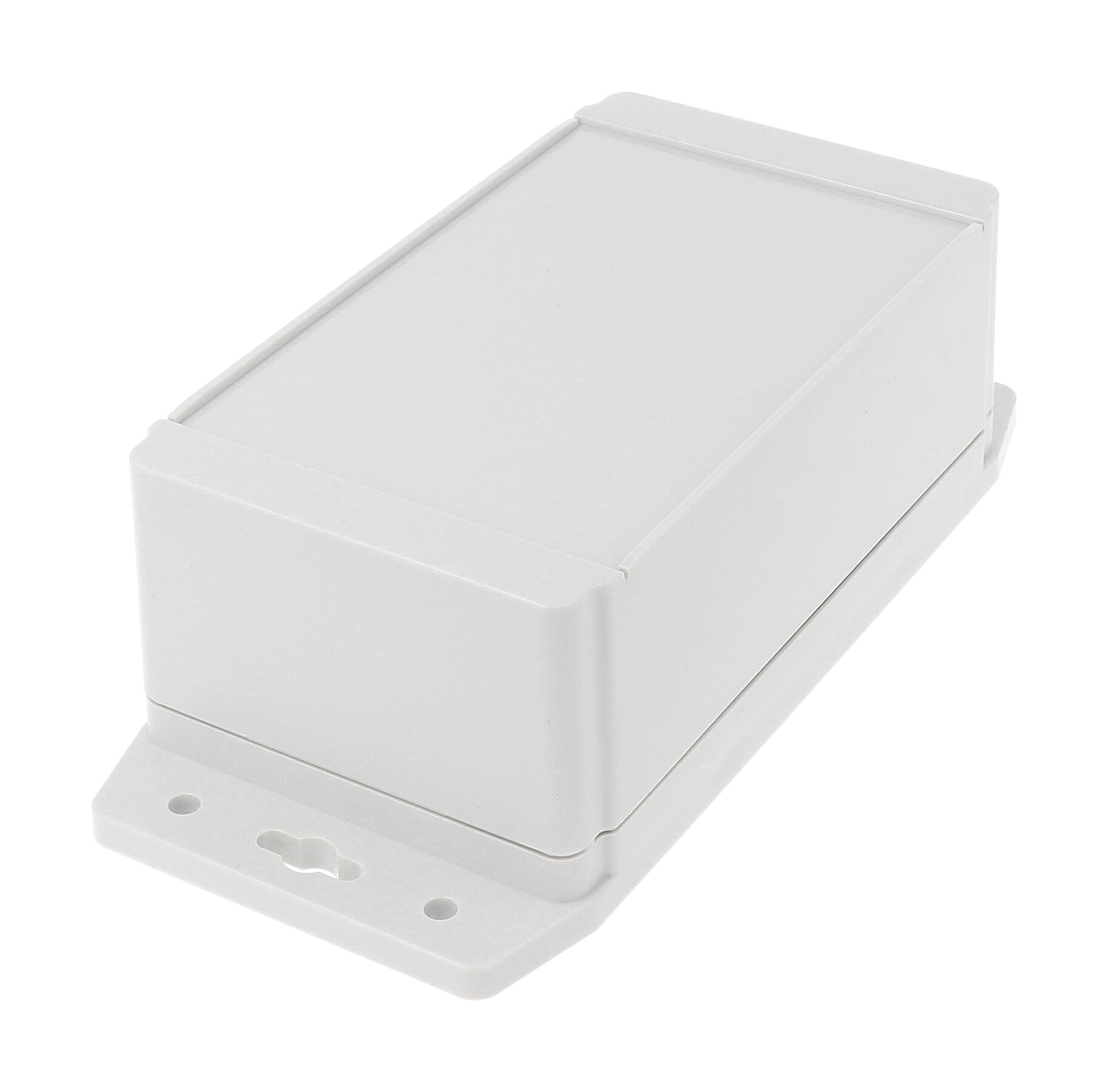

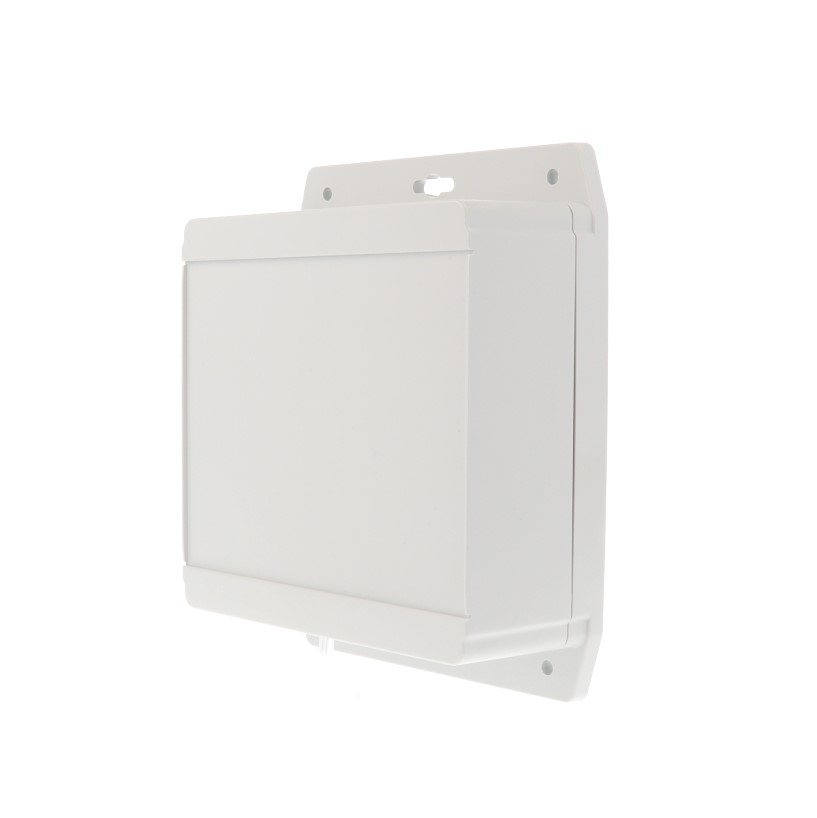

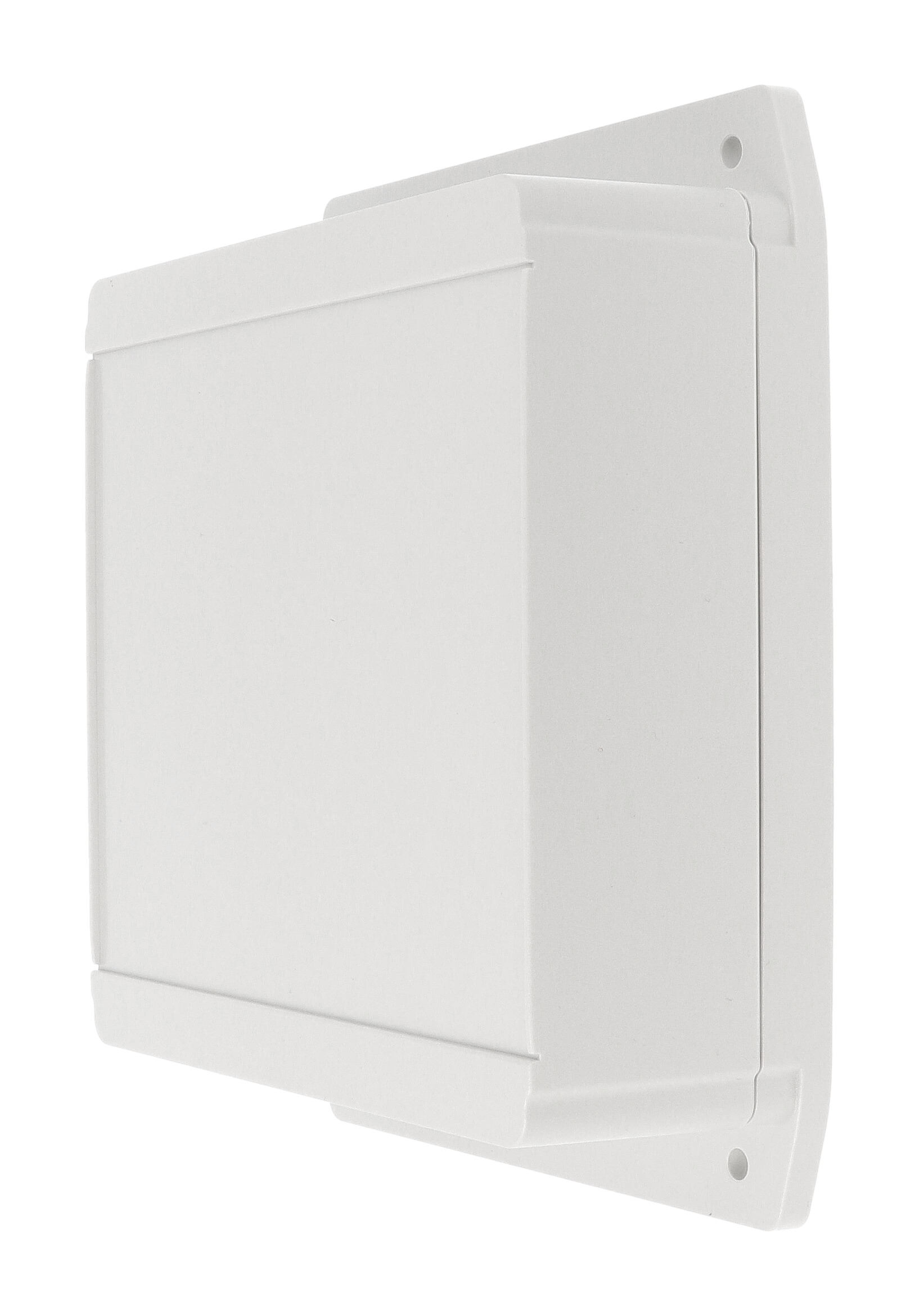

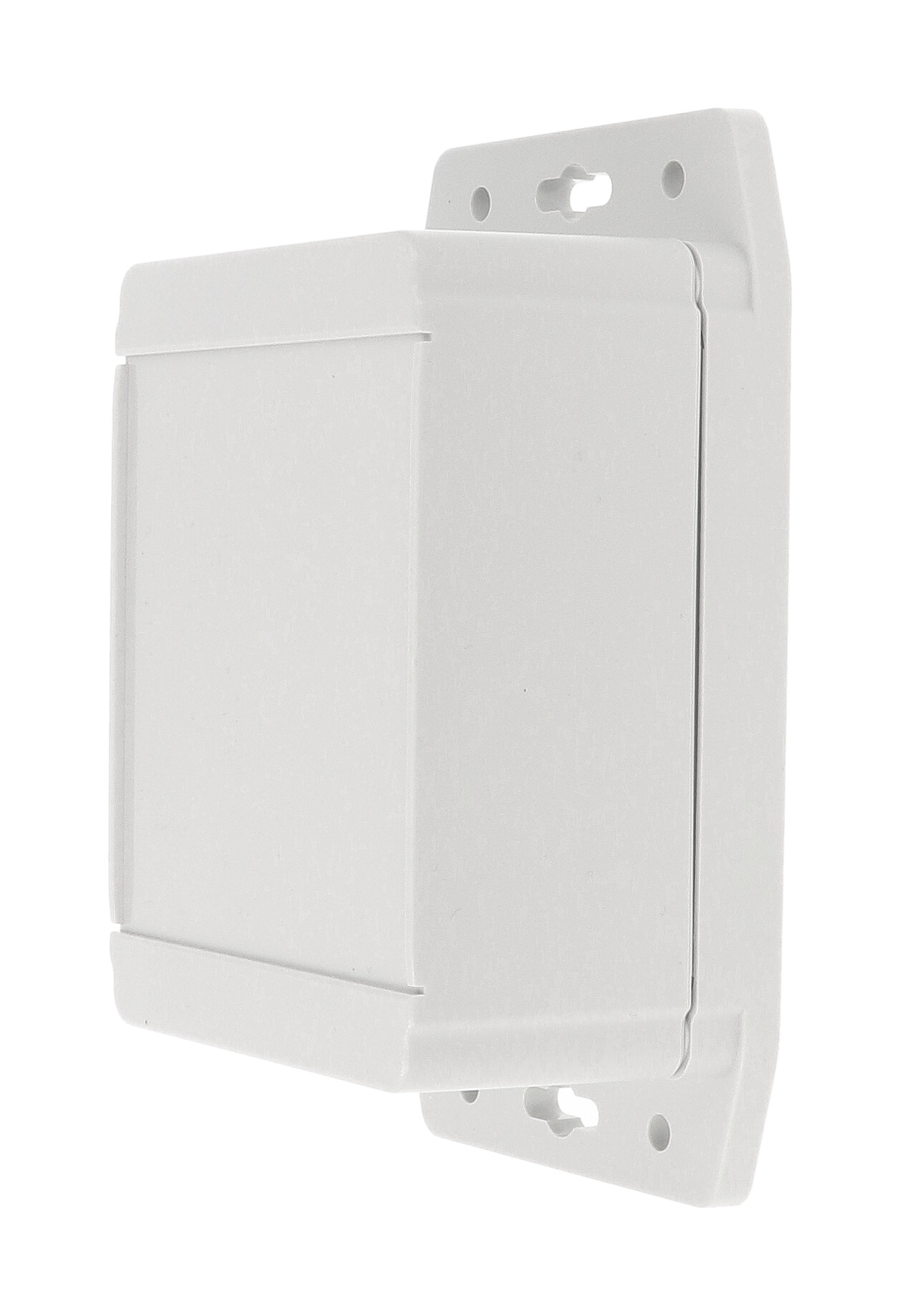

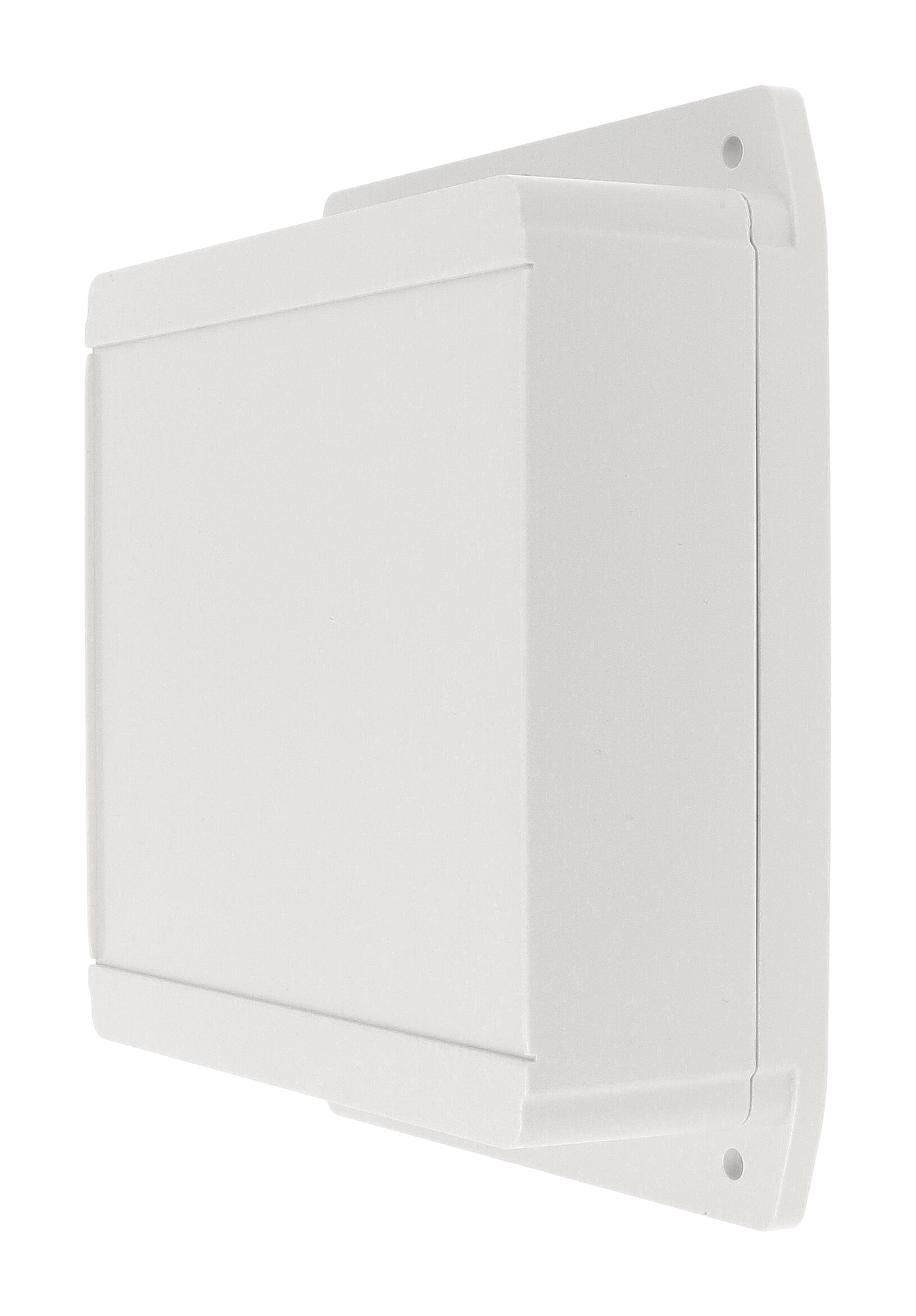

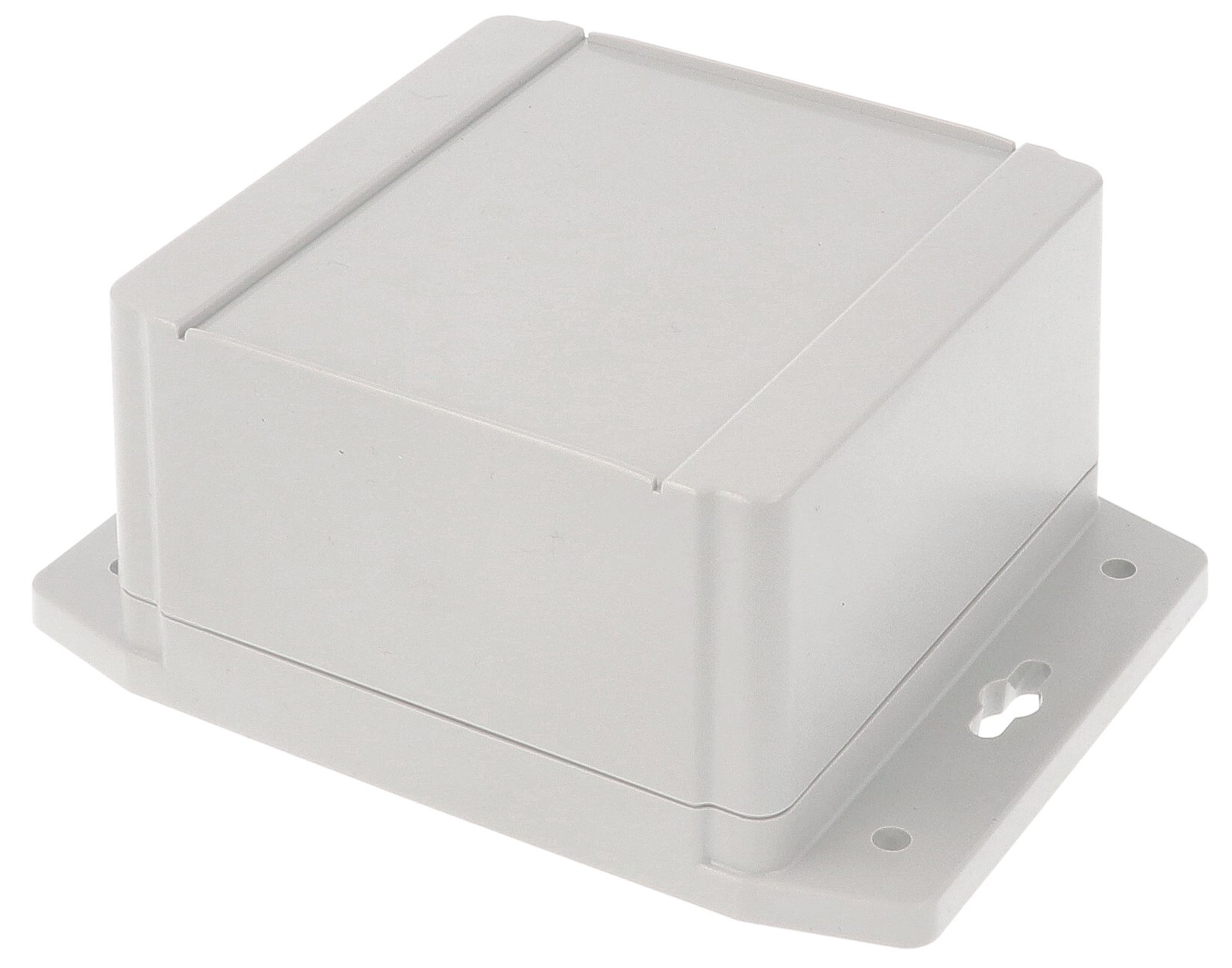

Type 4X, 6P Enclosures · 1555F Series

Features:

• ■Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls, and more).
• ■Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components.
• ■Designed for wall mounting. Interior is secure as lid screws are behind the lid.
• ■Satin texture RAL7035 grey finish with smooth recessed surface on lid for a membrane keypad or label.

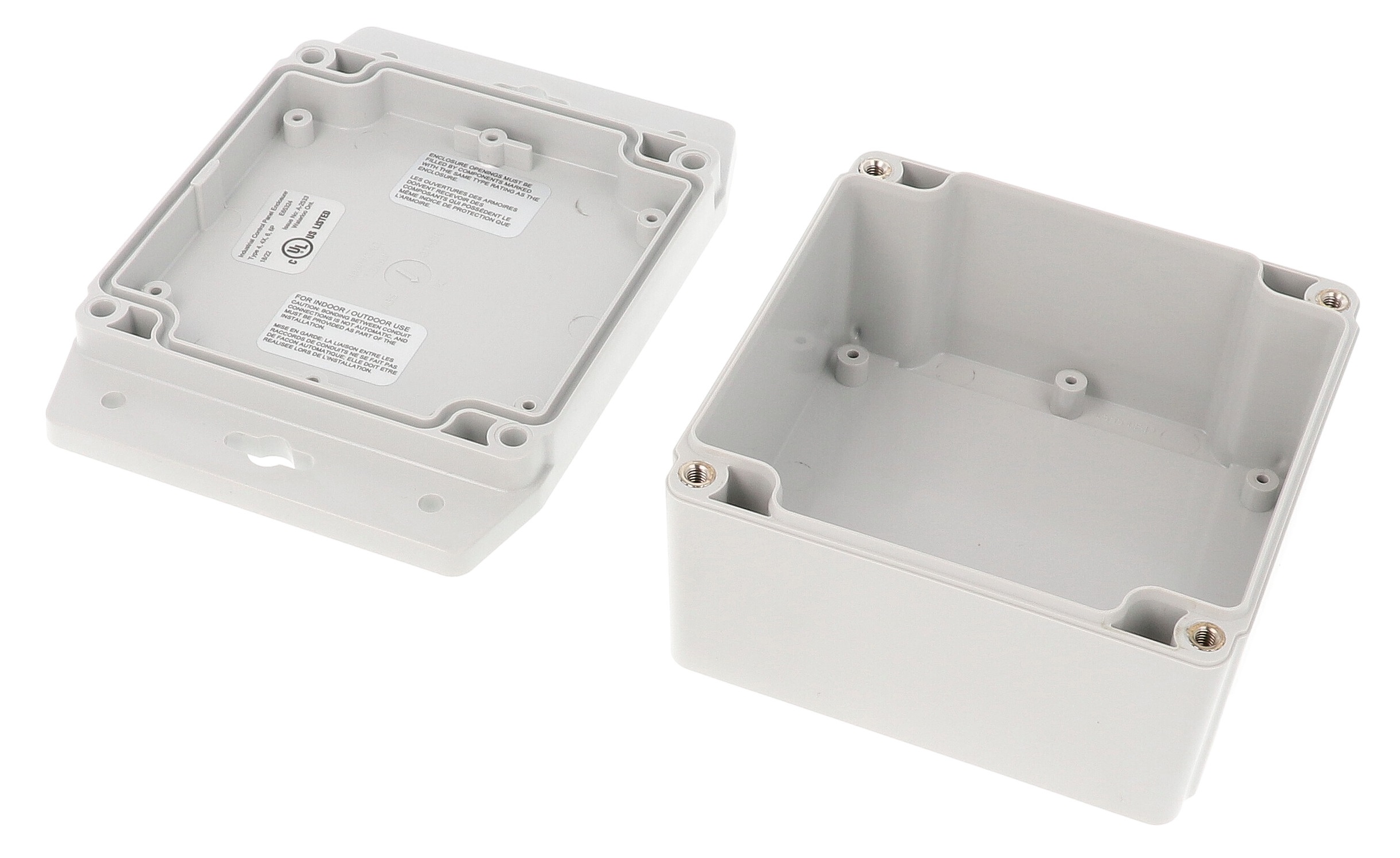

• ■Standoffs molded in the interior of the lid and enclosure are designed for #4 x 1/4” self-tapping screws (our part number 1555TS100 ).
• ■Gasketed lid with two-piece tongue and groove construction provides protection against access of oil, dust, and water.
• ■Gasket is one piece made from high temperature, UL listed silicone. Supplied loose inside the enclosure (not pre-installed).
• ■Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly and disassembly. Order part number SC576-50 for replacement M4 x 20mm lid assembly screws.
• ■Order part number SC576-50 for replacement M4 x 20mm lid assembly screws.
• ■Internal features are maximized for mounting options and vary with size: Internal DIN rail mounting tabs molded into lid (except 1555CF22 & 1555CF42 sizes). Standoffs for PC board or inner panel.
• ■Internal DIN rail mounting tabs molded into lid (except 1555CF22 & 1555CF42 sizes).
• ■Standoffs for PC board or inner panel.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

ABS

• ■ABS versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
• ■ABS versions are not UL listed but have been tested to and meet IP66 ratings.
• ■ABS versions carry an impact rating of IK07 per IEC 62262:2021.
• ■Recommended operating temperature: -20°C to +60°C (-4°F to +140°F).

Polycarbonate

• ■Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
• ■Polycarbonate versions are cUL and UL 508A listed under file #E65324.
• ■Polycarbonate versions have been independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 and 13 ratings. Exception: 1554VGY, 1554V2GY, 1554V2GYCL, and 1554V2GYSL are Type 4, 4X only.
• ■Exception: 1554VGY, 1554V2GY, 1554V2GYCL, and 1554V2GYSL are Type 4, 4X only.
• ■Polycarbonate versions carry an impact rating of IK08 per IEC 62262:2021.
• ■Recommended operating temperature: -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for any specific application.
• ■Customers should conduct their own testing to determine suitability for any specific application.
